1-31 — AIR DUCT (#38469) — 567 parça

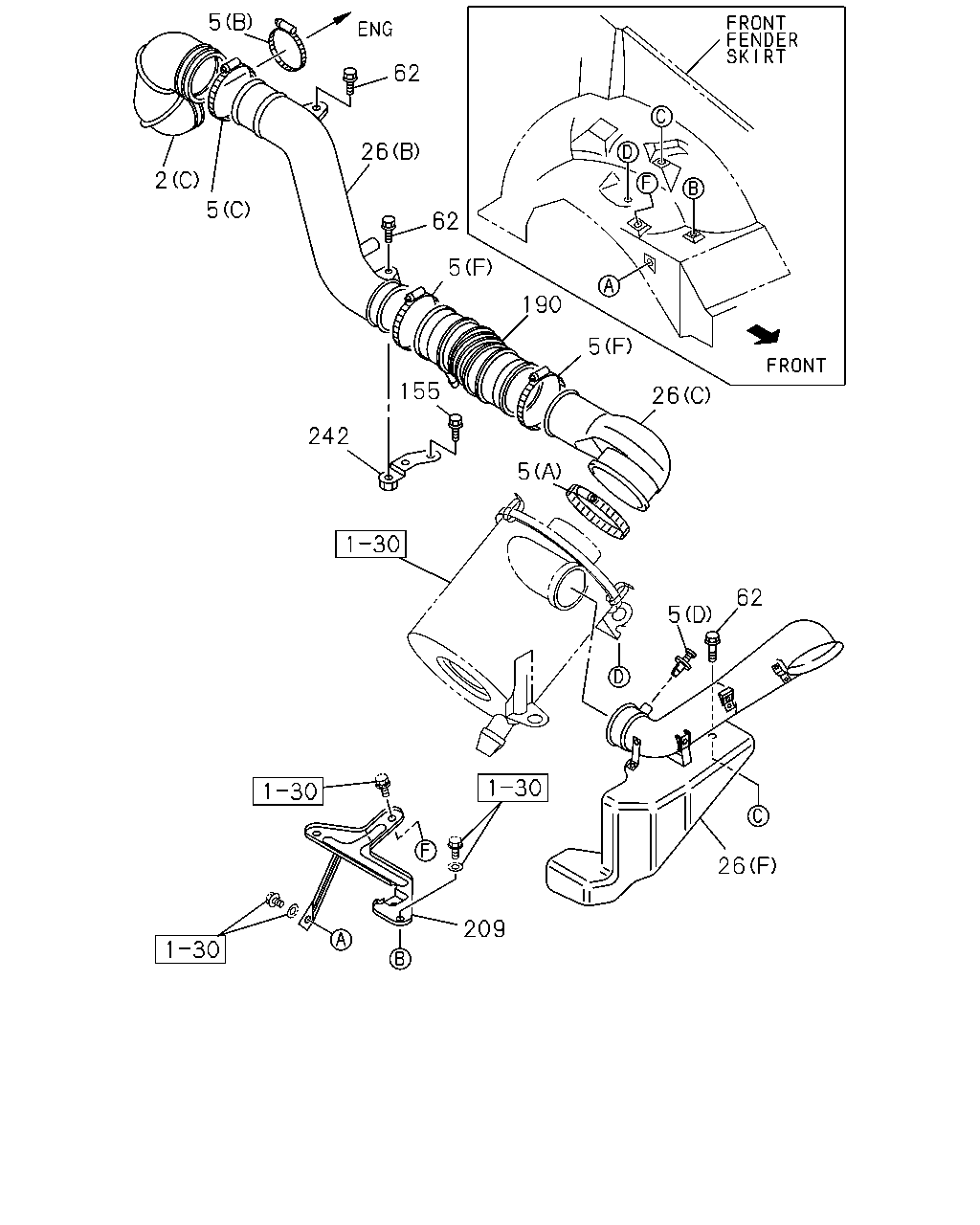

çizim 69383
5 62 26 2 5 62 5 190 5 155 26 242 5 62 5 26 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
CHARGE AIR COOLER<6PL> (E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
(E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (D) 		8-97106-248-0 01 1 9804-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97106-248-0 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 (A) 		8-94320-727-1 01 1 9804- ●
2 03.417 HOSE; ACL
(C) 		8-97129-707-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (C) 		8-97129-707-0 01 1 9910- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 0110- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (E) ID=58-79 		8-94126-771-0 01 1 9804- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95 		1-09707-114-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> 03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (G) 		8-97307-211-0 01 1 0110- ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9804-9909 ● ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9910-0009 ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101-0109 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (A) 		8-97161-656-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804- ●
26 03.417 DUCT; AIR INT
(F) 		8-97082-061-1 01 1 9910- ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-0109 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804- ●
62 03.417 BOLT; AIR INT DUCT
03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9910- ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ● ●
190 03.417 HOSE; CONN,DUCT TO ACL 8-97069-744-5 01 1 9910- ●
209 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> 		8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804-0109 ● ●
209 03.405 BRACKET; ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97086-960-1 01 1 9910- ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94387-686-1 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 0110- ● ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97253-461-0 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-97255-938-0 01 1 0110- ●

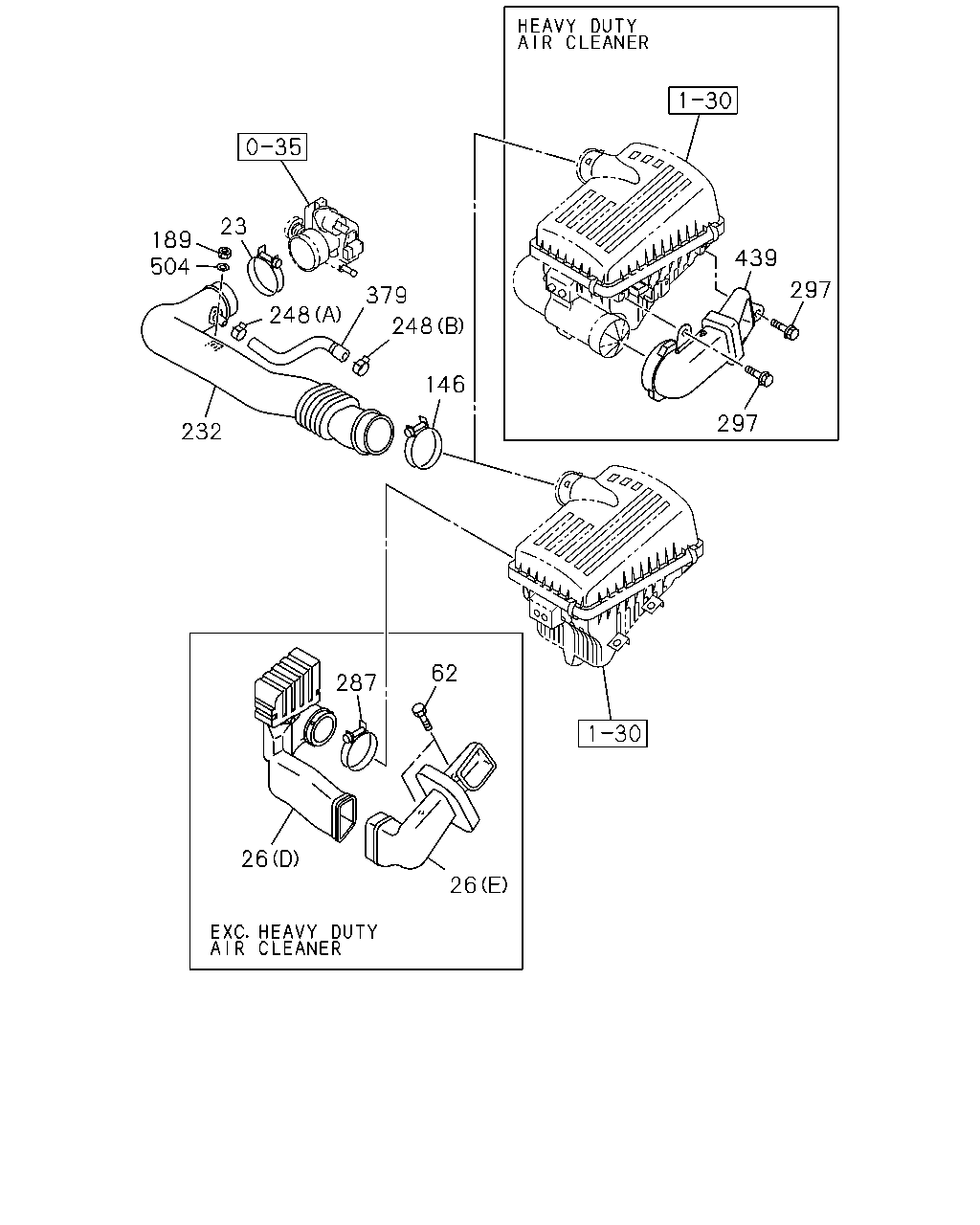

çizim 69448
23 189 504 439 297 379 248 248 146 297 232 62 287 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 03.417 CLIP; HOSE
03.407 ID=75 		8-94101-706-0 01 1 9804- ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (G) 		8-97307-211-0 01 1 0110- ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9804-9909 ● ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9910-0009 ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101-0109 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (A) 		8-97161-656-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804- ●
26 03.417 DUCT; AIR INT
(F) 		8-97082-061-1 01 1 9910- ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-0109 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804- ●
62 03.417 BOLT; AIR INT DUCT
03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9910- ●
146 03.417 CLIP; HOSE,ACL
CHARGE AIR COOLER<6PL> 03.407 ID=68-85 		8-94320-428-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
03.407 ID=68-85 		8-94320-428-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
146 03.417 CLIP; HOSE,ACL
ID=90 		8-97367-377-0 01 1 0306- ●
189 03.403 NUT; BRKT,INL HOSE
16.682 M8 FLANGE 		8-94279-518-0 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-563-3 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-900-3 01 1 9804- ●
248 03.417 CLIP; RUBBER HOSE
08.846 (A) ID=22 		8-94382-401-0 01 1 9804- ●
248 03.417 CLIP; RUBBER HOSE
01.150 (B) ID=24 		8-97010-605-0 01 1 9804- ●
287 03.417 CLIP; AIR DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 03.407 ID=75 		8-94101-706-0 01 1 9804- ●
297 03.417 BOLT; DUCT
CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
379 03.675 HOSE; RUBBER 8-97168-152-0 01 1 9804- ●
439 03.417 DUCT; AIR,ACL
03.407 		8-97181-844-1 01 1 9804- ●
504 03.417 WASHER; PL,HOSE
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9804- ●

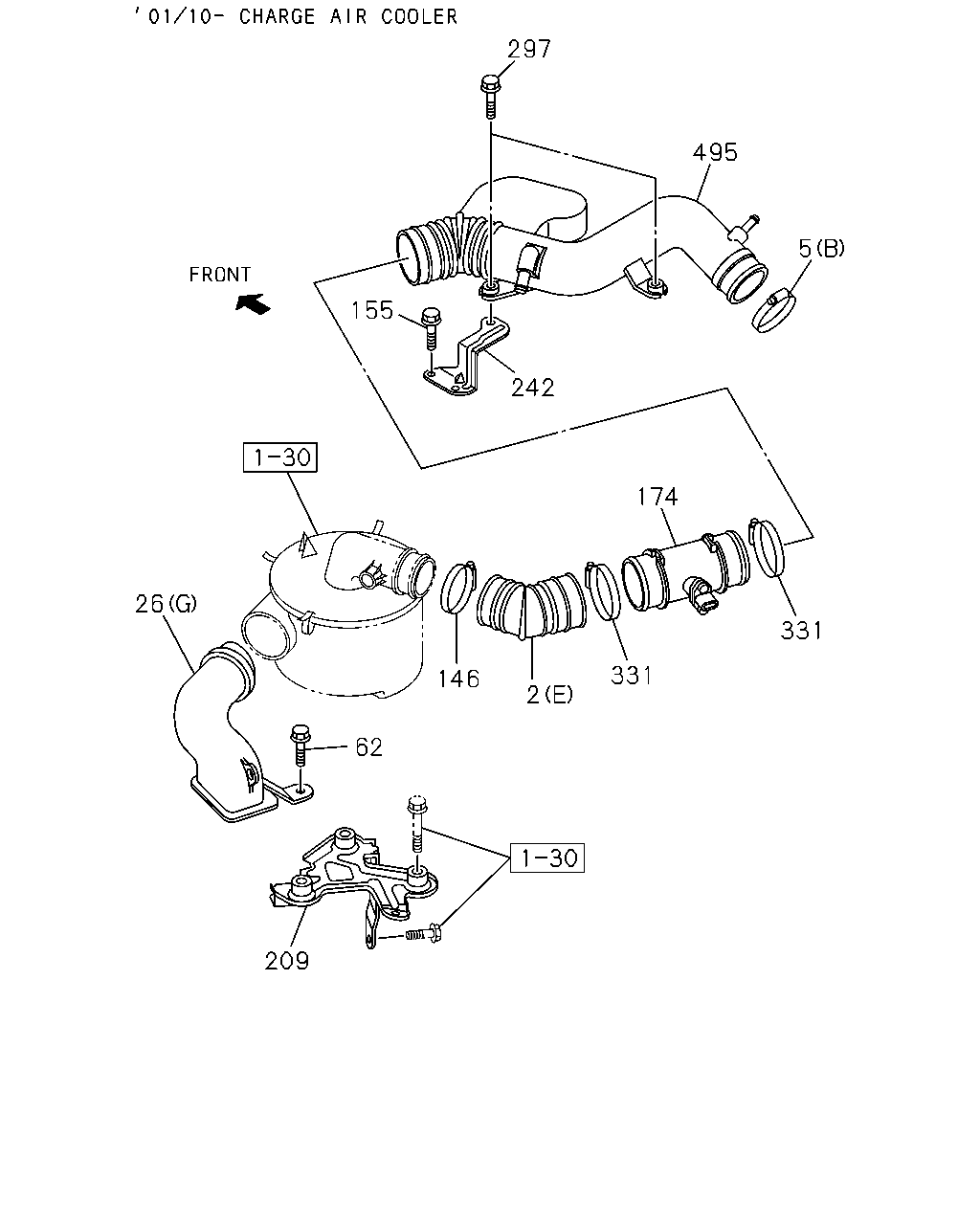

çizim 71329
297 495 5 155 242 174 26 331 331 146 2 62 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
CHARGE AIR COOLER<6PL> (E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
(E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (D) 		8-97106-248-0 01 1 9804-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97106-248-0 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 (A) 		8-94320-727-1 01 1 9804- ●
2 03.417 HOSE; ACL
(C) 		8-97129-707-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (C) 		8-97129-707-0 01 1 9910- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 0110- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (E) ID=58-79 		8-94126-771-0 01 1 9804- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95 		1-09707-114-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> 03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (G) 		8-97307-211-0 01 1 0110- ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9804-9909 ● ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9910-0009 ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101-0109 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (A) 		8-97161-656-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804- ●
26 03.417 DUCT; AIR INT
(F) 		8-97082-061-1 01 1 9910- ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-0109 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804- ●
62 03.417 BOLT; AIR INT DUCT
03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9910- ●
146 03.417 CLIP; HOSE,ACL
CHARGE AIR COOLER<6PL> 03.407 ID=68-85 		8-94320-428-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
03.407 ID=68-85 		8-94320-428-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
146 03.417 CLIP; HOSE,ACL
ID=90 		8-97367-377-0 01 1 0306- ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
CHARGE AIR COOLER<6PL> 		8-97253-456-0 01 1 0110- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-0 01 1 0110- ●
209 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> 		8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804-0109 ● ●
209 03.405 BRACKET; ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97086-960-1 01 1 9910- ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94387-686-1 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 0110- ● ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97253-461-0 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-97255-938-0 01 1 0110- ●
297 03.417 BOLT; DUCT
CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
CHARGE AIR COOLER<6PL> 03.407 ID=77-95 		1-09707-114-0 02 1 0110- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.407 ID=77-95 		1-09707-114-0 02 1 0110- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
ID=90 		8-97367-377-0 01 1 0306- ●
495 03.417 DUCT; INTAKE,TURBO
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97312-681-0 01 1 0110- ●
495 03.417 DUCT; INTAKE,TURBO 8-97312-682-0 01 1 0110- ●

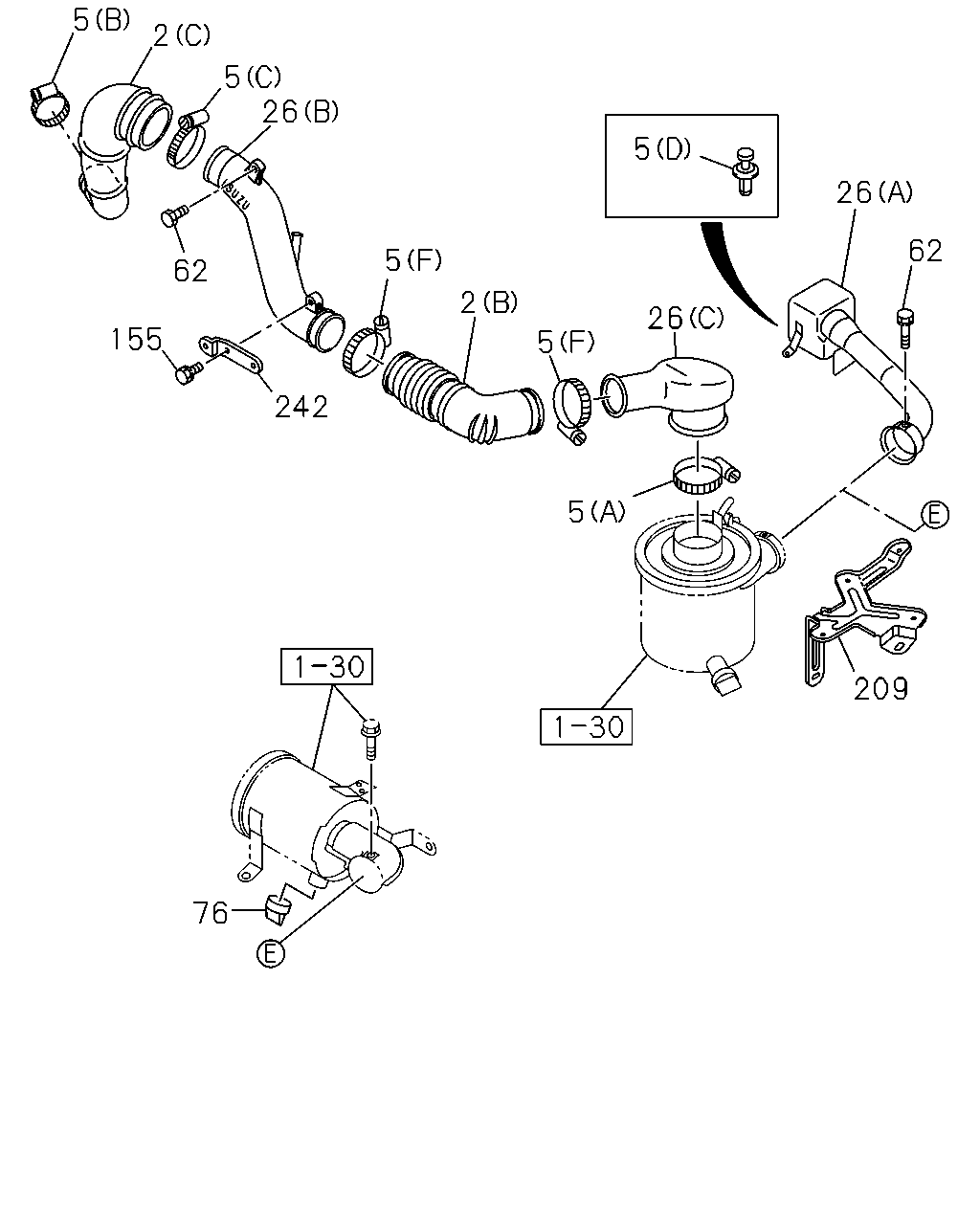

çizim 72052
5 2 5 26 5 26 62 5 62 2 26 155 5 242 5 209 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
CHARGE AIR COOLER<6PL> (E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
(E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (D) 		8-97106-248-0 01 1 9804-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97106-248-0 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 (A) 		8-94320-727-1 01 1 9804- ●
2 03.417 HOSE; ACL
(C) 		8-97129-707-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (C) 		8-97129-707-0 01 1 9910- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 0110- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (E) ID=58-79 		8-94126-771-0 01 1 9804- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95 		1-09707-114-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> 03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (G) 		8-97307-211-0 01 1 0110- ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9804-9909 ● ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9910-0009 ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101-0109 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (A) 		8-97161-656-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804- ●
26 03.417 DUCT; AIR INT
(F) 		8-97082-061-1 01 1 9910- ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-0109 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804- ●
62 03.417 BOLT; AIR INT DUCT
03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9910- ●
76 03.403 VALVE; PRE ACL
AUSTRALIAN EQUIPMENT(RR3) 03.415 		8-94447-157-0 01 1 0010-0012 ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 0101-0109 ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.415 		8-94447-157-0 01 1 0110- ● ●
76 03.403 VALVE; PRE ACL
03.415 		8-94447-157-0 01 1 0110- ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ● ●
209 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> 		8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804-0109 ● ●
209 03.405 BRACKET; ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97086-960-1 01 1 9910- ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94387-686-1 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 0110- ● ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97253-461-0 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-97255-938-0 01 1 0110- ●

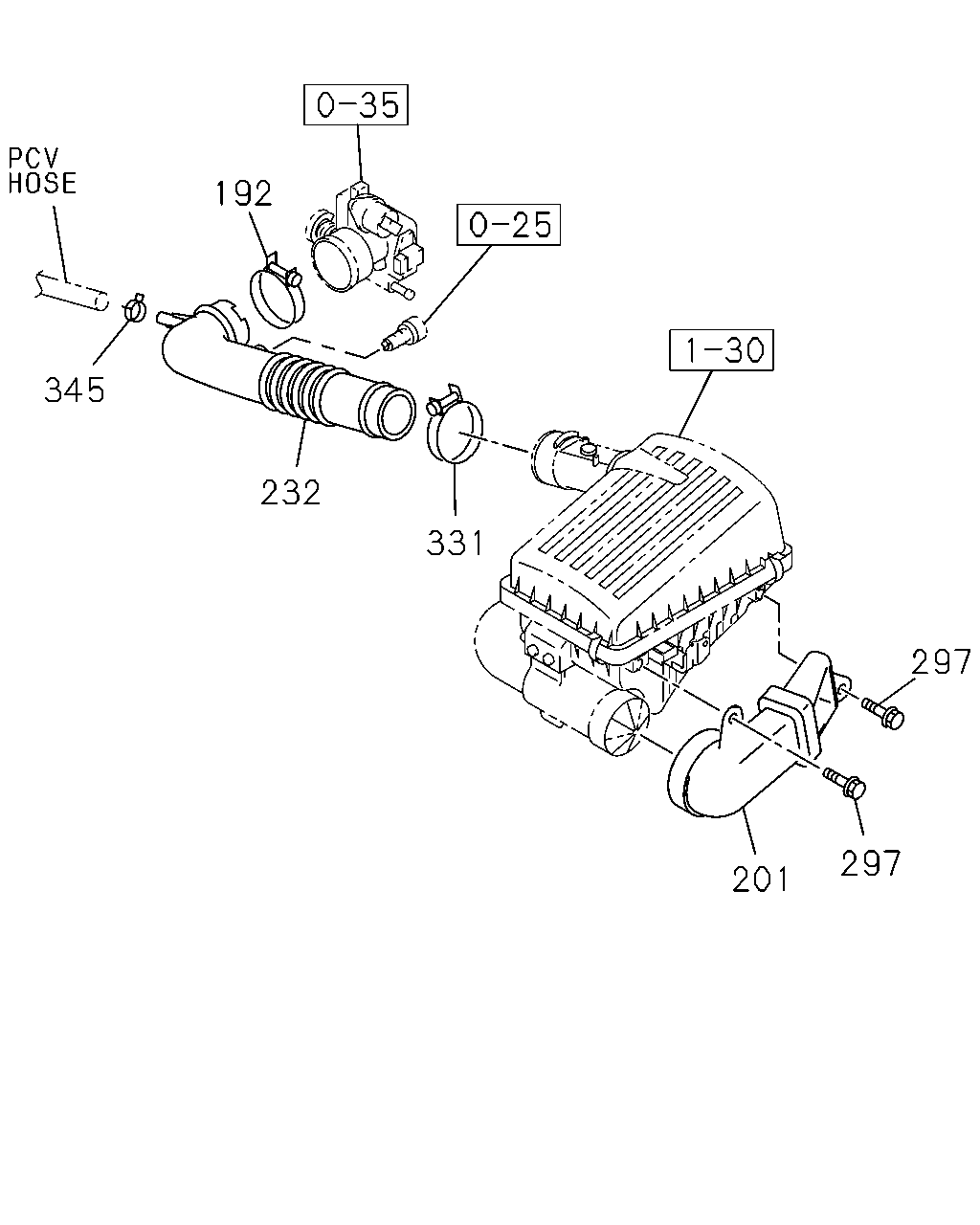

çizim 72104
192 345 232 331 297 297 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
192 03.407 CLIP; HOSE
03.374 ID=80 		8-94111-621-0 01 1 9804- ●
201 03.407 DUCT; SUB ACL 8-97181-844-1 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-563-3 01 1 9804- ●
232 03.417 HOSE; CONN 8-97130-900-3 01 1 9804- ●
297 03.417 BOLT; DUCT
CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
CHARGE AIR COOLER<6PL> 03.407 ID=77-95 		1-09707-114-0 02 1 0110- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.407 ID=77-95 		1-09707-114-0 02 1 0110- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
ID=90 		8-97367-377-0 01 1 0306- ●
345 03.417 CLIP; PCV HOSE
01.762 ID=19 		8-94238-569-0 01 1 9804- ●

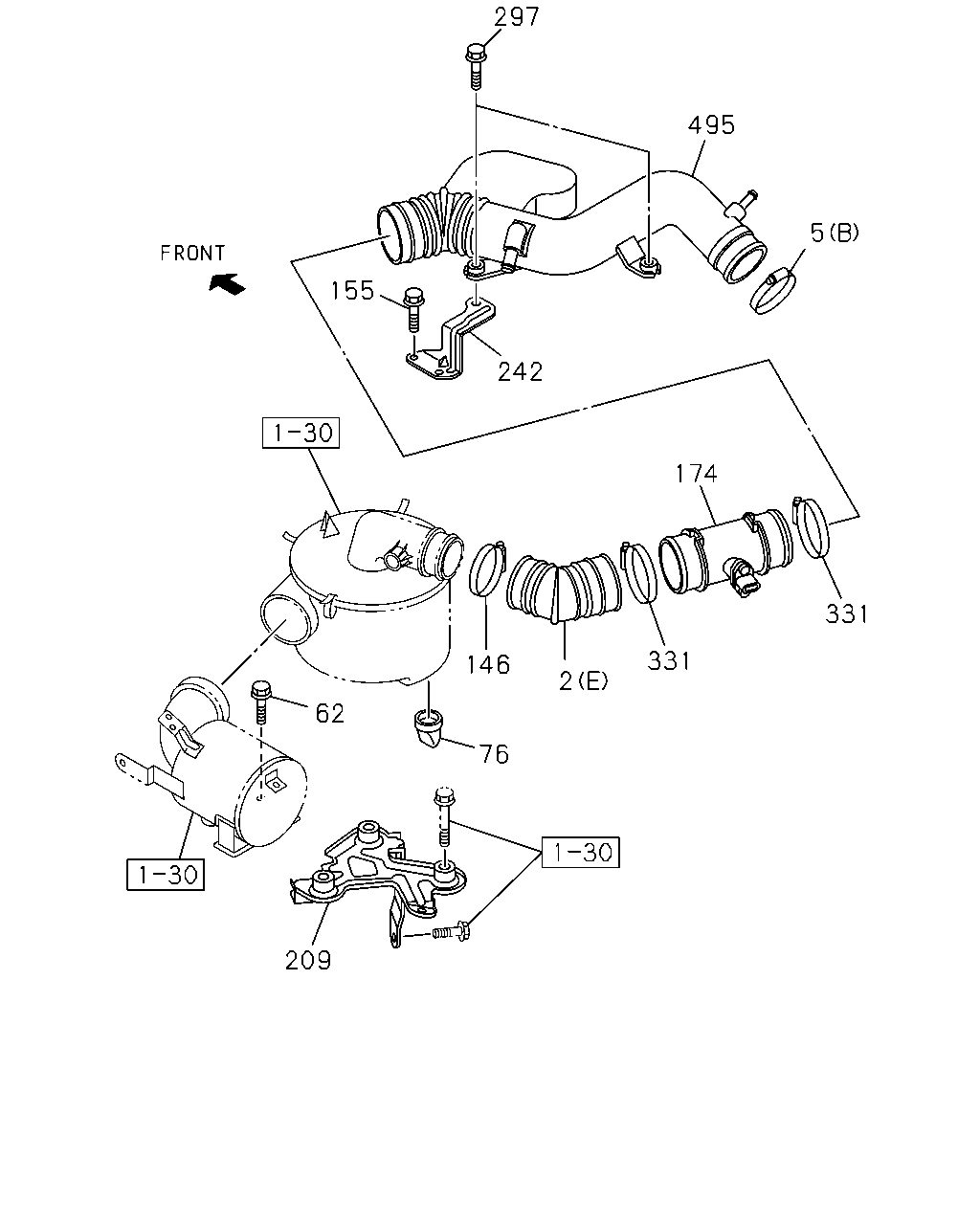

çizim 73830
297 495 5 155 242 174 331 331 146 2 62 76 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
CHARGE AIR COOLER<6PL> (E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
(E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (D) 		8-97106-248-0 01 1 9804-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97106-248-0 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 (A) 		8-94320-727-1 01 1 9804- ●
2 03.417 HOSE; ACL
(C) 		8-97129-707-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (C) 		8-97129-707-0 01 1 9910- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 0110- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (E) ID=58-79 		8-94126-771-0 01 1 9804- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95 		1-09707-114-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> 03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-0109 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804- ●
62 03.417 BOLT; AIR INT DUCT
03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9910- ●
76 03.403 VALVE; PRE ACL
AUSTRALIAN EQUIPMENT(RR3) 03.415 		8-94447-157-0 01 1 0010-0012 ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 0101-0109 ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.415 		8-94447-157-0 01 1 0110- ● ●
76 03.403 VALVE; PRE ACL
03.415 		8-94447-157-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
CHARGE AIR COOLER<6PL> 03.407 ID=68-85 		8-94320-428-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
03.407 ID=68-85 		8-94320-428-0 01 1 0110- ●
146 03.417 CLIP; HOSE,ACL
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
146 03.417 CLIP; HOSE,ACL
ID=90 		8-97367-377-0 01 1 0306- ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
CHARGE AIR COOLER<6PL> 		8-97253-456-0 01 1 0110- ●
174 03.682 SENSOR; AIR FLOW CONT 8-97253-456-0 01 1 0110- ●
209 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> 		8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804-0109 ● ●
209 03.405 BRACKET; ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97086-960-1 01 1 9910- ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94387-686-1 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 0110- ● ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97253-461-0 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-97255-938-0 01 1 0110- ●
297 03.417 BOLT; DUCT
CHARGE AIR COOLER<6PL> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0110- ●
297 03.417 BOLT; DUCT
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
297 03.417 BOLT; DUCT
HEAVY DUTY AIR CLEANER<K46> 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9804- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
CHARGE AIR COOLER<6PL> 03.407 ID=77-95 		1-09707-114-0 02 1 0110- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.407 ID=77-95 		1-09707-114-0 02 1 0110- ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
03.330 ID=90 		8-94156-938-0 01 1 9804-0305 ●
331 03.417 CLIP; CONN HOSE,AIR FLOW SENSOR
ID=90 		8-97367-377-0 01 1 0306- ●
495 03.417 DUCT; INTAKE,TURBO
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97312-681-0 01 1 0110- ●
495 03.417 DUCT; INTAKE,TURBO 8-97312-682-0 01 1 0110- ●

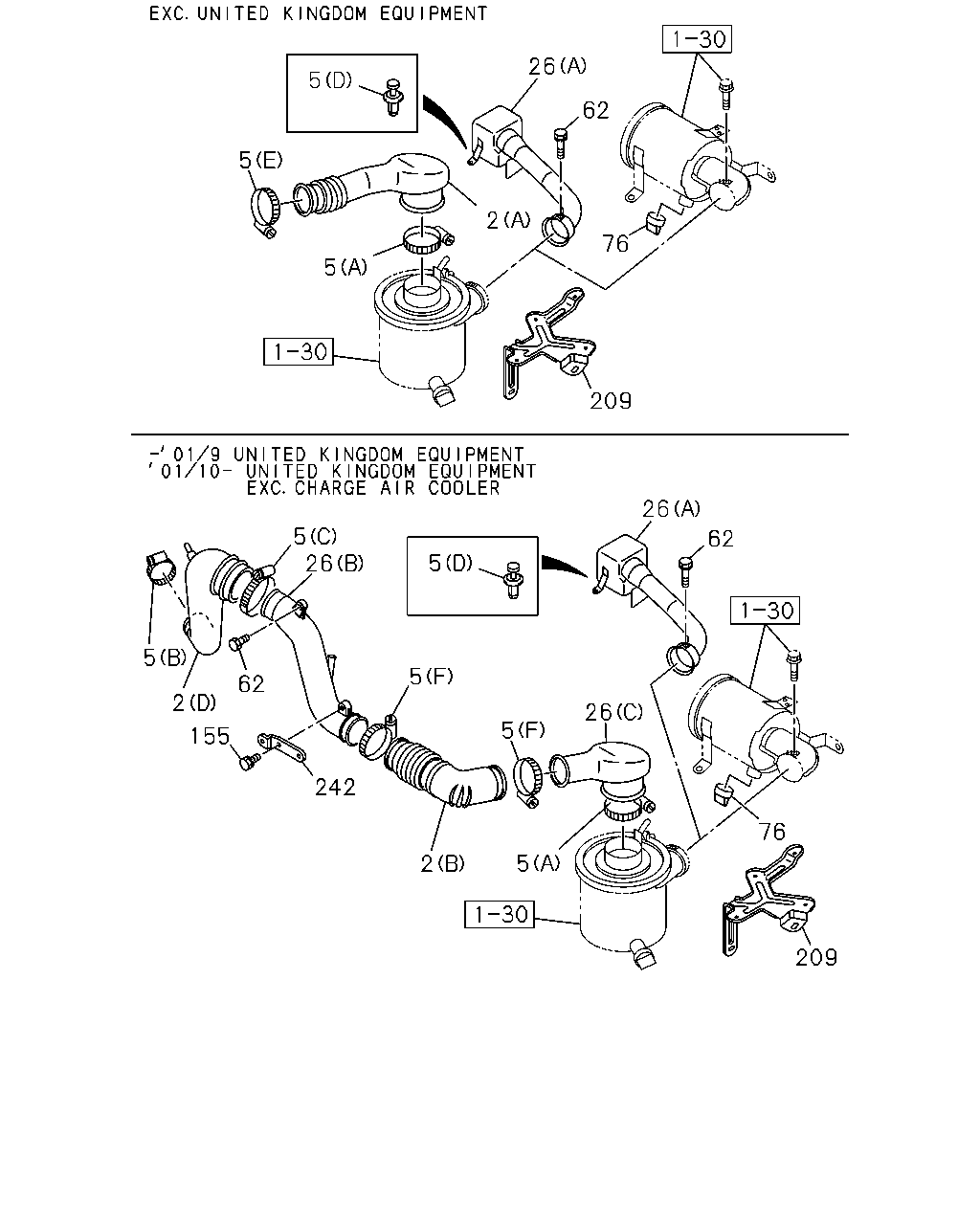

çizim 74148
26 5 62 5 2 76 5 209 26 5 26 62 5 5 5 62 2 26 5 155 242 76 5 2 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
CHARGE AIR COOLER<6PL> (E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
(E) 		8-97253-459-1 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (D) 		8-97106-248-0 01 1 9804-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97106-248-0 01 1 0110- ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97131-727-0 01 1 9910-0109 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
(B) 		8-97131-727-0 01 1 0110- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 (A) 		8-94320-727-1 01 1 9804- ●
2 03.417 HOSE; ACL
(C) 		8-97129-707-0 01 1 9804-9909 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (C) 		8-97129-707-0 01 1 9910- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.417 (F) ID=58-79 		8-94126-771-0 02 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=50-69 		8-94316-991-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=50-69 		8-94316-991-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(B) ID=50-69 		8-94316-991-0 01 1 0110- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 9804-9909 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=68-85 		8-94320-428-0 01 1 9910-0109 ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=68-85 		8-94320-428-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		8-94320-428-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (E) ID=58-79 		8-94126-771-0 01 1 9804- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> (A) ID=77-95 		1-09707-114-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
(A) ID=77-95 		1-09707-114-0 01 1 0110- ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9804-9909 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 9910-0109 ● ● ●
5 03.407 CLIP; AIR DUCT
EXC. CHARGE AIR COOLER<6PL> 03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ●
5 03.407 CLIP; AIR DUCT
03.003 (D) D6X11 POP RIVET 		8-94298-119-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) 		8-94382-047-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9804-9909 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
TURBOCHARGER<K51> (B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 9910-0109 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97128-956-2 01 1 0110- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-956-2 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (G) 		8-97307-211-0 01 1 0110- ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9804-9909 ● ●
26 03.417 DUCT; AIR INT
AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-657-0 01 1 9910-0009 ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97161-656-0 01 1 9804-0012 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-97161-656-0 01 1 0101-0109 ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL> (A) 		8-97161-656-0 01 1 0110- ● ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (D) 		8-97174-583-1 01 1 9804- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> (E) 		8-97184-692-0 01 1 9804- ●
26 03.417 DUCT; AIR INT
(F) 		8-97082-061-1 01 1 9910- ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804-0109 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
62 03.417 BOLT; AIR INT DUCT
EXC. HEAVY DUTY AIR CLEANER<K46> 07.832 M6X16 		8-97020-619-0 02 1 9804- ●
62 03.417 BOLT; AIR INT DUCT
03.275 M8X30 FLANGE 		0-28080-830-0 01 1 9910- ●
76 03.403 VALVE; PRE ACL
AUSTRALIAN EQUIPMENT(RR3) 03.415 		8-94447-157-0 01 1 0010-0012 ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 03.415 		8-94447-157-0 01 1 0101-0109 ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 03.415 		8-94447-157-0 01 1 0110- ● ●
76 03.403 VALVE; PRE ACL
03.415 		8-94447-157-0 01 1 0110- ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9804-9909 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9910-0109 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0110- ● ● ●
209 03.405 BRACKET; ACL
CHARGE AIR COOLER<6PL> 		8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97304-278-1 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 9804-0109 ● ●
209 03.405 BRACKET; ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97131-733-0 01 1 0110- ●
209 03.405 BRACKET; ACL 8-97086-960-1 01 1 9910- ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9804-9909 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
TURBOCHARGER<K51> 		8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9910-0109 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94387-686-1 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 0110- ● ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97253-461-0 01 1 0110- ●
242 03.417 BRACKET; AIR DUCT 8-97255-938-0 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
