1-30 — AIR CLEANER (#38468) — 269 parça
çizim 19165
8 1 4 44 6 5 25 44 37 94 164 145 145
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-459-2 01 1 9804-0109 ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-459-4 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97251-113-0 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97069-741-4 01 1 9910- ●
1 03.402 CLEANER ASM; AIR 8-97310-360-0 01 1 0110- ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9804-9909 ● ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9910-0109 ● ● ●
4 03.403 GASKET; COVER TO BODY
EXC. CHARGE AIR COOLER<6PL> 		8-94334-908-0 01 1 0110- ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 0110- ● ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9804-9909 ● ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9910-0109 ● ● ●
5 03.403 GASKET; ELEMENT
EXC. CHARGE AIR COOLER<6PL> 		8-94334-910-0 01 1 0110- ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 0110- ● ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9804-0109 ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-063-2 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97178-609-0 01 1 0110- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97035-303-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97044-226-2 01 1 9910- ●
6 03.410 FILTER; ACL 8-97310-442-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-838-0 01 1 9804-0109 ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97013-838-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97319-446-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-97084-018-0 01 1 9910- ●
8 03.410 COVER ASM; ACL 8-97319-557-0 01 1 0110- ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9804-9909 ● ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9910-0109 ● ● ●
25 03.403 GASKET; CASE,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-94334-909-0 01 1 0110- ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 0110- ● ●
37 03.406 RUBBER; MTG,ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL
CHARGE AIR COOLER<6PL> 		8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 9804-0109 ● ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97137-541-0 03 1 9910- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9804-0109 ● ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 0110- ● ● ●
44 03.403 BOLT; ACL
AUSTRALIAN EQUIPMENT(RR3) 08.077 M6X18 		8-97071-681-0 01 1 0010-0012 ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-97071-681-0 01 1 0101-0109 ● ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 08.077 M6X18 		8-97071-681-0 01 1 0110- ● ●
44 03.403 BOLT; ACL
08.077 M6X18 		8-97071-681-0 01 1 0110- ●
44 03.403 BOLT; ACL
01.153 M6X50 FLANGE 		0-28080-650-0 01 1 9910- ●
44 03.403 BOLT; ACL
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9910- ●
44 03.403 BOLT; ACL
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9804-9909 ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9910-0109 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 0110- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 9804-0109 ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 0110- ● ● ●
145 03.405 BOLT; BRKT TO FRAME
01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9910- ●
164 03.402 CLEANER ASM; AIR,SUB
AUSTRALIAN EQUIPMENT(RR3) 		8-97257-066-0 01 1 0010-0012 ● ●
164 03.402 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER<K46> 		8-97257-066-0 01 1 0101-0109 ● ●
164 03.402 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97257-066-0 01 1 0110- ● ●
164 03.402 CLEANER ASM; AIR,SUB 8-97287-006-1 01 1 0110- ●

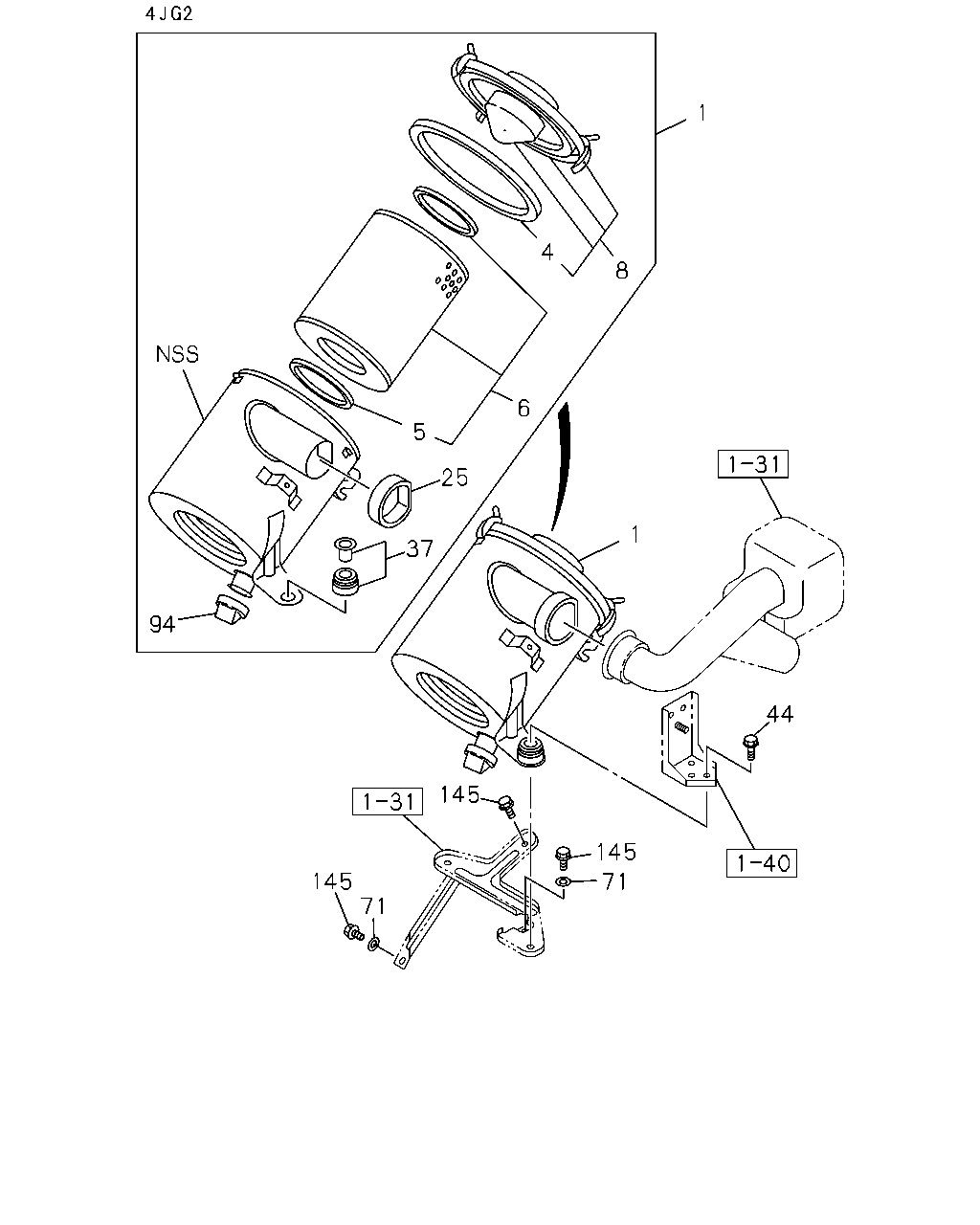

çizim 69382
1 4 8 6 5 25 1 37 94 44 145 145 145 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-459-2 01 1 9804-0109 ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-459-4 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97251-113-0 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97069-741-4 01 1 9910- ●
1 03.402 CLEANER ASM; AIR 8-97310-360-0 01 1 0110- ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9804-9909 ● ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9910-0109 ● ● ●
4 03.403 GASKET; COVER TO BODY
EXC. CHARGE AIR COOLER<6PL> 		8-94334-908-0 01 1 0110- ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 0110- ● ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9804-9909 ● ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9910-0109 ● ● ●
5 03.403 GASKET; ELEMENT
EXC. CHARGE AIR COOLER<6PL> 		8-94334-910-0 01 1 0110- ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 0110- ● ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9804-0109 ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-063-2 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97178-609-0 01 1 0110- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97035-303-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97044-226-2 01 1 9910- ●
6 03.410 FILTER; ACL 8-97310-442-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-838-0 01 1 9804-0109 ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97013-838-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97319-446-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-97084-018-0 01 1 9910- ●
8 03.410 COVER ASM; ACL 8-97319-557-0 01 1 0110- ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9804-9909 ● ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9910-0109 ● ● ●
25 03.403 GASKET; CASE,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-94334-909-0 01 1 0110- ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 0110- ● ●
37 03.406 RUBBER; MTG,ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL
CHARGE AIR COOLER<6PL> 		8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 9804-0109 ● ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97137-541-0 03 1 9910- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9804-0109 ● ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 0110- ● ● ●
44 03.403 BOLT; ACL
AUSTRALIAN EQUIPMENT(RR3) 08.077 M6X18 		8-97071-681-0 01 1 0010-0012 ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-97071-681-0 01 1 0101-0109 ● ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 08.077 M6X18 		8-97071-681-0 01 1 0110- ● ●
44 03.403 BOLT; ACL
08.077 M6X18 		8-97071-681-0 01 1 0110- ●
44 03.403 BOLT; ACL
01.153 M6X50 FLANGE 		0-28080-650-0 01 1 9910- ●
44 03.403 BOLT; ACL
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9910- ●
44 03.403 BOLT; ACL
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
71 03.417 WASHER; PL,BRKT
16.716 ID=8.4 OD=18 		9-09160-608-0 02 1 9910- ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9804-9909 ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9910-0109 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 0110- ● ● ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 9804-0109 ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 0110- ● ● ●
145 03.405 BOLT; BRKT TO FRAME
01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9910- ●
çizim 71962
1 8 6 144 44 229 94 37 23 1 145
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-459-2 01 1 9804-0109 ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-459-4 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97251-113-0 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97069-741-4 01 1 9910- ●
1 03.402 CLEANER ASM; AIR 8-97310-360-0 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9804-0109 ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-063-2 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97178-609-0 01 1 0110- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97035-303-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97044-226-2 01 1 9910- ●
6 03.410 FILTER; ACL 8-97310-442-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-838-0 01 1 9804-0109 ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97013-838-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97319-446-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-97084-018-0 01 1 9910- ●
8 03.410 COVER ASM; ACL 8-97319-557-0 01 1 0110- ●
23 03.405 COLLAR; ACL STAY
CHARGE AIR COOLER<6PL> 03.403 		8-97181-442-0 03 1 0110- ●
23 03.405 COLLAR; ACL STAY
03.403 		8-97181-442-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL
CHARGE AIR COOLER<6PL> 		8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 9804-0109 ● ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97137-541-0 03 1 9910- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9804-0109 ● ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 0110- ● ● ●
44 03.403 BOLT; ACL
AUSTRALIAN EQUIPMENT(RR3) 08.077 M6X18 		8-97071-681-0 01 1 0010-0012 ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-97071-681-0 01 1 0101-0109 ● ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 08.077 M6X18 		8-97071-681-0 01 1 0110- ● ●
44 03.403 BOLT; ACL
08.077 M6X18 		8-97071-681-0 01 1 0110- ●
44 03.403 BOLT; ACL
01.153 M6X50 FLANGE 		0-28080-650-0 01 1 9910- ●
44 03.403 BOLT; ACL
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9910- ●
44 03.403 BOLT; ACL
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9804-9909 ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9910-0109 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 0110- ● ● ● ●
144 03.403 CLIP; ACL
CHARGE AIR COOLER<6PL> 		8-97354-199-0 04 1 0110- ●
144 03.403 CLIP; ACL 8-97354-199-0 04 1 0110- ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 9804-0109 ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 0110- ● ● ●
145 03.405 BOLT; BRKT TO FRAME
01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9910- ●
229 03.406 BODY ASM; ACL
CHARGE AIR COOLER<6PL> 		8-97319-448-0 01 1 0110- ●
229 03.406 BODY ASM; ACL 8-97319-448-0 01 1 0110- ●

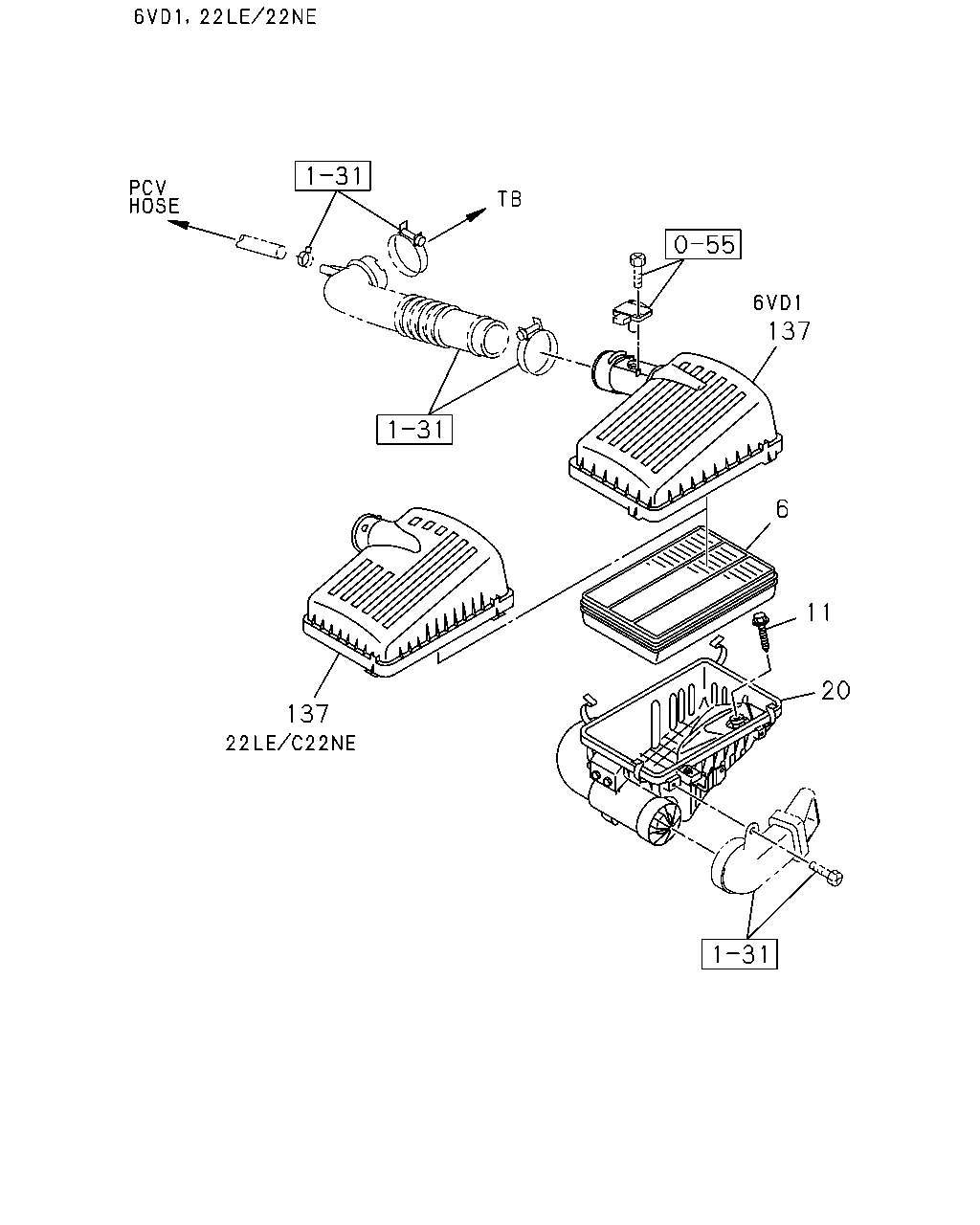

çizim 73660
137 6 11 20 137
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9804-0109 ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-063-2 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97178-609-0 01 1 0110- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97035-303-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97044-226-2 01 1 9910- ●
6 03.410 FILTER; ACL 8-97310-442-0 01 1 0110- ●
11 03.403 BOLT; ACL
08.077 M6X18 		8-94408-386-1 01 1 9804- ●
11 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-94408-386-1 01 1 9804- ●
11 03.403 BOLT; ACL
M8X32 W/PL WASHER 		8-97035-378-0 02 1 9804- ●
11 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> M8X32 W/PL WASHER 		8-97035-378-0 02 1 9804- ●
11 03.403 BOLT; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> M8X32 W/PL WASHER 		8-97035-378-0 03 1 9804- ●
20 03.406 CASE ASM; ACL 8-97160-824-3 01 1 9804- ●
20 03.406 CASE ASM; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97181-151-3 01 1 9804- ●
20 03.406 CASE ASM; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97181-206-1 01 1 9804- ●
137 03.402 CAP; ACL 8-97160-825-0 01 1 9804- ●
137 03.402 CAP; ACL 8-97185-035-1 01 1 9804- ●

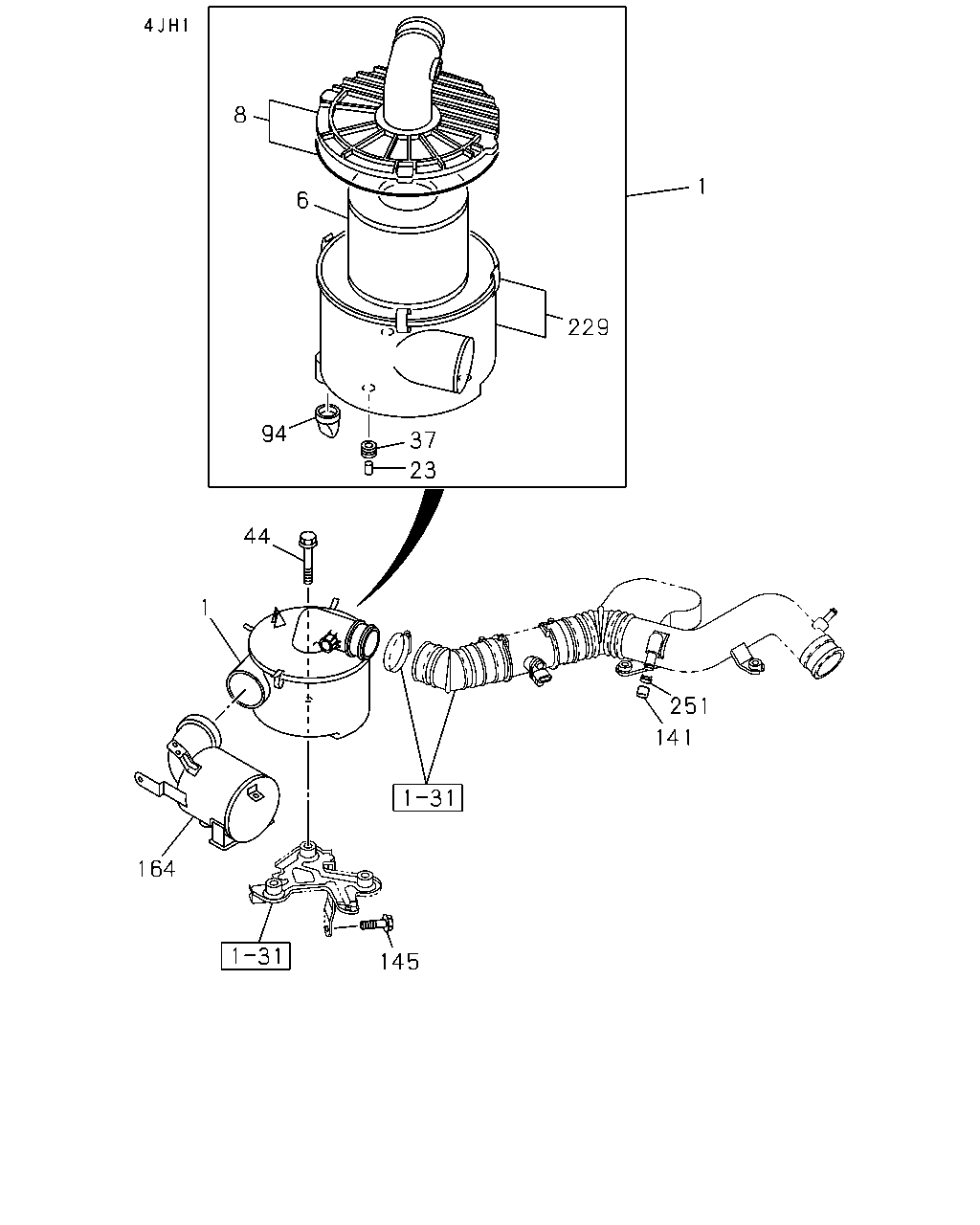

çizim 73739
8 1 6 229 94 37 23 44 1 251 141 164 145
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-459-2 01 1 9804-0109 ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-459-4 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97251-113-0 01 1 0110- ●
1 03.402 CLEANER ASM; AIR
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97143-610-2 01 1 9804- ●
1 03.402 CLEANER ASM; AIR 8-97069-741-4 01 1 9910- ●
1 03.402 CLEANER ASM; AIR 8-97310-360-0 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-063-2 01 1 9804-0109 ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94382-063-2 01 1 0110- ●
6 03.410 FILTER; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97178-609-0 01 1 0110- ●
6 03.410 FILTER; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-94334-906-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97039-002-0 01 1 9804- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97035-303-0 01 1 9804- ●
6 03.410 FILTER; ACL 8-97044-226-2 01 1 9910- ●
6 03.410 FILTER; ACL 8-97310-442-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-838-0 01 1 9804-0109 ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97013-838-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97319-446-0 01 1 0110- ●
8 03.410 COVER ASM; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-94334-905-0 01 1 9804- ●
8 03.410 COVER ASM; ACL 8-97084-018-0 01 1 9910- ●
8 03.410 COVER ASM; ACL 8-97319-557-0 01 1 0110- ●
23 03.405 COLLAR; ACL STAY
CHARGE AIR COOLER<6PL> 03.403 		8-97181-442-0 03 1 0110- ●
23 03.405 COLLAR; ACL STAY
03.403 		8-97181-442-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 0303- ●
37 03.406 RUBBER; MTG,ACL
CHARGE AIR COOLER<6PL> 		8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97181-441-0 03 1 0110- ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 9804-0109 ● ●
37 03.406 RUBBER; MTG,ACL
EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 0110-0210 ●
37 03.406 RUBBER; MTG,ACL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-97112-955-0 03 1 0211-0302 ●
37 03.406 RUBBER; MTG,ACL 8-97137-541-0 03 1 9910- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9804-0109 ● ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 0110- ● ● ●
44 03.403 BOLT; ACL
AUSTRALIAN EQUIPMENT(RR3) 08.077 M6X18 		8-97071-681-0 01 1 0010-0012 ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-97071-681-0 01 1 0101-0109 ● ●
44 03.403 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 08.077 M6X18 		8-97071-681-0 01 1 0110- ● ●
44 03.403 BOLT; ACL
08.077 M6X18 		8-97071-681-0 01 1 0110- ●
44 03.403 BOLT; ACL
01.153 M6X50 FLANGE 		0-28080-650-0 01 1 9910- ●
44 03.403 BOLT; ACL
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9910- ●
44 03.403 BOLT; ACL
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9804-9909 ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9910-0109 ● ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 0110- ● ● ● ●
141 03.417 CAP; RUBBER,ACL
03.672 ID=5.4 		8-94156-209-0 01 1 0110-0211 ●
141 03.417 CAP; RUBBER,ACL
UNITED KINGDOM EQUIPMENT(EK3) 03.672 ID=5.4 		8-94156-209-0 01 1 0212- ●
141 03.417 CAP; RUBBER,ACL
03.672 ID=5.4 		8-94156-209-0 01 1 0212- ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 9804-0109 ● ●
145 03.405 BOLT; BRKT TO FRAME
07.010 M8X20 FLANGE 		0-28080-820-0 03 1 0110- ● ● ●
145 03.405 BOLT; BRKT TO FRAME
01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9910- ●
164 03.402 CLEANER ASM; AIR,SUB
AUSTRALIAN EQUIPMENT(RR3) 		8-97257-066-0 01 1 0010-0012 ● ●
164 03.402 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER<K46> 		8-97257-066-0 01 1 0101-0109 ● ●
164 03.402 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL> 		8-97257-066-0 01 1 0110- ● ●
164 03.402 CLEANER ASM; AIR,SUB 8-97287-006-1 01 1 0110- ●
229 03.406 BODY ASM; ACL
CHARGE AIR COOLER<6PL> 		8-97319-448-0 01 1 0110- ●
229 03.406 BODY ASM; ACL 8-97319-448-0 01 1 0110- ●
251 03.403 CLIP; CAP,RUBBER
03.163 ID=11 		8-97173-219-0 01 1 0110-0211 ●
251 03.403 CLIP; CAP,RUBBER
UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11 		8-97173-219-0 01 1 0212- ●
251 03.403 CLIP; CAP,RUBBER
03.163 ID=11 		8-97173-219-0 01 1 0212- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
