Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#38467) — 389 parça

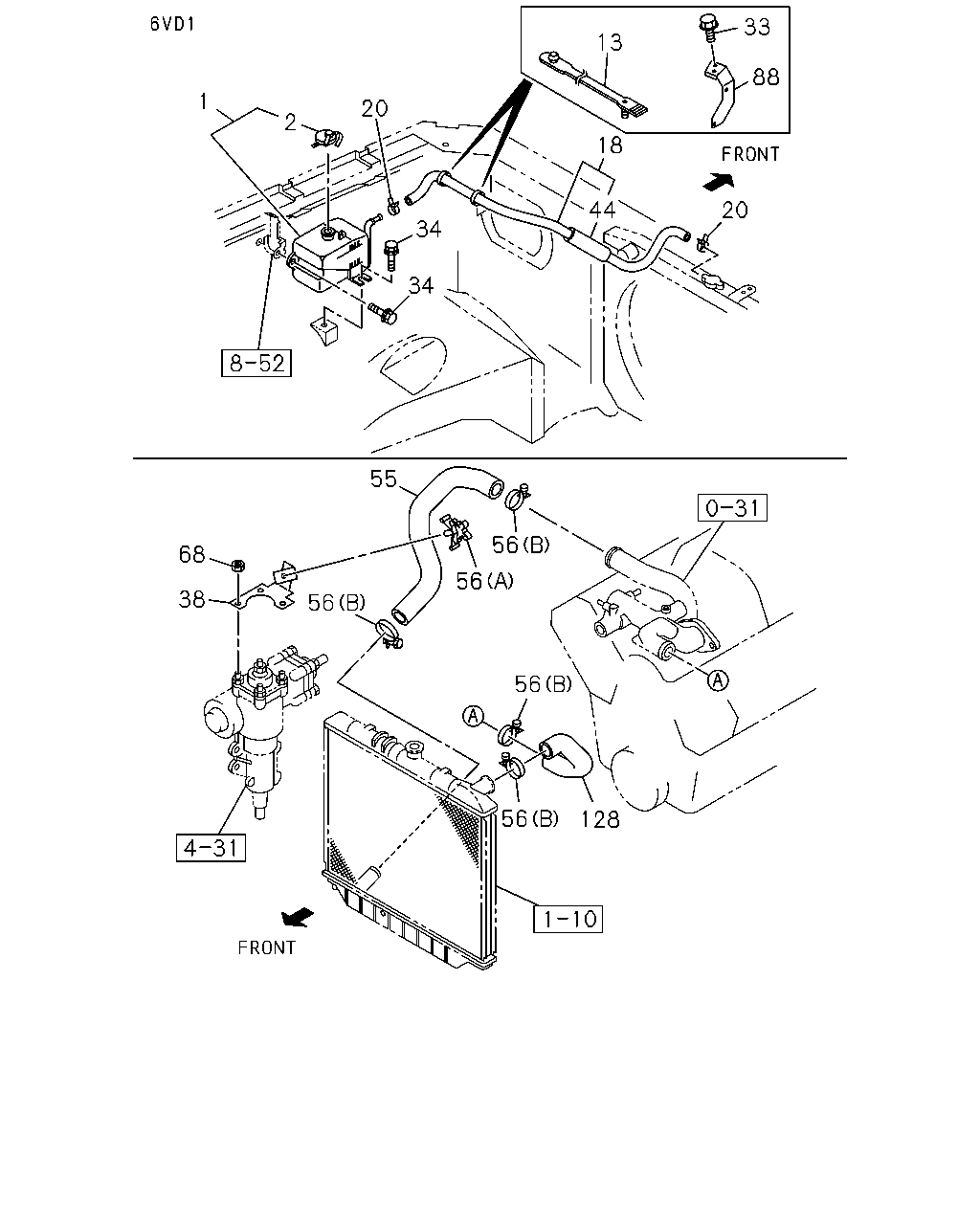

18 20 1 20 2 34 56 128 56 34 56 55 56 13 88 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9804-0109	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0110-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97119-467-1	01	1	9910-						●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9804-0109	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0110-	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97079-007-0	01	1	9910-						●
13	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	01	1	0110-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	01	1	0110-					●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9804-0109	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	02	1	0110-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	0110-	●		●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL>	8-97301-155-0	01	1	0110-		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9804-0009		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	0010-0010		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97016-104-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-0	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97287-457-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9804-				●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	9804-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97070-767-2	01	1	9910-						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97309-219-0	01	1	0110-					●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9804-9909	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9910-0103	●	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9804-0009	●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0010-0010	●	●		●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0010-0010			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0011-		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0011-	●			●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9804-0109	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0110-0203	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	9910-						●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9804-0109		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0110-0207			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0208-0301		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0302-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9804-				●
55	01.173 HOSE; WATER,RAD OUTLET	8-97181-391-1	01	1	9804-9804	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	9805-	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9910-0109						●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0110-0207					●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0208-0301					●	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0302-					●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207					●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0208-0301					●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 ID=52	1-09704-057-0	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 ID=52	1-09704-057-0	01	1	0302-					●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9804-9804		●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9805-9806		●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9804-9811		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9812-0109		●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0110-0207			●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0208-		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9804-				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9804-9811				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9812-9909				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9910-0109				●		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0110-0207				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0208-0301				●	●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> ID=48	8-97213-216-0	03	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0302-				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9804-9804	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	02	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9804-	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	01	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9807-0109	●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (A) ID=42	8-97209-203-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0110-0207	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0208-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=42	8-97209-203-0	01	1	9910-						●
88	01.219 BRACKET; SUB TANK HOSE CHARGE AIR COOLER<6PL>	8-94473-988-3	01	1	0110-		●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9804-0009	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0010-0010	●	●		●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0010-0010			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0011-0109		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0011-0109	●			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97186-619-0	01	1	0110-		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0110-	●			●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97351-660-0	01	1	0208-0301		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0110-0207		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0110-0207					●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0208-0301					●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0302-		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0302-					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9804-0109		●	●
128	01.159 HOSE; WATER,RAD INL EXC. CHARGE AIR COOLER<6PL>	8-97023-019-0	01	1	0110-		●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	0110-			●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9804-0103				●
128	01.159 HOSE; WATER,RAD INL	8-97305-008-0	01	1	0104-				●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	9804-	●
128	01.159 HOSE; WATER,RAD INL	8-97070-938-1	01	1	9910-						●

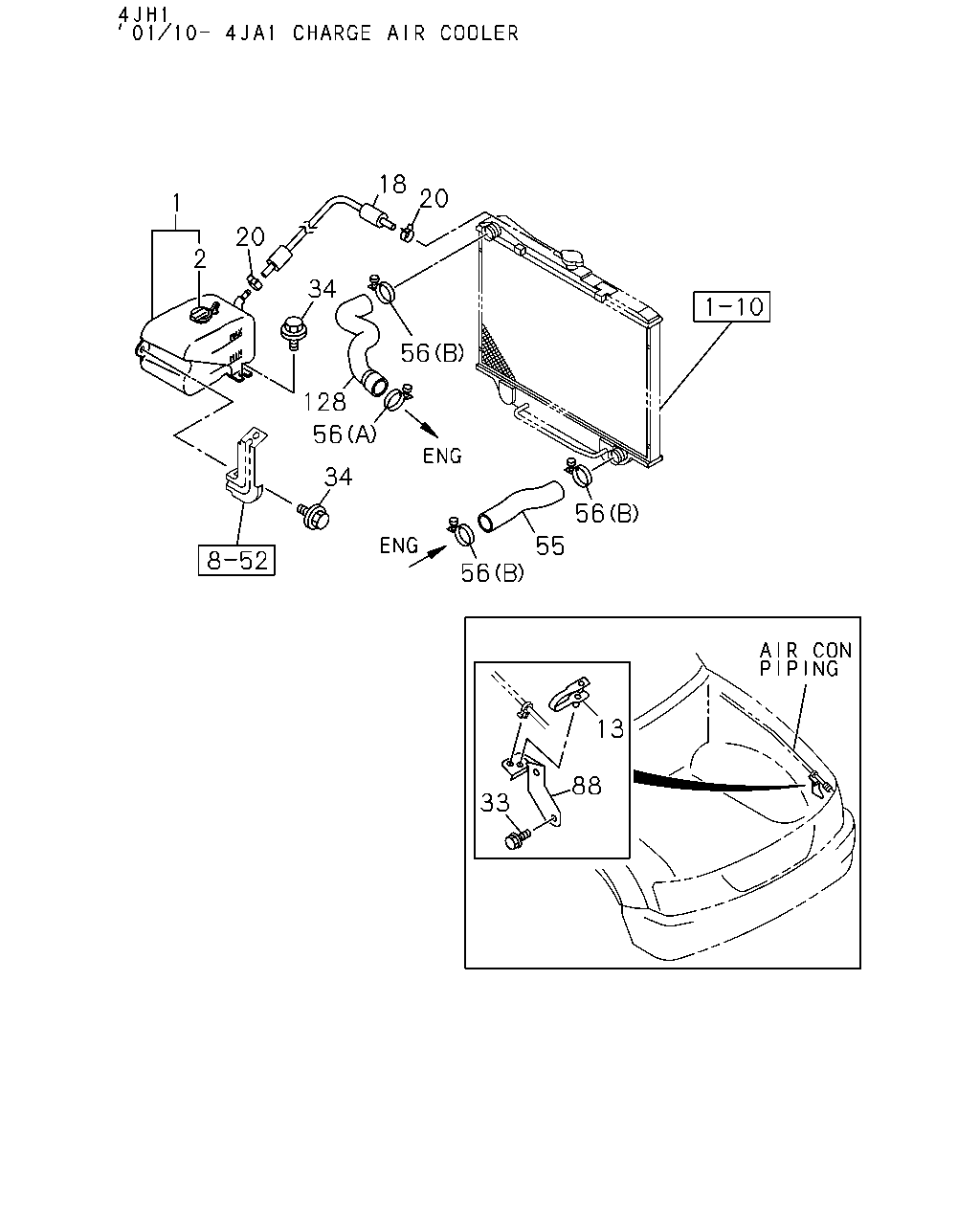

18 13 20 1 20 2 34 88 33 56 55 56 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9804-0109	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0110-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97119-467-1	01	1	9910-						●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9804-0109	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0110-	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97079-007-0	01	1	9910-						●
13	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	01	1	0110-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	01	1	0110-					●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9804-0109	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	02	1	0110-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	0110-	●		●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL>	8-97301-155-0	01	1	0110-		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9804-0009		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	0010-0010		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97016-104-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-0	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97287-457-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9804-				●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	9804-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97070-767-2	01	1	9910-						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97309-219-0	01	1	0110-					●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9804-9909	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9910-0103	●	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9804-0009	●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0010-0010	●	●		●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0010-0010			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0011-		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0011-	●			●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9804-0109	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0110-0203	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	9910-						●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9804-0109		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0110-0207			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0208-0301		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0302-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9804-				●
55	01.173 HOSE; WATER,RAD OUTLET	8-97181-391-1	01	1	9804-9804	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	9805-	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9910-0109						●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0110-0207					●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0208-0301					●	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0302-					●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207					●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0208-0301					●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 ID=52	1-09704-057-0	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 ID=52	1-09704-057-0	01	1	0302-					●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9804-9804		●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9805-9806		●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9804-9811		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9812-0109		●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0110-0207			●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0208-		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9804-				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9804-9811				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9812-9909				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9910-0109				●		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0110-0207				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0208-0301				●	●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> ID=48	8-97213-216-0	03	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0302-				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9804-9804	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	02	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9804-	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	01	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9807-0109	●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (A) ID=42	8-97209-203-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0110-0207	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0208-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=42	8-97209-203-0	01	1	9910-						●
88	01.219 BRACKET; SUB TANK HOSE CHARGE AIR COOLER<6PL>	8-94473-988-3	01	1	0110-		●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9804-0009	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0010-0010	●	●		●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0010-0010			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0011-0109		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0011-0109	●			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97186-619-0	01	1	0110-		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0110-	●			●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97351-660-0	01	1	0208-0301		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0110-0207		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0110-0207					●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0208-0301					●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0302-		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0302-					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9804-0109		●	●
128	01.159 HOSE; WATER,RAD INL EXC. CHARGE AIR COOLER<6PL>	8-97023-019-0	01	1	0110-		●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	0110-			●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9804-0103				●
128	01.159 HOSE; WATER,RAD INL	8-97305-008-0	01	1	0104-				●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	9804-	●
128	01.159 HOSE; WATER,RAD INL	8-97070-938-1	01	1	9910-						●

1 2 20 18 20 34 56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9804-0109	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0110-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97119-467-1	01	1	9910-						●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9804-0109	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0110-	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97079-007-0	01	1	9910-						●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL>	8-97301-155-0	01	1	0110-		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9804-0009		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	0010-0010		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97016-104-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-0	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97287-457-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9804-				●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	9804-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97070-767-2	01	1	9910-						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97309-219-0	01	1	0110-					●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9804-9909	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9910-0103	●	●	●	●		●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9804-0109	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0110-0203	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	9910-						●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9804-0109		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0110-0207			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0208-0301		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0302-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9804-				●
55	01.173 HOSE; WATER,RAD OUTLET	8-97181-391-1	01	1	9804-9804	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	9805-	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9910-0109						●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0110-0207					●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0208-0301					●	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0302-					●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207					●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0208-0301					●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 ID=52	1-09704-057-0	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 ID=52	1-09704-057-0	01	1	0302-					●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9804-9804		●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9805-9806		●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9804-9811		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9812-0109		●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0110-0207			●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0208-		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9804-				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9804-9811				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9812-9909				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9910-0109				●		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0110-0207				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0208-0301				●	●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> ID=48	8-97213-216-0	03	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0302-				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9804-9804	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	02	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9804-	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	01	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9807-0109	●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (A) ID=42	8-97209-203-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0110-0207	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0208-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=42	8-97209-203-0	01	1	9910-						●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97351-660-0	01	1	0208-0301		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0110-0207		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0110-0207					●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0208-0301					●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0302-		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0302-					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9804-0109		●	●
128	01.159 HOSE; WATER,RAD INL EXC. CHARGE AIR COOLER<6PL>	8-97023-019-0	01	1	0110-		●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	0110-			●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9804-0103				●
128	01.159 HOSE; WATER,RAD INL	8-97305-008-0	01	1	0104-				●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	9804-	●
128	01.159 HOSE; WATER,RAD INL	8-97070-938-1	01	1	9910-						●

33 13 88 1 20 2 18 44 20 34 34 55 56 68 56 38 56 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9804-0109	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	0110-	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97119-467-1	01	1	9910-						●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9804-0109	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	0110-	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97079-007-0	01	1	9910-						●
13	01.240 CLIP; HOSE,SURGE TANK CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	01	1	0110-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	01	1	0110-					●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9804-0109	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. CHARGE AIR COOLER<6PL> 02.559 L=103	8-94239-339-0	02	1	0110-		●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	0110-	●		●	●
18	01.240 HOSE; RAD TO SURGE TANK CHARGE AIR COOLER<6PL>	8-97301-155-0	01	1	0110-		●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9804-0009		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	0010-0010		●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>	8-97016-104-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97016-104-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-0	01	1	0010-0010			●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46>	8-97287-457-1	01	1	0011-0109		●	●
18	01.240 HOSE; RAD TO SURGE TANK HEAVY DUTY AIR CLEANER<K46> EXC. CHARGE AIR COOLER<6PL>	8-97287-457-1	01	1	0110-		●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97064-333-1	01	1	9804-				●
18	01.240 HOSE; RAD TO SURGE TANK	8-97182-226-1	01	1	9804-	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97070-767-2	01	1	9910-						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97309-219-0	01	1	0110-					●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9804-9909	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9910-0103	●	●	●	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9804-0009	●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0010-0010	●	●		●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0010-0010			●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	0011-		●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	0011-	●			●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9804-0109	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	0110-0203	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 03.162 M8X25	8-97327-634-0	02	1	0204-	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK 08.015 M6X20 W/WASHER	8-94112-987-1	03	1	9910-						●
38	01.219 BRACKET; RUBBER HOSE	8-97162-981-0	01	1	9804-				●
44	01.240 INSULATOR; HOSE	8-97031-890-1	01	1	9804-9909				●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9804-0109		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0110-0207			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0208-0301		●	●
55	01.173 HOSE; WATER,RAD OUTLET EXC. CHARGE AIR COOLER<6PL>	8-94388-165-3	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-3	01	1	0302-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-703-0	01	1	9804-				●
55	01.173 HOSE; WATER,RAD OUTLET	8-97181-391-1	01	1	9804-9804	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97210-592-0	01	1	9805-	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9910-0109						●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0110-0207		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0110-0207					●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0208-0301					●	●
55	01.173 HOSE; WATER,RAD OUTLET CHARGE AIR COOLER<6PL>	8-94375-170-2	01	1	0302-		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	0302-					●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0110-0207					●
56	01.166 CLIP; WATER HOSE,RAD 00.413 (A) ID=52	1-09704-057-0	01	1	0208-0301					●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> 00.413 ID=52	1-09704-057-0	01	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD 00.413 ID=52	1-09704-057-0	01	1	0302-					●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9804-9804		●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9805-9806		●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9804-9811		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	9812-0109		●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	01	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0110-0207			●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	01	1	0208-		●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9804-				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9804-9811				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9812-9909				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	9910-0109				●		●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> (B) ID=48	8-97213-216-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0110-0207				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	8-97213-216-0	03	1	0208-0301				●	●	●
56	01.166 CLIP; WATER HOSE,RAD CHARGE AIR COOLER<6PL> ID=48	8-97213-216-0	03	1	0302-		●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-97213-216-0	03	1	0302-				●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9804-9804	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	02	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9804-	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	01	1	9805-9806	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	9807-0109	●	●	●
56	01.166 CLIP; WATER HOSE,RAD EXC. CHARGE AIR COOLER<6PL> (A) ID=42	8-97209-203-0	03	1	0110-0207		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0110-0207	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	8-97209-203-0	03	1	0208-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (C) ID=42	8-97209-203-0	01	1	9910-						●
68	01.219 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	03	1	9804-				●
88	01.219 BRACKET; SUB TANK HOSE CHARGE AIR COOLER<6PL>	8-94473-988-3	01	1	0110-		●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	9804-0009	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0010-0010	●	●		●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0010-0010			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>	8-97186-619-0	01	1	0011-0109		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0011-0109	●			●
88	01.219 BRACKET; SUB TANK HOSE EXC. HEAVY DUTY AIR CLEANER<K46>, CHARGE AIR COOLER<6PL>	8-97186-619-0	01	1	0110-		●	●
88	01.219 BRACKET; SUB TANK HOSE	8-97186-619-0	01	1	0110-	●			●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97351-660-0	01	1	0208-0301		●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0110-0207		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0110-0207					●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0208-0301					●
128	01.159 HOSE; WATER,RAD INL CHARGE AIR COOLER<6PL>	8-97239-352-0	01	1	0302-		●
128	01.159 HOSE; WATER,RAD INL	8-97239-352-0	01	1	0302-					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9804-0109		●	●
128	01.159 HOSE; WATER,RAD INL EXC. CHARGE AIR COOLER<6PL>	8-97023-019-0	01	1	0110-		●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	0110-			●
128	01.159 HOSE; WATER,RAD INL	8-97177-702-1	01	1	9804-0103				●
128	01.159 HOSE; WATER,RAD INL	8-97305-008-0	01	1	0104-				●
128	01.159 HOSE; WATER,RAD INL	8-97181-390-0	01	1	9804-	●
128	01.159 HOSE; WATER,RAD INL	8-97070-938-1	01	1	9910-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
