1-10 — RADIATOR (#38466) — 730 parça

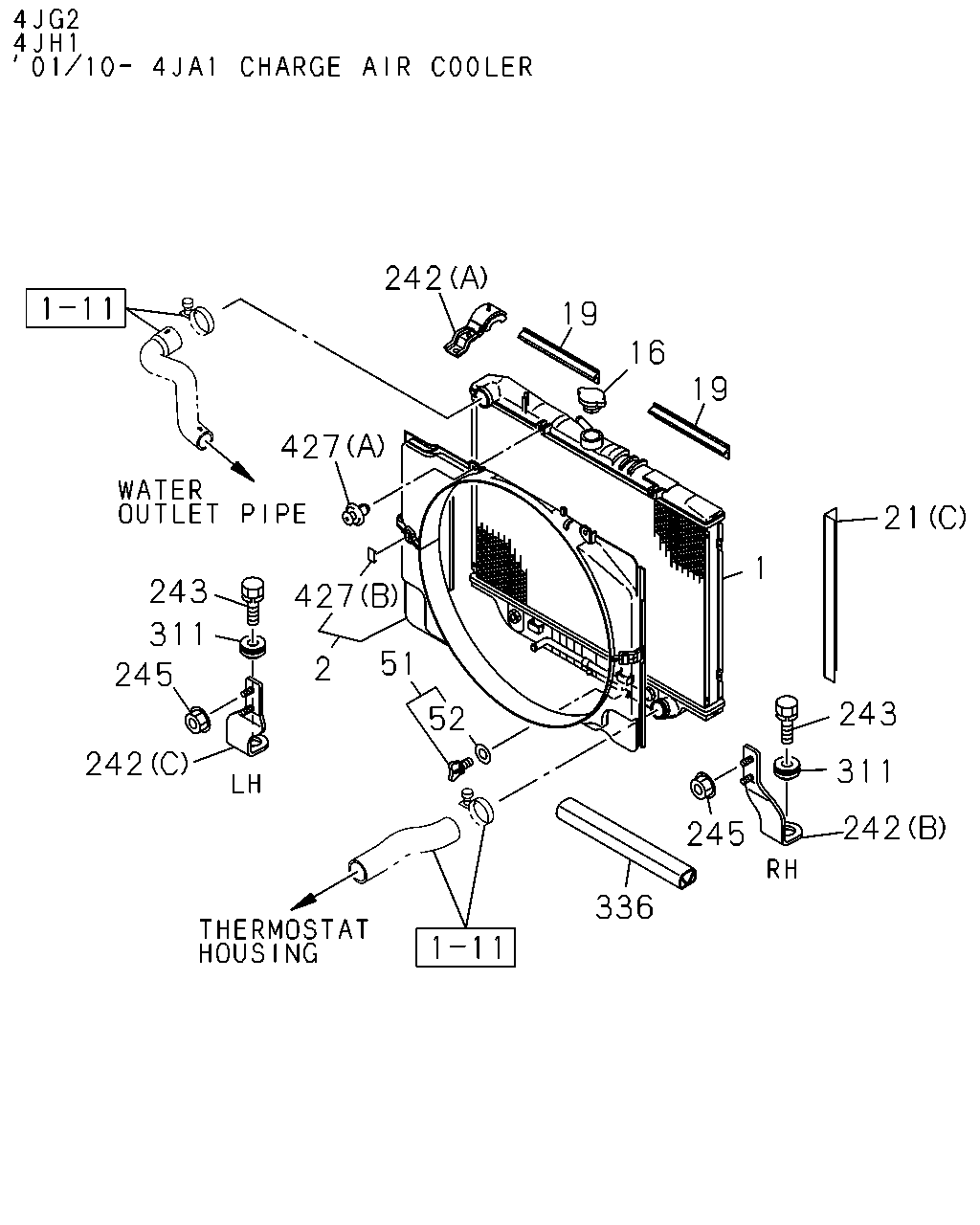

çizim 69067
242 19 16 19 427 21 1 243 427 311 245 51 2 243 52 242 311 242 245 336
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804-0010 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G) 		8-97116-005-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G),CHARGE AIRCOOLER<6PL> 		8-97116-005-0 01 1 0110- ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) 		8-97263-636-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) EXC. CHARGE AIR COOLER<6PL> 		8-97263-636-0 01 1 0110- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-0207 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0302- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-52475-959-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97304-700-0 01 1 0104- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0104-0301 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM 8-97186-459-0 01 1 9804- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 9910-0109 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97084-924-0 01 1 0110-0207 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0110-0207 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0208- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97087-010-3 01 1 0110- ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97087-725-2 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-0109 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0208-0301 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 9910-0109 ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97214-344-0 01 1 0110-0207 ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0110-0207 ● ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0208- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9909 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9910-0012 ● ● ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104-0301 ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0101-0109 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0110-0301 ● ● ● ● ●
16 01.203 CAP; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97104-194-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0302- ● ● ● ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-0109 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0208-0301 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0302- ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9910-0103 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97081-956-2 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9910-0002 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0103 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=365 		8-97254-404-0 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97304-967-0 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0302- ●
21 01.276 SEAL; RAD
(A) 		8-52468-212-0 02 1 9804-0103 ●
21 01.276 SEAL; RAD
(B) 		8-97033-102-3 01 1 9804- ●
21 01.276 SEAL; RAD
(B) 		8-97047-002-3 01 1 9804- ●
21 01.276 SEAL; RAD
A/T AISIN(RMD) (C) 		8-97084-019-0 02 1 0110- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9909 ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104-0301 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9910-0109 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0208-0301 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0302- ● ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 9910-0109 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> 		8-97036-939-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0208- ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9804-0109 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0110-0207 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0110-0207 ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0208-0301 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0302- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0302- ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) 04.133 ID=9.8 		9-09561-110-0 01 1 9910-0109 ●
52 08.951 GASKET; DRAIN PLUG
CHARGE AIR COOLER<6PL> 04.133 ID=9.8 		9-09561-110-0 01 1 0110-0207 ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.133 ID=9.8 		9-09561-110-0 01 1 0110-0207 ● ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.133 ID=9.8 		9-09561-110-0 01 1 0208- ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-9909 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0302- ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-9909 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9910-0109 ● ●
243 01.219 BOLT; BRKT
CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0110-0207 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0110-0207 ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0208-0301 ● ● ●
243 01.219 BOLT; BRKT
CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0302- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0302- ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-0109 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9909 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9910-0109 ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9804-9909 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9910-9910 ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911-0109 ● ●
311 01.270 RUBBER; MTG,RAD
CHARGE AIR COOLER<6PL> 		8-97231-024-0 02 1 0110-0207 ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0110-0207 ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0208-0301 ● ● ●
311 01.270 RUBBER; MTG,RAD
CHARGE AIR COOLER<6PL> 		8-97231-024-0 02 1 0302- ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0302- ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9804-9909 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9910-0109 ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 0110-0206 ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207-0301 ● ● ●
336 01.270 SEAL; LWR,RAD
CHARGE AIR COOLER<6PL> 		8-97257-011-0 02 1 0302- ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0302- ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-0109 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0208-0301 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0302- ● ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104-0301 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 9910-0103 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0208-0301 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0208-0301 ● ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0302- ● ●

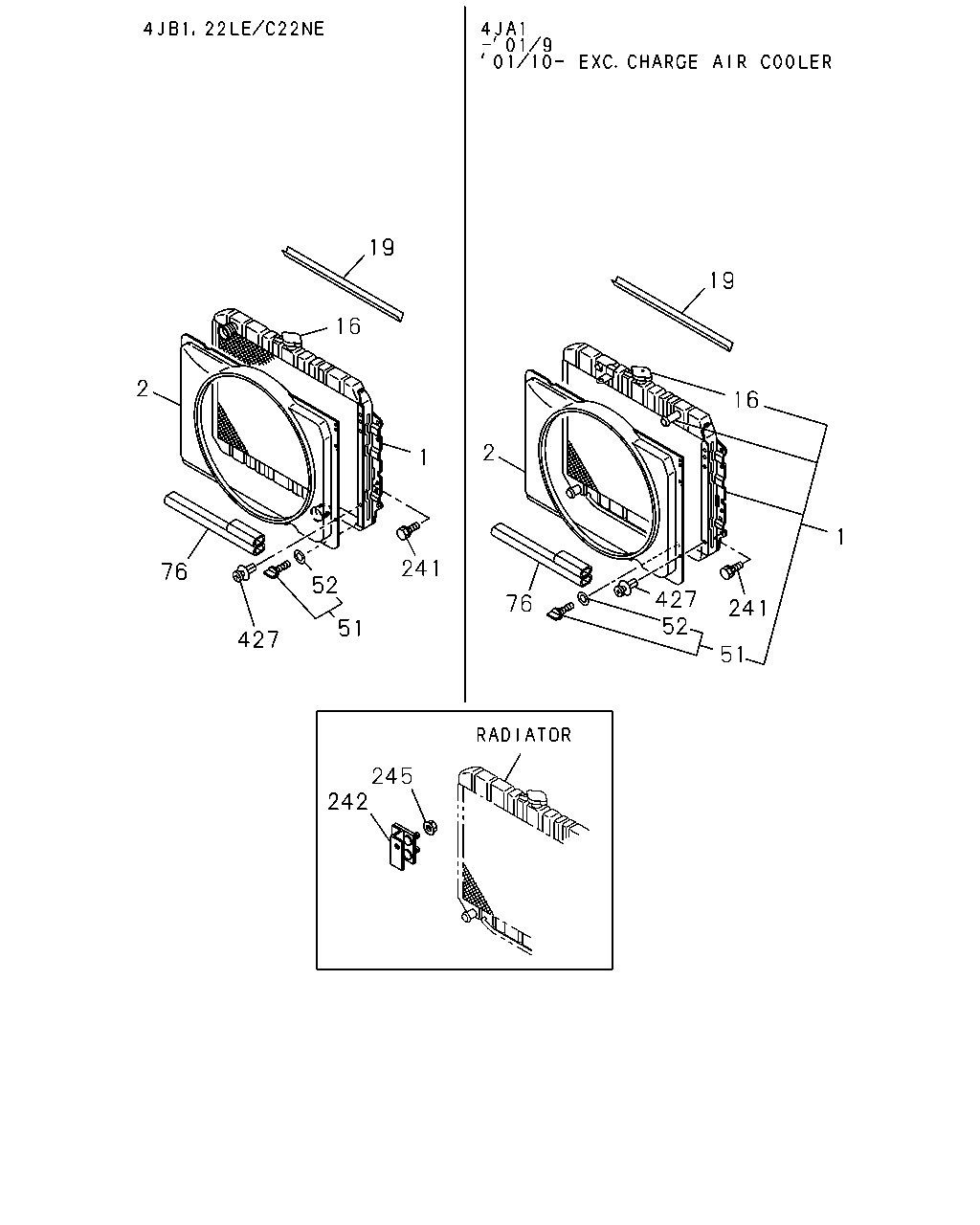

çizim 72125
19 19 16 2 16 2 1 1 241 76 52 427 52 76 241 51 427 51 245 242
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804-0010 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G) 		8-97116-005-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G),CHARGE AIRCOOLER<6PL> 		8-97116-005-0 01 1 0110- ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) 		8-97263-636-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) EXC. CHARGE AIR COOLER<6PL> 		8-97263-636-0 01 1 0110- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-0207 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0302- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-52475-959-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97304-700-0 01 1 0104- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0104-0301 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM 8-97186-459-0 01 1 9804- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 9910-0109 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97084-924-0 01 1 0110-0207 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0110-0207 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0208- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97087-010-3 01 1 0110- ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97087-725-2 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-0109 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0208-0301 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 9910-0109 ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97214-344-0 01 1 0110-0207 ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0110-0207 ● ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0208- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9909 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9910-0012 ● ● ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104-0301 ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0101-0109 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0110-0301 ● ● ● ● ●
16 01.203 CAP; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97104-194-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0302- ● ● ● ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-0109 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0208-0301 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0302- ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9910-0103 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97081-956-2 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9910-0002 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0103 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=365 		8-97254-404-0 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97304-967-0 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9909 ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104-0301 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9910-0109 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0208-0301 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0302- ● ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 9910-0109 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> 		8-97036-939-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0208- ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9804-0109 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0110-0207 ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0110-0207 ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0208-0301 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EXC. CHARGE AIR COOLER<6PL> 01.203 ID=10 		9-09720-557-0 01 1 0302- ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 0302- ● ●
52 08.951 GASKET; DRAIN PLUG
M/T MUA 5 SPEED(RMN) 04.133 ID=9.8 		9-09561-110-0 01 1 9910-0109 ●
52 08.951 GASKET; DRAIN PLUG
CHARGE AIR COOLER<6PL> 04.133 ID=9.8 		9-09561-110-0 01 1 0110-0207 ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.133 ID=9.8 		9-09561-110-0 01 1 0110-0207 ● ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 04.133 ID=9.8 		9-09561-110-0 01 1 0208- ● ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 9804-0301 ● ● ●
76 01.174 SEAL; RAD,LWR
EXC. CHARGE AIR COOLER<6PL> 01.276 		8-94316-413-0 02 1 0302- ●
76 01.174 SEAL; RAD,LWR
01.276 		8-94316-413-0 02 1 0302- ● ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804-0109 ● ● ●
241 01.274 BOLT; RAD TO BODY
EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0110-0207 ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0110-0207 ● ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0208-0301 ● ● ●
241 01.274 BOLT; RAD TO BODY
EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0302- ●
241 01.274 BOLT; RAD TO BODY
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0302- ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-9909 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0302- ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-0109 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9909 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9910-0109 ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-0109 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0208-0301 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0302- ● ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104-0301 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 9910-0103 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0208-0301 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0208-0301 ● ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0302- ● ●

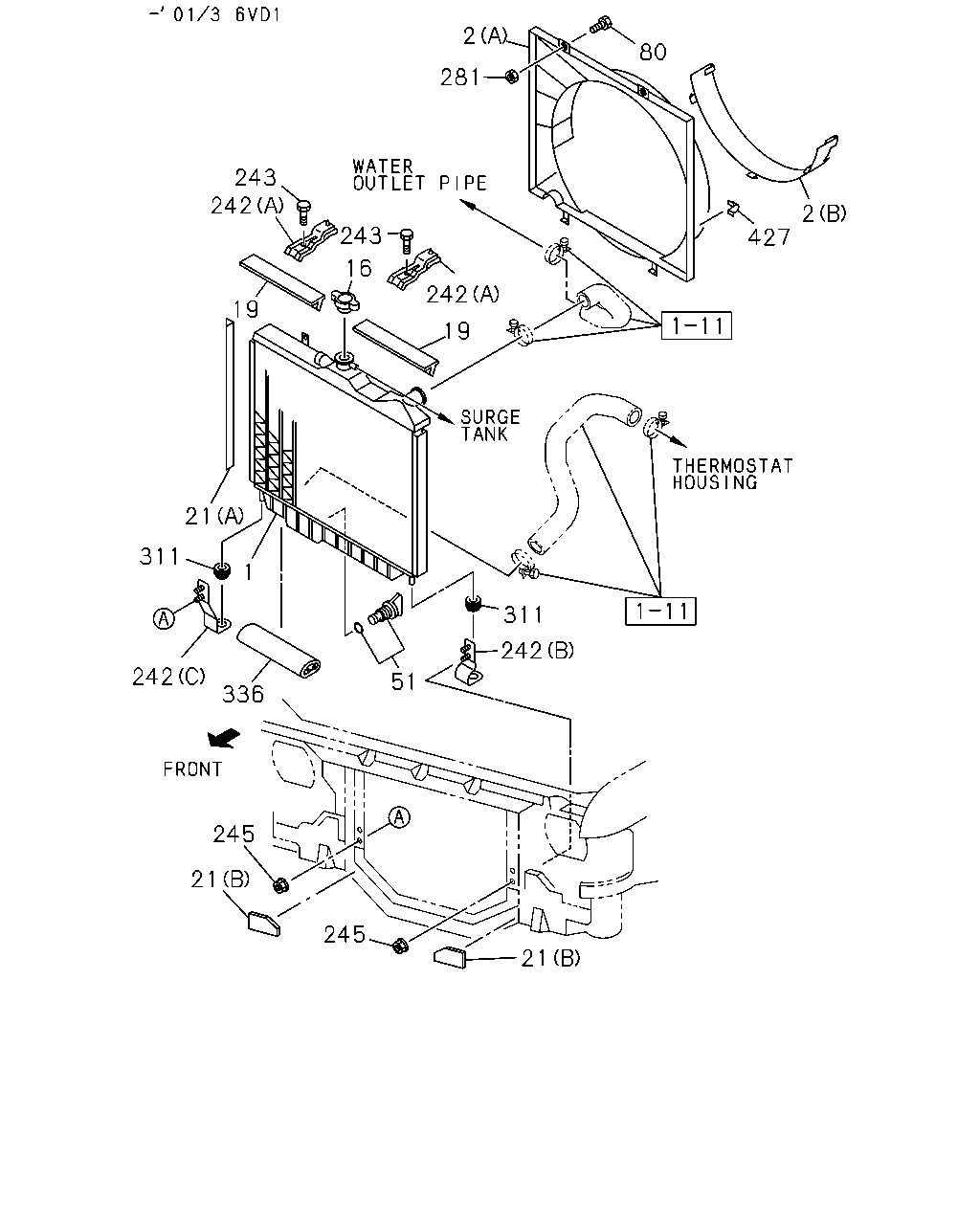

çizim 72153
2 80 281 243 242 2 243 427 242 16 19 19 21 311 1 311 242 242 51 336 245 21 245 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804-0010 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G) 		8-97116-005-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G),CHARGE AIRCOOLER<6PL> 		8-97116-005-0 01 1 0110- ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) 		8-97263-636-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) EXC. CHARGE AIR COOLER<6PL> 		8-97263-636-0 01 1 0110- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-0207 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0302- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-52475-959-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97304-700-0 01 1 0104- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0104-0301 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM 8-97186-459-0 01 1 9804- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 9910-0109 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97084-924-0 01 1 0110-0207 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0110-0207 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0208- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97087-010-3 01 1 0110- ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97087-725-2 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-0109 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0208-0301 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 9910-0109 ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97214-344-0 01 1 0110-0207 ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0110-0207 ● ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0208- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9909 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9910-0012 ● ● ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104-0301 ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0101-0109 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0110-0301 ● ● ● ● ●
16 01.203 CAP; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97104-194-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0302- ● ● ● ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-0109 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0208-0301 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0302- ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9910-0103 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97081-956-2 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9910-0002 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0103 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=365 		8-97254-404-0 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97304-967-0 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0302- ●
21 01.276 SEAL; RAD
(A) 		8-52468-212-0 02 1 9804-0103 ●
21 01.276 SEAL; RAD
(B) 		8-97033-102-3 01 1 9804- ●
21 01.276 SEAL; RAD
(B) 		8-97047-002-3 01 1 9804- ●
21 01.276 SEAL; RAD
A/T AISIN(RMD) (C) 		8-97084-019-0 02 1 0110- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9909 ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104-0301 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9910-0109 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0208-0301 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0302- ● ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 9910-0109 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> 		8-97036-939-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0208- ● ●
80 01.277 BOLT; FAN GUIDE 8-52468-044-0 02 1 9804-0103 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-9909 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0302- ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-9909 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9910-0109 ● ●
243 01.219 BOLT; BRKT
CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0110-0207 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0110-0207 ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0208-0301 ● ● ●
243 01.219 BOLT; BRKT
CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0302- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0302- ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-0109 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9909 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9910-0109 ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ● ● ●
281 01.277 NUT; FAN GUIDE 8-52460-824-0 02 1 9804-0103 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9804-9909 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9910-9910 ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911-0109 ● ●
311 01.270 RUBBER; MTG,RAD
CHARGE AIR COOLER<6PL> 		8-97231-024-0 02 1 0110-0207 ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0110-0207 ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0208-0301 ● ● ●
311 01.270 RUBBER; MTG,RAD
CHARGE AIR COOLER<6PL> 		8-97231-024-0 02 1 0302- ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0302- ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9804-9909 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9910-0109 ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 0110-0206 ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207-0301 ● ● ●
336 01.270 SEAL; LWR,RAD
CHARGE AIR COOLER<6PL> 		8-97257-011-0 02 1 0302- ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0302- ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-0109 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0208-0301 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0302- ● ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104-0301 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 9910-0103 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0208-0301 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0208-0301 ● ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0302- ● ●

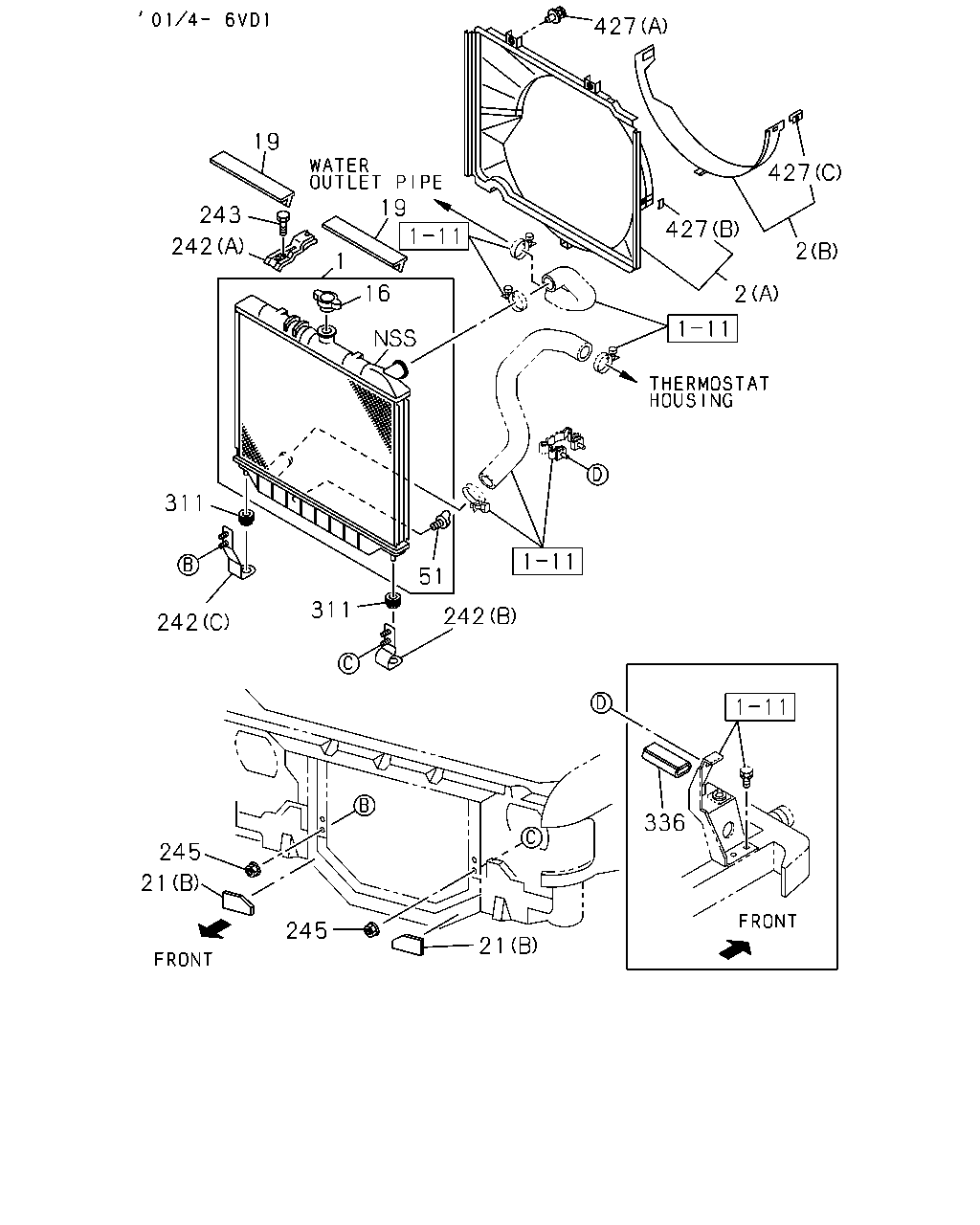

çizim 73858
427 19 19 427 243 427 242 1 16 2 311 51 311 242 242 336 245 21 245 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.219 RADIATOR ASM 8-97116-005-0 01 1 9804-0010 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G) 		8-97116-005-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
EXC. CYPRUS EQUIPMENT(R4G),CHARGE AIRCOOLER<6PL> 		8-97116-005-0 01 1 0110- ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) 		8-97263-636-0 01 1 0011-0109 ●
1 01.219 RADIATOR ASM
CYPRUS EQUIPMENT(R4G) EXC. CHARGE AIR COOLER<6PL> 		8-97263-636-0 01 1 0110- ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 9804-0207 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0208-0301 ●
1 01.219 RADIATOR ASM 8-94383-646-1 01 1 0302- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-52475-959-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97304-700-0 01 1 0104- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-52475-960-0 01 1 9804-0103 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0104-0301 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97304-702-0 01 1 0302- ●
1 01.219 RADIATOR ASM 8-97186-459-0 01 1 9804- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 9910-0109 ●
1 01.219 RADIATOR ASM
CHARGE AIR COOLER<6PL> 		8-97084-924-0 01 1 0110-0207 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0110-0207 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97084-924-0 01 1 0208- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) 		8-97087-010-3 01 1 0110- ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97087-725-2 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 9804-0109 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0110-0207 ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0208-0301 ● ●
2 01.277 GUIDE; FAN
EXC. CHARGE AIR COOLER<6PL> 		8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN 8-97164-550-1 01 1 0302- ●
2 01.277 GUIDE; FAN
(A) 		8-52468-078-0 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-52468-079-1 01 1 9804-0103 ●
2 01.277 GUIDE; FAN
(B) 		8-97033-101-2 01 1 0104- ●
2 01.277 GUIDE; FAN
(A) 		8-97074-073-2 01 1 0104- ●
2 01.277 GUIDE; FAN 8-97205-974-0 01 1 9804- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 9910-0109 ●
2 01.277 GUIDE; FAN
CHARGE AIR COOLER<6PL> 		8-97214-344-0 01 1 0110-0207 ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0110-0207 ● ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97214-344-0 01 1 0208- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9804-9909 ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9910-0012 ● ● ● ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0104-0301 ●
16 01.203 CAP; RAD
CHARGE AIR COOLER<6PL> 		8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97239-187-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0101-0109 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0110-0301 ● ● ● ● ●
16 01.203 CAP; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97104-194-0 01 1 0302- ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 0302- ● ● ● ●
16 01.203 CAP; RAD 8-52477-552-0 01 1 9804-0103 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 9804-0109 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0208-0301 ● ● ●
19 01.270 SEAL; RAD UPR
EXC. CHARGE AIR COOLER<6PL> L=540 		8-94468-115-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=540 		8-94468-115-1 01 1 0302- ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 9910-0103 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97081-956-2 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=200 		8-97081-956-2 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9804-9909 ●
19 01.270 SEAL; RAD UPR
L=380 		8-97081-957-2 01 1 9910-0002 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0003-0103 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0104-0109 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=365 		8-97254-404-0 01 1 0110-0207 ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0110-0207 ● ●
19 01.270 SEAL; RAD UPR
L=365 		8-97254-404-0 01 1 0208- ● ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=360 		8-97164-208-1 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0104-0301 ●
19 01.270 SEAL; RAD UPR
CHARGE AIR COOLER<6PL> L=200 		8-97304-967-0 01 1 0302- ●
19 01.270 SEAL; RAD UPR
L=200 		8-97304-967-0 01 1 0302- ●
21 01.276 SEAL; RAD
(A) 		8-52468-212-0 02 1 9804-0103 ●
21 01.276 SEAL; RAD
(B) 		8-97033-102-3 01 1 9804- ●
21 01.276 SEAL; RAD
(B) 		8-97047-002-3 01 1 9804- ●
21 01.276 SEAL; RAD
A/T AISIN(RMD) (C) 		8-97084-019-0 02 1 0110- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9804-9909 ● ● ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0104-0301 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9910-0109 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0208-0301 ● ● ●
51 08.951 PLUG; DRAIN
EXC. CHARGE AIR COOLER<6PL> 08.915 W/GASKET 		8-94321-236-0 01 1 0302- ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 0302- ● ●
51 08.951 PLUG; DRAIN 8-52461-346-0 01 1 9804-0103 ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 9910-0109 ●
51 08.951 PLUG; DRAIN
CHARGE AIR COOLER<6PL> 		8-97036-939-0 01 1 0110-0207 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0110-0207 ● ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 		8-97036-939-0 01 1 0208- ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-226-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-226-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 9804-0109 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0110-0207 ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0110-0207 ● ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
EXC. CHARGE AIR COOLER<6PL> 		8-97041-225-2 01 1 0302- ●
242 01.219 BRACKET; RAD 8-97041-225-2 01 1 0302- ● ●
242 01.219 BRACKET; RAD
(A) 		8-97064-431-2 01 1 9804-9904 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-0 01 1 9905-9909 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (A) 		8-97225-348-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(A) 		8-97225-348-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (B) 		8-97084-635-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 0302- ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9804-9909 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9910-0109 ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0110-0207 ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0110-0207 ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0208-0301 ● ● ●
242 01.219 BRACKET; RAD
CHARGE AIR COOLER<6PL> (C) 		8-97084-636-1 01 1 0302- ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 0302- ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9804-9909 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9910-0109 ● ●
243 01.219 BOLT; BRKT
CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0110-0207 ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0110-0207 ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0208-0301 ● ● ●
243 01.219 BOLT; BRKT
CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0302- ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0302- ● ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9804-0109 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0110-0207 ● ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ●
245 01.219 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302- ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9804-9909 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9910-0109 ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0110-0207 ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0208-0301 ● ● ●
245 01.219 NUT; BRKT
CHARGE AIR COOLER<6PL> 04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 0302- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9804-9909 ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9910-9910 ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911-0109 ● ●
311 01.270 RUBBER; MTG,RAD
CHARGE AIR COOLER<6PL> 		8-97231-024-0 02 1 0110-0207 ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0110-0207 ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0208-0301 ● ● ●
311 01.270 RUBBER; MTG,RAD
CHARGE AIR COOLER<6PL> 		8-97231-024-0 02 1 0302- ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 0302- ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9804-9909 ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9910-0109 ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 0110-0206 ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207-0301 ● ● ●
336 01.270 SEAL; LWR,RAD
CHARGE AIR COOLER<6PL> 		8-97257-011-0 02 1 0302- ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0302- ● ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 9804-0109 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0208-0301 ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. CHARGE AIR COOLER<6PL> 		8-97143-177-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE 8-97143-177-0 04 1 0302- ● ●
427 01.240 CLIP; FAN GUIDE
01.277 		8-52469-065-0 04 1 9804-0103 ●
427 01.240 CLIP; FAN GUIDE
(C) 		8-97043-199-0 02 1 0104- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0104-0301 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> (B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97066-962-0 04 1 0302- ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 9910-0103 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0104-0109 ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0110-0207 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0110-0207 ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0208-0301 ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0208-0301 ● ●
427 01.240 CLIP; FAN GUIDE
CHARGE AIR COOLER<6PL> 01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 0302- ●
427 01.240 CLIP; FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.277 (A) 		8-97043-862-0 02 1 0302- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
