Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#38465) — 219 parça

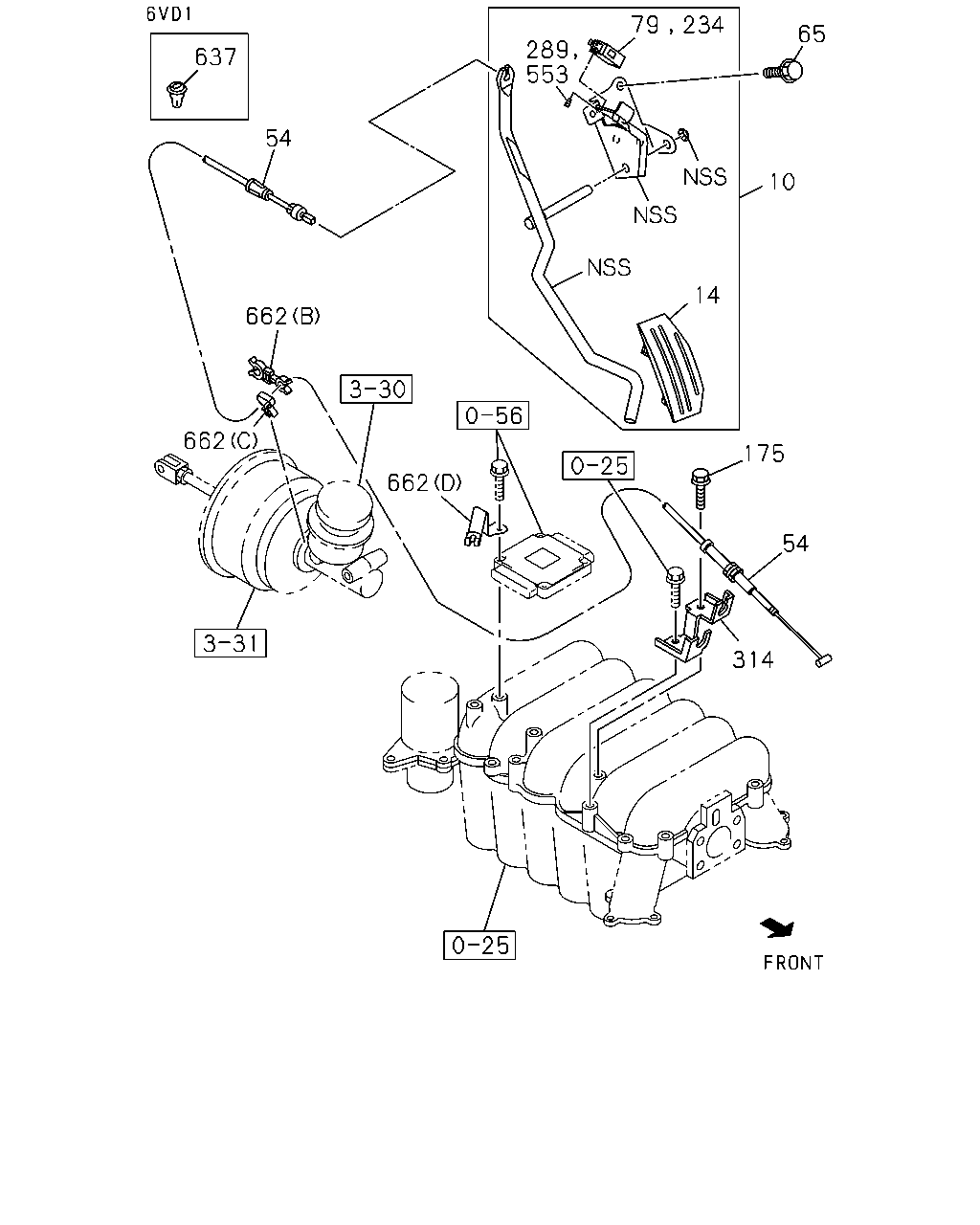

79 234 65 289 553 637 54 10 14 662 662 175 662 54 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	03.451 PEDAL ASM; ACCEL A/T THM(RMQ)	8-97136-787-1	01	1	9804-9910	●
10	03.451 PEDAL ASM; ACCEL A/T THM(RMQ)	8-97231-525-0	01	1	9911-	●
10	03.451 PEDAL ASM; ACCEL M/T MUA 5 SPEED(RMN)	8-97136-786-0	01	1	9804-9910	●
10	03.451 PEDAL ASM; ACCEL M/T MUA 5 SPEED(RMN)	8-97231-419-0	01	1	9911-0109	●
10	03.451 PEDAL ASM; ACCEL CHARGE AIR COOLER<6PL>	8-97231-419-0	01	1	0110-		●
10	03.451 PEDAL ASM; ACCEL M/T MUA 5 SPEED(RMN)	8-97231-419-0	01	1	0110-	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9804-9909	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9910-0109	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	0110-	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL>	8-97301-167-4	01	1	0110-		●
54	03.430 CABLE; ENG CONT	8-97132-219-2	01	1	9804-9909		●		●
54	03.430 CABLE; ENG CONT	8-97132-219-2	01	1	9910-0109		●		●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>	8-97132-219-5	01	1	0110-		●
54	03.430 CABLE; ENG CONT	8-97132-219-5	01	1	0110-				●	●
54	03.430 CABLE; ENG CONT	8-97179-873-5	01	1	9804-	●
54	03.430 CABLE; ENG CONT	8-97181-417-2	01	1	9804-0208			●
54	03.430 CABLE; ENG CONT	8-97350-326-2	01	1	0209-			●
65	03.483 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9804-9907	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9908-9909	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9910-0109	●	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	0110-0110	●	●	●	●	●	●
65	03.483 BOLT 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0111-	●	●	●	●	●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3)	8-97084-553-0	01	1	9804-9909		●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3)	8-97084-553-0	01	1	9910-0109		●			●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97084-553-0	01	1	0110-		●
79	03.451 SWITCH; ACCEL PEDAL A/T THM(RMQ) 03.452	8-97147-332-1	01	1	9911-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-	●
234	03.452 SWITCH; ACCEL A/T THM(RMQ)	8-97147-332-0	01	1	9804-9910	●
289	03.452 SCREW; MICRO SWITCH A/T THM(RMQ) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	9804-9910	●
314	03.481 BRACKET; ACCEL CABLE	8-97136-145-3	01	1	9804-	●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9804-9909		●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9910-9910		●			●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9911-0109		●			●
553	03.451 SCREW; TAP,PEDAL TO SW A/T THM(RMQ) M3X16 TAPPING	0-71280-316-0	02	1	9911-0109	●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M3X16 TAPPING	0-71280-316-0	02	1	0110-		●
553	03.451 SCREW; TAP,PEDAL TO SW A/T THM(RMQ) M3X16 TAPPING	0-71280-316-0	02	1	0110-	●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	9804-0109	●		●
637	03.469 GROMMET; ACCEL CABLE CHARGE AIR COOLER<6PL> 16.346	8-97801-635-1	01	1	0110-		●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	0110-	●		●			●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) EXC. TURBOCHARGER<K51> 02.183 (B) ID=6 & 4.8	8-94313-325-0	01	1	9804-0103		●
662	03.430 CLIP; ACCEL CONT CABLE SHORT(TF***C) 02.183 (B) ID=6 & 4.8	8-94313-325-0	01	1	9804-0103		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	9804-9909		●		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	9910-0109		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE EXC. CHARGE AIR COOLER<6PL> (A) ID=10.5 H=60	8-94323-658-1	01	1	0110-		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	0110-				●	●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) 02.559 (B) ID=10 & 12	8-94155-296-0	01	1	9804-9909		●		●
662	03.430 CLIP; ACCEL CONT CABLE TURBOCHARGER<K51> 02.559 (B) ID=10 & 12	8-94155-296-0	01	1	9910-		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.145 (B) ID=25 & 11	8-97068-799-0	01	1	9804-9909		●		●
662	03.430 CLIP; ACCEL CONT CABLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 03.145 (B) ID=25 & 11	8-97068-799-0	01	1	9910-		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) (B) ID=6 & 16.5	8-94165-402-0	01	1	9804-9909	●	●		●
662	03.430 CLIP; ACCEL CONT CABLE TURBOCHARGER<K51> (B) ID=6 & 16.5	8-94165-402-0	01	1	9910-0103		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	9910-0103	●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	0104-0109	●	●		●	●
662	03.430 CLIP; ACCEL CONT CABLE EXC. CHARGE AIR COOLER<6PL> (B) ID=6 & 16.5	8-94165-402-0	01	1	0110-		●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	0110-	●			●	●
662	03.430 CLIP; ACCEL CONT CABLE 02.559 (C) ID=10	8-94450-392-0	01	1	9804-	●
662	03.430 CLIP; ACCEL CONT CABLE (D)	8-97177-148-0	01	1	9804-	●

1 243 65 14 334 637 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	9804-9909		●	●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97022-897-0	01	1	9804-9909				●
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	9910-0109		●	●		●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97022-897-0	01	1	9910-0109				●
1	03.451 LEVER; PEDAL SIDE EXC. CHARGE AIR COOLER<6PL>	8-97022-897-0	01	1	0110-		●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97022-897-0	01	1	0110-				●
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	0110-			●		●
1	03.451 LEVER; PEDAL SIDE AUSTRALIAN EQUIPMENT(RR3)	8-97033-389-0	01	1	9804-				●
1	03.451 LEVER; PEDAL SIDE	8-97319-080-2	01	1	0110-						●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9804-9909	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9910-0109	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	0110-	●	●	●	●	●	●
65	03.483 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9804-9907	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9908-9909	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9910-0109	●	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	0110-0110	●	●	●	●	●	●
65	03.483 BOLT 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0111-	●	●	●	●	●
243	03.425 SENSOR; ACCEL	8-97163-164-0	01	1	0110-						●
334	03.425 PLUG; ACCEL CABLE 12.804	8-94147-164-1	01	1	0110-						●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	9804-0109	●		●
637	03.469 GROMMET; ACCEL CABLE CHARGE AIR COOLER<6PL> 16.346	8-97801-635-1	01	1	0110-		●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	0110-	●		●			●

659 392 392 662 637 54 236 662 232 65 19 553 79 18 39 713 32 1 67 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	9804-9909		●	●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97022-897-0	01	1	9804-9909				●
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	9910-0109		●	●		●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97022-897-0	01	1	9910-0109				●
1	03.451 LEVER; PEDAL SIDE EXC. CHARGE AIR COOLER<6PL>	8-97022-897-0	01	1	0110-		●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97022-897-0	01	1	0110-				●
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	0110-			●		●
1	03.451 LEVER; PEDAL SIDE AUSTRALIAN EQUIPMENT(RR3)	8-97033-389-0	01	1	9804-				●
1	03.451 LEVER; PEDAL SIDE	8-97319-080-2	01	1	0110-						●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9804-9909	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9910-0109	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	0110-	●	●	●	●	●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	9804-9909		●	●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	9910-0109		●	●	●	●
18	03.459 NUT; JOINT LK EXC. CHARGE AIR COOLER<6PL> 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0110-		●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	0110-			●	●	●
19	03.452 BRACKET; ACCEL PEDAL CHARGE AIR COOLER<6PL>	8-97301-160-1	01	1	0110-		●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9804-9903		●	●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9904-9909		●		●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9910-0109		●		●	●
19	03.452 BRACKET; ACCEL PEDAL EXC. CHARGE AIR COOLER<6PL>	8-97117-120-1	01	1	0110-		●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	0110-				●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97222-075-0	01	1	9904-			●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97019-282-0	01	1	9804-9909		●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97019-282-0	01	1	9804-9909				●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97019-282-0	01	1	9910-0109		●	●		●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97019-282-0	01	1	9910-0109				●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. CHARGE AIR COOLER<6PL>	8-97019-282-0	01	1	0110-		●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. AUSTRALIAN EQUIPMENT(RR3)	8-97019-282-0	01	1	0110-				●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97019-282-0	01	1	0110-			●		●
32	03.459 SPRING; RETURN,ACCEL PEDAL AUSTRALIAN EQUIPMENT(RR3)	8-97041-783-0	01	1	9804-				●
39	03.459 NUT; ACCEL PEDAL STOPPER 00.787 M8	9-09111-408-0	01	1	9804-9909		●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 00.787 M8	9-09111-408-0	01	1	9910-0109		●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER EXC. CHARGE AIR COOLER<6PL> 00.787 M8	9-09111-408-0	01	1	0110-		●
39	03.459 NUT; ACCEL PEDAL STOPPER 00.787 M8	9-09111-408-0	01	1	0110-			●	●	●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL>	8-97301-167-4	01	1	0110-		●
54	03.430 CABLE; ENG CONT	8-97132-219-2	01	1	9804-9909		●		●
54	03.430 CABLE; ENG CONT	8-97132-219-2	01	1	9910-0109		●		●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>	8-97132-219-5	01	1	0110-		●
54	03.430 CABLE; ENG CONT	8-97132-219-5	01	1	0110-				●	●
54	03.430 CABLE; ENG CONT	8-97179-873-5	01	1	9804-	●
54	03.430 CABLE; ENG CONT	8-97181-417-2	01	1	9804-0208			●
54	03.430 CABLE; ENG CONT	8-97350-326-2	01	1	0209-			●
65	03.483 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9804-9907	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9908-9909	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9910-0109	●	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	0110-0110	●	●	●	●	●	●
65	03.483 BOLT 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0111-	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT	8-97102-189-2	01	1	9804-9909		●		●
67	03.480 CABLE ASM; IDLE CONT	8-97102-189-2	01	1	9910-0109		●		●	●
67	03.480 CABLE ASM; IDLE CONT EXC. CHARGE AIR COOLER<6PL>	8-97102-189-2	01	1	0110-		●
67	03.480 CABLE ASM; IDLE CONT	8-97102-189-2	01	1	0110-				●	●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3)	8-97084-553-0	01	1	9804-9909		●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3)	8-97084-553-0	01	1	9910-0109		●			●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97084-553-0	01	1	0110-		●
79	03.451 SWITCH; ACCEL PEDAL A/T THM(RMQ) 03.452	8-97147-332-1	01	1	9911-	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.704 M8X35	0-20800-835-0	01	1	9804-9909		●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.704 M8X35	0-20800-835-0	01	1	9910-0109		●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL EXC. CHARGE AIR COOLER<6PL> 03.704 M8X35	0-20800-835-0	01	1	0110-		●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.704 M8X35	0-20800-835-0	01	1	0110-			●	●	●
236	03.452 SCREW; TAP,PEDAL TO BRKT 16.165 M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	9804-9909		●		●
236	03.452 SCREW; TAP,PEDAL TO BRKT 16.165 M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	9910-0109		●		●	●
236	03.452 SCREW; TAP,PEDAL TO BRKT EXC. CHARGE AIR COOLER<6PL> 16.165 M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0110-		●
236	03.452 SCREW; TAP,PEDAL TO BRKT 16.165 M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	0110-				●	●
392	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> (C) ID=10	9-09521-035-0	01	1	0110-		●
392	03.483 CLIP; ACCEL CONT CABLE 08.852 (B) ID=8 & 16	5-09707-032-0	01	1	9804-			●
392	03.483 CLIP; ACCEL CONT CABLE 03.120 (A) ID=6 & 13	8-94459-564-0	01	1	9804-0208			●
392	03.483 CLIP; ACCEL CONT CABLE (A) ID=6 & 10	8-94154-844-0	01	1	0209-			●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9804-9909		●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9910-9910		●			●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9911-0109		●			●
553	03.451 SCREW; TAP,PEDAL TO SW A/T THM(RMQ) M3X16 TAPPING	0-71280-316-0	02	1	9911-0109	●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M3X16 TAPPING	0-71280-316-0	02	1	0110-		●
553	03.451 SCREW; TAP,PEDAL TO SW A/T THM(RMQ) M3X16 TAPPING	0-71280-316-0	02	1	0110-	●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	9804-0109	●		●
637	03.469 GROMMET; ACCEL CABLE CHARGE AIR COOLER<6PL> 16.346	8-97801-635-1	01	1	0110-		●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	0110-	●		●			●
659	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> (A) ID=28	8-94362-106-0	01	1	0110-		●
659	03.483 CLIP; ACCEL CONT CABLE 02.559 (B) ID=10	8-94450-392-0	01	1	9804-			●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) EXC. TURBOCHARGER<K51> 02.183 (B) ID=6 & 4.8	8-94313-325-0	01	1	9804-0103		●
662	03.430 CLIP; ACCEL CONT CABLE SHORT(TF***C) 02.183 (B) ID=6 & 4.8	8-94313-325-0	01	1	9804-0103		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	9804-9909		●		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	9910-0109		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE EXC. CHARGE AIR COOLER<6PL> (A) ID=10.5 H=60	8-94323-658-1	01	1	0110-		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	0110-				●	●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) 02.559 (B) ID=10 & 12	8-94155-296-0	01	1	9804-9909		●		●
662	03.430 CLIP; ACCEL CONT CABLE TURBOCHARGER<K51> 02.559 (B) ID=10 & 12	8-94155-296-0	01	1	9910-		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.145 (B) ID=25 & 11	8-97068-799-0	01	1	9804-9909		●		●
662	03.430 CLIP; ACCEL CONT CABLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 03.145 (B) ID=25 & 11	8-97068-799-0	01	1	9910-		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE LONG(TF***F) (B) ID=6 & 16.5	8-94165-402-0	01	1	9804-9909	●	●		●
662	03.430 CLIP; ACCEL CONT CABLE TURBOCHARGER<K51> (B) ID=6 & 16.5	8-94165-402-0	01	1	9910-0103		●		●	●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	9910-0103	●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	0104-0109	●	●		●	●
662	03.430 CLIP; ACCEL CONT CABLE EXC. CHARGE AIR COOLER<6PL> (B) ID=6 & 16.5	8-94165-402-0	01	1	0110-		●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	0110-	●			●	●
662	03.430 CLIP; ACCEL CONT CABLE 02.559 (C) ID=10	8-94450-392-0	01	1	9804-	●
662	03.430 CLIP; ACCEL CONT CABLE (D)	8-97177-148-0	01	1	9804-	●
713	03.463 WASHER; PL 16.674 ID=8.4	9-09160-508-0	01	1	9804-9909		●	●	●
713	03.463 WASHER; PL 16.674 ID=8.4	9-09160-508-0	01	1	9910-0109		●	●	●	●
713	03.463 WASHER; PL EXC. CHARGE AIR COOLER<6PL> 16.674 ID=8.4	9-09160-508-0	01	1	0110-		●
713	03.463 WASHER; PL 16.674 ID=8.4	9-09160-508-0	01	1	0110-			●	●	●

10 65 54 14 637 54 659 323 19 392 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	03.451 PEDAL ASM; ACCEL A/T THM(RMQ)	8-97136-787-1	01	1	9804-9910	●
10	03.451 PEDAL ASM; ACCEL A/T THM(RMQ)	8-97231-525-0	01	1	9911-	●
10	03.451 PEDAL ASM; ACCEL M/T MUA 5 SPEED(RMN)	8-97136-786-0	01	1	9804-9910	●
10	03.451 PEDAL ASM; ACCEL M/T MUA 5 SPEED(RMN)	8-97231-419-0	01	1	9911-0109	●
10	03.451 PEDAL ASM; ACCEL CHARGE AIR COOLER<6PL>	8-97231-419-0	01	1	0110-		●
10	03.451 PEDAL ASM; ACCEL M/T MUA 5 SPEED(RMN)	8-97231-419-0	01	1	0110-	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9804-9909	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9910-0109	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	0110-	●	●	●	●	●	●
19	03.452 BRACKET; ACCEL PEDAL CHARGE AIR COOLER<6PL>	8-97301-160-1	01	1	0110-		●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9804-9903		●	●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9904-9909		●		●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9910-0109		●		●	●
19	03.452 BRACKET; ACCEL PEDAL EXC. CHARGE AIR COOLER<6PL>	8-97117-120-1	01	1	0110-		●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	0110-				●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97222-075-0	01	1	9904-			●
54	03.430 CABLE; ENG CONT CHARGE AIR COOLER<6PL>	8-97301-167-4	01	1	0110-		●
54	03.430 CABLE; ENG CONT	8-97132-219-2	01	1	9804-9909		●		●
54	03.430 CABLE; ENG CONT	8-97132-219-2	01	1	9910-0109		●		●	●
54	03.430 CABLE; ENG CONT EXC. CHARGE AIR COOLER<6PL>	8-97132-219-5	01	1	0110-		●
54	03.430 CABLE; ENG CONT	8-97132-219-5	01	1	0110-				●	●
54	03.430 CABLE; ENG CONT	8-97179-873-5	01	1	9804-	●
54	03.430 CABLE; ENG CONT	8-97181-417-2	01	1	9804-0208			●
54	03.430 CABLE; ENG CONT	8-97350-326-2	01	1	0209-			●
65	03.483 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9804-9907	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9908-9909	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	9910-0109	●	●	●	●	●
65	03.483 BOLT 16.505 M6X12 FLANGE	0-28480-612-0	02	1	0110-0110	●	●	●	●	●	●
65	03.483 BOLT 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0111-	●	●	●	●	●
323	03.483 BOLT; CLIP CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0110-		●
392	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> (C) ID=10	9-09521-035-0	01	1	0110-		●
392	03.483 CLIP; ACCEL CONT CABLE 08.852 (B) ID=8 & 16	5-09707-032-0	01	1	9804-			●
392	03.483 CLIP; ACCEL CONT CABLE 03.120 (A) ID=6 & 13	8-94459-564-0	01	1	9804-0208			●
392	03.483 CLIP; ACCEL CONT CABLE (A) ID=6 & 10	8-94154-844-0	01	1	0209-			●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	9804-0109	●		●
637	03.469 GROMMET; ACCEL CABLE CHARGE AIR COOLER<6PL> 16.346	8-97801-635-1	01	1	0110-		●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	0110-	●		●			●
659	03.483 CLIP; ACCEL CONT CABLE CHARGE AIR COOLER<6PL> (A) ID=28	8-94362-106-0	01	1	0110-		●
659	03.483 CLIP; ACCEL CONT CABLE 02.559 (B) ID=10	8-94450-392-0	01	1	9804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
