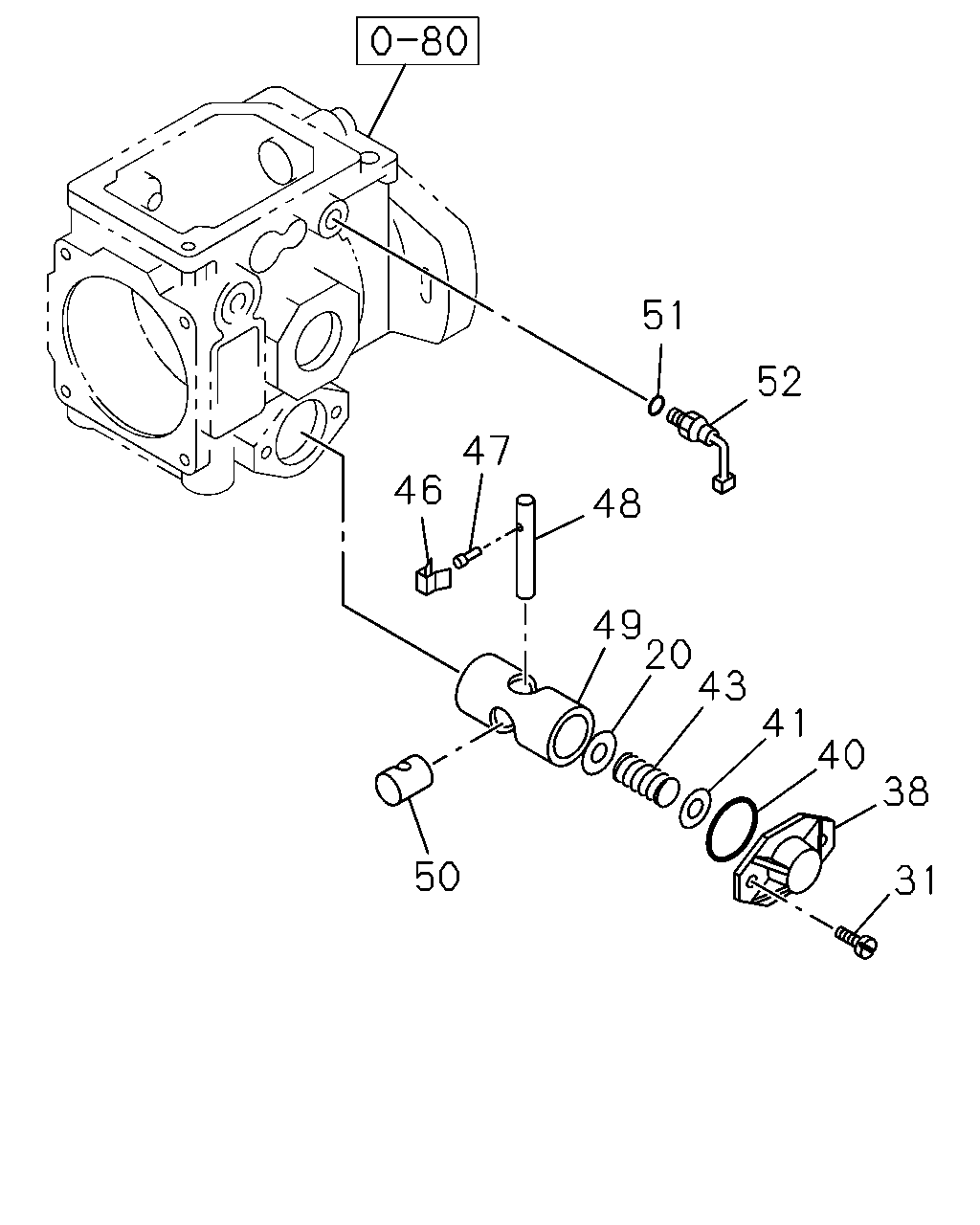

20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-495-0 |
01 |
1 |
- |
| |
31 |
03.330 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94313-276-0 |
02 |
1 |
- |
| |
38 |
03.318 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94473-120-0 |
01 |
1 |
- |
| |
40 |
03.330 GASKET; TIMER COVER,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94433-763-0 |
01 |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
03.320, T=2.40
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94121-620-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.60
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-495-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.70
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-496-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=0.90
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-497-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.00
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-498-0 |
AR |
1 |
- |
| |
41 |
03.330 SHIM; OUTER SPRING,TIMER,INJ PUM
T=1.20
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-499-0 |
AR |
1 |
- |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.7 EFFECT TURN=5.1
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94313-200-0 |
01 |
1 |
- |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94313-241-0 |
01 |
1 |
- |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=35.8 EFFECT TURN=5.7
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94386-591-0 |
01 |
1 |
- |
| |
46 |
03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-488-0 |
01 |
1 |
- |
| |
47 |
03.340 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-487-0 |
01 |
1 |
- |
| |
48 |
03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-486-0 |
01 |
1 |
- |
| |
49 |
03.330 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94317-492-0 |
01 |
1 |
- |
| |
50 |
03.340 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321,
C = 8-97132-322-1, 97132322, D = 8-97133-438-1, 97133438,
E = 8-97133-439-1, 97133439, F = 8-97133-440-1, 97133440
|
8-94227-493-0 |
01 |
1 |
- |
| |
51 |
03.340 GASKET; TIMING SENSOR,INJ PUMP
03.306
ASM PART: B = 8-97132-321-1, 97132321, E = 8-97133-439-1, 97133439,
F = 8-97133-440-1, 97133440
|
8-94227-671-0 |
01 |
1 |
- |
| |
52 |
03.340 SENSOR; TIMING,TACHOMETER,INJ PU
ASM PART: B = 8-97132-321-1, 97132321, E = 8-97133-439-1, 97133439,
F = 8-97133-440-1, 97133440
|
8-94403-289-1 |
01 |
1 |
- |
