◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#3846) — 69 parça

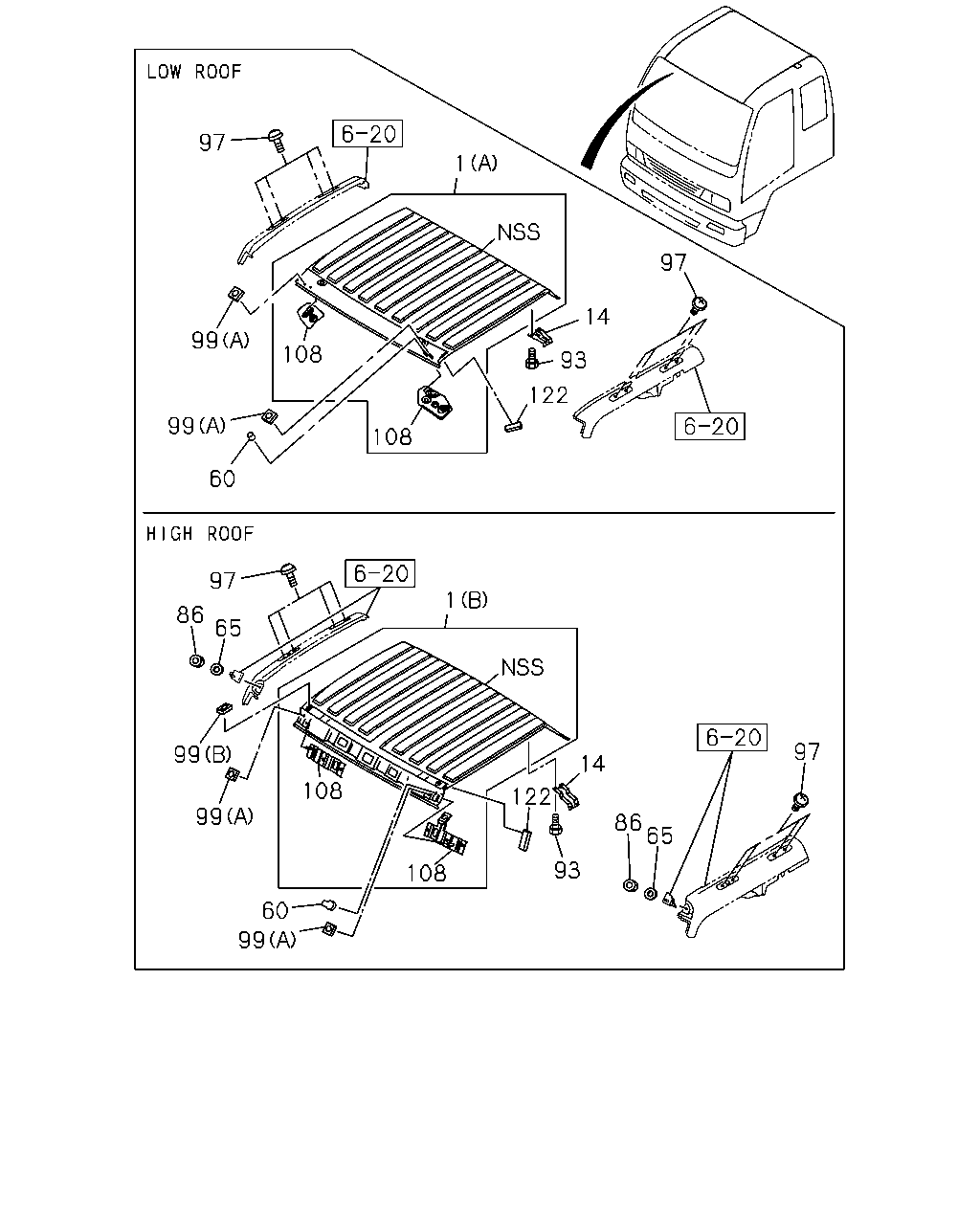

çizim 39869
97 1 97 14 99 108 93 122 99 108 60 97 1 86 65 97 99 14 108 122 99 86 65 93 108 60 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
LOW ROOF<6XQ> (A) 		1-61181-072-0 01 1 9601- ● ●
1 PANEL; ROOF
HIGH ROOF<S2F> (B) 		1-61181-070-1 01 1 9601-9803 ●
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> (B) 		1-61181-070-1 01 1 9601-9803 ●
1 PANEL; ROOF
HIGH ROOF<S2F> (B) PRIMER 		1-61181-152-0 01 1 9804- ●
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> (B) PRIMER 		1-61181-152-0 01 1 9804- ●
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> (B) 		1-61181-087-1 01 1 9601-9803 ●
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> (B) 		1-61181-151-0 01 1 9804- ●
14 SUPPORT; ROOF
HIGH ROOF<S2F> 		1-73318-493-3 02 1 9601-9803 ● ●
14 SUPPORT; ROOF
HIGH ROOF<S2F> 		1-73318-595-3 02 1 9804- ● ●
14 SUPPORT; ROOF
LOW ROOF<6XQ> 		1-73318-510-1 02 1 9601- ● ●
60 COVER; ROOF
HIGH ROOF<S2F> 		1-79998-922-3 03 1 9601- ● ●
60 COVER; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-79998-922-3 02 1 9601-0004 ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> HIGH ROOF<S2F> 		1-79998-922-3 02 1 0005- ● ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 03 1 9601-0004 ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> LOW ROOF<6XQ> 		1-71736-200-0 02 1 0005- ● ●
60 COVER; ROOF
LOW ROOF<6XQ> 		1-71736-200-0 02 1 0005- ● ●
60 COVER; ROOF
LOW ROOF<6XQ> EXC. MIR O/S RR VIEW WIDE<WU4> 		1-71736-200-0 02 1 9601-0004 ● ●
65 WASHER; PL
HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9601-0004 ● ●
65 WASHER; PL
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> ID=8 T=2.3 		8-94368-403-1 01 1 9601-0004 ● ●
65 WASHER; PL
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> ID=8 T=2.3 		8-94368-403-1 01 1 0005-0701 ● ●
65 WASHER; PL
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> ID=8 T=2.3 		8-98073-399-0 01 1 0702- ● ●
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 02 1 0005-0701 ● ●
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> HIGH ROOF<S2F> ID=8 T=2.3 		8-98073-399-0 02 1 0702- ● ●
86 NUT; ROOF
HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 9601-9801 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> M8 FLANGE 		9-09130-408-0 01 1 9601-9801 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 01 1 9802-0004 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> M8 LOCK NUT 		9-09131-408-0 01 1 9802-0004 ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-408-0 02 1 0005-0103 ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> HIGH ROOF<S2F> M8 LOCK NUT 		9-09131-508-0 02 1 0104-0603 ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW FLAT<YS1> HIGH ROOF<S2F> M8 LOCK NUT 		0-91370-008-0 02 1 0604- ● ●
86 NUT; ROOF
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> M8 LOCK NUT 		9-09131-408-0 01 1 0005-0103 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> M8 LOCK NUT 		9-09131-508-0 01 1 0104-0603 ● ●
86 NUT; ROOF
HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> M8 LOCK NUT 		0-91370-008-0 01 1 0604- ● ●
93 BOLT; SUPPORT
M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9601- ● ●
97 BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER 		1-79198-003-2 08 1 9601- ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) 75X50 ID=36 		1-61281-458-1 02 1 0501- ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 25 1 9601-9810 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9601-9806 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-1 13 1 9807-0001 ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7 		1-61281-380-2 17 1 0002- ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9807-9901 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9807-9901 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-1 08 1 9902- ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9601-9806 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9810 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9810 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9807-9810 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 9811- ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=20 T=0.7 		1-61281-380-2 04 1 9811- ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9601-9807 ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW WIDE<WU4> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-9810 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9808-9810 ● ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW WIDE<WU4> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9811-0403 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 03 1 9601-9810 ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 9807- ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> (A) 30X30 ID=9 T=0.7 		1-61281-444-1 01 1 9807- ● ●
99 SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9601-9810 ● ●
99 SEAL; BODY,METAL
LOW ROOF<6XQ> (A) 30X30 ID=9 T=0.7 		1-61281-444-0 02 1 9601-9810 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0403 ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW WIDE<WU4> (A) 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9808-0403 ● ●
99 SEAL; BODY,METAL
(A) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ● ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW WIDE<WU4> (A) 14X14 ID=10 T=0.7 		1-61281-427-1 02 1 0404- ● ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> (B) 75X50 ID=36 		1-61281-458-0 02 1 9601-9810 ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-979-4 01 1 9601- ● ●
108 PATCH; MIRROR
HIGH ROOF<S2F> 		1-61180-956-4 01 1 9601- ● ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61281-241-5 01 1 9601- ● ●
108 PATCH; MIRROR
LOW ROOF<6XQ> 		1-61181-029-4 01 1 9601- ● ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9705-0809 ● ●
122 SEAL; FRT UPR 1-61270-973-0 02 1 0810- ● ●
