1 |

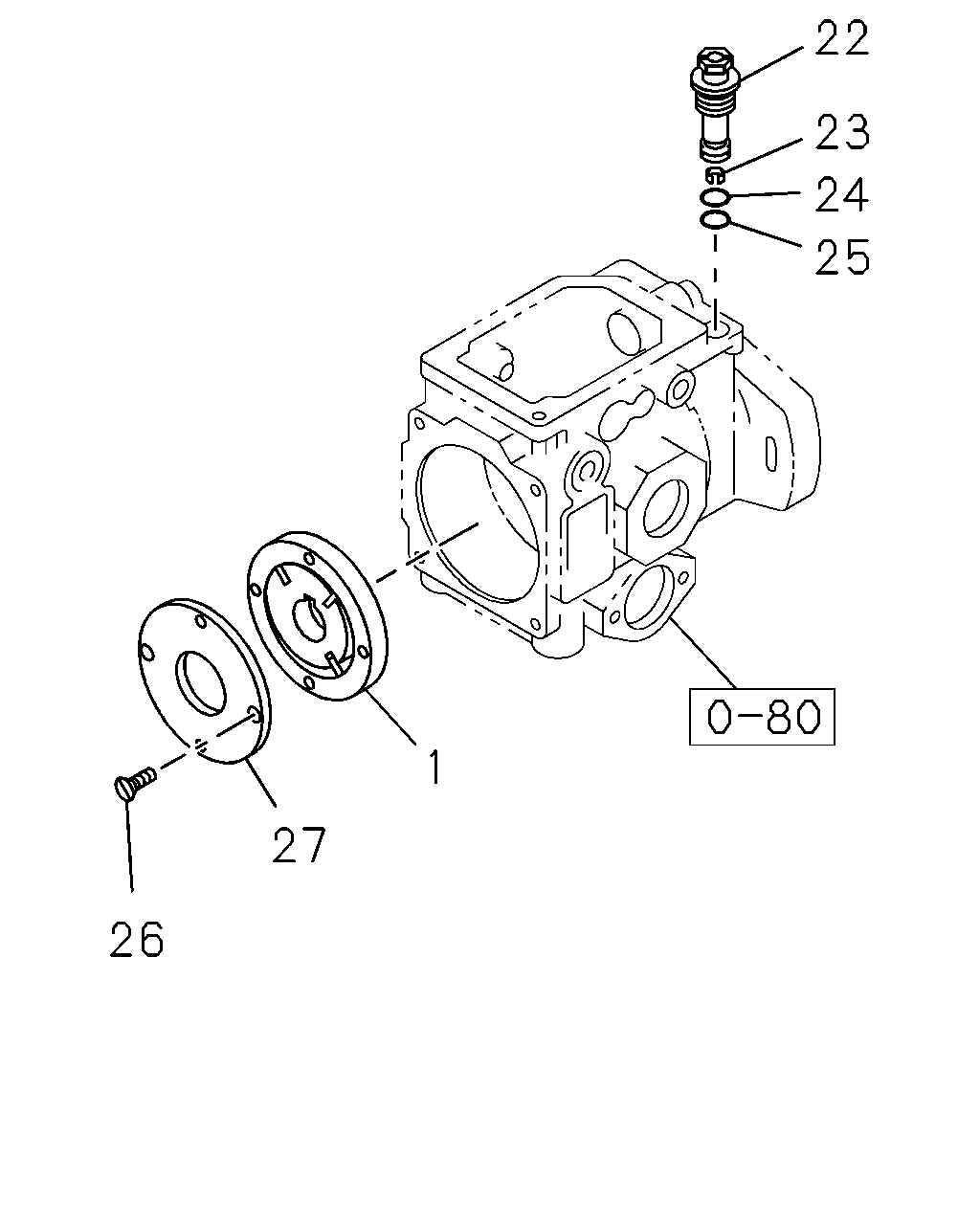

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94227-477-0 |
01 |
1 |
- |
| |
22 |

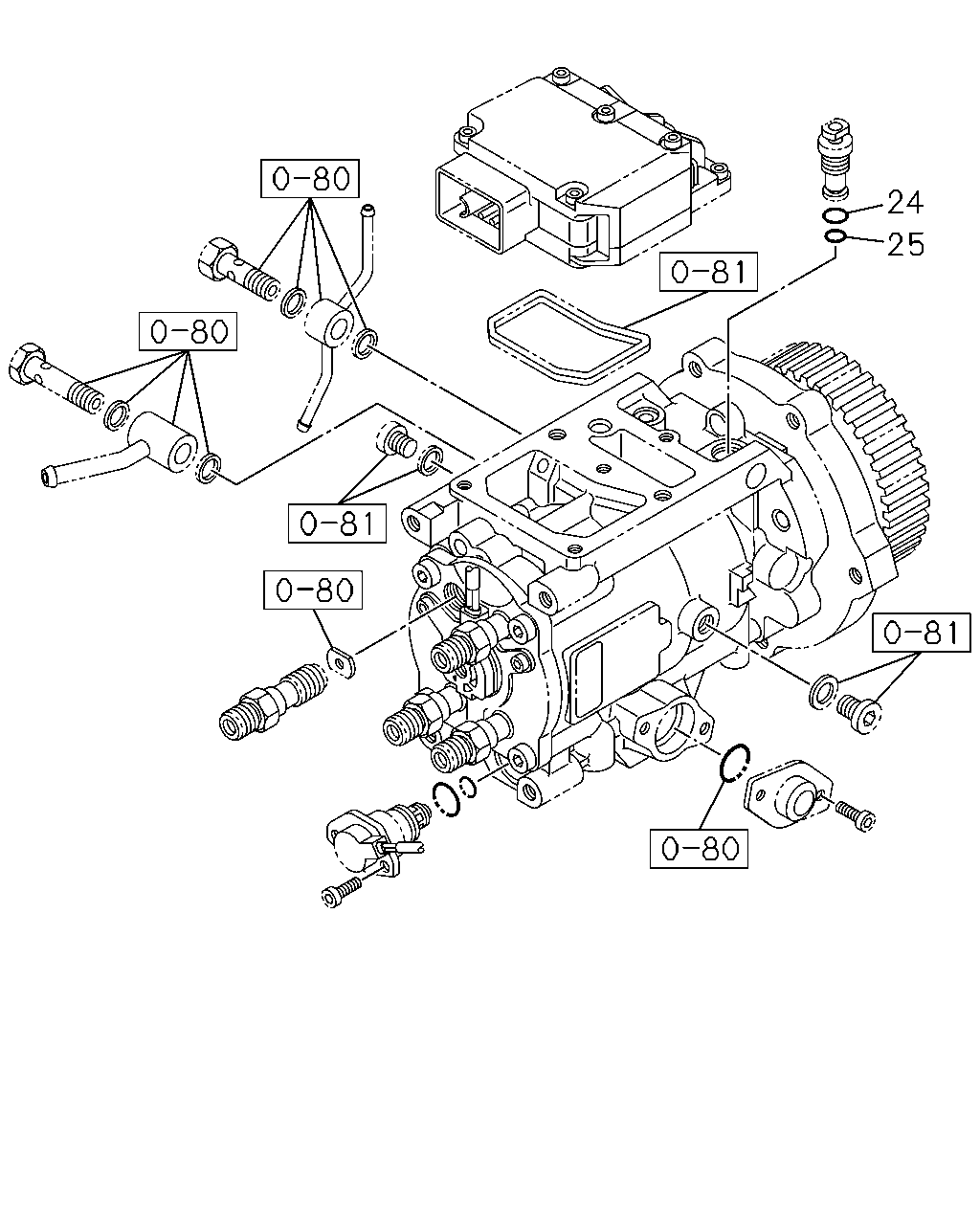

03.901 VALVE; REGULATING,INJ PUMP
STAMP 07
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94454-253-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94227-641-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: I = 8-97249-238-2, 97249238
|
8-97331-769-0 |
01 |
1 |
-0305 |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: I = 8-97249-238-2, 97249238
|
8-97372-191-0 |
01 |
1 |
0306- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94227-640-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: I = 8-97249-238-2, 97249238
|
8-97331-768-0 |
01 |
1 |
-0305 |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
ASM PART: I = 8-97249-238-2, 97249238
|
8-97372-190-0 |
01 |
1 |
0306- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
03.322
ASM PART: A = 8-97132-318-1, 97132318, B = 8-97132-319-1, 97132319,
C = 8-97133-434-1, 97133434, D = 8-97133-435-1, 97133435,
E = 8-97133-436-1, 97133436, F = 8-97133-437-2, 97133437,
G = 8-97188-449-0, 97188449, H = 8-97240-341-0, 97240341,
J = 8-97263-385-0, 97263385, K = 8-97288-838-0, 97288838
|
8-94227-478-0 |
01 |
1 |
- |
