Isuzu WW
▶
PICKUP
▶
TFR
▶
50800 - TFR/TFS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-82B - BOOST COMPENSATOR; INJECTION GOVERNOR
▶

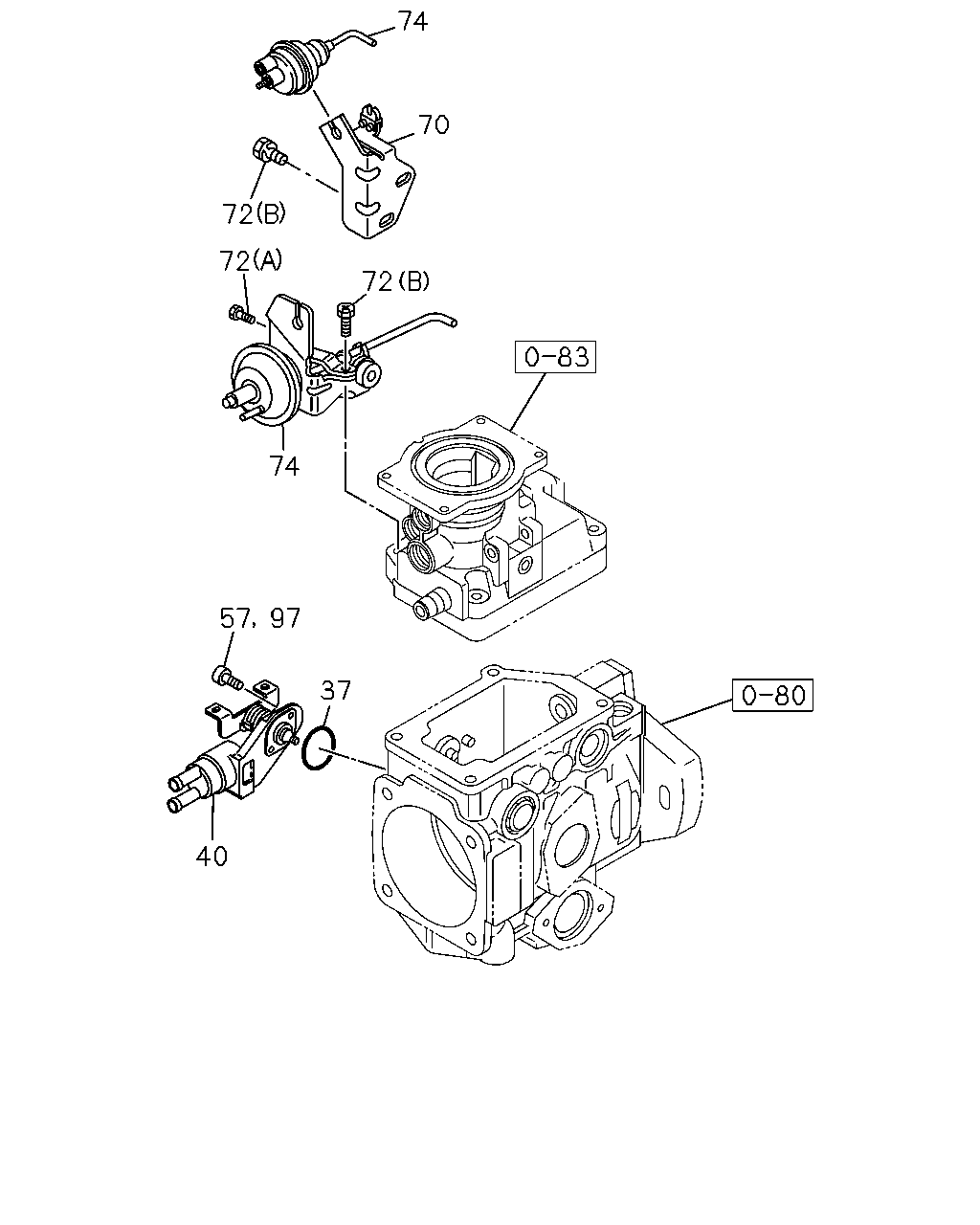

0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR
(#38452) — 10 parça
74
70
72
72
72
74
57
97
37
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
03.306 GASKET; STARTING ADVANCER,INJ PU
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321, C = 8-97132-322-1, 97132322
8-94227-491-0
01
1
-
40
03.308 ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97132-320-1, 97132320, B = 8-97132-321-1, 97132321, C = 8-97132-322-1, 97132322
8-97065-836-3
01
1
-
57
03.308 BOLT; START ADVANCE
ASM PART: A = 8-97132-320-1, 97132320, C = 8-97132-322-1, 97132322
1-15619-276-0
02
1
-
70
03.314 BRACKET; ACTUATOR,FAST IDLE,INJ
ASM PART: D = 8-97133-440-1, 97133440
8-94313-226-0
01
1
-
72
03.330 BOLT; BRKT FIX,INJ PUMP
03.308, (A) ASM PART: C = 8-97132-322-1, 97132322
8-94313-254-0
01
1
-
72
03.330 BOLT; BRKT FIX,INJ PUMP
03.306, (B) ASM PART: C = 8-97132-322-1, 97132322
8-94331-551-0
01
1
-
72
03.330 BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: D = 8-97133-440-1, 97133440
8-97071-946-0
02
1
-
74
03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: D = 8-97133-440-1, 97133440
8-94313-225-0
01
1
-
74
03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ
ASM PART: C = 8-97132-322-1, 97132322
8-97126-378-1
01
1
-
97
03.306 BOLT; PLATE,START ADVANCE
03.308 ASM PART: B = 8-97132-321-1, 97132321
1-15619-276-0
02
1
-
