Sayfa 0-80C - Isuzu EPC

0-80C — INJECTION PUMP (#38443) — 148 parça

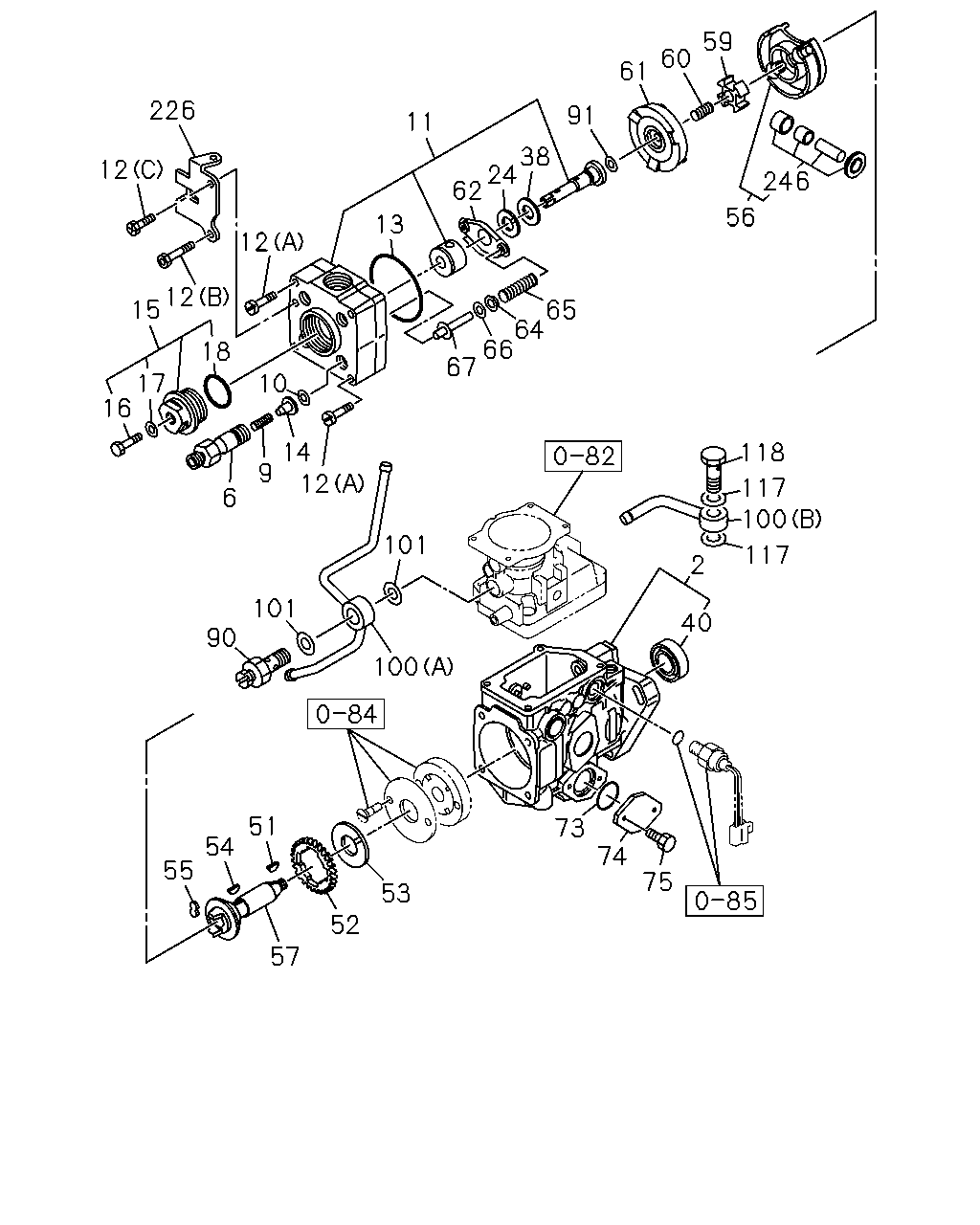

59 60 61 226 91 11 38 24 62 12 246 56 13 12 65 64 66 67 12 15 18 17 16 10 14 9 12 118 117 100 117 6 2 101 101 40 90 100 51 54 55 73 74 75 53 52 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97046-313-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP 03.335 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-582-0	04	1	-
9	03.302 SPRING; DELIVERY VLV 03.335 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-581-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97046-305-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672	8-94242-278-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (A) ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (A) ASM PART: A = 8-97069-745-2, 97069745, D = 8-97310-504-0, 97310504	8-94257-670-0	04	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (C) ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672	8-94325-497-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-527-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94460-298-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP 03.306 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-638-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-639-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-602-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-514-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97069-745-2, 97069745	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97147-034-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94239-370-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-484-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94169-528-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97119-168-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-480-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-489-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-647-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP 03.340 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94229-157-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94228-404-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97069-745-2, 97069745	8-94227-525-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97214-365-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-491-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94242-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94313-276-0	02	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745	8-97119-183-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97144-333-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-578-0	AR	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97069-745-2, 97069745	8-97046-317-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97119-194-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97127-989-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390	8-97119-187-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97249-545-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390	8-97119-187-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97249-545-0	02	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94379-688-0	01	1	-
226	03.330 BRACKET; DISTR HEAD ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672	8-97127-963-1	01	1	-
246	03.300 ROLLER KIT; INJ PUMP ASM PART: B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-97163-172-0	01	1	-

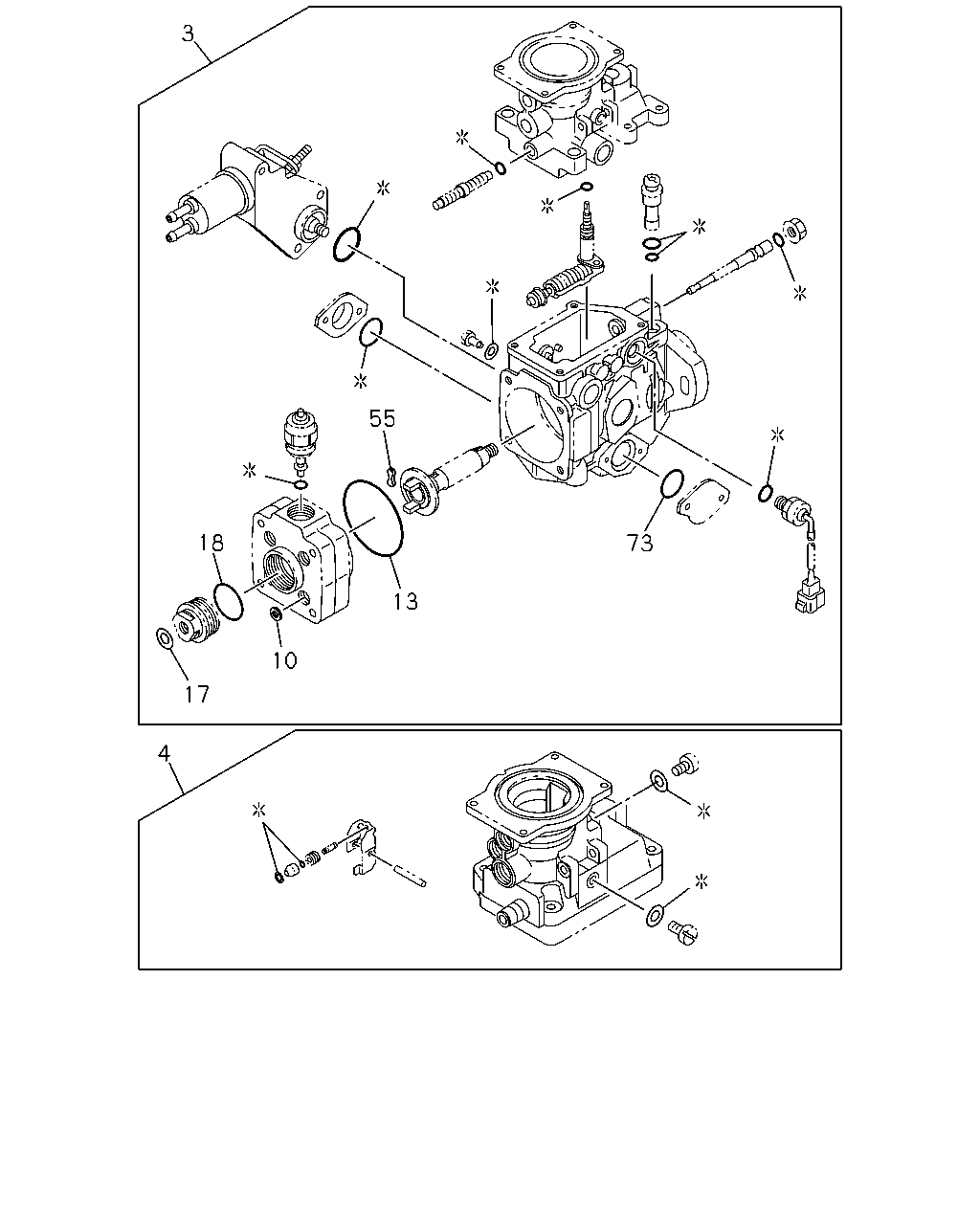

3 55 18 73 13 10 17 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94228-545-0	01	1	-
4	03.306 GASKET KIT; INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94151-402-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94247-716-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-527-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-602-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-637-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94169-528-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97069-745-2, 97069745, B = 8-97263-390-0, 97263390, C = 8-97305-672-0, 97305672, D = 8-97310-504-0, 97310504	8-94227-491-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
