Sayfa 0-66 - Isuzu EPC

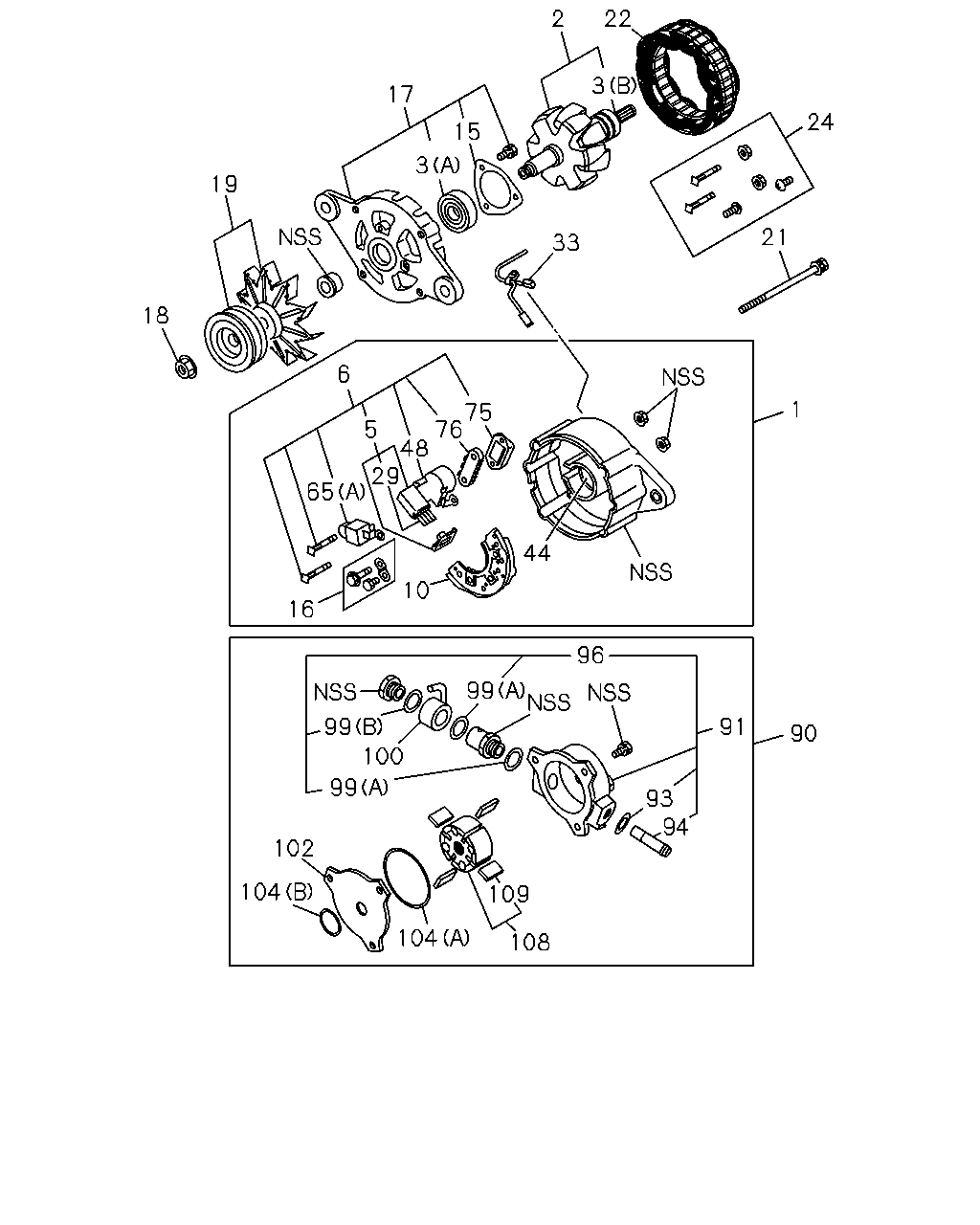

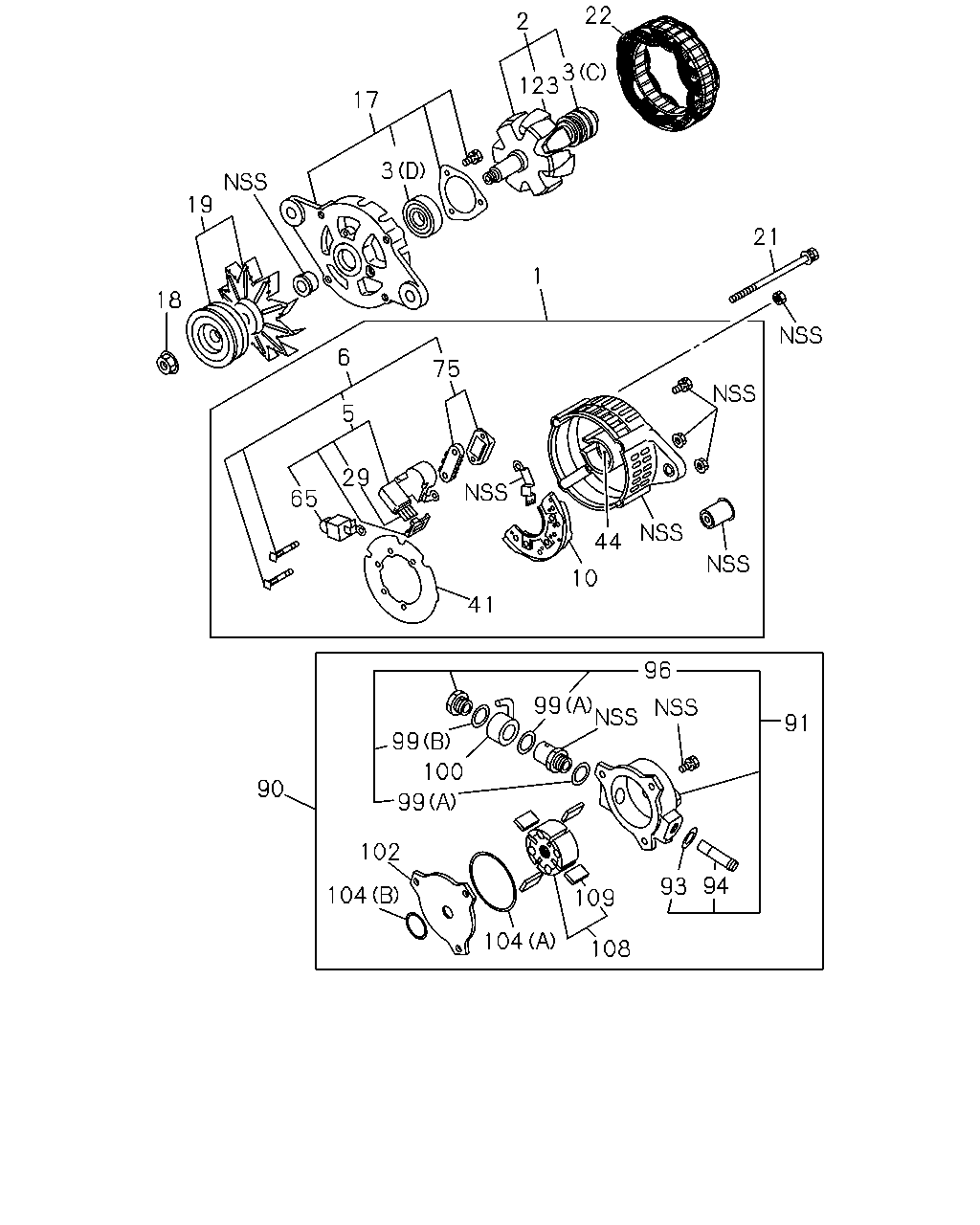

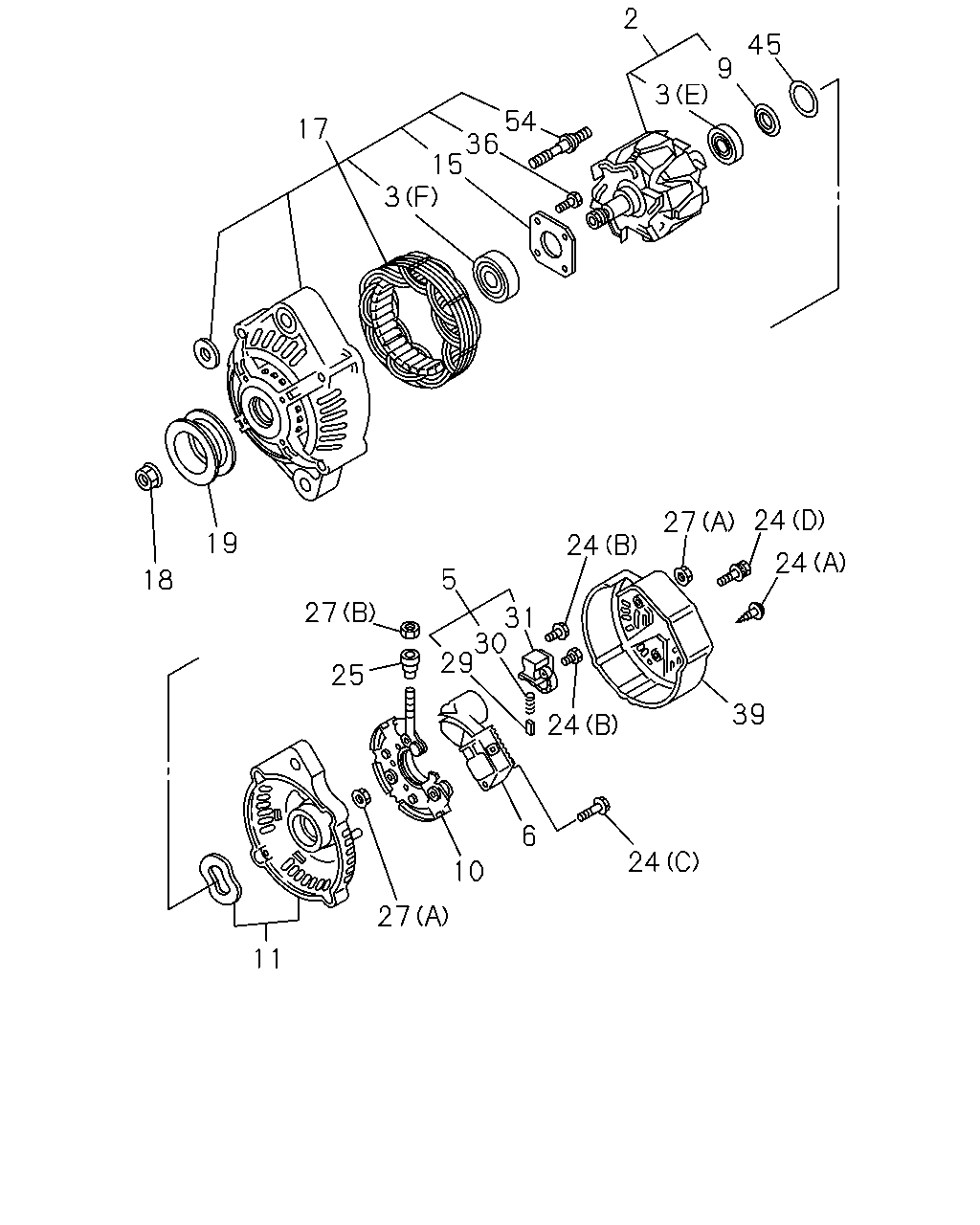

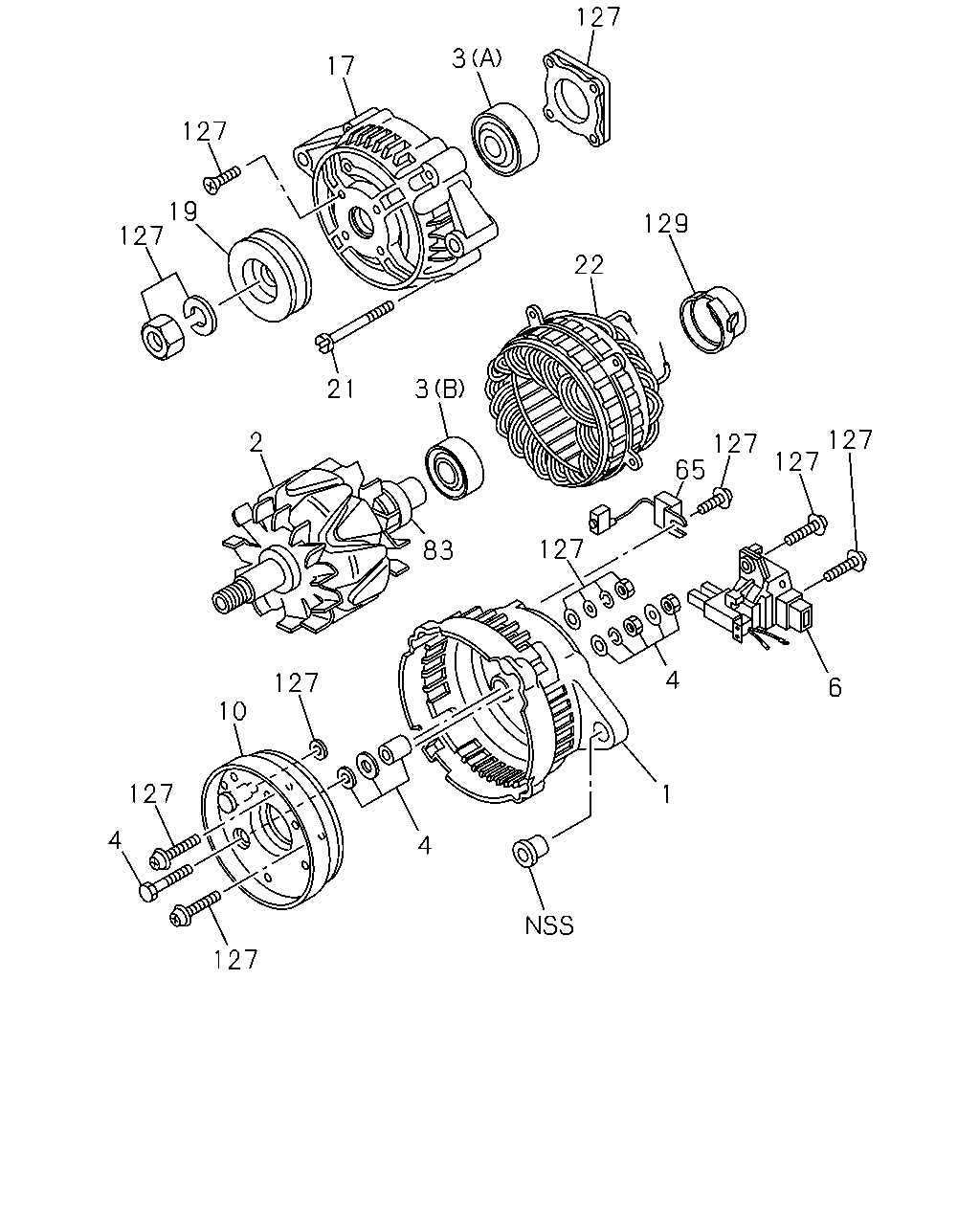

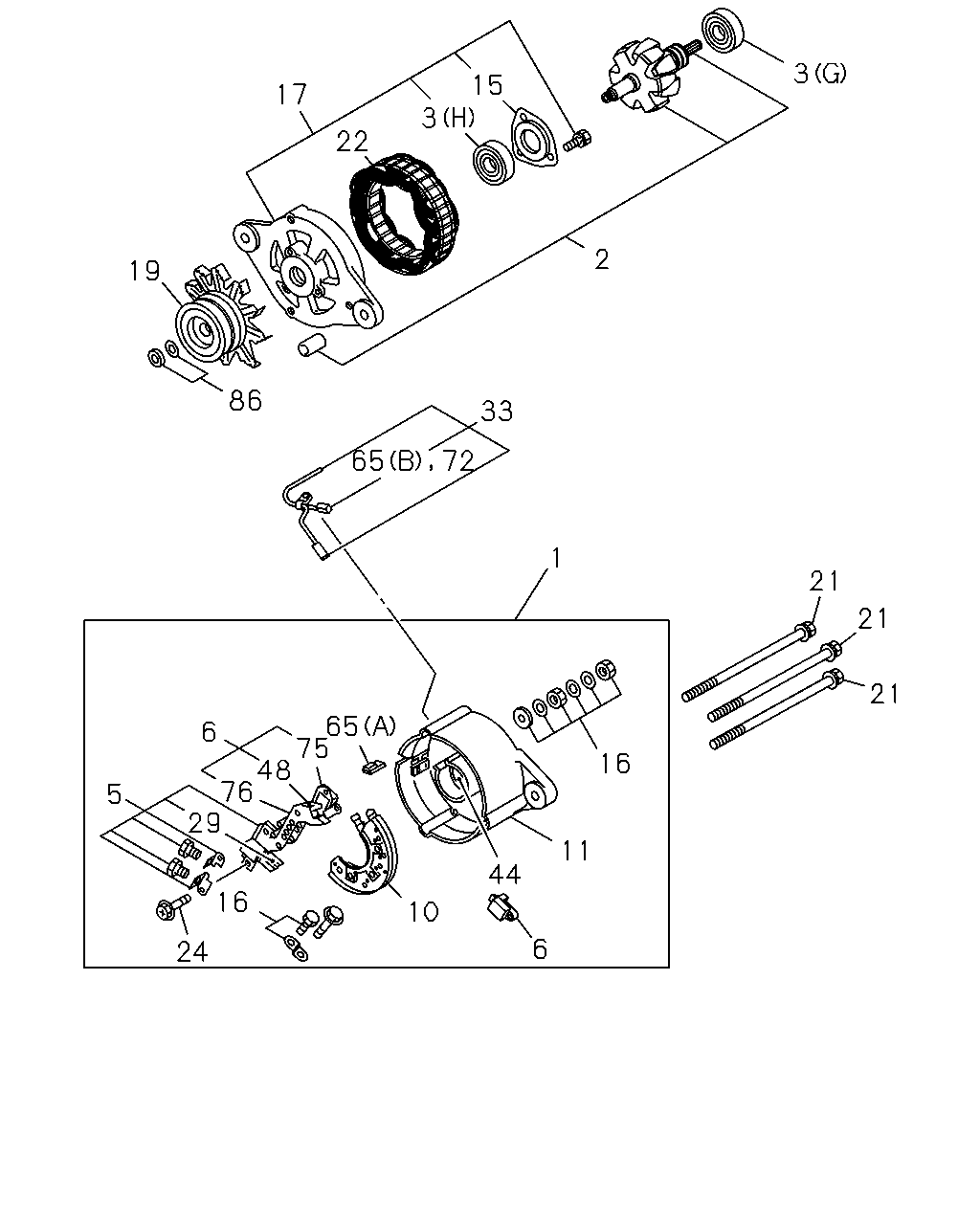

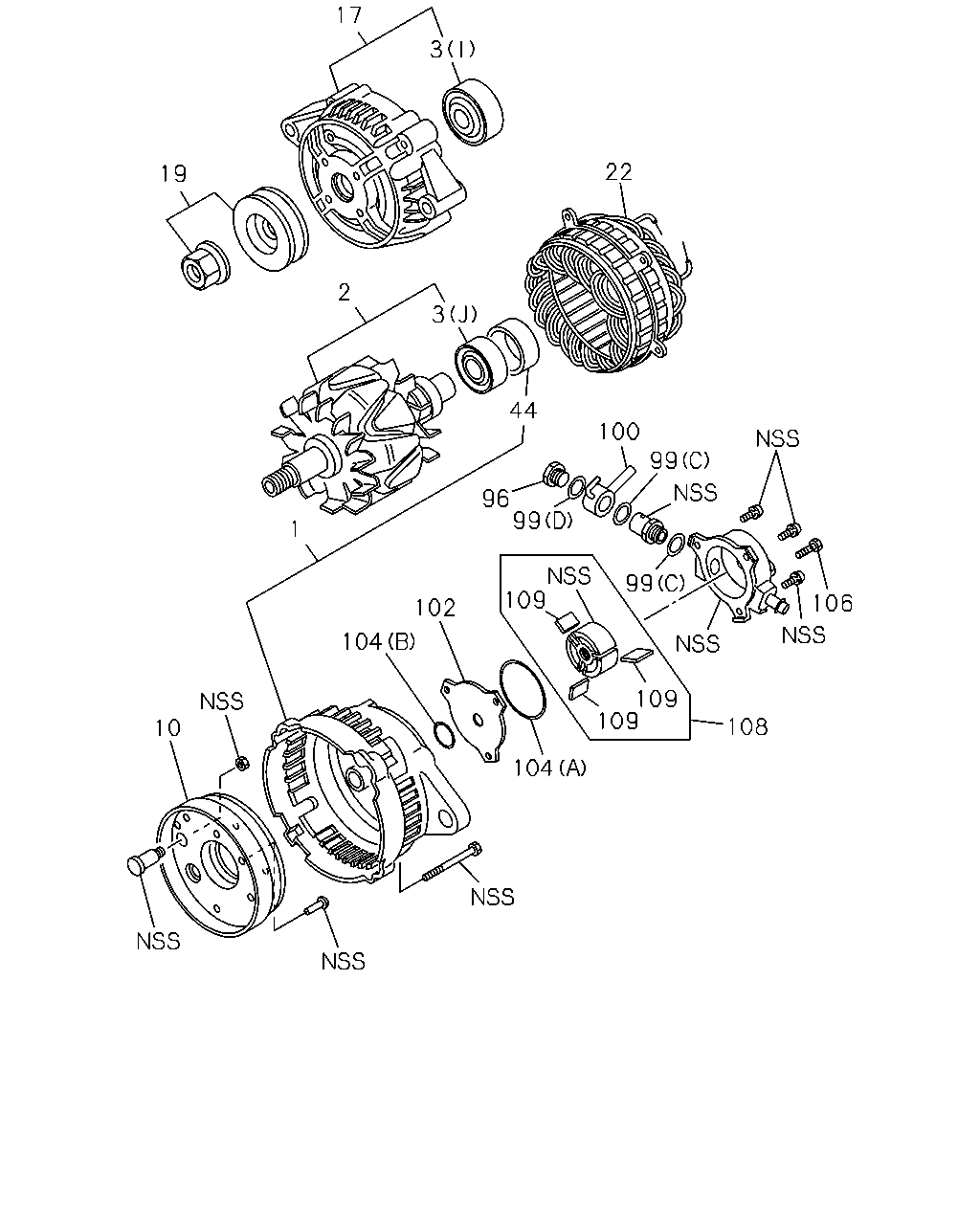

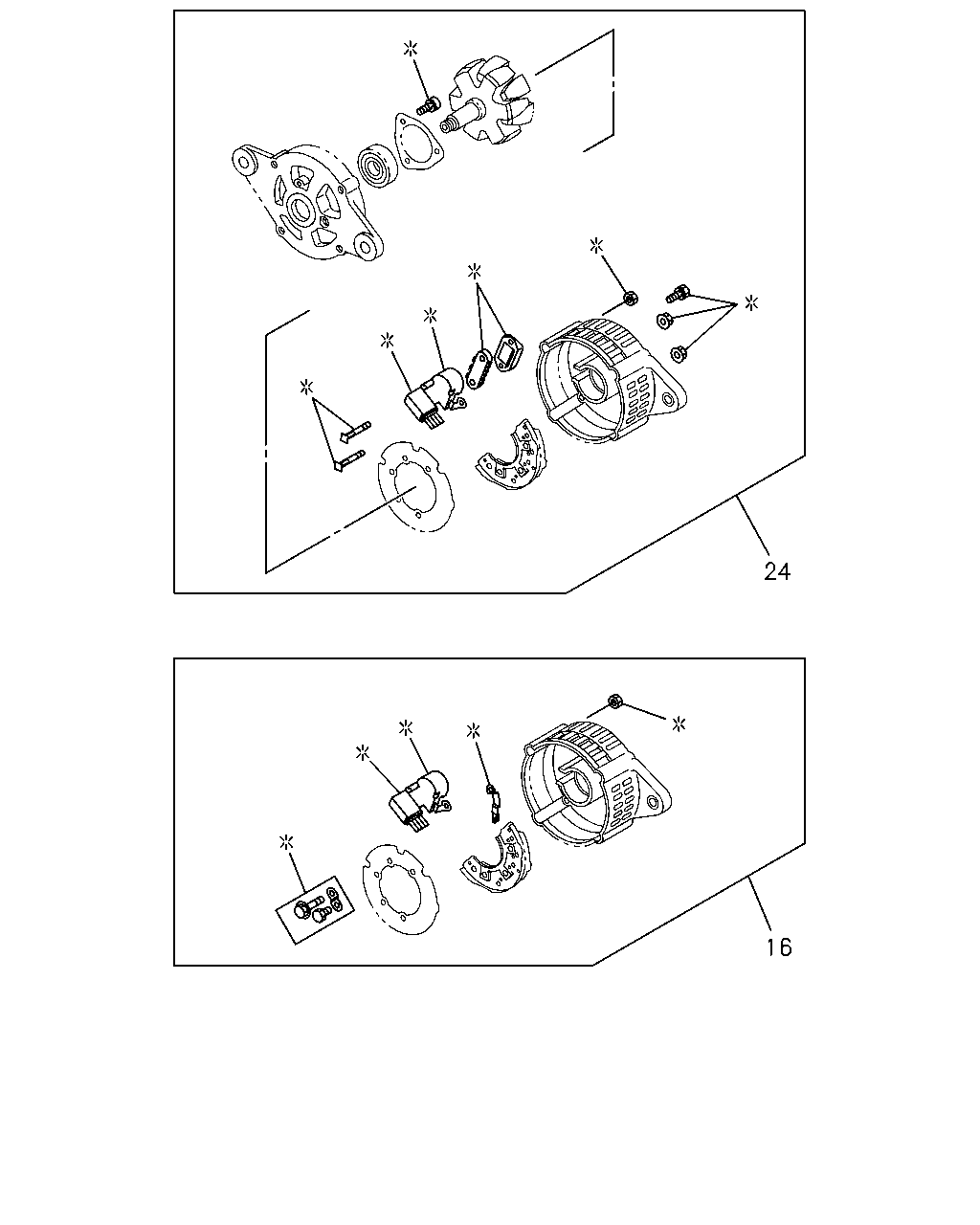

0-66 — GENERATOR (#38439) — 617 parça

22 2 3 17 24 15 3 19 21 33 18 6 1 75 76 48 29 65 5 44 10 16 96 99 99 100 99 91 90 93 94 102 104 109 104 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-789-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-652-1, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-786-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: I = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (G) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (H) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97133-854-0, 97133854	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (I) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: C = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-92063-678-0, 92063678	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-92063-678-0, 92063678	8-97209-788-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (J) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-792-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-790-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-784-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97133-854-0, 97133854	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-798-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-794-0	04	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-793-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
33	02.500 WIRE; LEAD,GEN UPPER ASM PART: F = 8-97187-654-1, 97187654	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: D = 8-97187-652-1, 97187652, G = 8-97187-655-0, 97187655	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LOWER ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN 02.279, (B) ASM PART: F = 8-97187-654-1, 97187654	8-94310-267-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-795-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-591-0	01	1	-

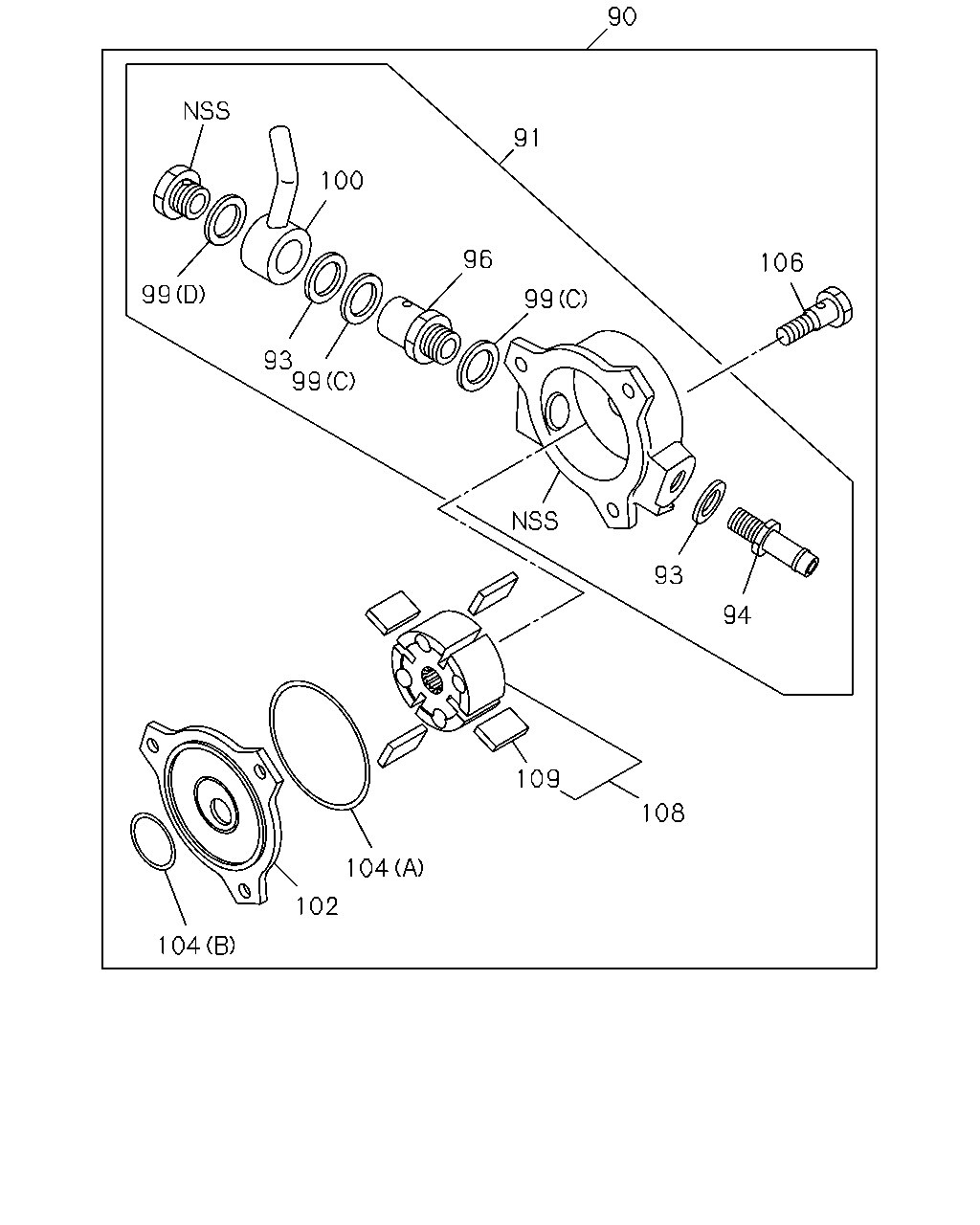

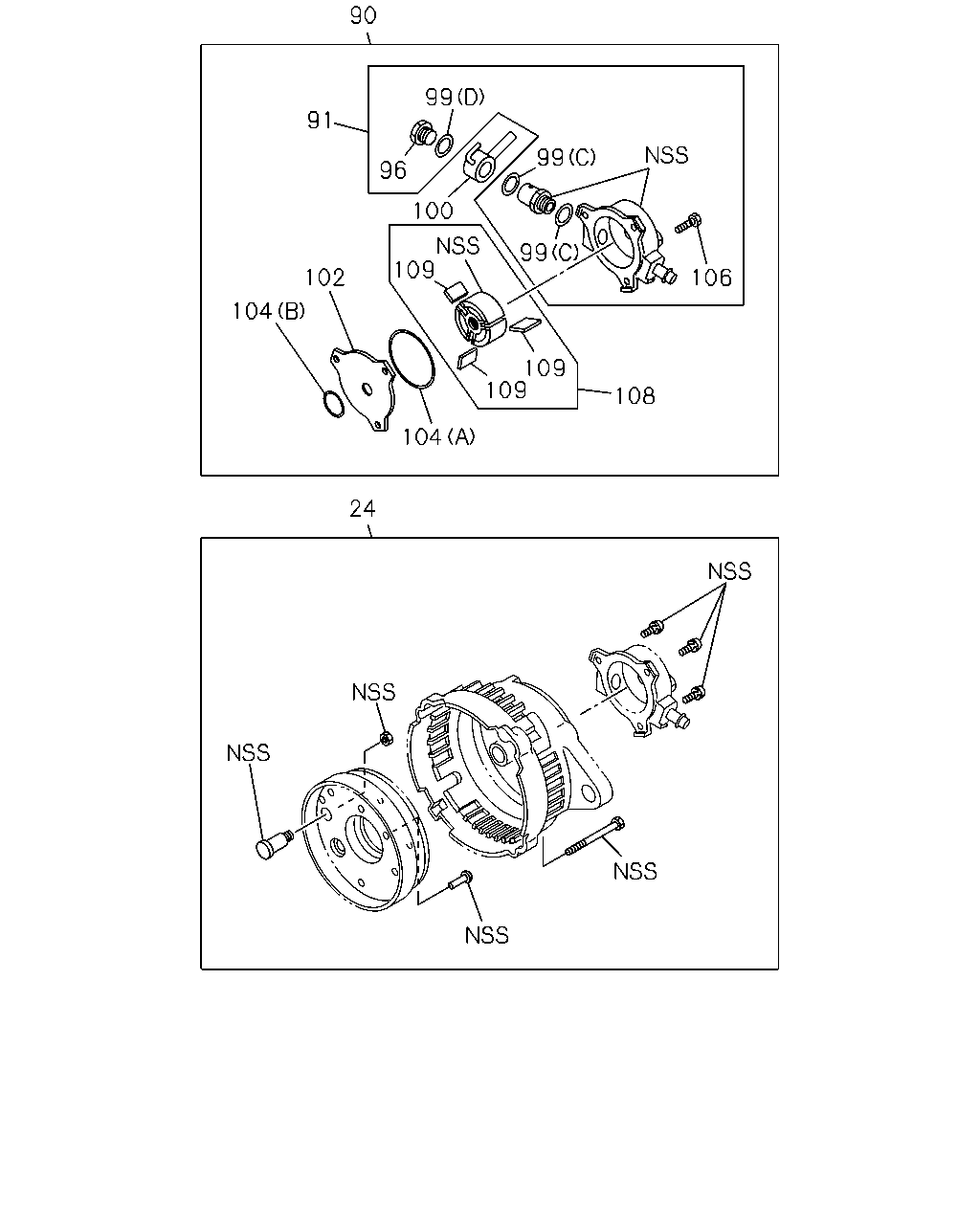

90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97137-332-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97203-865-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97351-341-0	01	1	0209-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97351-342-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	5-19679-004-2	01	1	-0208
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	5-19619-034-0	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97187-653-1, 97187653, G = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-693-0	01	1	0209-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-

3 15 3 17 22 2 19 86 33 65 1 21 21 21 65 75 48 76 29 6 16 5 11 44 16 10 6 24 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-789-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-652-1, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-786-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: I = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (G) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (H) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97133-854-0, 97133854	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (I) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: C = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-92063-678-0, 92063678	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-92063-678-0, 92063678	8-97209-788-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (J) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-792-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-790-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97083-008-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-784-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-798-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-794-0	04	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-793-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
33	02.500 WIRE; LEAD,GEN UPPER ASM PART: F = 8-97187-654-1, 97187654	8-94311-728-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: D = 8-97187-652-1, 97187652, G = 8-97187-655-0, 97187655	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN LOWER ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97111-391-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN 02.279, (B) ASM PART: F = 8-97187-654-1, 97187654	8-94310-267-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-795-0	01	1	-
72	02.319 CONDENSER; GEN 02.279 ASM PART: E = 8-97187-653-1, 97187653	8-94310-267-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-591-0	01	1	-
86	02.280 NUT SET; PULLEY,GEN 02.274 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97203-880-0	01	1	-

17 3 22 19 2 3 44 100 99 96 99 1 109 99 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-789-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-652-1, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-786-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: I = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (G) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (H) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97133-854-0, 97133854	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (I) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: C = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-92063-678-0, 92063678	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-92063-678-0, 92063678	8-97209-788-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (J) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-790-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-784-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-798-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-793-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97187-653-1, 97187653, G = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-693-0	01	1	0209-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-

127 3 17 127 19 127 129 22 3 21 127 127 2 127 65 127 83 4 127 6 10 127 1 4 4 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-789-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-652-1, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-786-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: I = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (G) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (H) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97133-854-0, 97133854	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (I) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: C = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-92063-678-0, 92063678	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-92063-678-0, 92063678	8-97209-788-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (J) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
4	02.291 TERMINAL; BRUSH,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-797-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-792-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-790-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-784-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-798-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-794-0	04	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-793-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
65	02.319 CONDENSER; GEN (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN 02.279, (B) ASM PART: F = 8-97187-654-1, 97187654	8-94310-267-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-795-0	01	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-787-0	01	1	-
127	02.277 BOLT SET; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-801-0	01	1	-
129	02.313 SLEEVE; BEARING,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-791-0	01	1	-

90 91 100 96 106 99 99 93 99 93 94 109 108 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97137-332-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97203-865-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97351-341-0	01	1	0209-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97351-342-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	5-19679-004-2	01	1	-0208
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	5-19619-034-0	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97187-653-1, 97187653, G = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-693-0	01	1	0209-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-

24 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-

22 2 3 123 17 3 19 21 1 18 6 75 5 29 65 44 10 41 96 99 91 99 100 90 99 102 94 93 104 109 104 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-789-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-652-1, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-786-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: I = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (G) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (H) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97133-854-0, 97133854	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (I) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: C = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-92063-678-0, 92063678	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-92063-678-0, 92063678	8-97209-788-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (J) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-792-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-790-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-784-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97133-854-0, 97133854	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-798-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94156-602-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-794-0	04	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-793-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-257-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN 02.279, (B) ASM PART: F = 8-97187-654-1, 97187654	8-94310-267-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-795-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97137-332-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97203-865-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97351-341-0	01	1	0209-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97351-342-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	5-19679-004-2	01	1	-0208
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	5-19619-034-0	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97187-653-1, 97187653, G = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-693-0	01	1	0209-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97133-854-0, 97133854	8-97062-644-0	01	1	-

90 99 91 99 96 100 109 99 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97137-332-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97203-865-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-97351-341-0	01	1	0209-
90	03.280 PUMP ASM; VAC,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97351-342-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: E = 8-97187-653-1, 97187653, G = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, F = 8-97187-654-1, 97187654	8-94335-641-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (B) ASM PART: B = 8-97133-854-0, 97133854, D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97236-693-0	01	1	0209-
108	03.280 ROTOR; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97133-854-0, 97133854, G = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-

2 45 9 3 54 36 15 3 17 24 27 19 24 24 5 18 27 31 30 29 25 24 39 6 24 10 27 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: G = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97187-652-1, 97187652	8-97137-329-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-786-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: I = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (G) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (H) ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97133-854-0, 97133854	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: B = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (I) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (E) ASM PART: C = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (F) ASM PART: C = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-92063-678-0, 92063678	8-97209-785-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-92063-678-0, 92063678	8-97209-788-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (J) ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97183-613-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-792-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: C = 8-97187-304-0, 97187304	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-790-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-97187-653-1, 97187653	8-97083-008-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-784-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: C = 8-97187-304-0, 97187304	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97133-854-0, 97133854	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: G = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-92063-678-0, 92063678	8-97209-798-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: C = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: C = 8-97187-304-0, 97187304	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654	8-97109-653-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: C = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: C = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: H = 8-97240-270-1, 97240270, I = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: C = 8-97187-304-0, 97187304	8-94135-760-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: C = 8-97187-304-0, 97187304	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: C = 8-97187-304-0, 97187304	8-94206-186-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97187-652-1, 97187652, E = 8-97187-653-1, 97187653, F = 8-97187-654-1, 97187654, G = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: C = 8-97187-304-0, 97187304	8-94123-057-0	02	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97040-495-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: C = 8-97187-304-0, 97187304	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97171-366-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: C = 8-97187-304-0, 97187304	8-97142-570-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: C = 8-97187-304-0, 97187304	8-94123-048-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
