Sayfa 0-65 - Isuzu EPC

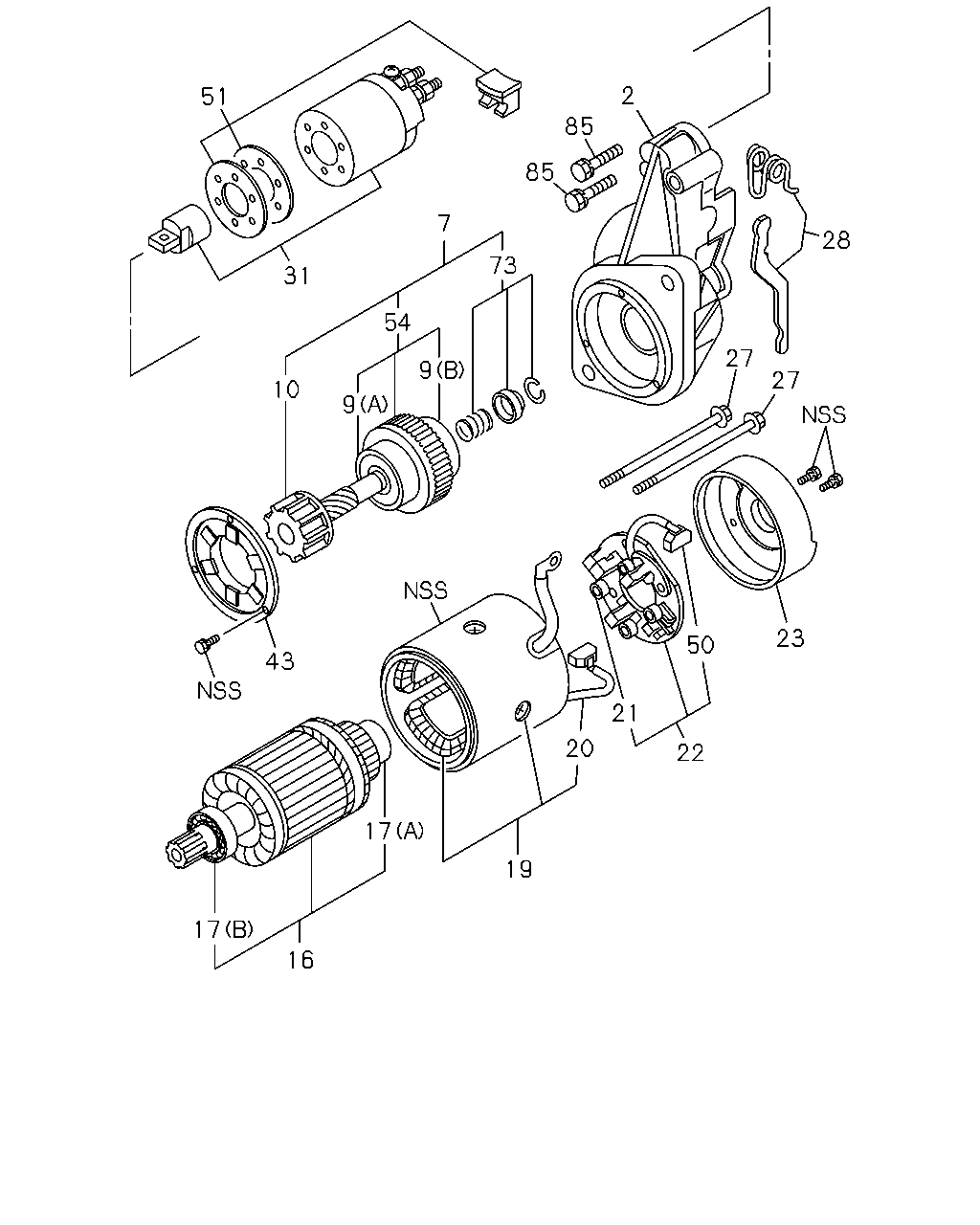

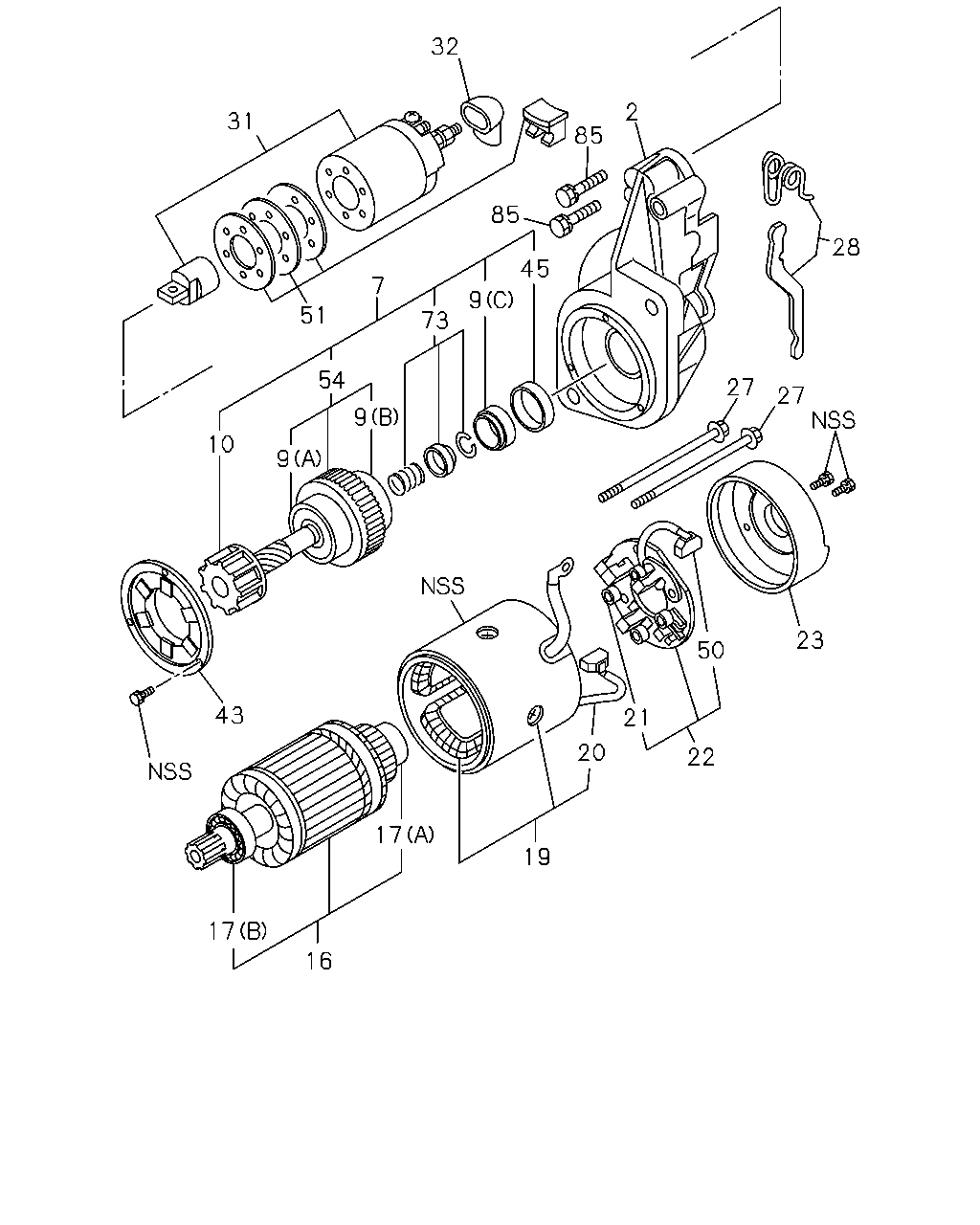

0-65 — STARTER (#38438) — 482 parça

2 51 85 85 7 28 73 31 54 27 9 27 10 9 23 50 43 21 20 22 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-140-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-547-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-147-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97229-910-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: E = 8-97136-688-0, 97136688	8-97047-551-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94324-622-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97130-189-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-278-0	01	1	9808-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-149-0	01	1	-9807
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92142-453-0	01	1	9811-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97142-596-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-148-0	01	1	-9810
19	02.049 COIL; FIELD,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-417-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81116-040-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92141-442-0	01	1	9809-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-152-0	01	1	-9808
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-3, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-283-0	01	1	9806-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-150-0	01	1	-9805
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-153-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-155-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-255-0	01	1	9805-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94435-571-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-141-0	01	1	-9804
28	02.108 LEVER; SHIFT,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-422-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-3, 94448959	8-94450-045-2	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-145-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-288-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-97136-688-0, 97136688	8-94435-572-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: F = 8-97255-390-1, 97255390	8-97319-421-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-146-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER 02.041 ASM PART: E = 8-97136-688-0, 97136688	5-81129-294-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-94408-500-0	02	1	-

23 41 14 22 21 13 14 27 16 17 58 32 17 114 46 44 43 114 31 47 48 54 96 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	02.049 YOKE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81111-010-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-254-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.086 ASM PART: C = 8-94448-959-3, 94448959	5-81129-210-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.049 ASM PART: B = 8-94384-314-1, 94384314	8-94170-214-0	02	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-278-0	01	1	9808-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-149-0	01	1	-9807
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92141-442-0	01	1	9809-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-152-0	01	1	-9808
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-3, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-283-0	01	1	9806-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-150-0	01	1	-9805
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-153-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-155-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-3, 94448959	8-94450-045-2	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-145-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: D = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: E = 8-97136-688-0, 97136688	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-420-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94170-216-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, C = 8-94448-959-3, 94448959, D = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	5-81123-011-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-247-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: C = 8-94448-959-3, 94448959	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314, C = 8-94448-959-3, 94448959, D = 8-97120-356-2, 97120356	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-146-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94448-959-3, 94448959	1-81129-677-0	01	1	9806-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
96	02.104 GASKET; FRT CASE ASM PART: B = 8-94384-314-1, 94384314	8-97078-001-0	01	1	-
114	02.055 NUT; TERMINAL 02.042 ASM PART: C = 8-94448-959-3, 94448959	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (B) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-

32 2 31 85 85 28 45 7 9 51 73 54 27 27 9 10 9 23 50 43 21 20 22 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-140-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-547-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-147-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97229-910-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97047-549-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97047-550-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: E = 8-97136-688-0, 97136688	8-97047-551-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94324-622-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97130-189-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-278-0	01	1	9808-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-149-0	01	1	-9807
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92142-453-0	01	1	9811-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97142-596-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-148-0	01	1	-9810
19	02.049 COIL; FIELD,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-417-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81116-040-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92141-442-0	01	1	9809-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-152-0	01	1	-9808
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-3, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-283-0	01	1	9806-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-150-0	01	1	-9805
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-153-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-155-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-255-0	01	1	9805-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94435-571-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-141-0	01	1	-9804
28	02.108 LEVER; SHIFT,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-422-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-3, 94448959	8-94450-045-2	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-145-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: D = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: E = 8-97136-688-0, 97136688	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-420-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94435-567-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-288-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: E = 8-97136-688-0, 97136688	8-94435-572-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: F = 8-97255-390-1, 97255390	8-97319-421-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-146-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
73	02.063 STOPPER SET; PINION ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-450-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER 02.041 ASM PART: E = 8-97136-688-0, 97136688	5-81129-294-0	02	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-94408-500-0	02	1	-

41 23 38 13 27 17 16 17 21 58 32 22 38 114 46 46 44 43 31 47 48 114 27 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-140-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81111-010-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-254-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-278-0	01	1	9808-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-149-0	01	1	-9807
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92141-442-0	01	1	9809-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-152-0	01	1	-9808
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-3, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-283-0	01	1	9806-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-150-0	01	1	-9805
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-153-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-155-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-3, 94448959	8-94450-045-2	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-145-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: D = 8-97120-356-2, 97120356	5-81119-029-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: E = 8-97136-688-0, 97136688	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-420-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER 02.049 ASM PART: D = 8-97120-356-2, 97120356	8-94170-214-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94170-216-0	02	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-903-0	02	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, C = 8-94448-959-3, 94448959, D = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	5-81123-011-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-247-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: C = 8-94448-959-3, 94448959	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314, C = 8-94448-959-3, 94448959, D = 8-97120-356-2, 97120356	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-146-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94448-959-3, 94448959	1-81129-677-0	01	1	9806-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
114	02.055 NUT; TERMINAL 02.042 ASM PART: C = 8-94448-959-3, 94448959	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (B) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-

122 31 28 79 7 122 122 40 122 27 122 54 23 122 37 3 122 16 27 2 50 21 22 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-140-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
3	02.083 METAL; PINION CASE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-07424-628-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-547-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-147-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97229-910-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-278-0	01	1	9808-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-149-0	01	1	-9807
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92142-453-0	01	1	9811-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97142-596-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-148-0	01	1	-9810
19	02.049 COIL; FIELD,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-417-0	01	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92141-442-0	01	1	9809-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-152-0	01	1	-9808
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-3, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-283-0	01	1	9806-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-150-0	01	1	-9805
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-423-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-558-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-875-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-153-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-418-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-155-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-255-0	01	1	9805-
28	02.108 LEVER; SHIFT,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94435-571-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-141-0	01	1	-9804
28	02.108 LEVER; SHIFT,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-422-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-3, 94448959	8-94450-045-2	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-145-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
37	02.083 METAL; RR COVER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-285-0	01	1	-
40	02.049 COVER; DUST,RR COVER,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-156-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-288-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-146-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
79	02.055 HOLDER; SHIFT LEVER ASM PART: A = 8-92064-181-0, 92064181	8-97182-144-0	01	1	-
122	02.041 REPAIR KIT; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-287-0	01	1	-

31 46 46 44 43 114 2 26 27 58 47 48 54 27 22 21 20 14 13 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81113-036-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-426-1	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-560-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-908-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-140-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-420-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81111-010-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-254-0	01	1	-
13	02.049 YOKE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97135-497-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.086 ASM PART: C = 8-94448-959-3, 94448959	5-81129-210-0	01	1	-
14	02.087 GASKET; YOKE,STARTER 02.049 ASM PART: B = 8-94384-314-1, 94384314	8-94170-214-0	02	1	-
16	02.043 ARMATURE; STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81121-029-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-278-0	01	1	9808-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-253-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-555-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-869-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-149-0	01	1	-9807
16	02.043 ARMATURE; STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-027-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-09800-081-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94228-437-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-240-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-94377-241-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-954-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81116-040-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97113-286-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81117-015-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92141-442-0	01	1	9809-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94242-064-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-244-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-880-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-152-0	01	1	-9808
22	02.051 HOLDER; BRUSH STARTER 02.052 ASM PART: C = 8-94448-959-3, 94448959	5-81118-021-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-92140-283-0	01	1	9806-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-424-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97112-873-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-97142-597-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-150-0	01	1	-9805
26	02.077 SEAL; THROUGH BOLT STARTER 02.085 ASM PART: C = 8-94448-959-3, 94448959	5-81129-211-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	8-94167-433-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	8-94167-434-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94384-314-1, 94384314	8-94377-243-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94384-314-1, 94384314	8-97041-422-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97112-565-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97112-881-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97112-957-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-155-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-423-0	02	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: E = 8-97136-688-0, 97136688	8-94337-444-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: C = 8-94448-959-3, 94448959	8-94450-045-2	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97041-425-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97142-907-1	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-145-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97319-419-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81129-100-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-246-0	01	1	-
43	02.086 RETAINER; PINION STARTER ASM PART: E = 8-97136-688-0, 97136688, F = 8-97255-390-1, 97255390	8-94435-570-0	01	1	-
44	02.086 ROLLER; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, C = 8-94448-959-3, 94448959, D = 8-97120-356-2, 97120356	5-81129-099-0	05	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: C = 8-94448-959-3, 94448959	5-81123-010-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: C = 8-94448-959-3, 94448959	5-81123-011-0	01	1	-
46	02.086 GEAR; CLU STARTER ASM PART: B = 8-94384-314-1, 94384314	8-94377-247-0	01	1	-
46	02.086 GEAR; CLU STARTER (B) ASM PART: D = 8-97120-356-2, 97120356	8-97078-649-0	01	1	-
46	02.086 GEAR; CLU STARTER (A) ASM PART: D = 8-97120-356-2, 97120356	8-97142-904-0	01	1	-
47	02.086 SPRING; PINION STARTER 02.108 ASM PART: C = 8-94448-959-3, 94448959	5-81129-096-0	01	1	-
47	02.086 SPRING; PINION STARTER ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-245-0	01	1	-
48	02.108 BALL; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314, C = 8-94448-959-3, 94448959, D = 8-97120-356-2, 97120356	5-81129-092-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: C = 8-94448-959-3, 94448959	5-81124-003-1	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: E = 8-97136-688-0, 97136688	8-97047-548-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-94384-314-1, 94384314	8-97078-002-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97120-356-2, 97120356	8-97148-687-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-92064-181-0, 92064181	8-97182-146-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: F = 8-97255-390-1, 97255390	8-97262-031-0	01	1	-
58	03.330 PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94448-959-3, 94448959	1-81129-677-0	01	1	9806-
58	03.330 PIPE; DRAIN RR COVER STARTER 02.067 ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-97041-421-0	01	1	-
114	02.055 NUT; TERMINAL 02.042 ASM PART: C = 8-94448-959-3, 94448959	5-09400-042-0	01	1	-
114	02.055 NUT; TERMINAL 02.102, (B) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94109-763-0	01	1	-
114	02.055 NUT; TERMINAL (A) ASM PART: B = 8-94384-314-1, 94384314, D = 8-97120-356-2, 97120356	8-94377-238-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
