◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#38437) — 320 parça
çizim 18887
67 61 185 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
61 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 01 1 9804-9909 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9910-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (A) 		8-97232-164-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 9804-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (B) 		8-97077-656-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE 8-97066-913-3 02 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-94389-953-1 01 1 9804-9909 ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-97217-440-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(E) 		8-97803-308-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97102-761-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97316-614-1 01 1 0110- ●
67 02.183 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 01 1 9910-0109 ●
67 02.183 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 01 1 0110- ● ●
161 02.343 NUT; BATTERY CABLE
CHARGE AIR COOLER<6PL> 04.309 (C) M8 W/LK WASHER 		8-94413-537-0 01 1 0110- ● ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9804- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9804- ● ●
161 02.343 NUT; BATTERY CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9804- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97135-207-0 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97226-945-2 01 1 9910-0109 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0110- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97149-914-1 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97226-944-2 01 1 9910-0109 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-375-3 01 1 9804-9909 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-419-0 01 1 9910- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97177-475-3 01 1 9804-0011 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97289-214-0 01 1 0012-0211 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97311-601-0 01 1 0212- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-828-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0209- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-829-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0209- ●

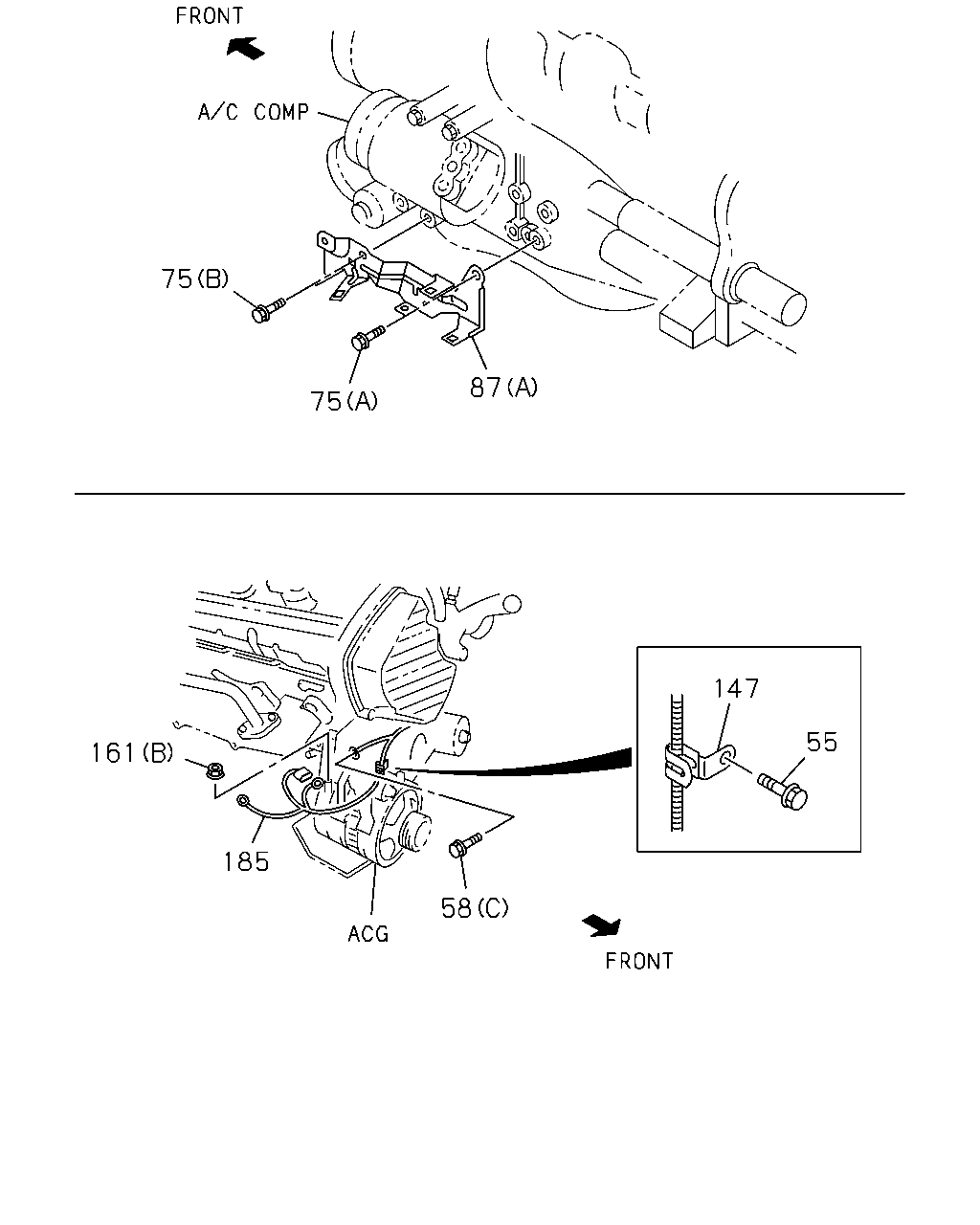

çizim 68999
75 87 75 147 55 161 185 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 02.334 BOLT; CLIP,BATTERY CABLE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9804- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9804-9909 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9910-0108 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3),POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9910- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9910-0109 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0110- ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0012 ●
58 02.343 BOLT; CABLE,BATTERY
00.002 (C) M8X25 FLANGE 		0-28690-825-0 01 1 0101-0111 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0112- ●
58 02.343 BOLT; CABLE,BATTERY
08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 9804- ●
75 02.333 BOLT; BRKT
04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9804- ●
75 02.333 BOLT; BRKT
LONG(TF***F) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9804- ● ●
75 02.333 BOLT; BRKT
03.604 (A) M10X16 FLANGE 		0-28181-016-0 01 1 9804- ●
75 02.333 BOLT; BRKT
04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 9910-0109 ●
75 02.333 BOLT; BRKT
04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 0110- ● ●
87 02.343 BRACKET; HARNESS
(A) 		8-97130-483-1 01 1 9804- ●
87 02.343 BRACKET; HARNESS
M/T MUA 5 SPEED(RMN) 02.333 (B) 		8-97232-164-0 02 1 9910- ●
87 02.343 BRACKET; HARNESS
A/T AISIN(RMD) 02.333 (C) 		8-97189-357-0 01 1 0110- ●
147 02.559 CLIP; HARNESS
03.162 		5-09709-095-0 01 1 9804-0007 ●
147 02.559 CLIP; HARNESS
01.531 ID=16 L=28 		9-09525-556-0 01 1 0008- ●
161 02.343 NUT; BATTERY CABLE
CHARGE AIR COOLER<6PL> 04.309 (C) M8 W/LK WASHER 		8-94413-537-0 01 1 0110- ● ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9804- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9804- ● ●
161 02.343 NUT; BATTERY CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9804- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97135-207-0 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97226-945-2 01 1 9910-0109 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0110- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97149-914-1 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97226-944-2 01 1 9910-0109 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-375-3 01 1 9804-9909 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-419-0 01 1 9910- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97177-475-3 01 1 9804-0011 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97289-214-0 01 1 0012-0211 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97311-601-0 01 1 0212- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-828-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0209- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-829-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0209- ●

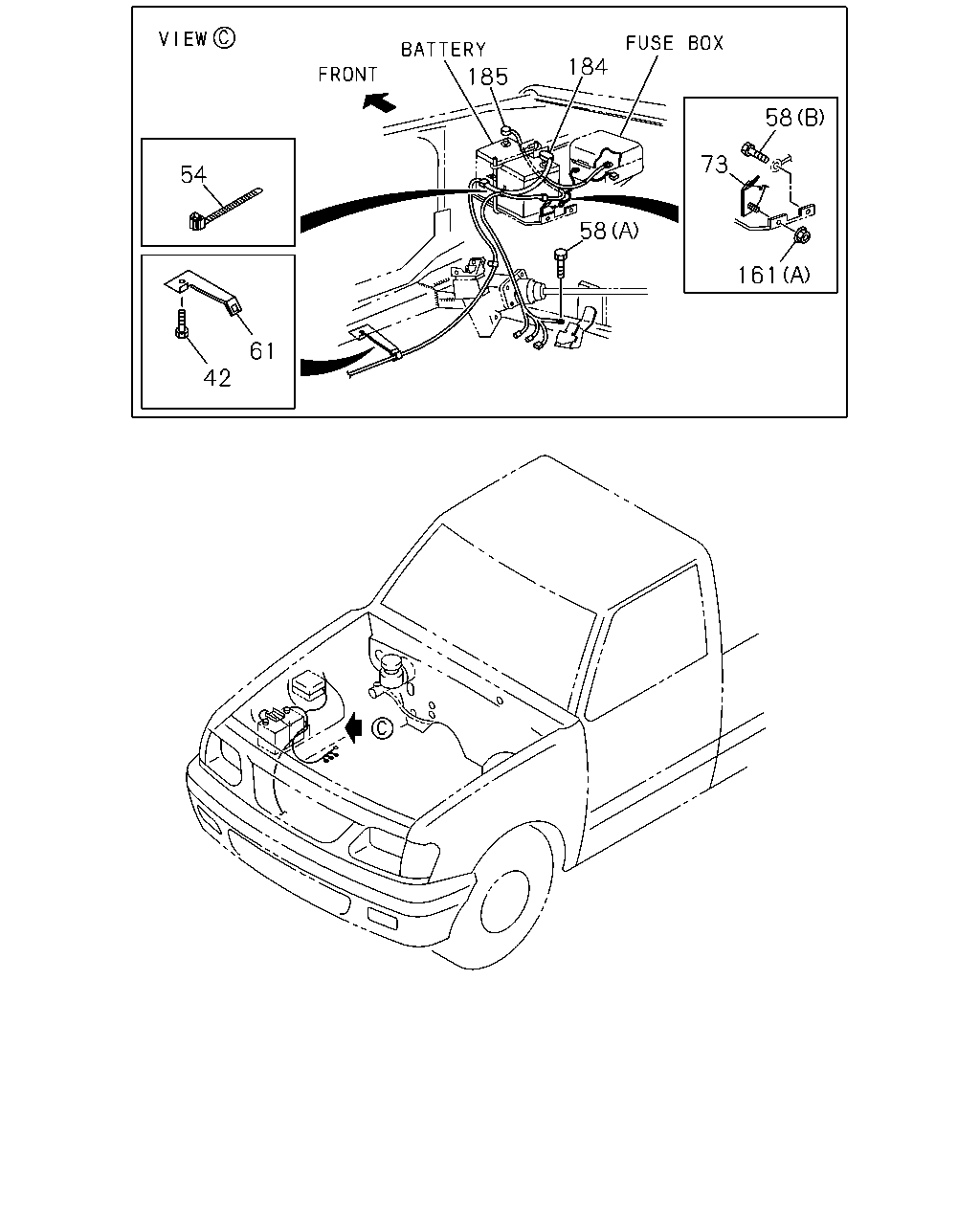

çizim 69375
185 184 58 73 54 58 161 61 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9804-9909 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9910-0102 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0103-0109 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0110- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0110- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804- ●
54 02.587 CLIP; BAND,BATTERY CABLE
03.430 L=200 		8-94464-835-0 01 1 9804- ●
54 02.587 CLIP; BAND,BATTERY CABLE
03.162 L=140 		5-09707-031-1 01 1 9804- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9804-9909 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9910-0108 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3),POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9910- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9910-0109 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0110- ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0012 ●
58 02.343 BOLT; CABLE,BATTERY
00.002 (C) M8X25 FLANGE 		0-28690-825-0 01 1 0101-0111 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0112- ●
58 02.343 BOLT; CABLE,BATTERY
08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 01 1 9804-9909 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9910-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (A) 		8-97232-164-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 9804-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (B) 		8-97077-656-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE 8-97066-913-3 02 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-94389-953-1 01 1 9804-9909 ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-97217-440-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(E) 		8-97803-308-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97102-761-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97316-614-1 01 1 0110- ●
73 02.333 BRACKET; BATTERY CABLE 8-97803-308-0 01 1 9804- ●
161 02.343 NUT; BATTERY CABLE
CHARGE AIR COOLER<6PL> 04.309 (C) M8 W/LK WASHER 		8-94413-537-0 01 1 0110- ● ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9804- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9804- ● ●
161 02.343 NUT; BATTERY CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9804- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97217-417-0 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. EAST MALAYSIA EQUIPMENT(PM6), SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. EAST MALAYSIA EQUIPMENT(PM6), SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EAST MALAYSIA EQUIPMENT(PM6) SHIFT ON THE FLY(7EX) 		8-97226-620-1 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EAST MALAYSIA EQUIPMENT(PM6) EXC. SHIFT ON THE FLY(7EX) 		8-97217-415-0 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97217-416-1 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97217-416-2 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97186-414-1 01 1 9804- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97208-526-0 01 1 9804-0105 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97208-526-0 01 1 0106-0208 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97208-526-0 01 1 0209- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97208-527-0 01 1 9804-0105 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97208-527-0 01 1 0106-0208 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97208-527-0 01 1 0209- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97226-943-1 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) 		8-97315-503-0 01 1 0110- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. SHIFT ON THE FLY(7EX) 		8-97315-481-0 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97135-207-0 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97226-945-2 01 1 9910-0109 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0110- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97149-914-1 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97226-944-2 01 1 9910-0109 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-375-3 01 1 9804-9909 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-419-0 01 1 9910- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97177-475-3 01 1 9804-0011 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97289-214-0 01 1 0012-0211 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97311-601-0 01 1 0212- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-828-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0209- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-829-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0209- ●

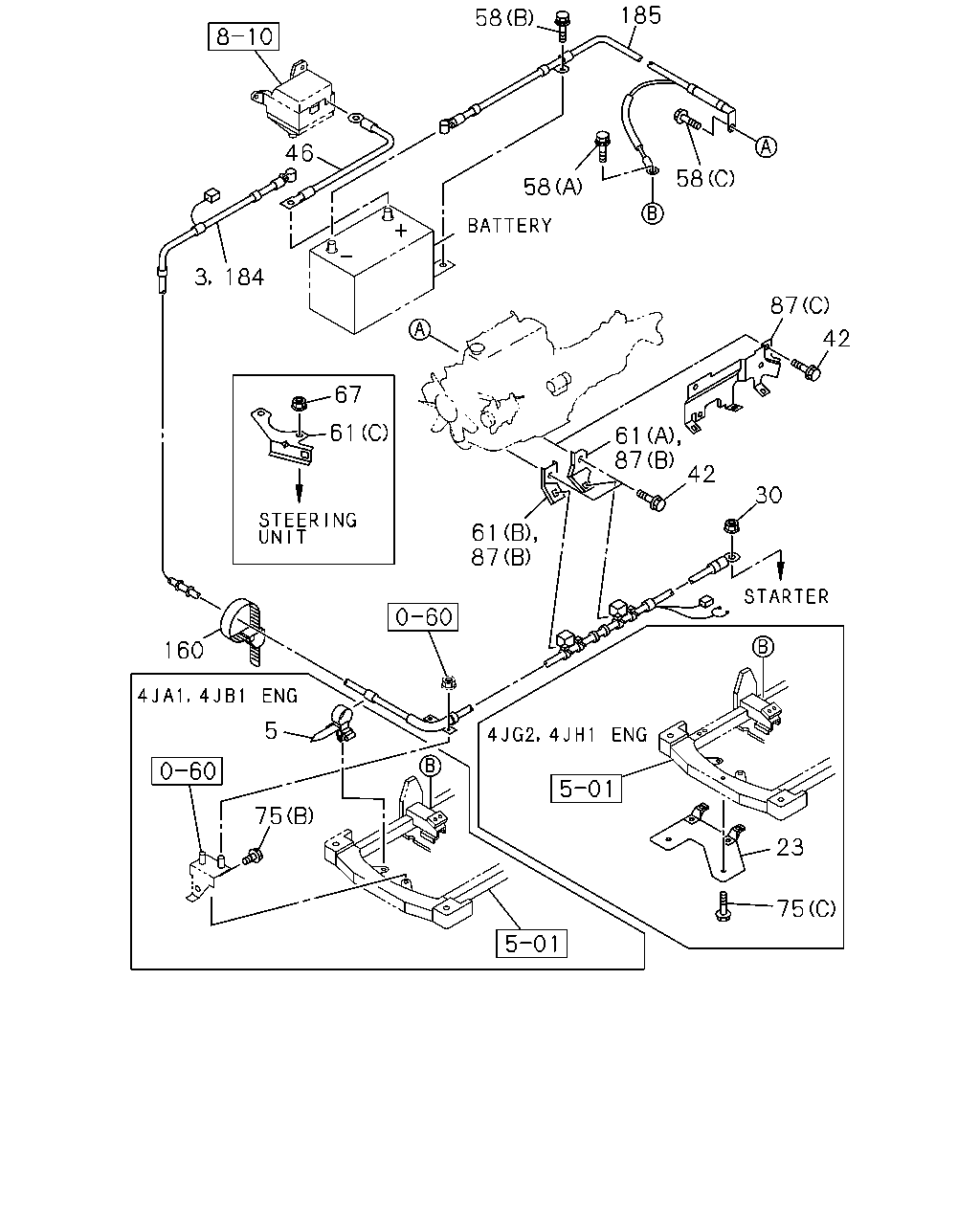

çizim 71680
185 58 46 58 58 3 184 87 42 67 61 87 61 42 30 61 87 160 5 75 23 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97079-137-4 01 1 9804-9909 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EAST MALAYSIA EQUIPMENT(PM6) 		8-97079-138-2 01 1 9804-9909 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
02.587 L=172 		8-94232-620-0 01 1 9804- ● ●
23 02.343 BRACKET; CABLE CLIP TO FRAME 8-97081-412-0 01 1 9910-0109 ●
23 02.343 BRACKET; CABLE CLIP TO FRAME 8-97081-412-0 01 1 0110- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9804-9909 ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9910-0109 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 0110- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9804-9909 ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9910-0102 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0103-0109 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0110- ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0110- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804- ●
46 02.341 CABLE; BATTERY TO FUSE BOX 8-94317-787-2 01 1 9804-9909 ●
46 02.341 CABLE; BATTERY TO FUSE BOX
LONG(TF***F) 		8-94317-787-2 01 1 9804-9909 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9804-9909 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9910-0108 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3),POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9910- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9910-0109 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0110- ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0012 ●
58 02.343 BOLT; CABLE,BATTERY
00.002 (C) M8X25 FLANGE 		0-28690-825-0 01 1 0101-0111 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0112- ●
58 02.343 BOLT; CABLE,BATTERY
08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 01 1 9804-9909 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9910-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (A) 		8-97232-164-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 9804-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (B) 		8-97077-656-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE 8-97066-913-3 02 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-94389-953-1 01 1 9804-9909 ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-97217-440-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(E) 		8-97803-308-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97102-761-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97316-614-1 01 1 0110- ●
67 02.183 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 01 1 9910-0109 ●
67 02.183 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 01 1 0110- ● ●
75 02.333 BOLT; BRKT
04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9804- ●
75 02.333 BOLT; BRKT
LONG(TF***F) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9804- ● ●
75 02.333 BOLT; BRKT
03.604 (A) M10X16 FLANGE 		0-28181-016-0 01 1 9804- ●
75 02.333 BOLT; BRKT
04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 9910-0109 ●
75 02.333 BOLT; BRKT
04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 0110- ● ●
87 02.343 BRACKET; HARNESS
(A) 		8-97130-483-1 01 1 9804- ●
87 02.343 BRACKET; HARNESS
M/T MUA 5 SPEED(RMN) 02.333 (B) 		8-97232-164-0 02 1 9910- ●
87 02.343 BRACKET; HARNESS
A/T AISIN(RMD) 02.333 (C) 		8-97189-357-0 01 1 0110- ●
160 02.343 CLIP; BATTERY CABLE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 L=140 		5-09707-031-1 01 1 9804-9909 ●
160 02.343 CLIP; BATTERY CABLE
UNITED KINGDOM EQUIPMENT(EK3) 03.162 L=140 		5-09707-031-1 01 1 9910-0109 ● ●
160 02.343 CLIP; BATTERY CABLE
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 L=140 		5-09707-031-1 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97217-417-0 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. EAST MALAYSIA EQUIPMENT(PM6), SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. EAST MALAYSIA EQUIPMENT(PM6), SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EAST MALAYSIA EQUIPMENT(PM6) SHIFT ON THE FLY(7EX) 		8-97226-620-1 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EAST MALAYSIA EQUIPMENT(PM6) EXC. SHIFT ON THE FLY(7EX) 		8-97217-415-0 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97217-416-1 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97217-416-2 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97186-414-1 01 1 9804- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97208-526-0 01 1 9804-0105 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97208-526-0 01 1 0106-0208 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97208-526-0 01 1 0209- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97208-527-0 01 1 9804-0105 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97208-527-0 01 1 0106-0208 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97208-527-0 01 1 0209- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97226-943-1 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) 		8-97315-503-0 01 1 0110- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. SHIFT ON THE FLY(7EX) 		8-97315-481-0 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97135-207-0 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97226-945-2 01 1 9910-0109 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0110- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97149-914-1 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97226-944-2 01 1 9910-0109 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-375-3 01 1 9804-9909 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-419-0 01 1 9910- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97177-475-3 01 1 9804-0011 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97289-214-0 01 1 0012-0211 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97311-601-0 01 1 0212- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-828-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0209- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-829-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0209- ●

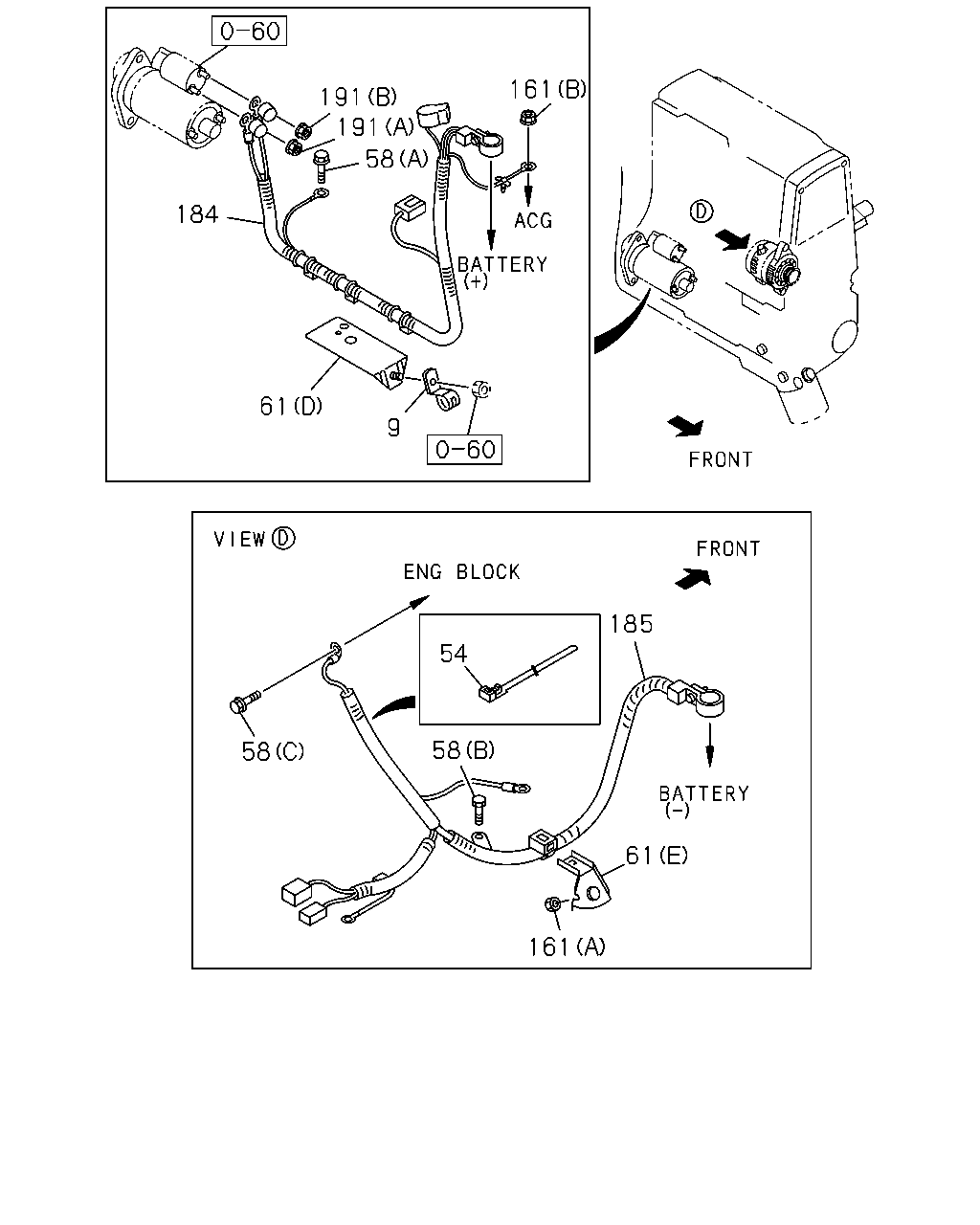

çizim 73466
161 191 191 58 184 61 9 185 54 58 61 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 02.343 CLIP; BATTERY CABLE
02.559 ID=20.5 H=21 L=23 		8-94389-952-0 01 1 9804- ●
54 02.587 CLIP; BAND,BATTERY CABLE
03.430 L=200 		8-94464-835-0 01 1 9804- ●
54 02.587 CLIP; BAND,BATTERY CABLE
03.162 L=140 		5-09707-031-1 01 1 9804- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9804-9909 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 9910-0108 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3),POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
EXC. AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 (C) M10X16 FLANGE 		0-28081-016-0 01 1 0109- ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9910- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804-9909 ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9910-0109 ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0110- ● ● ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0012 ●
58 02.343 BOLT; CABLE,BATTERY
00.002 (C) M8X25 FLANGE 		0-28690-825-0 01 1 0101-0111 ●
58 02.343 BOLT; CABLE,BATTERY
02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0112- ●
58 02.343 BOLT; CABLE,BATTERY
08.900 (C) M8X12 FLANGE 		0-28080-812-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 01 1 9804-9909 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 9910-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97232-164-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (A) 		8-97232-164-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 9804-0109 ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97077-656-0 01 1 0110- ● ●
61 02.333 BRACKET; BATTERY CABLE
M/T MUA 5 SPEED(RMN) (B) 		8-97077-656-0 01 1 0110- ●
61 02.333 BRACKET; BATTERY CABLE 8-97066-913-3 02 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-94389-953-1 01 1 9804-9909 ●
61 02.333 BRACKET; BATTERY CABLE
(D) 		8-97217-440-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(E) 		8-97803-308-0 01 1 9804- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97102-761-0 01 1 9910- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97316-614-1 01 1 0110- ●
161 02.343 NUT; BATTERY CABLE
CHARGE AIR COOLER<6PL> 04.309 (C) M8 W/LK WASHER 		8-94413-537-0 01 1 0110- ● ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9804- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9804- ● ●
161 02.343 NUT; BATTERY CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9804- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97217-417-0 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. EAST MALAYSIA EQUIPMENT(PM6), SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. EAST MALAYSIA EQUIPMENT(PM6), SHIFT ON THE FLY(7EX) 		8-97217-417-0 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EAST MALAYSIA EQUIPMENT(PM6) SHIFT ON THE FLY(7EX) 		8-97226-620-1 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EAST MALAYSIA EQUIPMENT(PM6) EXC. SHIFT ON THE FLY(7EX) 		8-97217-415-0 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97217-416-1 01 1 9910-0109 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97217-416-2 01 1 0110- ● ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97186-414-1 01 1 9804- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97208-526-0 01 1 9804-0105 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97208-526-0 01 1 0106-0208 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97208-526-0 01 1 0209- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97208-527-0 01 1 9804-0105 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97208-527-0 01 1 0106-0208 ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97208-527-0 01 1 0209- ●
184 02.525 HARNESS; CABLE,BATTERY (+) 8-97226-943-1 01 1 9910- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
SHIFT ON THE FLY(7EX) 		8-97315-503-0 01 1 0110- ●
184 02.525 HARNESS; CABLE,BATTERY (+)
EXC. SHIFT ON THE FLY(7EX) 		8-97315-481-0 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97135-207-0 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97226-945-2 01 1 9910-0109 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
CHARGE AIR COOLER<6PL> 		8-97300-732-1 01 1 0110- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97149-914-1 01 1 9804-9909 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97226-944-2 01 1 9910-0109 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97226-944-2 01 1 0110- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97143-375-3 01 1 9804-9909 ● ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97217-419-0 01 1 9910- ● ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97177-475-3 01 1 9804-0011 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97289-214-0 01 1 0012-0211 ●
185 02.525 HARNESS; CABLE,BATTERY (-) 8-97311-601-0 01 1 0212- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-828-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-828-2 01 1 0209- ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS) 		8-97178-829-2 01 1 9804-0105 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 34B19L(7TR),BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0106-0208 ●
185 02.525 HARNESS; CABLE,BATTERY (-)
EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) 		8-97178-829-2 01 1 0209- ●
191 08.155 NUT; STARTER
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9804- ●
191 08.155 NUT; STARTER
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
