Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#38436) — 392 parça

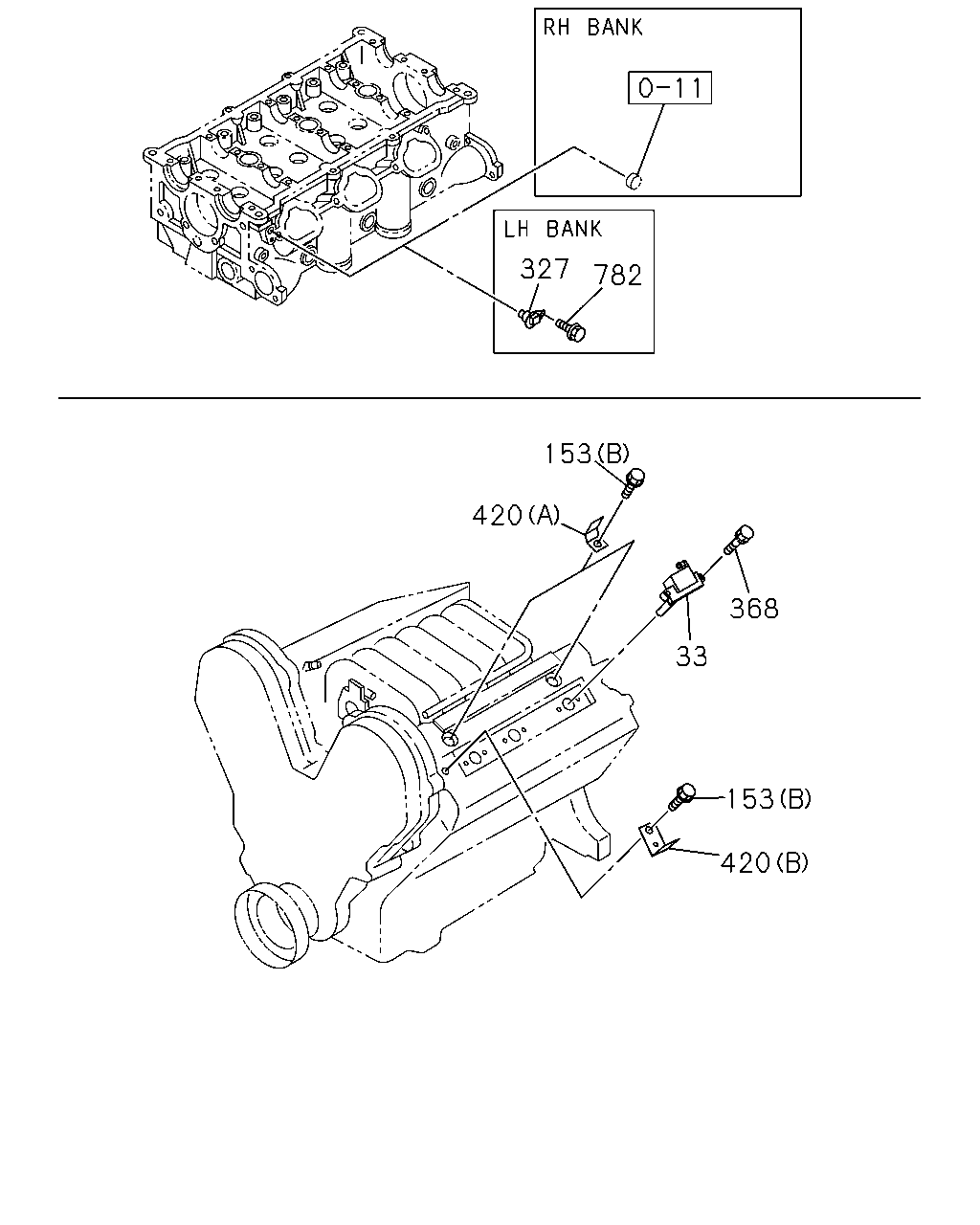

327 782 153 420 368 33 153 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	02.170 COIL ASM; IGN	8-97180-222-0	06	1	9804-9908	●
33	02.170 COIL ASM; IGN	8-97136-325-0	06	1	9909-	●
33	02.170 COIL ASM; IGN	8-01104-039-0	01	1	9804-		●
153	02.510 BOLT; BRKT FIX 02.500 (B) M6X10 FLANGE	0-28080-610-0	05	1	9804-	●
153	02.510 BOLT; BRKT FIX 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9804-	●
327	02.361 SENSOR; CAMSHAFT POSITION	8-10456-541-0	01	1	9804-	●
368	02.240 BOLT; COIL HARNESS CLIP 03.162 M5X20 W/LK WASHER	8-94428-007-0	12	1	9804-	●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	9804-	●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	9804-	●
420	02.183 BRACKET; HARNESS A/T AISIN(RMD) 02.483	8-94315-284-0	01	1	0110-			●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-	●
782	02.510 BOLT; SENSOR	8-11093-971-0	01	1	9804-		●

124 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	02.100 RELAY; STARTER 02.510 (A) 12V 35A	8-97180-794-1	01	1	9910-0109				●	●	●
10	02.100 RELAY; STARTER 02.510 (A) 12V 35A	8-97180-794-1	01	1	0110-			●	●	●	●
10	02.100 RELAY; STARTER CHARGE AIR COOLER<6PL> 08.852 (B) 12V 20A	8-97060-926-1	01	1	0110-			●		●
10	02.100 RELAY; STARTER 12V 20A	8-97173-039-1	01	1	9804-0012	●	●
10	02.100 RELAY; STARTER 12V 20A	8-97173-039-1	01	1	0101-	●	●
10	02.100 RELAY; STARTER A/T THM(RMQ) 12V 20A	8-97173-039-1	01	1	0101-	●
124	01.150 SENSOR; OXYGEN LONG(TF***F) AUSTRALIAN EQUIPMENT(RR3)	8-97172-293-0	01	1	9804-	●

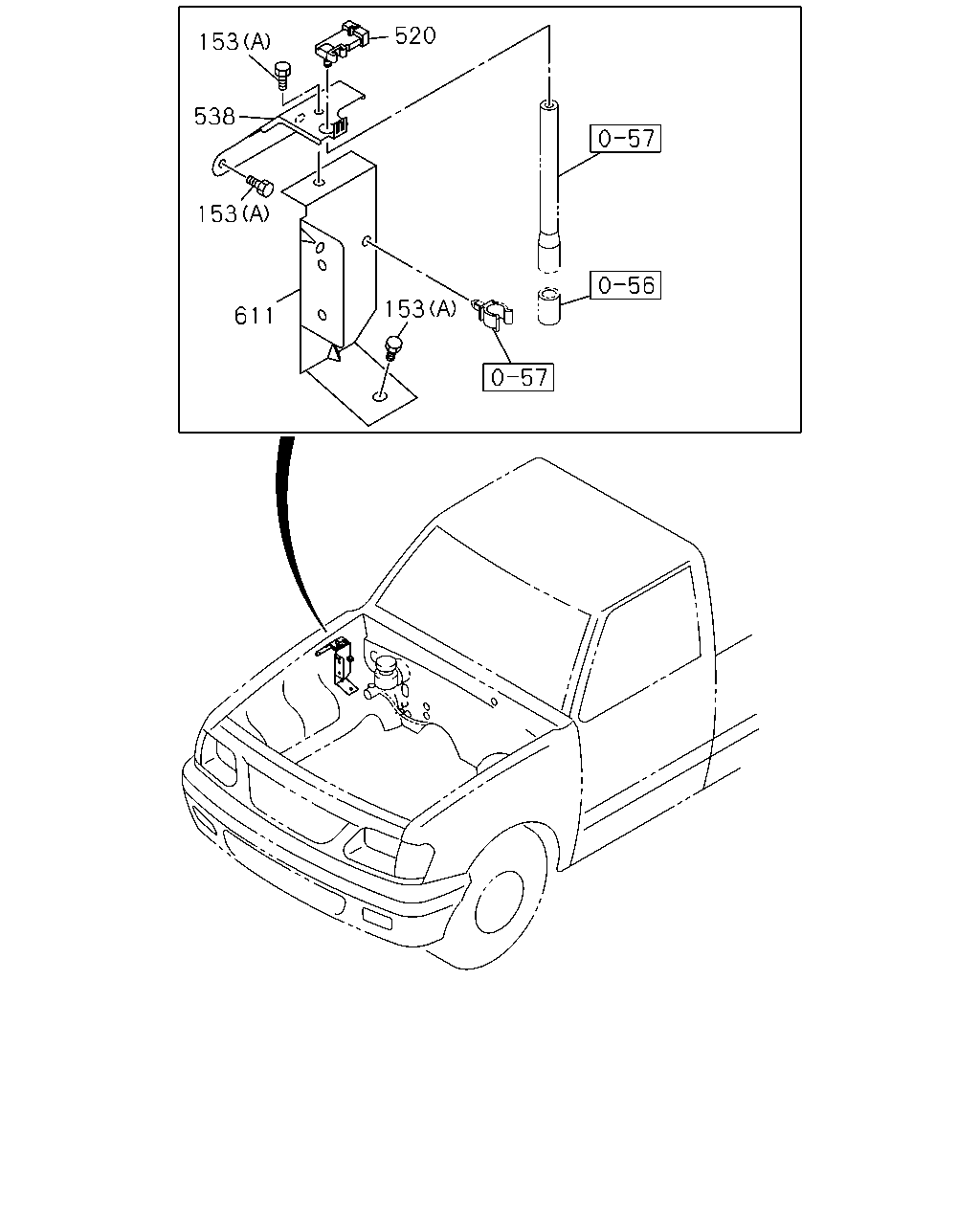

520 153 538 153 153 611

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
153	02.510 BOLT; BRKT FIX 02.500 (B) M6X10 FLANGE	0-28080-610-0	05	1	9804-	●
153	02.510 BOLT; BRKT FIX 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9804-	●
520	01.800 SENSOR; PRESSURE	8-16258-659-0	01	1	9804-	●
538	03.670 BRACKET; PRESSURE SENSOR	8-97180-218-0	01	1	9804-	●
611	01.150 BRACKET; SENSOR 03.671	8-94475-021-2	01	1	9804-	●
611	01.150 BRACKET; SENSOR	8-90414-756-0	01	1	9804-		●

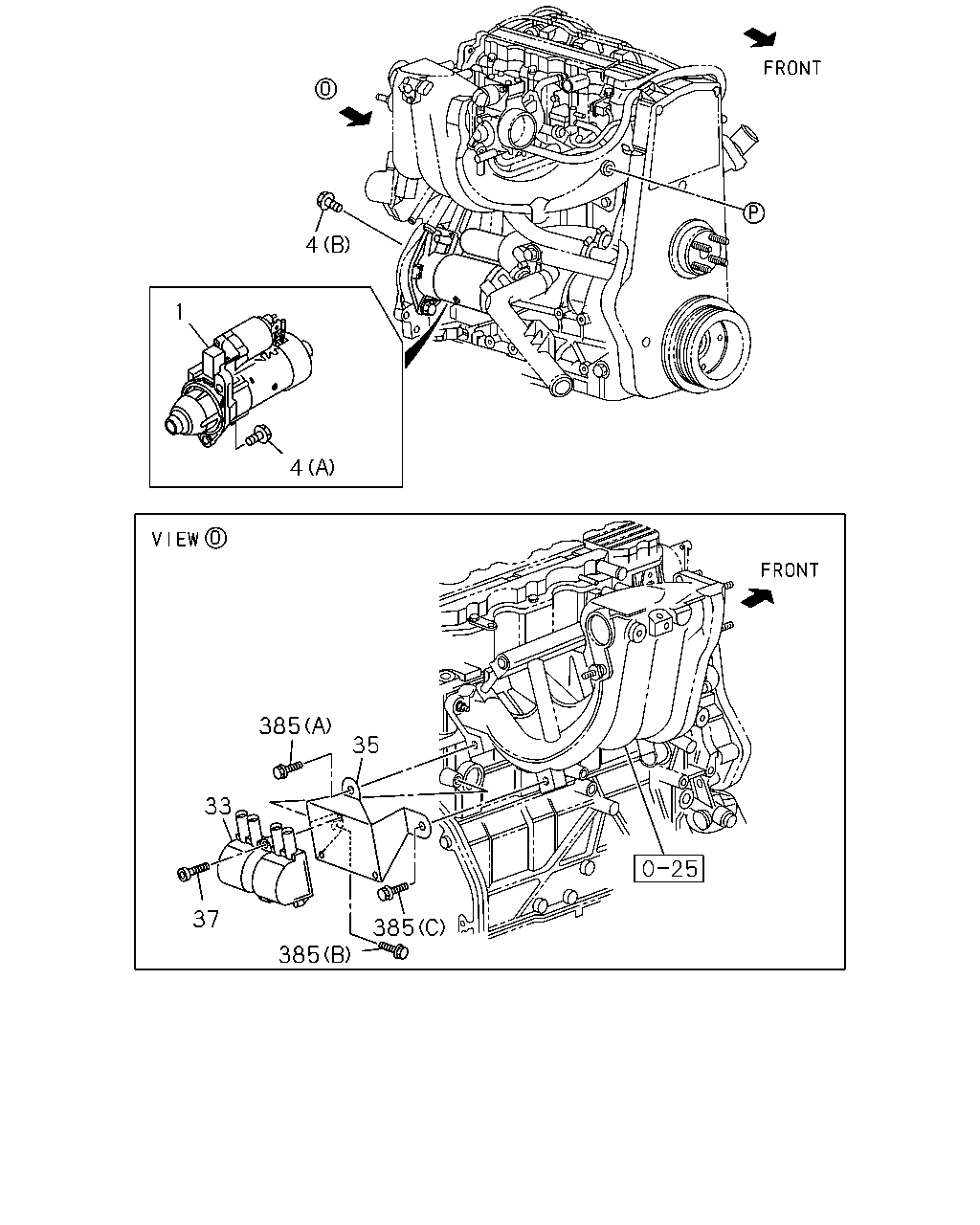

4 1 4 385 35 33 37 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97136-688-0	01	1	9804-9909					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	9804-9909						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97136-688-0	01	1	9910-0109				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	9910-0109						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL> (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. CHARGE AIR COOLER<6PL> (A) 12V 2.3KW	8-97255-390-1	01	1	0110-0201					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97255-390-1	01	1	0110-0201			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97255-390-1	01	1	0202-0205			●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97255-390-1	01	1	0206-			●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97255-390-1	01	1	0206-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) (B) 12V 2.0KW	8-94448-959-3	01	1	9804-0009						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) (B) 12V 2.0KW	8-97120-356-2	01	1	0010-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9804-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW	8-92064-181-0	01	1	9804-		●
4	02.042 BOLT; STARTER M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	9804-9909					●	●
4	02.042 BOLT; STARTER M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	9910-				●	●	●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9804-	●
4	02.042 BOLT; STARTER 04.085 (B) M10X80 FLANGE	0-28181-080-0	01	1	9804-	●
4	02.042 BOLT; STARTER 04.525 (A) M10X25 FLANGE	0-28181-025-0	01	1	9804-		●
4	02.042 BOLT; STARTER (B)	8-11073-352-0	01	1	9804-		●
33	02.170 COIL ASM; IGN	8-97180-222-0	06	1	9804-9908	●
33	02.170 COIL ASM; IGN	8-97136-325-0	06	1	9909-	●
33	02.170 COIL ASM; IGN	8-01104-039-0	01	1	9804-		●
35	02.183 BRACKET; IGN COIL	8-92063-223-0	01	1	9804-		●
37	02.559 BOLT; IGN COIL	8-92063-426-0	03	1	9804-		●
385	02.183 BOLT; BRKT,IGN COIL (B)	8-11094-881-0	01	1	9804-		●
385	02.183 BOLT; BRKT,IGN COIL (A)	8-11095-071-0	01	1	9804-		●
385	02.183 BOLT; BRKT,IGN COIL (C)	8-11097-631-0	01	1	9804-		●

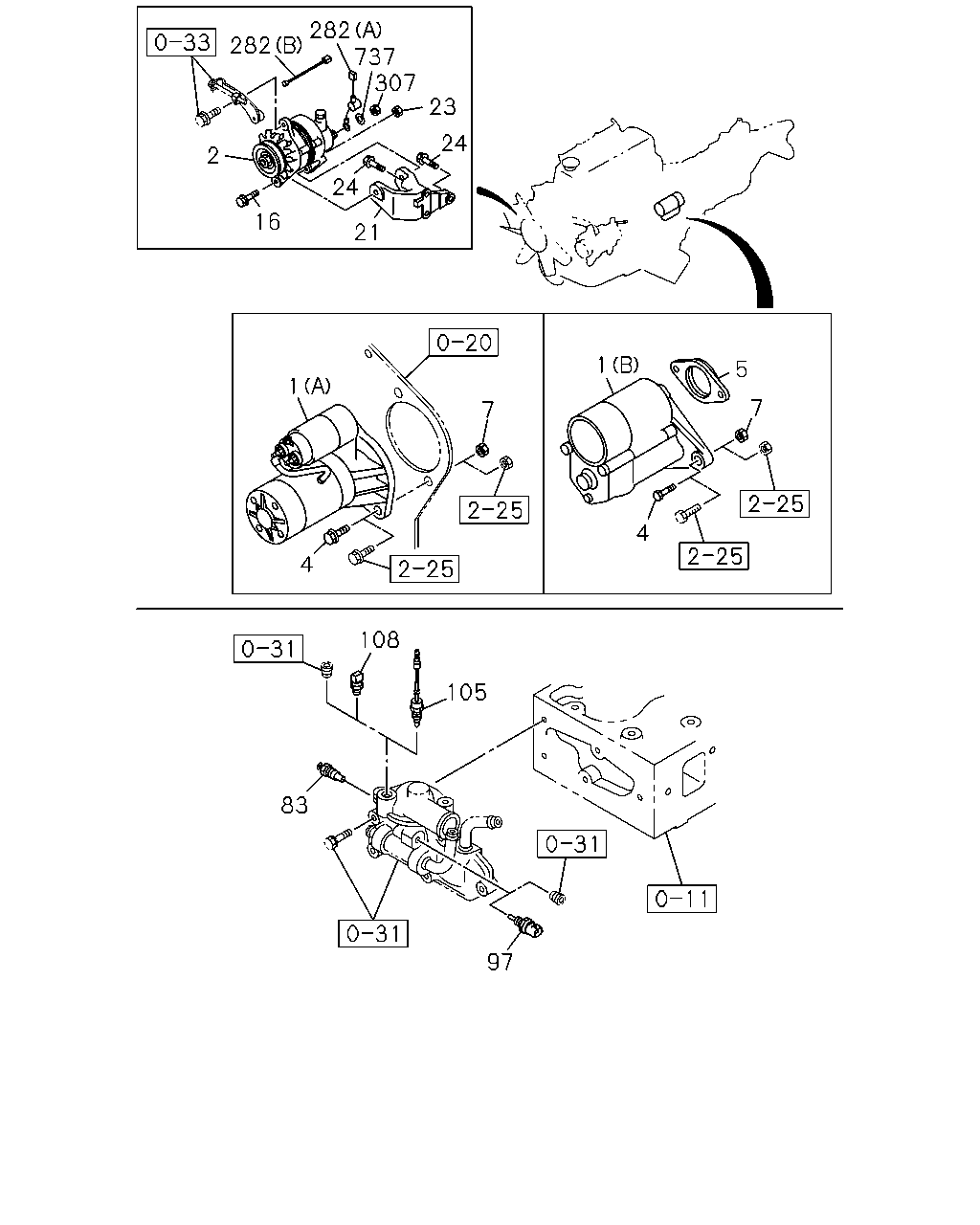

282 282 737 307 23 24 2 24 16 21 1 5 1 7 7 4 4 108 105 83 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97136-688-0	01	1	9804-9909					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	9804-9909						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97136-688-0	01	1	9910-0109				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	9910-0109						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL> (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. CHARGE AIR COOLER<6PL> (A) 12V 2.3KW	8-97255-390-1	01	1	0110-0201					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97255-390-1	01	1	0110-0201			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97255-390-1	01	1	0202-0205			●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97255-390-1	01	1	0206-			●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97255-390-1	01	1	0206-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) (B) 12V 2.0KW	8-94448-959-3	01	1	9804-0009						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) (B) 12V 2.0KW	8-97120-356-2	01	1	0010-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9804-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW	8-92064-181-0	01	1	9804-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 12V 60A	8-97240-270-1	01	1	0110-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 12V 80A	8-97133-854-0	01	1	9804-0109					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 12V 80A	8-97133-854-0	01	1	9804-0109						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 12V80A(K97) 12V 50A	8-97187-653-0	01	1	9804-0109					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 12V 50A	8-97187-653-1	01	1	0110-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 40A	8-97187-652-0	01	1	9804-0205					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 12V 40A	8-97187-652-1	01	1	0206-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 12V 50A	8-97187-654-1	01	1	9804-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AUSTRALIAN EQUIPMENT(RR3) 12V 50A	8-97187-654-1	01	1	9804-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A	8-97187-304-0	01	1	9804-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-92063-678-0	01	1	9804-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-97187-655-0	01	1	9910-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A	8-97249-209-1	01	1	0110-			●
4	02.042 BOLT; STARTER M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	9804-9909					●	●
4	02.042 BOLT; STARTER M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	9910-				●	●	●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9804-	●
4	02.042 BOLT; STARTER 04.085 (B) M10X80 FLANGE	0-28181-080-0	01	1	9804-	●
4	02.042 BOLT; STARTER 04.525 (A) M10X25 FLANGE	0-28181-025-0	01	1	9804-		●
4	02.042 BOLT; STARTER (B)	8-11073-352-0	01	1	9804-		●
5	02.042 DISTANCE; STARTER EAST MALAYSIA EQUIPMENT(PM6)	8-97045-783-0	01	1	9804-0009						●
7	02.042 NUT; STARTER M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE	0-91150-112-0	02	1	9804-9909					●	●
7	02.042 NUT; STARTER M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE	0-91150-112-0	02	1	9910-0109				●	●	●
7	02.042 NUT; STARTER M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE	0-91150-112-0	02	1	0110-			●	●	●	●
7	02.042 NUT; STARTER 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9804-	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9804-9909					●	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9910-0109				●	●	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	0110-			●	●	●	●
16	02.277 BOLT; GEN (A) M10X90 FLANGE	0-28081-090-0	01	1	9804-	●
16	02.277 BOLT; GEN 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-	●
16	02.277 BOLT; GEN M10X110 FLANGE	0-28086-011-0	01	1	9804-		●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9804-9909					●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9910-0109				●	●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	0110-			●	●	●	●
21	02.277 BRACKET; GEN (B)	8-97160-604-1	01	1	9804-0012	●
21	02.277 BRACKET; GEN (B)	8-97289-024-0	01	1	0101-0201	●
21	02.277 BRACKET; GEN (B)	8-97328-364-0	01	1	0202-	●
21	02.277 BRACKET; GEN (A)	8-97160-605-1	01	1	9804-0111	●
21	02.277 BRACKET; GEN (A)	8-97941-401-0	01	1	0112-	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9804-9909					●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9910-0011				●	●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	0012-0109		●		●	●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	0110-		●	●	●	●	●
24	02.277 BOLT; GEN BRKT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-9909					●	●
24	02.277 BOLT; GEN BRKT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9910-0109				●	●	●
24	02.277 BOLT; GEN BRKT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	0110-			●	●	●	●
24	02.277 BOLT; GEN BRKT M10X70 W/LK WASHER	0-50041-070-0	02	1	9804-9909					●	●
24	02.277 BOLT; GEN BRKT M10X70 W/LK WASHER	0-50041-070-0	02	1	9910-0109				●	●	●
24	02.277 BOLT; GEN BRKT M10X70 W/LK WASHER	0-50041-070-0	02	1	0110-			●	●	●	●
24	02.277 BOLT; GEN BRKT	8-11090-683-0	02	1	9804-		●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9804-9909					●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9910-0109				●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0110-			●	●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9804-9909					●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9910-0109				●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0110-			●	●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9804-	●
97	01.150 SWITCH; THERMO,EGR CONT CHARGE AIR COOLER<6PL>	8-97069-786-1	01	1	0110-					●
97	01.150 SWITCH; THERMO,EGR CONT	8-97069-786-1	01	1	0110-			●
105	01.150 SWITCH; THERMO,QOS EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94457-511-0	01	1	9804-9812					●	●
105	01.150 SWITCH; THERMO,QOS EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94121-152-1	01	1	9901-					●	●
108	01.150 SWITCH; THERMO UNITED KINGDOM EQUIPMENT(EK3)	8-97069-786-1	01	1	9804-9909					●
108	01.150 SWITCH; THERMO UNITED KINGDOM EQUIPMENT(EK3)	8-97069-786-1	01	1	9910-0109					●
108	01.150 SWITCH; THERMO	8-97069-786-1	01	1	9910-0109				●
108	01.150 SWITCH; THERMO UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97069-786-1	01	1	0110-					●
108	01.150 SWITCH; THERMO	8-97069-786-1	01	1	0110-				●
282	02.480 HARNESS; EXT,GEN GENERATOR 12V80A(K97) (A)	8-97069-208-0	01	1	9804-					●
282	02.480 HARNESS; EXT,GEN LONG(TF***F) GENERATOR 12V80A(K97) (B)	8-94457-269-2	01	1	9804-						●
307	02.483 NUT; EXT HARNESS GENERATOR 12V80A(K97) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	9804-					●
737	03.901 WASHER; PL GENERATOR 12V80A(K97) 00.206 ID=6.4	9-09160-506-0	01	1	9804-					●

2 13 21 13 16 21 13 16 13 262 7 1 83 260 4 4 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97136-688-0	01	1	9804-9909					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	9804-9909						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97136-688-0	01	1	9910-0109				●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	9910-0109						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL> (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97136-688-0	01	1	0110-0201				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. CHARGE AIR COOLER<6PL> (A) 12V 2.3KW	8-97255-390-1	01	1	0110-0201					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97255-390-1	01	1	0110-0201			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. (A) 12V 2.3KW	8-97255-390-1	01	1	0202-0205			●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97255-390-1	01	1	0206-			●	●	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6) (A) 12V 2.3KW	8-97255-390-1	01	1	0206-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) (B) 12V 2.0KW	8-94448-959-3	01	1	9804-0009						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6) (B) 12V 2.0KW	8-97120-356-2	01	1	0010-						●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9804-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.6KW	8-92064-181-0	01	1	9804-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 12V 60A	8-97240-270-1	01	1	0110-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 12V 80A	8-97133-854-0	01	1	9804-0109					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 12V 80A	8-97133-854-0	01	1	9804-0109						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 12V80A(K97) 12V 50A	8-97187-653-0	01	1	9804-0109					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 12V 50A	8-97187-653-1	01	1	0110-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 40A	8-97187-652-0	01	1	9804-0205					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 12V 40A	8-97187-652-1	01	1	0206-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 12V 50A	8-97187-654-1	01	1	9804-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AUSTRALIAN EQUIPMENT(RR3) 12V 50A	8-97187-654-1	01	1	9804-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A	8-97187-304-0	01	1	9804-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-92063-678-0	01	1	9804-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-97187-655-0	01	1	9910-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A	8-97249-209-1	01	1	0110-			●
4	02.042 BOLT; STARTER M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	9804-9909					●	●
4	02.042 BOLT; STARTER M/T MSG 5 SPEED(M75) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	9910-				●	●	●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9804-	●
4	02.042 BOLT; STARTER 04.085 (B) M10X80 FLANGE	0-28181-080-0	01	1	9804-	●
4	02.042 BOLT; STARTER 04.525 (A) M10X25 FLANGE	0-28181-025-0	01	1	9804-		●
4	02.042 BOLT; STARTER (B)	8-11073-352-0	01	1	9804-		●
7	02.042 NUT; STARTER M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE	0-91150-112-0	02	1	9804-9909					●	●
7	02.042 NUT; STARTER M/T MSG 5 SPEED(M75) 05.586 M12 FLANGE	0-91150-112-0	02	1	9910-0109				●	●	●
7	02.042 NUT; STARTER M/T MSG 5 SPEED(M75),A/T AISIN(RMD) 05.586 M12 FLANGE	0-91150-112-0	02	1	0110-			●	●	●	●
7	02.042 NUT; STARTER 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9804-	●
13	02.100 BOLT; BRKT 09.171 (C) M8X90 FLANGE	0-28080-890-0	02	1	9804-	●
13	02.100 BOLT; BRKT 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	9804-	●
13	02.100 BOLT; BRKT 03.704 (B) M8X40 FLANGE	0-28680-840-0	02	1	9804-0108	●
13	02.100 BOLT; BRKT 16.545 (B) M8X40 FLANGE	0-28690-840-0	02	1	0109-	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9804-9909					●	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9910-0109				●	●	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	0110-			●	●	●	●
16	02.277 BOLT; GEN (A) M10X90 FLANGE	0-28081-090-0	01	1	9804-	●
16	02.277 BOLT; GEN 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-	●
16	02.277 BOLT; GEN M10X110 FLANGE	0-28086-011-0	01	1	9804-		●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9804-9909					●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9910-0109				●	●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	0110-			●	●	●	●
21	02.277 BRACKET; GEN (B)	8-97160-604-1	01	1	9804-0012	●
21	02.277 BRACKET; GEN (B)	8-97289-024-0	01	1	0101-0201	●
21	02.277 BRACKET; GEN (B)	8-97328-364-0	01	1	0202-	●
21	02.277 BRACKET; GEN (A)	8-97160-605-1	01	1	9804-0111	●
21	02.277 BRACKET; GEN (A)	8-97941-401-0	01	1	0112-	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9804-9909					●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9910-0109				●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0110-			●	●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9804-9909					●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9910-0109				●	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0110-			●	●	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9804-	●
260	01.150 SENSOR; WATER TEMP (B)	8-15326-386-0	01	1	0107-	●
260	01.150 SENSOR; WATER TEMP (B)	8-12146-312-0	01	1	9804-0106	●	●
260	01.150 SENSOR; WATER TEMP (B)	8-12146-312-0	01	1	0107-		●
260	01.150 SENSOR; WATER TEMP (A)	8-92063-893-0	01	1	9804-		●
262	02.559 CLIP; HARNESS ID=12	5-09700-331-0	02	1	9804-	●

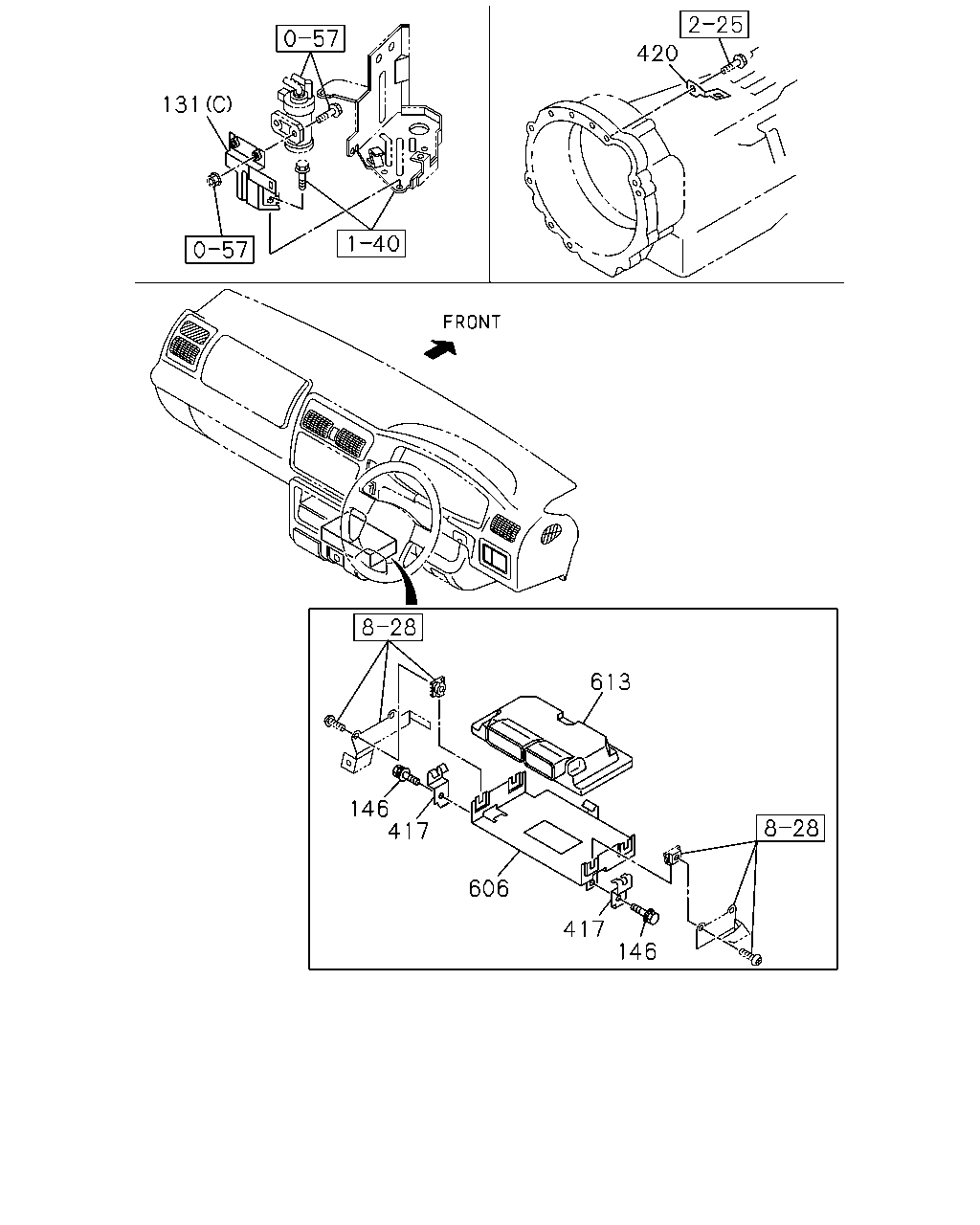

420 131 613 146 417 606 417 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97106-698-0	01	1	9804-0109				●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97106-698-0	01	1	0110-				●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97322-094-0	01	1	0110-				●
131	03.670 BRACKET; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97136-159-1	01	1	9804-					●
146	02.195 BOLT; CLIP CHARGE AIR COOLER<6PL> 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-				●
146	02.195 BOLT; CLIP 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0110-			●
417	02.420 CLIP CHARGE AIR COOLER<6PL> 02.500	8-97240-154-1	02	1	0110-				●
417	02.420 CLIP 02.500	8-97240-154-1	02	1	0110-			●
417	02.420 CLIP	8-09279-238-0	01	1	9804-		●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	9804-	●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	9804-	●
420	02.183 BRACKET; HARNESS A/T AISIN(RMD) 02.483	8-94315-284-0	01	1	0110-			●
606	03.680 BRACKET; CONT UNIT CHARGE AIR COOLER<6PL>	8-97287-149-0	01	1	0110-				●
606	03.680 BRACKET; CONT UNIT	8-97287-149-0	01	1	0110-			●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97249-234-5	01	1	0110-				●
613	03.670 CONTROL UNIT; ENG ENG QUICK WARM UP SYSTEM<6JZ>	8-97303-593-5	01	1	0110-				●
613	03.670 CONTROL UNIT; ENG A/T AISIN(RMD)	8-97255-155-2	01	1	0110-			●
613	03.670 CONTROL UNIT; ENG 4X2(TFB***) M/T MUA 5 SPEED(RMN)	8-97255-038-2	01	1	0110-			●
613	03.670 CONTROL UNIT; ENG 4X4(TFS***) M/T MUA 5 SPEED(RMN)	8-97303-914-2	01	1	0110-			●

46 702 317 48 702 46 317 702 317 706 10 644 131 578

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	02.100 RELAY; STARTER 02.510 (A) 12V 35A	8-97180-794-1	01	1	9910-0109				●	●	●
10	02.100 RELAY; STARTER 02.510 (A) 12V 35A	8-97180-794-1	01	1	0110-			●	●	●	●
10	02.100 RELAY; STARTER CHARGE AIR COOLER<6PL> 08.852 (B) 12V 20A	8-97060-926-1	01	1	0110-			●		●
10	02.100 RELAY; STARTER 12V 20A	8-97173-039-1	01	1	9804-0012	●	●
10	02.100 RELAY; STARTER 12V 20A	8-97173-039-1	01	1	0101-	●	●
10	02.100 RELAY; STARTER A/T THM(RMQ) 12V 20A	8-97173-039-1	01	1	0101-	●
46	02.510 RELAY; GLOW PLUG	8-94459-495-0	01	1	9804-9909					●	●
46	02.510 RELAY; GLOW PLUG 12V 35A	8-97180-794-1	01	1	9910-0109					●	●
46	02.510 RELAY; GLOW PLUG 12V 35A	8-97180-794-1	01	1	0110-			●		●	●
46	02.510 RELAY; GLOW PLUG 12V 35A	8-97180-794-1	02	1	9910-				●
48	02.183 BOLT; GLOW PLUG RELAY 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9804-9909					●
48	02.183 BOLT; GLOW PLUG RELAY LONG(TF***F) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9804-9909						●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97106-698-0	01	1	9804-0109					●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97106-698-0	01	1	0110-					●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97322-094-0	01	1	0110-					●
131	03.670 BRACKET; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97136-159-1	01	1	9804-						●
317	02.510 BRACKET; GLOW PLUG RELAY (A)	8-94479-552-2	01	1	9804-9909					●	●
317	02.510 BRACKET; GLOW PLUG RELAY UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97226-972-0	01	1	9910-0002				●	●
317	02.510 BRACKET; GLOW PLUG RELAY UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97252-258-0	01	1	0003-				●	●
317	02.510 BRACKET; GLOW PLUG RELAY (B)	8-97074-308-1	01	1	9804-9909					●	●
578	02.510 RELAY; CHARGE WARNING 12V	8-97063-441-1	01	1	9804-9909					●	●
578	02.510 RELAY; CHARGE WARNING 12V	8-97063-441-1	01	1	9910-0109				●	●	●
578	02.510 RELAY; CHARGE WARNING EXC. CHARGE AIR COOLER<6PL> 12V	8-97063-441-2	01	1	0110-					●
578	02.510 RELAY; CHARGE WARNING 12V	8-97063-441-2	01	1	0110-				●		●
644	02.510 RELAY; COLD START DEVICE EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY> 08.852 12V 20A	8-97060-926-1	01	1	9804-9909					●	●
644	02.510 RELAY; COLD START DEVICE EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY> 12V 20A	8-97173-037-1	01	1	9910-					●	●
702	02.500 BOLT; RELAY 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	04	1	9804-9810					●
702	02.500 BOLT; RELAY LONG(TF***F) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	04	1	9804-9810						●
702	02.500 BOLT; RELAY 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-9909					●
702	02.500 BOLT; RELAY LONG(TF***F) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9811-9909						●
702	02.500 BOLT; RELAY UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9910-				●	●
706	02.510 RELAY; QWS UNITED KINGDOM EQUIPMENT(EK3) 08.852 12V 20A	8-97060-926-1	01	1	9804-9909					●
706	02.510 RELAY; QWS UNITED KINGDOM EQUIPMENT(EK3) 02.100 12V 20A	8-97173-039-1	01	1	9910-0109				●	●
706	02.510 RELAY; QWS ENG QUICK WARM UP SYSTEM<6JZ> 02.100 12V 20A	8-97173-039-1	01	1	0110-					●
706	02.510 RELAY; QWS UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 02.100 12V 20A	8-97173-039-1	01	1	0110-					●

144 23 676 828 22 2 528 528 829 24 24 399 16 19 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 12V 60A	8-97240-270-1	01	1	0110-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 12V 80A	8-97133-854-0	01	1	9804-0109					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 12V 80A	8-97133-854-0	01	1	9804-0109						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. GENERATOR 12V80A(K97) 12V 50A	8-97187-653-0	01	1	9804-0109					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 12V 50A	8-97187-653-1	01	1	0110-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3) 12V 40A	8-97187-652-0	01	1	9804-0205					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 12V 40A	8-97187-652-1	01	1	0206-					●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 12V 50A	8-97187-654-1	01	1	9804-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AUSTRALIAN EQUIPMENT(RR3) 12V 50A	8-97187-654-1	01	1	9804-						●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A	8-97187-304-0	01	1	9804-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-92063-678-0	01	1	9804-		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-97187-655-0	01	1	9910-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A	8-97249-209-1	01	1	0110-			●
10	02.100 RELAY; STARTER 02.510 (A) 12V 35A	8-97180-794-1	01	1	9910-0109				●	●	●
10	02.100 RELAY; STARTER 02.510 (A) 12V 35A	8-97180-794-1	01	1	0110-			●	●	●	●
10	02.100 RELAY; STARTER CHARGE AIR COOLER<6PL> 08.852 (B) 12V 20A	8-97060-926-1	01	1	0110-			●		●
10	02.100 RELAY; STARTER 12V 20A	8-97173-039-1	01	1	9804-0012	●	●
10	02.100 RELAY; STARTER 12V 20A	8-97173-039-1	01	1	0101-	●	●
10	02.100 RELAY; STARTER A/T THM(RMQ) 12V 20A	8-97173-039-1	01	1	0101-	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9804-9909					●	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9910-0109				●	●	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	0110-			●	●	●	●
16	02.277 BOLT; GEN (A) M10X90 FLANGE	0-28081-090-0	01	1	9804-	●
16	02.277 BOLT; GEN 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9804-	●
16	02.277 BOLT; GEN M10X110 FLANGE	0-28086-011-0	01	1	9804-		●
19	02.277 BRACKET; GEN	8-92063-352-0	01	1	9804-		●
22	09.008 BOLT; GEN 02.317 M6X75 FLANGE	8-97028-681-0	01	1	9804-		●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9804-9909					●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9910-0011				●	●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	0012-0109		●		●	●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	0110-		●	●	●	●	●
24	02.277 BOLT; GEN BRKT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9804-9909					●	●
24	02.277 BOLT; GEN BRKT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9910-0109				●	●	●
24	02.277 BOLT; GEN BRKT 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	0110-			●	●	●	●
24	02.277 BOLT; GEN BRKT M10X70 W/LK WASHER	0-50041-070-0	02	1	9804-9909					●	●
24	02.277 BOLT; GEN BRKT M10X70 W/LK WASHER	0-50041-070-0	02	1	9910-0109				●	●	●
24	02.277 BOLT; GEN BRKT M10X70 W/LK WASHER	0-50041-070-0	02	1	0110-			●	●	●	●
24	02.277 BOLT; GEN BRKT	8-11090-683-0	02	1	9804-		●
144	02.277 BOLT; BRACE 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9804-		●
399	02.559 NUT; CLIP 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-					●	●
399	02.559 NUT; CLIP 07.829 M6 FLANGE	5-09440-004-0	01	1	9804-		●
528	02.270 BUSHING	8-90280-842-0	02	1	9804-		●
676	02.275 PIECE; DIST,GEN 02.317	8-97031-664-0	01	1	9804-		●
828	02.277 SHACKLE; GEN	8-92064-286-0	01	1	9804-		●
829	02.510 BOLT; SHACKLE	8-11043-185-0	01	1	9804-		●

256 399 314 399 301 393 381 799 657 130 309 133 487 133 131 110 494 111 106

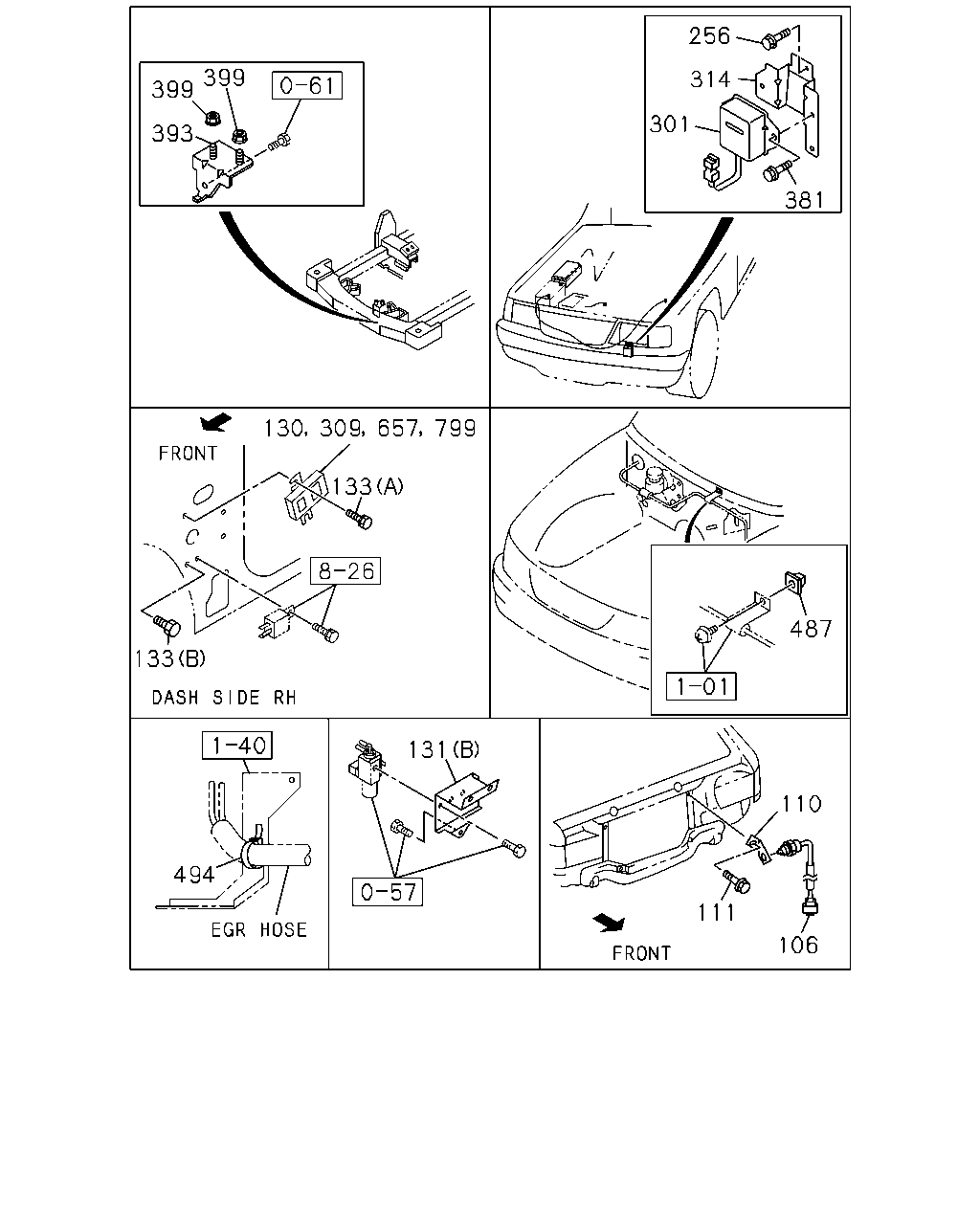

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D	E	F
106	01.150 SWITCH; THERMO,AIR UNITED KINGDOM EQUIPMENT(EK3)	8-97019-773-0	01	1	9804-9909			●
106	01.150 SWITCH; THERMO,AIR UNITED KINGDOM EQUIPMENT(EK3)	8-97019-773-0	01	1	9910-0109			●
106	01.150 SWITCH; THERMO,AIR	8-97019-773-0	01	1	9910-0109		●
106	01.150 SWITCH; THERMO,AIR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97019-773-0	01	1	0110-			●
106	01.150 SWITCH; THERMO,AIR ENG QUICK WARM UP SYSTEM<6JZ>	8-97019-773-0	01	1	0110-			●
106	01.150 SWITCH; THERMO,AIR	8-97019-773-0	01	1	0110-		●
110	01.251 BRACKET; THERMO SW CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97079-795-0	01	1	9804-9909			●
110	01.251 BRACKET; THERMO SW CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97079-795-0	01	1	9910-0109			●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97079-795-0	01	1	9910-0109		●
110	01.251 BRACKET; THERMO SW CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97079-795-0	01	1	0110-			●
110	01.251 BRACKET; THERMO SW CONNECTOR ENG QUICK WARM UP SYSTEM<6JZ>	8-97079-795-0	01	1	0110-			●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97079-795-0	01	1	0110-		●
111	01.251 BOLT; SWITCH BRKT UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9804-9909			●
111	01.251 BOLT; SWITCH BRKT UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9910-0012		●	●
111	01.251 BOLT; SWITCH BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0101-0109		●	●
111	01.251 BOLT; SWITCH BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. AIR CONDITIONER MANUAL CONT(C60) ,CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0110-		●	●
111	01.251 BOLT; SWITCH BRKT ENG QUICK WARM UP SYSTEM<6JZ> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0110-			●
130	02.510 CONTROLLER; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97161-781-1	01	1	9804-				●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97106-698-0	01	1	9804-0109			●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97106-698-0	01	1	0110-			●
131	03.670 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97322-094-0	01	1	0110-			●
131	03.670 BRACKET; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97136-159-1	01	1	9804-				●
133	02.500 BOLT; EGR CONTROLLER 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	9804-9909			●	●
133	02.500 BOLT; EGR CONTROLLER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	9804-9909				●
133	02.500 BOLT; EGR CONTROLLER 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	9910-0109		●	●	●
133	02.500 BOLT; EGR CONTROLLER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	9910-0109				●
133	02.500 BOLT; EGR CONTROLLER EXC. CHARGE AIR COOLER<6PL> 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	0110-			●
133	02.500 BOLT; EGR CONTROLLER 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	0110-		●		●
133	02.500 BOLT; EGR CONTROLLER EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 06.635 (A) M6X16 FLANGE	0-28480-616-0	02	1	0110-				●
133	02.500 BOLT; EGR CONTROLLER 03.342 (B) M6X16	8-97012-496-0	02	1	9804-			●	●
133	02.500 BOLT; EGR CONTROLLER 03.342 (B) M6X16	8-97012-496-0	01	1	9910-		●
256	02.510 BOLT; BRKT,RESISTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9910-0012		●
256	02.510 BOLT; BRKT,RESISTOR 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0101-		●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9910-		●
309	02.510 TIMER; AFTER GLOW,QOS COLD START DEVICE<7LY>	8-97068-785-0	01	1	9804-9809			●	●
309	02.510 TIMER; AFTER GLOW,QOS COLD START DEVICE<7LY>	8-97215-829-0	01	1	9810-0109			●	●
309	02.510 TIMER; AFTER GLOW,QOS EXC. UNITED KINGDOM EQUIPMENT(EK3), CHARGE AIR COOLER<6PL>	8-97215-829-0	01	1	0110-0301			●
309	02.510 TIMER; AFTER GLOW,QOS	8-97215-829-0	01	1	0110-0301				●
309	02.510 TIMER; AFTER GLOW,QOS EXC. UNITED KINGDOM EQUIPMENT(EK3), CHARGE AIR COOLER<6PL>	8-97361-319-0	01	1	0302-			●
309	02.510 TIMER; AFTER GLOW,QOS	8-97361-319-0	01	1	0302-				●
314	02.500 BRACKET; DROPPING RESISTOR	8-97066-700-1	01	1	9910-		●
381	02.183 BOLT; DROPPING RESISTOR 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9910-0012		●
381	02.183 BOLT; DROPPING RESISTOR 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0101-		●
393	02.343 BRACKET; HARNESS TO BODY	8-94329-854-0	01	1	9804-			●	●
399	02.559 NUT; CLIP 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-			●	●
399	02.559 NUT; CLIP 07.829 M6 FLANGE	5-09440-004-0	01	1	9804-	●
487	02.343 NUT 09.190 D=9.7X9.7 L=8	8-94222-314-0	01	1	9804-9909			●	●
487	02.343 NUT 09.190 D=9.7X9.7 L=8	8-94222-314-0	01	1	9910-0109		●	●	●
487	02.343 NUT EXC. CHARGE AIR COOLER<6PL> 09.190 D=9.7X9.7 L=8	8-94222-314-0	01	1	0110-			●
487	02.343 NUT 09.190 D=9.7X9.7 L=8	8-94222-314-0	01	1	0110-		●		●
494	02.420 CLIP; BAND EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 02.587 L=172	8-94232-620-0	01	1	9804-				●
657	02.510 TIMER; GLOW PLUG EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-97068-786-0	01	1	9804-9809			●	●
657	02.510 TIMER; GLOW PLUG EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-97215-650-0	01	1	9810-0109			●	●
799	02.510 CONTROLLER; EGR/QOS UNITED KINGDOM EQUIPMENT(EK3)	8-97189-475-1	01	1	9804-0109			●
799	02.510 CONTROLLER; EGR/QOS UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97189-475-1	01	1	0110-			●
799	02.510 CONTROLLER; EGR/QOS	8-97116-900-1	01	1	9910-		●

31 417 31 31 377 53 31 53 53 377 377 611 53 31 260 782 766 832 260 812 539

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E
31	02.251 CLIP; HIGH TENSION CABLE (A)	8-02965-736-0	01	1	9804-		●
31	02.251 CLIP; HIGH TENSION CABLE (B)	8-90320-343-0	01	1	9804-		●
31	02.251 CLIP; HIGH TENSION CABLE (C)	8-90320-344-0	01	1	9804-9808		●
31	02.251 CLIP; HIGH TENSION CABLE (D)	8-90320-345-0	01	1	9804-9808		●
31	02.251 CLIP; HIGH TENSION CABLE (D)	8-90320-345-0	02	1	9809-		●
31	02.251 CLIP; HIGH TENSION CABLE (E)	8-90341-384-0	01	1	9804-		●
53	02.240 CABLE; IGN PLUG (A)	8-92063-672-0	01	1	9804-		●
53	02.240 CABLE; IGN PLUG (B)	8-92063-673-0	01	1	9804-		●
53	02.240 CABLE; IGN PLUG (C)	8-92063-674-0	01	1	9804-		●
53	02.240 CABLE; IGN PLUG (D)	8-92063-675-0	01	1	9804-		●
260	01.150 SENSOR; WATER TEMP (B)	8-15326-386-0	01	1	0107-	●
260	01.150 SENSOR; WATER TEMP (B)	8-12146-312-0	01	1	9804-0106	●	●
260	01.150 SENSOR; WATER TEMP (B)	8-12146-312-0	01	1	0107-		●
260	01.150 SENSOR; WATER TEMP (A)	8-92063-893-0	01	1	9804-		●
377	02.183 BRACKET; HIGH TENSION CABLE (A)	8-90460-630-0	01	1	9804-		●
377	02.183 BRACKET; HIGH TENSION CABLE (B)	8-90460-631-0	01	1	9804-		●
377	02.183 BRACKET; HIGH TENSION CABLE (C)	8-90493-625-0	01	1	9804-		●
417	02.420 CLIP CHARGE AIR COOLER<6PL> 02.500	8-97240-154-1	02	1	0110-				●
417	02.420 CLIP 02.500	8-97240-154-1	02	1	0110-			●
417	02.420 CLIP	8-09279-238-0	01	1	9804-		●
539	02.510 SCREW; SENSOR	8-90280-051-0	03	1	9804-		●
611	01.150 BRACKET; SENSOR 03.671	8-94475-021-2	01	1	9804-	●
611	01.150 BRACKET; SENSOR	8-90414-756-0	01	1	9804-		●
766	02.363 GASKET; SENSOR	8-10473-965-0	01	1	9804-		●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-	●
782	02.510 BOLT; SENSOR	8-11093-971-0	01	1	9804-		●
812	02.510 ROTOR; SENSOR	8-90265-094-0	01	1	9804-		●
832	02.510 SENSOR; CRANK ANGLE & ENG SPD	8-10456-515-0	01	1	9804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
