Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#38435) — 1163 parça

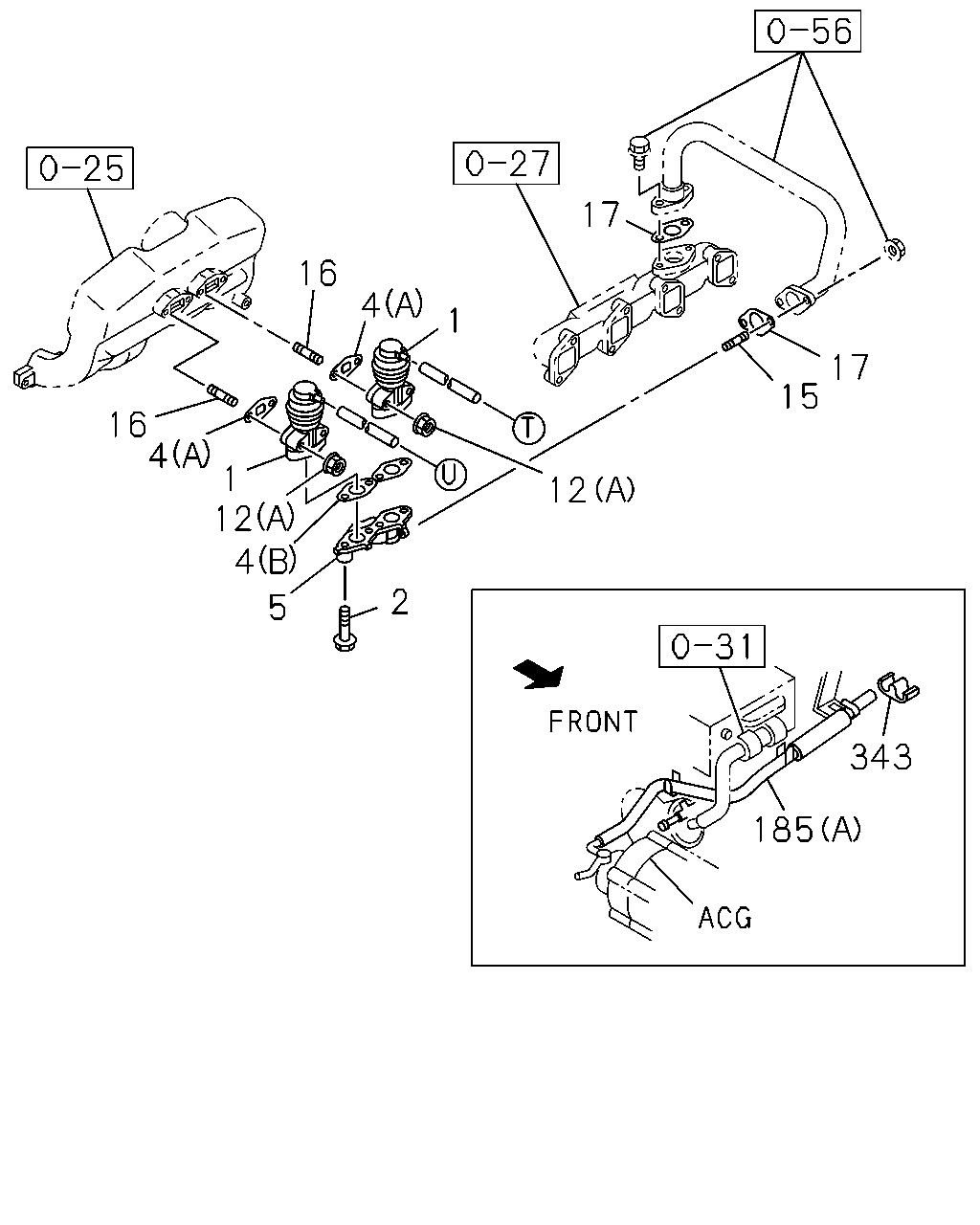

2 4 82 79 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

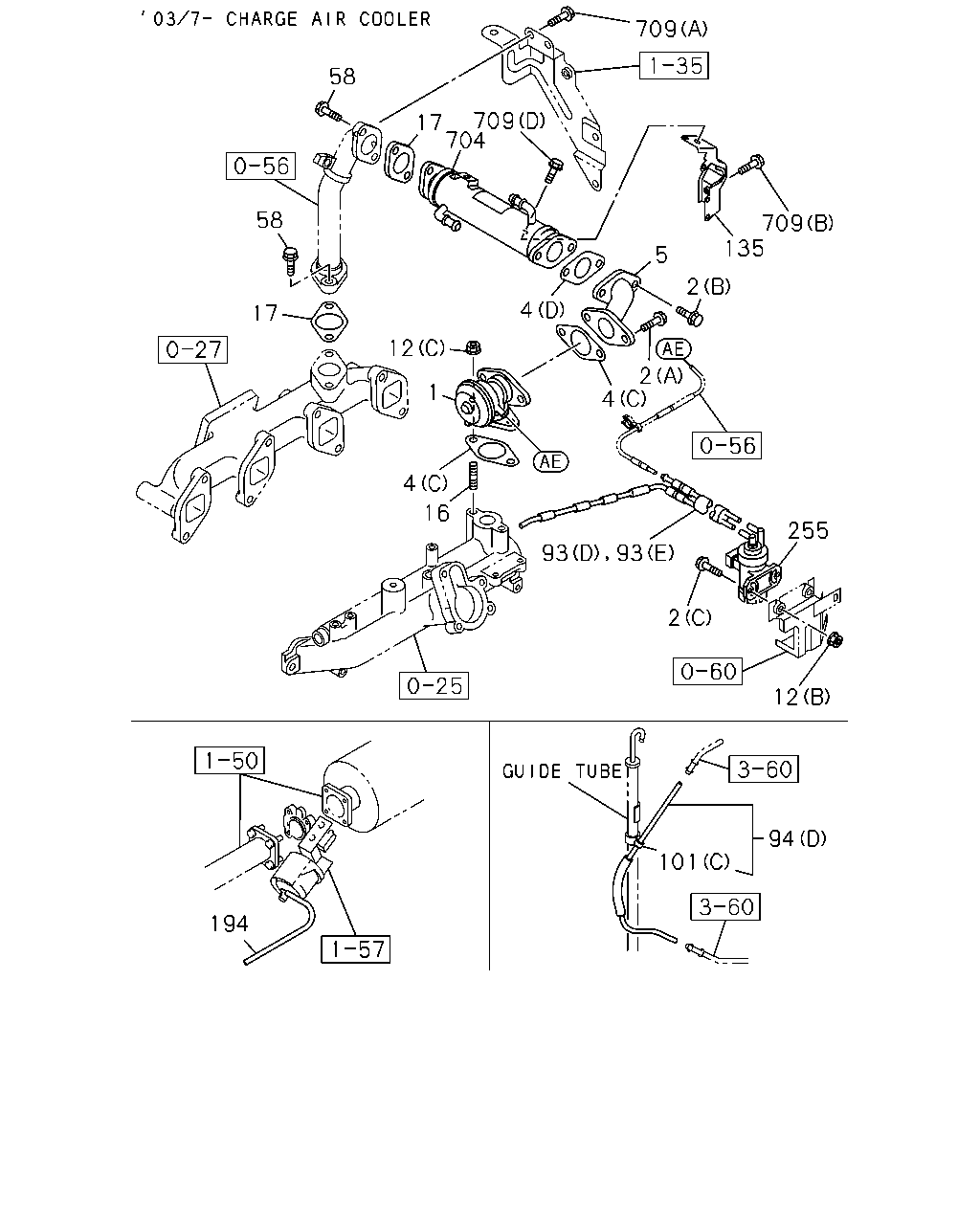

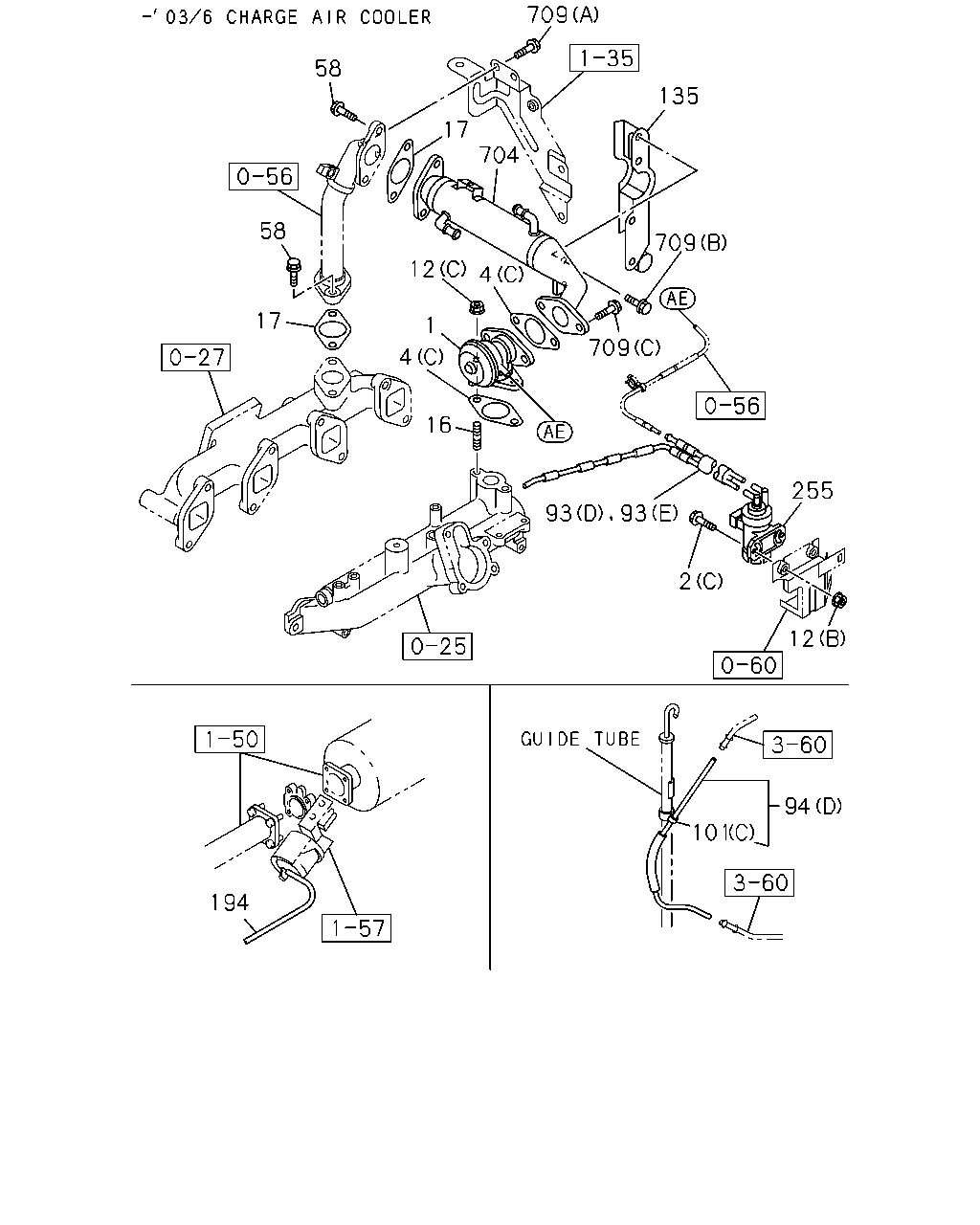

2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0110-	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI	8-97136-220-0	01	1	9804-				●
82	03.680 JOINT; 3 WAY 03.163	8-97061-674-0	01	1	9804-				●
179	03.675 CLIP; PIPE CLAMP 03.163 ID=11	8-94238-570-0	01	1	9804-				●

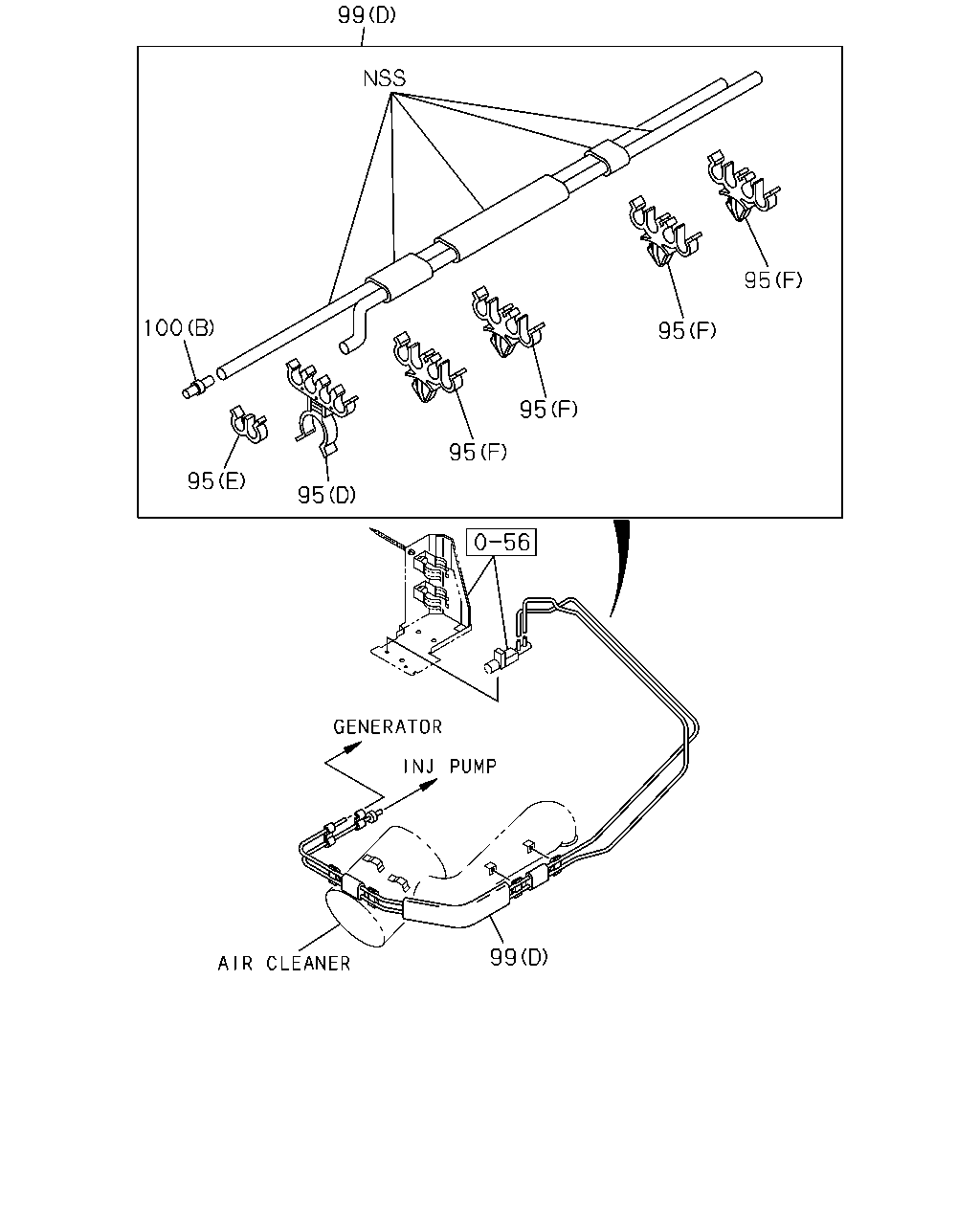

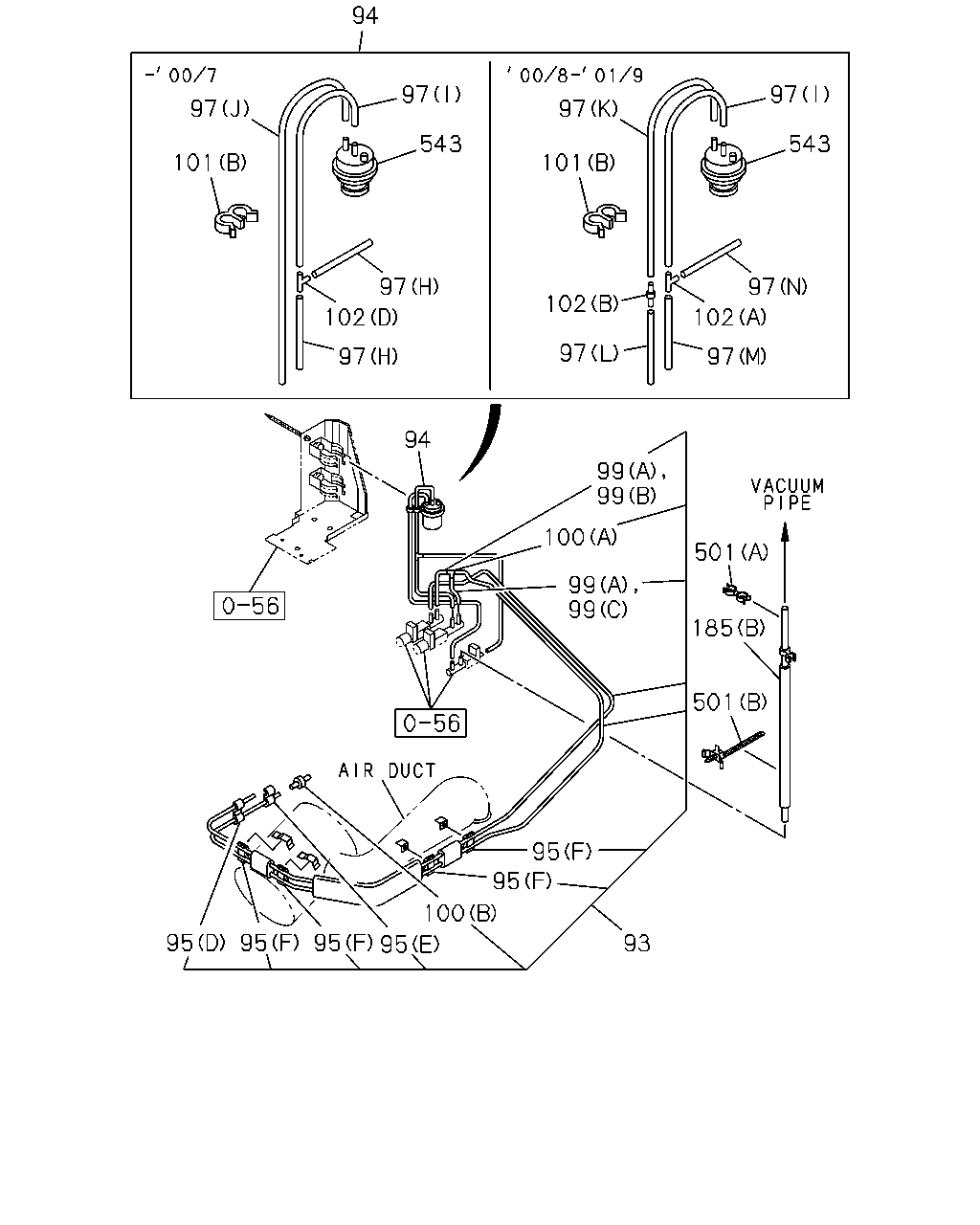

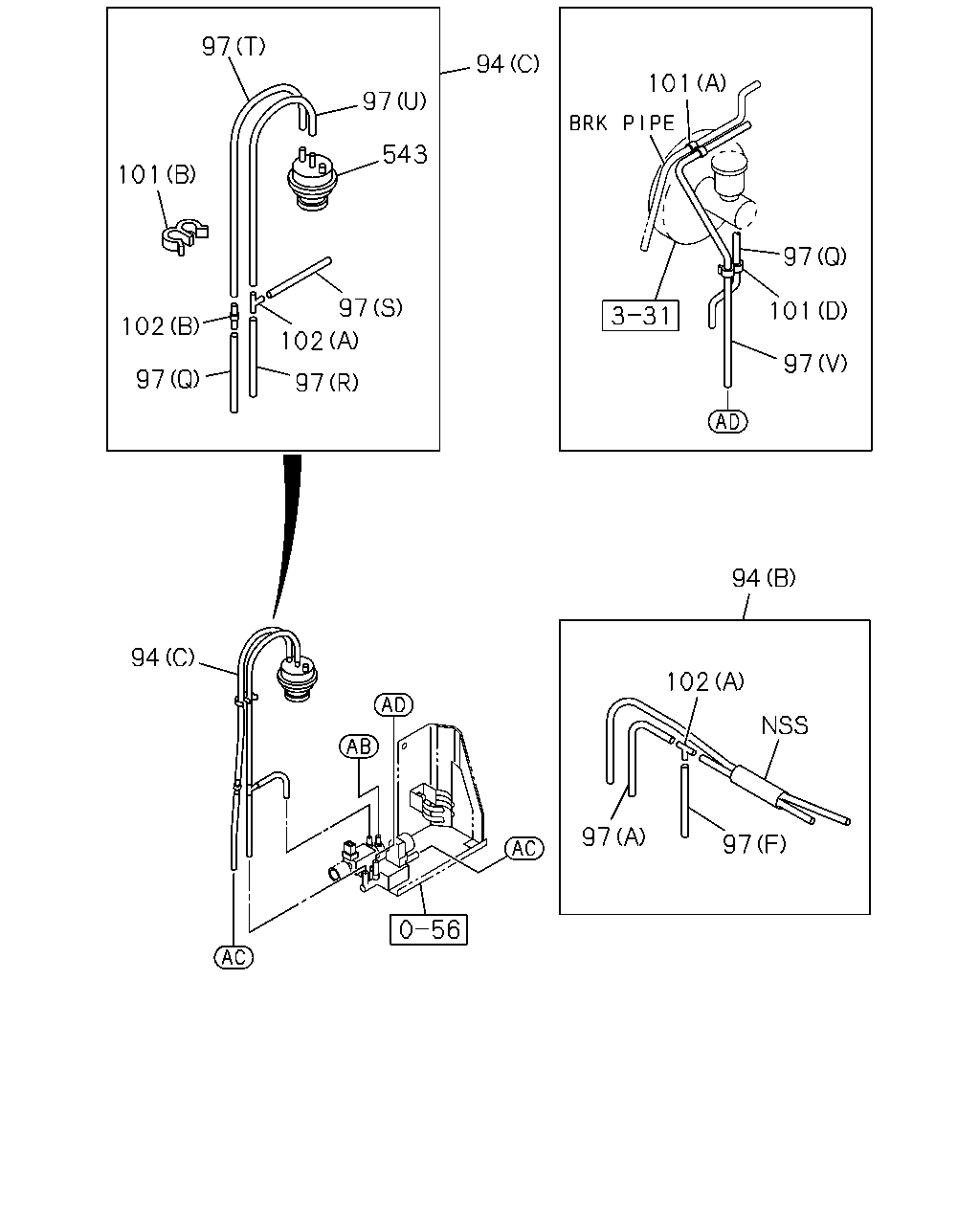

94 97 97 97 97 543 543 101 101 97 97 102 102 102 97 97 97 94 99 99 100 501 99 99 185 501 95 95 100 95 95 93 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C

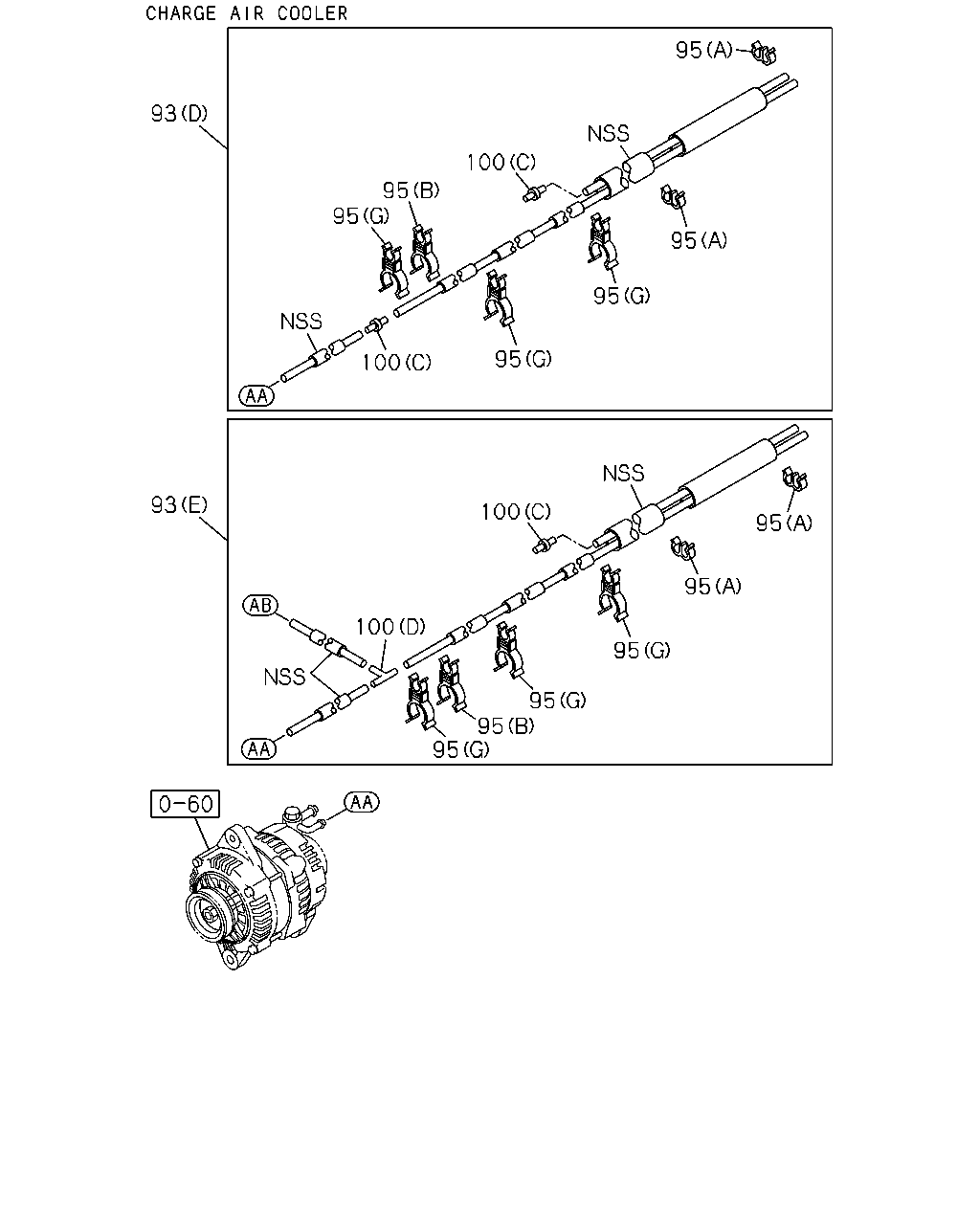

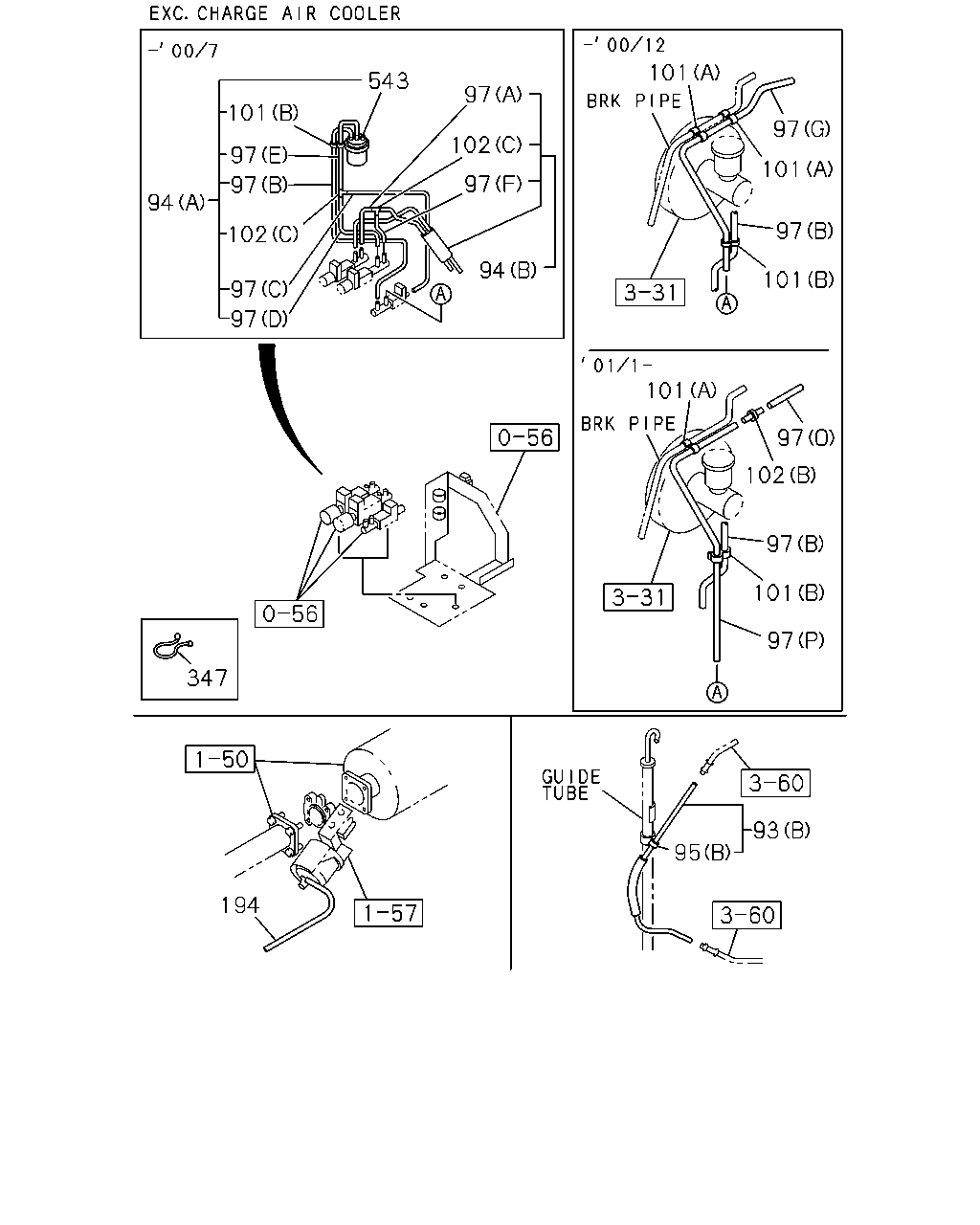

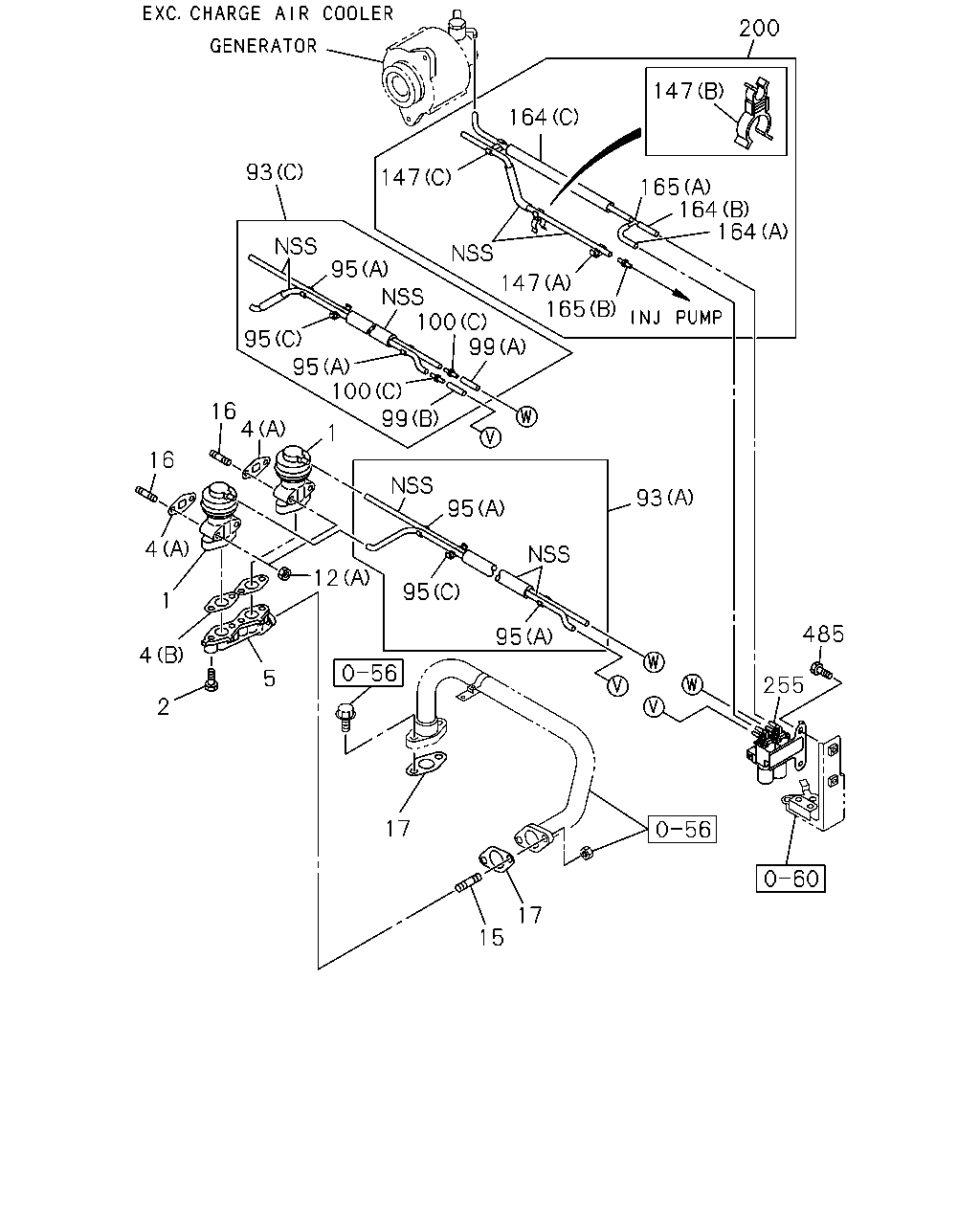

93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9804-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97106-961-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97209-160-0	01	1	9804-0007	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97261-111-0	01	1	0008-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97261-111-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97312-479-2	01	1	0110-	●
93	03.675 HOSE ASM	8-97149-827-1	01	1	9910-0007		●
93	03.675 HOSE ASM	8-97259-676-0	01	1	0008-0109		●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (E)	8-97312-480-2	01	1	0110-	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97313-779-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97261-105-0	01	1	0008-0109	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-106-0	01	1	0008-0109	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97261-106-0	01	1	0110-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9910-0007		●
94	03.675 HOSE ASM	8-97259-677-0	01	1	0008-0109		●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97289-619-1	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9804-0109	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4	8-94368-499-0	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2	8-94470-738-0	03	1	0110-	●
95	03.680 CLIP; HOSE 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	9910-		●
95	03.680 CLIP; HOSE (F) 4XID=6.7	8-94315-422-0	04	1	9910-		●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	9910-		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (V) L=630 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (U) L=100 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=610 SERVICED BY L=3000	0-04740-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (G) L=610 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0012	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (H) L=60 SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007		●
97	03.675 HOSE; RUBBER (M) L=60 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (R) L=120 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (I) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (L) L=170 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (Q) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (J) L=240 SERVICED BY L=3000	0-04732-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (N) L=60 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (T) L=150 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER (I) L=120 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (S) L=80 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=60 SERVICED BY L=3000	0-04943-300-0	01	1	0008-0109	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=60 SERVICED BY L=3000	0-04943-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=60 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=60 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007		●
99	03.675 HOSE; RUBBER (B) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109		●
99	03.675 HOSE; RUBBER (D)	8-97225-259-0	01	1	0110-		●
99	03.675 HOSE; RUBBER (C) L=60 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109		●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 2WAY	8-97165-694-0	02	1	0008-0109	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	01	1	0110-	●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	02	1	0110-	●
100	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9910-0007		●
100	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (D) 3WAY	8-94208-695-0	01	1	0110-	●
100	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9910-		●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 00.854 (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109		●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9804-9806	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	9807-0109	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 3WAY	8-94208-695-0	02	1	9804-0007	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (A) 3WAY	8-94210-631-0	02	1	0008-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0008-0012	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0008-0012		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0101-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE (D) 3WAY	8-94208-695-0	01	1	9910-0007		●
102	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
185	03.163 HOSE; RUBBER,VSV (A) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9910-0007		●
185	03.163 HOSE; RUBBER,VSV (B)	8-97227-728-0	01	1	9910-0109		●
501	03.680 CLIP; HOSE,VAC 02.559 (B) L=135	8-94473-399-0	01	1	9910-0109		●
501	03.680 CLIP; HOSE,VAC 04.104 (A) ID=12 & 6.8	8-97125-842-0	01	1	9910-0109		●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9804-9909	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9910-0109	●
543	03.670 VALVE; VAC REGULATING	8-94111-775-0	01	1	9910-0109		●
543	03.670 VALVE; VAC REGULATING ENG QUICK WARM UP SYSTEM<6JZ>	8-94111-775-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94111-775-0	01	1	0110-	●

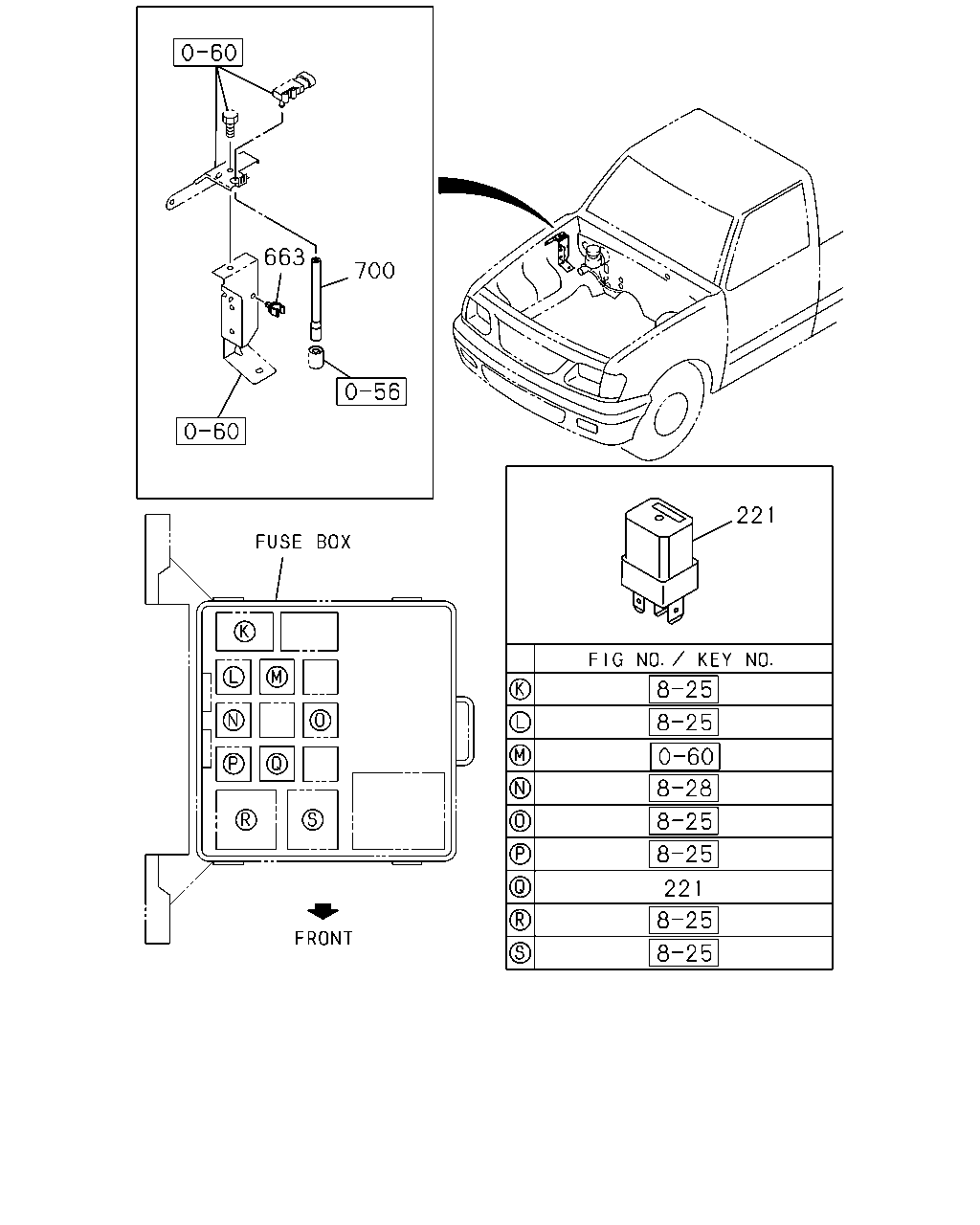

663 700 221 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	F

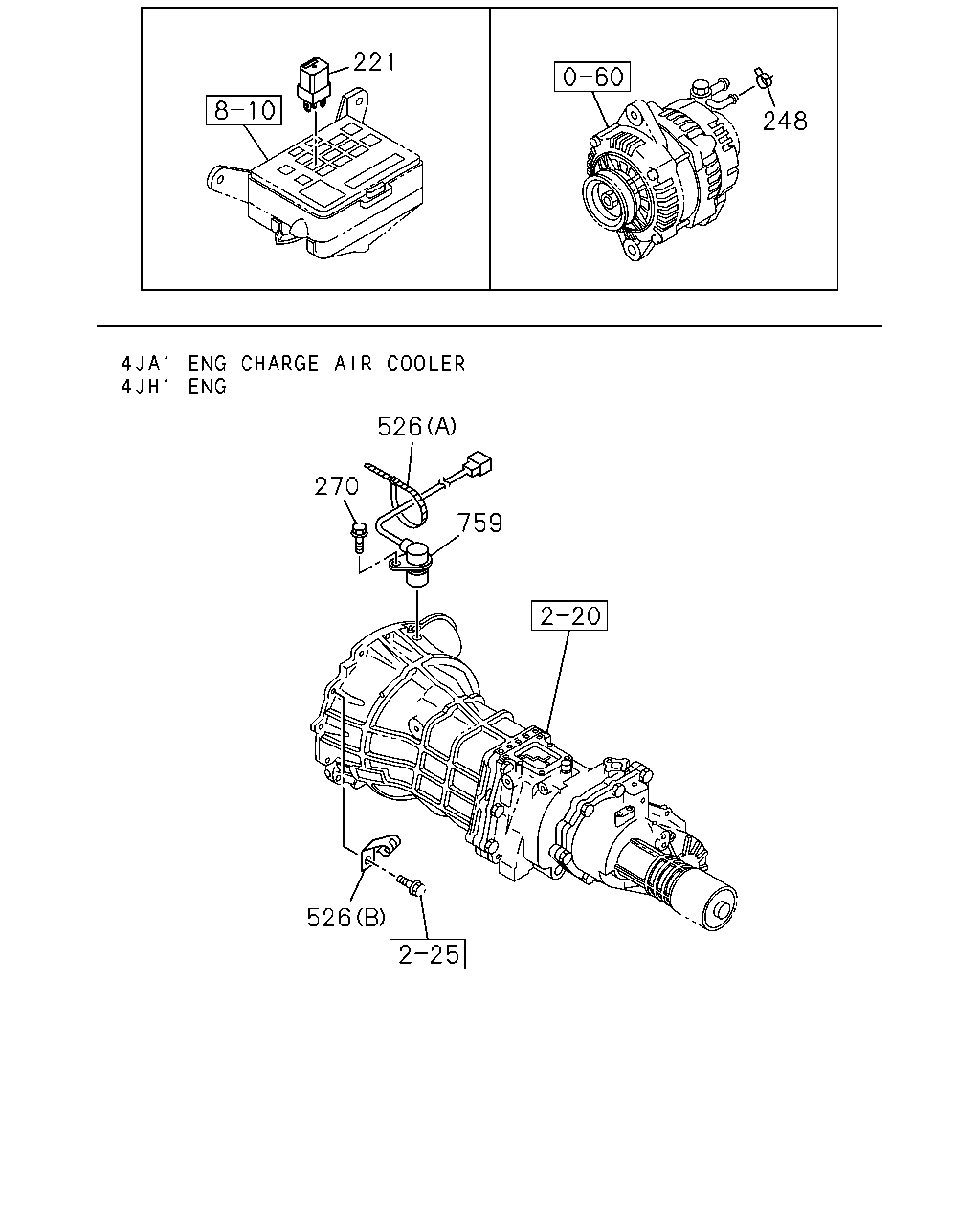

221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	9804-0109		●
221	03.670 RELAY; MAIN UNITED KINGDOM EQUIPMENT(EK3) 02.100 12V 20A	8-97173-039-1	01	1	0110-	●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	0110-		●	●
663	03.417 CLIP; HOSE 03.003	8-97022-315-0	01	1	9804-		●
700	03.675 HOSE; SENSOR TO FILTER	8-97144-592-0	01	1	9804-		●

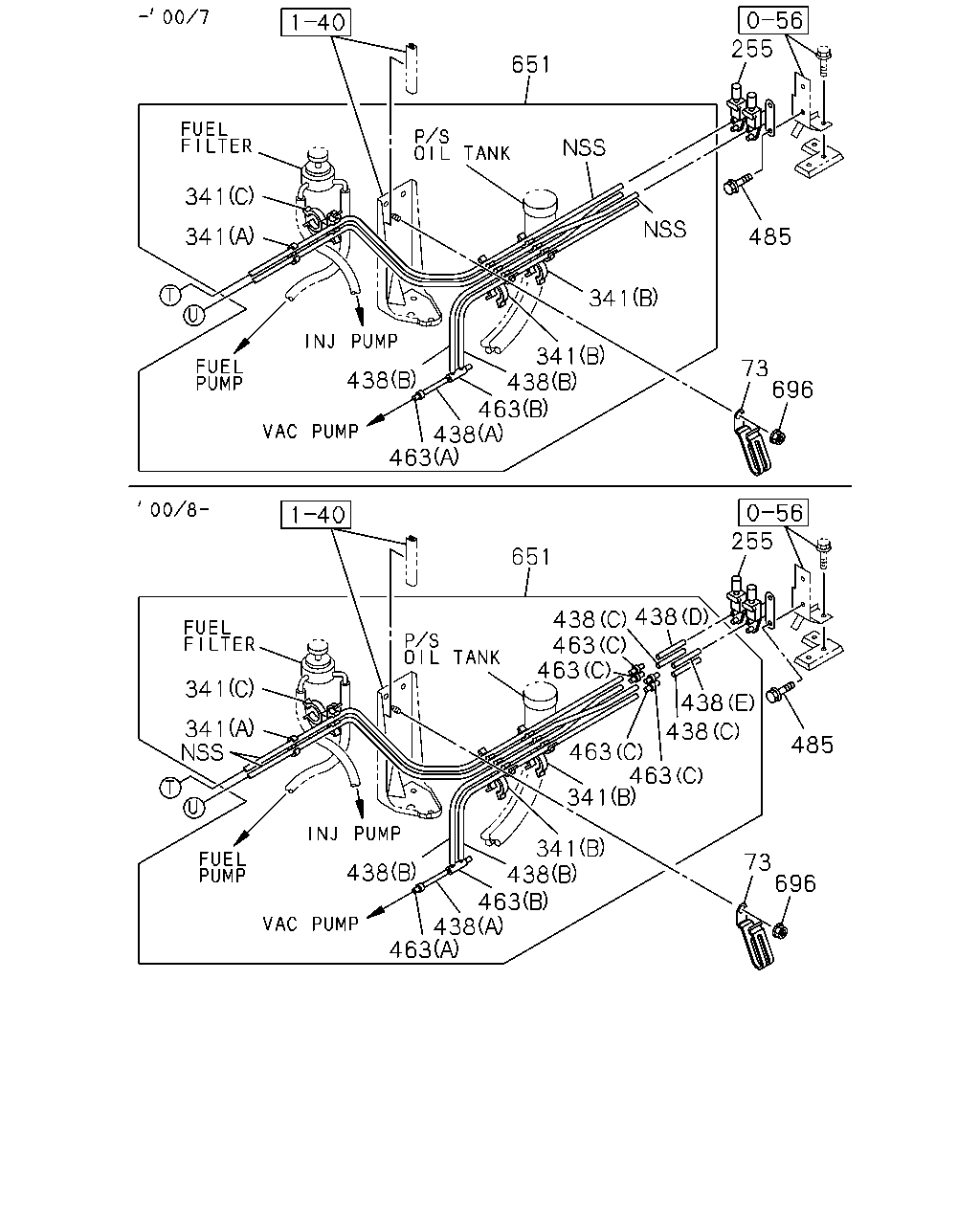

255 651 341 341 485 341 341 438 463 438 463 73 696 438 255 651 438 438 463 463 341 438 341 438 485 463 463 341 341 438 463 438 463 73 696 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE 03.278	8-94406-478-0	01	1	9910-			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9804-9909	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9910-0109	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9910-0109			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.670	8-94340-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0110-			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9804-		●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9804-		●
341	03.680 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94366-035-0	01	1	9804-		●
341	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9910-			●
341	03.680 CLIP; RUBBER HOSE 02.251 (B) 4XID=6.8	8-94132-799-0	02	1	9910-			●
341	03.680 CLIP; RUBBER HOSE (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9910-			●
438	03.675 HOSE; RUBBER,VSV,EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=100 SERVICED BY L=3000	0-04830-300-0	01	1	9804-0006		●
438	03.675 HOSE; RUBBER,VSV,EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=100 SERVICED BY L=3000	0-04830-300-0	01	1	0007-		●
438	03.675 HOSE; RUBBER,VSV,EGR 08.962 (A) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007			●
438	03.675 HOSE; RUBBER,VSV,EGR (A) L=80 SERVICED BY L=3000	0-04932-300-0	01	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR 08.962 (B) L=320 SERVICED BY L=3000	0-04732-300-0	02	1	9910-0007			●
438	03.675 HOSE; RUBBER,VSV,EGR (B) L=240 SERVICED BY L=3000	0-04932-300-0	02	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR (C) L=80 SERVICED BY L=3000	0-04942-300-0	02	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR (E) L=80 SERVICED BY L=3000	0-04943-300-0	01	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR (D) L=80 SERVICED BY L=3000	0-04945-300-0	01	1	0008-			●
463	03.680 JOINT; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 2WAY	8-97165-694-0	02	1	9804-		●
463	03.680 JOINT; RUBBER HOSE (A) 2WAY	8-94313-805-0	01	1	9910-			●
463	03.680 JOINT; RUBBER HOSE (B) 4WAY	8-94429-994-0	01	1	9910-			●
463	03.680 JOINT; RUBBER HOSE (C) 2WAY	8-97165-694-0	04	1	0008-			●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9804-9909	●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9910-0109	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9910-0109			●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0110-	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0110-			●
485	03.671 BOLT; VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9804-		●
651	03.675 HOSE ASM; VSV,EGR	8-97233-661-0	01	1	9910-0007			●
651	03.675 HOSE ASM; VSV,EGR	8-97259-684-0	01	1	0008-			●
696	03.680 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9910-			●

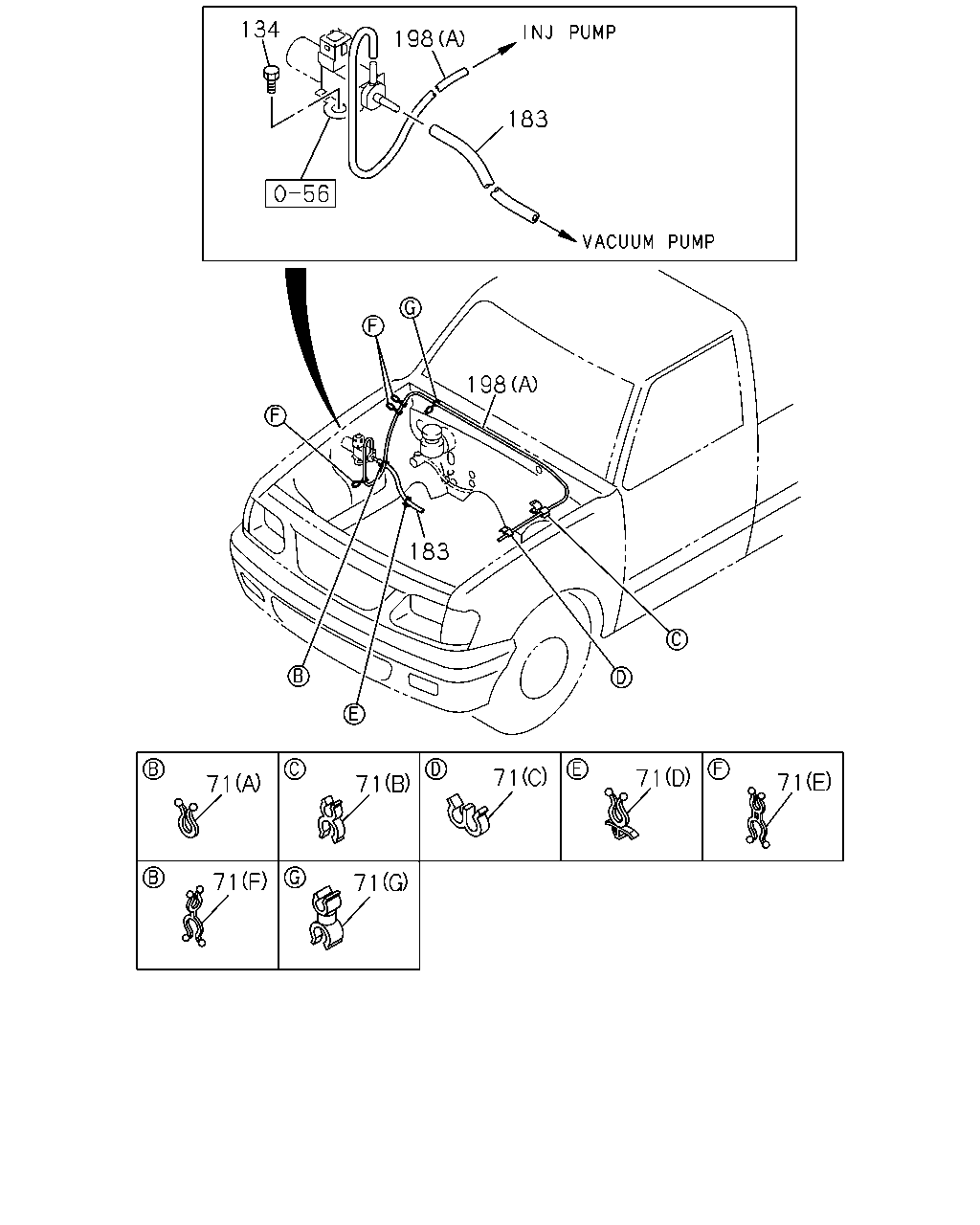

134 198 183 198 183 71 71 71 71 71 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 23	5-09707-002-0	02	1	9804-9908	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 23	5-09707-002-0	03	1	9909-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.852 (E) ID=8 & 16	5-09707-032-0	01	1	9804-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) ID=7.2 & 10	5-09707-056-0	01	1	9804-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	9804-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (D) ID=8	8-94154-795-0	01	1	9804-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 02.559 (F) ID=8 & 18.5	8-94132-792-0	01	1	9909-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.686 (G) ID=8 & 4.8	8-94430-297-0	01	1	9912-	●	●
71	03.680 CLIP; RUBBER HOSE LONG(TF***F) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.663 (A) ID=15	1-09709-003-0	01	1	9804-9911		●
134	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9804-	●	●
183	03.675 HOSE; RUBBER,VAC PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.680 L=300 SERVICED BY L=3000	0-04733-300-0	01	1	9804-0006	●	●
183	03.675 HOSE; RUBBER,VAC PUMP TO VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) L=300 SERVICED BY L=3000	0-04930-300-0	01	1	0007-	●	●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9804-0006	●	●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97259-681-0	01	1	0007-	●	●
198	03.675 HOSE; VAC,VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97163-982-3	01	1	9804-0006		●
198	03.675 HOSE; VAC,VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97259-683-0	01	1	0007-		●

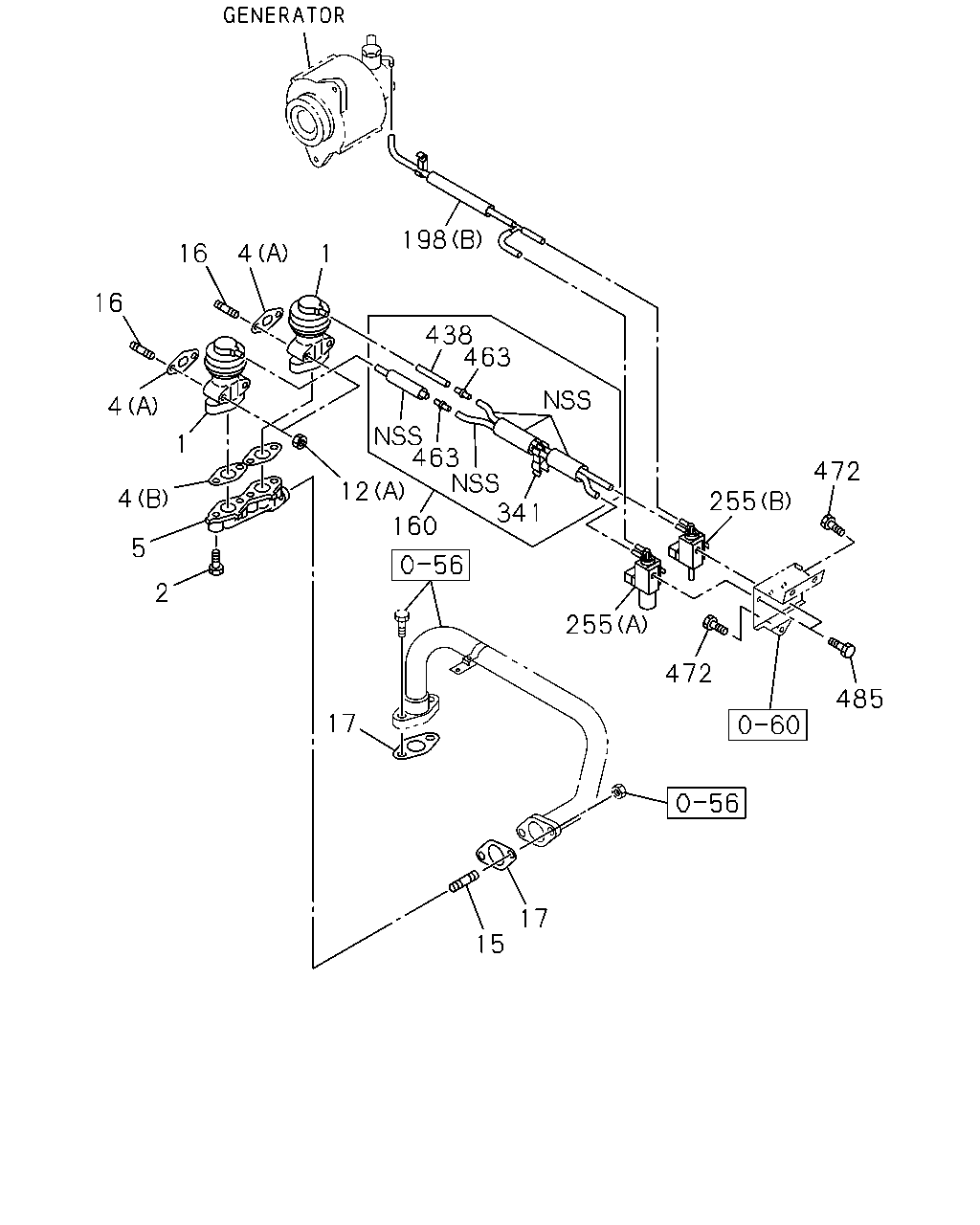

200 147 164 93 147 165 164 164 95 100 99 147 165 95 95 100 99 16 4 1 16 93 95 4 12 95 1 485 95 4 5 255 2 17 17 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97132-802-2	02	1	9804-0109	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9804-0109		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97132-802-4	02	1	0110-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-4	02	1	0110-		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0110-	●
1	03.670 VALVE; EGR	8-97135-674-4	02	1	9910-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0110-	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-584-2	01	1	0307-	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9804-9909	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9910-0109	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	9910-0109			●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97117-260-0	01	1	0110-	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	0110-			●
5	03.670 ADAPTER ASM EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97117-259-0	01	1	9804-		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0110-	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0110-	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-9909	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-9909		●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109		●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109			●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-		●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909		●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0110-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9804-9909	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9804-9909		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-94340-670-0	02	1	9910-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D).	8-94340-670-0	02	1	9910-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9910-			●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9804-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97106-961-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97209-160-0	01	1	9804-0007	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97261-111-0	01	1	0008-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97261-111-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97312-479-2	01	1	0110-	●
93	03.675 HOSE ASM	8-97149-827-1	01	1	9910-0007			●
93	03.675 HOSE ASM	8-97259-676-0	01	1	0008-0109			●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (E)	8-97312-480-2	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9804-0109	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4	8-94368-499-0	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2	8-94470-738-0	03	1	0110-	●
95	03.680 CLIP; HOSE 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	9910-			●
95	03.680 CLIP; HOSE (F) 4XID=6.7	8-94315-422-0	04	1	9910-			●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	9910-			●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=60 SERVICED BY L=3000	0-04943-300-0	01	1	0008-0109	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=60 SERVICED BY L=3000	0-04943-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=60 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=60 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007			●
99	03.675 HOSE; RUBBER (B) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109			●
99	03.675 HOSE; RUBBER (D)	8-97225-259-0	01	1	0110-			●
99	03.675 HOSE; RUBBER (C) L=60 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109			●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 2WAY	8-97165-694-0	02	1	0008-0109	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	01	1	0110-	●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	02	1	0110-	●
100	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9910-0007			●
100	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109			●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (D) 3WAY	8-94208-695-0	01	1	0110-	●
100	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9910-			●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9804-0109	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0110-	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9804-0109	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-0007	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.661 (B) ID=14.5 & 6	8-94312-791-0	01	1	0008-0109	●
147	03.680 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.661 (B) ID=14.5 & 6	8-94312-791-0	01	1	0110-	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=70 SERVICED BY L=3000	0-04840-300-0	01	1	9804-0109	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=70 SERVICED BY L=3000	0-04840-300-0	01	1	0110-	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=50 SERVICED BY L=3000	0-04841-300-0	01	1	9804-0109	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=50 SERVICED BY L=3000	0-04841-300-0	01	1	0110-	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=190 SERVICED BY L=3000	0-04842-300-0	01	1	9804-9909	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=190 SERVICED BY L=3000	0-04942-300-0	01	1	9910-0007	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=190 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109	●
164	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) L=190 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
165	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (A) 3WAY	8-94208-695-0	01	1	9804-0007	●
165	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (A) 3WAY	8-94210-631-0	01	1	0008-0109	●
165	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
165	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-94313-805-0	01	1	9804-0109	●
165	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-94313-805-0	01	1	0110-	●
200	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3)	8-97188-457-0	01	1	9804-0007	●
200	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3)	8-97261-104-0	01	1	0008-0109	●
200	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97261-104-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9804-9909	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9910-0109	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9910-0109			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.670	8-94340-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0110-			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9804-		●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9804-		●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9804-9909	●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9910-0109	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9910-0109			●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0110-	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0110-			●
485	03.671 BOLT; VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9804-		●

99 95 100 95 95 95 95 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9804-0109	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4	8-94368-499-0	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2	8-94470-738-0	03	1	0110-	●
95	03.680 CLIP; HOSE 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	9910-		●
95	03.680 CLIP; HOSE (F) 4XID=6.7	8-94315-422-0	04	1	9910-		●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	9910-		●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=60 SERVICED BY L=3000	0-04943-300-0	01	1	0008-0109	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=60 SERVICED BY L=3000	0-04943-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=60 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
99	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=60 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
99	03.675 HOSE; RUBBER 08.962 (A) L=60 STRIPE YELLOW SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007		●
99	03.675 HOSE; RUBBER (B) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109		●
99	03.675 HOSE; RUBBER (D)	8-97225-259-0	01	1	0110-		●
99	03.675 HOSE; RUBBER (C) L=60 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109		●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 2WAY	8-97165-694-0	02	1	0008-0109	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	01	1	0110-	●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	02	1	0110-	●
100	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9910-0007		●
100	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (D) 3WAY	8-94208-695-0	01	1	0110-	●
100	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9910-		●

17 16 4 1 17 15 16 4 1 12 4 12 2 5 343 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97132-802-2	02	1	9804-0109	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9804-0109		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97132-802-4	02	1	0110-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-4	02	1	0110-		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0110-	●
1	03.670 VALVE; EGR	8-97135-674-4	02	1	9910-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0110-	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-584-2	01	1	0307-	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9804-9909	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9910-0109	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	9910-0109			●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97117-260-0	01	1	0110-	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	0110-			●
5	03.670 ADAPTER ASM EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97117-259-0	01	1	9804-		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0110-	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0110-	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-9909	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-9909		●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109		●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109			●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-		●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909		●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0110-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9804-9909	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9804-9909		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-94340-670-0	02	1	9910-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D).	8-94340-670-0	02	1	9910-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9910-			●
185	03.163 HOSE; RUBBER,VSV (A) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9910-0007			●
185	03.163 HOSE; RUBBER,VSV (B)	8-97227-728-0	01	1	9910-0109			●
343	03.680 CLIP; RUBBER HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9910-			●

95 93 100 95 95 95 95 95 100 93 100 95 95 100 95 95 95 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9804-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97106-961-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97209-160-0	01	1	9804-0007	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97261-111-0	01	1	0008-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97261-111-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97312-479-2	01	1	0110-	●
93	03.675 HOSE ASM	8-97149-827-1	01	1	9910-0007		●
93	03.675 HOSE ASM	8-97259-676-0	01	1	0008-0109		●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (E)	8-97312-480-2	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9804-0109	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4	8-94368-499-0	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2	8-94470-738-0	03	1	0110-	●
95	03.680 CLIP; HOSE 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	9910-		●
95	03.680 CLIP; HOSE (F) 4XID=6.7	8-94315-422-0	04	1	9910-		●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	9910-		●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 2WAY	8-97165-694-0	02	1	0008-0109	●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	01	1	0110-	●
100	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) 2WAY	8-97165-694-0	02	1	0110-	●
100	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9910-0007		●
100	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
100	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (D) 3WAY	8-94208-695-0	01	1	0110-	●
100	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9910-		●

97 94 97 94 543 101 102 97 102 102 97 97 97 97 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97313-779-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97261-105-0	01	1	0008-0109	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-106-0	01	1	0008-0109	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97261-106-0	01	1	0110-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9910-0007		●
94	03.675 HOSE ASM	8-97259-677-0	01	1	0008-0109		●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97289-619-1	01	1	0110-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (V) L=630 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (U) L=100 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=610 SERVICED BY L=3000	0-04740-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (G) L=610 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0012	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (H) L=60 SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007		●
97	03.675 HOSE; RUBBER (M) L=60 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (R) L=120 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (I) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (L) L=170 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (Q) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (J) L=240 SERVICED BY L=3000	0-04732-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (N) L=60 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (T) L=150 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER (I) L=120 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (S) L=80 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 00.854 (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109		●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9804-9806	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	9807-0109	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 3WAY	8-94208-695-0	02	1	9804-0007	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (A) 3WAY	8-94210-631-0	02	1	0008-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0008-0012	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0008-0012		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0101-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE (D) 3WAY	8-94208-695-0	01	1	9910-0007		●
102	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9804-9909	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9910-0109	●
543	03.670 VALVE; VAC REGULATING	8-94111-775-0	01	1	9910-0109		●
543	03.670 VALVE; VAC REGULATING ENG QUICK WARM UP SYSTEM<6JZ>	8-94111-775-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94111-775-0	01	1	0110-	●

198 16 4 1 16 438 463 4 463 341 1 472 12 4 255 160 5 2 255 472 485 17 17 15

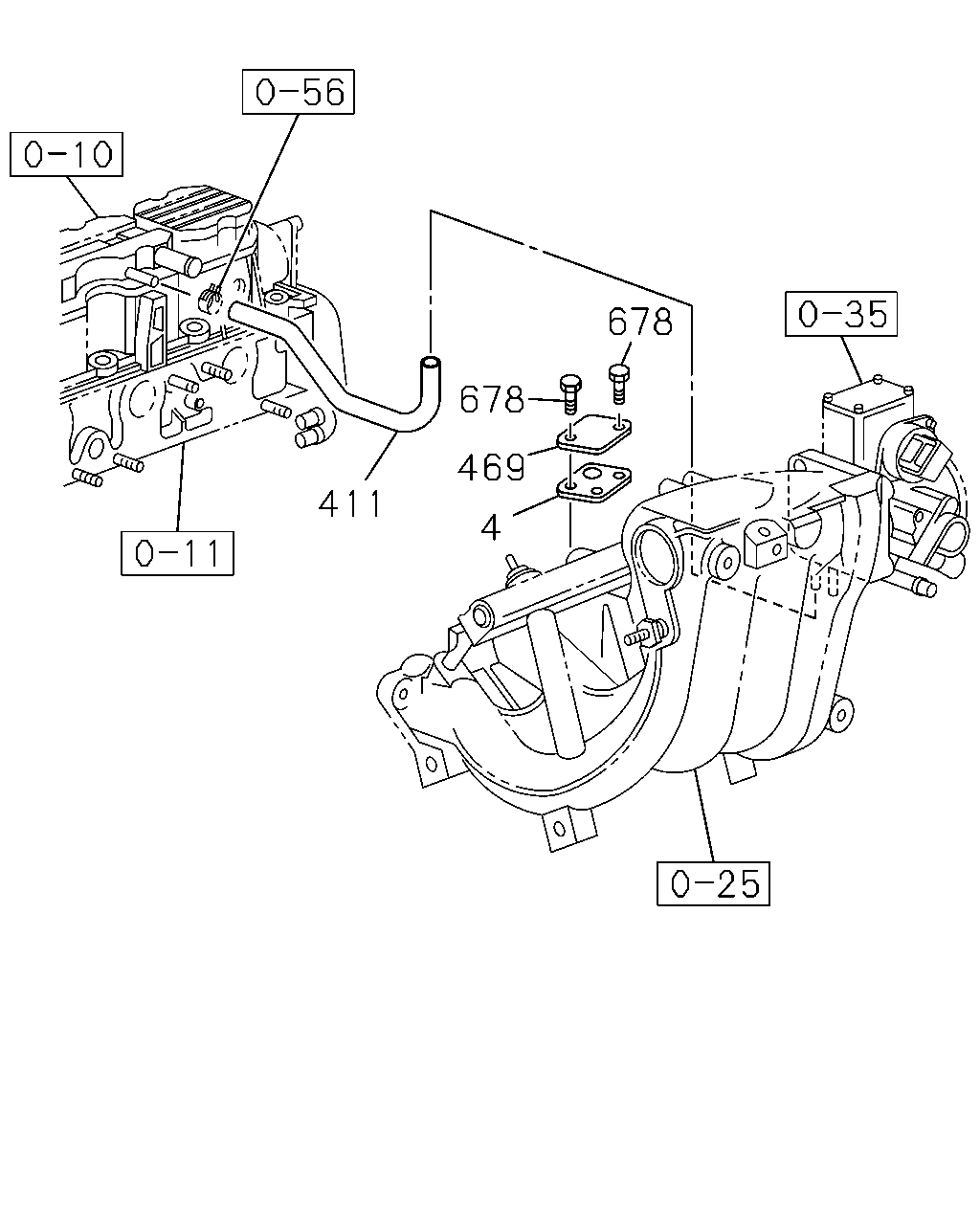

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97132-802-2	02	1	9804-0109	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9804-0109		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97132-802-4	02	1	0110-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-4	02	1	0110-		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0110-	●
1	03.670 VALVE; EGR	8-97135-674-4	02	1	9910-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0110-	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-584-2	01	1	0307-	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9804-9909	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9910-0109	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	9910-0109			●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97117-260-0	01	1	0110-	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	0110-			●
5	03.670 ADAPTER ASM EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97117-259-0	01	1	9804-		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0110-	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0110-	●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-9909	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9804-9909		●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109		●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	9910-0109			●
15	03.670 STUD; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-	●
15	03.670 STUD; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-		●
15	03.670 STUD; EGR PIPE 03.901 M8X25 L=37	9-04110-825-0	02	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909		●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0110-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9804-9909	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9804-9909		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-94340-670-0	02	1	9910-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D).	8-94340-670-0	02	1	9910-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9910-			●
160	03.675 HOSE; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97163-996-2	01	1	9804-		●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=1650 SERVICED BY L=3000	0-04730-300-0	01	1	9804-0006	●	●
198	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97259-681-0	01	1	0007-	●	●
198	03.675 HOSE; VAC,VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97163-982-3	01	1	9804-0006		●
198	03.675 HOSE; VAC,VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97259-683-0	01	1	0007-		●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9804-9909	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9910-0109	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9910-0109			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.670	8-94340-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0110-			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9804-		●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9804-		●
341	03.680 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94366-035-0	01	1	9804-		●
341	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9910-			●
341	03.680 CLIP; RUBBER HOSE 02.251 (B) 4XID=6.8	8-94132-799-0	02	1	9910-			●
341	03.680 CLIP; RUBBER HOSE (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9910-			●
438	03.675 HOSE; RUBBER,VSV,EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=100 SERVICED BY L=3000	0-04830-300-0	01	1	9804-0006		●
438	03.675 HOSE; RUBBER,VSV,EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=100 SERVICED BY L=3000	0-04830-300-0	01	1	0007-		●
438	03.675 HOSE; RUBBER,VSV,EGR 08.962 (A) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007			●
438	03.675 HOSE; RUBBER,VSV,EGR (A) L=80 SERVICED BY L=3000	0-04932-300-0	01	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR 08.962 (B) L=320 SERVICED BY L=3000	0-04732-300-0	02	1	9910-0007			●
438	03.675 HOSE; RUBBER,VSV,EGR (B) L=240 SERVICED BY L=3000	0-04932-300-0	02	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR (C) L=80 SERVICED BY L=3000	0-04942-300-0	02	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR (E) L=80 SERVICED BY L=3000	0-04943-300-0	01	1	0008-			●
438	03.675 HOSE; RUBBER,VSV,EGR (D) L=80 SERVICED BY L=3000	0-04945-300-0	01	1	0008-			●
463	03.680 JOINT; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 2WAY	8-97165-694-0	02	1	9804-		●
463	03.680 JOINT; RUBBER HOSE (A) 2WAY	8-94313-805-0	01	1	9910-			●
463	03.680 JOINT; RUBBER HOSE (B) 4WAY	8-94429-994-0	01	1	9910-			●
463	03.680 JOINT; RUBBER HOSE (C) 2WAY	8-97165-694-0	04	1	0008-			●
472	03.671 BOLT; BRKT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9804-		●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9804-9909	●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9910-0109	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9910-0109			●
485	03.671 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0110-	●
485	03.671 BOLT; VSV 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0110-			●
485	03.671 BOLT; VSV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9804-		●

101 543 97 101 97 102 97 101 97 97 94 97 102 94 101 97 97 101 97 102 97 101 97 347 93 95 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9804-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97106-961-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97209-160-0	01	1	9804-0007	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97261-111-0	01	1	0008-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97261-111-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97312-479-2	01	1	0110-	●
93	03.675 HOSE ASM	8-97149-827-1	01	1	9910-0007		●
93	03.675 HOSE ASM	8-97259-676-0	01	1	0008-0109		●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (E)	8-97312-480-2	01	1	0110-	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97313-779-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97261-105-0	01	1	0008-0109	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-106-0	01	1	0008-0109	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97261-106-0	01	1	0110-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9910-0007		●
94	03.675 HOSE ASM	8-97259-677-0	01	1	0008-0109		●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97289-619-1	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	9804-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) ID=14.5 & 7X4	8-94368-499-0	01	1	9804-0109	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) ID=14.5 & 7X4	8-94368-499-0	01	1	0110-	●
95	03.680 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 (G) ID=8.3 & 20.2	8-94470-738-0	03	1	0110-	●
95	03.680 CLIP; HOSE 03.162 (E) ID=6.8X2	8-94126-636-0	01	1	9910-		●
95	03.680 CLIP; HOSE (F) 4XID=6.7	8-94315-422-0	04	1	9910-		●
95	03.680 CLIP; HOSE (D) ID=20 & 7X4	8-94368-500-0	01	1	9910-		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (V) L=630 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (U) L=100 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=610 SERVICED BY L=3000	0-04740-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (G) L=610 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0012	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (H) L=60 SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007		●
97	03.675 HOSE; RUBBER (M) L=60 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (R) L=120 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (I) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (L) L=170 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (Q) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (J) L=240 SERVICED BY L=3000	0-04732-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (N) L=60 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (T) L=150 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER (I) L=120 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (S) L=80 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 00.854 (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109		●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9804-9806	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	9807-0109	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 3WAY	8-94208-695-0	02	1	9804-0007	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (A) 3WAY	8-94210-631-0	02	1	0008-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0008-0012	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0008-0012		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0101-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE (D) 3WAY	8-94208-695-0	01	1	9910-0007		●
102	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9804-0109	●
194	03.675 HOSE; VAC ENG QUICK WARM UP SYSTEM<6JZ> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0110-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0110-	●
347	03.675 CLIP; RUBBER HOSE,PRESSURE REG UNITED KINGDOM EQUIPMENT(EK3) 04.510 ID=23	8-97010-411-0	01	1	9806-0109	●
347	03.675 CLIP; RUBBER HOSE,PRESSURE REG UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.510 ID=23	8-97010-411-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9804-9909	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9910-0109	●
543	03.670 VALVE; VAC REGULATING	8-94111-775-0	01	1	9910-0109		●
543	03.670 VALVE; VAC REGULATING ENG QUICK WARM UP SYSTEM<6JZ>	8-94111-775-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94111-775-0	01	1	0110-	●

709 58 135 17 704 58 709 12 4 17 1 709 4 16 255 2 12 94 101 194 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97132-802-2	02	1	9804-0109	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9804-0109		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97132-802-4	02	1	0110-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-4	02	1	0110-		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0110-	●
1	03.670 VALVE; EGR	8-97135-674-4	02	1	9910-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0110-	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0110-	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0110-	●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909		●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0110-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9804-9909	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9804-9909		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-94340-670-0	02	1	9910-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D).	8-94340-670-0	02	1	9910-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9910-			●
58	03.417 BOLT; PIPE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9804-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97106-961-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97209-160-0	01	1	9804-0007	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97261-111-0	01	1	0008-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97261-111-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97312-479-2	01	1	0110-	●
93	03.675 HOSE ASM	8-97149-827-1	01	1	9910-0007			●
93	03.675 HOSE ASM	8-97259-676-0	01	1	0008-0109			●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (E)	8-97312-480-2	01	1	0110-	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97313-779-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97261-105-0	01	1	0008-0109	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-106-0	01	1	0008-0109	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97261-106-0	01	1	0110-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9910-0007			●
94	03.675 HOSE ASM	8-97259-677-0	01	1	0008-0109			●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97289-619-1	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 00.854 (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109			●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9804-9806	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	9807-0109	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
135	03.680 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97311-694-0	01	1	0110-0306	●
135	03.680 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-585-0	01	1	0307-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9804-0109	●
194	03.675 HOSE; VAC ENG QUICK WARM UP SYSTEM<6JZ> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0110-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9804-9909	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9910-0109	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9910-0109			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.670	8-94340-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0110-			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9804-		●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9804-		●
704	03.337 COOLER ASM; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-515-1	01	1	0110-0306	●
704	03.337 COOLER ASM; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-581-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-0306	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.271 (B) M8X40 FLANGE	0-28080-840-0	02	1	0110-	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0110-0306	●

678 678 469 411 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
411	03.417 HOSE; RUBBER,CYL HD COVER	8-92063-676-0	01	1	9804-					●
469	03.680 PLATE; EGR VLV	8-09938-953-0	01	1	9804-					●
678	03.670 BOLT; PLATE	8-11048-333-0	02	1	9804-					●

709 58 704 58 709 135 5 2 4 17 12 2 4 1 4 16 255 2 12 94 101 194 17 709 93 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97132-802-2	02	1	9804-0109	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-2	02	1	9804-0109		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97132-802-4	02	1	0110-	●
1	03.670 VALVE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97132-802-4	02	1	0110-		●
1	03.670 VALVE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97312-533-1	01	1	0110-	●
1	03.670 VALVE; EGR	8-97135-674-4	02	1	9910-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) M8X23 FLANGE	8-94103-629-2	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.680 (B) M8X18 FLANGE	8-94368-563-1	02	1	0307-	●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9804-9909		●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9910-0109			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-	●
2	03.670 BOLT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-		●
2	03.670 BOLT; EGR VLV 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0110-			●
2	03.670 BOLT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0110-	●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (D)	8-97324-052-0	01	1	0307-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94334-338-0	02	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A)	8-94334-338-0	02	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A)	8-94334-338-0	02	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A)	8-94334-338-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (A)	8-94334-338-0	02	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94334-338-0	02	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94379-754-0	01	1	9804-9909	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94379-754-0	01	1	9804-9909		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B)	8-94379-754-0	01	1	9910-0109	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	9910-0109		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	9910-0109			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B)	8-94379-754-0	01	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D). (B)	8-94379-754-0	01	1	0110-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-94379-754-0	01	1	0110-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.665 (C)	8-97192-765-0	02	1	0110-	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97104-317-2	01	1	9804-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-92061-674-0	01	1	9804-					●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-584-2	01	1	0307-	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9804-9909	●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3)	8-97117-260-0	01	1	9910-0109	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	9910-0109			●
5	03.670 ADAPTER ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97117-260-0	01	1	0110-	●
5	03.670 ADAPTER ASM	8-97117-260-0	01	1	0110-			●
5	03.670 ADAPTER ASM EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97117-259-0	01	1	9804-		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9804-9909		●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	9910-0109			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-	●
12	03.671 NUT; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-		●
12	03.671 NUT; EGR VLV 01.540 (A) M8 FLANGE	0-91150-208-0	04	1	0110-			●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0110-	●
12	03.671 NUT; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0110-	●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9804-9909		●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	9910-0109			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-	●
16	03.275 STUD; EGR VLV EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-		●
16	03.275 STUD; EGR VLV 03.613 M8X45 L=57	8-94105-162-1	04	1	0110-			●
16	03.275 STUD; EGR VLV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.342 M8X55 L=67	8-94343-897-0	02	1	0110-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-94340-670-0	02	1	9804-9909	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94340-670-0	02	1	9804-9909		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-94340-670-0	02	1	9910-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D).	8-94340-670-0	02	1	9910-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	9910-			●
58	03.417 BOLT; PIPE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97106-961-0	01	1	9804-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97106-961-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97209-160-0	01	1	9804-0007	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97261-111-0	01	1	0008-0109	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97261-111-0	01	1	0110-	●
93	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97312-479-2	01	1	0110-	●
93	03.675 HOSE ASM	8-97149-827-1	01	1	9910-0007			●
93	03.675 HOSE ASM	8-97259-676-0	01	1	0008-0109			●
93	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (E)	8-97312-480-2	01	1	0110-	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97313-779-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97261-105-0	01	1	0008-0109	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-106-0	01	1	0008-0109	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97261-106-0	01	1	0110-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9910-0007			●
94	03.675 HOSE ASM	8-97259-677-0	01	1	0008-0109			●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97289-619-1	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 00.854 (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109			●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9804-9806	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	9807-0109	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
135	03.680 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97311-694-0	01	1	0110-0306	●
135	03.680 BRACKET; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-585-0	01	1	0307-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9804-0109	●
194	03.675 HOSE; VAC ENG QUICK WARM UP SYSTEM<6JZ> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0110-	●
194	03.675 HOSE; VAC UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.962 L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9804-9909	●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) 03.670	8-94340-699-0	01	1	9910-0109	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	9910-0109			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.670	8-94340-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT 03.670	8-94340-699-0	01	1	0110-			●
255	03.675 VALVE; VAC SW,EGR CONT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.670	8-97240-699-0	01	1	0110-	●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.670 (A)	8-97043-750-0	01	1	9804-		●
255	03.675 VALVE; VAC SW,EGR CONT EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-97171-030-0	01	1	9804-		●
704	03.337 COOLER ASM; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-515-1	01	1	0110-0306	●
704	03.337 COOLER ASM; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97329-581-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-0306	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0307-	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.271 (B) M8X40 FLANGE	0-28080-840-0	02	1	0110-	●
709	03.670 BOLT; EGR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 02.559 (C) M8X25 FLANGE	0-28680-825-0	02	1	0110-0306	●

97 94 101 97 543 101 97 97 101 102 102 97 97 97 94 94 102 97 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97313-779-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97142-697-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97261-105-0	01	1	0008-0109	●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97261-105-0	01	1	0110-	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97143-003-0	01	1	9804-0007	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97261-106-0	01	1	0008-0109	●
94	03.675 HOSE ASM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97261-106-0	01	1	0110-	●
94	03.675 HOSE ASM	8-97142-740-0	01	1	9910-0007		●
94	03.675 HOSE ASM	8-97259-677-0	01	1	0008-0109		●
94	03.675 HOSE ASM ENG QUICK WARM UP SYSTEM<6JZ> (D)	8-97289-619-1	01	1	0110-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (V) L=630 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (U) L=100 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=50 SERVICED BY L=3000	0-04731-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) L=50 SERVICED BY L=3000	0-04931-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=210 SERVICED BY L=3000	0-04732-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) L=140 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.680 (C) L=90 SERVICED BY L=3000	0-04733-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C) L=90 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (D) L=30 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (D) L=30 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 03.163 (E) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (E) L=130 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (F) L=40 SERVICED BY L=3000	0-04735-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (F) L=40 SERVICED BY L=3000	0-04945-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 08.962 (G) L=610 SERVICED BY L=3000	0-04740-300-0	01	1	9804-0007	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (G) L=610 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0012	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (P) L=510 SERVICED BY L=3000	0-04930-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109	●
97	03.675 HOSE; RUBBER (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (K) L=70 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0101-0109	●
97	03.675 HOSE; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (O) L=100 SERVICED BY L=3000	0-04940-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (H) L=60 SERVICED BY L=3000	0-04730-300-0	02	1	9910-0007		●
97	03.675 HOSE; RUBBER (M) L=60 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (R) L=120 SERVICED BY L=3000	0-04933-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (I) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (L) L=170 SERVICED BY L=3000	0-04932-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (Q) L=60 SERVICED BY L=3000	0-04932-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER 08.962 (J) L=240 SERVICED BY L=3000	0-04732-300-0	01	1	9910-0007		●
97	03.675 HOSE; RUBBER (N) L=60 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (T) L=150 SERVICED BY L=3000	0-04942-300-0	01	1	0110-	●
97	03.675 HOSE; RUBBER (I) L=120 SERVICED BY L=3000	0-04940-300-0	01	1	0008-0109		●
97	03.675 HOSE; RUBBER ENG QUICK WARM UP SYSTEM<6JZ> (S) L=80 SERVICED BY L=3000	0-04944-300-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 00.854 (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.162 (B) ID=6.8X2	8-94126-636-0	02	1	0110-	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9804-9909	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109	●
101	03.675 CLIP; HOSE 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9910-0109		●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	02	1	9804-9806	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	9807-0109	●
101	03.675 CLIP; HOSE ENG QUICK WARM UP SYSTEM<6JZ> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
101	03.675 CLIP; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 (A) ID=6.3 & 4.5	8-94425-589-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (C) 3WAY	8-94208-695-0	02	1	9804-0007	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (A) 3WAY	8-94210-631-0	02	1	0008-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0008-0012	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0008-0012		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) (B) 2WAY	8-97165-694-0	01	1	0101-0109	●
102	03.680 JOINT; HOSE (B) 2WAY	8-97165-694-0	01	1	0101-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (B) 2WAY	8-97165-694-0	01	1	0110-	●
102	03.680 JOINT; HOSE (D) 3WAY	8-94208-695-0	01	1	9910-0007		●
102	03.680 JOINT; HOSE (A) 3WAY	8-94210-631-0	01	1	0008-0109		●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
102	03.680 JOINT; HOSE ENG QUICK WARM UP SYSTEM<6JZ> (A) 3WAY	8-94210-631-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9804-9909	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3)	8-94111-775-0	01	1	9910-0109	●
543	03.670 VALVE; VAC REGULATING	8-94111-775-0	01	1	9910-0109		●
543	03.670 VALVE; VAC REGULATING ENG QUICK WARM UP SYSTEM<6JZ>	8-94111-775-0	01	1	0110-	●
543	03.670 VALVE; VAC REGULATING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94111-775-0	01	1	0110-	●

221 248 526 270 759 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	F
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	9804-0109		●
221	03.670 RELAY; MAIN UNITED KINGDOM EQUIPMENT(EK3) 02.100 12V 20A	8-97173-039-1	01	1	0110-	●
221	03.670 RELAY; MAIN 02.100 12V 20A	8-97173-039-1	01	1	0110-		●	●
248	03.162 CLIP; RUBBER CAP,EVAP HOSE 03.145 ID=8	8-94107-762-0	01	1	0110-			●
270	03.680 BOLT CHARGE AIR COOLER<6PL> 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0110-	●
270	03.680 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0110-			●
526	03.675 CLIP; BAND CHARGE AIR COOLER<6PL> 03.162 (A) L=140	5-09707-031-1	01	1	0110-	●
526	03.675 CLIP; BAND 03.162 (A) L=140	5-09707-031-1	01	1	0110-			●
526	03.675 CLIP; BAND UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B)	8-97322-092-0	01	1	0110-	●
759	03.670 SENSOR; TDC CHARGE AIR COOLER<6PL>	8-97323-554-0	01	1	0110-0205	●
759	03.670 SENSOR; TDC	8-97323-554-0	01	1	0110-0205			●
759	03.670 SENSOR; TDC CHARGE AIR COOLER<6PL>	8-97324-402-0	01	1	0206-	●
759	03.670 SENSOR; TDC	8-97324-402-0	01	1	0206-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
