Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#38434) — 262 parça

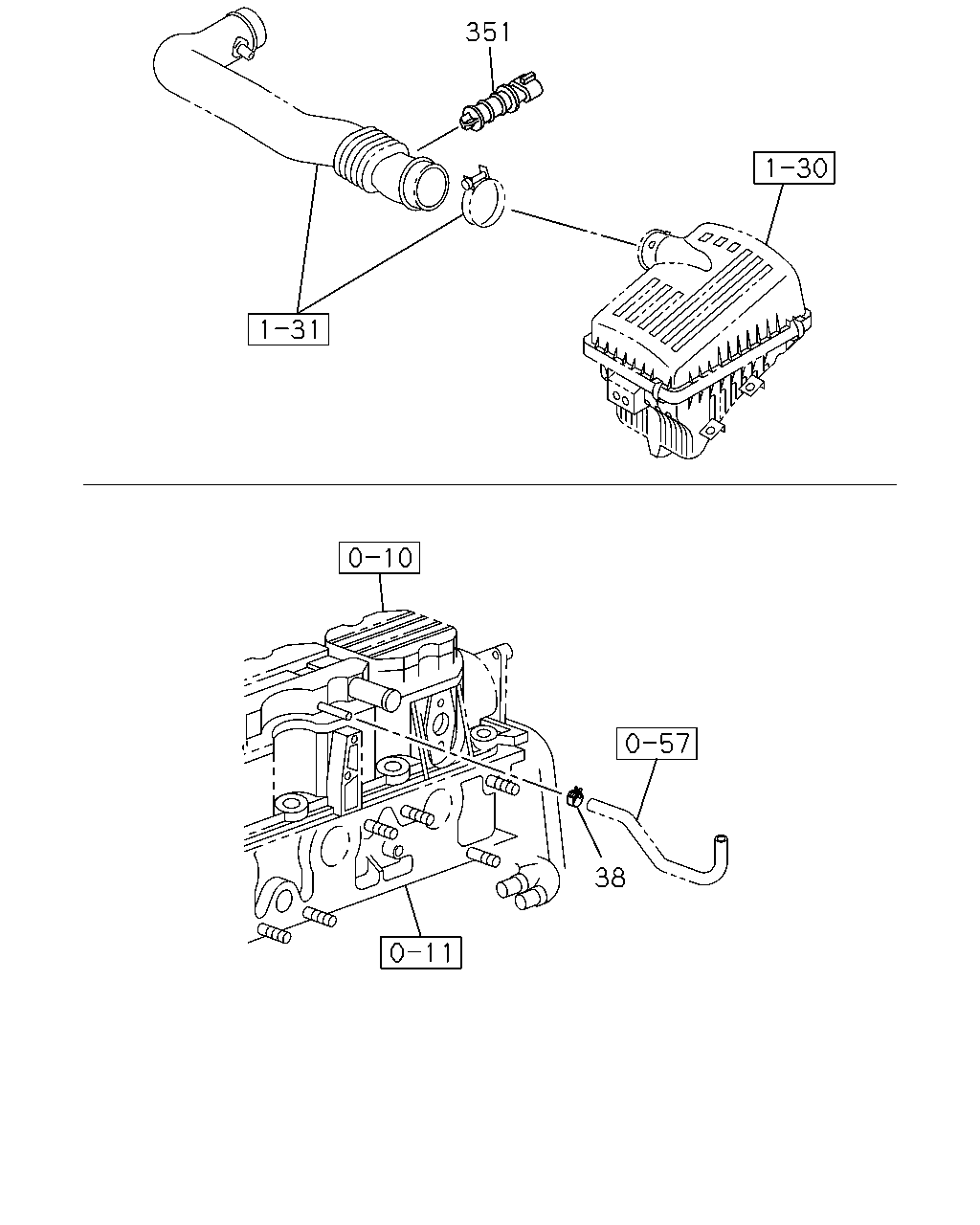

351 38

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	38	03.417 CLIP; VAC HOSE	8-90469-888-0	01	1	9804-	●
	351	03.670 SENSOR; IAT 03.682	8-12160-244-0	01	1	9804-	●

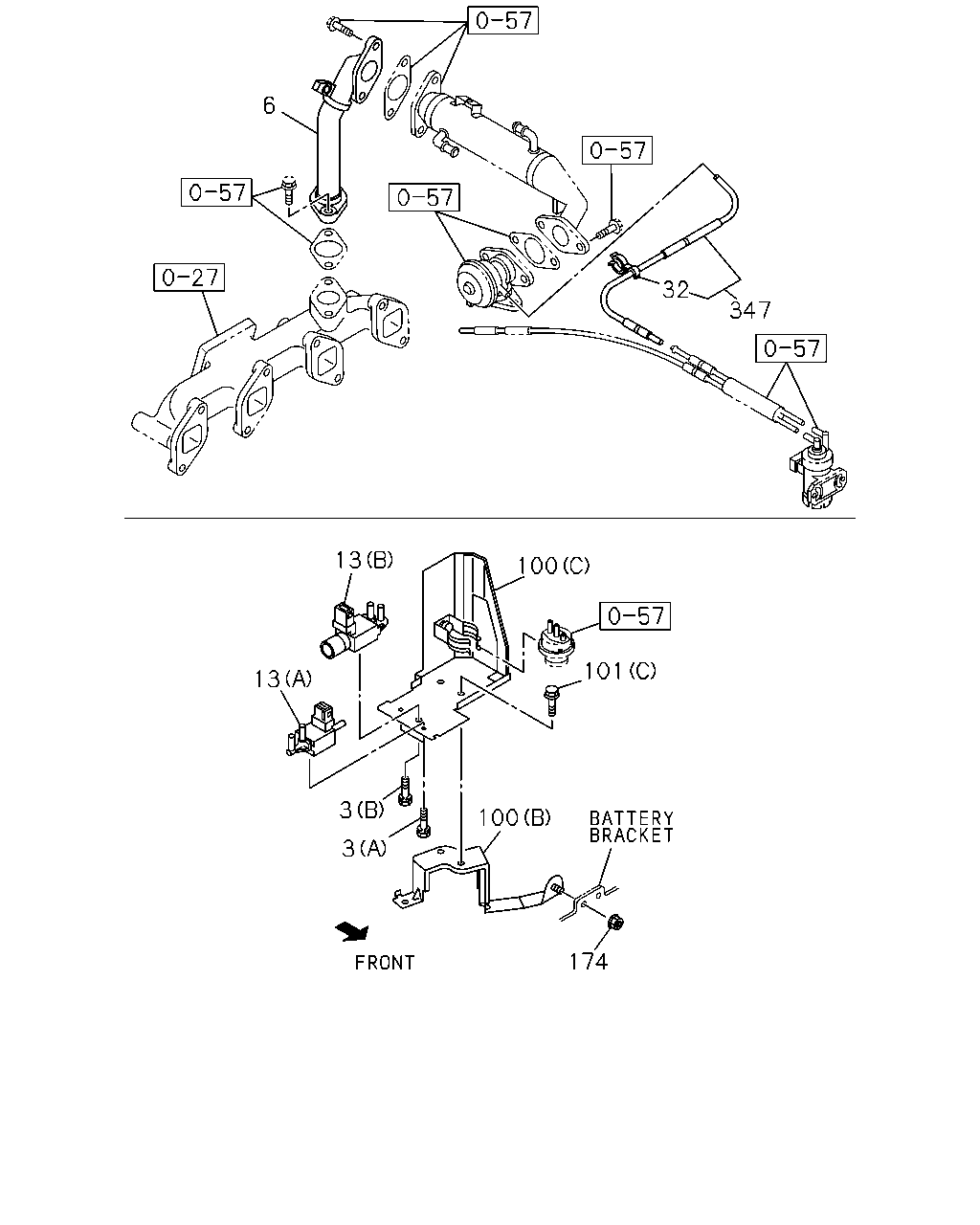

6 32 347 13 100 101 13 3 100 3 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.670 BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> (A) M4X6	9-03910-406-0	02	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) M4X6	9-03910-406-0	02	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9804-9909		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9910-0109		●
3	03.670 BOLT; VSV (A) M4X6	9-03910-406-0	02	1	9910-0109			●
3	03.670 BOLT; VSV (A) M4X6	9-03910-406-0	01	1	0110-			●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9804-9909		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9910-0109		●
3	03.670 BOLT; VSV 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9910-0109			●
3	03.670 BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	0110-		●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9804-9909		●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9804-9909				●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9910-0109		●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9910-0109				●
6	03.675 PIPE; EGR	8-97118-378-1	01	1	9910-0109			●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97118-378-1	01	1	0110-		●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	0110-				●
6	03.675 PIPE; EGR	8-97118-378-1	01	1	0110-			●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-513-1	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9804-9909		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9910-0109		●
13	03.670 VALVE; VAC SW (A)	8-97069-779-0	01	1	9910-0109			●
13	03.670 VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97069-779-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97069-779-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97070-554-0	01	1	9804-9909		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) 03.675 (B)	8-97171-030-0	01	1	9910-0012		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) 03.675 (B)	8-97171-030-0	01	1	0101-0109		●
13	03.670 VALVE; VAC SW 03.675 (B)	8-97171-030-0	01	1	0101-0109			●
13	03.670 VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> 03.675 (B)	8-97171-030-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.675 (B)	8-97171-030-0	01	1	0110-		●
13	03.670 VALVE; VAC SW (B)	8-97070-554-0	01	1	9910-0012			●
32	03.680 CLIP; EGR HOSE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> ID=16.5 & 7	8-97226-171-0	01	1	0110-		●
100	03.675 BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97133-162-0	01	1	0110-		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9804-9909		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9910-0109		●
100	03.675 BRACKET; VLV (A)	8-97132-543-1	01	1	9910-0109			●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97132-543-2	01	1	0110-		●
100	03.675 BRACKET; VLV (A)	8-97132-543-2	01	1	0110-			●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97161-592-0	01	1	9804-0109		●
100	03.675 BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97161-592-0	01	1	0110-		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97161-592-0	01	1	0110-		●
100	03.675 BRACKET; VLV (B)	8-97069-777-2	01	1	9910-			●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	9804-0109		●
101	03.680 BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0110-		●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0110-		●
101	03.680 BOLT; VSV BRKT 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9910-			●
101	03.680 BOLT; VSV BRKT 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	9910-			●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	01	1	9804-0109		●
174	03.444 NUT; BRKT ENG QUICK WARM UP SYSTEM<6JZ> 07.829 M6 FLANGE	5-09440-004-0	01	1	0110-		●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0110-		●
174	03.444 NUT; BRKT FLOOR REMOTE SHIFT<M11> 09.190 D=9.7X9.7 L=8	8-94222-314-0	03	1	9804-	●
347	03.675 HOSE ASM; VACUUM,EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97319-511-0	01	1	0110-		●

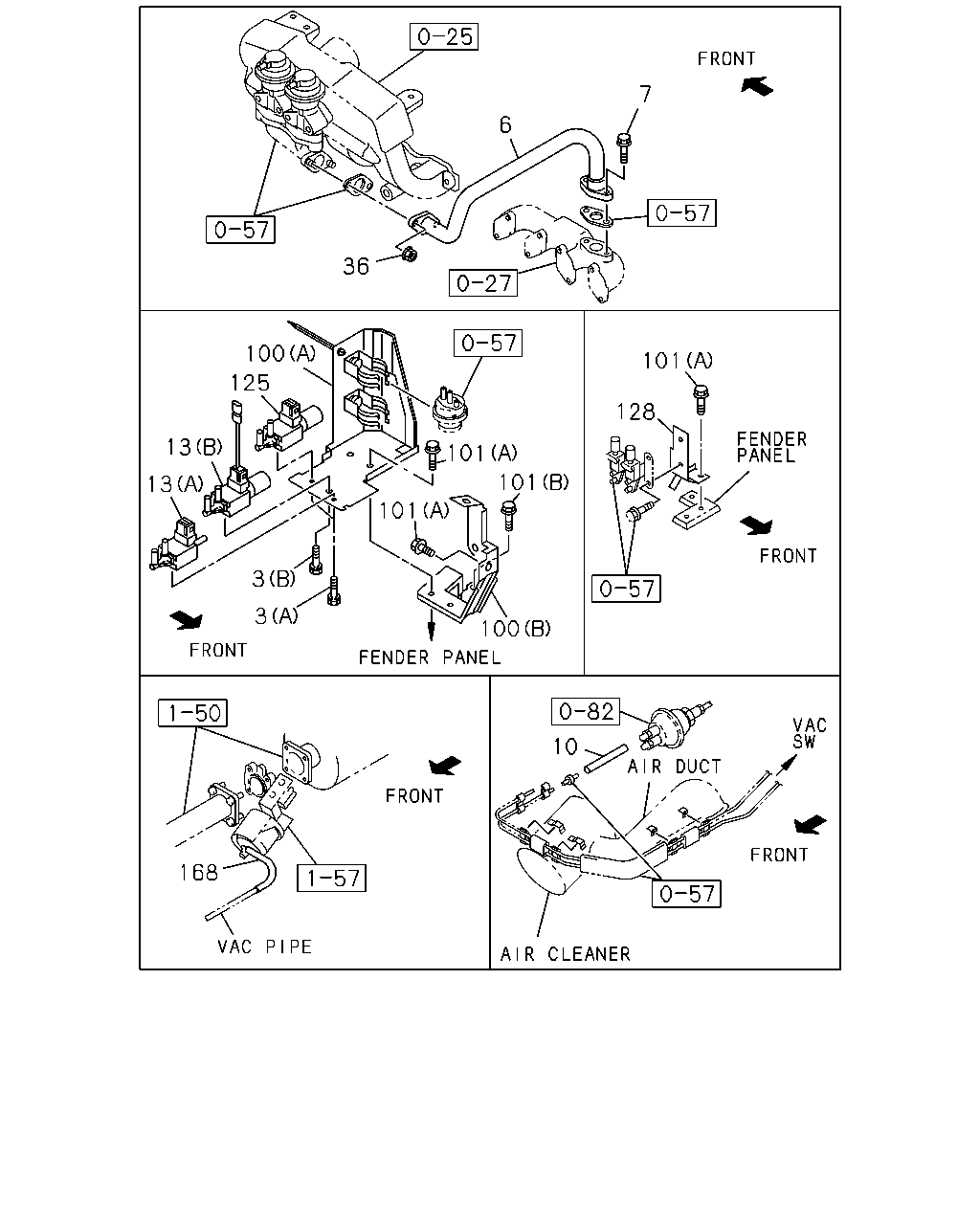

7 25 6 36 100 125 13 101 100 13 3 3 174 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.670 BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> (A) M4X6	9-03910-406-0	02	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) M4X6	9-03910-406-0	02	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9804-9909		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9910-0109		●
3	03.670 BOLT; VSV (A) M4X6	9-03910-406-0	02	1	9910-0109			●
3	03.670 BOLT; VSV (A) M4X6	9-03910-406-0	01	1	0110-			●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9804-9909		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9910-0109		●
3	03.670 BOLT; VSV 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9910-0109			●
3	03.670 BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	0110-		●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9804-9909		●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9804-9909				●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9910-0109		●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9910-0109				●
6	03.675 PIPE; EGR	8-97118-378-1	01	1	9910-0109			●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97118-378-1	01	1	0110-		●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	0110-				●
6	03.675 PIPE; EGR	8-97118-378-1	01	1	0110-			●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-513-1	01	1	0110-		●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X23 FLANGE	8-94103-629-2	02	1	9804-9909		●
7	03.670 BOLT; BRKT,EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	9804-9909				●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X23 FLANGE	8-94103-629-2	02	1	9910-0109		●
7	03.670 BOLT; BRKT,EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	9910-0109				●
7	03.670 BOLT; BRKT,EGR PIPE M8X23 FLANGE	8-94103-629-2	02	1	9910-0109			●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M8X23 FLANGE	8-94103-629-2	02	1	0110-		●
7	03.670 BOLT; BRKT,EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	0110-				●
7	03.670 BOLT; BRKT,EGR PIPE M8X23 FLANGE	8-94103-629-2	02	1	0110-			●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9804-9909		●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007		●
10	03.675 HOSE; RUBBER,PUMP TO VSV 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007			●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109		●
10	03.675 HOSE; RUBBER,PUMP TO VSV L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109			●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0110-		●
10	03.675 HOSE; RUBBER,PUMP TO VSV L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0110-			●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9804-9909		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9910-0109		●
13	03.670 VALVE; VAC SW (A)	8-97069-779-0	01	1	9910-0109			●
13	03.670 VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97069-779-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97069-779-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97070-554-0	01	1	9804-9909		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) 03.675 (B)	8-97171-030-0	01	1	9910-0012		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) 03.675 (B)	8-97171-030-0	01	1	0101-0109		●
13	03.670 VALVE; VAC SW 03.675 (B)	8-97171-030-0	01	1	0101-0109			●
13	03.670 VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> 03.675 (B)	8-97171-030-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.675 (B)	8-97171-030-0	01	1	0110-		●
13	03.670 VALVE; VAC SW (B)	8-97070-554-0	01	1	9910-0012			●
25	03.670 SWITCH; VAC,FUEL CONT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94144-597-1	01	1	9804-		●		●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909		●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909				●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109		●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109				●
36	03.680 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109			●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-		●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-				●
36	03.680 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-			●
100	03.675 BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97133-162-0	01	1	0110-		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9804-9909		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9910-0109		●
100	03.675 BRACKET; VLV (A)	8-97132-543-1	01	1	9910-0109			●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97132-543-2	01	1	0110-		●
100	03.675 BRACKET; VLV (A)	8-97132-543-2	01	1	0110-			●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97161-592-0	01	1	9804-0109		●
100	03.675 BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97161-592-0	01	1	0110-		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97161-592-0	01	1	0110-		●
100	03.675 BRACKET; VLV (B)	8-97069-777-2	01	1	9910-			●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	9804-0109		●
101	03.680 BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0110-		●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0110-		●
101	03.680 BOLT; VSV BRKT 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9910-			●
101	03.680 BOLT; VSV BRKT 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	9910-			●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3)	8-97069-778-0	01	1	9804-9909		●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3)	8-97069-778-0	01	1	9910-0109		●
125	03.670 VALVE; VAC SW,FAST IDLE	8-97069-778-0	01	1	9910-0109			●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97069-778-0	01	1	0110-		●
125	03.670 VALVE; VAC SW,FAST IDLE	8-97069-778-0	01	1	0110-			●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	01	1	9804-0109		●
174	03.444 NUT; BRKT ENG QUICK WARM UP SYSTEM<6JZ> 07.829 M6 FLANGE	5-09440-004-0	01	1	0110-		●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0110-		●
174	03.444 NUT; BRKT FLOOR REMOTE SHIFT<M11> 09.190 D=9.7X9.7 L=8	8-94222-314-0	03	1	9804-	●

7 6 36 100 101 125 128 13 101 101 13 101 3 3 100 10 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
3	03.670 BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> (A) M4X6	9-03910-406-0	02	1	0110-	●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) M4X6	9-03910-406-0	02	1	0110-	●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9804-9909	●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) (A) M4X6	9-03910-406-0	02	1	9910-0109	●
3	03.670 BOLT; VSV (A) M4X6	9-03910-406-0	02	1	9910-0109		●
3	03.670 BOLT; VSV (A) M4X6	9-03910-406-0	01	1	0110-		●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9804-9909	●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9910-0109	●
3	03.670 BOLT; VSV 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	9910-0109		●
3	03.670 BOLT; VSV ENG QUICK WARM UP SYSTEM<6JZ> 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	0110-	●
3	03.670 BOLT; VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 09.655 (B) M5X8 W/LK WASHER	9-03910-508-0	01	1	0110-	●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9804-9909	●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9804-9909			●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3)	8-97118-378-1	01	1	9910-0109	●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9910-0109			●
6	03.675 PIPE; EGR	8-97118-378-1	01	1	9910-0109		●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97118-378-1	01	1	0110-	●
6	03.675 PIPE; EGR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	0110-			●
6	03.675 PIPE; EGR	8-97118-378-1	01	1	0110-		●
6	03.675 PIPE; EGR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-513-1	01	1	0110-	●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X23 FLANGE	8-94103-629-2	02	1	9804-9909	●
7	03.670 BOLT; BRKT,EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	9804-9909			●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X23 FLANGE	8-94103-629-2	02	1	9910-0109	●
7	03.670 BOLT; BRKT,EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	9910-0109			●
7	03.670 BOLT; BRKT,EGR PIPE M8X23 FLANGE	8-94103-629-2	02	1	9910-0109		●
7	03.670 BOLT; BRKT,EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M8X23 FLANGE	8-94103-629-2	02	1	0110-	●
7	03.670 BOLT; BRKT,EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	0110-			●
7	03.670 BOLT; BRKT,EGR PIPE M8X23 FLANGE	8-94103-629-2	02	1	0110-		●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9804-9909	●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007	●
10	03.675 HOSE; RUBBER,PUMP TO VSV 08.962 L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9910-0007		●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109	●
10	03.675 HOSE; RUBBER,PUMP TO VSV L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0008-0109		●
10	03.675 HOSE; RUBBER,PUMP TO VSV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0110-	●
10	03.675 HOSE; RUBBER,PUMP TO VSV L=130 SERVICED BY L=3000	0-04930-300-0	01	1	0110-		●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9804-9909	●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97069-779-0	01	1	9910-0109	●
13	03.670 VALVE; VAC SW (A)	8-97069-779-0	01	1	9910-0109		●
13	03.670 VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97069-779-0	01	1	0110-	●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97069-779-0	01	1	0110-	●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97070-554-0	01	1	9804-9909	●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) 03.675 (B)	8-97171-030-0	01	1	9910-0012	●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) 03.675 (B)	8-97171-030-0	01	1	0101-0109	●
13	03.670 VALVE; VAC SW 03.675 (B)	8-97171-030-0	01	1	0101-0109		●
13	03.670 VALVE; VAC SW ENG QUICK WARM UP SYSTEM<6JZ> 03.675 (B)	8-97171-030-0	01	1	0110-	●
13	03.670 VALVE; VAC SW UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.675 (B)	8-97171-030-0	01	1	0110-	●
13	03.670 VALVE; VAC SW (B)	8-97070-554-0	01	1	9910-0012		●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909			●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109			●
36	03.680 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109		●
36	03.680 NUT; EGR PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-			●
36	03.680 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-		●
100	03.675 BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97133-162-0	01	1	0110-	●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9804-9909	●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97132-543-1	01	1	9910-0109	●
100	03.675 BRACKET; VLV (A)	8-97132-543-1	01	1	9910-0109		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97132-543-2	01	1	0110-	●
100	03.675 BRACKET; VLV (A)	8-97132-543-2	01	1	0110-		●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97161-592-0	01	1	9804-0109	●
100	03.675 BRACKET; VLV ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97161-592-0	01	1	0110-	●
100	03.675 BRACKET; VLV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97161-592-0	01	1	0110-	●
100	03.675 BRACKET; VLV (B)	8-97069-777-2	01	1	9910-		●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	9804-0109	●
101	03.680 BOLT; VSV BRKT ENG QUICK WARM UP SYSTEM<6JZ> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
101	03.680 BOLT; VSV BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 (C) M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
101	03.680 BOLT; VSV BRKT 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	9910-		●
101	03.680 BOLT; VSV BRKT 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	9910-		●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3)	8-97069-778-0	01	1	9804-9909	●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3)	8-97069-778-0	01	1	9910-0109	●
125	03.670 VALVE; VAC SW,FAST IDLE	8-97069-778-0	01	1	9910-0109		●
125	03.670 VALVE; VAC SW,FAST IDLE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97069-778-0	01	1	0110-	●
125	03.670 VALVE; VAC SW,FAST IDLE	8-97069-778-0	01	1	0110-		●
128	03.672 BRACKET; VAC SW	8-97069-782-1	01	1	9910-		●
168	03.675 HOSE; RUBBER	8-97145-369-3	01	1	9804-				●
168	03.675 HOSE; RUBBER 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9910-0109		●

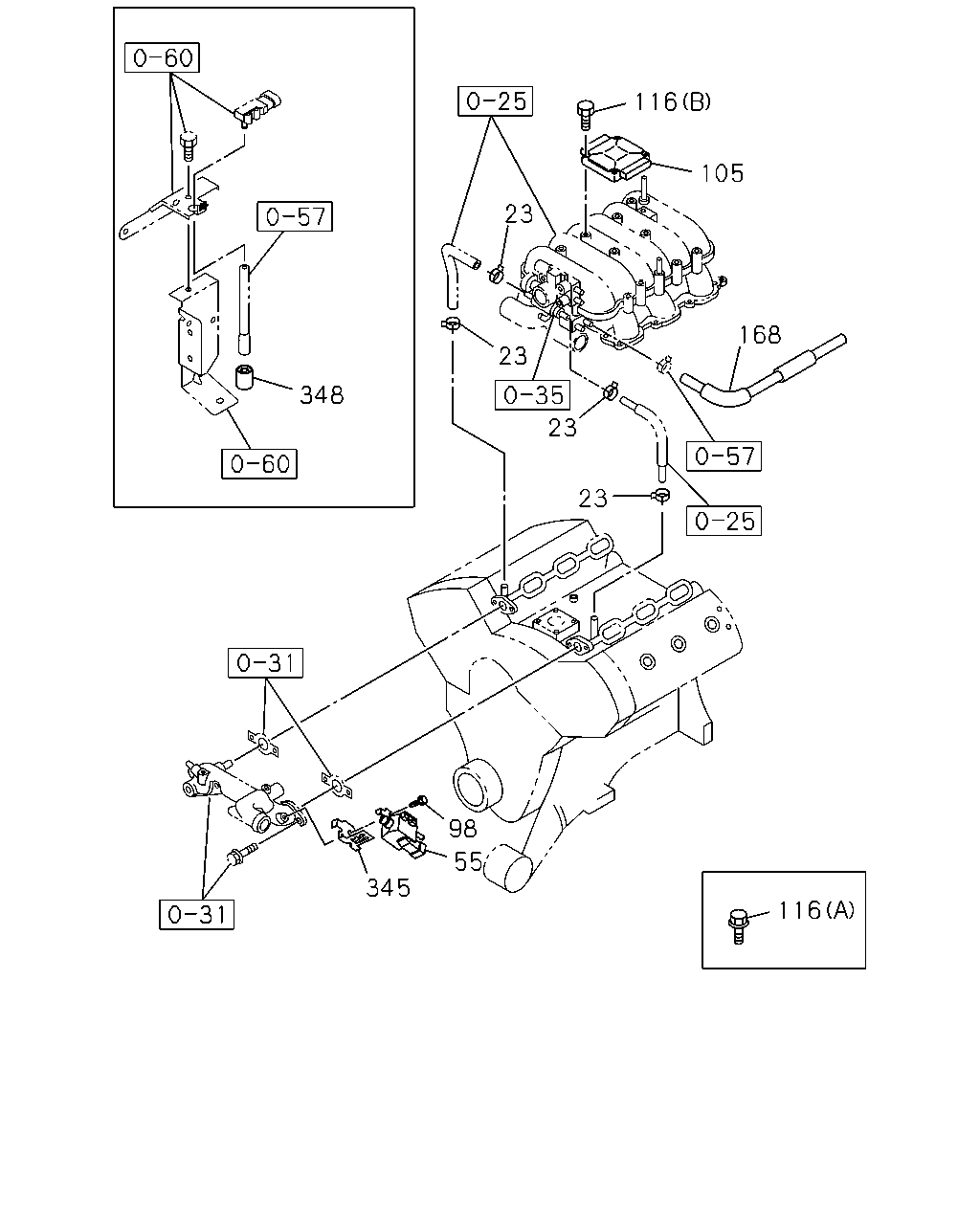

116 105 23 168 23 348 23 23 98 55 345 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	E
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9804-			●
55	03.670 SOLENOID; VAC CONT	8-01997-201-0	01	1	9804-			●
98	03.671 BOLT; SOLENOID 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-			●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-153-2	01	1	9804-0012			●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97260-140-3	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE AUSTRALIAN EQUIPMENT(RR3)	8-16241-519-0	01	1	9804-0012	●
105	03.415 CONTROLLER; MODULE,ENGINE AUSTRALIAN EQUIPMENT(RR3) IMMOBILIZER SYSTEM<7KC>	8-09381-269-1	01	1	0101-	●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C)	8-09351-299-1	01	1	9804-	●
105	03.415 CONTROLLER; MODULE,ENGINE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-09363-429-1	01	1	9804-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9804-			●
116	03.415 BOLT; ENG CONT MODULE 03.342 (A) M6X16	8-97012-496-0	02	1	9904-	●		●
168	03.675 HOSE; RUBBER	8-97145-369-3	01	1	9804-			●
168	03.675 HOSE; RUBBER 08.962 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9910-0109		●
345	03.675 BRACKET; SOLENOID	8-10475-356-0	01	1	9804-			●
348	03.675 FILTER; SENSOR 06.061	8-97101-779-0	01	1	9804-			●

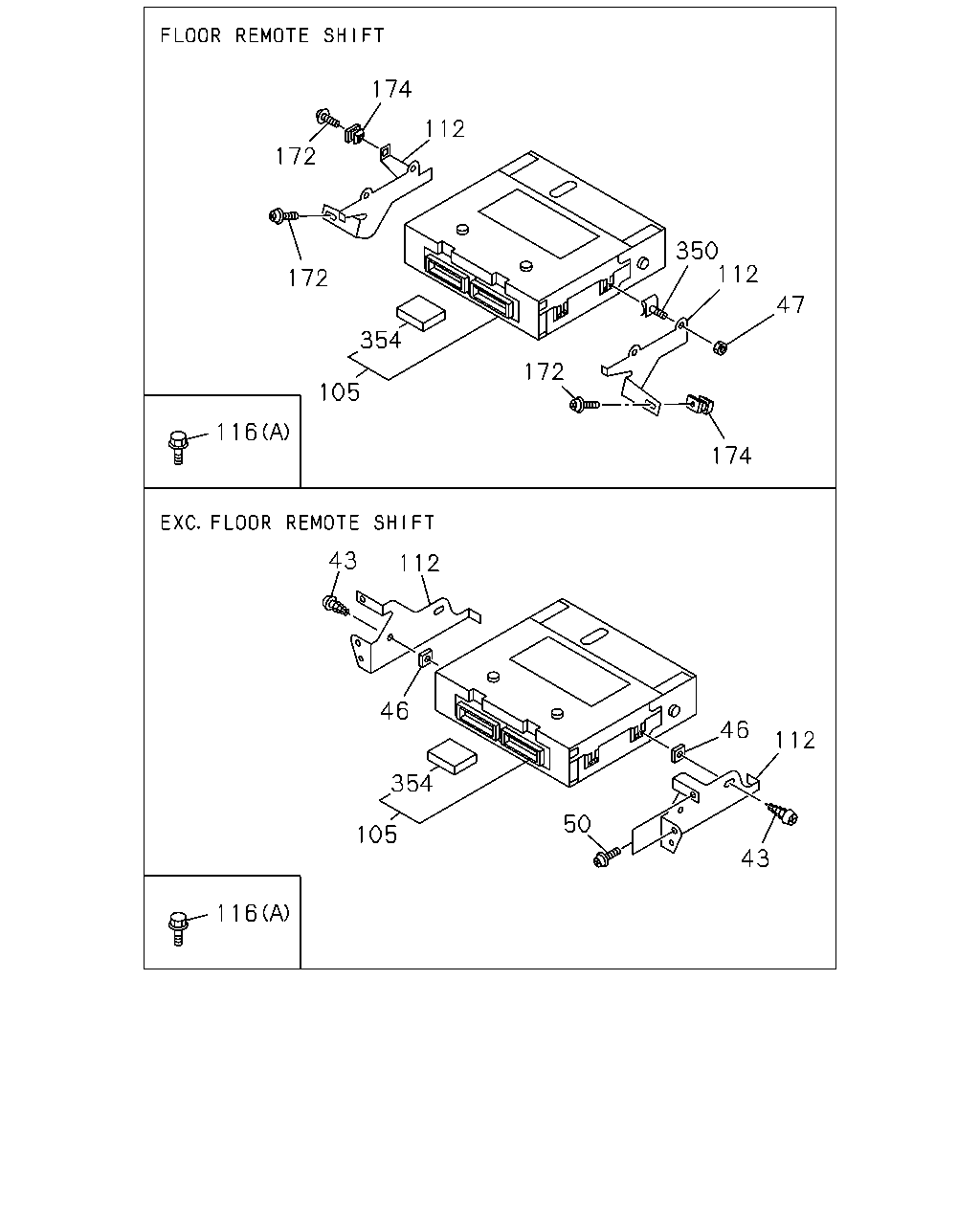

174 112 172 350 112 172 47 354 172 105 116 174 43 112 46 46 112 354 50 105 43 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E
43	03.671 SCREW; BRKT,ECM 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11> 16.115 M5X16	8-94279-312-0	04	1	9804-0012	●
43	03.671 SCREW; BRKT,ECM EXC. FLOOR REMOTE SHIFT<M11> 16.115 M5X16	8-94279-312-0	04	1	0101-0212	●
43	03.671 SCREW; BRKT,ECM EXC. FLOOR REMOTE SHIFT<M11> 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0301-	●
46	03.671 GROMMET 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11> 04.342	8-97110-216-1	04	1	9804-0012	●
46	03.671 GROMMET EXC. FLOOR REMOTE SHIFT<M11> 04.342	8-97110-216-1	04	1	0101-	●
47	03.671 NUT; ECM BRKT FLOOR REMOTE SHIFT<M11> 09.744 M5 FLANGE	5-09440-003-0	04	1	9804-	●
50	03.671 SCREW; ECM 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11> 06.514 M4X10 TAPPING W/PL WASHER	0-74100-410-0	04	1	9804-0012	●
50	03.671 SCREW; ECM EXC. FLOOR REMOTE SHIFT<M11> 06.514 M4X10 TAPPING W/PL WASHER	0-74100-410-0	04	1	0101-	●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97177-153-2	01	1	9804-0012			●
105	03.415 CONTROLLER; MODULE,ENGINE	8-97260-140-3	01	1	0101-			●
105	03.415 CONTROLLER; MODULE,ENGINE AUSTRALIAN EQUIPMENT(RR3)	8-16241-519-0	01	1	9804-0012	●
105	03.415 CONTROLLER; MODULE,ENGINE AUSTRALIAN EQUIPMENT(RR3) IMMOBILIZER SYSTEM<7KC>	8-09381-269-1	01	1	0101-	●
105	03.415 CONTROLLER; MODULE,ENGINE SHORT(TF***C)	8-09351-299-1	01	1	9804-	●
105	03.415 CONTROLLER; MODULE,ENGINE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-09363-429-1	01	1	9804-	●
112	03.671 BRACKET; ECM FLOOR REMOTE SHIFT<M11>	8-97100-275-1	01	1	9804-	●
112	03.671 BRACKET; ECM FLOOR REMOTE SHIFT<M11>	8-97100-300-1	01	1	9804-	●
112	03.671 BRACKET; ECM 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-97181-196-0	01	1	9804-0012	●
112	03.671 BRACKET; ECM EXC. FLOOR REMOTE SHIFT<M11>	8-97181-196-0	01	1	0101-	●
112	03.671 BRACKET; ECM 4X2(TFB***) EXC. FLOOR REMOTE SHIFT<M11>	8-97181-195-0	01	1	9804-0012	●
112	03.671 BRACKET; ECM EXC. FLOOR REMOTE SHIFT<M11>	8-97181-195-0	01	1	0101-	●
116	03.415 BOLT; ENG CONT MODULE 02.334 (B) M6X25 FLANGE	0-28680-625-0	04	1	9804-			●
116	03.415 BOLT; ENG CONT MODULE 03.342 (A) M6X16	8-97012-496-0	02	1	9904-	●		●
172	03.470 BOLT; BRKT FLOOR REMOTE SHIFT<M11> 16.585 M6X14 W/PL WASHER	9-03900-614-0	03	1	9804-	●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	01	1	9804-0109		●
174	03.444 NUT; BRKT ENG QUICK WARM UP SYSTEM<6JZ> 07.829 M6 FLANGE	5-09440-004-0	01	1	0110-		●
174	03.444 NUT; BRKT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 07.829 M6 FLANGE	5-09440-004-0	01	1	0110-		●
174	03.444 NUT; BRKT FLOOR REMOTE SHIFT<M11> 09.190 D=9.7X9.7 L=8	8-94222-314-0	03	1	9804-	●
350	03.671 STUD; ECM FLOOR REMOTE SHIFT<M11> M5X12 W/CLIP	8-94443-197-0	04	1	9804-	●
354	03.415 CALIBURATION; ENGINE CONTROLLER AUSTRALIAN EQUIPMENT(RR3)	8-09351-105-0	01	1	9804-0012	●
354	03.415 CALIBURATION; ENGINE CONTROLLER AUSTRALIAN EQUIPMENT(RR3) IMMOBILIZER SYSTEM<7KC>	8-12203-191-0	01	1	0101-	●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C)	8-09351-114-0	01	1	9804-0201	●
354	03.415 CALIBURATION; ENGINE CONTROLLER SHORT(TF***C)	8-12203-914-0	01	1	0202-	●
354	03.415 CALIBURATION; ENGINE CONTROLLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-09363-420-0	01	1	9804-0110	●
354	03.415 CALIBURATION; ENGINE CONTROLLER 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. AUSTRALIAN EQUIPMENT(RR3)	8-12203-915-0	01	1	0111-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
