◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-55 - ECGI SYSTEM OR COMMON RAIL ▶
0-55 — ECGI SYSTEM OR COMMON RAIL (#38433) — 71 parça

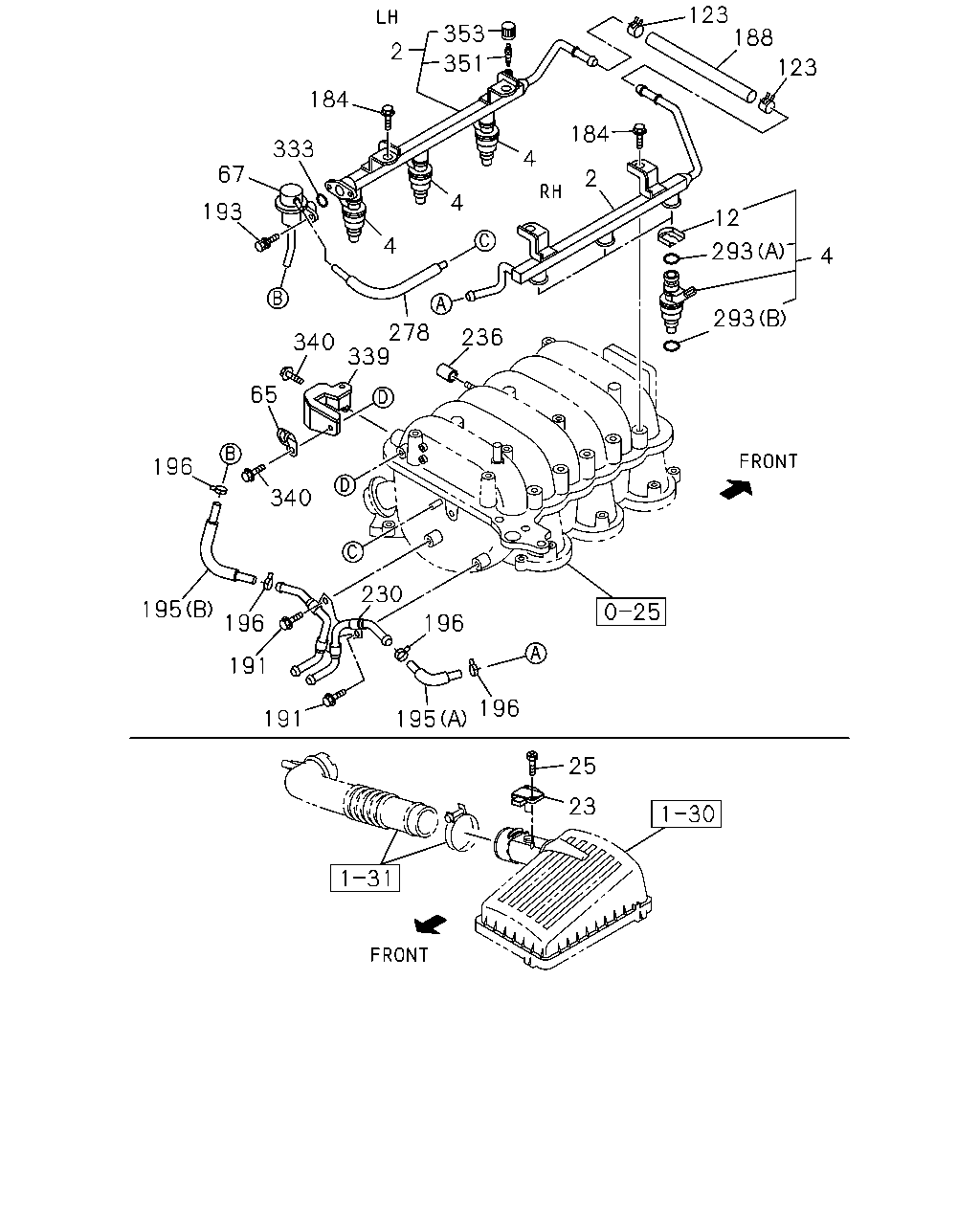

çizim 19573
123 188 353 2 351 123 184 184 333 4 67 2 4 193 12 4 293 4 293 278 339 236 340 65 196 340 230 195 196 196 191 196 191 195 25 23
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97182-757-0 01 1 9804- ●
2 03.330 RAIL ASM; FUEL,INJECTOR 8-97182-756-0 01 1 9804- ●
4 03.332 INJECTOR ASM 8-97180-042-0 06 1 9804-9805 ●
4 03.332 INJECTOR ASM 8-97209-161-0 06 1 9806- ●
12 03.332 CLIP; INJECTOR 8-97182-384-1 06 1 9804- ●
12 03.332 CLIP; INJECTOR 8-17101-829-0 04 1 9804- ●
23 03.335 SENSOR; AIR FLOW 8-97177-118-1 01 1 9804- ●
25 03.330 SCREW; AIR FLOW METER TO AIR CLE
06.500 M4X12 W/LK WASHER 		9-03910-412-0 02 1 9804- ●
65 03.330 CLIP; HOSE
02.559 ID=12 		5-09700-331-0 01 1 9804- ●
67 03.330 REGULATOR; PRESSURE 8-97179-585-0 01 1 9804-0003 ●
67 03.330 REGULATOR; PRESSURE 8-97254-845-0 01 1 0004- ●
123 03.901 CLIP; FUEL HOSE
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 02 1 9804- ●
123 03.901 CLIP; FUEL HOSE
(A) 		8-92063-664-0 01 1 9804- ●
123 03.901 CLIP; FUEL HOSE
(B) 		8-92063-665-0 01 1 9804- ●
184 03.330 BOLT; FUEL RAIL
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804- ●
184 03.330 BOLT; FUEL RAIL 8-92060-795-0 02 1 9804- ●
188 03.901 HOSE; FUEL
L=170 SERVICED BY L=3000 		0-01458-300-0 01 1 9804-0209 ●
188 03.901 HOSE; FUEL
03.163 L=170 SERVICED BY L=3000 		0-01558-300-0 01 1 0210- ●
191 03.330 BOLT; FUEL PIPE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9804- ●
193 03.330 BOLT; PRESSURE REG
14.865 M5X12 		8-94386-089-0 02 1 9804- ●
193 03.330 BOLT; PRESSURE REG 8-92064-151-0 01 1 9804- ●
195 03.145 HOSE; RUBBER,FUEL
(A) L=106 W/PROTECTOR 		8-97116-433-0 01 1 9804-0006 ●
195 03.145 HOSE; RUBBER,FUEL
(A) L=106 W/PROTECTOR 		8-97257-804-0 01 1 0007-0203 ●
195 03.145 HOSE; RUBBER,FUEL
(B) L=140 W/PROTECTOR 		8-97349-415-0 01 1 0204- ●
195 03.145 HOSE; RUBBER,FUEL
(B) L=130 W/PROTECTOR 		8-97136-350-0 01 1 9804-0203 ●
195 03.145 HOSE; RUBBER,FUEL
(A) L=100 W/PROTECTOR 		8-97349-414-0 01 1 0204- ●
196 03.145 CLIP; RUBBER HOSE,FUEL
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 04 1 9804- ●
230 03.330 PIPE; FUEL 8-97136-254-2 01 1 9804- ●
230 03.330 PIPE; FUEL 8-92063-660-0 01 1 9804- ●
236 03.145 CAP; RUBBER
01.780 ID=4 		8-94217-809-0 01 1 9804- ●
278 03.330 HOSE; PRESSURE REG
L=200 		8-97166-646-2 01 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-97181-339-0 06 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-97181-340-0 06 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-17106-005-0 04 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-25169-195-0 04 1 9804- ●
333 03.304 GASKET; FUEL RETURN 8-97179-766-0 01 1 9804- ●
339 03.330 PROTECTOR; PRESSURE REG 8-97148-718-2 01 1 9804- ●
340 03.330 BOLT; PROTECTOR
08.900 M8X16 		9-05820-816-0 02 1 9804-0008 ●
340 03.330 BOLT; PROTECTOR
M8X16 HEX SOCKET 		0-58310-816-0 02 1 0009- ●
351 03.335 VALVE; PRESSURE RELIEF 8-97119-714-0 01 1 9804- ●
351 03.335 VALVE; PRESSURE RELIEF
03.330 		8-17091-410-0 01 1 9804- ●
353 03.145 CAP; PRESSURE VLV
03.330 		8-97119-713-0 01 1 9804- ●

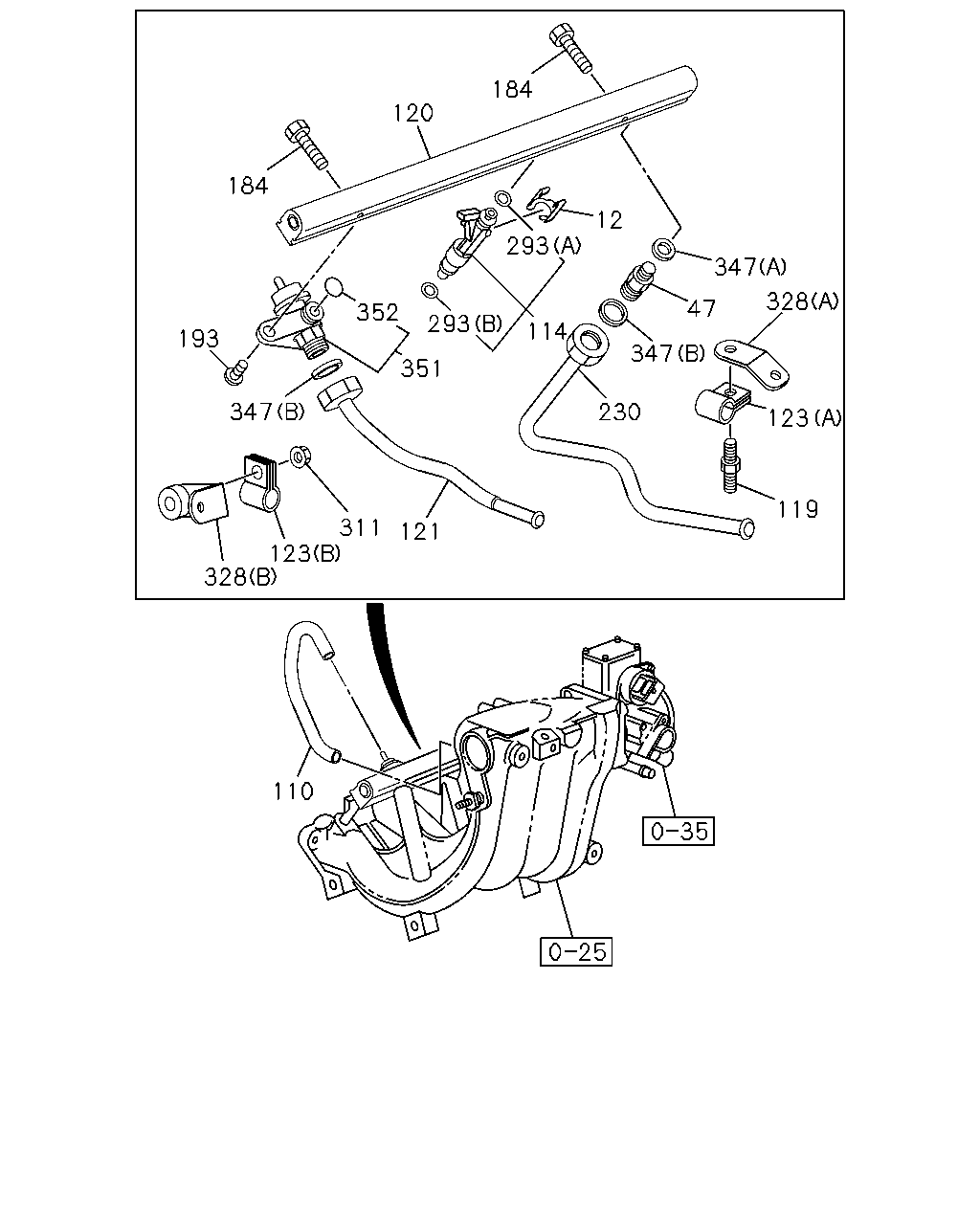

çizim 71842
184 120 184 12 293 347 328 47 352 293 114 193 347 351 347 230 123 119 311 123 328 121 110
BalonParca AdiParca NoAdetTipApplied Date A B
12 03.332 CLIP; INJECTOR 8-97182-384-1 06 1 9804- ●
12 03.332 CLIP; INJECTOR 8-17101-829-0 04 1 9804- ●
47 03.330 CONNECTOR; CONN HOSE 8-96130-610-0 01 1 9804- ●
110 03.145 HOSE; RUBBER,PRESSURE REG 8-90144-109-0 01 1 9804- ●
114 03.300 INJECTOR; FUEL
03.330 		8-17125-097-0 04 1 9804- ●
119 03.330 STUD; FUEL INJ 8-10018-812-0 01 1 9804- ●
120 03.330 PIPE; FUEL,INJ 8-92064-040-0 01 1 9804- ●
121 03.330 PIPE; FUEL,RETURN 8-92063-662-0 01 1 9804- ●
123 03.901 CLIP; FUEL HOSE
00.034 ID=12 WO/PVC COATING 		8-94123-526-1 02 1 9804- ●
123 03.901 CLIP; FUEL HOSE
(A) 		8-92063-664-0 01 1 9804- ●
123 03.901 CLIP; FUEL HOSE
(B) 		8-92063-665-0 01 1 9804- ●
184 03.330 BOLT; FUEL RAIL
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804- ●
184 03.330 BOLT; FUEL RAIL 8-92060-795-0 02 1 9804- ●
193 03.330 BOLT; PRESSURE REG
14.865 M5X12 		8-94386-089-0 02 1 9804- ●
193 03.330 BOLT; PRESSURE REG 8-92064-151-0 01 1 9804- ●
230 03.330 PIPE; FUEL 8-97136-254-2 01 1 9804- ●
230 03.330 PIPE; FUEL 8-92063-660-0 01 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-97181-339-0 06 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-97181-340-0 06 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (B) 		8-17106-005-0 04 1 9804- ●
293 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) (A) 		8-25169-195-0 04 1 9804- ●
311 03.901 NUT; CLIP 8-11013-127-0 01 1 9804- ●
328 03.306 BRACKET; ENG HARNESS
(A) 		8-92063-661-0 01 1 9804- ●
328 03.306 BRACKET; ENG HARNESS
(B) 		8-92064-288-0 01 1 9804- ●
347 03.304 GASKET; PIPE
(A) 		8-17075-288-0 01 1 9804- ●
347 03.304 GASKET; PIPE
(B) 		8-96114-707-0 02 1 9804- ●
351 03.335 VALVE; PRESSURE RELIEF 8-97119-714-0 01 1 9804- ●
351 03.335 VALVE; PRESSURE RELIEF
03.330 		8-17091-410-0 01 1 9804- ●
352 03.306 WASHER; RELIEF VLV 8-17081-434-0 01 1 9804- ●
