Sayfa 0-52 - Isuzu EPC

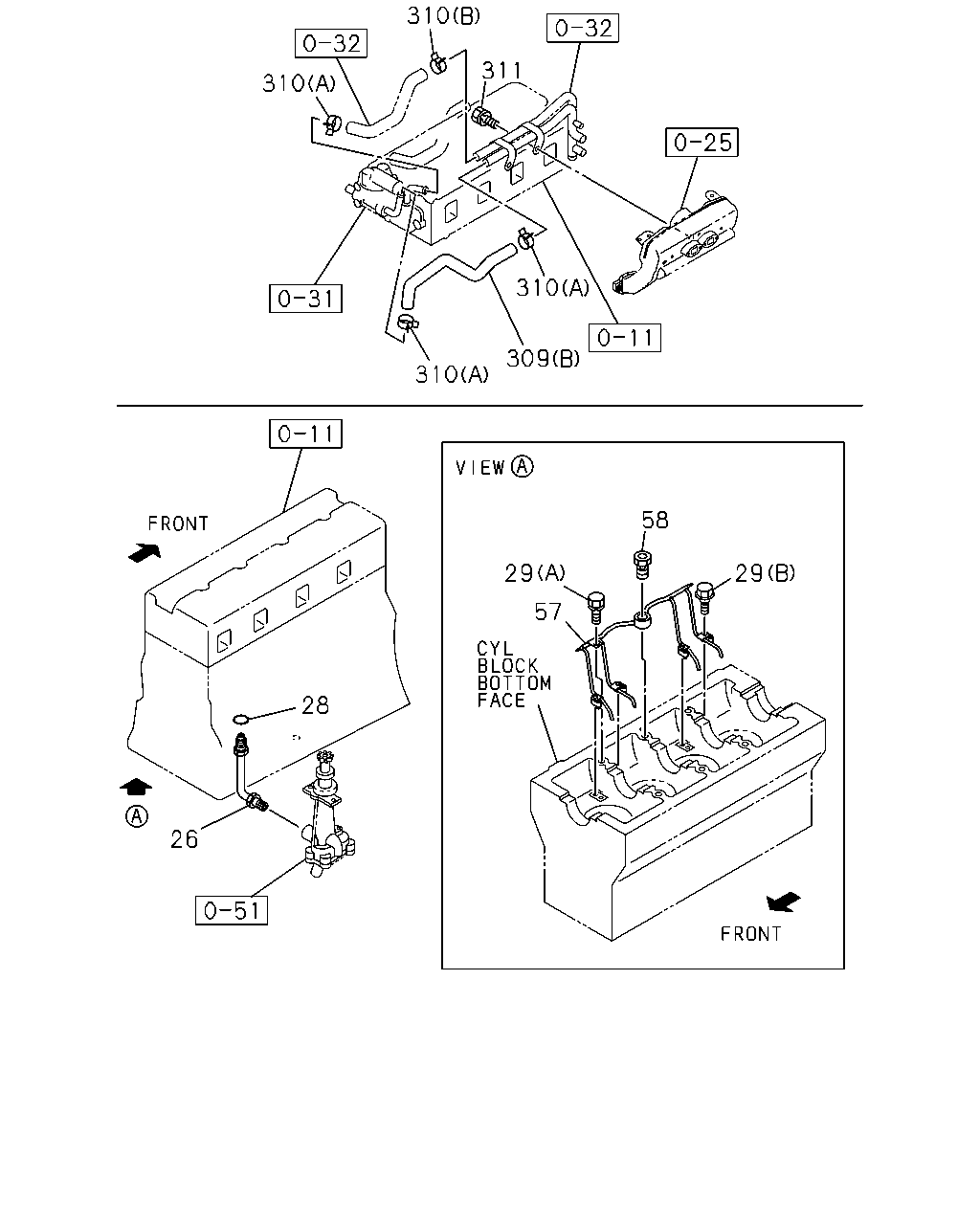

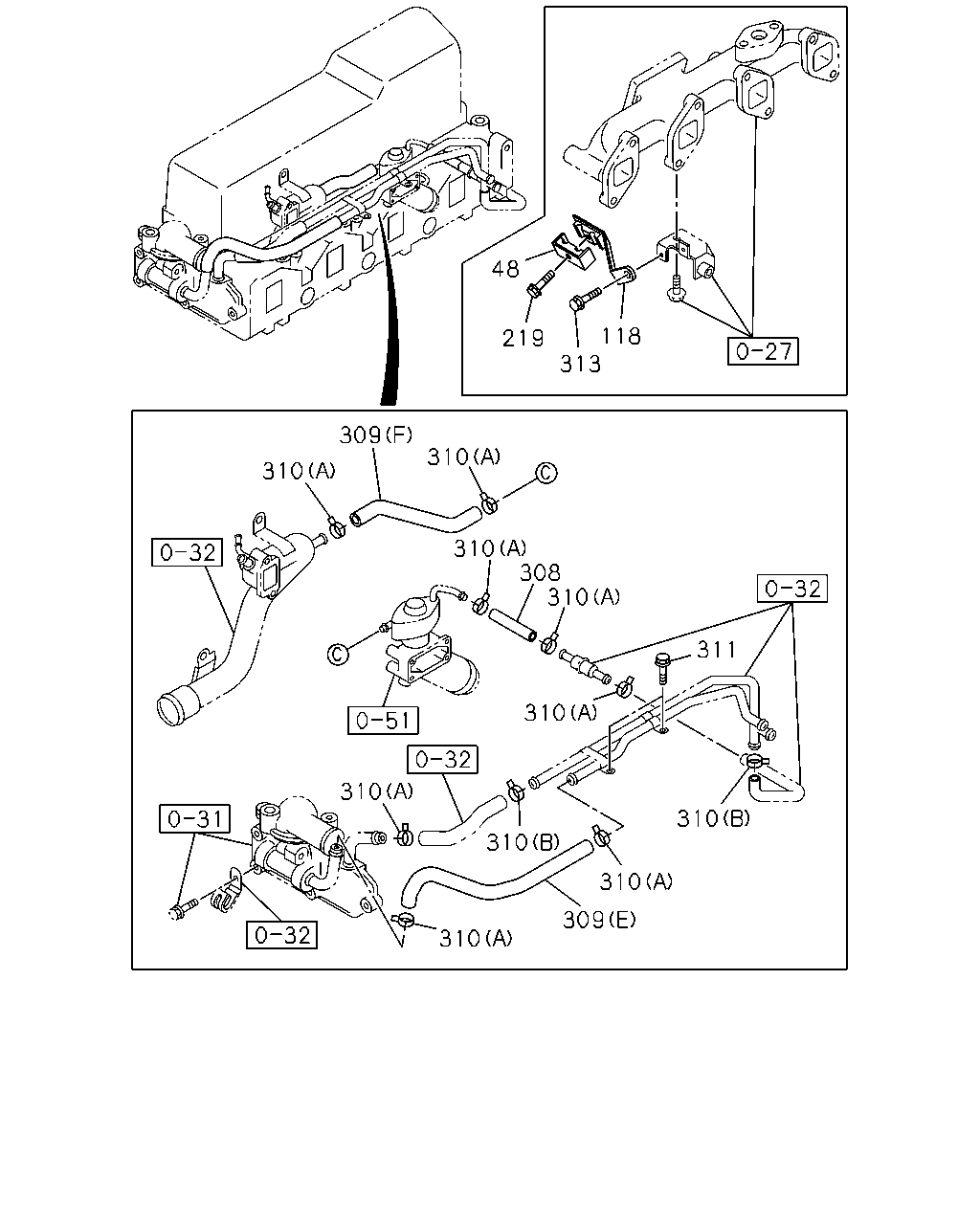

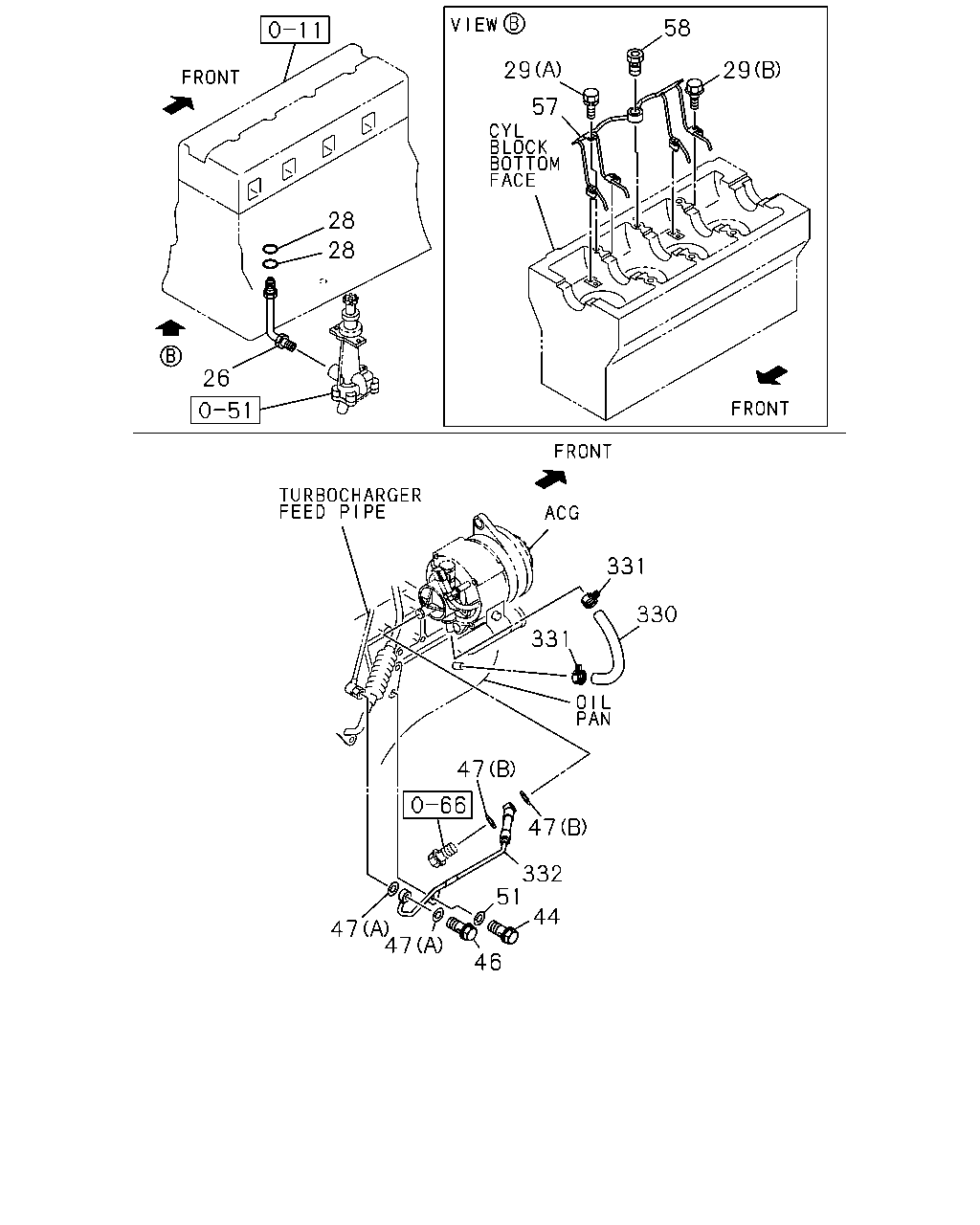

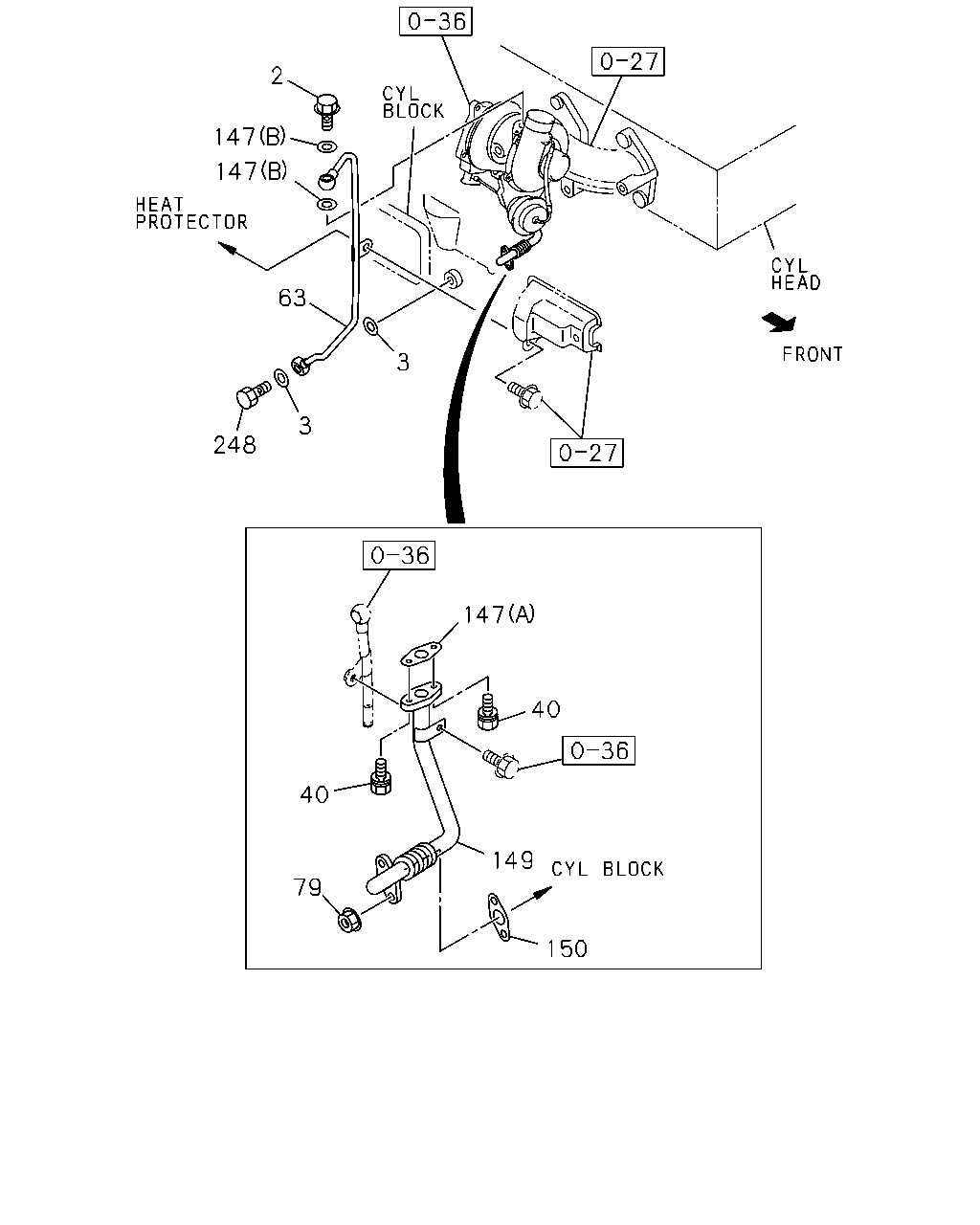

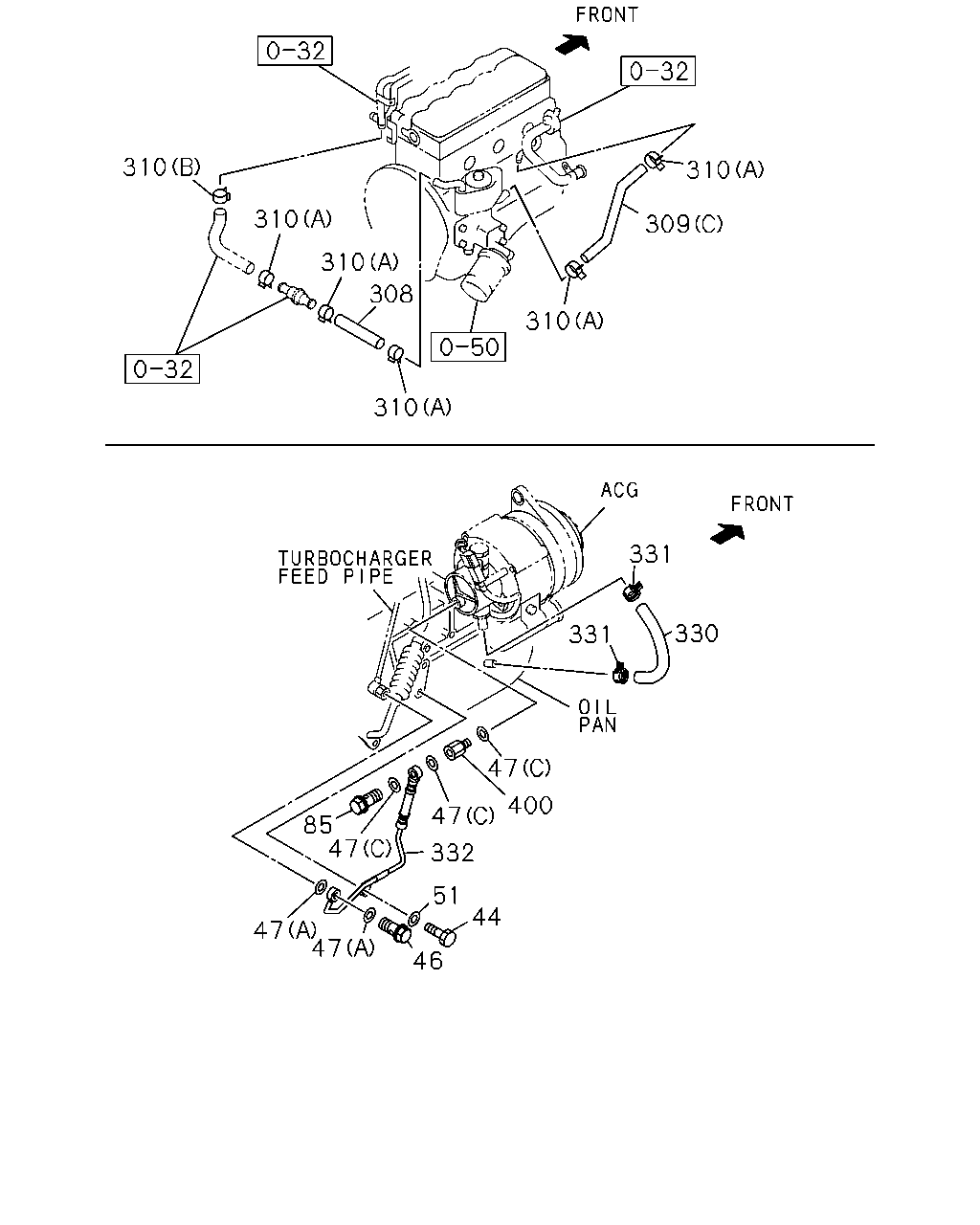

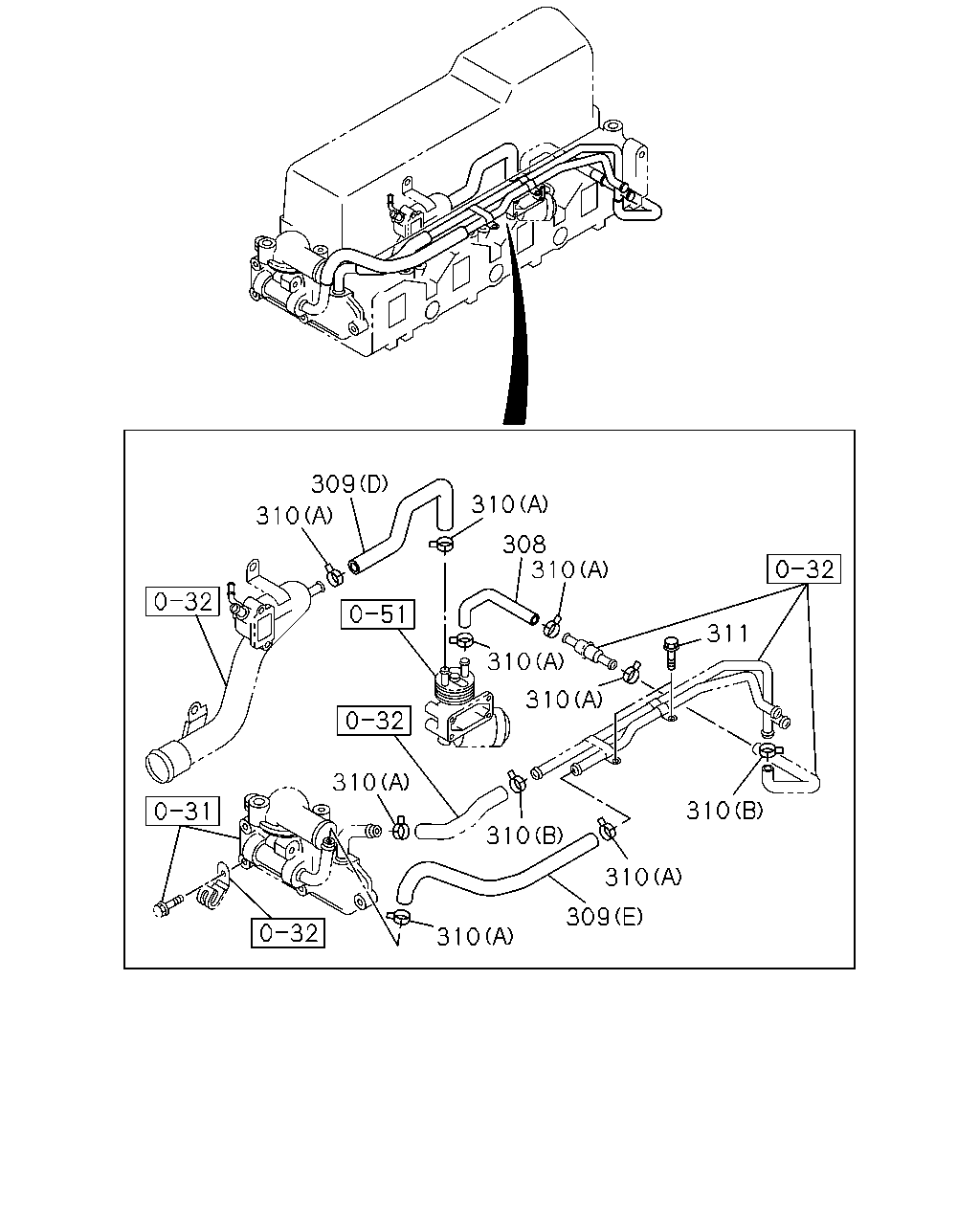

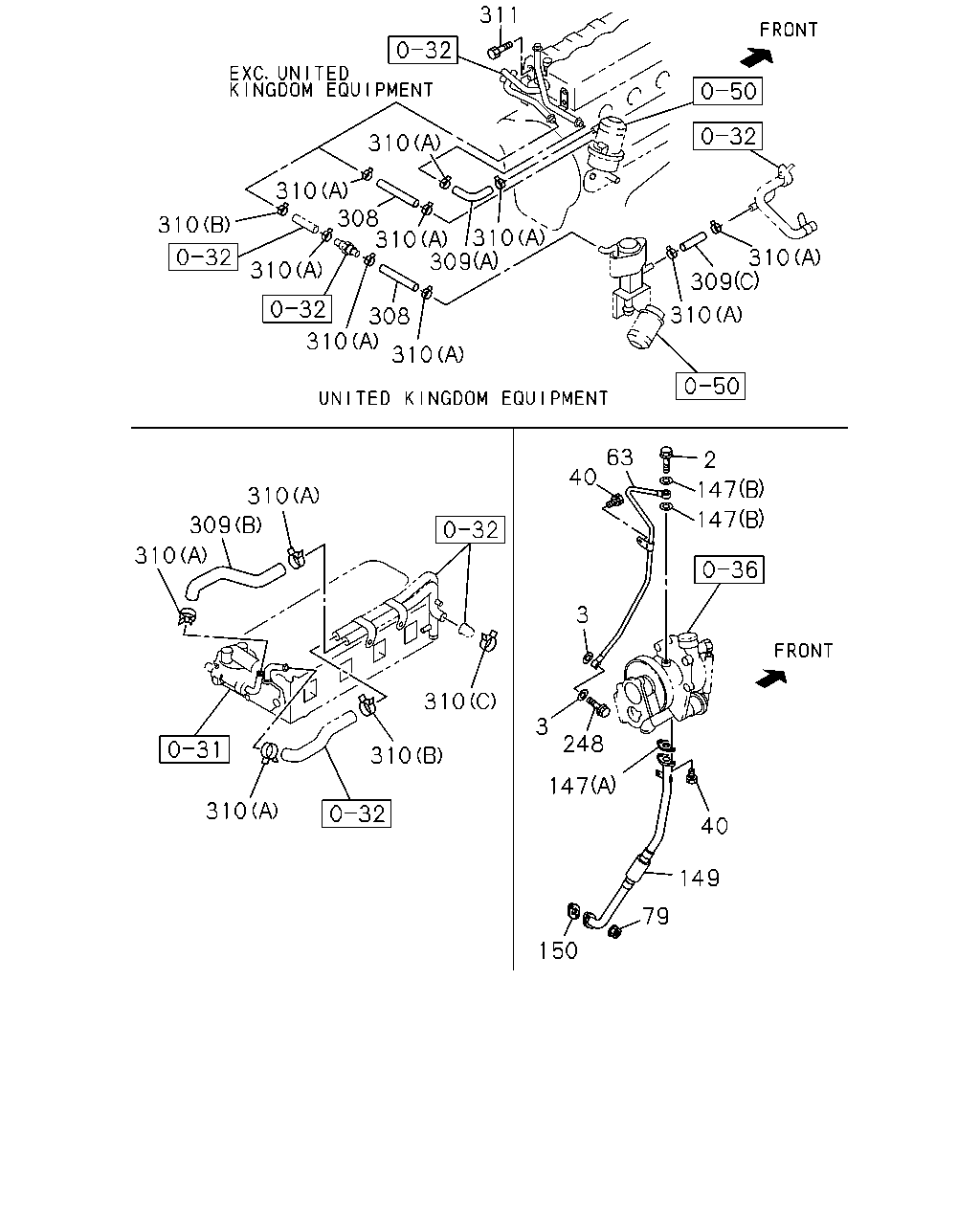

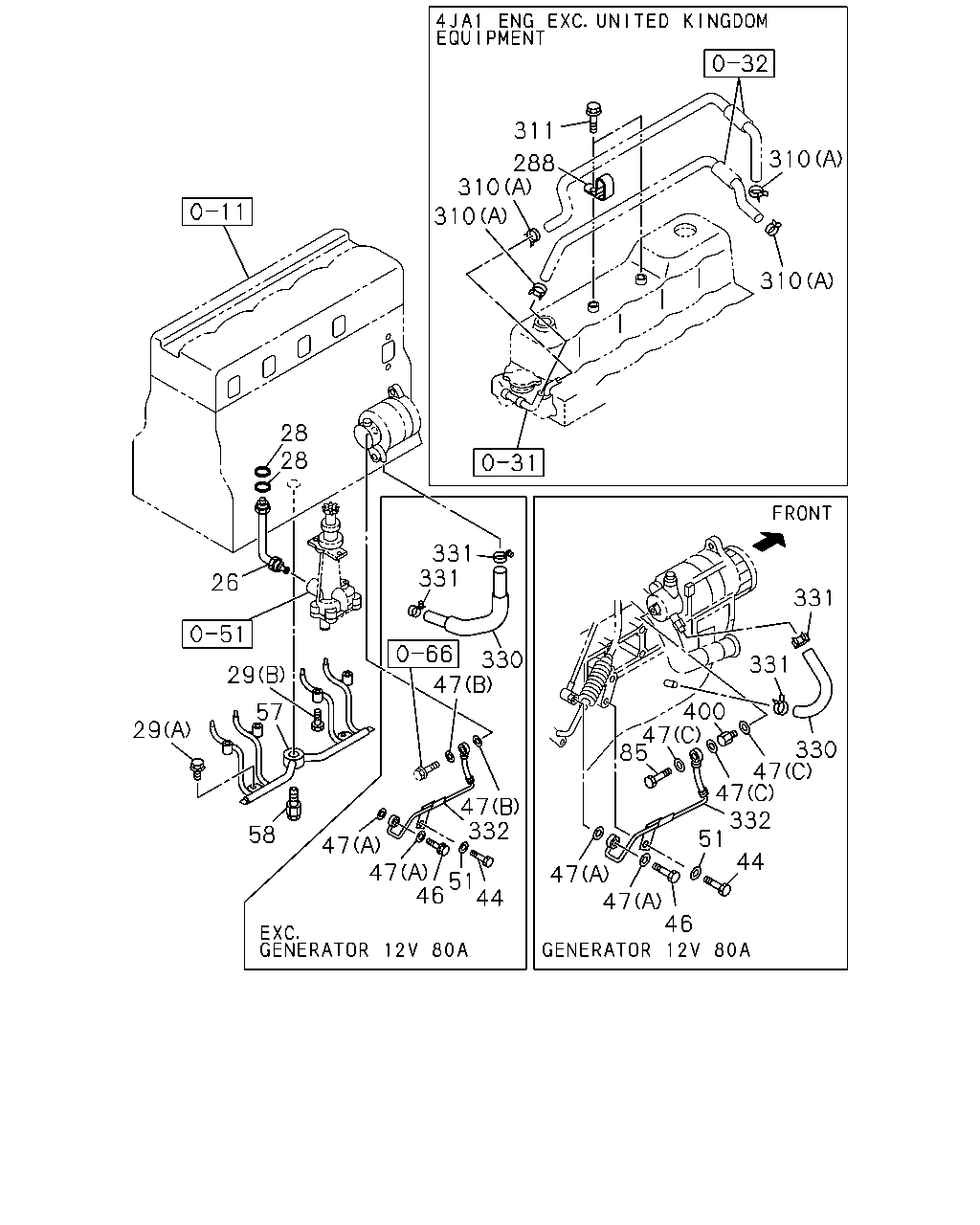

0-52 — OIL AND VACUUM PIPING; ENGINE (#38432) — 669 parça

311 310 310 308 309 310 310 309 310 310 308 310 310 63 2 40 147 310 147 309 310 3 310 3 248 310 147 310 40 149 79 150 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	9804-9909	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9804-9909		●
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	9910-0109	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9910-0109		●	●
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	0110-	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0110-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-9909	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-9909		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9910-0109	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9910-0109		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0110-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0110-		●	●	●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-0109	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-0109		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-9909	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-9909		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9910-0109	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9910-0109		●	●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0110-	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0110-		●	●	●
40	01.531 BOLT; OIL PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9804-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3)	8-97161-201-0	01	1	9804-0109	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	9804-0109		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97161-201-0	01	1	0110-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0110-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-794-2	01	1	0110-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	9910-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97314-891-1	01	1	0110-0204				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97330-876-0	01	1	0205-				●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909		●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109		●	●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 03.358 (A)	8-94362-672-0	01	1	9804-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9804-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9910-0109			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0110-			●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3)	8-97162-108-0	01	1	9804-0109	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	9804-0109		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97162-108-0	01	1	0110-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	0110-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	9910-0109			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-229-0	01	1	0110-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	0110-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-0	01	1	9804-9909	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9804-9909		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-0	01	1	9910-0109	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9910-0109		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-1	01	1	0110-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0110-		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED CHARGE AIR COOLER<6PL>	8-97305-198-1	01	1	0110-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED	8-97305-198-1	01	1	0110-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) M14X25	8-94315-336-1	01	1	9804-9909	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9804-9909		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) M14X25	8-94315-336-1	01	1	9910-0109	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9910-0109		●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M14X25	8-94315-336-1	01	1	0110-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0110-		●	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9804-9909	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109			●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-288-0	01	1	0110-0308	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97331-175-0	01	1	0309-	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112			●	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202			●	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0203-		●		●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3) L=220	8-97119-575-1	01	1	9804-0205	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220	8-97119-575-1	01	1	0206-0209	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0210-	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9804-0202		●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-			●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (E)	8-97256-047-0	01	1	0110-				●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9804-9909	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9804-9909		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9910-0109	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9910-0109		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-285-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0110-		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97168-220-0	01	1	9804-0109	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9804-0109		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97168-220-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0110-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9804-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-94442-162-1	01	1	0206-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9910-0212			●
309	01.540 HOSE; OIL COOLER RETURN (C),(F)	8-97351-571-0	01	1	0301-			●	●
309	01.540 HOSE; OIL COOLER RETURN (F)	8-97314-898-0	01	1	0110-0212				●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-0	08	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9910-0109	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0110-0202	●		●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0203-	●		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109		●	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	0110-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0110-		●	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	9804-0202		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0203-		●		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 (C) ID=22	8-94382-401-0	02	1	9804-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-9909	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9910-0109	●	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	0110-0201	●	●	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●	●	●

311 310 288 310 310 310 28 28 331 331 26 331 330 47 331 400 47 85 29 57 29 330 47 47 332 51 47 332 58 47 47 51 46 44 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	01.519 PIPE; OIL,PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97080-301-2	01	1	0110-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0110-				●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9804-9909	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9910-0109	●	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-94434-828-2	01	1	0110-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	0110-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>. 01.516 ID=11	5-09623-002-0	02	1	0110-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0110-				●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9804-9909	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9910-0109	●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. 01.516 ID=11	5-09623-002-0	01	1	0110-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	0110-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9804-0203		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0204-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9804-0202	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212		●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9804-0109	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0110-	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0110-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9910-0109			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0110-0202			●	●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0301-	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-0	04	1	9910-0109			●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B) M6X20	8-97117-298-1	04	1	0110-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0110-			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9909	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9910-0109	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	0110-	●	●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9804-9909	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9910-0109	●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9910-0109	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9804-					●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9804-9909	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9910-0109	●	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0110-	●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-1	01	1	9804-0109	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-94469-992-2	01	1	0110-0308	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-97912-536-2	01	1	0309-	●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	9804-		●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	9910-0109			●
57	01.519 PIPE; OIL,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-279-0	01	1	0110-	●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0110-			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-0	01	1	0110-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9804-9909	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9910-0104	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-0	01	1	0105-	●	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9804-9909	●
85	01.531 BOLT; EYE,OIL PIPE FIX AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9804-9909		●
85	01.531 BOLT; EYE,OIL PIPE FIX GENERATOR 12V80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9910-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9910-			●
288	01.540 CLIP; HOSE,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.846	5-83574-006-0	01	1	9804-0205	●
288	01.540 CLIP; HOSE,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 08.846	5-83574-006-0	01	1	0206-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-0	08	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9910-0109	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0110-0202	●		●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0203-	●		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109		●	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	0110-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0110-		●	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	9804-0202		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0203-		●		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 (C) ID=22	8-94382-401-0	02	1	9804-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-9909	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9910-0109	●	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	0110-0201	●	●	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9804-9909	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9910-0109	●	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	0110-	●	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9804-9909	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9910-0109	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0110-	●	●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP CHARGE AIR COOLER<6PL>	8-97314-892-1	01	1	0110-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97314-892-1	01	1	0110-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9804-9909	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9804-9909		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9910-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9910-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97)	8-94468-522-1	01	1	9804-9909	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94468-522-1	01	1	9804-9909	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 12V80A(K97)	8-94468-522-1	01	1	9910-0109	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL>	8-94468-522-1	01	1	0110-	●	●
400	01.531 NIPPLE; VAC PUMP,OIL UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97)	8-97061-857-0	01	1	9804-9909	●
400	01.531 NIPPLE; VAC PUMP,OIL AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97)	8-97061-857-0	01	1	9804-9909		●
400	01.531 NIPPLE; VAC PUMP,OIL GENERATOR 12V80A(K97)	8-97061-857-0	01	1	9910-	●	●
400	01.531 NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9910-			●

47 18 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
18	01.519 PIPE; OIL,OIL PUMP	8-94381-146-3	01	1	9804-0009					●
18	01.519 PIPE; OIL,OIL PUMP	8-97226-640-0	01	1	0010-					●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9910-0109	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9804-					●

58 29 29 57 28 28 26 331 330 331 47 47 332 51 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
26	01.519 PIPE; OIL,PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97080-301-2	01	1	0110-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0110-				●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9804-9909	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9910-0109	●	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-94434-828-2	01	1	0110-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	0110-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>. 01.516 ID=11	5-09623-002-0	02	1	0110-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0110-				●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9804-9909	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9910-0109	●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. 01.516 ID=11	5-09623-002-0	01	1	0110-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	0110-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9804-0203		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0204-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9804-0202	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212		●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9804-0109	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0110-	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0110-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9910-0109			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0110-0202			●	●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0301-	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-0	04	1	9910-0109			●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B) M6X20	8-97117-298-1	04	1	0110-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0110-			●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9909	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9910-0109	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	0110-	●	●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9804-9909	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9910-0109	●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9910-0109	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9804-					●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9804-9909	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9910-0109	●	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0110-	●	●	●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-1	01	1	9804-0109	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-94469-992-2	01	1	0110-0308	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-97912-536-2	01	1	0309-	●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	9804-		●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	9910-0109			●
57	01.519 PIPE; OIL,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-279-0	01	1	0110-	●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0110-			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-0	01	1	0110-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9804-9909	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9910-0104	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-0	01	1	0105-	●	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9804-9909	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9910-0109	●	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	0110-	●	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9804-9909	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9910-0109	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0110-	●	●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP CHARGE AIR COOLER<6PL>	8-97314-892-1	01	1	0110-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97314-892-1	01	1	0110-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9804-9909	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9804-9909		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9910-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9910-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97)	8-94468-522-1	01	1	9804-9909	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94468-522-1	01	1	9804-9909	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 12V80A(K97)	8-94468-522-1	01	1	9910-0109	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL>	8-94468-522-1	01	1	0110-	●	●

310 310 310 309 310 308 310 310 331 330 331 47 400 85 47 47 332 51 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9804-9909	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9910-0109	●	●	●
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	0110-	●	●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9804-9909	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	9910-0109	●	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9804-9909		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (C) ID=10.2 OD=16.0	9-09571-410-0	03	1	9910-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9910-0109	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0110-	●	●	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-0205				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. GENERATOR 12V80A(K97) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-		●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0206-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) W/PLATE ID=18.2	8-94329-964-0	02	1	9804-					●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9804-9909	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9910-0109	●	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0110-	●	●	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9804-9909	●
85	01.531 BOLT; EYE,OIL PIPE FIX AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9804-9909		●
85	01.531 BOLT; EYE,OIL PIPE FIX GENERATOR 12V80A(K97) M10X21 FLANGE	1-09675-078-0	01	1	9910-	●	●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9910-			●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9804-9909	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109			●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-288-0	01	1	0110-0308	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97331-175-0	01	1	0309-	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112			●	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202			●	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0203-		●		●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3) L=220	8-97119-575-1	01	1	9804-0205	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220	8-97119-575-1	01	1	0206-0209	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0210-	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9804-0202		●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-			●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (E)	8-97256-047-0	01	1	0110-				●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9804-9909	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9804-9909		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9910-0109	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9910-0109		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-285-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0110-		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97168-220-0	01	1	9804-0109	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9804-0109		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97168-220-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0110-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9804-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-94442-162-1	01	1	0206-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9910-0212			●
309	01.540 HOSE; OIL COOLER RETURN (C),(F)	8-97351-571-0	01	1	0301-			●	●
309	01.540 HOSE; OIL COOLER RETURN (F)	8-97314-898-0	01	1	0110-0212				●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-0	08	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9910-0109	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0110-0202	●		●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0203-	●		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109		●	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	0110-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0110-		●	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	9804-0202		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0203-		●		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 (C) ID=22	8-94382-401-0	02	1	9804-		●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9804-9909	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9910-0109	●	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	0110-	●	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9804-9909	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9910-0109	●	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0110-	●	●	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP CHARGE AIR COOLER<6PL>	8-97314-892-1	01	1	0110-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97314-892-1	01	1	0110-				●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9804-9909	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9804-9909		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP GENERATOR 12V80A(K97)	8-97042-697-0	01	1	9910-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9910-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. GENERATOR 12V80A(K97)	8-94468-522-1	01	1	9804-9909	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94468-522-1	01	1	9804-9909	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 12V80A(K97)	8-94468-522-1	01	1	9910-0109	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. GENERATOR 12V80A(K97),CHARGE AIRCOOLER<6PL>	8-94468-522-1	01	1	0110-	●	●
400	01.531 NIPPLE; VAC PUMP,OIL UNITED KINGDOM EQUIPMENT(EK3) GENERATOR 12V80A(K97)	8-97061-857-0	01	1	9804-9909	●
400	01.531 NIPPLE; VAC PUMP,OIL AUSTRALIAN EQUIPMENT(RR3) GENERATOR 12V80A(K97)	8-97061-857-0	01	1	9804-9909		●
400	01.531 NIPPLE; VAC PUMP,OIL GENERATOR 12V80A(K97)	8-97061-857-0	01	1	9910-	●	●
400	01.531 NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9910-			●

48 118 313 219 309 310 310 310 308 310 311 310 310 310 310 310 309 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	01.531 CLIP; OIL PIPE ID=9 & 9 L=25	1-09701-212-1	01	1	0110-				●
118	01.531 BRACKET; CLIP,OIL PIPE	8-97327-188-0	01	1	0110-				●
219	01.531 BOLT; CLIP FIX,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	0110-				●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9804-9909	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109			●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-288-0	01	1	0110-0308	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97331-175-0	01	1	0309-	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112			●	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202			●	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0203-		●		●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3) L=220	8-97119-575-1	01	1	9804-0205	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220	8-97119-575-1	01	1	0206-0209	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0210-	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9804-0202		●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-			●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (E)	8-97256-047-0	01	1	0110-				●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9804-9909	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9804-9909		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9910-0109	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9910-0109		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-285-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0110-		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97168-220-0	01	1	9804-0109	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9804-0109		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97168-220-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0110-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9804-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-94442-162-1	01	1	0206-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9910-0212			●
309	01.540 HOSE; OIL COOLER RETURN (C),(F)	8-97351-571-0	01	1	0301-			●	●
309	01.540 HOSE; OIL COOLER RETURN (F)	8-97314-898-0	01	1	0110-0212				●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-0	08	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9910-0109	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0110-0202	●		●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0203-	●		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109		●	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	0110-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0110-		●	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	9804-0202		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0203-		●		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 (C) ID=22	8-94382-401-0	02	1	9804-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-9909	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9910-0109	●	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	0110-0201	●	●	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●	●	●
313	01.540 BOLT; PIPE BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-				●

2 147 147 63 3 3 248 147 40 40 149 79 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	9804-9909	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9804-9909		●
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	9910-0109	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	9910-0109		●	●
2	01.531 BOLT; EYE,OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) M10X27 FLANGE	8-94443-535-0	01	1	0110-	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0110-		●	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-9909	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9804-9909		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9910-0109	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9910-0109		●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0110-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0110-		●	●	●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-0109	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-0109		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
40	01.531 BOLT; OIL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-9909	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9804-9909		●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9910-0109	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9910-0109		●	●
40	01.531 BOLT; OIL PIPE UNITED KINGDOM EQUIPMENT(EK3) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0110-	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0110-		●	●	●
40	01.531 BOLT; OIL PIPE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9804-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3)	8-97161-201-0	01	1	9804-0109	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	9804-0109		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97161-201-0	01	1	0110-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97161-201-0	01	1	0110-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-794-2	01	1	0110-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	9910-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97314-891-1	01	1	0110-0204				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97330-876-0	01	1	0205-				●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909		●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109		●	●
79	01.531 NUT; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 03.358 (A)	8-94362-672-0	01	1	9804-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-0	01	1	9804-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9804-9909		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9910-0109		●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0110-		●	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9910-0109			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0110-			●	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3)	8-97162-108-0	01	1	9804-0109	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	9804-0109		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97162-108-0	01	1	0110-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-108-0	01	1	0110-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	9910-0109			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-229-0	01	1	0110-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97162-106-0	01	1	0110-			●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-0	01	1	9804-9909	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9804-9909		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-0	01	1	9910-0109	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9910-0109		●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3).	8-97045-326-1	01	1	0110-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0110-		●	●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED CHARGE AIR COOLER<6PL>	8-97305-198-1	01	1	0110-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED	8-97305-198-1	01	1	0110-				●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) M14X25	8-94315-336-1	01	1	9804-9909	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9804-9909		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) M14X25	8-94315-336-1	01	1	9910-0109	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	9910-0109		●	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M14X25	8-94315-336-1	01	1	0110-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0110-		●	●

309 310 310 308 310 311 310 310 310 310 310 310 309 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9804-9909	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9910-0109			●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-288-0	01	1	0110-0308	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97331-175-0	01	1	0309-	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112	●
308	01.540 HOSE; OIL COOLER FEED 08.846 L=60 SERVICED BY L=3000	0-03266-300-0	01	1	0110-0112			●	●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0201-0202			●	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	0203-		●		●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3) L=220	8-97119-575-1	01	1	9804-0205	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220	8-97119-575-1	01	1	0206-0209	●
308	01.540 HOSE; OIL COOLER FEED EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> L=220 SERVICED BY L=3000	0-03566-300-0	01	1	0210-	●
308	01.540 HOSE; OIL COOLER FEED	8-97039-414-0	01	1	9804-0202		●
308	01.540 HOSE; OIL COOLER FEED UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-	●
308	01.540 HOSE; OIL COOLER FEED L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0203-			●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (E)	8-97256-047-0	01	1	0110-				●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9804-9909	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9804-9909		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9910-0109	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9910-0109		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-285-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0110-		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97168-220-0	01	1	9804-0109	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9804-0109		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97168-220-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0110-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9804-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-94442-162-1	01	1	0206-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9910-0212			●
309	01.540 HOSE; OIL COOLER RETURN (C),(F)	8-97351-571-0	01	1	0301-			●	●
309	01.540 HOSE; OIL COOLER RETURN (F)	8-97314-898-0	01	1	0110-0212				●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-0	08	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9910-0109	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0110-0202	●		●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0203-	●		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109		●	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	0110-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0110-		●	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	9804-0202		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0203-		●		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 (C) ID=22	8-94382-401-0	02	1	9804-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-9909	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9910-0109	●	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	0110-0201	●	●	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●	●	●

311 58 29 29 57 28 26 310 310 310 309 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	01.519 PIPE; OIL,PUMP TO C/BL CHARGE AIR COOLER<6PL>	8-97080-301-2	01	1	0110-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0110-				●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9804-9909	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9910-0109	●	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL EXC. CHARGE AIR COOLER<6PL>	8-94434-828-2	01	1	0110-	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	0110-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>. 01.516 ID=11	5-09623-002-0	02	1	0110-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0110-				●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9804-9909	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	9910-0109	●	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. 01.516 ID=11	5-09623-002-0	01	1	0110-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	01	1	0110-		●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9804-0203		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0204-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9804-0202	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0212		●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9804-0109	●	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. CHARGE AIR COOLER<6PL> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0110-	●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0110-		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9910-0109			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0110-0202			●	●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	0203-0212	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0301-	●	●	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-0	04	1	9910-0109			●
29	01.531 BOLT; OIL PIPE,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B) M6X20	8-97117-298-1	04	1	0110-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0110-			●	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-1	01	1	9804-0109	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-94469-992-2	01	1	0110-0308	●
57	01.519 PIPE; OIL,OIL JET EXC. CHARGE AIR COOLER<6PL>	8-97912-536-2	01	1	0309-	●
57	01.519 PIPE; OIL,OIL JET	8-94469-709-3	01	1	9804-		●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	9910-0109			●
57	01.519 PIPE; OIL,OIL JET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-279-0	01	1	0110-	●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0110-			●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-0	01	1	0110-				●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9804-9909	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9910-0104	●	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-0	01	1	0105-	●	●	●
309	01.540 HOSE; OIL COOLER RETURN CHARGE AIR COOLER<6PL> (E)	8-97256-047-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (E)	8-97256-047-0	01	1	0110-				●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9804-9909	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9804-9909		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97049-285-0	01	1	9910-0109	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9910-0109		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97049-285-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	0110-		●	●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97168-220-0	01	1	9804-0109	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	9804-0109		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (C)	8-97168-220-0	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97168-220-0	01	1	0110-		●
309	01.540 HOSE; OIL COOLER RETURN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (D)	8-97213-919-1	01	1	0110-	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94442-162-1	01	1	9804-0205	●
309	01.540 HOSE; OIL COOLER RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-94442-162-1	01	1	0206-	●
309	01.540 HOSE; OIL COOLER RETURN (C)	8-97069-793-1	01	1	9910-0212			●
309	01.540 HOSE; OIL COOLER RETURN (C),(F)	8-97351-571-0	01	1	0301-			●	●
309	01.540 HOSE; OIL COOLER RETURN (F)	8-97314-898-0	01	1	0110-0212				●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-0	08	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	9910-0109	●		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0110-0202	●		●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	08	1	0203-	●		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9804-9909		●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	9910-0109		●	●
310	01.540 CLIP; WATER HOSE FIX UNITED KINGDOM EQUIPMENT(EK3) 01.150 (B) ID=24	8-97010-605-0	02	1	0110-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0110-		●	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	9804-0202		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0203-		●		●
310	01.540 CLIP; WATER HOSE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1) 08.846 (C) ID=22	8-94382-401-0	02	1	9804-		●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9804-9909	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9910-0109	●	●	●
311	01.531 BOLT; PIPE FIX 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	0110-0201	●	●	●	●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
