0-51 — OIL PUMP AND OIL STRAINER (#38431) — 168 parça

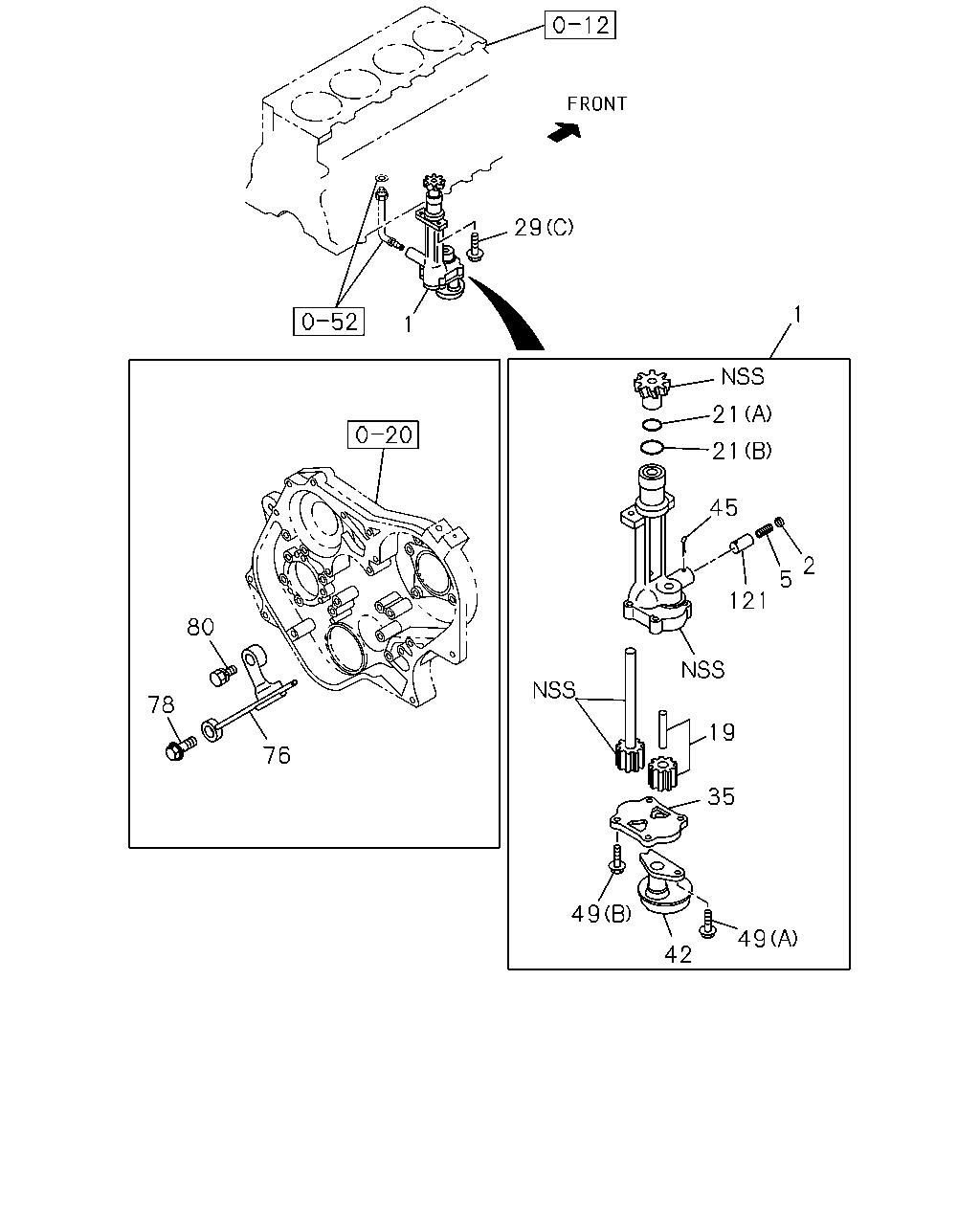

çizim 69939
29 1 1 21 21 45 2 5 121 80 78 19 76 35 49 49 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.652 PUMP ASM; OIL 8-97069-738-2 01 1 9804-0012 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0101-0109 ● ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97069-738-3 01 1 0101-0109 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97069-738-3 01 1 0110- ● ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 		8-97069-738-3 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-97136-464-0 01 1 9804-0109 ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-90570-925-0 01 1 9804- ●
1 01.652 PUMP ASM; OIL 8-97033-174-3 01 1 9910-0012 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97033-174-4 01 1 0101-0109 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) CHARGE AIR COOLER<6PL> 		8-97033-174-4 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97033-174-4 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0110- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9806-9909 ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9910-0109 ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0110- ● ● ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9806-9909 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9910-0109 ● ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0110- ● ● ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9806-9909 ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9910-0109 ● ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0110- ● ● ● ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0110- ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0110- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 9804-9909 ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 9910-0109 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0110- ● ● ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9804- ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-961-0 06 1 9804- ●
35 01.657 COVER; OIL PUMP 8-97036-830-0 01 1 9806-9909 ● ●
35 01.657 COVER; OIL PUMP 8-97036-830-0 01 1 9910-0109 ● ● ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 0110-0211 ●
35 01.657 COVER; OIL PUMP
4X2(TFB***) 		8-97203-876-0 01 1 0212- ● ●
35 01.657 COVER; OIL PUMP
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 		8-97203-876-0 01 1 0212- ●
35 01.657 COVER; OIL PUMP 8-97203-876-0 01 1 0212- ● ●
35 01.657 COVER; OIL PUMP 8-97036-830-0 01 1 0110-0211 ● ● ●
35 01.657 COVER; OIL PUMP
4X4(TFS***) CHARGE AIR COOLER<6PL> 		8-97036-830-0 01 1 0212- ●
35 01.657 COVER; OIL PUMP
4X4(TFS***) 		8-97036-830-0 01 1 0212- ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97036-837-0 01 1 9806-0012 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97036-837-0 01 1 0101-0109 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
4X2(TFB***) 01.657 		8-97036-837-0 01 1 0101-0109 ●
42 01.656 STRAINER; OIL,OIL PUMP
4X2(TFB***) 01.657 		8-97036-837-0 01 1 0110-0211 ● ●
42 01.656 STRAINER; OIL,OIL PUMP
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 01.657 		8-97036-837-0 01 1 0110-0211 ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97036-837-0 01 1 0110-0211 ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97036-839-0 01 1 9910-0012 ●
42 01.656 STRAINER; OIL,OIL PUMP
4X4(TFS***) 01.657 		8-97036-839-0 01 1 0101-0109 ●
42 01.656 STRAINER; OIL,OIL PUMP
4X4(TFS***) CHARGE AIR COOLER<6PL> 01.657 		8-97036-839-0 01 1 0110- ●
42 01.656 STRAINER; OIL,OIL PUMP
4X4(TFS***) 01.657 		8-97036-839-0 01 1 0110- ● ●
42 01.656 STRAINER; OIL,OIL PUMP
4X2(TFB***) 01.657 		8-97089-824-0 01 1 0110-0211 ●
42 01.656 STRAINER; OIL,OIL PUMP
4X2(TFB***) 01.657 		8-97089-824-0 01 1 0212- ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 01.657 		8-97089-824-0 01 1 0212- ●
42 01.656 STRAINER; OIL,OIL PUMP
01.657 		8-97089-824-0 01 1 0212- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9806-9909 ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9910-0109 ● ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0110- ● ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9806-9909 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9910-0109 ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 0110- ● ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (A) M8X30 FLANGE 		0-28080-830-0 02 1 9806-0012 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (A) M8X30 FLANGE 		0-28080-830-0 02 1 0101-0109 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
4X2(TFB***) 03.275 (A) M8X30 FLANGE 		0-28080-830-0 02 1 0101-0109 ●
49 01.531 BOLT; STRAINER,OIL PUMP
4X2(TFB***) 03.275 (A) M8X30 FLANGE 		0-28080-830-0 02 1 0110-0211 ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 03.275 (A) M8X30 FLANGE 		0-28080-830-0 02 1 0110-0211 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.275 (A) M8X30 FLANGE 		0-28080-830-0 02 1 0110-0211 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 9910-0012 ●
49 01.531 BOLT; STRAINER,OIL PUMP
4X4(TFS***) 03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0101-0109 ●
49 01.531 BOLT; STRAINER,OIL PUMP
4X4(TFS***) CHARGE AIR COOLER<6PL> 03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0110-0211 ●
49 01.531 BOLT; STRAINER,OIL PUMP
4X4(TFS***) 03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0110-0211 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0110-0211 ●
49 01.531 BOLT; STRAINER,OIL PUMP
03.415 (A) M8X35 FLANGE 		0-28080-835-0 02 1 0212- ● ● ● ●
76 01.519 PIPE ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97160-706-0 01 1 9804-0212 ● ●
76 01.519 PIPE ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97913-292-0 01 1 0301-0301 ● ●
76 01.519 PIPE ASM; OIL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97160-706-0 01 1 0301- ● ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X23 FLANGE 		8-94454-199-0 01 1 9804- ● ●
80 01.531 BOLT; OIL PIPE FIX
EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9804- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 9806-9909 ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 9910-0109 ● ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0110- ● ● ● ●

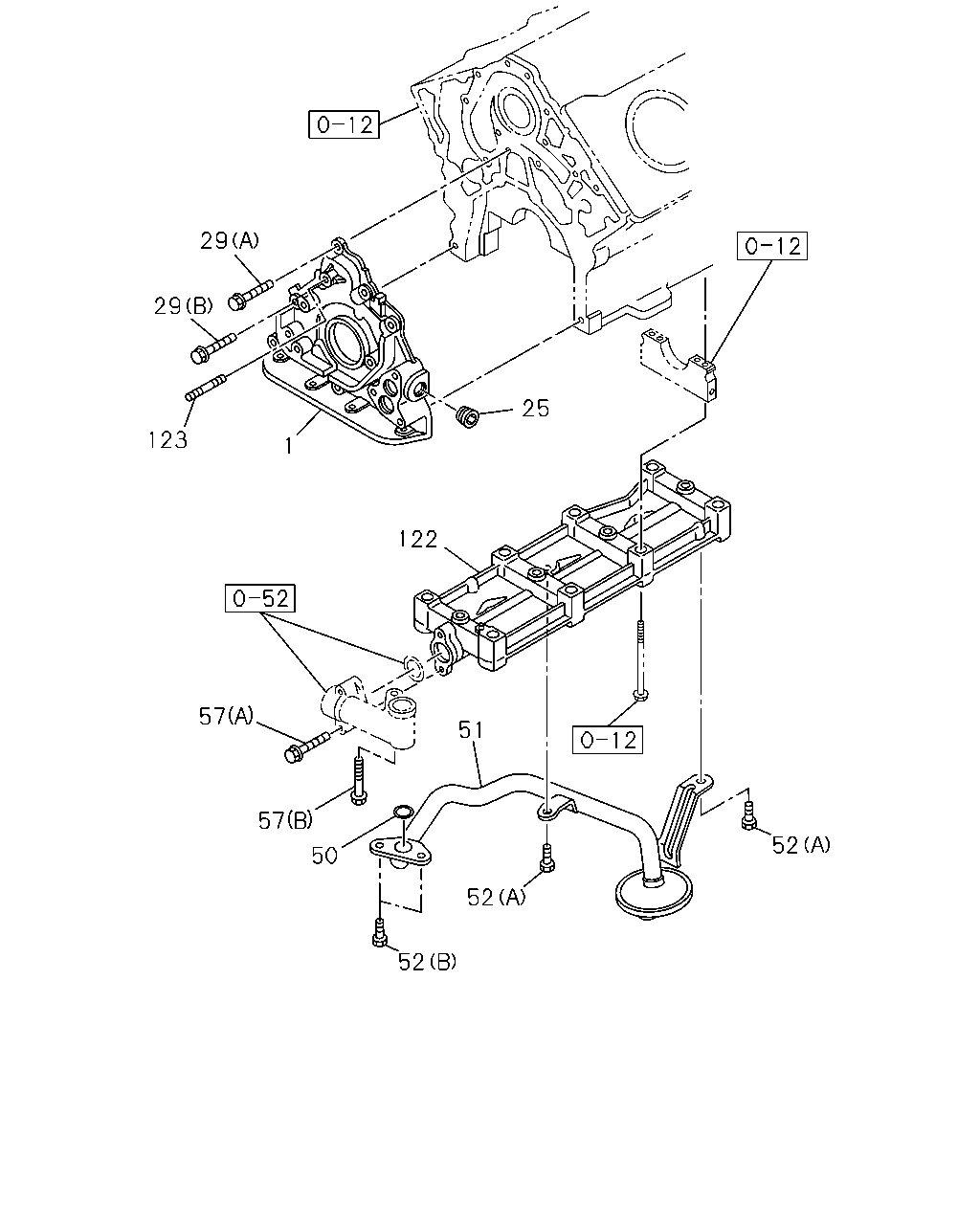

çizim 70266
29 29 25 123 1 122 57 51 57 52 50 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.652 PUMP ASM; OIL 8-97069-738-2 01 1 9804-0012 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0101-0109 ● ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97069-738-3 01 1 0101-0109 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97069-738-3 01 1 0110- ● ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 		8-97069-738-3 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-97136-464-0 01 1 9804-0109 ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-90570-925-0 01 1 9804- ●
1 01.652 PUMP ASM; OIL 8-97033-174-3 01 1 9910-0012 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97033-174-4 01 1 0101-0109 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) CHARGE AIR COOLER<6PL> 		8-97033-174-4 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97033-174-4 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0110- ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 9804-0305 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 02 1 0306- ●
25 01.609 PLUG; OIL PUMP 8-11039-122-0 01 1 9804- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 9804-9909 ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 9910-0109 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0110- ● ● ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9804- ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-961-0 06 1 9804- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 01 1 9804- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90190-637-0 01 1 9804- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 9804- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X2(TFB***) 		8-92063-358-0 01 1 9804- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X4(TFS***) 		8-92063-844-0 01 1 9804- ●
52 01.656 BOLT; OIL PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9804- ●
52 01.656 BOLT; OIL PIPE
07.010 (B) M8X20 FLANGE 		0-28080-820-0 02 1 9804- ●
57 01.531 BOLT; OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 9804- ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 9804- ●
57 01.531 BOLT; OIL PIPE
(A) 		8-11073-041-0 02 1 9804-9804 ●
57 01.531 BOLT; OIL PIPE
(A) 		8-11073-043-0 02 1 9805- ●
57 01.531 BOLT; OIL PIPE
(B) 		8-11097-411-0 02 1 9804- ●
122 01.519 GALLERY; OIL 8-97131-865-0 01 1 9804-0008 ●
122 01.519 GALLERY; OIL 8-97226-641-0 01 1 0009- ●
123 01.060 STUD; FAN BRKT
00.349 M8X65 L=81 		9-04020-865-0 01 1 9804- ●

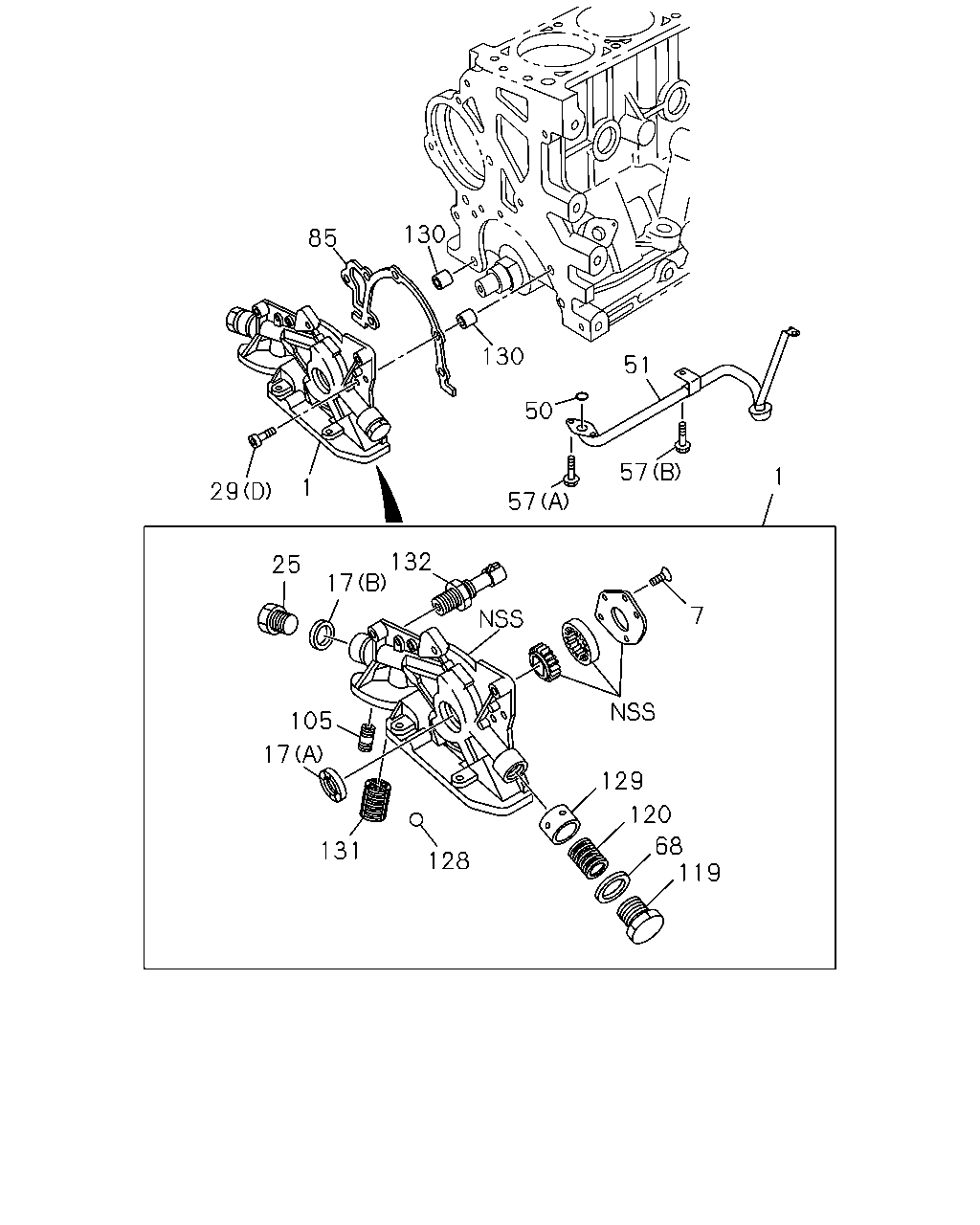

çizim 70340
130 85 130 51 50 57 1 1 29 57 132 17 25 7 105 17 129 120 68 119 131 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.652 PUMP ASM; OIL 8-97069-738-2 01 1 9804-0012 ● ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0101-0109 ● ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97069-738-3 01 1 0101-0109 ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97069-738-3 01 1 0110- ● ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) EXC. CHARGE AIR COOLER<6PL> 		8-97069-738-3 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-97069-738-3 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-97136-464-0 01 1 9804-0109 ●
1 01.652 PUMP ASM; OIL 8-97136-463-0 01 1 0110- ●
1 01.652 PUMP ASM; OIL 8-90570-925-0 01 1 9804- ●
1 01.652 PUMP ASM; OIL 8-97033-174-3 01 1 9910-0012 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97033-174-4 01 1 0101-0109 ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) CHARGE AIR COOLER<6PL> 		8-97033-174-4 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97033-174-4 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X2(TFB***) 		8-97308-113-2 01 1 0110- ●
1 01.652 PUMP ASM; OIL
4X4(TFS***) 		8-97308-112-2 01 1 0110- ●
7 01.657 BOLT; COVER,OIL PUMP 8-11085-861-0 05 1 9804- ●
17 01.657 SEAL; OIL,OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-90183-572-0 01 1 9804- ●
17 01.657 SEAL; OIL,OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-92061-013-0 01 1 9804-9805 ●
17 01.657 SEAL; OIL,OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-11070-961-0 01 1 9806- ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 01 1 9804-0305 ●
25 01.609 PLUG; OIL PUMP 8-97063-612-0 02 1 0306- ●
25 01.609 PLUG; OIL PUMP 8-11039-122-0 01 1 9804- ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 9804-9909 ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 9910-0109 ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 (C) M8X25 FLANGE 		0-28080-825-0 02 1 0110- ● ● ● ●
29 01.652 BOLT; OIL PUMP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 05 1 9804- ●
29 01.652 BOLT; OIL PUMP
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9804- ●
29 01.652 BOLT; OIL PUMP
(D) 		8-11084-961-0 06 1 9804- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 01 1 9804- ●
50 01.531 GASKET; OIL PIPE,STRAINER TO PUM
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90190-637-0 01 1 9804- ●
51 01.519 STRAINER & PIPE ASM; OIL 8-97149-340-0 01 1 9804- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X2(TFB***) 		8-92063-358-0 01 1 9804- ●
51 01.519 STRAINER & PIPE ASM; OIL
4X4(TFS***) 		8-92063-844-0 01 1 9804- ●
57 01.531 BOLT; OIL PIPE
(A) M6X35 FLANGE 		0-28680-635-0 02 1 9804- ●
57 01.531 BOLT; OIL PIPE
(B) M6X55 FLANGE 		8-97027-257-0 01 1 9804- ●
57 01.531 BOLT; OIL PIPE
(A) 		8-11073-041-0 02 1 9804-9804 ●
57 01.531 BOLT; OIL PIPE
(A) 		8-11073-043-0 02 1 9805- ●
57 01.531 BOLT; OIL PIPE
(B) 		8-11097-411-0 02 1 9804- ●
68 01.609 WASHER; RELIEF VLV 8-11093-042-0 01 1 9804- ●
85 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-92060-519-0 01 1 9804- ●
105 01.855 CONNECTOR; OIL FILTER 8-90144-360-0 01 1 9804- ●
119 01.639 PLUG; RELIEF VLV 8-03448-834-0 01 1 9804- ●
120 01.639 SPRING; RELIEF VLV 8-03448-847-0 01 1 9804- ●
128 01.609 BALL; BYPASS VLV,OIL PUMP 8-11055-689-0 01 1 9804- ●
129 01.609 PLUNGER; RELIEF VLV 8-90530-592-0 01 1 9804- ●
130 01.609 SLEEVE; OIL PUMP 8-90351-709-0 02 1 9804- ●
131 01.609 SPRING; BYPASS VLV,OIL PUMP
00.293 		8-90136-113-0 01 1 9804- ●
132 01.800 SWITCH; OIL PRESSURE 8-90336-039-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
