Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94327-065-0	01	1	9804-9908	●	●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97232-860-0	01	1	9909-	●	●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97940-037-0	01	1	9804-		●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL L=330 SERVICED BY L=3000	0-01262-300-0	01	1	0110-			●

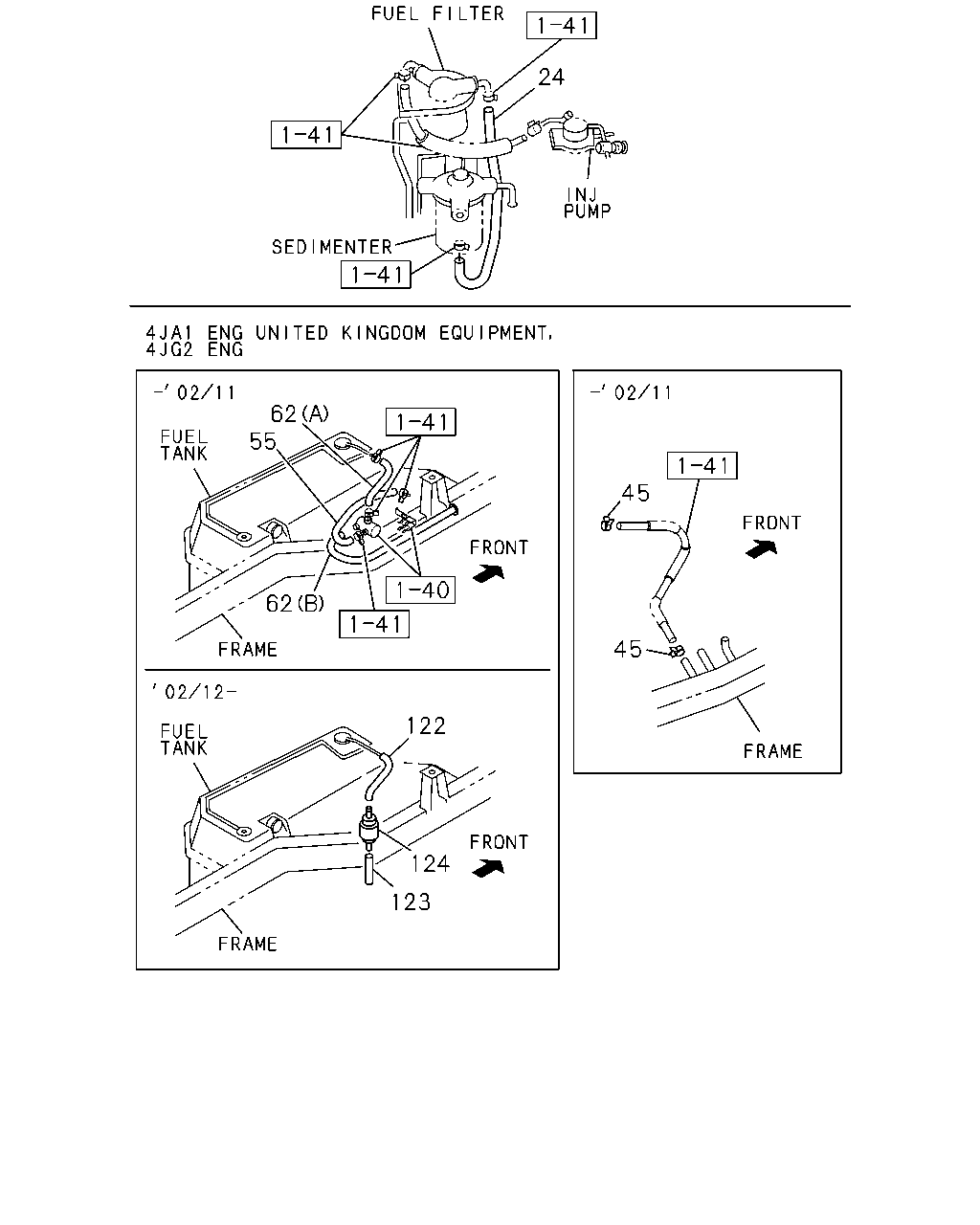

24 62 55 45 62 45 122 124 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94327-065-0	01	1	9804-9908	●	●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3), EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97232-860-0	01	1	9909-	●	●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97940-037-0	01	1	9804-		●
24	03.163 HOSE; RUBBER,SEDIMENTER TO FUEL L=330 SERVICED BY L=3000	0-01262-300-0	01	1	0110-			●
45	03.417 CLIP; HOSE,PURGE SIGNAL UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-97173-219-0	02	1	9804-9909	●
45	03.417 CLIP; HOSE,PURGE SIGNAL UNITED KINGDOM EQUIPMENT(EK3) 03.163 ID=11	8-97173-219-0	02	1	9910-0211	●			●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9909	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=320 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9909	●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
55	03.120 HOSE; EVAP,CONT VLV TO PIPE SPACE CAB(TF*C) UNITED KINGDOM EQUIPMENT(EK3) 08.962 L=290 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9909	●
62	03.120 HOSE; EVAP,CONT VLV UNITED KINGDOM EQUIPMENT(EK3) 08.962 (B) L=350 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
62	03.120 HOSE; EVAP,CONT VLV SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9909	●
62	03.120 HOSE; EVAP,CONT VLV SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=250 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
62	03.120 HOSE; EVAP,CONT VLV CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9804-9909	●
62	03.120 HOSE; EVAP,CONT VLV CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=240 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
62	03.120 HOSE; EVAP,CONT VLV SPACE CAB(TF*C) UNITED KINGDOM EQUIPMENT(EK3) 08.962 (A) L=370 SERVICED BY L=3000	0-04750-300-0	01	1	9910-0211	●			●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=60 SERVICED BY L=3000	0-04750-300-0	01	1	0212-					●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3) 03.163 L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●			●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 03.163 L=150 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●			●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	0212-					●
123	03.164 HOSE; EVAPO,2 WAY VLV TO FRAME 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3) 03.163 L=400 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●			●
123	03.164 HOSE; EVAPO,2 WAY VLV TO FRAME CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 03.163 L=360 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●			●
124	03.164 VALVE; 2 WAY,EVAP AUSTRALIAN EQUIPMENT(RR3) 03.162	8-97076-391-0	01	1	0212-						●
124	03.164 VALVE; 2 WAY,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.162	8-97178-373-0	01	1	0212-	●			●
124	03.164 VALVE; 2 WAY,EVAP AUSTRALIAN EQUIPMENT(RR3) 03.162	8-97178-373-0	01	1	0212-					●

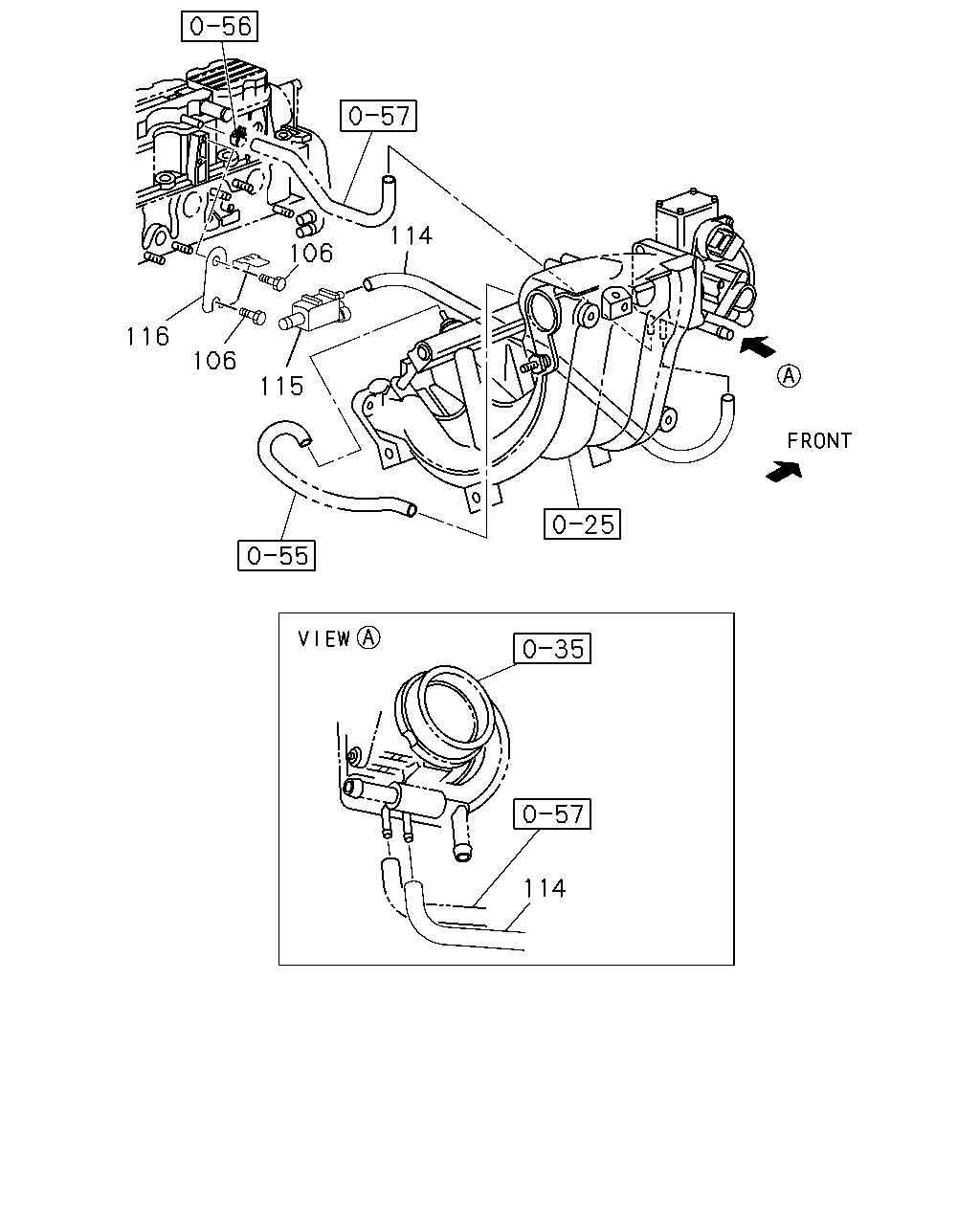

114 106 116 106 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
106	03.130 BOLT; BRKT 02.510	8-11093-971-0	02	1	9804-	●
114	03.163 HOSE; VAPOUR VALVE	8-90467-459-0	01	1	9804-	●
115	03.164 VALVE; VAPOUR	8-01997-210-0	01	1	9804-	●
116	03.164 BRACKET; VAPOUR VLV	8-90466-271-0	01	1	9804-	●

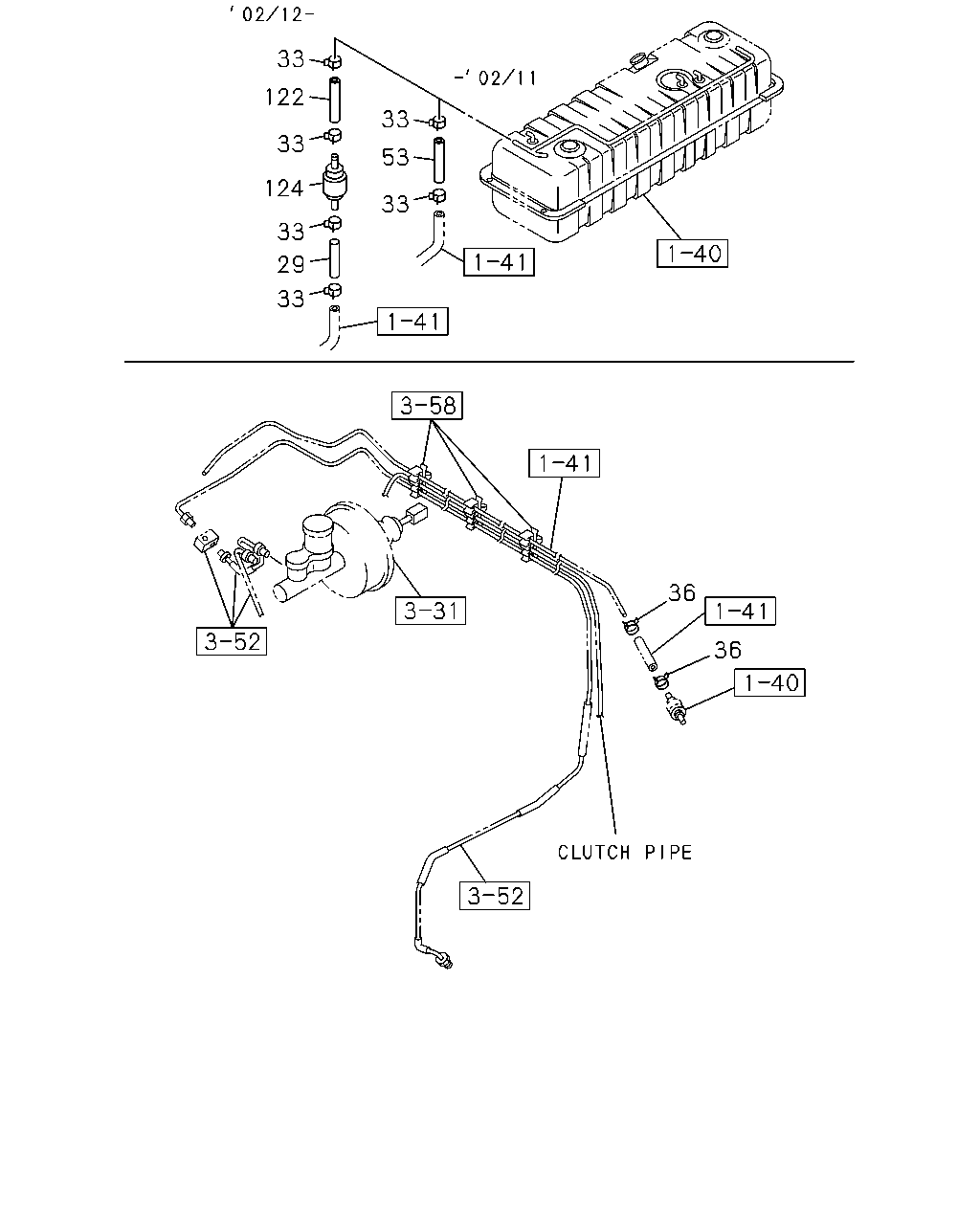

33 122 33 33 53 124 33 33 29 33 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E	F
29	03.163 HOSE; EVAP,VLV TO PIPE 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=170 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
29	03.163 HOSE; EVAP,VLV TO PIPE CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=80 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
33	03.162 CLIP; EVAP HOSE AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	04	1	0212-			●
33	03.162 CLIP; EVAP HOSE AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	9804-0211			●	●
33	03.162 CLIP; EVAP HOSE AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	0212-				●
36	03.162 CLIP; HOSE,CANISTER AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	9804-0211			●	●
36	03.162 CLIP; HOSE,CANISTER AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	0212-				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9804-0212			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0301-				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-0212			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0301-				●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=60 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3) 03.163 L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●	●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV CREW CAB(TF*W) UNITED KINGDOM EQUIPMENT(EK3) 03.163 L=150 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●	●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=250 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●
124	03.164 VALVE; 2 WAY,EVAP AUSTRALIAN EQUIPMENT(RR3) 03.162	8-97076-391-0	01	1	0212-				●
124	03.164 VALVE; 2 WAY,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.162	8-97178-373-0	01	1	0212-	●	●
124	03.164 VALVE; 2 WAY,EVAP AUSTRALIAN EQUIPMENT(RR3) 03.162	8-97178-373-0	01	1	0212-			●

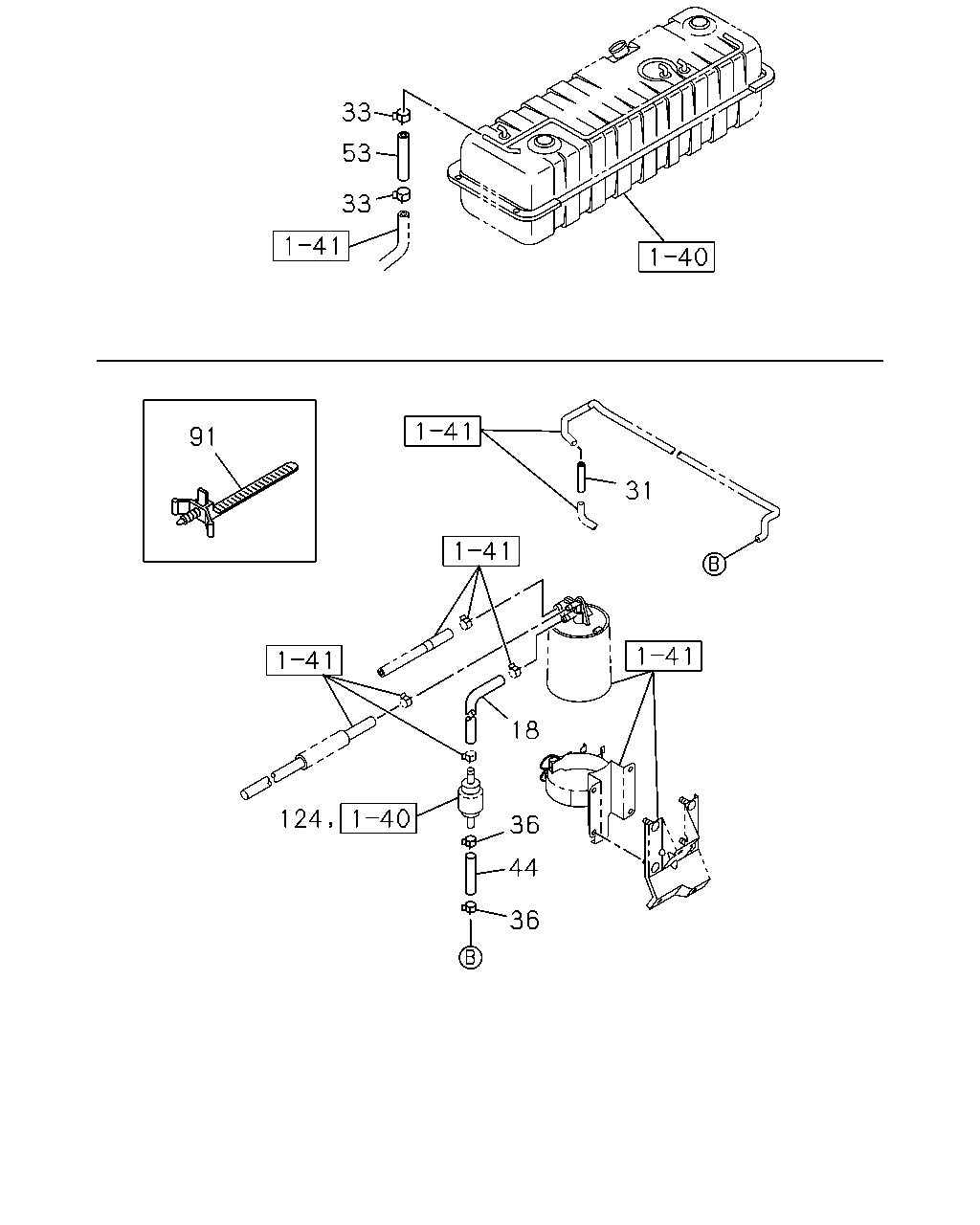

33 53 33 91 31 18 124 36 44 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E	F
18	03.163 HOSE; SEPARATOR AUSTRALIAN EQUIPMENT(RR3)	8-97181-422-0	01	1	9804-				●
31	03.163 HOSE; EVAP,PIPE AUSTRALIAN EQUIPMENT(RR3) 08.962 L=520 SERVICED BY L=3000	0-04750-300-0	01	1	9804-				●
33	03.162 CLIP; EVAP HOSE AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	04	1	0212-			●
33	03.162 CLIP; EVAP HOSE AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	9804-0211			●	●
33	03.162 CLIP; EVAP HOSE AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	0212-				●
36	03.162 CLIP; HOSE,CANISTER AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	9804-0211			●	●
36	03.162 CLIP; HOSE,CANISTER AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	02	1	0212-				●
44	03.163 HOSE; CANISTER AUSTRALIAN EQUIPMENT(RR3) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	9804-0212			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT CREW CAB(TF*W) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=330 SERVICED BY L=3000	0-04750-300-0	01	1	0301-				●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	9804-0212			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) AUSTRALIAN EQUIPMENT(RR3) 08.962 L=220 SERVICED BY L=3000	0-04750-300-0	01	1	0301-				●
91	03.162 CLIP; HOSE AUSTRALIAN EQUIPMENT(RR3) 02.559 L=135	8-94473-399-0	01	1	9804-				●
124	03.164 VALVE; 2 WAY,EVAP AUSTRALIAN EQUIPMENT(RR3) 03.162	8-97076-391-0	01	1	0212-				●
124	03.164 VALVE; 2 WAY,EVAP UNITED KINGDOM EQUIPMENT(EK3) 03.162	8-97178-373-0	01	1	0212-	●	●
124	03.164 VALVE; 2 WAY,EVAP AUSTRALIAN EQUIPMENT(RR3) 03.162	8-97178-373-0	01	1	0212-			●
