Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

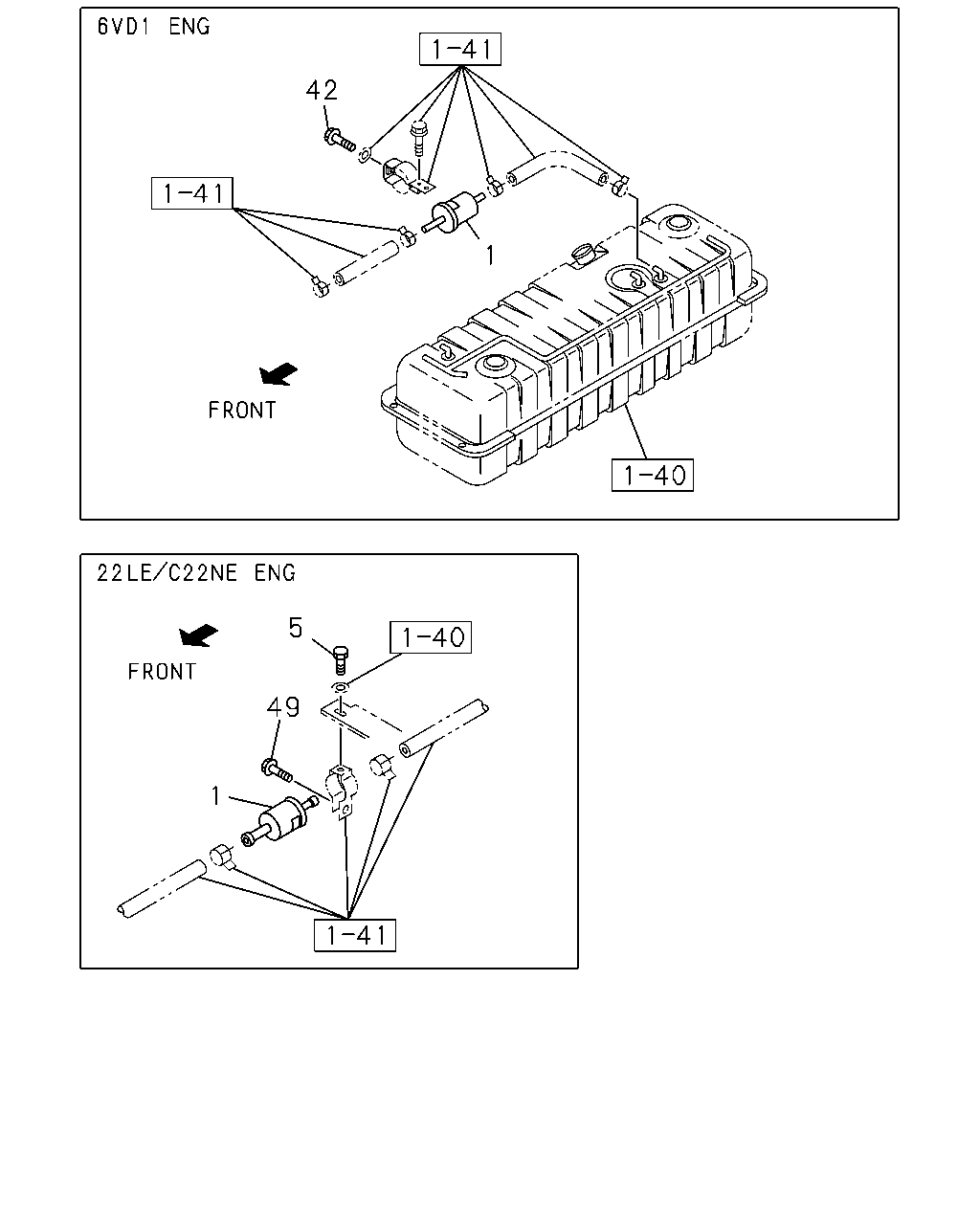

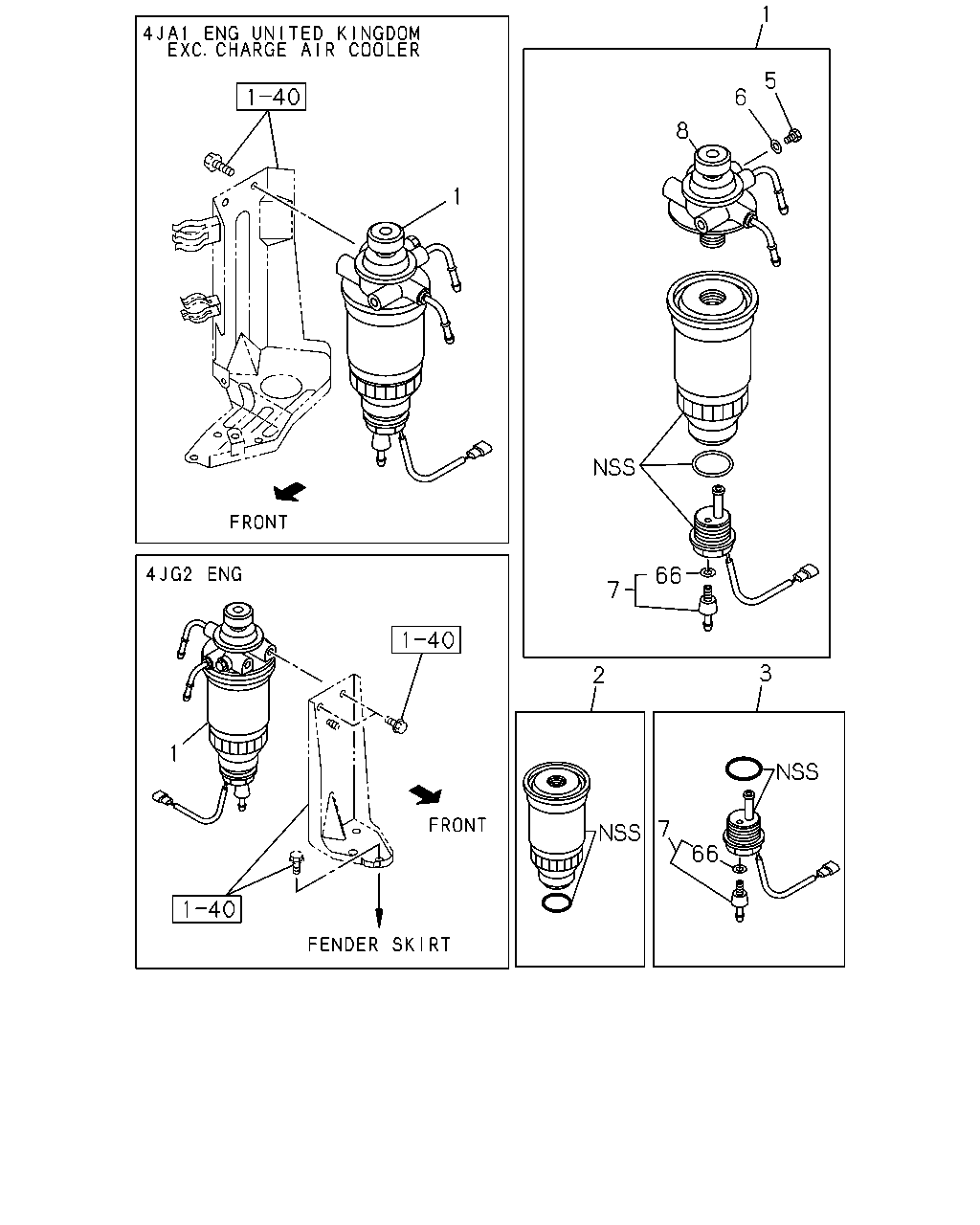

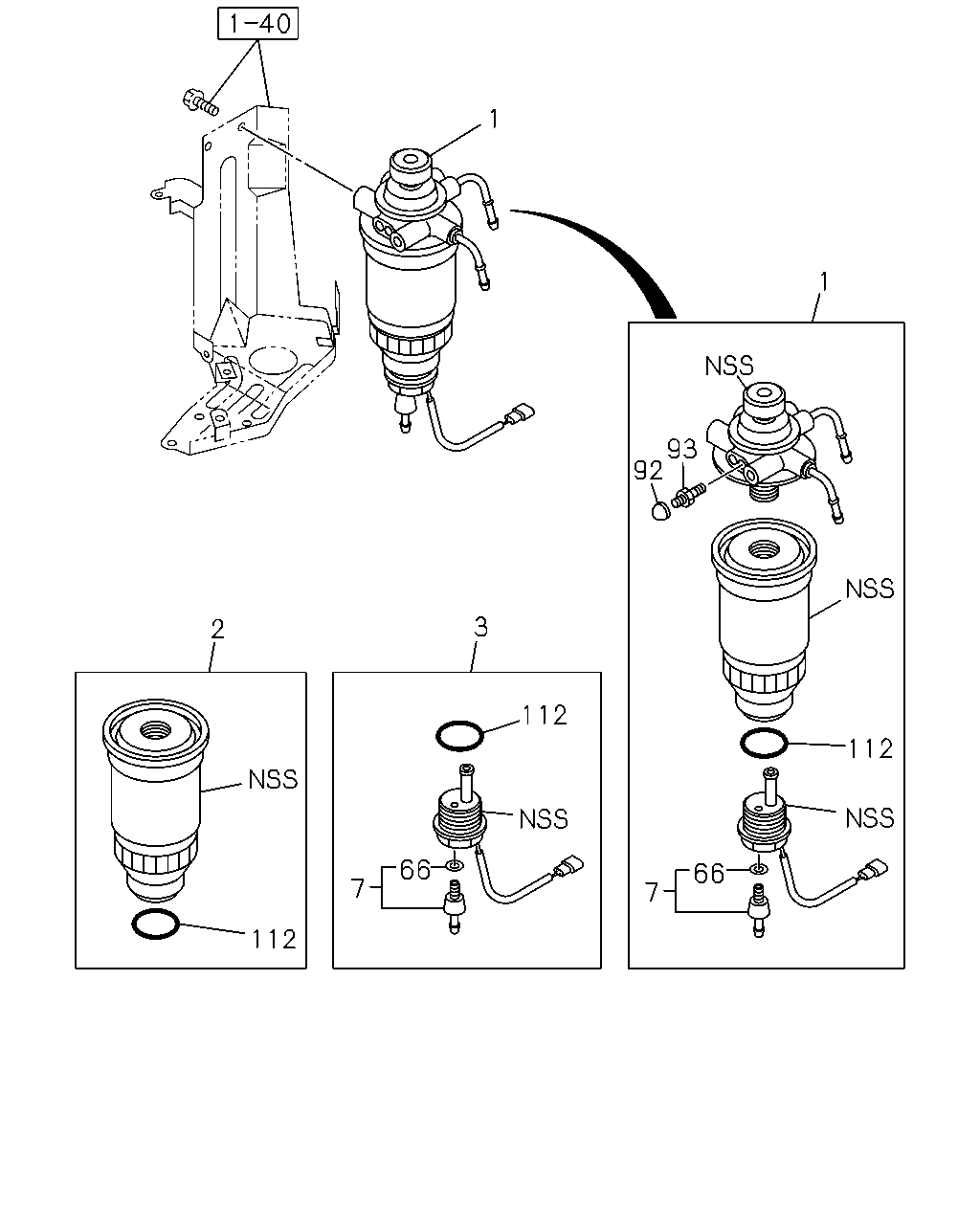

0-41 — FUEL FILTER AND BRACKET (#38428) — 132 parça

1 8 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9804-9909	●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9910-0109	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	9910-0109		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-184-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	0110-		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-325-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-201-0	01	1	9804-	●
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9804-			●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9804-				●	●
1	03.890 FILTER ASM; FUEL	8-97304-187-0	01	1	0110-						●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9804-9909	●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9910-	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94369-299-3	01	1	9910-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.836	8-94144-613-0	01	1	9804-	●
2	03.890 ELEMENT KIT; FUEL FILTER 01.836	8-94144-613-0	01	1	9804-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94448-984-1	01	1	0110-						●
8	03.890 COVER; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94450-135-2	01	1	9804-9909	●
8	03.890 COVER; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94450-135-2	01	1	9910-0109	●
8	03.890 COVER; FUEL FILTER	8-94450-135-2	01	1	9910-0109		●
8	03.890 COVER; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94450-135-2	01	1	0110-	●
8	03.890 COVER; FUEL FILTER	8-94450-135-2	01	1	0110-		●
8	03.890 COVER; FUEL FILTER	8-97319-442-0	01	1	0110-						●

1 1 93 92 3 2 112 112 66 66 7 7 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9804-9909	●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9910-0109	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	9910-0109		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-184-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	0110-		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-325-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-201-0	01	1	9804-	●
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9804-			●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9804-				●	●
1	03.890 FILTER ASM; FUEL	8-97304-187-0	01	1	0110-						●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9804-9909	●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9910-	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94369-299-3	01	1	9910-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.836	8-94144-613-0	01	1	9804-	●
2	03.890 ELEMENT KIT; FUEL FILTER 01.836	8-94144-613-0	01	1	9804-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94448-984-1	01	1	0110-						●
3	03.890 SENSOR ASM; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97064-712-1	01	1	9804-9909	●
3	03.890 SENSOR ASM; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97064-712-1	01	1	9910-	●
3	03.890 SENSOR ASM; FUEL FILTER	8-97064-712-1	01	1	9910-		●
7	03.890 PLUG; SENSOR,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97123-549-0	01	1	9804-9909	●
7	03.890 PLUG; SENSOR,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97123-549-0	01	1	9910-	●
7	03.890 PLUG; SENSOR,FUEL FILTER	8-97123-549-0	01	1	9910-		●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) 01.844 ID=6.8	8-94167-886-0	01	1	9804-9909	●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) 01.844 ID=6.8	8-94167-886-0	01	1	9910-0109	●
66	03.890 GASKET; PLUG,FUEL FILTER 01.844 ID=6.8	8-94167-886-0	01	1	9910-0109		●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.844 ID=6.8	8-94167-886-0	01	1	0110-	●
66	03.890 GASKET; PLUG,FUEL FILTER 01.844 ID=6.8	8-94167-886-0	01	1	0110-		●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0110-	●
92	03.417 CAP; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97172-548-0	01	1	0110-	●
93	03.890 CONNECTOR; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97172-546-1	01	1	0110-	●
112	06.605 GASKET; SENSOR TO CASE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	0110-	●

1 5 6 8 1 66 7 3 2 1 7 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9804-9909	●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9910-0109	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	9910-0109		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-184-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	0110-		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-325-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-201-0	01	1	9804-	●
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9804-			●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9804-				●	●
1	03.890 FILTER ASM; FUEL	8-97304-187-0	01	1	0110-						●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9804-9909	●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9910-	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94369-299-3	01	1	9910-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.836	8-94144-613-0	01	1	9804-	●
2	03.890 ELEMENT KIT; FUEL FILTER 01.836	8-94144-613-0	01	1	9804-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94448-984-1	01	1	0110-						●
3	03.890 SENSOR ASM; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97064-712-1	01	1	9804-9909	●
3	03.890 SENSOR ASM; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97064-712-1	01	1	9910-	●
3	03.890 SENSOR ASM; FUEL FILTER	8-97064-712-1	01	1	9910-		●
5	03.890 BOLT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94132-674-0	01	1	9804-9909	●
5	03.890 BOLT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94132-674-0	01	1	9910-0109	●
5	03.890 BOLT; FUEL FILTER	8-94132-674-0	01	1	9910-0109		●
5	03.890 BOLT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0110-	●
5	03.890 BOLT; FUEL FILTER	8-94132-674-0	01	1	0110-		●
5	03.890 BOLT; FUEL FILTER 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9804-				●
6	03.890 GASKET; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94132-675-0	01	1	9804-9909	●
6	03.890 GASKET; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94132-675-0	01	1	9910-0109	●
6	03.890 GASKET; FUEL FILTER	8-94132-675-0	01	1	9910-0109		●
6	03.890 GASKET; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0110-	●
6	03.890 GASKET; FUEL FILTER	8-94132-675-0	01	1	0110-		●
7	03.890 PLUG; SENSOR,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97123-549-0	01	1	9804-9909	●
7	03.890 PLUG; SENSOR,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-97123-549-0	01	1	9910-	●
7	03.890 PLUG; SENSOR,FUEL FILTER	8-97123-549-0	01	1	9910-		●
8	03.890 COVER; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94450-135-2	01	1	9804-9909	●
8	03.890 COVER; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94450-135-2	01	1	9910-0109	●
8	03.890 COVER; FUEL FILTER	8-94450-135-2	01	1	9910-0109		●
8	03.890 COVER; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94450-135-2	01	1	0110-	●
8	03.890 COVER; FUEL FILTER	8-94450-135-2	01	1	0110-		●
8	03.890 COVER; FUEL FILTER	8-97319-442-0	01	1	0110-						●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) 01.844 ID=6.8	8-94167-886-0	01	1	9804-9909	●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) 01.844 ID=6.8	8-94167-886-0	01	1	9910-0109	●
66	03.890 GASKET; PLUG,FUEL FILTER 01.844 ID=6.8	8-94167-886-0	01	1	9910-0109		●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.844 ID=6.8	8-94167-886-0	01	1	0110-	●
66	03.890 GASKET; PLUG,FUEL FILTER 01.844 ID=6.8	8-94167-886-0	01	1	0110-		●
66	03.890 GASKET; PLUG,FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0110-	●

1 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9804-9909	●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9910-0109	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	9910-0109		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-184-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	0110-		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-325-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-201-0	01	1	9804-	●
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9804-			●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9804-				●	●
1	03.890 FILTER ASM; FUEL	8-97304-187-0	01	1	0110-						●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9804-9909	●
2	03.890 ELEMENT KIT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94369-299-3	01	1	9910-	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94369-299-3	01	1	9910-		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.836	8-94144-613-0	01	1	9804-	●
2	03.890 ELEMENT KIT; FUEL FILTER 01.836	8-94144-613-0	01	1	9804-			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94448-984-1	01	1	0110-						●

42 1 5 49 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9804-9909	●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3)	8-97038-184-1	01	1	9910-0109	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	9910-0109		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-184-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL	8-97038-184-1	01	1	0110-		●
1	03.890 FILTER ASM; FUEL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-325-1	01	1	0110-	●
1	03.890 FILTER ASM; FUEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94420-201-0	01	1	9804-	●
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9804-			●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9804-				●	●
1	03.890 FILTER ASM; FUEL	8-97304-187-0	01	1	0110-						●
5	03.890 BOLT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94132-674-0	01	1	9804-9909	●
5	03.890 BOLT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3)	8-94132-674-0	01	1	9910-0109	●
5	03.890 BOLT; FUEL FILTER	8-94132-674-0	01	1	9910-0109		●
5	03.890 BOLT; FUEL FILTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0110-	●
5	03.890 BOLT; FUEL FILTER	8-94132-674-0	01	1	0110-		●
5	03.890 BOLT; FUEL FILTER 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9804-				●
42	03.890 BOLT; FUEL FILTER 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9804-					●
49	03.890 BOLT; CLIP 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9804-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
