◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#38424) — 33 parça

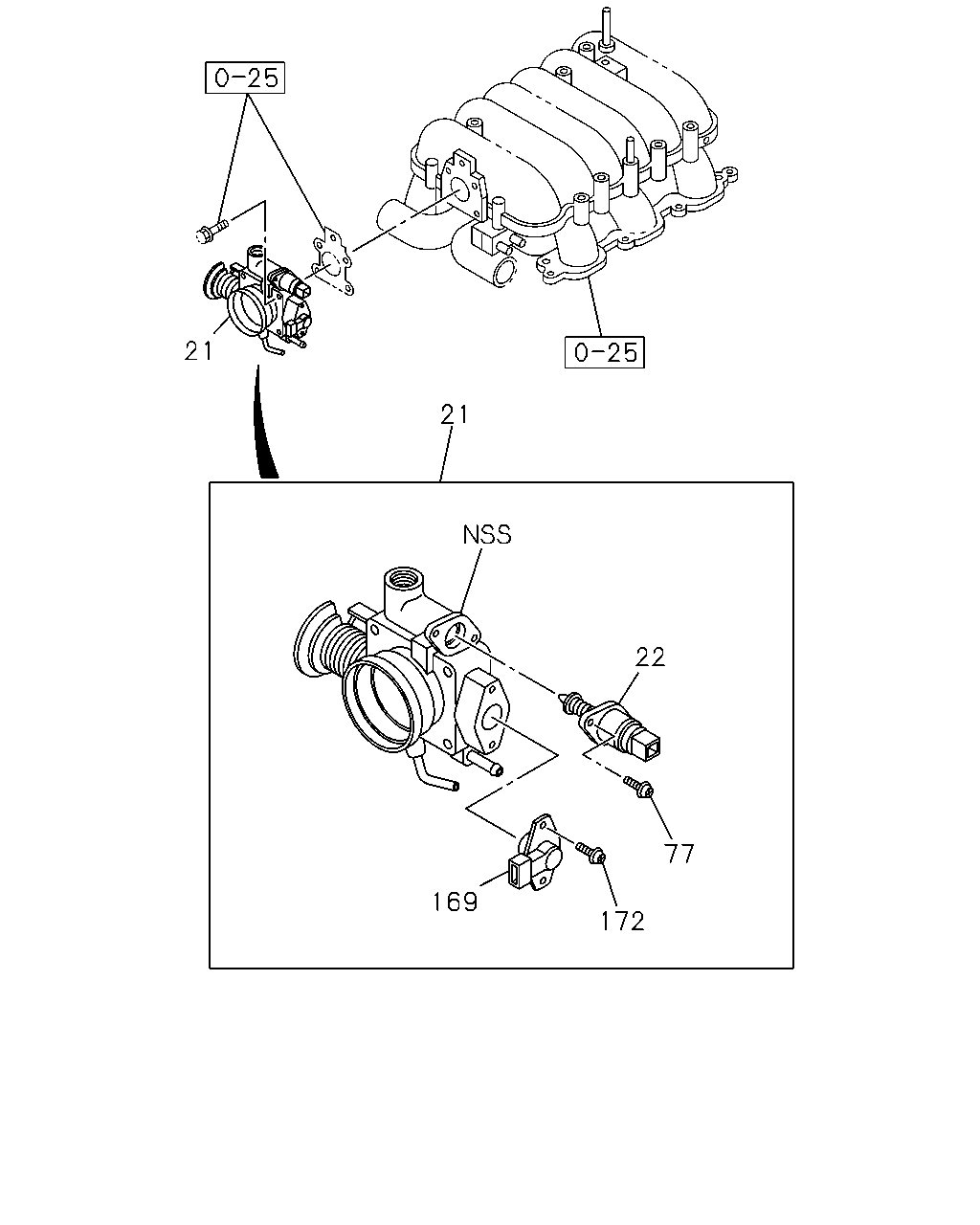

çizim 18628
21 21 22 77 169 172
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97312-912-2 01 1 0110- ●
21 03.440 VALVE ASM; THROTTLE
A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) 		8-97182-829-1 01 1 9804- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) 		8-97180-040-0 01 1 9804- ●
21 03.440 VALVE ASM; THROTTLE 8-92063-669-0 01 1 9804- ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 9804- ●
22 03.440 VALVE ASM; CONT,TB 8-92061-898-0 01 1 9804- ●
77 03.440 SCREW; TB 8-97181-716-0 02 1 9804- ●
169 03.440 SENSOR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 		8-97163-164-0 01 1 0110- ●
169 03.440 SENSOR 8-97181-717-0 01 1 9804- ●
169 03.440 SENSOR 8-17106-681-0 01 1 9804- ●
172 03.440 SCREW; SENSOR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97288-945-0 02 1 0110- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 9804- ●

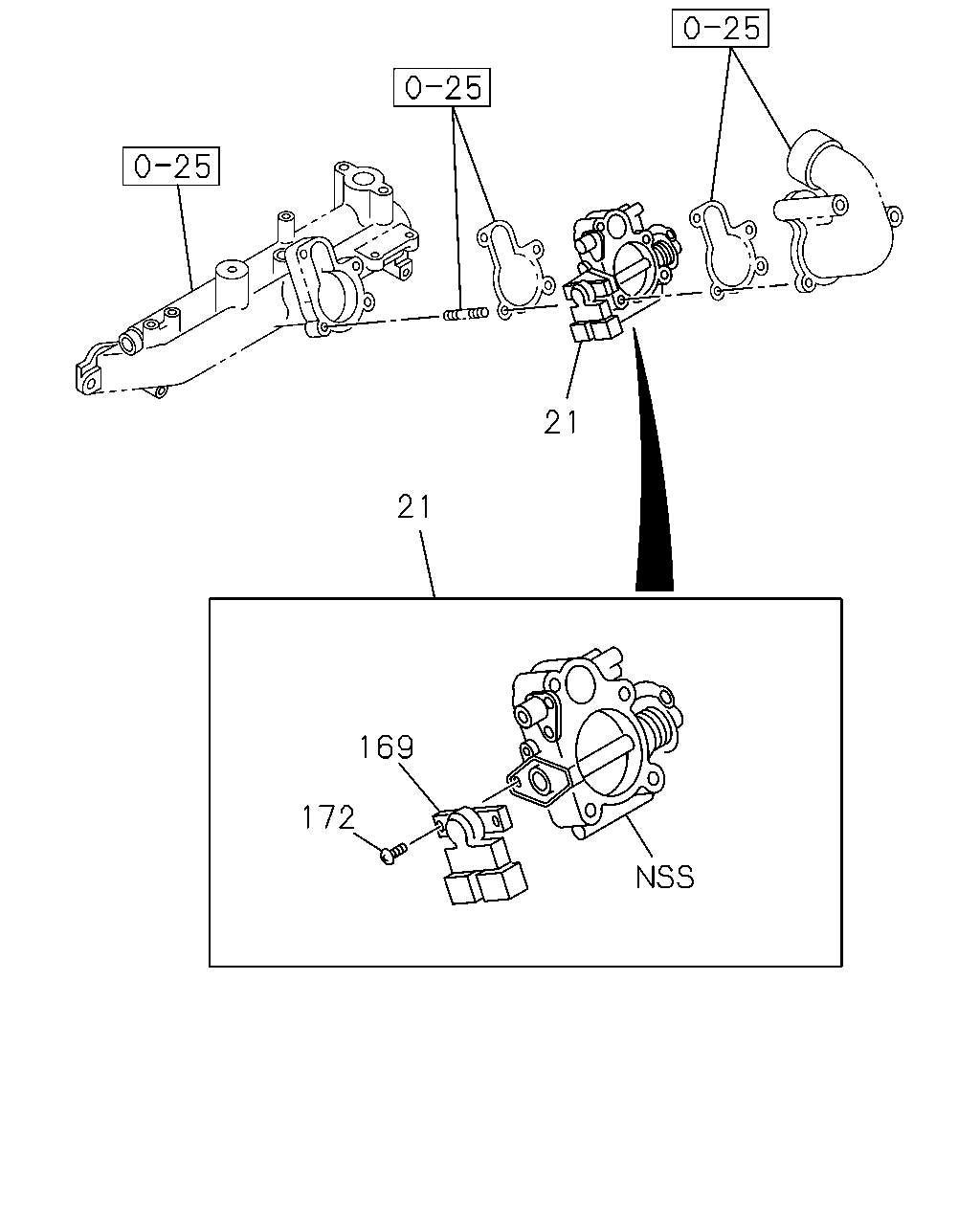

çizim 20950
21 21 169 172
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97312-912-2 01 1 0110- ●
21 03.440 VALVE ASM; THROTTLE
A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) 		8-97182-829-1 01 1 9804- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) 		8-97180-040-0 01 1 9804- ●
21 03.440 VALVE ASM; THROTTLE 8-92063-669-0 01 1 9804- ●
169 03.440 SENSOR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 		8-97163-164-0 01 1 0110- ●
169 03.440 SENSOR 8-97181-717-0 01 1 9804- ●
169 03.440 SENSOR 8-17106-681-0 01 1 9804- ●
172 03.440 SCREW; SENSOR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97288-945-0 02 1 0110- ●
172 03.440 SCREW; SENSOR 8-97181-715-0 02 1 9804- ●

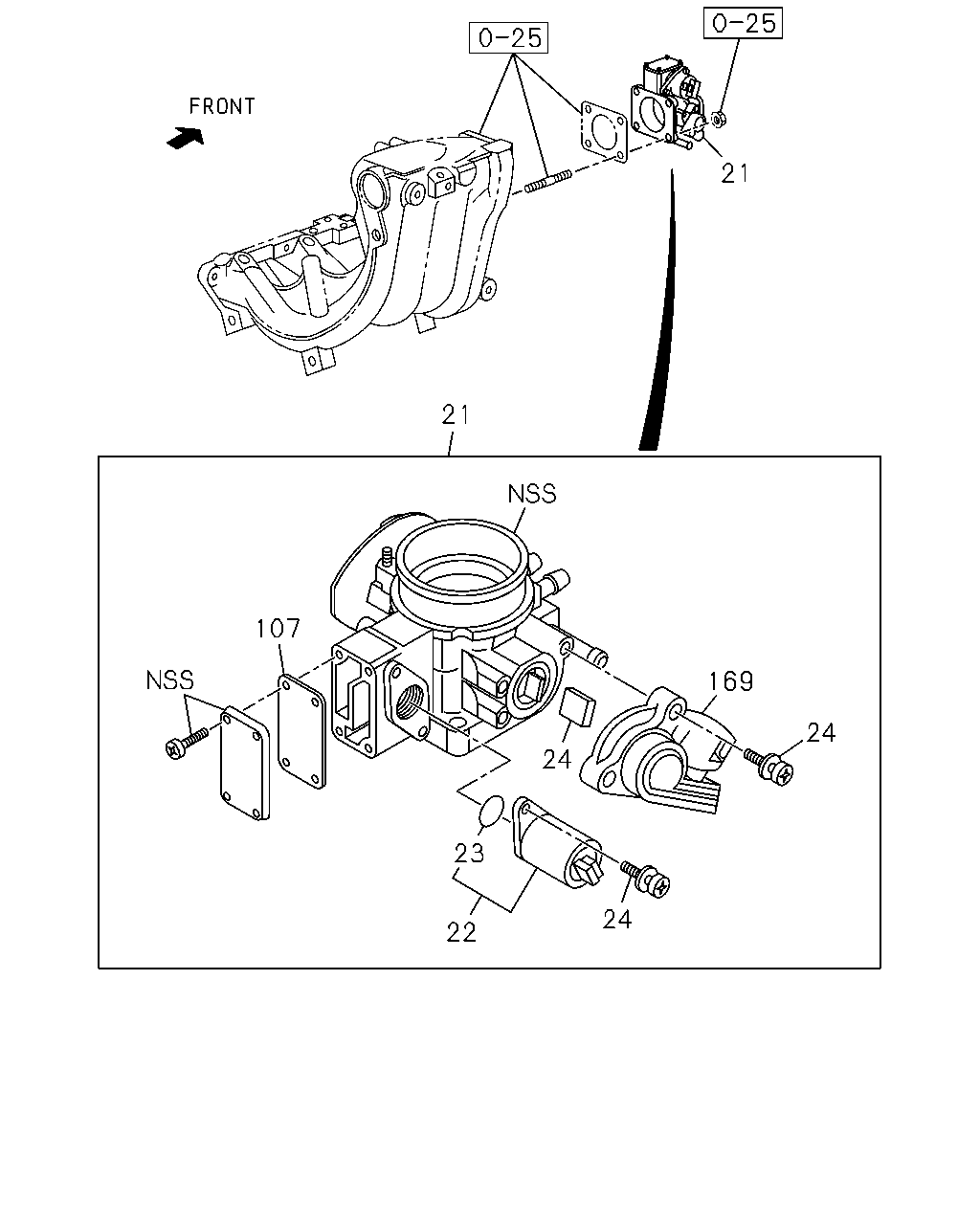

çizim 74194
21 21 107 169 24 24 23 24 22
BalonParca AdiParca NoAdetTipApplied Date A B C
21 03.440 VALVE ASM; THROTTLE
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97312-912-2 01 1 0110- ●
21 03.440 VALVE ASM; THROTTLE
A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) 		8-97182-829-1 01 1 9804- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN) AUSTRALIAN EQUIPMENT(RR3) 		8-97180-040-0 01 1 9804- ●
21 03.440 VALVE ASM; THROTTLE 8-92063-669-0 01 1 9804- ●
22 03.440 VALVE ASM; CONT,TB 8-97181-718-0 01 1 9804- ●
22 03.440 VALVE ASM; CONT,TB 8-92061-898-0 01 1 9804- ●
23 03.440 GASKET; AIR CONT VLV 8-17082-049-0 01 1 9804- ●
24 03.440 SCREW SET; TB 8-92140-474-0 01 1 9804- ●
107 03.440 GASKET; COVER TO THROTTLE BODY 8-97208-387-0 01 1 9804- ●
169 03.440 SENSOR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.425 		8-97163-164-0 01 1 0110- ●
169 03.440 SENSOR 8-97181-717-0 01 1 9804- ●
169 03.440 SENSOR 8-17106-681-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
