◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33 - FAN AND FAN BELT ▶

0-33 — FAN AND FAN BELT (#38423) — 157 parça

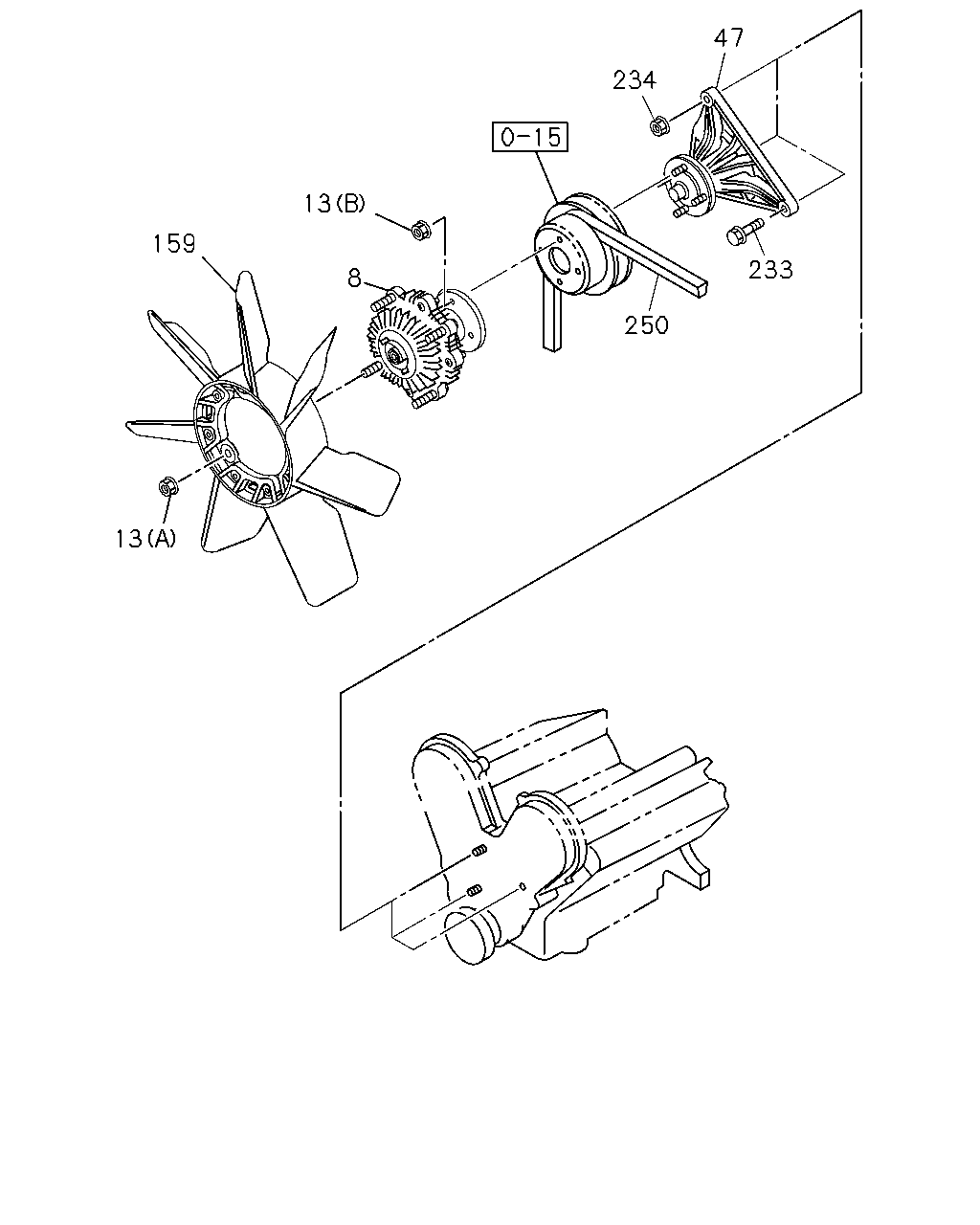

47 234 13 159 233 8 250 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9804-0109	●
8	01.064 CLUTCH; COOLING FAN EXC. CHARGE AIR COOLER<6PL>	8-94311-257-0	01	1	0110-	●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9804-0207		●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-94244-409-0	01	1	0208-	●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	0208-		●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9804-			●
8	01.064 CLUTCH; COOLING FAN 01.066	8-94412-030-0	01	1	9804-				●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	9910-0109					●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-97069-783-0	01	1	0110-0207	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0110-0207					●	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0208-					●	●
13	01.062 NUT; COOLING FAN 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	9804-			●
13	01.062 NUT; COOLING FAN 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	9804-			●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9910-0109					●
13	01.062 NUT; COOLING FAN CHARGE AIR COOLER<6PL> 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	0110-0207	●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	0110-0207					●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0208-					●	●
47	01.060 BRACKET; FAN	8-97148-675-1	01	1	9804-9906			●
47	01.060 BRACKET; FAN	8-97231-718-0	01	1	9907-			●
47	01.060 BRACKET; FAN	8-92064-194-0	01	1	9804-				●
159	01.064 BLADE; COOLING FAN	8-97130-757-1	01	1	9804-			●
233	01.060 BOLT; FAN BRKT M8X98 FLANGE	8-97182-861-0	02	1	9804-			●
233	01.060 BOLT; FAN BRKT	8-11082-931-0	03	1	9804-				●
234	01.060 NUT; FAN BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9804-			●
250	01.066 BELT; SERPENTINE DRIVE AIR CONDITIONER MANUAL CONT(C60) L=2288	8-97130-560-0	01	1	9804-9911			●
250	01.066 BELT; SERPENTINE DRIVE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=2288	8-97130-560-0	01	1	9912-			●
250	01.066 BELT; SERPENTINE DRIVE EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038	8-97130-561-0	01	1	9804-9911			●
250	01.066 BELT; SERPENTINE DRIVE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) L=2038	8-97130-561-0	01	1	9912-			●

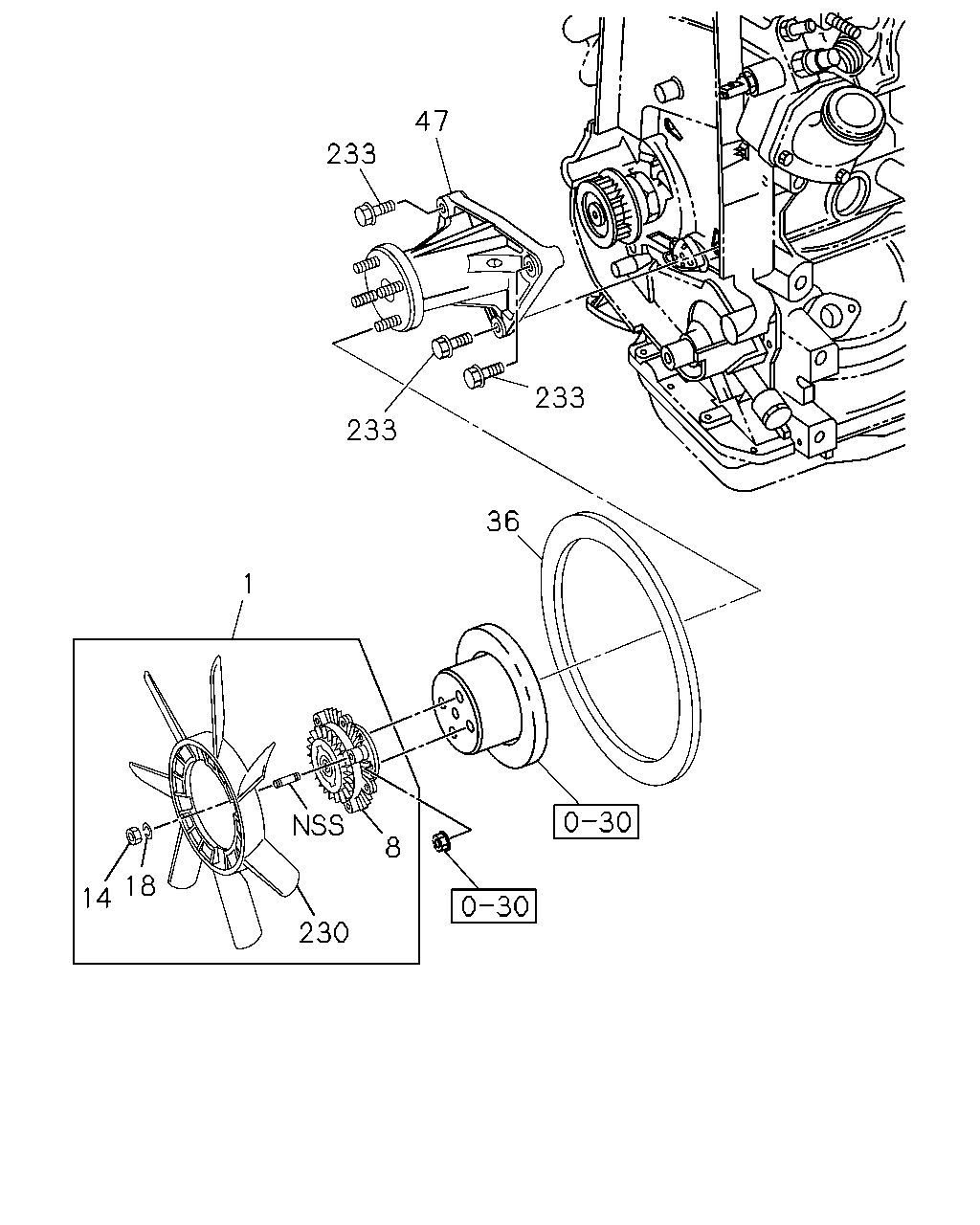

47 233 233 233 36 1 8 18 14 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.064 FAN; COOLING OD=390	8-94175-331-0	01	1	9804-0109	●
1	01.064 FAN; COOLING EXC. CHARGE AIR COOLER<6PL> OD=390	8-94175-331-0	01	1	0110-	●
1	01.064 FAN; COOLING OD=410	8-94103-469-0	01	1	9804-0207		●
1	01.064 FAN; COOLING CHARGE AIR COOLER<6PL> OD=410	8-94103-469-0	01	1	0208-	●
1	01.064 FAN; COOLING OD=410	8-94103-469-0	01	1	0208-		●
1	01.064 FAN; COOLING OD=410	8-94454-187-0	01	1	9804-				●
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9804-0109	●
8	01.064 CLUTCH; COOLING FAN EXC. CHARGE AIR COOLER<6PL>	8-94311-257-0	01	1	0110-	●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9804-0207		●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-94244-409-0	01	1	0208-	●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	0208-		●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9804-			●
8	01.064 CLUTCH; COOLING FAN 01.066	8-94412-030-0	01	1	9804-				●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	9910-0109					●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-97069-783-0	01	1	0110-0207	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0110-0207					●	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0208-					●	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9804-0207		●		●
14	01.062 NUT; FAN TO CLU CHARGE AIR COOLER<6PL> 00.413 M6	9-09110-506-0	04	1	0208-	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	0208-		●		●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9804-0207		●		●
18	01.062 WASHER; FAN TO CLU CHARGE AIR COOLER<6PL> 00.206 ID=6.1	9-09150-506-0	04	1	0208-	●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	0208-		●		●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	0208-0208	●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	9804-0207	●	●
36	01.066 BELT; COOLING FAN EXC. CHARGE AIR COOLER<6PL> L=1051	8-94161-841-0	01	1	0208-	●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	0208-		●
36	01.066 BELT; COOLING FAN L=1059	8-92063-694-0	01	1	9804-				●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9910-0109					●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	0110-0206					●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-0207					●	●
36	01.066 BELT; COOLING FAN CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0208-0211	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0208-0211					●	●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0212-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0212-					●	●
47	01.060 BRACKET; FAN	8-97148-675-1	01	1	9804-9906			●
47	01.060 BRACKET; FAN	8-97231-718-0	01	1	9907-			●
47	01.060 BRACKET; FAN	8-92064-194-0	01	1	9804-				●
230	01.055 FAN; COOLING 01.604	8-94311-258-0	01	1	9804-0109	●
230	01.055 FAN; COOLING EXC. CHARGE AIR COOLER<6PL> 01.604	8-94311-258-0	01	1	0110-	●
230	01.055 FAN; COOLING 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9804-0207		●
230	01.055 FAN; COOLING CHARGE AIR COOLER<6PL> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	0208-	●
230	01.055 FAN; COOLING 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	0208-		●
230	01.055 FAN; COOLING 01.604	8-94310-517-0	01	1	9804-				●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	9910-0109					●
230	01.055 FAN; COOLING CHARGE AIR COOLER<6PL> 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0110-0207	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0110-0207					●	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0208-					●	●
233	01.060 BOLT; FAN BRKT M8X98 FLANGE	8-97182-861-0	02	1	9804-			●
233	01.060 BOLT; FAN BRKT	8-11082-931-0	03	1	9804-				●

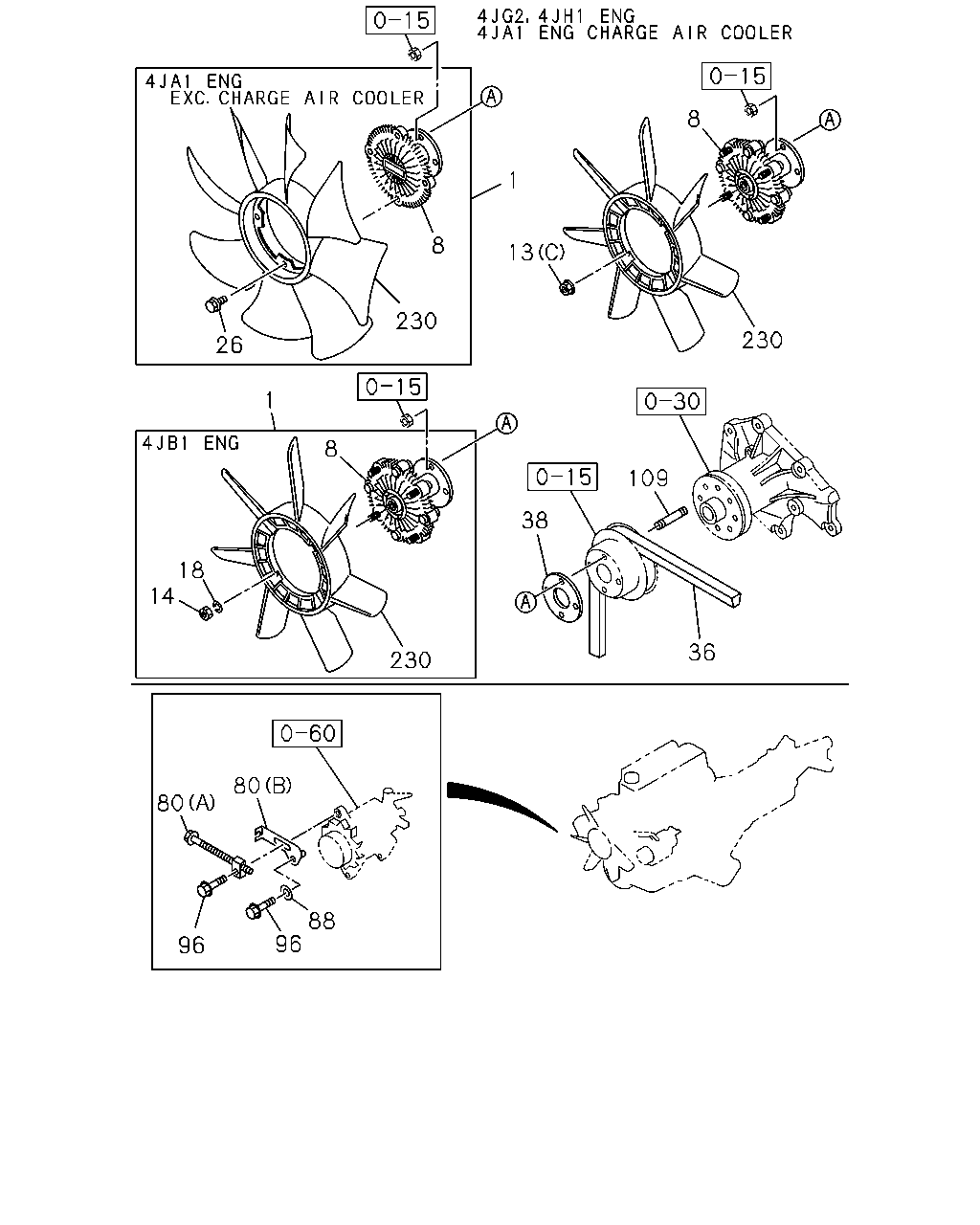

8 1 8 13 230 230 26 1 8 109 38 18 14 36 230 80 80 88 96 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.064 FAN; COOLING OD=390	8-94175-331-0	01	1	9804-0109	●
1	01.064 FAN; COOLING EXC. CHARGE AIR COOLER<6PL> OD=390	8-94175-331-0	01	1	0110-	●
1	01.064 FAN; COOLING OD=410	8-94103-469-0	01	1	9804-0207		●
1	01.064 FAN; COOLING CHARGE AIR COOLER<6PL> OD=410	8-94103-469-0	01	1	0208-	●
1	01.064 FAN; COOLING OD=410	8-94103-469-0	01	1	0208-		●
1	01.064 FAN; COOLING OD=410	8-94454-187-0	01	1	9804-				●
8	01.064 CLUTCH; COOLING FAN	8-94311-257-0	01	1	9804-0109	●
8	01.064 CLUTCH; COOLING FAN EXC. CHARGE AIR COOLER<6PL>	8-94311-257-0	01	1	0110-	●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	9804-0207		●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-94244-409-0	01	1	0208-	●
8	01.064 CLUTCH; COOLING FAN	8-94244-409-0	01	1	0208-		●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9804-			●
8	01.064 CLUTCH; COOLING FAN 01.066	8-94412-030-0	01	1	9804-				●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	9910-0109					●
8	01.064 CLUTCH; COOLING FAN CHARGE AIR COOLER<6PL>	8-97069-783-0	01	1	0110-0207	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0110-0207					●	●
8	01.064 CLUTCH; COOLING FAN	8-97069-783-0	01	1	0208-					●	●
13	01.062 NUT; COOLING FAN 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	9804-			●
13	01.062 NUT; COOLING FAN 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	9804-			●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9910-0109					●
13	01.062 NUT; COOLING FAN CHARGE AIR COOLER<6PL> 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	0110-0207	●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	0110-0207					●	●
13	01.062 NUT; COOLING FAN 07.829 M6 FLANGE	5-09440-004-0	04	1	0208-					●	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	9804-0207		●		●
14	01.062 NUT; FAN TO CLU CHARGE AIR COOLER<6PL> 00.413 M6	9-09110-506-0	04	1	0208-	●
14	01.062 NUT; FAN TO CLU 00.413 M6	9-09110-506-0	04	1	0208-		●		●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	9804-0207		●		●
18	01.062 WASHER; FAN TO CLU CHARGE AIR COOLER<6PL> 00.206 ID=6.1	9-09150-506-0	04	1	0208-	●
18	01.062 WASHER; FAN TO CLU 00.206 ID=6.1	9-09150-506-0	04	1	0208-		●		●
26	01.062 BOLT; FAN TO CLU 03.671 M6X20	0-28020-620-0	04	1	9804-0109	●
26	01.062 BOLT; FAN TO CLU EXC. CHARGE AIR COOLER<6PL> 03.671 M6X20	0-28020-620-0	04	1	0110-	●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97141-514-0	01	1	0208-0208	●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	9804-0207	●	●
36	01.066 BELT; COOLING FAN EXC. CHARGE AIR COOLER<6PL> L=1051	8-94161-841-0	01	1	0208-	●
36	01.066 BELT; COOLING FAN L=1051	8-94161-841-0	01	1	0208-		●
36	01.066 BELT; COOLING FAN L=1059	8-92063-694-0	01	1	9804-				●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	9910-0109					●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97141-514-0	01	1	0110-0206					●	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-0207					●	●
36	01.066 BELT; COOLING FAN CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0208-0211	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0208-0211					●	●
36	01.066 BELT; COOLING FAN UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0212-	●
36	01.066 BELT; COOLING FAN L=1041 MITSUBOSHI	8-97315-153-0	01	1	0212-					●	●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9804-9909	●	●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9910-0109	●	●			●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	0110-	●	●			●	●
80	02.317 PLATE; ADJ (B)	8-97132-049-0	01	1	9804-9909	●	●
80	02.317 PLATE; ADJ (B)	8-97132-049-0	01	1	9910-0109	●	●			●
80	02.317 PLATE; ADJ (B)	8-97132-049-0	01	1	0110-	●	●			●	●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97132-048-0	01	1	9804-9909	●	●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97132-048-0	01	1	9910-0109	●	●			●
80	02.317 PLATE; ADJ AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97132-048-0	01	1	0110-	●	●			●	●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9804-9909	●	●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9910-0109	●	●			●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	0110-	●	●			●	●
96	02.317 BOLT; ADJ PLATE 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0202-	●	●			●	●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-9909	●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-9909	●	●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9910-0109	●	●			●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9910-0109	●	●			●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0110-0201	●	●			●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0110-0201	●	●			●	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0202-	●	●			●	●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9804-9909	●	●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9910-0109	●	●			●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(YL1) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	0110-	●	●			●	●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9804-9909	●	●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9910-0109	●	●			●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	0110-	●	●			●	●
230	01.055 FAN; COOLING 01.604	8-94311-258-0	01	1	9804-0109	●
230	01.055 FAN; COOLING EXC. CHARGE AIR COOLER<6PL> 01.604	8-94311-258-0	01	1	0110-	●
230	01.055 FAN; COOLING 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9804-0207		●
230	01.055 FAN; COOLING CHARGE AIR COOLER<6PL> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	0208-	●
230	01.055 FAN; COOLING 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	0208-		●
230	01.055 FAN; COOLING 01.604	8-94310-517-0	01	1	9804-				●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	9910-0109					●
230	01.055 FAN; COOLING CHARGE AIR COOLER<6PL> 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0110-0207	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0110-0207					●	●
230	01.055 FAN; COOLING 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	0208-					●	●
