Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#38422) — 273 parça

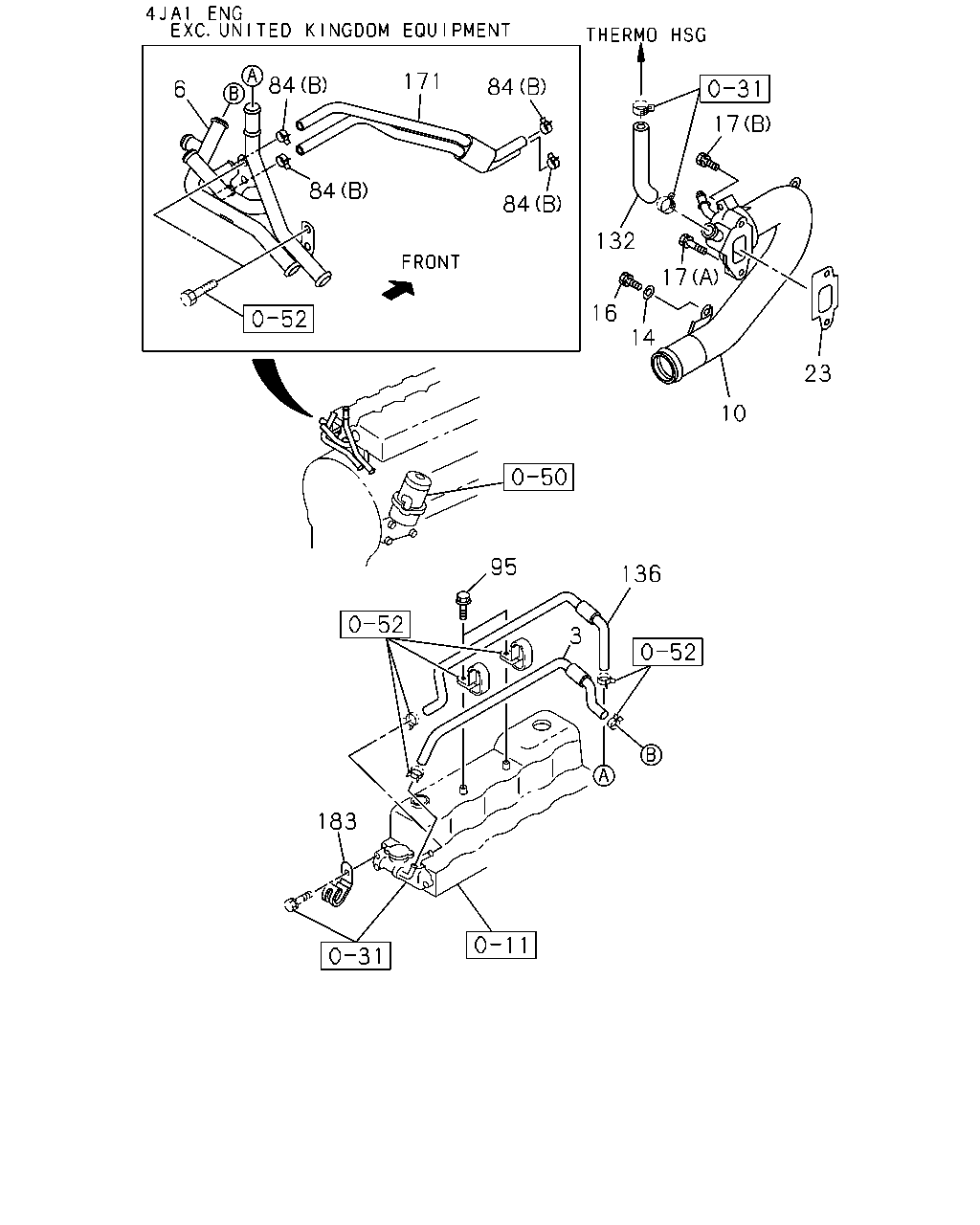

132 17 23 17 16 14 10 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3)	8-97188-176-0	01	1	9804-0012	●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3)	8-97264-246-0	01	1	0101-0109	●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97264-246-0	01	1	0110-	●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-190-1	01	1	0110-	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94340-787-3	01	1	9804-0012	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97264-244-0	01	1	0101-0205	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97264-244-0	01	1	0206-0207	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97353-467-0	01	1	0208-	●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9804-9909		●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9910-0012		●	●
10	01.153 PIPE; SUCTION	8-97264-247-0	01	1	0101-0301		●	●
10	01.153 PIPE; SUCTION	8-97264-247-0	01	1	0302-		●	●	●
10	01.153 PIPE; SUCTION	8-97041-039-4	01	1	0110-0301				●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9804-9909	●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9910-0109	●	●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	0110-	●	●	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9804-9909	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9910-0109	●	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	0110-	●	●	●	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0110-0212	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0110-0212				●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0301	●
17	01.153 BOLT; SUCTION PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0301				●
17	01.153 BOLT; SUCTION PIPE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0110-0301	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0110-0301				●
17	01.153 BOLT; SUCTION PIPE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9804-9909	●	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9910-0012	●	●	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0101-0109	●	●	●
17	01.153 BOLT; SUCTION PIPE EXC. CHARGE AIR COOLER<6PL> 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0110-0301	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0110-0301		●	●
17	01.153 BOLT; SUCTION PIPE EXC. CHARGE AIR COOLER<6PL> 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0302-	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0302-		●	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-9909	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9910-0012	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9804-9909	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9910-0109	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0110-	●	●	●	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-9909	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-9909	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9910-0109	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 01.153 (B) ID=12.8	8-94367-943-0	04	1	9910-0109	●		●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0110-	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0110-	●		●
84	01.240 CLIP; HOSE,W/CSD 02.559 (A) ID=12	5-09700-331-0	01	1	9910-0302			●
84	01.240 CLIP; HOSE,W/CSD 01.150 (A) ID=12	8-97367-983-0	01	1	0303-			●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9804-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9804-9909		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9910-0109		●	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	0110-		●	●	●

2 148 148

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	9804-					●
	148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	9804-					●

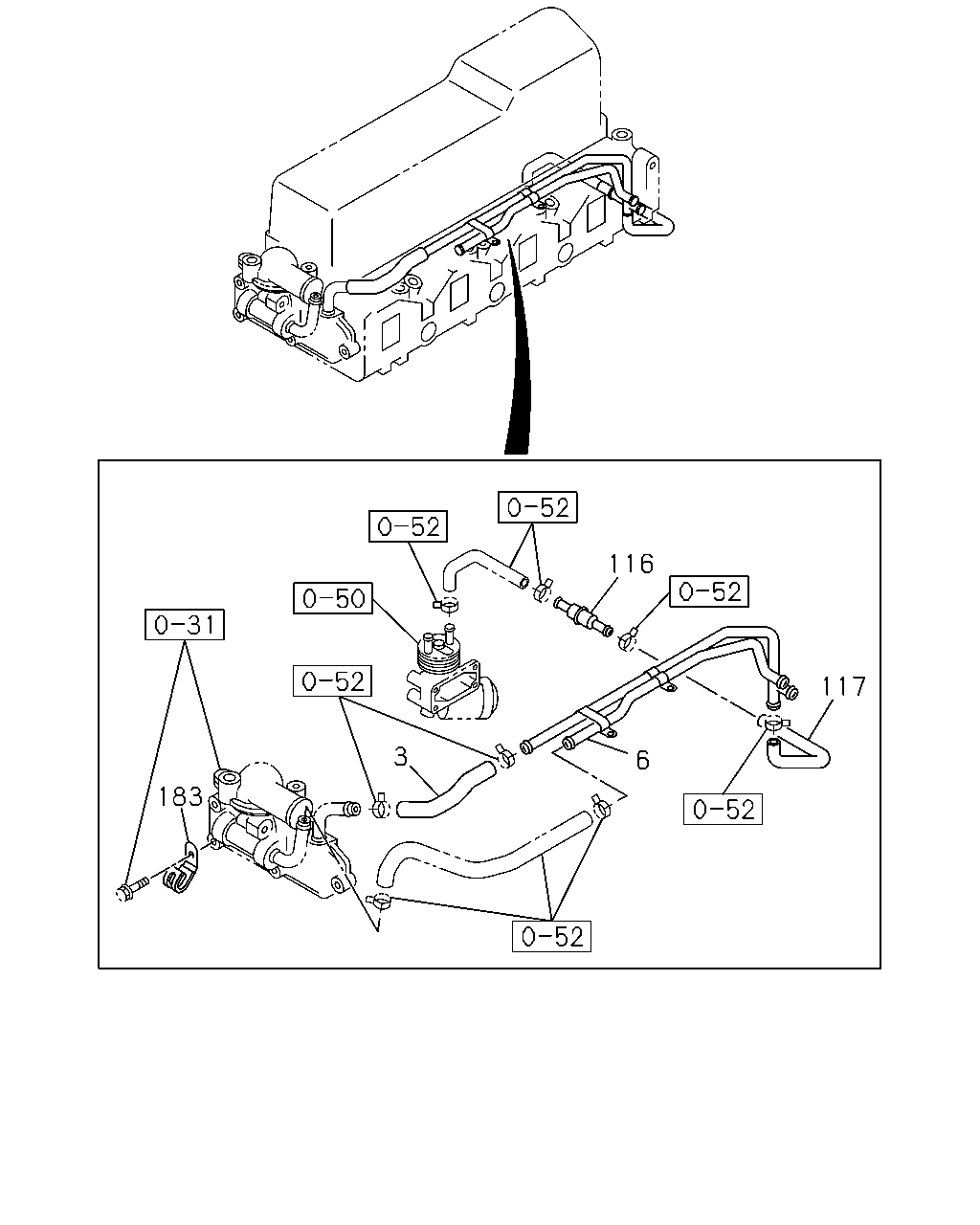

116 117 3 6 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	01.540 HOSE; WATER,OIL COOLER CHARGE AIR COOLER<6PL>	8-97256-046-0	01	1	0110-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97256-046-0	01	1	0110-				●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9804-9909	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9804-9909		●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9910-0109	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9910-0109		●	●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97043-720-1	01	1	0110-0301	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	0110-0301		●	●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97354-155-1	01	1	0302-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97354-155-1	01	1	0302-		●	●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9804-0205	●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.855	8-94475-205-1	01	1	0206-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE CHARGE AIR COOLER<6PL>	8-97256-045-0	01	1	0110-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-0	01	1	0110-				●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9804-9909	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9804-9909		●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9910-0109	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9910-0109		●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	9910-0109			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97049-193-4	01	1	0110-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	0110-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	0110-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97133-316-1	01	1	9804-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-94475-203-2	01	1	9804-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. COLD START DEVICE<7LY>	8-97116-640-0	01	1	9804-		●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	9804-9909	●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	9910-0109	●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	9910-0109			●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	0110-0202	●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	0110-0202			●	●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	0203-	●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	0203-			●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	9804-9909	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	9910-0109	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	9910-0109			●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	0110-0202	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	0110-0202			●	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	0203-	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	0203-			●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9804-9909	●	●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9910-0302	●	●	●
183	01.242 CLIP; VACUUM HOSE 01.150 ID=12	8-97367-983-0	01	1	0303-	●	●	●

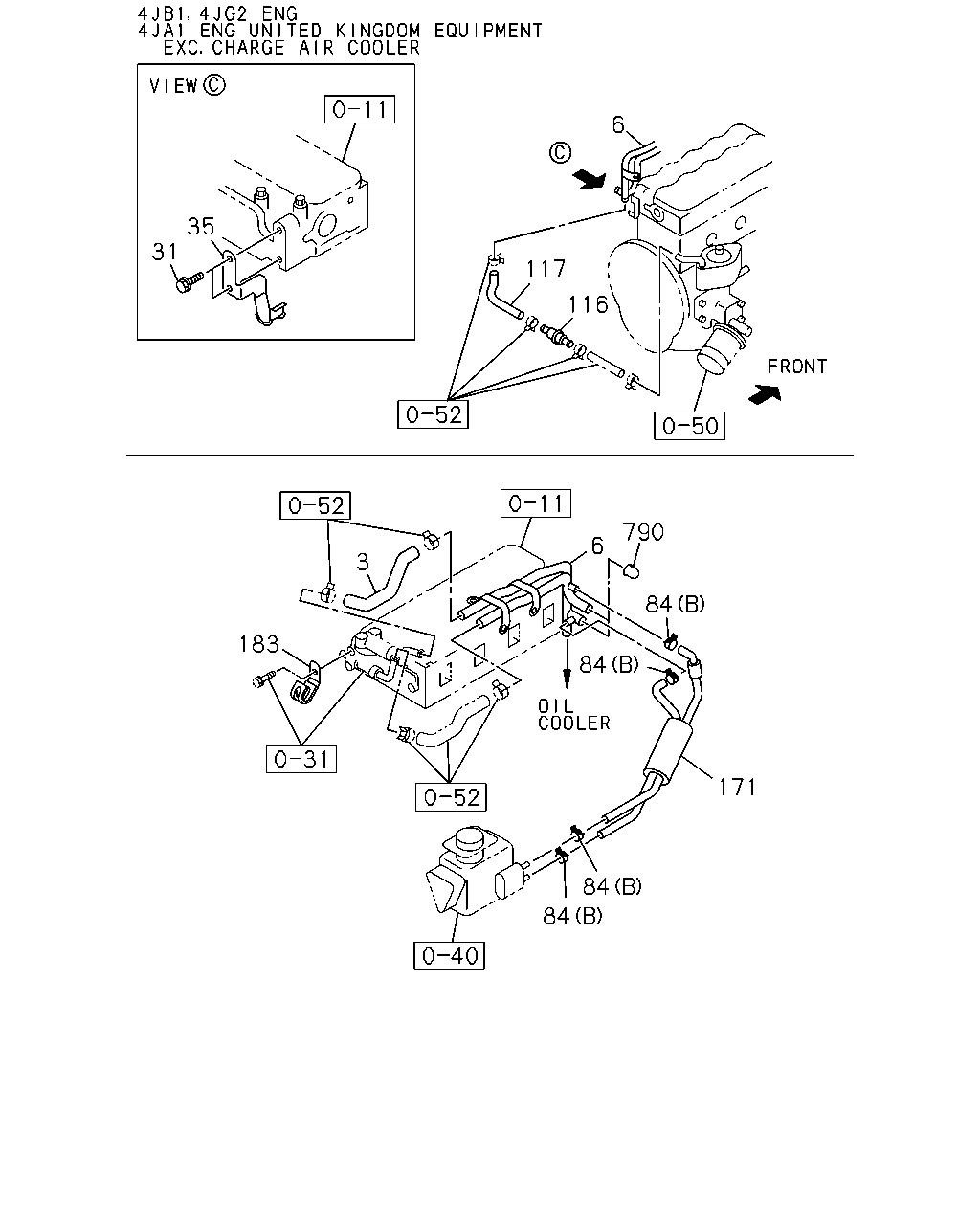

6 35 31 117 116 790 6 3 84 183 84 171 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	01.540 HOSE; WATER,OIL COOLER CHARGE AIR COOLER<6PL>	8-97256-046-0	01	1	0110-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97256-046-0	01	1	0110-				●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9804-9909	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9804-9909		●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9910-0109	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9910-0109		●	●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97043-720-1	01	1	0110-0301	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	0110-0301		●	●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97354-155-1	01	1	0302-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97354-155-1	01	1	0302-		●	●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9804-0205	●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.855	8-94475-205-1	01	1	0206-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE CHARGE AIR COOLER<6PL>	8-97256-045-0	01	1	0110-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-0	01	1	0110-				●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9804-9909	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9804-9909		●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9910-0109	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9910-0109		●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	9910-0109			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97049-193-4	01	1	0110-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	0110-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	0110-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97133-316-1	01	1	9804-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-94475-203-2	01	1	9804-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. COLD START DEVICE<7LY>	8-97116-640-0	01	1	9804-		●
31	01.159 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●
31	01.159 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●
31	01.159 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109			●
31	01.159 BOLT; CLIP UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
31	01.159 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-			●
35	01.242 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-97039-302-0	01	1	9804-9909	●
35	01.242 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-97039-302-0	01	1	9910-0109	●
35	01.242 CLIP; RUBBER HOSE 01.540	8-97039-302-0	01	1	9910-0109			●
35	01.242 CLIP; RUBBER HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540	8-97039-302-0	01	1	0110-	●
35	01.242 CLIP; RUBBER HOSE 01.540	8-97039-302-0	01	1	0110-			●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-9909	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-9909	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9910-0109	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 01.153 (B) ID=12.8	8-94367-943-0	04	1	9910-0109	●		●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0110-	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0110-	●		●
84	01.240 CLIP; HOSE,W/CSD 02.559 (A) ID=12	5-09700-331-0	01	1	9910-0302			●
84	01.240 CLIP; HOSE,W/CSD 01.150 (A) ID=12	8-97367-983-0	01	1	0303-			●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	9804-9909	●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	9910-0109	●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	9910-0109			●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	0110-0202	●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	0110-0202			●	●
116	01.540 VALVE ASM; THERMO,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	5-21770-001-2	01	1	0203-	●
116	01.540 VALVE ASM; THERMO,OIL COOLER	5-21770-001-2	01	1	0203-			●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	9804-9909	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	9910-0109	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	9910-0109			●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	0110-0202	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	0110-0202			●	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM UNITED KINGDOM EQUIPMENT(EK3)	8-97039-420-0	01	1	0203-	●
117	01.855 HOSE; RUBBER,OIL COOLER TO THERM	8-97039-420-0	01	1	0203-			●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY>	8-97133-305-0	01	1	9804-	●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9804-9909	●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9910-0109	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97048-903-3	01	1	9910-0109			●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97048-903-3	01	1	0110-	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97048-903-3	01	1	0110-			●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY>	8-97049-001-2	01	1	9804-		●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9804-9909	●	●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9910-0302	●	●	●
183	01.242 CLIP; VACUUM HOSE 01.150 ID=12	8-97367-983-0	01	1	0303-	●	●	●
790	01.097 CAP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AUSTRALIAN EQUIPMENT(RR3),COOLER WO/HEATER(YL1)	8-94414-688-0	02	1	9804-		●

171 84 84 6 17 84 84 132 17 16 14 23 10 95 136 3 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	01.540 HOSE; WATER,OIL COOLER CHARGE AIR COOLER<6PL>	8-97256-046-0	01	1	0110-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97256-046-0	01	1	0110-				●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9804-9909	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9804-9909		●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3)	8-97043-720-1	01	1	9910-0109	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9910-0109		●	●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97043-720-1	01	1	0110-0301	●
3	01.540 HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	0110-0301		●	●
3	01.540 HOSE; WATER,OIL COOLER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97354-155-1	01	1	0302-	●
3	01.540 HOSE; WATER,OIL COOLER	8-97354-155-1	01	1	0302-		●	●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.855	8-94475-205-1	01	1	9804-0205	●
3	01.540 HOSE; WATER,OIL COOLER EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.855	8-94475-205-1	01	1	0206-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE CHARGE AIR COOLER<6PL>	8-97256-045-0	01	1	0110-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97256-045-0	01	1	0110-				●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41) UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9804-9909	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9804-9909		●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3)	8-97049-193-4	01	1	9910-0109	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	9910-0109		●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	9910-0109			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97049-193-4	01	1	0110-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE COLD START DEVICE<7LY>	8-97049-193-4	01	1	0110-		●
6	09.190 CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	0110-			●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) COLD START DEVICE<7LY> EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97133-316-1	01	1	9804-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY>	8-94475-203-2	01	1	9804-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. COLD START DEVICE<7LY>	8-97116-640-0	01	1	9804-		●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3)	8-97188-176-0	01	1	9804-0012	●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3)	8-97264-246-0	01	1	0101-0109	●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97264-246-0	01	1	0110-	●
10	01.153 PIPE; SUCTION UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-190-1	01	1	0110-	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94340-787-3	01	1	9804-0012	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97264-244-0	01	1	0101-0205	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97264-244-0	01	1	0206-0207	●
10	01.153 PIPE; SUCTION EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97353-467-0	01	1	0208-	●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9804-9909		●
10	01.153 PIPE; SUCTION	8-97041-039-3	01	1	9910-0012		●	●
10	01.153 PIPE; SUCTION	8-97264-247-0	01	1	0101-0301		●	●
10	01.153 PIPE; SUCTION	8-97264-247-0	01	1	0302-		●	●	●
10	01.153 PIPE; SUCTION	8-97041-039-4	01	1	0110-0301				●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9804-9909	●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9910-0109	●	●	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	0110-	●	●	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9804-9909	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9910-0109	●	●	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	0110-	●	●	●	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0110-0212	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	0110-0212				●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0301	●
17	01.153 BOLT; SUCTION PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0301-0301				●
17	01.153 BOLT; SUCTION PIPE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-	●
17	01.153 BOLT; SUCTION PIPE CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0110-0301	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0110-0301				●
17	01.153 BOLT; SUCTION PIPE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9804-9909	●	●
17	01.153 BOLT; SUCTION PIPE 00.727 (A) M8X22 W/LK WASHER	0-50040-822-0	01	1	9910-0012	●	●	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0101-0109	●	●	●
17	01.153 BOLT; SUCTION PIPE EXC. CHARGE AIR COOLER<6PL> 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0110-0301	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0110-0301		●	●
17	01.153 BOLT; SUCTION PIPE EXC. CHARGE AIR COOLER<6PL> 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0302-	●
17	01.153 BOLT; SUCTION PIPE 01.531 (A),(B) M8X50 W/LK WASHER	0-50040-850-0	02	1	0302-		●	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9804-9909	●	●
17	01.153 BOLT; SUCTION PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9910-0012	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9804-9909	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9910-0109	●	●	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0110-	●	●	●	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) ID=15.5	8-94221-519-0	04	1	9804-9907	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-9909	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-9909	●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	9910-0109	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) 01.153 (B) ID=12.8	8-94367-943-0	04	1	9910-0109	●		●
84	01.240 CLIP; HOSE,W/CSD COLD START DEVICE<7LY> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0110-	●	●
84	01.240 CLIP; HOSE,W/CSD UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.153 (B) ID=12.8	8-94367-943-0	04	1	0110-	●		●
84	01.240 CLIP; HOSE,W/CSD 02.559 (A) ID=12	5-09700-331-0	01	1	9910-0302			●
84	01.240 CLIP; HOSE,W/CSD 01.150 (A) ID=12	8-97367-983-0	01	1	0303-			●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-0205	●
95	01.240 BOLT; CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0206-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-246-0	01	1	9804-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9804-9909		●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9910-0109		●	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	0110-		●	●	●
136	01.540 HOSE; OIL COOLER,RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94475-206-2	01	1	9804-0205	●
136	01.540 HOSE; OIL COOLER,RETURN EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94475-206-2	01	1	0206-	●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY>	8-97133-305-0	01	1	9804-	●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9804-9909	●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3)	8-97048-903-3	01	1	9910-0109	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97048-903-3	01	1	9910-0109			●
171	01.240 HOSE; RUBBER,WAX CSD UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97048-903-3	01	1	0110-	●
171	01.240 HOSE; RUBBER,WAX CSD	8-97048-903-3	01	1	0110-			●
171	01.240 HOSE; RUBBER,WAX CSD COLD START DEVICE<7LY>	8-97049-001-2	01	1	9804-		●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9804-9909	●	●
183	01.242 CLIP; VACUUM HOSE 02.559 ID=12	5-09700-331-0	01	1	9910-0302	●	●	●
183	01.242 CLIP; VACUUM HOSE 01.150 ID=12	8-97367-983-0	01	1	0303-	●	●	●

152 154 794 154 154 88 78 154 34 78 133 154 34 170 154 50 154 151 154 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
34	01.242 HOSE; RUBBER,WATER PIPE (A)	8-90234-374-0	01	1	9804-	●
34	01.242 HOSE; RUBBER,WATER PIPE (B)	8-90234-378-0	01	1	9804-	●
50	01.153 BOLT; WATER PIPE INL	8-11090-684-0	02	1	9804-	●
78	01.153 HOSE; RUBBER,HTR 03.417	8-11083-891-0	02	1	9804-	●
88	01.097 CLIP; HOSE,HTR	8-92063-869-0	01	1	9804-	●
133	03.276 HOSE; WATER,T/V	8-90264-201-0	01	1	9804-9806	●
133	03.276 HOSE; WATER,T/V	8-92064-835-0	01	1	9807-	●
138	01.251 PIPE; WATER	8-92063-462-0	01	1	9804-	●
151	01.153 HOSE; WATER OUTLET	8-92063-463-0	01	1	9804-	●
152	01.153 HOSE; WATER INL	8-92063-652-0	01	1	9804-	●
154	01.153 CLIP; WATER HOSE (A)	8-11085-952-0	04	1	9804-	●
154	01.153 CLIP; WATER HOSE (B)	8-90467-519-0	04	1	9804-	●
170	01.159 PIPE; WATER,INL	8-92063-653-0	01	1	9804-	●
794	03.276 CONNECTOR; WATER HOSE	8-90572-544-0	01	1	9804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
