0-31 — THERMOSTAT AND HOUSING (#38421) — 132 parça

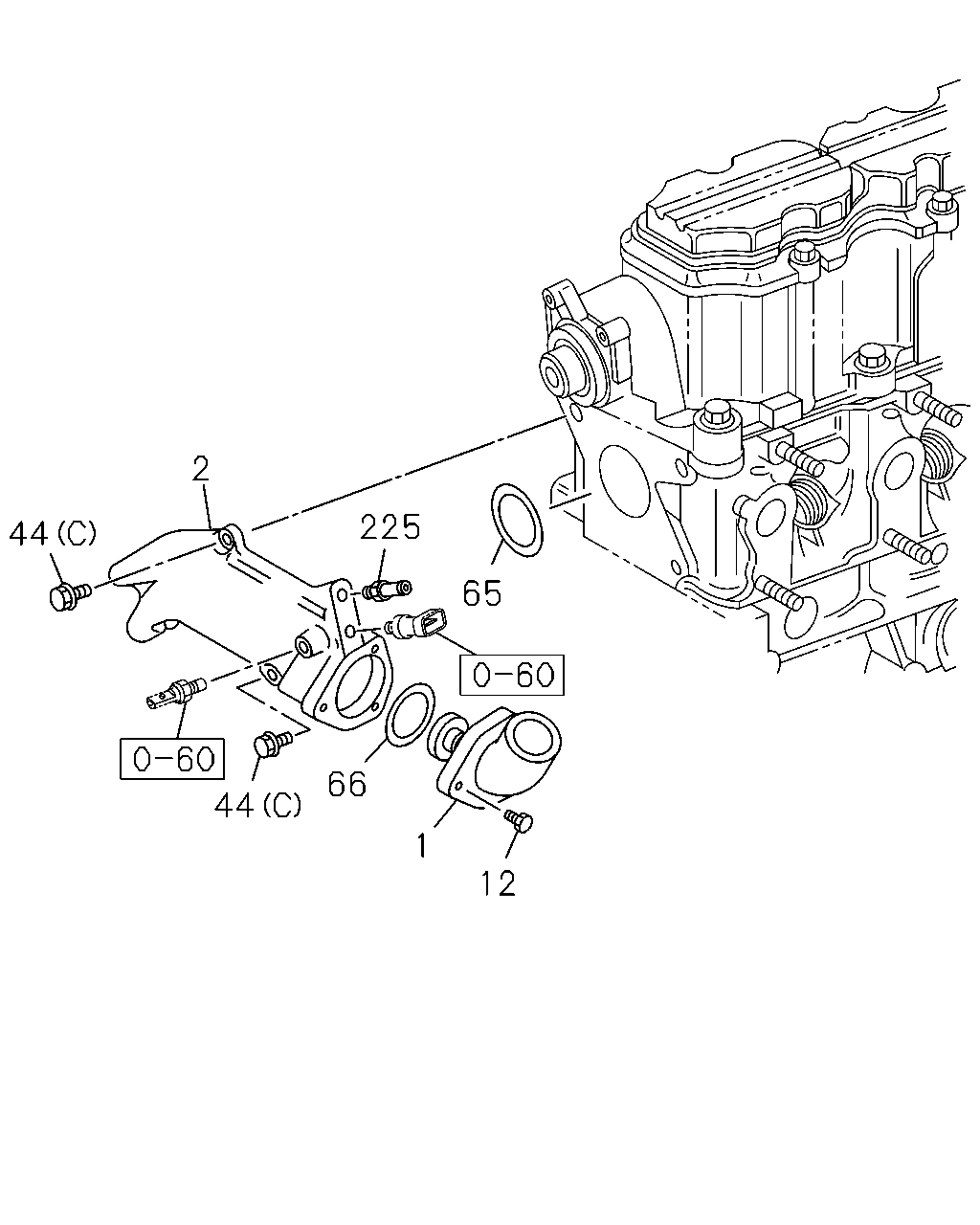

2 225 44 65 66 44 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9804-9909	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9910-0109	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0110-0301	●	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0302-	●	●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97123-161-4	01	1	9804-0301					●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0302-					●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	9804-						●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	9804-9909	●	●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	9910-0109	●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	0110-	●	●	●	●
2	01.251 HOUSING; THERMOSTAT	8-92060-793-0	01	1	9804-						●
12	01.252 BOLT; HSG	8-11013-351-0	03	1	9804-						●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	9804-9909	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	9910-0109	●	●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	05	1	0110-	●	●	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	9804-9909	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	9910-0109	●	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0110-	●	●	●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	05	1	9804-9909	●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	05	1	9910-0109	●	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0110-	●	●	●	●
44	01.252 BOLT; HSG TO HD (C)	8-11042-896-0	02	1	9804-						●
65	01.252 GASKET; HSG TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90118-437-0	01	1	9804-						●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-675-1	01	1	9804-9902	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	9903-9909	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	9910-0109	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	0110-	●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97123-162-0	01	1	9804-0301					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90220-436-0	01	1	9804-						●
225	01.153 CONNECTOR; BYPASS HSG	8-90284-423-0	01	1	9804-						●

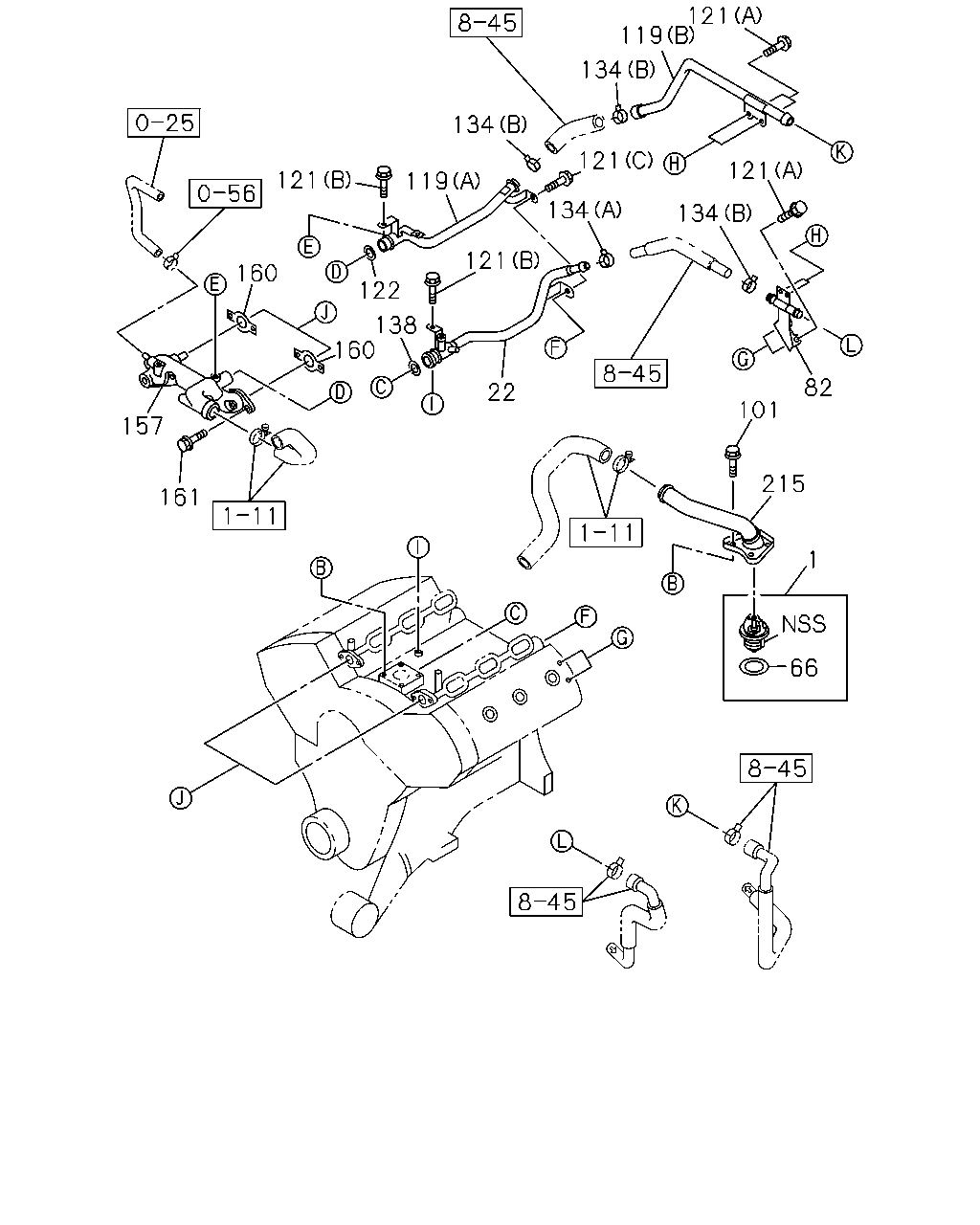

121 119 134 134 121 121 121 119 134 134 121 160 122 138 160 82 22 101 157 215 161 1 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9804-9909	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9910-0109	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0110-0301	●	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0302-	●	●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97123-161-4	01	1	9804-0301					●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0302-					●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	9804-						●
22	03.278 PIPE; HTR,RETURN	8-94478-869-1	01	1	9804-9909	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	9910-0109	●	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0110-	●	●	●	●
22	03.278 PIPE; HTR,RETURN	8-97136-134-1	01	1	9804-9907					●
22	03.278 PIPE; HTR,RETURN	8-97224-807-1	01	1	9908-					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-675-1	01	1	9804-9902	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	9903-9909	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	9910-0109	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	0110-	●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97123-162-0	01	1	9804-0301					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90220-436-0	01	1	9804-						●
82	08.845 PIPE; WATER,HTR	8-97160-601-1	01	1	9804-					●
101	01.251 BOLT; PIPE 08.900 M8X12 FLANGE	0-28080-812-0	04	1	9804-					●
119	08.846 PIPE; HTR (A)	8-97136-133-1	01	1	9804-					●
119	08.846 PIPE; HTR (B)	8-97160-600-1	01	1	9804-					●
121	08.900 BOLT; HTR PIPE 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	9804-					●
121	08.900 BOLT; HTR PIPE (B) M8X12 FLANGE	0-28080-812-0	02	1	9804-					●
121	08.900 BOLT; HTR PIPE 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	9804-					●
122	03.602 GASKET; HSG TO PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.154	9-09561-220-0	01	1	9804-					●
134	04.930 CLIP; RUBBER HOSE 01.166 (A) ID=20.8	8-94125-862-1	01	1	9804-					●
134	04.930 CLIP; RUBBER HOSE 08.846 (B) ID=23	8-94382-402-0	03	1	9804-					●
138	01.252 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 06.021	9-09561-225-0	01	1	9804-					●
157	01.251 MANIFOLD; WATER	8-97136-345-3	01	1	9804-					●
160	01.252 GASKET; WATER MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97136-346-0	02	1	9804-					●
161	01.251 BOLT; MANIF TO HD 16.545 M8X40 FLANGE	0-28690-840-0	04	1	9804-					●
215	01.159 PIPE; WATER,INL	8-97131-884-2	01	1	9804-					●

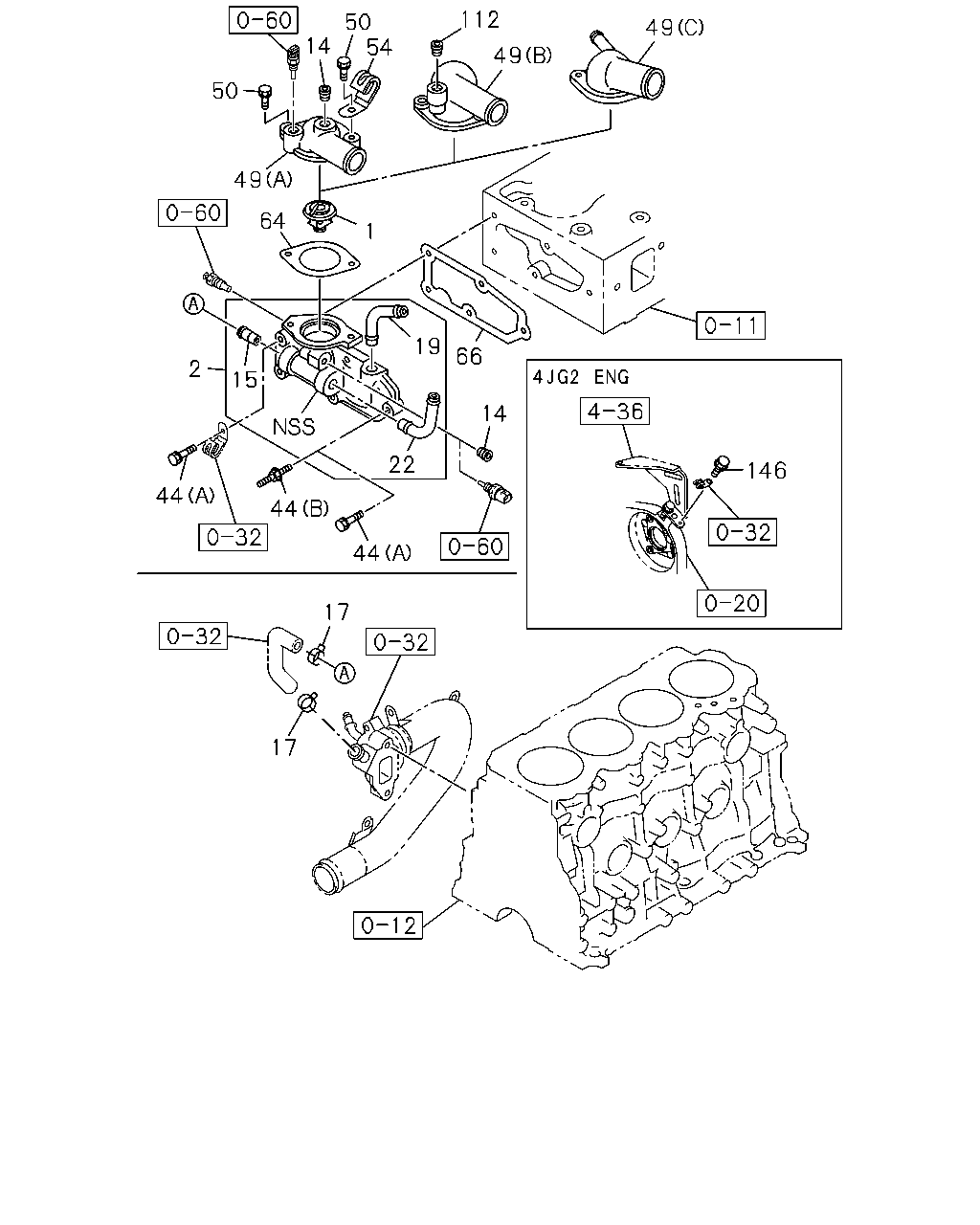

112 50 54 49 14 49 50 49 64 1 19 66 2 15 14 22 146 44 44 44 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9804-9909	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	9910-0109	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97089-891-0	01	1	0110-0301	●	●	●	●
1	01.246 THERMOSTAT 82 CELSIUS	8-97361-770-0	01	1	0302-	●	●	●	●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97123-161-4	01	1	9804-0301					●
1	01.246 THERMOSTAT 76.5 CELSIUS	8-97362-894-0	01	1	0302-					●
1	01.246 THERMOSTAT 92 CELSIUS	8-92063-651-0	01	1	9804-						●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	9804-9909	●	●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	9910-0109	●	●	●
2	01.251 HOUSING; THERMOSTAT	8-97117-243-0	01	1	0110-	●	●	●	●
2	01.251 HOUSING; THERMOSTAT	8-92060-793-0	01	1	9804-						●
14	01.252 PLUG; SW UNITED KINGDOM EQUIPMENT(EK3) 01.073 PT3/8	5-09605-005-0	02	1	9804-9909	●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9804-9909		●
14	01.252 PLUG; SW UNITED KINGDOM EQUIPMENT(EK3) 01.073 PT3/8	5-09605-005-0	02	1	9910-0103	●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	9910-0103		●	●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	02	1	0104-		●	●
14	01.252 PLUG; SW EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 PT3/8	5-09605-005-0	01	1	9804-0103	●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	01	1	0104-0109	●
14	01.252 PLUG; SW EXC. CHARGE AIR COOLER<6PL> 01.073 PT3/8	5-09605-005-0	01	1	0110-0210	●
14	01.252 PLUG; SW 01.073 PT3/8	5-09605-005-0	01	1	0110-0210				●
14	01.252 PLUG; SW EXC. CHARGE AIR COOLER<6PL> 01.073 PT3/8	5-09605-005-0	01	1	0211-	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	9804-9909	●	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	9910-0109	●	●	●
15	01.251 PIPE; BYPASS	8-94343-211-1	01	1	0110-	●	●	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-0	02	1	9804-9909	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	9910-0109	●	●	●
17	01.166 CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0110-	●	●	●	●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	9804-9909	●	●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	9910-0109	●	●	●
19	01.252 PIPE; HSG TO HTR	8-94478-870-1	01	1	0110-	●	●	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-1	01	1	9804-9909	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	9910-0109	●	●	●
22	03.278 PIPE; HTR,RETURN	8-94478-869-2	01	1	0110-	●	●	●	●
22	03.278 PIPE; HTR,RETURN	8-97136-134-1	01	1	9804-9907					●
22	03.278 PIPE; HTR,RETURN	8-97224-807-1	01	1	9908-					●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	9804-9909	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	9910-0109	●	●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	05	1	0110-	●	●	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	9804-9909	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	9910-0109	●	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> (B) M8X28,M8X34 L=69	8-94479-011-1	01	1	0110-	●	●	●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	05	1	9804-9909	●	●
44	01.252 BOLT; HSG TO HD EXC. POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	05	1	9910-0109	●	●	●
44	01.252 BOLT; HSG TO HD POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	04	1	0110-	●	●	●	●
44	01.252 BOLT; HSG TO HD (C)	8-11042-896-0	02	1	9804-						●
49	01.153 PIPE; WATER OUTLET (A)	8-97139-712-0	01	1	9804-0109	●
49	01.153 PIPE; WATER OUTLET EXC. CHARGE AIR COOLER<6PL> (A)	8-97139-712-0	01	1	0110-	●
49	01.153 PIPE; WATER OUTLET UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B)	8-97249-274-1	01	1	0110-	●
49	01.153 PIPE; WATER OUTLET (A)	8-97183-181-0	01	1	9804-9909		●
49	01.153 PIPE; WATER OUTLET (A)	8-97183-181-0	01	1	9910-		●	●
49	01.153 PIPE; WATER OUTLET (C)	8-97238-350-1	01	1	0110-				●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9804-9909	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9910-0109	●	●	●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	0110-	●	●	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=12	5-09700-331-0	01	1	9804-9909	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=12	5-09700-331-0	01	1	9910-0109	●	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=12	5-09700-331-0	01	1	0110-0302	●	●	●	●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 01.150 ID=12	8-97367-983-0	01	1	0303-	●	●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-1	01	1	9804-9909	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-1	01	1	9910-0109	●	●	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 01.252	8-94365-674-2	01	1	0110-	●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94365-675-1	01	1	9804-9902	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	9903-9909	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	9910-0109	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97216-156-0	01	1	0110-	●	●	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97123-162-0	01	1	9804-0301					●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90220-436-0	01	1	9804-						●
112	01.251 PLUG UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.073 PT3/8	5-09605-005-0	01	1	0110-	●
146	01.166 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-			●
