◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#3842) — 75 parça

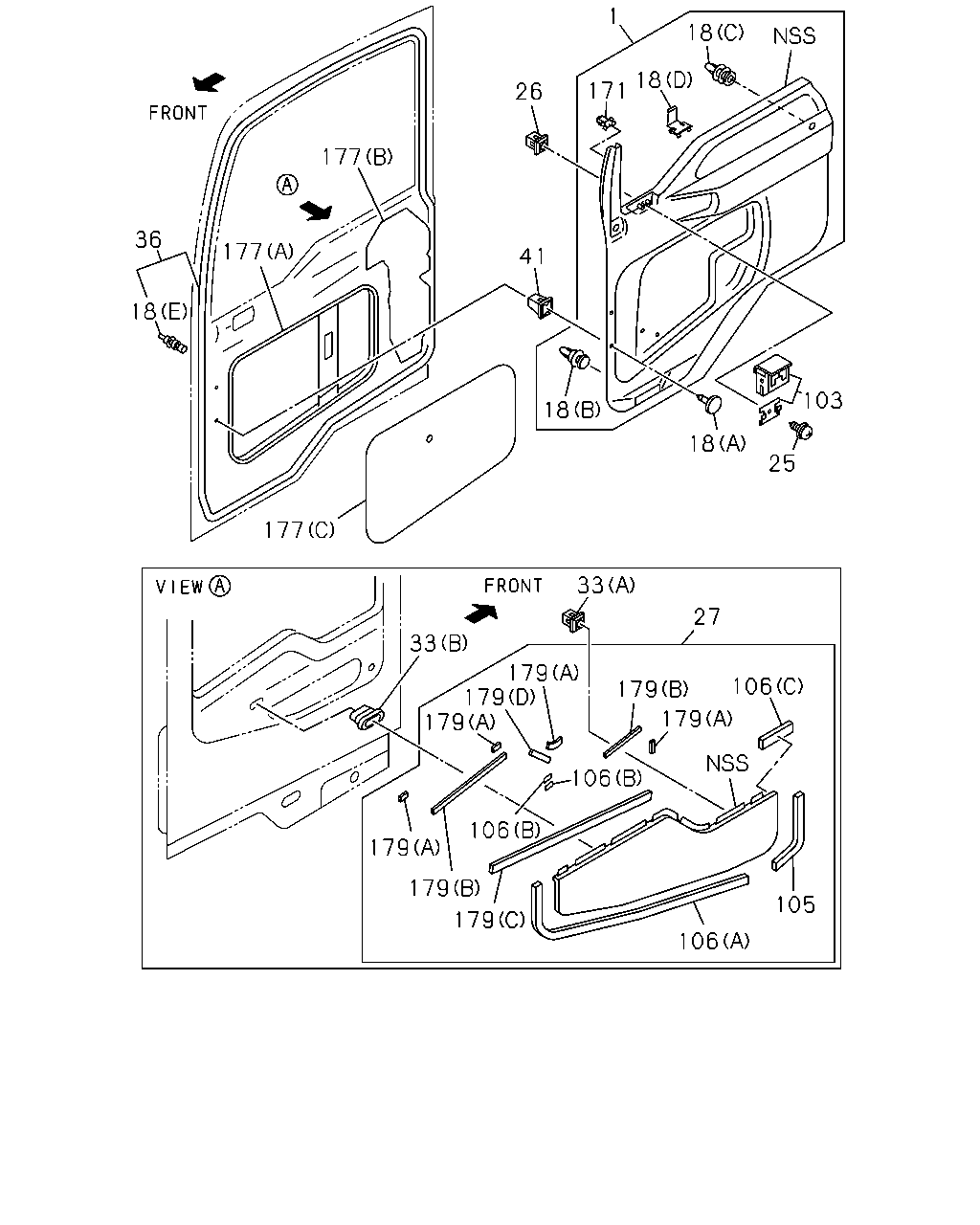

çizim 37386
1 26 171 18 18 41 103 25 18 18 177 18 36 177 177 33 33 27 179 179 106 179 106 179 179 179 179 179 106 106 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-449-4 01 1 9601-0004 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-506-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-538-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-515-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73338-467-4 01 1 9601-0004 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-485-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-510-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
DOOR WINDOW MANUAL CONT<SKF> 		1-73337-514-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-466-4 01 1 9601-0004 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-509-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-516-1 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-465-4 01 1 9601-0004 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-484-0 01 1 0005-0012 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0101-0702 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-513-1 01 1 0703- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9601-0004 ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0005- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 46 1 9601- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 08 1 9601-0005 ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0006-0010 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (D) 		1-09987-262-0 05 1 0011- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 9601-0010 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-94126-768-0 05 1 0011-0012 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 9601-0010 ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011- ● ●
18 CLIP; DOOR PAD
POWER WINDOW<A30> (C) OD=7.9 BLACK 		8-94279-974-1 01 1 0011- ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (D) 		1-09987-262-0 10 1 0011- ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-94126-768-0 10 1 0011-0012 ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101- ● ●
18 CLIP; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> (C) OD=7.9 BLACK 		8-94279-974-1 02 1 0011- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9601- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9601- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 9601- ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		1-76218-125-7 01 1 9601-1210 ● ●
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW WIDE<WU4> 		8-98229-329-0 01 1 1211- ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		1-76218-095-7 01 1 9601-1210 ● ●
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW WIDE<WU4> 		8-98229-328-0 01 1 1211- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9601-0802 ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9601- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9601-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9601-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9601- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-070-6 01 1 9601-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9701-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-069-6 01 1 9601-9612 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9701-0004 ● ●
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0005-0111 ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 9601- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 9601- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9601- ● ●
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 9601- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 9601-0010 ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011- ● ●
171 RETAINER; DOOR PAD
POWER WINDOW<A30> 		1-09987-264-0 01 1 0011- ● ●
171 RETAINER; DOOR PAD
DOOR WINDOW MANUAL CONT<SKF> 		1-09987-264-0 02 1 0011- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9601- ● ●
177 SEAL; WATER,DOOR
DOOR WINDOW MANUAL CONT<SKF> (C) 		1-76778-047-3 02 1 9601- ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 9601- ● ●
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 9601- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 9601- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 9601- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 9601- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 9601- ● ●
