◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶

0-28 — VENTILATION SYSTEM (#38419) — 91 parça

12 13 65 32 52 32 32 32 43 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9804-0109	●	●
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	0110-0212	●	●	●
12	01.745 VENTILATOR; AIR 03.415	8-97119-887-0	01	1	0301-	●	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9804-9909	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9910-0109	●	●		●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0110-	●	●	●	●
32	03.417 CLIP; VENT HOSE CHARGE AIR COOLER<6PL> 03.265 (D) ID=20.4	8-94121-113-0	04	1	0110-	●
32	03.417 CLIP; VENT HOSE 03.265 (D) ID=20.4	8-94121-113-0	04	1	0110-			●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9804-9909	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9804-9909		●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9910-	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9910-		●		●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9804-9909	●	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9910-0109	●	●		●
32	03.417 CLIP; VENT HOSE EXC. CHARGE AIR COOLER<6PL> 03.265 (A) ID=20.4	8-94121-113-0	02	1	0110-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0110-		●		●
32	03.417 CLIP; VENT HOSE 01.097 (C) ID=14.8	8-94448-727-0	02	1	9804-9909		●
32	03.417 CLIP; VENT HOSE 01.097 (C) ID=14.8	8-94448-727-0	02	1	9910-		●		●
43	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-210-2	01	1	0110-	●
43	03.278 HOSE; PCV	8-97113-159-0	01	1	9804-9909		●
43	03.278 HOSE; PCV	8-97113-159-1	01	1	9910-		●		●
43	03.278 HOSE; PCV	8-97304-253-1	01	1	0110-			●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) 03.417	8-94437-494-3	01	1	9804-9909	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9804-9909		●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) 03.417	8-94437-494-3	01	1	9910-0109	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9910-0109		●		●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417	8-94437-494-3	01	1	0110-	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	0110-		●		●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97252-971-1	01	1	0110-	●
52	03.278 HOSE; PCV	8-97256-044-1	01	1	0110-			●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9804-9909	●	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9910-0109	●	●		●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	0110-	●	●	●	●

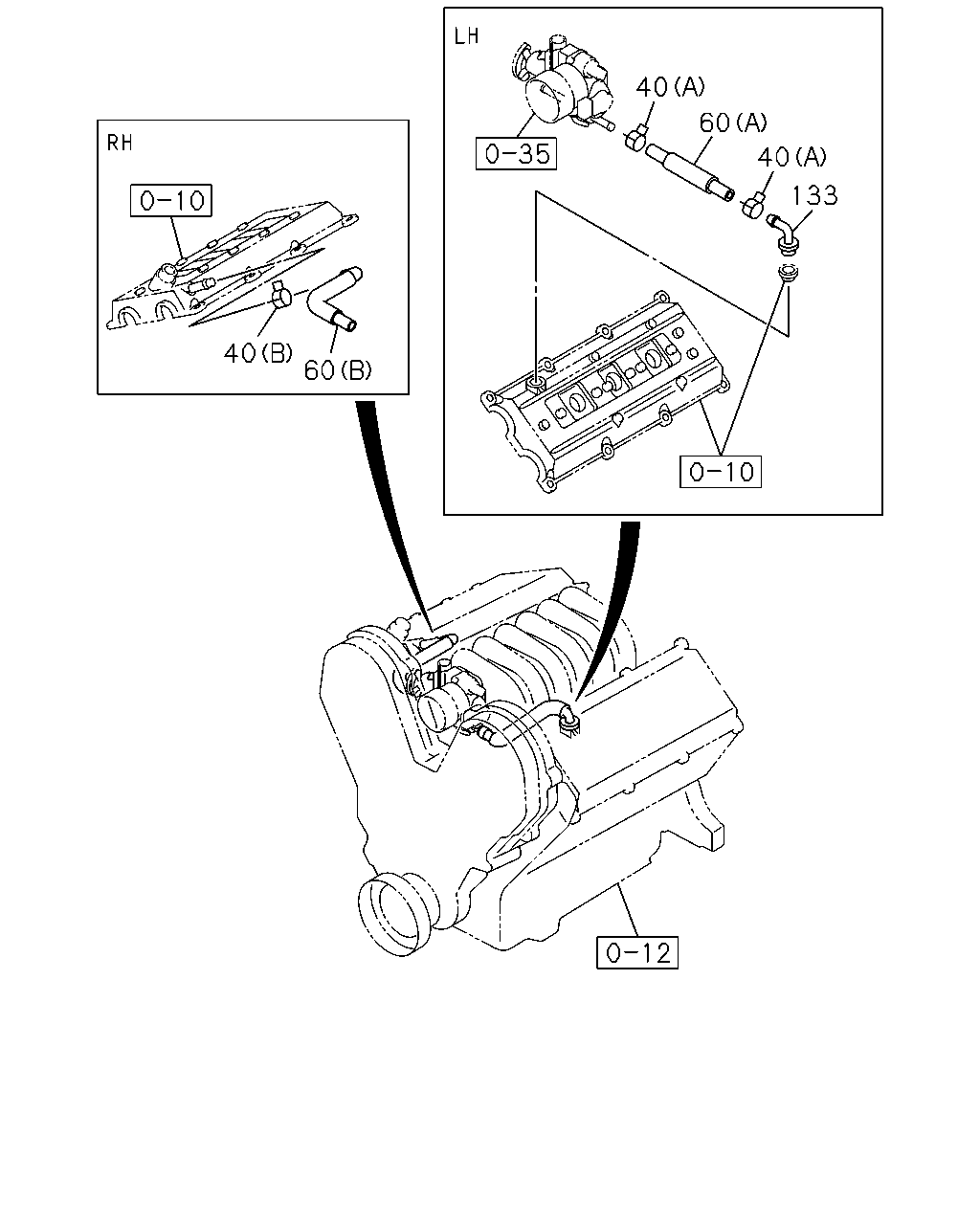

40 60 40 133 40 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	E
40	03.680 CLIP; PCV HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) ID=20 L=25	9-09916-078-0	01	1	9804-0205	●
40	03.680 CLIP; PCV HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (C) ID=20 L=25	9-09916-078-0	01	1	0206-	●
40	03.680 CLIP; PCV HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9804-0104		●
40	03.680 CLIP; PCV HOSE 04.128 (A) ID=15	8-94140-431-0	02	1	0105-		●
40	03.680 CLIP; PCV HOSE 01.762 (B) ID=19	8-94238-569-0	01	1	9804-		●
60	03.278 HOSE; RUBBER,PCV (A)	8-97136-216-1	01	1	9804-0308		●
60	03.278 HOSE; RUBBER,PCV (A)	8-97302-459-0	01	1	0309-		●
60	03.278 HOSE; RUBBER,PCV (B)	8-97136-217-0	01	1	9804-		●
133	01.750 VALVE; PCV	8-97118-860-0	01	1	9804-		●

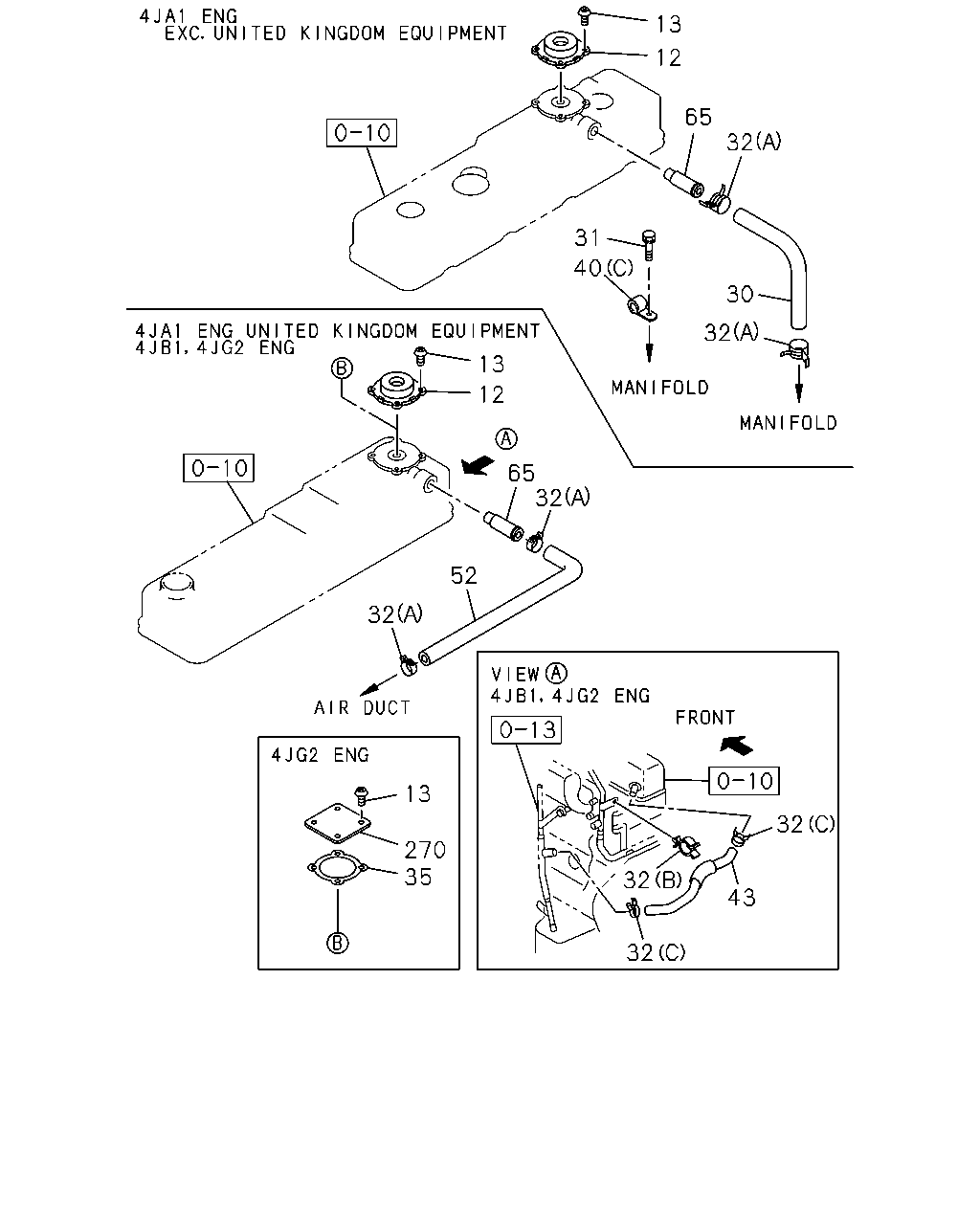

13 12 65 32 31 40 30 32 13 12 65 32 52 32 13 32 32 270 35 43 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	9804-0109	●	●
12	01.745 VENTILATOR; AIR	8-94250-172-0	01	1	0110-0212	●	●	●
12	01.745 VENTILATOR; AIR 03.415	8-97119-887-0	01	1	0301-	●	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9804-9909	●	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9910-0109	●	●		●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0110-	●	●	●	●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94475-222-1	01	1	9804-0205	●
30	03.417 HOSE; VENTILATOR,CYL HD COVER EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94475-222-1	01	1	0206-	●
31	03.417 BOLT; HOSE CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-0205	●
31	03.417 BOLT; HOSE CLIP EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0206-	●
32	03.417 CLIP; VENT HOSE CHARGE AIR COOLER<6PL> 03.265 (D) ID=20.4	8-94121-113-0	04	1	0110-	●
32	03.417 CLIP; VENT HOSE 03.265 (D) ID=20.4	8-94121-113-0	04	1	0110-			●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9804-9909	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9804-9909		●
32	03.417 CLIP; VENT HOSE UNITED KINGDOM EQUIPMENT(EK3) 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9910-	●
32	03.417 CLIP; VENT HOSE 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9910-		●		●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9804-9909	●	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	9910-0109	●	●		●
32	03.417 CLIP; VENT HOSE EXC. CHARGE AIR COOLER<6PL> 03.265 (A) ID=20.4	8-94121-113-0	02	1	0110-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0110-		●		●
32	03.417 CLIP; VENT HOSE 01.097 (C) ID=14.8	8-94448-727-0	02	1	9804-9909		●
32	03.417 CLIP; VENT HOSE 01.097 (C) ID=14.8	8-94448-727-0	02	1	9910-		●		●
35	03.415 GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97138-782-0	01	1	9910-				●
40	03.680 CLIP; PCV HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) ID=20 L=25	9-09916-078-0	01	1	9804-0205	●
40	03.680 CLIP; PCV HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (C) ID=20 L=25	9-09916-078-0	01	1	0206-	●
40	03.680 CLIP; PCV HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	9804-0104					●
40	03.680 CLIP; PCV HOSE 04.128 (A) ID=15	8-94140-431-0	02	1	0105-					●
40	03.680 CLIP; PCV HOSE 01.762 (B) ID=19	8-94238-569-0	01	1	9804-					●
43	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97249-210-2	01	1	0110-	●
43	03.278 HOSE; PCV	8-97113-159-0	01	1	9804-9909		●
43	03.278 HOSE; PCV	8-97113-159-1	01	1	9910-		●		●
43	03.278 HOSE; PCV	8-97304-253-1	01	1	0110-			●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) 03.417	8-94437-494-3	01	1	9804-9909	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9804-9909		●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) 03.417	8-94437-494-3	01	1	9910-0109	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	9910-0109		●		●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.417	8-94437-494-3	01	1	0110-	●
52	03.278 HOSE; PCV 03.417	8-94437-494-3	01	1	0110-		●		●
52	03.278 HOSE; PCV UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97252-971-1	01	1	0110-	●
52	03.278 HOSE; PCV	8-97256-044-1	01	1	0110-			●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9804-9909	●	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9910-0109	●	●		●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	0110-	●	●	●	●
270	01.750 COVER; VENTILATOR	8-94163-368-0	01	1	9910-				●

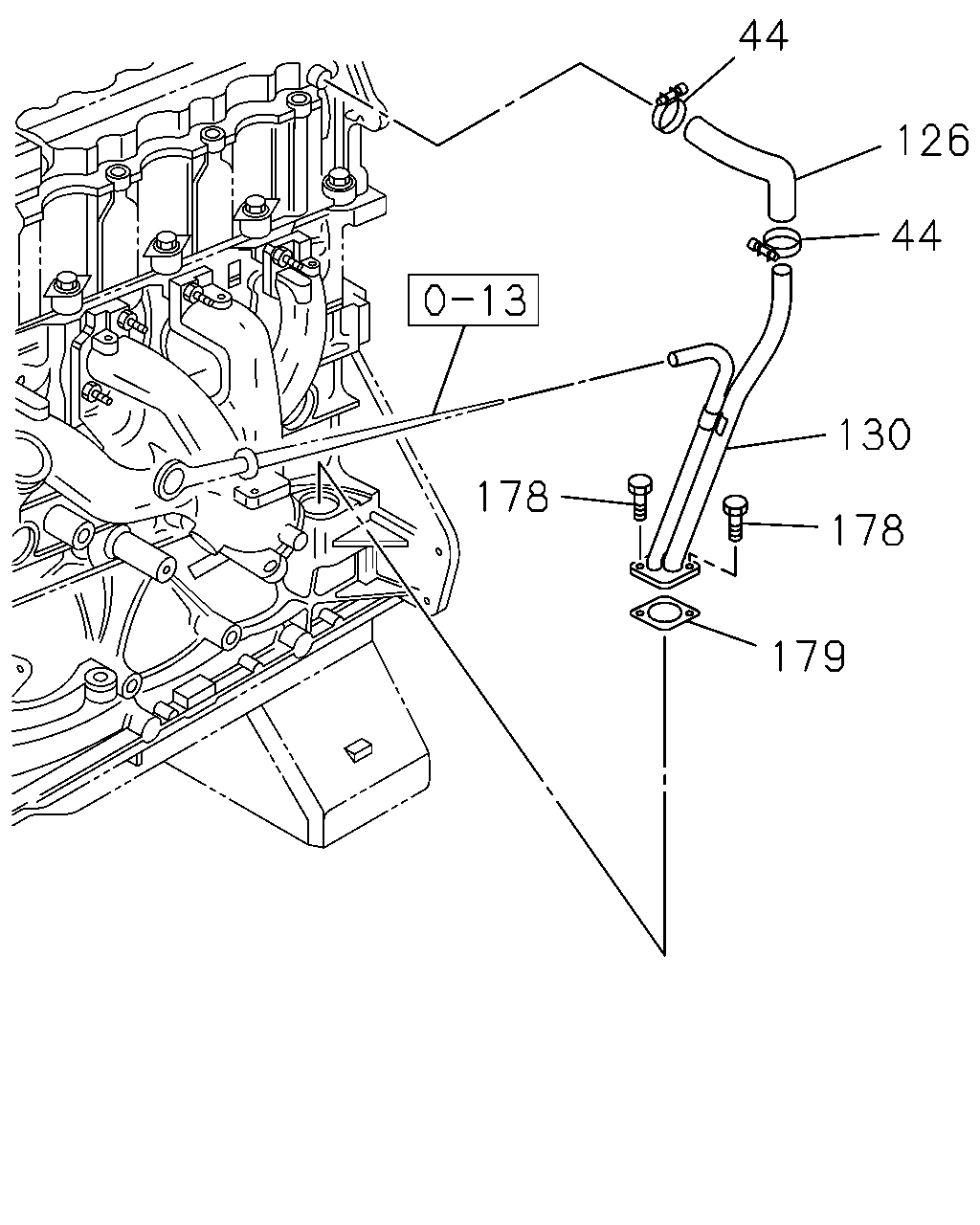

44 126 44 130 178 178 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
44	03.278 CLIP; HOSE,PCV	8-90467-971-0	02	1	9804-	●
126	01.762 HOSE; RUBBER,PCV	8-90409-617-0	01	1	9804-	●
130	03.278 PIPE; PCV	8-92062-793-0	01	1	9804-	●
178	03.278 BOLT; PIPE	8-11052-951-0	02	1	9804-	●
179	03.278 GASKET; PIPE	8-90500-571-0	01	1	9804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
