Sayfa 0-27 - Isuzu EPC

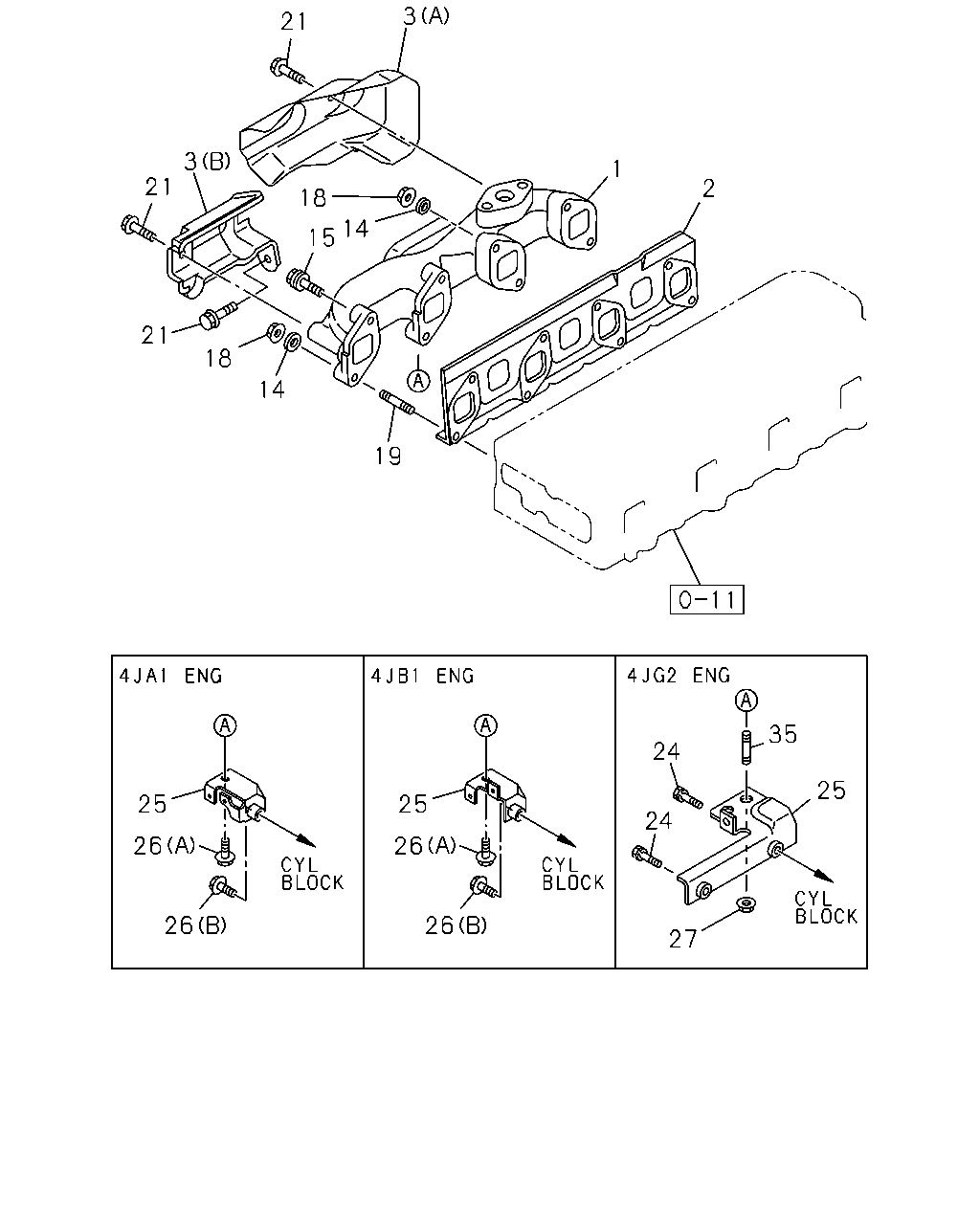

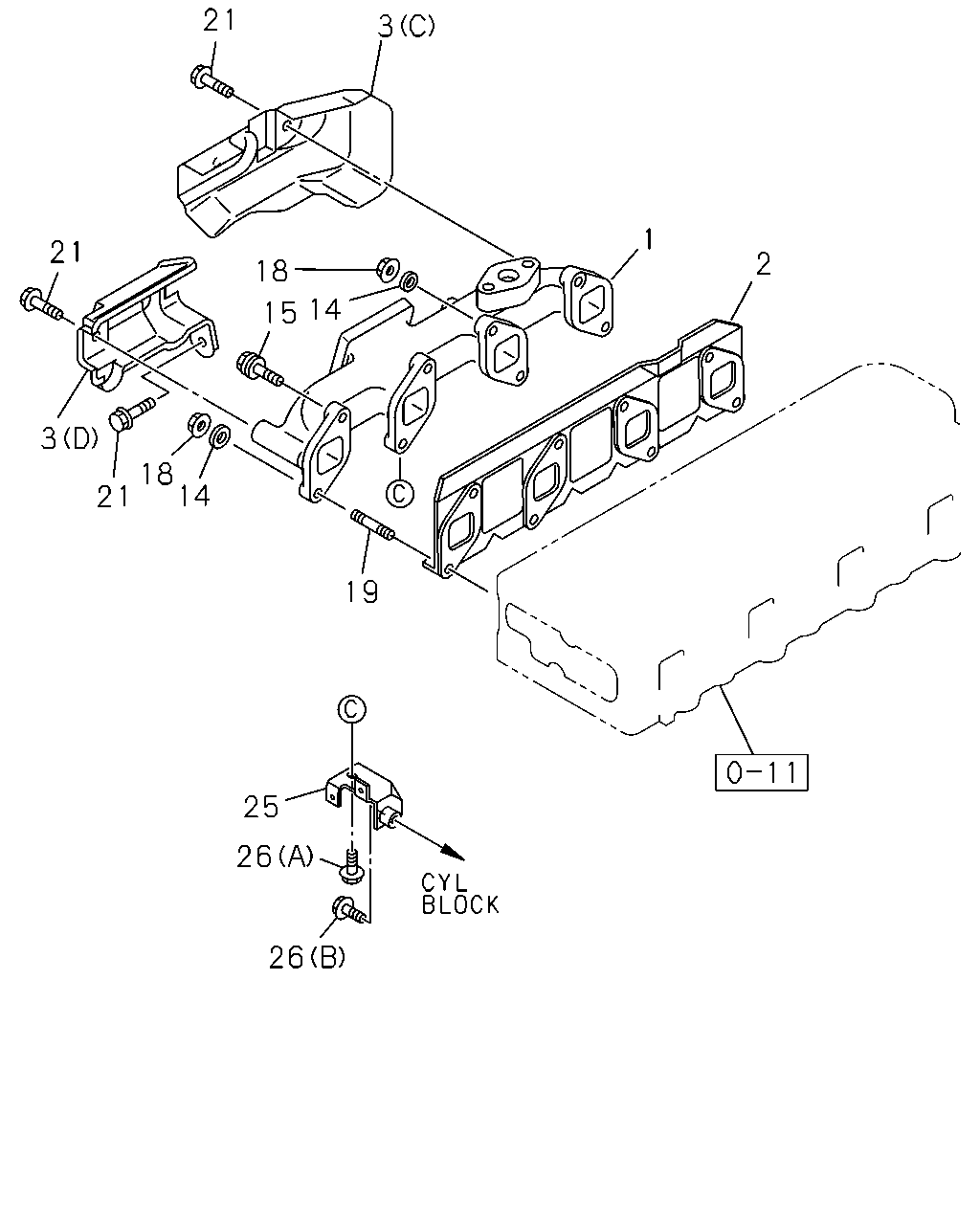

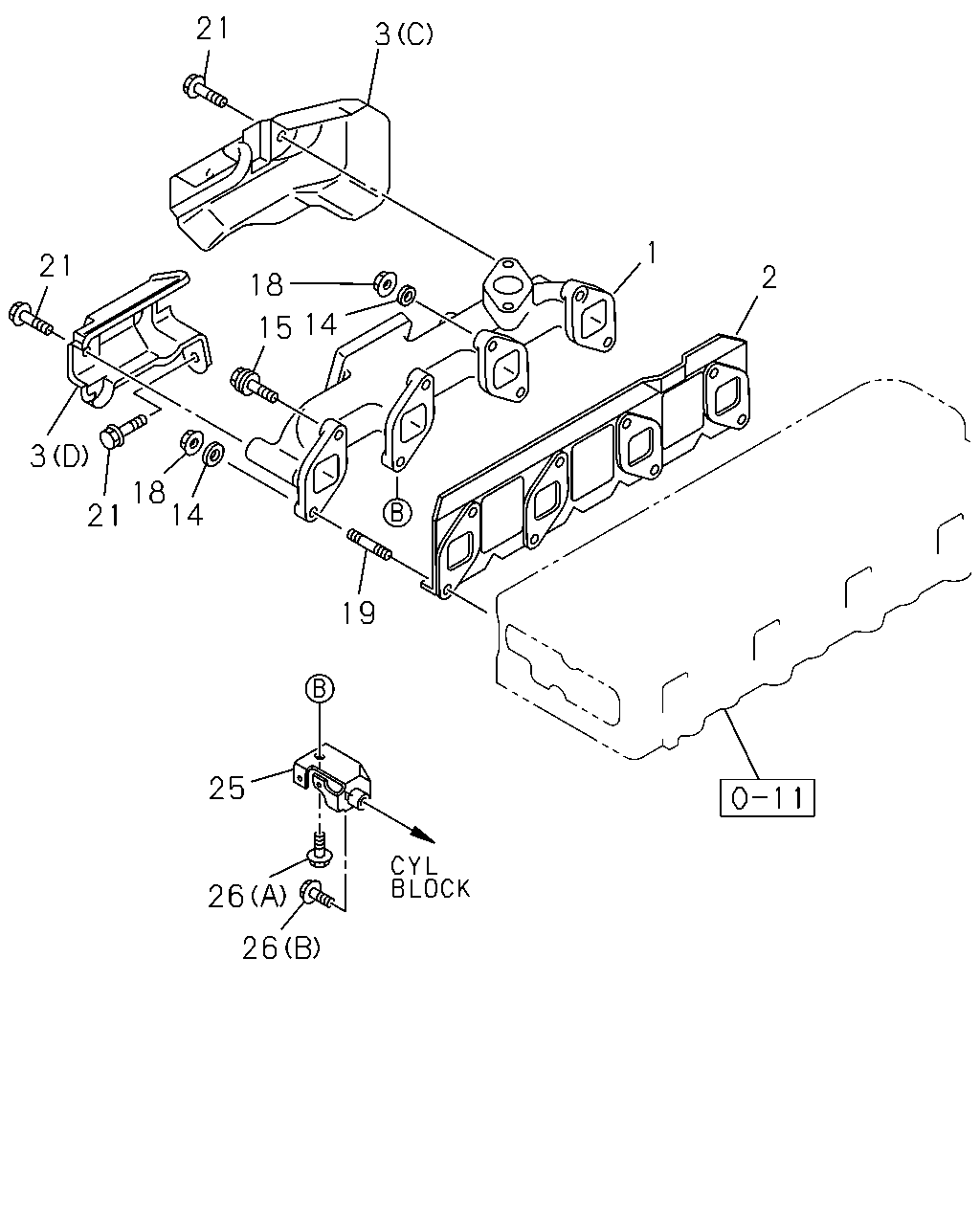

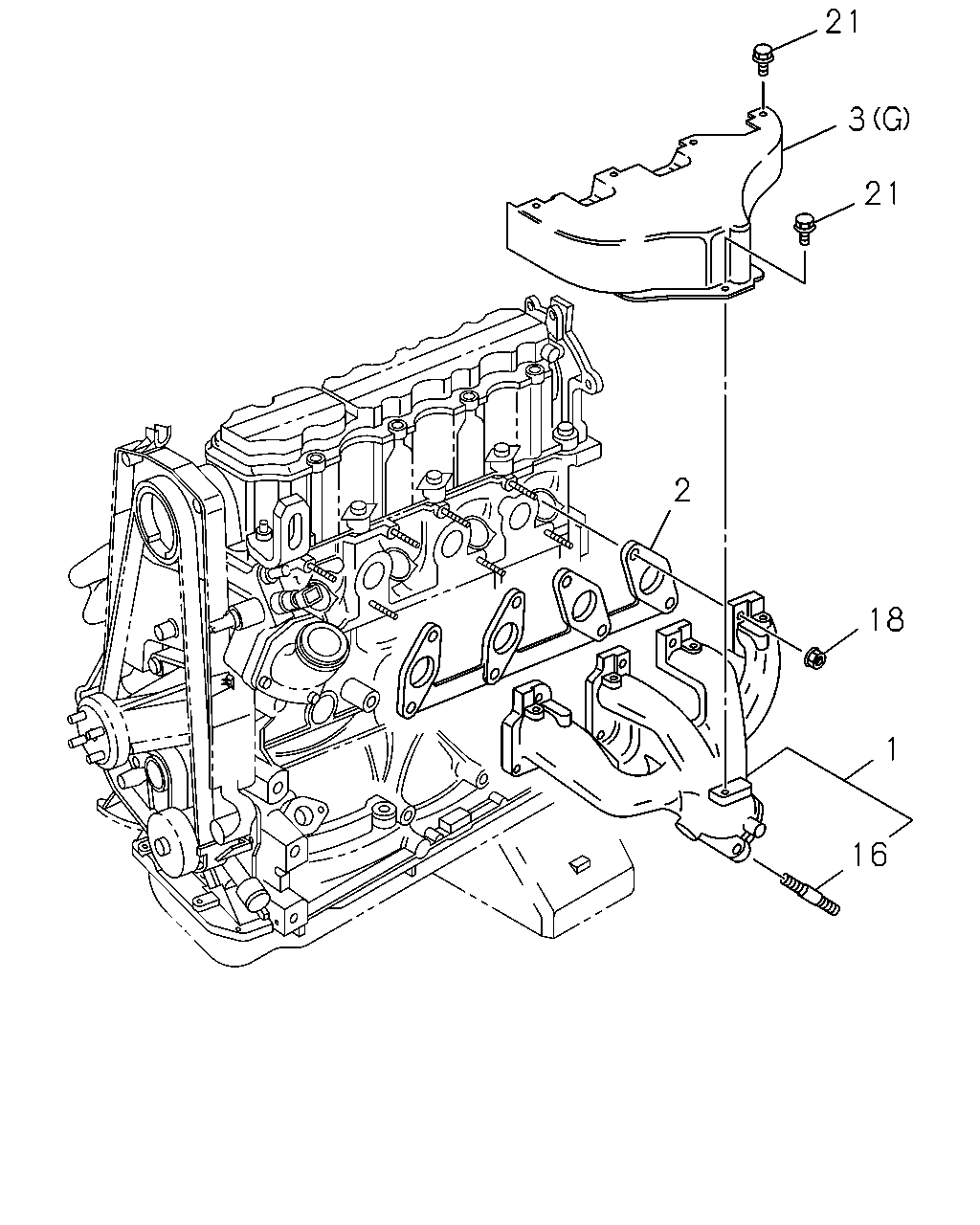

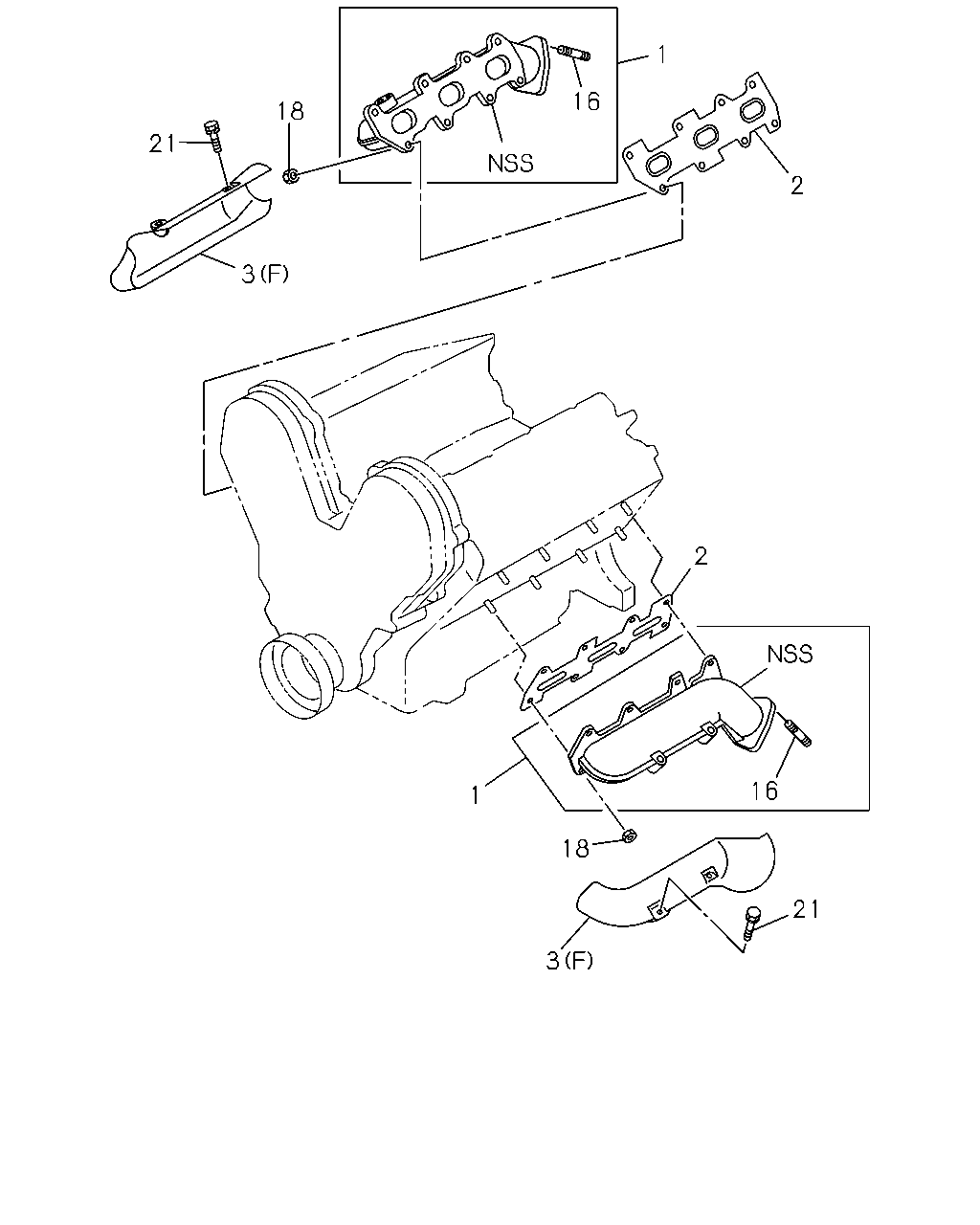

0-27 — EXHAUST MANIFOLD (#38418) — 521 parça

21 3 21 2 18 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97188-177-0	01	1	9804-0109	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97188-177-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9804-0205	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97065-960-1	01	1	0206-	●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	9804-				●
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	9910-					●
1	03.601 MANIFOLD; EXHAUST	8-97313-257-0	01	1	0110-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-0	01	1	0211-	●	●			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9804-9909	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	9910-0109	●	●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210		●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-515-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97252-524-1	01	1	0110-0306						●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97920-418-1	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-418-1	01	1	0307-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-2	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97038-107-2	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0110-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-1	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97133-936-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0110-0306		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97912-766-0	01	1	0307-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97131-704-0	01	1	9804-0205	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (E)	8-97131-704-0	01	1	0206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-276-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-278-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (G)	8-90500-963-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97920-417-1	01	1	0110-						●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9804-0205	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0206-	●
16	03.604 STUD; EXH PIPE TO MANIF M12X15 L=46.6	8-97115-132-0	06	1	9804-			●
16	03.604 STUD; EXH PIPE TO MANIF M/T MSG 5 SPEED(M75)	8-11077-512-0	04	1	9804-				●
16	03.604 STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN)	8-11077-512-0	03	1	9804-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●	●			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9804-			●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	9804-				●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●			●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●	●			●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9804-			●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	9804-				●

21 18 14 1 2 19 3 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97188-177-0	01	1	9804-0109	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97188-177-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9804-0205	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97065-960-1	01	1	0206-	●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	9804-				●
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	9910-					●
1	03.601 MANIFOLD; EXHAUST	8-97313-257-0	01	1	0110-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-0	01	1	0211-	●	●			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9804-9909	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	9910-0109	●	●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210		●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-515-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97252-524-1	01	1	0110-0306						●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97920-418-1	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-418-1	01	1	0307-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-2	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97038-107-2	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0110-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-1	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97133-936-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0110-0306		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97912-766-0	01	1	0307-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97131-704-0	01	1	9804-0205	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (E)	8-97131-704-0	01	1	0206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-276-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-278-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (G)	8-90500-963-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97920-417-1	01	1	0110-						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9804-9909	●	●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9910-0006	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0109	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0110-	●	●			●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9804-9909	●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9910-0109	●	●			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0110-	●	●			●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9804-0205	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0206-	●
16	03.604 STUD; EXH PIPE TO MANIF M12X15 L=46.6	8-97115-132-0	06	1	9804-			●
16	03.604 STUD; EXH PIPE TO MANIF M/T MSG 5 SPEED(M75)	8-11077-512-0	04	1	9804-				●
16	03.604 STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN)	8-11077-512-0	03	1	9804-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●	●			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9804-			●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	9804-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9804-9909	●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9910-0109	●	●			●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0110-	●	●			●	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●			●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●	●			●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9804-			●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	9804-				●

21 3 1 21 2 18 14 15 3 18 14 21 19 25 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97188-177-0	01	1	9804-0109	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97188-177-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9804-0205	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97065-960-1	01	1	0206-	●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	9804-				●
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	9910-					●
1	03.601 MANIFOLD; EXHAUST	8-97313-257-0	01	1	0110-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-0	01	1	0211-	●	●			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9804-9909	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	9910-0109	●	●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210		●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-515-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97252-524-1	01	1	0110-0306						●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97920-418-1	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-418-1	01	1	0307-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-2	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97038-107-2	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0110-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-1	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97133-936-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0110-0306		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97912-766-0	01	1	0307-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97131-704-0	01	1	9804-0205	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (E)	8-97131-704-0	01	1	0206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-276-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-278-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (G)	8-90500-963-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97920-417-1	01	1	0110-						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9804-9909	●	●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9910-0006	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0109	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0110-	●	●			●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9804-9909	●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9910-0109	●	●			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●	●			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9804-			●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	9804-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9804-9909	●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9910-0109	●	●			●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0110-	●	●			●	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●			●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●	●			●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9804-			●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	9804-				●
25	03.602 BRACKET; EXH MANIF UNITED KINGDOM EQUIPMENT(EK3)	8-97188-069-0	01	1	9804-	●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	9804-0109		●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	0110-		●				●
25	03.602 BRACKET; EXH MANIF	8-97145-973-0	01	1	9910-					●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9804-0109	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9804-0109		●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0110-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0110-		●				●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	9804-0109	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	9804-0109		●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0110-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0110-		●				●

3 21 3 1 21 2 18 14 15 21 18 14 19 35 24 25 25 25 24 26 26 26 26 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97188-177-0	01	1	9804-0109	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97188-177-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9804-0205	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97065-960-1	01	1	0206-	●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	9804-				●
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	9910-					●
1	03.601 MANIFOLD; EXHAUST	8-97313-257-0	01	1	0110-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-0	01	1	0211-	●	●			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9804-9909	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	9910-0109	●	●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210		●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-515-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97252-524-1	01	1	0110-0306						●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97920-418-1	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-418-1	01	1	0307-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-2	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97038-107-2	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0110-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-1	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97133-936-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0110-0306		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97912-766-0	01	1	0307-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97131-704-0	01	1	9804-0205	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (E)	8-97131-704-0	01	1	0206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-276-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-278-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (G)	8-90500-963-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97920-417-1	01	1	0110-						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9804-9909	●	●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9910-0006	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0109	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0110-	●	●			●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9804-9909	●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9910-0109	●	●			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●	●			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9804-			●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	9804-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9804-9909	●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9910-0109	●	●			●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0110-	●	●			●	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●			●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●	●			●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9804-			●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	9804-				●
24	03.613 BOLT; BRKT,EXH MANIF 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9910-					●
24	03.613 BOLT; BRKT,EXH MANIF 03.890 M10X32 W/LK WASHER	0-50141-032-0	01	1	9910-					●
25	03.602 BRACKET; EXH MANIF UNITED KINGDOM EQUIPMENT(EK3)	8-97188-069-0	01	1	9804-	●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	9804-0109		●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	0110-		●				●
25	03.602 BRACKET; EXH MANIF	8-97145-973-0	01	1	9910-					●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9804-0109	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9804-0109		●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0110-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0110-		●				●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	9804-0109	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	9804-0109		●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0110-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0110-		●				●
27	03.602 NUT; BRKT,EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	01	1	9910-					●
35	03.604 STUD; BRKT M8X20 L=29	5-09300-069-0	01	1	9910-					●

21 3 1 21 2 18 14 15 3 18 14 21 19 25 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97188-177-0	01	1	9804-0109	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97188-177-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9804-0205	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97065-960-1	01	1	0206-	●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	9804-				●
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	9910-					●
1	03.601 MANIFOLD; EXHAUST	8-97313-257-0	01	1	0110-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-0	01	1	0211-	●	●			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9804-9909	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	9910-0109	●	●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210		●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-515-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97252-524-1	01	1	0110-0306						●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97920-418-1	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-418-1	01	1	0307-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-2	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97038-107-2	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0110-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-1	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97133-936-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0110-0306		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97912-766-0	01	1	0307-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97131-704-0	01	1	9804-0205	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (E)	8-97131-704-0	01	1	0206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-276-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-278-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (G)	8-90500-963-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97920-417-1	01	1	0110-						●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9804-9909	●	●
14	03.604 WASHER; PL,EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9910-0006	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-0109	●	●			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0110-	●	●			●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9804-9909	●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9910-0109	●	●			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●	●			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9804-			●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	9804-				●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9804-9909	●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9910-0109	●	●			●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	0110-	●	●			●	●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●			●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●	●			●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9804-			●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	9804-				●
25	03.602 BRACKET; EXH MANIF UNITED KINGDOM EQUIPMENT(EK3)	8-97188-069-0	01	1	9804-	●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	9804-0109		●
25	03.602 BRACKET; EXH MANIF	8-97161-202-0	01	1	0110-		●				●
25	03.602 BRACKET; EXH MANIF	8-97145-973-0	01	1	9910-					●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9804-0109	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9804-0109		●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0110-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0110-		●				●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	9804-0109	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	9804-0109		●
26	03.602 BOLT; BRKT TO EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0110-	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0110-		●				●

1 16 18 21 2 3 2 16 1 18 21 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3)	8-97188-177-0	01	1	9804-0109	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97188-177-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-434-0	01	1	0110-	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97065-960-1	01	1	9804-0205	●
1	03.601 MANIFOLD; EXHAUST EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97065-960-1	01	1	0206-	●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97140-087-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97139-723-0	01	1	9804-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-97170-146-0	01	1	9804-			●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	9804-				●
1	03.601 MANIFOLD; EXHAUST	8-97039-474-3	01	1	9910-					●
1	03.601 MANIFOLD; EXHAUST	8-97313-257-0	01	1	0110-						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97259-886-1	01	1	0110-0210						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-0	01	1	0211-	●	●			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-1	01	1	9804-9909	●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	9910-0109	●	●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97109-216-2	01	1	0110-0210		●			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97148-717-0	02	1	9804-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-515-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97252-524-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97252-524-1	01	1	0110-0306						●
3	03.602 PROTECTOR; HEAT,EXH MANIF CHARGE AIR COOLER<6PL> (D)	8-97920-418-1	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97920-418-1	01	1	0307-						●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-1	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-1	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97038-107-2	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-97038-107-2	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97038-107-2	01	1	0110-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-0	01	1	9804-9909	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-0	01	1	9804-9909		●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97133-936-1	01	1	9910-0109	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	9910-0109		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97133-936-1	01	1	0110-0306	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97133-936-1	01	1	0110-0306		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97912-766-0	01	1	0307-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97912-766-0	01	1	0307-		●			●
3	03.602 PROTECTOR; HEAT,EXH MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97252-525-1	01	1	0110-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) (E)	8-97131-704-0	01	1	9804-0205	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (E)	8-97131-704-0	01	1	0206-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-276-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (F)	8-97164-278-1	01	1	9804-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (G)	8-90500-963-0	01	1	9804-				●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97920-417-1	01	1	0110-						●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	9804-0205	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0206-	●
16	03.604 STUD; EXH PIPE TO MANIF M12X15 L=46.6	8-97115-132-0	06	1	9804-			●
16	03.604 STUD; EXH PIPE TO MANIF M/T MSG 5 SPEED(M75)	8-11077-512-0	04	1	9804-				●
16	03.604 STUD; EXH PIPE TO MANIF M/T MUA 5 SPEED(RMN)	8-11077-512-0	03	1	9804-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9804-9909	●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9910-0109	●	●			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0110-	●	●			●	●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9804-			●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	9804-				●
21	03.604 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0110-						●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●			●	●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9804-9909		●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9910-0109		●			●
21	03.604 BOLT; HEAT PROTECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9804-9909	●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9910-0109	●	●			●
21	03.604 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●			●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9804-			●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	9804-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
