Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#38417) — 431 parça

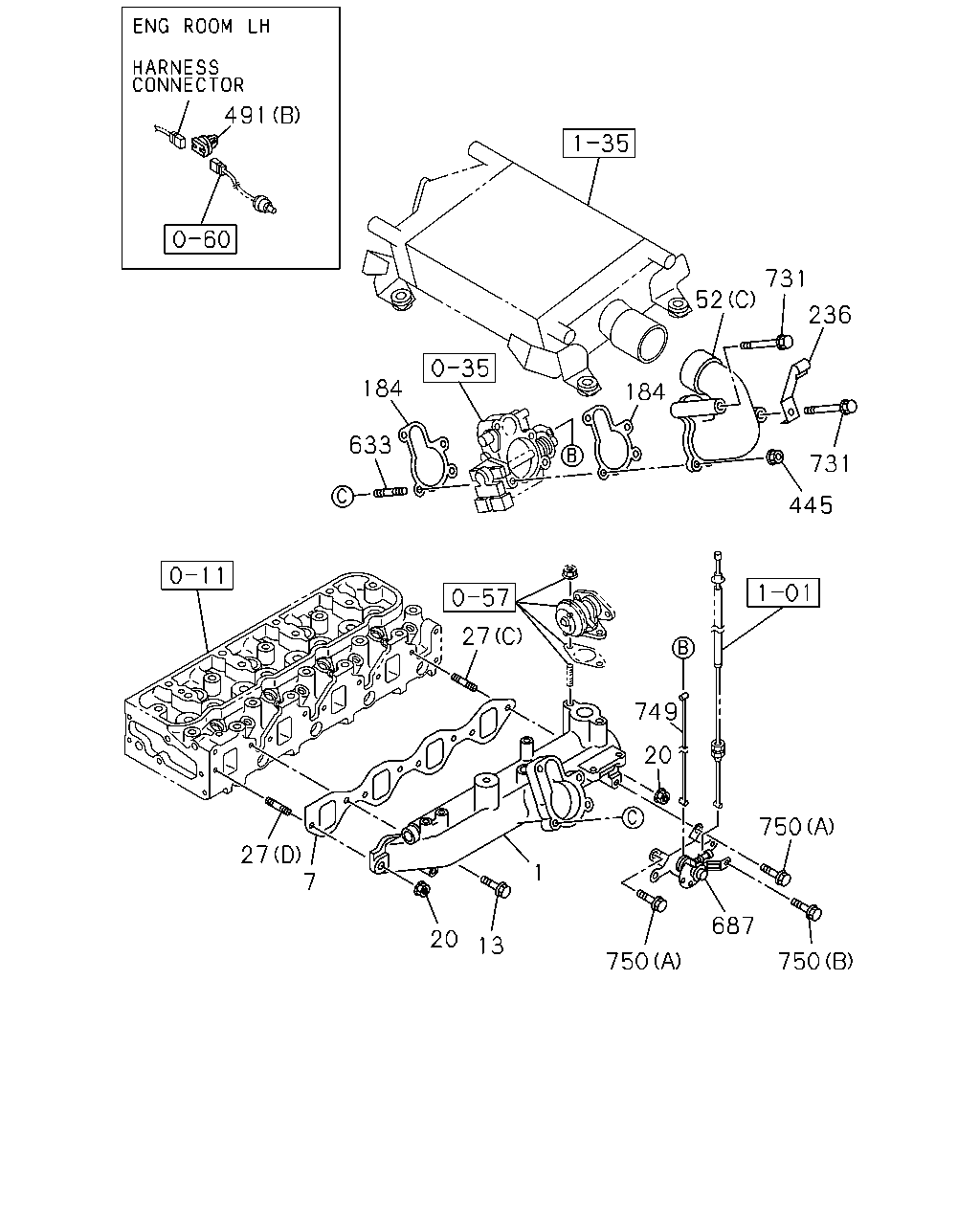

491 731 52 236 184 184 633 731 445 27 749 20 750 27 7 1 687 20 13 750 750

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL CHARGE AIR COOLER<6PL>	8-97249-064-4	01	1	0110-	●
1	03.265 MANIFOLD; INL	8-97249-064-4	01	1	0110-		●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9804-9909	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9804-9909			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9910-0109	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9910-0109			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	9910-0109				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97139-649-1	01	1	0110-0308	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	0110-0308			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	0110-0308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97253-952-0	01	1	0309-	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97253-952-0	01	1	0309-			●
1	03.265 MANIFOLD; INL	8-97253-952-0	01	1	0309-				●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97116-132-2	01	1	9804-0303			●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97350-916-0	01	1	0304-			●
1	03.265 MANIFOLD; INL	8-92063-656-0	01	1	9804-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9804-9905	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9906-9909	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9910-0101	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0102-0109	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0110-	●	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9804-9909						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97237-538-0	02	1	9910-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-514-0	01	1	9804-					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909			●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109			●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-		●	●	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0206-	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> M6X28	0-50140-628-0	06	1	0206-	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-0205	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	02	1	0206-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-						●
20	03.275 NUT; INL MANIF 03.604	8-11082-413-0	09	1	9804-					●
27	03.275 STUD; INL MANIF EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-		●	●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0110-	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	9804-0205	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	0206-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9804-9909	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9910-0109	●		●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.901 (D) M8X25 L=37	9-04110-825-0	01	1	0110-	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9804-9909	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9804-9909			●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9910-0109	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9910-0109			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-068-1	01	1	0110-	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	0110-			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97249-223-2	01	1	0110-	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-866-0	01	1	9804-0205	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97115-866-0	01	1	0206-	●
52	01.097 PIPE; INL (D)	8-97255-005-3	01	1	0110-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97214-127-0	02	1	0110-	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97214-127-0	01	1	0110-		●
236	03.162 CLIP; ACCEL CABLE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97309-195-1	01	1	0110-	●
445	03.275 NUT; THROTTLE BODY TO MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-	●
445	03.275 NUT; THROTTLE BODY TO MANIF	8-11094-423-0	04	1	9804-					●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) (B) OD=7 H=1.2	8-94364-750-0	01	1	9804-9909	●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) (B) OD=7 H=1.2	8-94364-750-0	01	1	9910-0109	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	9910-0109				●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) OD=7 H=1.2	8-94364-750-0	01	1	0110-	●
491	01.152 CLIP; CONNECTOR ENG QUICK WARM UP SYSTEM<6JZ> (B) OD=7 H=1.2	8-94364-750-0	01	1	0110-	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	0110-				●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) 03.278 (A)	8-97031-674-0	01	1	9804-0109	●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.278 (A)	8-97031-674-0	01	1	0110-	●
633	03.275 STUD; THROTTLE BODY UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.060 M8X55 L=71	9-04020-855-0	02	1	0110-	●
633	03.275 STUD; THROTTLE BODY	8-11083-711-0	04	1	9804-					●
687	03.415 LEVER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-653-5	01	1	0110-	●
731	02.559 BOLT; THROTTLE ASM UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 02.277 M8X130 FLANGE	0-28085-813-0	02	1	0110-	●
749	03.480 CABLE ASM; ENG CONTROL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97263-742-0	01	1	0110-	●
750	03.483 BOLT; LEVER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-	●
750	03.483 BOLT; LEVER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 09.171 (B) M14X20 FLANGE	0-28881-420-0	01	1	0110-	●

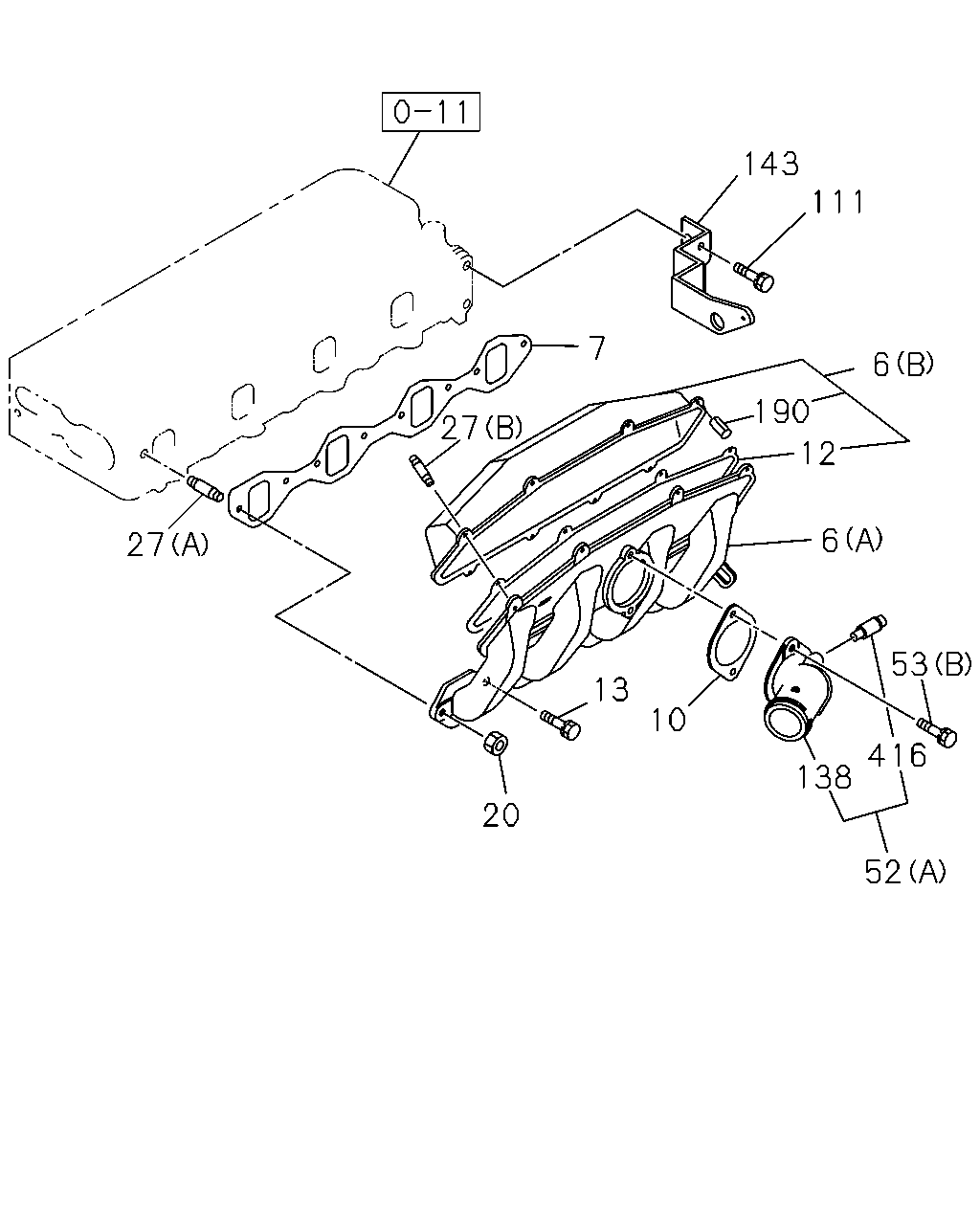

143 111 7 190 27 12 27 53 13 10 416 138 20 52 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	8-94320-921-1	01	1	9804-0205	●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (B)	8-94320-921-1	01	1	0206-	●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97143-701-1	01	1	9804-0205	●
6	03.265 MANIFOLD; INL,UPR EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97143-701-1	01	1	0206-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9804-9905	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9906-9909	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9910-0101	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0102-0109	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0110-	●	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9804-9909						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97237-538-0	02	1	9910-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-514-0	01	1	9804-					●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97035-883-0	01	1	9804-0205	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97035-883-1	01	1	0206-	●
12	03.270 GASKET; INL MANIF,UPR TO LWR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94320-923-0	01	1	9804-0205	●
12	03.270 GASKET; INL MANIF,UPR TO LWR EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94320-923-0	01	1	0206-	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909			●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109			●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-		●	●	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0206-	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> M6X28	0-50140-628-0	06	1	0206-	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-0205	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	02	1	0206-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-						●
20	03.275 NUT; INL MANIF 03.604	8-11082-413-0	09	1	9804-					●
27	03.275 STUD; INL MANIF EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-		●	●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0110-	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	9804-0205	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	0206-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9804-9909	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9910-0109	●		●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.901 (D) M8X25 L=37	9-04110-825-0	01	1	0110-	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9804-9909	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9804-9909			●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9910-0109	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9910-0109			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-068-1	01	1	0110-	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	0110-			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97249-223-2	01	1	0110-	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-866-0	01	1	9804-0205	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97115-866-0	01	1	0206-	●
52	01.097 PIPE; INL (D)	8-97255-005-3	01	1	0110-		●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909			●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109			●	●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-			●	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	9804-0205	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	0206-	●
53	03.602 BOLT; INL PIPE 01.271 (C) M8X40 FLANGE	0-28080-840-0	04	1	9804-						●
53	03.602 BOLT; INL PIPE (D) M8X110 FLANGE	0-28085-811-0	02	1	0110-		●
53	03.602 BOLT; INL PIPE 02.559 (E) M8X25 FLANGE	0-28680-825-0	02	1	0110-		●
111	03.275 BOLT; DOWN SHIFT CABLE BRKT EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9804-0205	●
111	03.275 BOLT; DOWN SHIFT CABLE BRKT EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0206-	●
138	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97115-992-0	01	1	9804-0205	●
138	03.265 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97115-992-0	01	1	0206-	●
143	03.273 BRACKET; INL MANIF FRT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540	8-94453-529-2	01	1	9804-0205	●
143	03.273 BRACKET; INL MANIF FRT EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.540	8-94453-529-2	01	1	0206-	●
190	03.275 COLLAR; INLET MANIFOLD EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94320-924-0	08	1	9804-0205	●
190	03.275 COLLAR; INLET MANIFOLD EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94320-924-0	08	1	0206-	●
416	00.293 NIPPLE; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.602 OD=15 L=41	8-94442-052-0	01	1	9804-0205	●
416	00.293 NIPPLE; BREATHER HOSE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.602 OD=15 L=41	8-94442-052-0	01	1	0206-	●

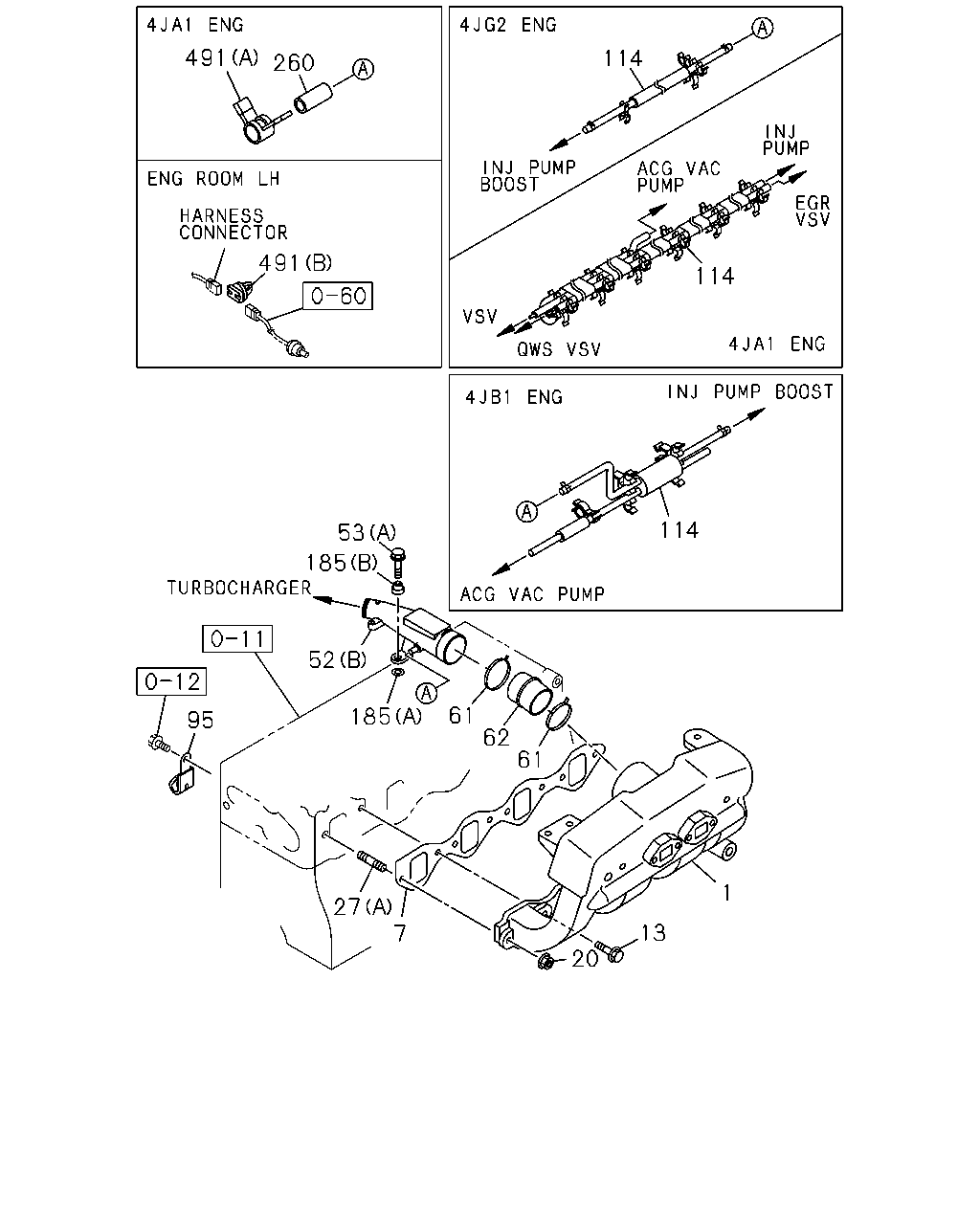

491 114 260 491 114 114 53 185 52 61 185 95 62 61 1 27 7 13 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL CHARGE AIR COOLER<6PL>	8-97249-064-4	01	1	0110-	●
1	03.265 MANIFOLD; INL	8-97249-064-4	01	1	0110-		●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9804-9909	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9804-9909			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9910-0109	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9910-0109			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	9910-0109				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97139-649-1	01	1	0110-0308	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	0110-0308			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	0110-0308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97253-952-0	01	1	0309-	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97253-952-0	01	1	0309-			●
1	03.265 MANIFOLD; INL	8-97253-952-0	01	1	0309-				●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97116-132-2	01	1	9804-0303			●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97350-916-0	01	1	0304-			●
1	03.265 MANIFOLD; INL	8-92063-656-0	01	1	9804-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9804-9905	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9906-9909	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9910-0101	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0102-0109	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0110-	●	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9804-9909						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97237-538-0	02	1	9910-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-514-0	01	1	9804-					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909			●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109			●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-		●	●	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0206-	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> M6X28	0-50140-628-0	06	1	0206-	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-0205	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	02	1	0206-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-						●
20	03.275 NUT; INL MANIF 03.604	8-11082-413-0	09	1	9804-					●
27	03.275 STUD; INL MANIF EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-		●	●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0110-	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	9804-0205	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	0206-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9804-9909	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9910-0109	●		●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.901 (D) M8X25 L=37	9-04110-825-0	01	1	0110-	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9804-9909	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9804-9909			●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9910-0109	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9910-0109			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-068-1	01	1	0110-	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	0110-			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97249-223-2	01	1	0110-	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-866-0	01	1	9804-0205	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97115-866-0	01	1	0206-	●
52	01.097 PIPE; INL (D)	8-97255-005-3	01	1	0110-		●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909			●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109			●	●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-			●	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	9804-0205	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	0206-	●
53	03.602 BOLT; INL PIPE 01.271 (C) M8X40 FLANGE	0-28080-840-0	04	1	9804-						●
53	03.602 BOLT; INL PIPE (D) M8X110 FLANGE	0-28085-811-0	02	1	0110-		●
53	03.602 BOLT; INL PIPE 02.559 (E) M8X25 FLANGE	0-28680-825-0	02	1	0110-		●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) ID=65-82	8-97131-942-0	02	1	9804-9909	●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	9804-9909			●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) ID=65-82	8-97131-942-0	02	1	9910-0109	●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	9910-0109			●	●
61	03.273 CLIP; CONNECTOR HOSE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ID=65-82	8-97131-942-0	02	1	0110-	●
61	03.273 CLIP; CONNECTOR HOSE ID=65-82	8-97131-942-0	02	1	0110-			●	●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97137-018-0	01	1	9804-9909	●
62	03.265 HOSE; CONNECTOR	8-97137-018-0	01	1	9804-9909			●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3)	8-97137-018-0	01	1	9910-0109	●
62	03.265 HOSE; CONNECTOR	8-97137-018-0	01	1	9910-0109			●	●
62	03.265 HOSE; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97137-018-1	01	1	0110-	●
62	03.265 HOSE; CONNECTOR	8-97137-018-1	01	1	0110-			●	●
95	03.278 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94406-478-0	01	1	9804-9909			●
95	03.278 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-94406-478-0	01	1	9910-0101			●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9910-0101				●
95	03.278 CLIP; RUBBER HOSE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0102-			●
95	03.278 CLIP; RUBBER HOSE 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0102-				●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3)	8-97142-687-0	01	1	9804-9805	●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3)	8-97211-188-0	01	1	9806-0007	●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3)	8-97261-103-0	01	1	0008-0009	●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3)	8-97300-888-0	01	1	0010-0109	●
114	03.265 HOSE; VAC,INT THROTTLE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97300-888-0	01	1	0110-	●
114	03.265 HOSE; VAC,INT THROTTLE EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-027-2	01	1	9804-			●
114	03.265 HOSE; VAC,INT THROTTLE	8-97148-482-0	01	1	9910-0007				●
114	03.265 HOSE; VAC,INT THROTTLE	8-97259-674-0	01	1	0008-				●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9804-9909	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9804-9909			●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9910-0109	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	9910-0109			●	●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	0110-	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (B) ID=12 OD=24 T=4.5	8-94403-670-0	02	1	0110-			●	●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94434-927-0	02	1	9804-9909	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A)	8-94434-927-0	02	1	9804-9909			●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) (A)	8-94434-927-0	02	1	9910-0109	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A)	8-94434-927-0	02	1	9910-0109			●	●
185	03.273 RUBBER; MTG,INL MANIF,UPR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A)	8-94434-927-0	02	1	0110-	●
185	03.273 RUBBER; MTG,INL MANIF,UPR (A)	8-94434-927-0	02	1	0110-			●	●
260	03.278 CAP; RUBBER UNITED KINGDOM EQUIPMENT(EK3) 01.780 ID=4	8-94217-809-0	01	1	9804-0109	●
260	03.278 CAP; RUBBER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.780 ID=4	8-94217-809-0	01	1	0110-	●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) (B) OD=7 H=1.2	8-94364-750-0	01	1	9804-9909	●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) (B) OD=7 H=1.2	8-94364-750-0	01	1	9910-0109	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	9910-0109				●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) OD=7 H=1.2	8-94364-750-0	01	1	0110-	●
491	01.152 CLIP; CONNECTOR ENG QUICK WARM UP SYSTEM<6JZ> (B) OD=7 H=1.2	8-94364-750-0	01	1	0110-	●
491	01.152 CLIP; CONNECTOR (B) OD=7 H=1.2	8-94364-750-0	01	1	0110-				●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) 03.278 (A)	8-97031-674-0	01	1	9804-0109	●
491	01.152 CLIP; CONNECTOR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.278 (A)	8-97031-674-0	01	1	0110-	●

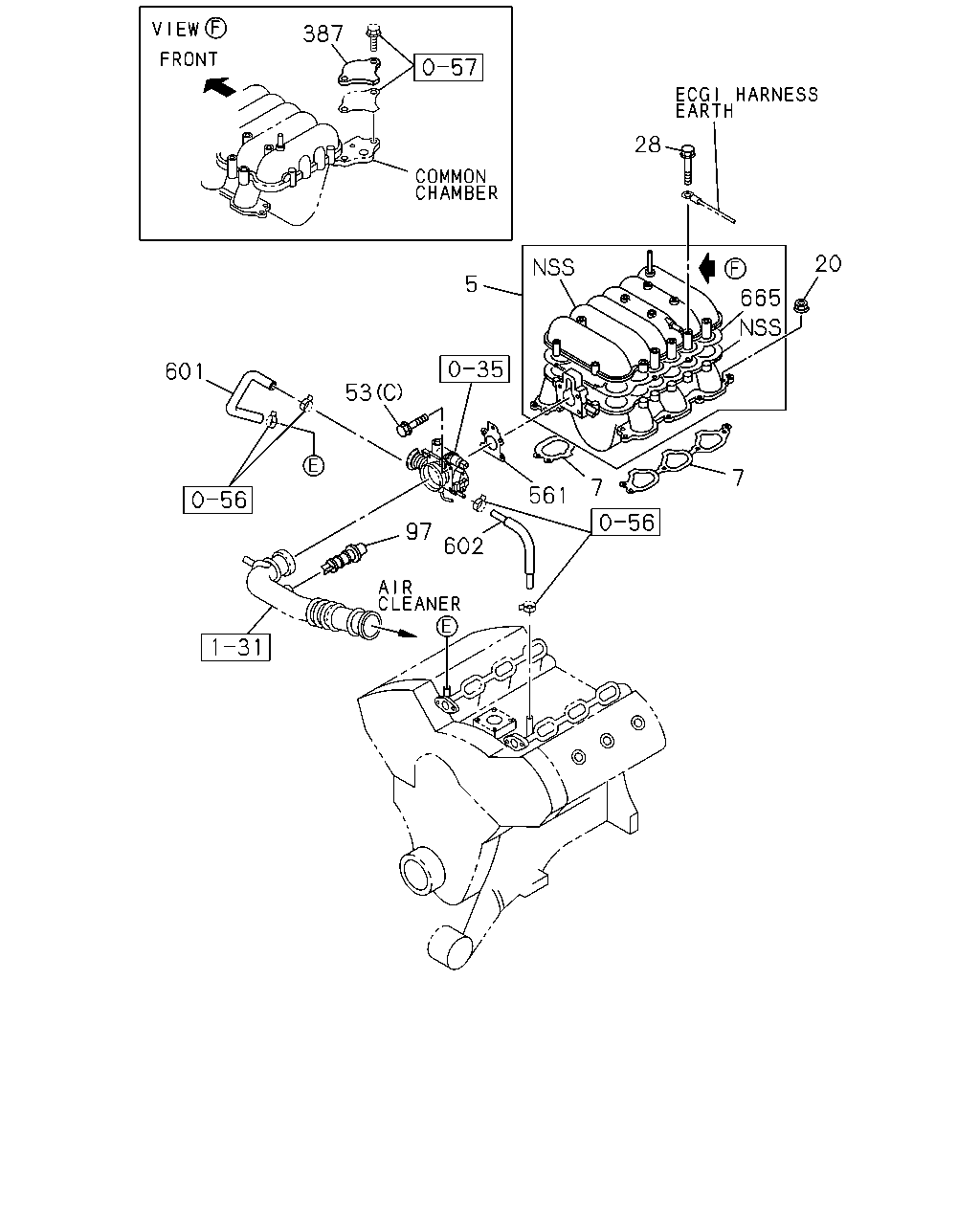

387 28 20 5 665 601 53 7 7 561 97 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	03.278 CHAMBER; COMMON	8-97180-044-4	01	1	9804-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9804-9905	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9906-9909	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9910-0101	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0102-0109	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0110-	●	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9804-9909						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97237-538-0	02	1	9910-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-514-0	01	1	9804-					●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-0205	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	02	1	0206-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-						●
20	03.275 NUT; INL MANIF 03.604	8-11082-413-0	09	1	9804-					●
28	03.278 BOLT; CHAMBER M8X150 FLANGE	0-28085-815-0	04	1	9804-						●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909			●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109			●	●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-			●	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	9804-0205	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	0206-	●
53	03.602 BOLT; INL PIPE 01.271 (C) M8X40 FLANGE	0-28080-840-0	04	1	9804-						●
53	03.602 BOLT; INL PIPE (D) M8X110 FLANGE	0-28085-811-0	02	1	0110-		●
53	03.602 BOLT; INL PIPE 02.559 (E) M8X25 FLANGE	0-28680-825-0	02	1	0110-		●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE	8-12160-244-0	01	1	9804-						●
387	03.265 PLATE; EGR,INL MANIF	8-97169-805-0	01	1	9804-						●
387	03.265 PLATE; EGR,INL MANIF	8-97255-029-0	01	1	0110-		●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9804-						●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-92060-513-0	01	1	9804-					●
601	01.097 HOSE; WATER,T/V FEED	8-97136-218-0	01	1	9804-9907						●
601	01.097 HOSE; WATER,T/V FEED	8-97231-680-0	01	1	9908-						●
602	01.097 HOSE; WATER,T/V RETURN	8-97136-219-2	01	1	9804-						●
665	03.270 GASKET; COMMON CHAMBER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-074-1	01	1	9804-0107						●
665	03.270 GASKET; COMMON CHAMBER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97254-448-0	01	1	0108-						●

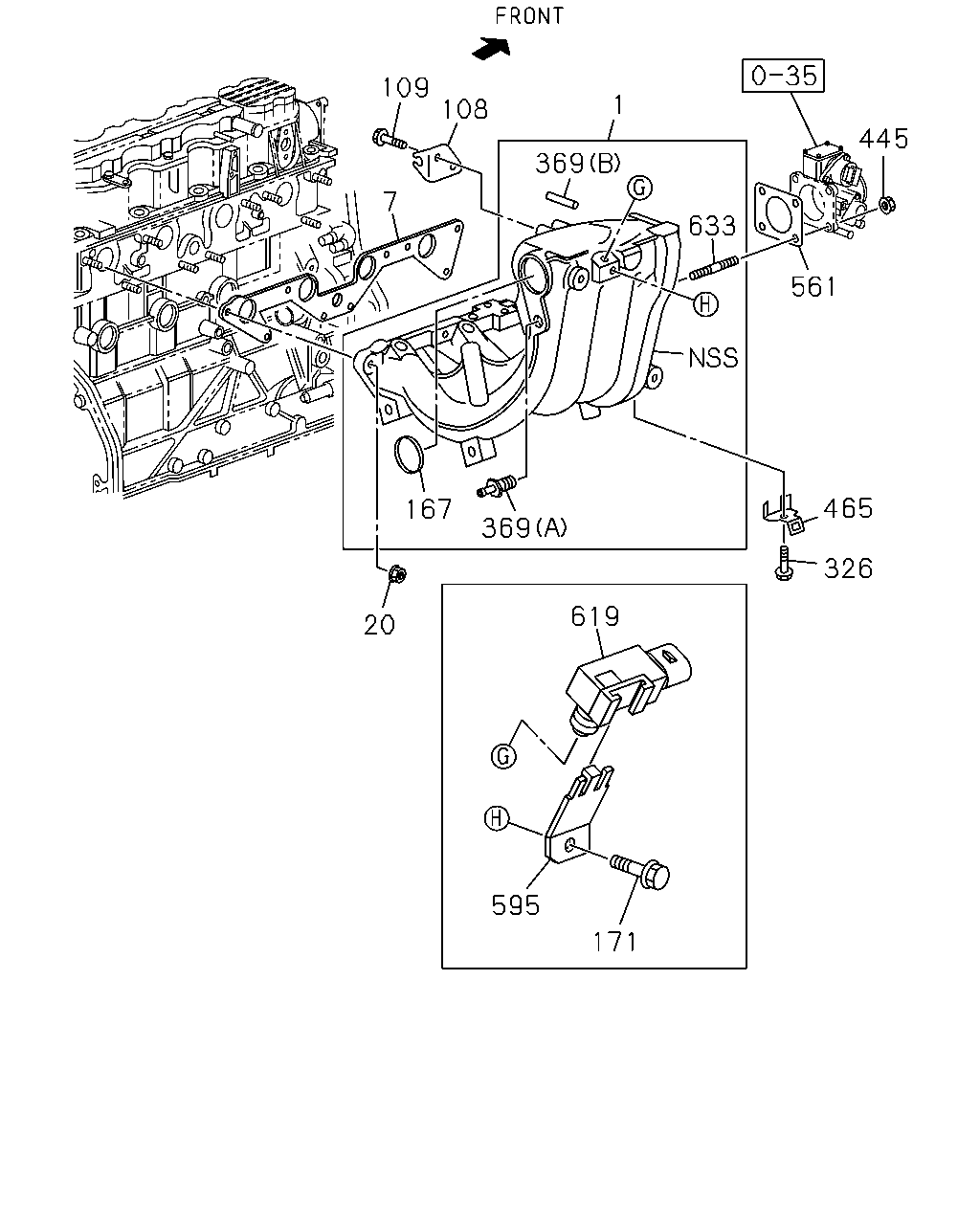

109 1 108 445 369 7 633 561 465 167 369 326 619 20 595 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL CHARGE AIR COOLER<6PL>	8-97249-064-4	01	1	0110-	●
1	03.265 MANIFOLD; INL	8-97249-064-4	01	1	0110-		●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9804-9909	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9804-9909			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9910-0109	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9910-0109			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	9910-0109				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97139-649-1	01	1	0110-0308	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	0110-0308			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	0110-0308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97253-952-0	01	1	0309-	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97253-952-0	01	1	0309-			●
1	03.265 MANIFOLD; INL	8-97253-952-0	01	1	0309-				●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97116-132-2	01	1	9804-0303			●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97350-916-0	01	1	0304-			●
1	03.265 MANIFOLD; INL	8-92063-656-0	01	1	9804-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9804-9905	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9906-9909	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9910-0101	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0102-0109	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0110-	●	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9804-9909						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97237-538-0	02	1	9910-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-514-0	01	1	9804-					●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-0205	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	02	1	0206-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-						●
20	03.275 NUT; INL MANIF 03.604	8-11082-413-0	09	1	9804-					●
108	03.444 BRACKET; ACCEL CABLE	8-92063-297-0	01	1	9804-					●
109	03.444 BOLT; ACCEL CABLE BRKT	8-11048-675-0	02	1	9804-9901					●
109	03.444 BOLT; ACCEL CABLE BRKT	8-11048-677-0	02	1	9902-					●
167	03.265 PLUG; INL MANIF	8-11070-802-0	01	1	9804-					●
171	02.559 BOLT; BRKT 02.510	8-11093-971-0	01	1	9804-					●
326	02.559 BOLT; CLIP,HARNESS 02.510	8-11093-971-0	01	1	9804-					●
369	02.559 CONNECTOR; BOOST SWITCH (B)	8-90144-180-0	01	1	9804-					●
369	02.559 CONNECTOR; BOOST SWITCH (A)	8-92063-658-0	01	1	9804-					●
445	03.275 NUT; THROTTLE BODY TO MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-	●
445	03.275 NUT; THROTTLE BODY TO MANIF	8-11094-423-0	04	1	9804-					●
465	02.559 CLIP; HARNESS,INL MANIF	8-92063-680-0	01	1	9804-					●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9804-						●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-92060-513-0	01	1	9804-					●
595	02.559 BRACKET; MAP SENSOR	8-92063-372-0	01	1	9804-					●
619	01.150 SENSOR; MAP 03.320	8-16212-460-0	01	1	9804-					●
633	03.275 STUD; THROTTLE BODY UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.060 M8X55 L=71	9-04020-855-0	02	1	0110-	●
633	03.275 STUD; THROTTLE BODY	8-11083-711-0	04	1	9804-					●

53 52 236 184 53 53 94 387 27 364 20 27 7 1 20 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.265 MANIFOLD; INL CHARGE AIR COOLER<6PL>	8-97249-064-4	01	1	0110-	●
1	03.265 MANIFOLD; INL	8-97249-064-4	01	1	0110-		●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9804-9909	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9804-9909			●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3)	8-97139-649-1	01	1	9910-0109	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	9910-0109			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	9910-0109				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97139-649-1	01	1	0110-0308	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97139-649-1	01	1	0110-0308			●
1	03.265 MANIFOLD; INL	8-97139-649-1	01	1	0110-0308				●
1	03.265 MANIFOLD; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97253-952-0	01	1	0309-	●
1	03.265 MANIFOLD; INL EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97253-952-0	01	1	0309-			●
1	03.265 MANIFOLD; INL	8-97253-952-0	01	1	0309-				●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97116-132-2	01	1	9804-0303			●
1	03.265 MANIFOLD; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D)	8-97350-916-0	01	1	0304-			●
1	03.265 MANIFOLD; INL	8-92063-656-0	01	1	9804-					●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97066-741-1	01	1	9804-9905	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9906-9909	●		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97228-044-0	01	1	9910-0101	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0102-0109	●		●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97301-838-0	01	1	0110-	●	●	●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97131-894-2	02	1	9804-9909						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97237-538-0	02	1	9910-						●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-92060-514-0	01	1	9804-					●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9804-9909			●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9910-0109			●	●
13	03.275 BOLT; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-	●
13	03.275 BOLT; INL MANIF 01.531 M8X25 FLANGE	0-28080-825-0	06	1	0110-		●	●	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0206-	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X28	0-50140-628-0	06	1	9804-0205	●
13	03.275 BOLT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> M6X28	0-50140-628-0	06	1	0206-	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.829 M6 FLANGE	5-09440-004-0	02	1	9804-0205	●
20	03.275 NUT; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 07.829 M6 FLANGE	5-09440-004-0	02	1	0206-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9804-9909	●		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9910-0109	●		●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	0110-	●	●	●	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9804-						●
20	03.275 NUT; INL MANIF 03.604	8-11082-413-0	09	1	9804-					●
27	03.275 STUD; INL MANIF EXC. CHARGE AIR COOLER<6PL> 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	0110-		●	●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.219 (C) M8X35 L=46	9-09630-034-1	01	1	0110-	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	9804-0205	●
27	03.275 STUD; INL MANIF EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.162 (B) M6X20 L=29	9-04110-620-0	02	1	0206-	●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9804-9909	●		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	02	1	9910-0109	●		●	●
27	03.275 STUD; INL MANIF UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 03.901 (D) M8X25 L=37	9-04110-825-0	01	1	0110-	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9804-9909	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9804-9909			●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97188-068-1	01	1	9910-0109	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	9910-0109			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97188-068-1	01	1	0110-	●
52	01.097 PIPE; INL (B)	8-97188-068-1	01	1	0110-			●	●
52	01.097 PIPE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97249-223-2	01	1	0110-	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-866-0	01	1	9804-0205	●
52	01.097 PIPE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97115-866-0	01	1	0206-	●
52	01.097 PIPE; INL (D)	8-97255-005-3	01	1	0110-		●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9804-9909			●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9910-0109			●	●
53	03.602 BOLT; INL PIPE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-	●
53	03.602 BOLT; INL PIPE 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	0110-			●	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	9804-0205	●
53	03.602 BOLT; INL PIPE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 03.417 (B) M10X25 FLANGE	0-28081-025-0	02	1	0206-	●
53	03.602 BOLT; INL PIPE 01.271 (C) M8X40 FLANGE	0-28080-840-0	04	1	9804-						●
53	03.602 BOLT; INL PIPE (D) M8X110 FLANGE	0-28085-811-0	02	1	0110-		●
53	03.602 BOLT; INL PIPE 02.559 (E) M8X25 FLANGE	0-28680-825-0	02	1	0110-		●
94	02.559 BOLT 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0110-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97214-127-0	02	1	0110-	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97214-127-0	01	1	0110-		●
236	03.162 CLIP; ACCEL CABLE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97309-195-1	01	1	0110-	●
364	03.270 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	01	1	0110-		●
387	03.265 PLATE; EGR,INL MANIF	8-97169-805-0	01	1	9804-						●
387	03.265 PLATE; EGR,INL MANIF	8-97255-029-0	01	1	0110-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
