Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#38415) — 344 parça

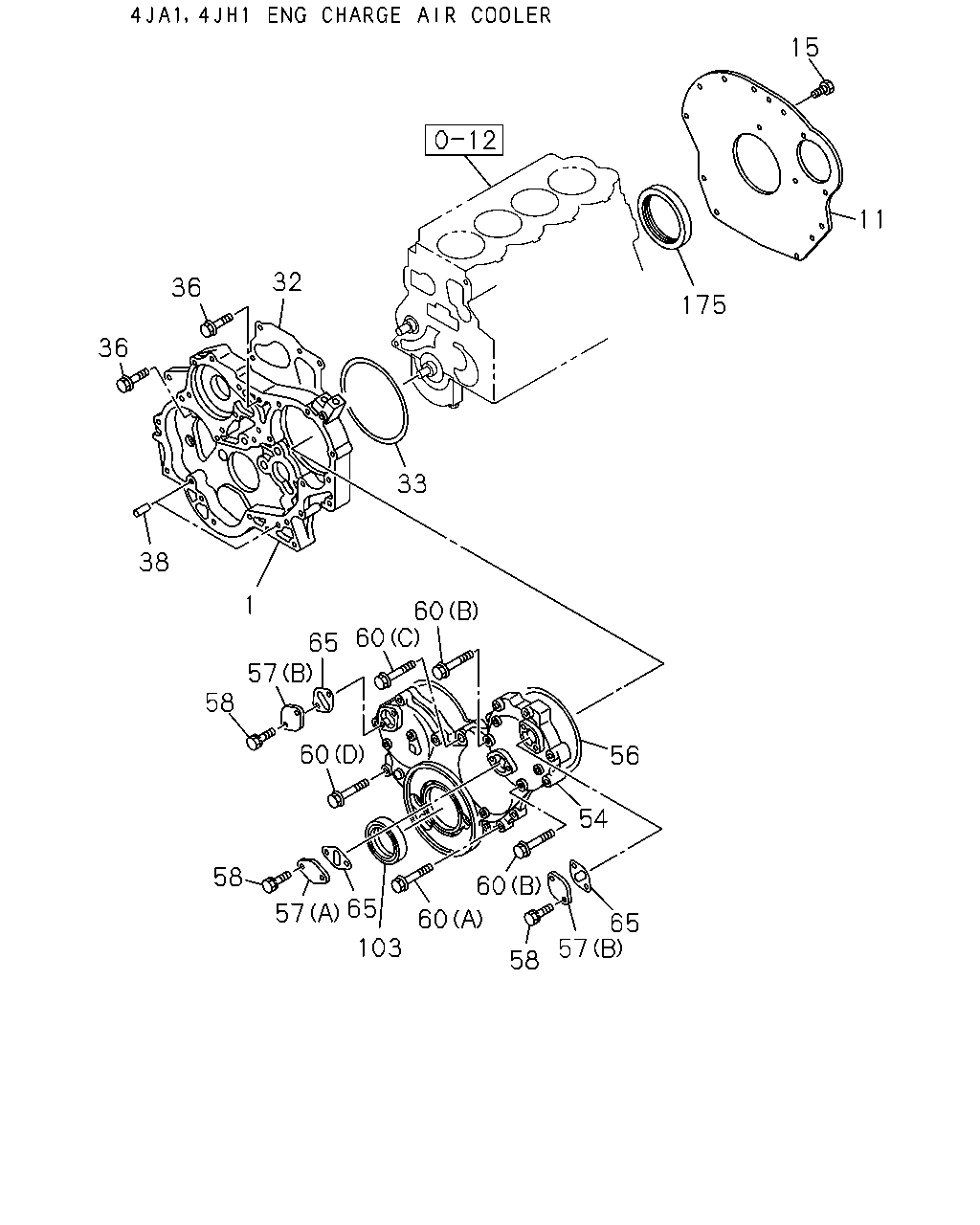

11 15 175 32 33 60 38 60 54 65 57 1 58 56 36 60 65 57 58 103 60 78 73 72 71 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9804-9909	●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9910-0109	●
1	00.206 CASE; TIMING GEAR	8-97160-960-0	01	1	9910-0109		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97160-960-1	01	1	0110-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-1	01	1	0110-		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-574-0	01	1	0110-	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-3	01	1	9804-	●		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0110-				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-9909	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9910-0109	●	●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0110-	●	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-9909	●		●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9910-0109	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0110-	●	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-426-0	01	1	9804-0109	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97129-426-0	01	1	0110-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-426-0	01	1	0110-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9804-0109			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	0110-			●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>.	8-97287-672-0	01	1	0110-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0110-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-707-0	01	1	9804-	●		●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9804-0109	●		●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0110-	●
36	00.206 BOLT; GEAR CASE CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0110-	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0110-			●	●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9804-0109	●		●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0110-	●
36	00.206 BOLT; GEAR CASE CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0110-	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0110-			●	●
38	00.685 PIN; GEAR CASE COVER CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20	8-97135-423-0	02	1	0110-0201	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0110-0201				●
38	00.685 PIN; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
38	00.685 PIN; GEAR CASE COVER CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-			●	●
38	00.685 PIN; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.669 OD=10 L=20	9-08151-020-0	02	1	9804-0201	●		●
54	00.206 COVER; GEAR CASE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-576-2	01	1	0110-	●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-360-2	01	1	9804-9903	●		●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97219-278-0	01	1	9904-9912	●		●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97231-214-1	01	1	0001-	●		●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0110-				●
55	00.206 COVER; NOISE SHIELD EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-721-1	01	1	9804-	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94140-117-1	01	1	9804-9910	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97238-631-0	01	1	9911-0106	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0107-0109	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3).	8-97287-694-0	01	1	0110-	●
56	00.207 GASKET; GEAR CASE TO COVER CHARGE AIR COOLER<6PL>.	8-97287-694-0	01	1	0110-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0110-			●	●
57	00.206 COVER; TIMING CHECK HOLE CHARGE AIR COOLER<6PL> (A)	8-97304-608-1	01	1	0110-	●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0110-				●
57	00.206 COVER; TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	5-11321-009-0	02	1	9804-0109	●		●
57	00.206 COVER; TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	5-11321-009-0	02	1	0110-	●
57	00.206 COVER; TIMING CHECK HOLE CHARGE AIR COOLER<6PL> (B)	5-11321-009-0	02	1	0110-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0110-			●	●
58	00.206 BOLT; CHECK HOLE COVER CHARGE AIR COOLER<6PL> M6X14 W/LK WASHER	0-50040-614-0	06	1	0110-	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0110-				●
58	00.206 BOLT; CHECK HOLE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9804-	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.727 (A) M8X32 W/LK WASHER	0-50040-832-0	08	1	9804-9906	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	9907-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0110-	●
60	00.206 BOLT; COVER TO CASE 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0110-			●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9804-9906	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	9907-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0110-			●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) M8X65 W/LK WASHER	8-94205-986-1	06	1	9804-9903	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.251 (B) M8X60 FLANGE	0-28080-860-0	06	1	9904-0105	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0106-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0110-	●
60	00.206 BOLT; COVER TO CASE 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0110-			●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9804-0107	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0108-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0110-			●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE CHARGE AIR COOLER<6PL>	8-97027-601-1	03	1	0110-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0110-				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97118-698-1	02	1	9804-	●		●
71	00.206 RUBBER; MTG,COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) (C)	5-19389-002-0	04	1	9804-	●		●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9804-					●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9804-					●
72	00.206 BUSHING; SPACER,COVER TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	5-19389-009-0	04	1	9804-	●		●
73	00.206 BOLT; COVER FIX EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9804-	●		●
78	00.206 SPACER; MTG RUBBER,NOISE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-722-3	01	1	9804-	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9804-0109	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0110-0206	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9910-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-9909	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9910-0109	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0110-	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-						●

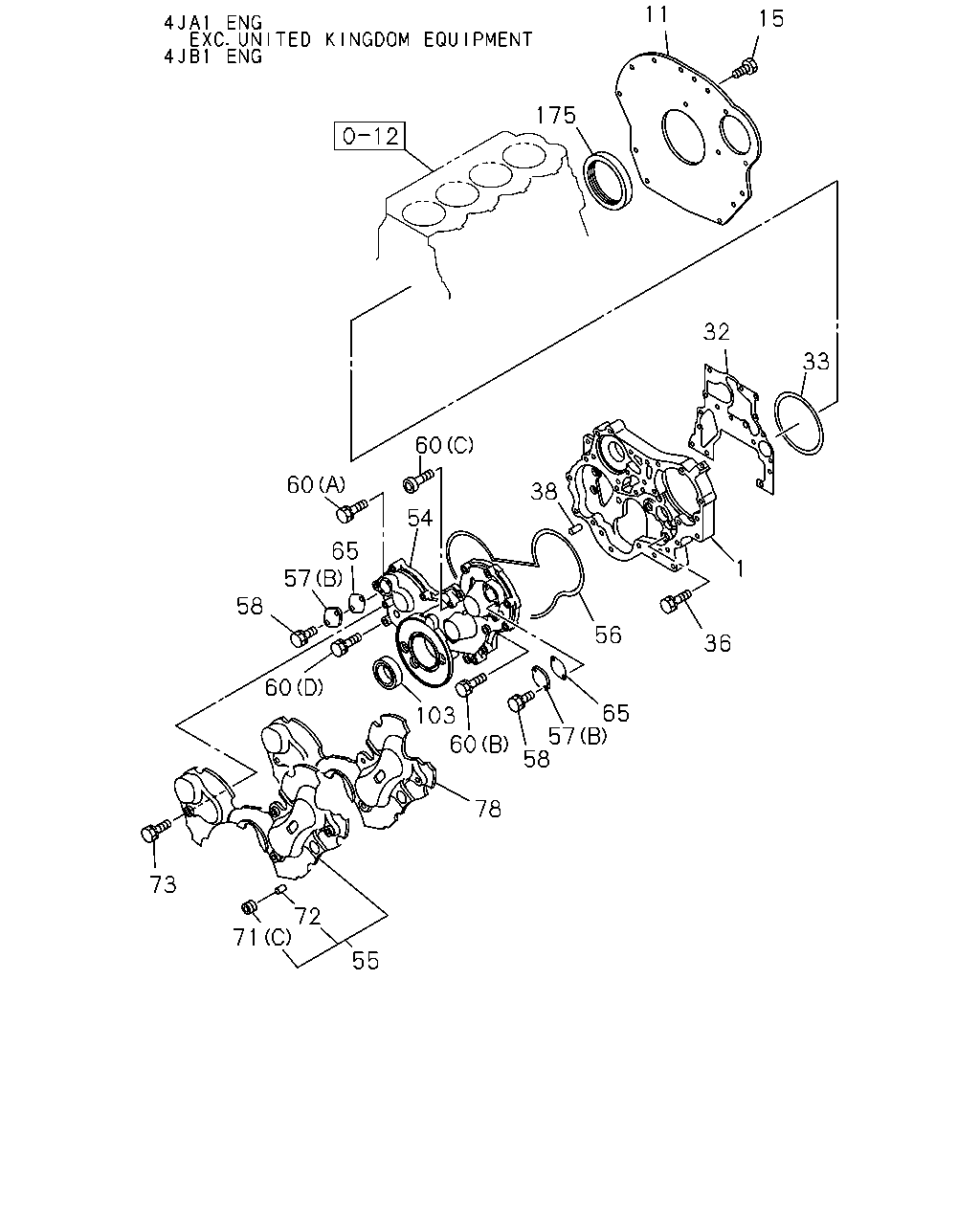

15 11 32 36 175 36 33 38 1 60 60 65 57 58 60 56 54 58 60 65 57 60 65 57 103 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9804-9909	●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9910-0109	●
1	00.206 CASE; TIMING GEAR	8-97160-960-0	01	1	9910-0109		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97160-960-1	01	1	0110-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-1	01	1	0110-		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-574-0	01	1	0110-	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-3	01	1	9804-	●		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0110-				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-9909	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9910-0109	●	●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0110-	●	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-9909	●		●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9910-0109	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0110-	●	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-426-0	01	1	9804-0109	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>	8-97129-426-0	01	1	0110-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-426-0	01	1	0110-	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	9804-0109			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	0110-			●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL>.	8-97287-672-0	01	1	0110-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0110-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-707-0	01	1	9804-	●		●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	9804-0109	●		●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0110-	●
36	00.206 BOLT; GEAR CASE CHARGE AIR COOLER<6PL> 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0110-	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0110-			●	●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	9804-0109	●		●
36	00.206 BOLT; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0110-	●
36	00.206 BOLT; GEAR CASE CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0110-	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0110-			●	●
38	00.685 PIN; GEAR CASE COVER CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20	8-97135-423-0	02	1	0110-0201	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0110-0201				●
38	00.685 PIN; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
38	00.685 PIN; GEAR CASE COVER CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-			●	●
38	00.685 PIN; GEAR CASE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.669 OD=10 L=20	9-08151-020-0	02	1	9804-0201	●		●
54	00.206 COVER; GEAR CASE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-576-2	01	1	0110-	●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94155-360-2	01	1	9804-9903	●		●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97219-278-0	01	1	9904-9912	●		●
54	00.206 COVER; GEAR CASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97231-214-1	01	1	0001-	●		●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0110-				●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94140-117-1	01	1	9804-9910	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97238-631-0	01	1	9911-0106	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0107-0109	●		●
56	00.207 GASKET; GEAR CASE TO COVER EXC. UNITED KINGDOM EQUIPMENT(EK3).	8-97287-694-0	01	1	0110-	●
56	00.207 GASKET; GEAR CASE TO COVER CHARGE AIR COOLER<6PL>.	8-97287-694-0	01	1	0110-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0110-			●	●
57	00.206 COVER; TIMING CHECK HOLE CHARGE AIR COOLER<6PL> (A)	8-97304-608-1	01	1	0110-	●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0110-				●
57	00.206 COVER; TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	5-11321-009-0	02	1	9804-0109	●		●
57	00.206 COVER; TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3) (B)	5-11321-009-0	02	1	0110-	●
57	00.206 COVER; TIMING CHECK HOLE CHARGE AIR COOLER<6PL> (B)	5-11321-009-0	02	1	0110-	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0110-			●	●
58	00.206 BOLT; CHECK HOLE COVER CHARGE AIR COOLER<6PL> M6X14 W/LK WASHER	0-50040-614-0	06	1	0110-	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0110-				●
58	00.206 BOLT; CHECK HOLE COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X14 W/LK WASHER	0-50040-614-0	04	1	9804-	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.727 (A) M8X32 W/LK WASHER	0-50040-832-0	08	1	9804-9906	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	9907-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0110-	●
60	00.206 BOLT; COVER TO CASE 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0110-			●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 (D) M8X60 W/LK WASHER	0-50040-860-0	01	1	9804-9906	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	9907-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0110-			●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) M8X65 W/LK WASHER	8-94205-986-1	06	1	9804-9903	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.251 (B) M8X60 FLANGE	0-28080-860-0	06	1	9904-0105	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0106-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0110-	●
60	00.206 BOLT; COVER TO CASE 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0110-			●	●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9804-0107	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0108-0109	●		●
60	00.206 BOLT; COVER TO CASE EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE CHARGE AIR COOLER<6PL> (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0110-	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0110-			●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE CHARGE AIR COOLER<6PL>	8-97027-601-1	03	1	0110-	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0110-				●
65	00.207 GASKET; COVER,TIMING CHECK HOLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97118-698-1	02	1	9804-	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9804-0109	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0110-0206	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9910-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-9909	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9910-0109	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0110-	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-						●

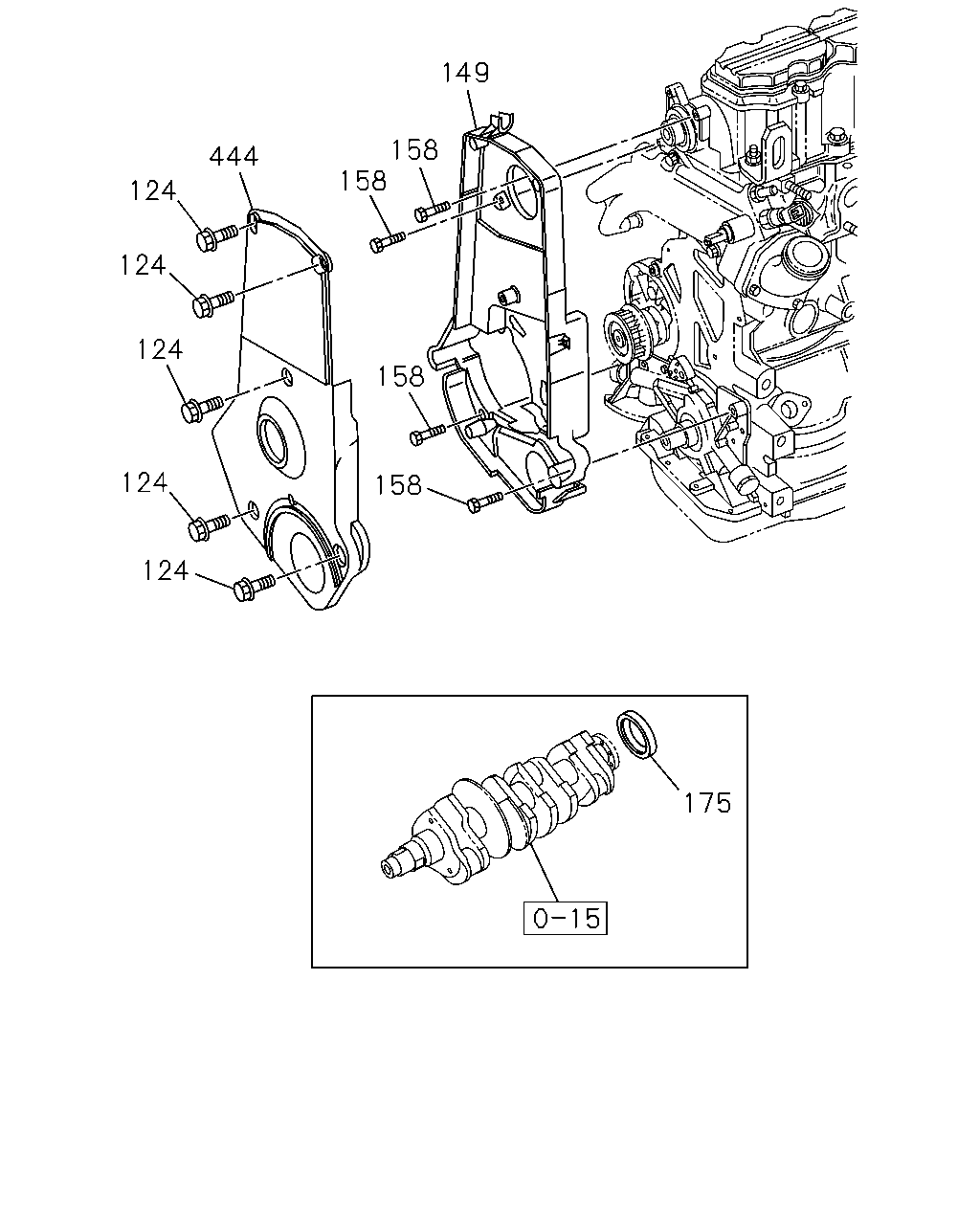

149 158 158 444 124 124 124 158 124 158 124 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9804-9909	●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9910-0109	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9910-0109		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0110-	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0110-		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9804-9909	●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9910-0109	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	9910-0109		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M6X50 W/LK WASHER	8-94152-616-1	03	1	0110-	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	0110-		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9804-					●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	9804-						●
149	00.206 PLATE; FRT,C/BL	8-92063-474-0	01	1	9804-						●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	9804-						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-9909	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9910-0109	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0110-	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-						●
444	00.206 COVER; TIMING CASE	8-92063-648-0	01	1	9804-						●

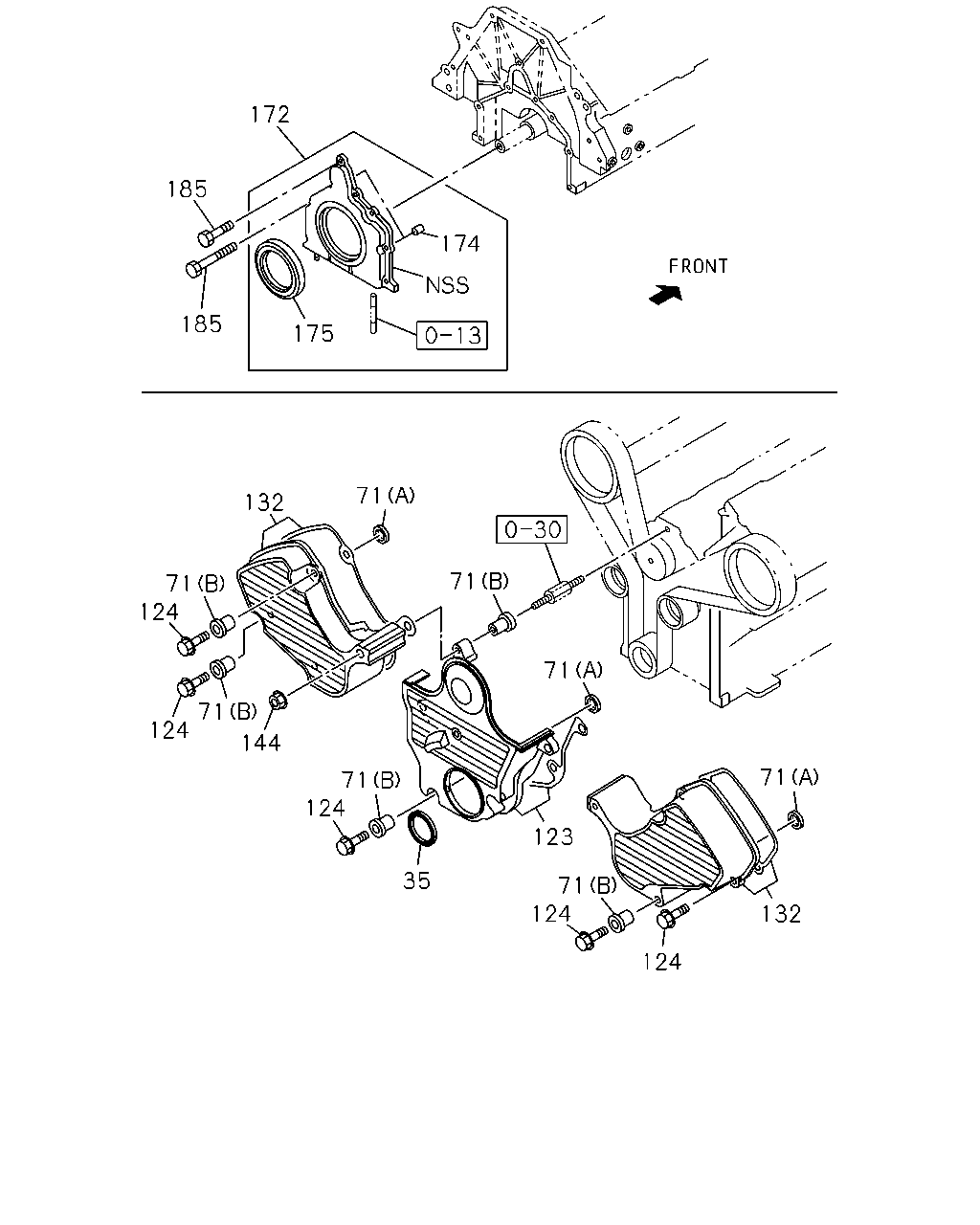

172 185 174 185 175 71 132 71 71 124 71 71 124 144 71 71 124 123 35 71 124 132 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9804-					●
71	00.206 RUBBER; MTG,COVER EXC. UNITED KINGDOM EQUIPMENT(EK3) (C)	5-19389-002-0	04	1	9804-	●		●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9804-					●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9804-					●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-105-1	01	1	9804-9909	●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-105-1	01	1	9910-0109	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9910-0109		●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-105-1	01	1	0110-	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	0110-		●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	9804-					●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9804-9909	●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9910-0109	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9910-0109		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0110-	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0110-		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9804-9909	●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9910-0109	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	9910-0109		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M6X50 W/LK WASHER	8-94152-616-1	03	1	0110-	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	0110-		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9804-					●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	9804-						●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-103-1	01	1	9804-9909	●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-103-1	01	1	9910-0109	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9910-0109		●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-103-1	01	1	0110-	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	0110-		●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	9804-					●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	9804-					●
144	00.206 NUT; COVER 07.633 M8 FLANGE	0-91150-108-0	01	1	9804-					●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	9804-					●
174	00.683 DOWEL; RET TO C/BL	8-97103-336-0	02	1	9804-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-9909	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9910-0109	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0110-	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-						●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9804-					●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9804-					●

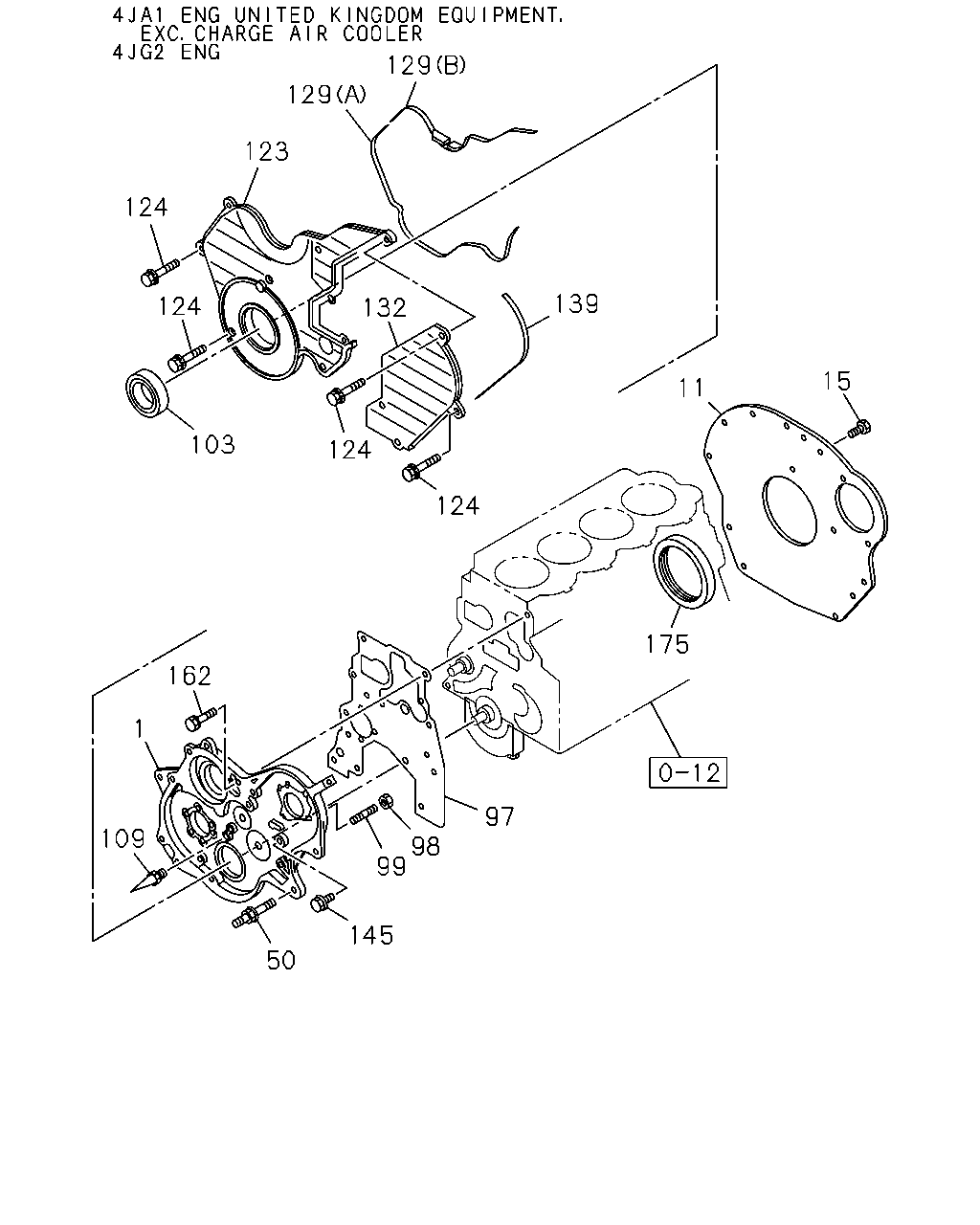

129 129 123 124 139 124 132 15 11 103 124 124 175 162 1 97 109 98 99 145 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9804-9909	●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3)	8-97160-960-0	01	1	9910-0109	●
1	00.206 CASE; TIMING GEAR	8-97160-960-0	01	1	9910-0109		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97160-960-1	01	1	0110-	●
1	00.206 CASE; TIMING GEAR	8-97160-960-1	01	1	0110-		●
1	00.206 CASE; TIMING GEAR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97289-574-0	01	1	0110-	●
1	00.206 CASE; TIMING GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97129-982-3	01	1	9804-	●		●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0110-				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9804-9909	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9910-0109	●	●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0110-	●	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9804-9909	●		●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9910-0109	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0110-	●	●	●	●
50	00.206 STUD UNITED KINGDOM EQUIPMENT(EK3) M8X42.5 L=69	8-97148-539-0	01	1	9804-9909	●
50	00.206 STUD UNITED KINGDOM EQUIPMENT(EK3) M8X42.5 L=69	8-97148-539-0	01	1	9910-0109	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	9910-0109		●
50	00.206 STUD UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M8X42.5 L=69	8-97148-539-0	01	1	0110-	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	0110-		●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3)	8-97129-428-0	01	1	9804-0109	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97129-428-0	01	1	0110-	●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-0	01	1	9910-		●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340 M8	8-94224-829-0	03	1	9804-9909	●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340 M8	8-94224-829-0	03	1	9910-0109	●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	03	1	9910-0109		●
98	00.206 NUT; STUD,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.340 M8	8-94224-829-0	03	1	0110-	●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	03	1	0110-		●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 00.004 M8X28 L=44	9-04020-828-0	03	1	9804-9909	●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 00.004 M8X28 L=44	9-04020-828-0	03	1	9910-0109	●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	03	1	9910-0109		●
99	00.206 STUD; INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 00.004 M8X28 L=44	9-04020-828-0	03	1	0110-	●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	03	1	0110-		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9804-0109	●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	0110-0206	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-	●		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	9910-		●
109	00.219 POINTER; TIMING UNITED KINGDOM EQUIPMENT(EK3) M5X7.5	8-94133-500-0	01	1	9804-9909	●
109	00.219 POINTER; TIMING UNITED KINGDOM EQUIPMENT(EK3) M5X7.5	8-94133-500-0	01	1	9910-0109	●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	9910-0109		●
109	00.219 POINTER; TIMING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M5X7.5	8-94133-500-0	01	1	0110-	●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	0110-		●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-105-1	01	1	9804-9909	●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-105-1	01	1	9910-0109	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	9910-0109		●
123	00.206 COVER; TIMING,LWR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-105-1	01	1	0110-	●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	0110-		●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	9804-					●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9804-9909	●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9910-0109	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9910-0109		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0110-	●
124	00.206 BOLT; TIMING COVER M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0110-		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9804-9909	●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) M6X50 W/LK WASHER	8-94152-616-1	03	1	9910-0109	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	9910-0109		●
124	00.206 BOLT; TIMING COVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M6X50 W/LK WASHER	8-94152-616-1	03	1	0110-	●
124	00.206 BOLT; TIMING COVER M6X50 W/LK WASHER	8-94152-616-1	03	1	0110-		●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9804-					●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	05	1	9804-						●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (A) L=560	8-94464-695-1	01	1	9804-9909	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (A) L=560	8-94464-695-1	01	1	9910-0109	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	9910-0109		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A) L=560	8-94464-695-1	01	1	0110-0203	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-94464-695-1	01	1	0110-0203		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (A) L=560	8-97318-925-0	01	1	0204-	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-97318-925-0	01	1	0204-		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) (B) L=366	8-94464-696-0	01	1	9804-9909	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). (B) L=366	8-94464-696-0	01	1	9910-0109	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	9910-0109		●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. (B) L=366	8-94464-696-0	01	1	0110-	●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	0110-		●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-103-1	01	1	9804-9909	●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3)	8-97038-103-1	01	1	9910-0109	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	9910-0109		●
132	00.206 COVER; TIMING,UPR UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97038-103-1	01	1	0110-	●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	0110-		●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	9804-					●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	9804-					●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) L=215	8-94139-961-0	01	1	9804-9909	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3). L=215	8-94139-961-0	01	1	9910-0109	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	9910-0109		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. L=215	8-94139-961-0	01	1	0110-0203	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-94139-961-0	01	1	0110-0203		●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>. L=215	8-97318-924-0	01	1	0204-	●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-97318-924-0	01	1	0204-		●
145	00.206 BOLT; TENSIONER GUIDE UNITED KINGDOM EQUIPMENT(EK3) M8X20	8-94152-617-1	01	1	9804-9909	●
145	00.206 BOLT; TENSIONER GUIDE UNITED KINGDOM EQUIPMENT(EK3) M8X20	8-94152-617-1	01	1	9910-0109	●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	9910-0109		●
145	00.206 BOLT; TENSIONER GUIDE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M8X20	8-94152-617-1	01	1	0110-	●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	0110-		●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	9804-9909	●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	9910-0109	●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	9910-0109		●
162	00.206 BOLT; FRT PLATE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	0110-	●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	04	1	0110-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9804-9909	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	9910-0109	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0110-	●	●	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9804-					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	9804-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
