Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#38413) — 677 parça

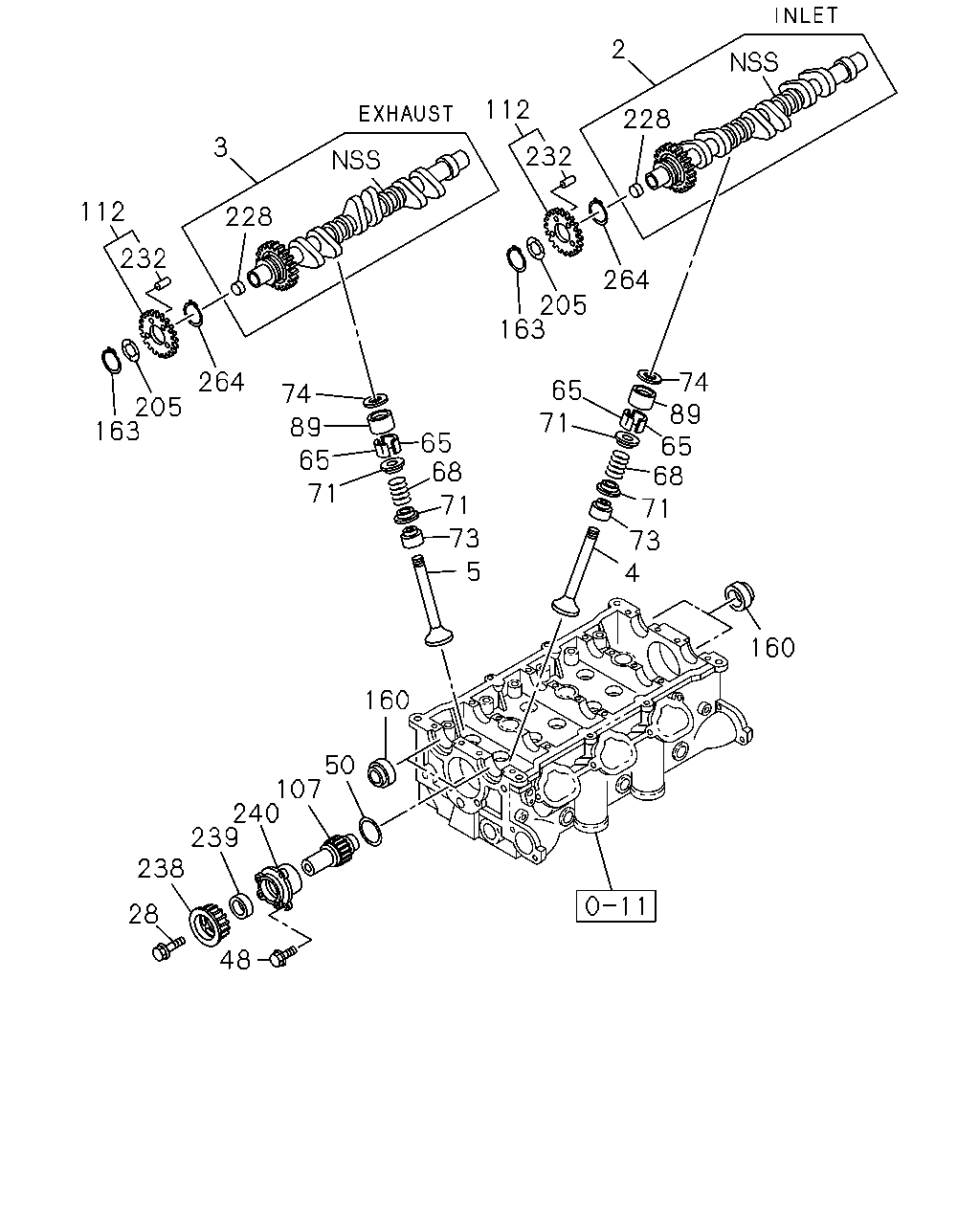

2 112 228 3 232 112 228 232 264 205 163 264 74 89 65 68 71 73 4 65 71 74 205 163 89 65 68 65 71 71 73 5 160 160 50 107 240 239 238 28 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	00.519 CAMSHAFT; INL	8-97131-946-1	01	1	9804-	●
2	00.519 CAMSHAFT; INL	8-97131-944-1	01	1	9804-	●
3	00.519 CAMSHAFT; EXH	8-97136-139-1	02	1	9804-	●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9804-0109		●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9804-0109			●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94464-921-0	04	1	0110-		●
4	00.296 VALVE; INL	8-94464-921-0	04	1	0110-			●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9804-0205		●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94133-275-1	04	1	0206-		●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9804-	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	9804-				●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	9804-				●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	9804-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9910-0109					●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97131-729-0	04	1	0110-		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0110-					●	●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9804-0109		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9804-0109			●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94433-245-0	04	1	0110-		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	0110-			●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9804-0205		●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94247-875-1	04	1	0206-		●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9804-	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	9804-				●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	9804-				●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	9804-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9910-0109					●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97043-861-1	04	1	0110-		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0110-					●	●
28	00.738 BOLT; CAM PULLEY	8-97149-393-0	02	1	9804-0204	●
28	00.738 BOLT; CAM PULLEY	8-97330-881-0	02	1	0205-	●
28	00.738 BOLT; CAM PULLEY	8-11073-823-0	01	1	9804-				●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9804-9909		●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9910-0109		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9910-0109					●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0110-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0110-					●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9804-	●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9804-	●
48	00.724 BOLT; RET	8-90264-407-0	02	1	9804-				●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3)	8-97080-893-0	01	1	9804-9909		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	9910-0109		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	9910-0109					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	0110-		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	0110-					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97149-238-0	02	1	9804-	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9804-9909		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9910-0109		●	●		●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0110-		●	●		●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9804-	●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	9804-				●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9804-9909		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9910-0109		●	●		●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0110-		●	●		●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9804-0108	●
68	00.303 SPRING; VLV	8-97314-228-0	24	1	0109-	●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	9804-				●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9804-9909		●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9910-0109		●	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0110-		●	●		●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9804-9909		●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9910-0109		●	●		●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0110-		●	●		●	●
71	00.309 SEAT; SPR UPPER OD=24.2	8-97136-329-1	24	1	9804-	●
71	00.309 SEAT; SPR LOWER OD=27	8-97149-155-0	24	1	9804-	●
71	00.309 SEAT; SPR EXHAUST	8-90128-720-0	04	1	9804-				●
71	00.309 SEAT; SPR 00.283 INLET	8-90499-099-0	04	1	9804-				●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-94324-158-1	12	1	9804-0207	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-97332-359-0	12	1	0208-	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST	8-97146-733-0	12	1	9804-	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90215-296-0	08	1	9804-				●
74	00.459 ADJUSTER; VLV GAP T=2.40	8-97149-262-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=2.42	8-97149-263-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=2.44	8-97149-264-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=2.46	8-97149-265-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=2.48	8-97149-266-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.50	8-97149-267-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.52	8-97149-268-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.54	8-97149-269-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.56	8-97149-270-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.58	8-97149-271-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97149-272-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.62	8-97149-273-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.64	8-97149-274-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.66	8-97149-275-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97149-276-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97149-277-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.72	8-97149-278-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.74	8-97149-279-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.76	8-97149-280-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97149-281-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97149-282-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97149-283-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97149-284-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97149-285-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97149-286-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97149-287-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97149-288-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97149-289-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97149-290-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97149-291-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97149-292-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97149-293-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97149-294-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97149-295-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97149-296-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97149-297-0	AR	1	9804-	●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97149-298-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97149-299-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97149-300-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97149-301-0	AR	1	9804-9906	●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97149-302-0	AR	1	9804-9906	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9804-9909		●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9910-0109		●	●		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0110-		●	●		●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9804-	●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	9804-				●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-870-0	01	1	0110-	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-871-0	01	1	0110-	●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-021-0	01	1	0110-0308		●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0110-0308						●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-224-0	01	1	0309-		●
107	00.724 SHAFT; IDLE GEAR	8-97943-224-0	01	1	0309-						●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9804-		●	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-966-1	01	1	9804-	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-965-1	01	1	9804-	●
112	00.724 GEAR; IDLE SUMITOMO ELECTRIC INDUSTRIES Z=40	8-97322-153-0	04	1	0201-	●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> Z=43	8-97240-014-1	01	1	0110-		●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0110-						●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-97164-773-0	01	1	9804-		●	●
112	00.724 GEAR; IDLE TOKYO BUHIN KOGYO CO.LTD Z=40	8-97136-655-1	04	1	9804-	●
160	00.533 PLUG; CM/SHF END	8-97149-338-0	08	1	9804-	●
163	00.724 RING; SNAP,IDLE	8-97149-334-0	04	1	9804-	●
205	00.724 WASHER; LK,IDLE	8-97136-589-0	04	1	9804-	●
228	00.738 CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	04	1	9804-	●
232	00.662 PIN; GEAR SET SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7	8-97173-670-0	04	1	0201-	●
232	00.662 PIN; GEAR SET 00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6	9-09878-626-0	04	1	9804-	●
232	00.662 PIN; GEAR SET	8-11055-129-0	01	1	9804-				●
238	00.659 PULLEY; TIMING,CAM	8-97136-327-0	02	1	9804-	●
239	00.533 SEAL; OIL,IDLE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94389-593-1	02	1	9804-	●
240	00.724 RETAINER; IDLE	8-97132-365-1	01	1	9804-	●
240	00.724 RETAINER; IDLE	8-97132-364-1	01	1	9804-	●
264	00.349 SPRING; GEAR 00.659	8-97136-343-0	04	1	9804-	●

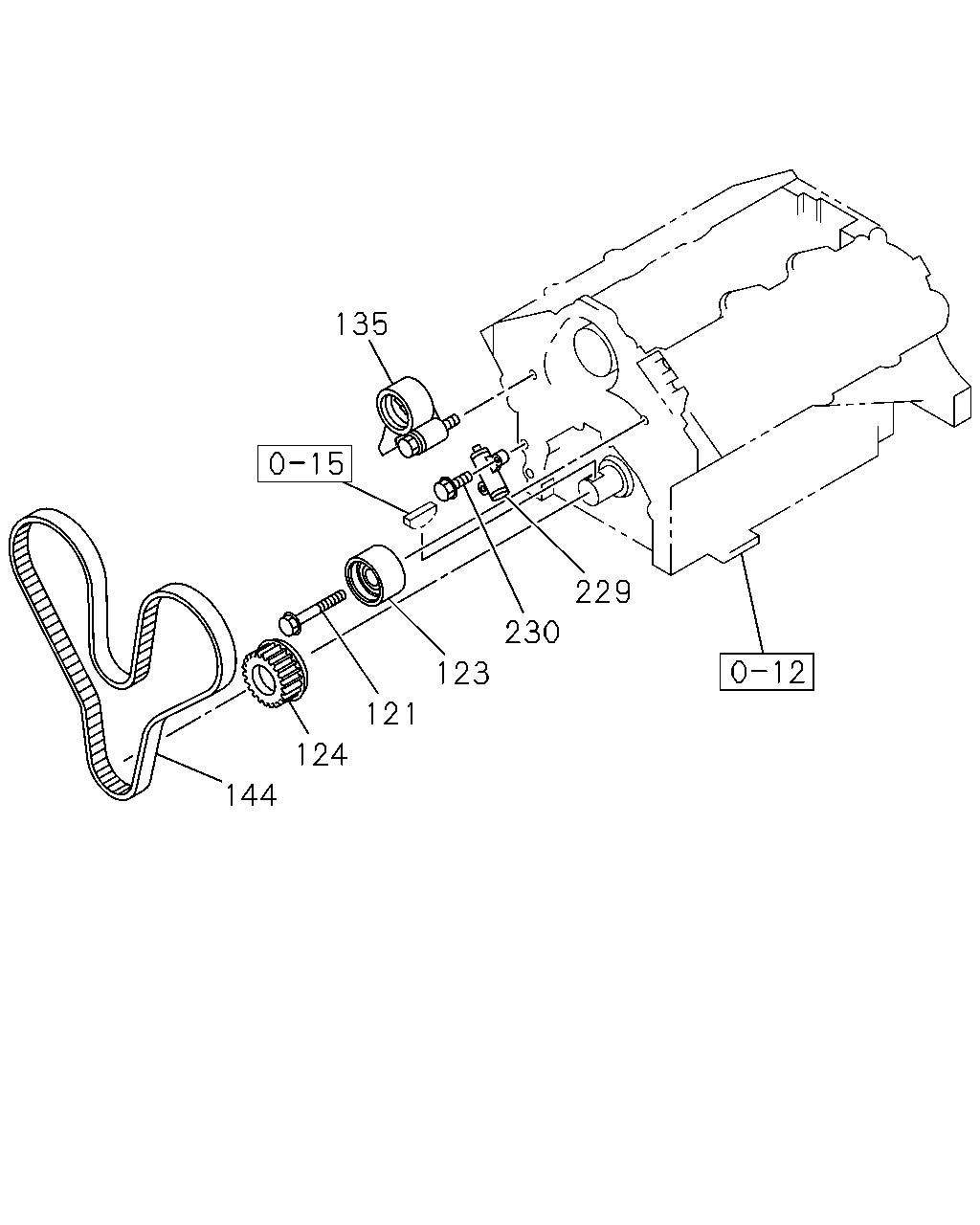

135 229 230 123 121 124 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9804-9909		●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9910-0109		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9910-0109				●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M12X57 FLANGE	8-94433-408-1	01	1	0110-		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	0110-				●
121	00.724 BOLT; IDLE PULLEY 03.613 M10X40 FLANGE	0-28681-040-0	01	1	9804-	●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-0	01	1	9804-9909		●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-1	01	1	9910-0109		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9910-0109				●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94382-215-1	01	1	0110-		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	0110-				●
123	00.724 PULLEY; IDLE,TIMING	8-97146-877-0	01	1	9804-	●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9804-9909		●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9910-0109		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9910-0109				●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> Z=22	8-94133-501-3	01	1	0110-		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	0110-				●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9804-	●
135	00.724 PULLEY; TENSIONER	8-97136-256-0	01	1	9804-	●
135	00.724 PULLEY; TENSIONER	8-90530-124-0	01	1	9804-0005			●
135	00.724 PULLEY; TENSIONER	8-09158-003-0	01	1	0006-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9804-9909		●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9910-0109		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9910-0109				●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> BLUE	8-94380-679-0	01	1	0110-		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0110-				●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9804-0204	●
144	00.724 BELT; TIMING	8-97191-036-1	01	1	0205-	●
144	00.724 BELT; TIMING	8-92062-521-0	01	1	9804-0009			●
144	00.724 BELT; TIMING	8-92065-303-0	01	1	0010-			●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97136-257-0	01	1	9804-0308	●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97328-512-0	01	1	0309-	●
230	00.724 BOLT; PUSH ROD 02.183 M8X35 FLANGE	0-28680-835-0	02	1	9804-	●

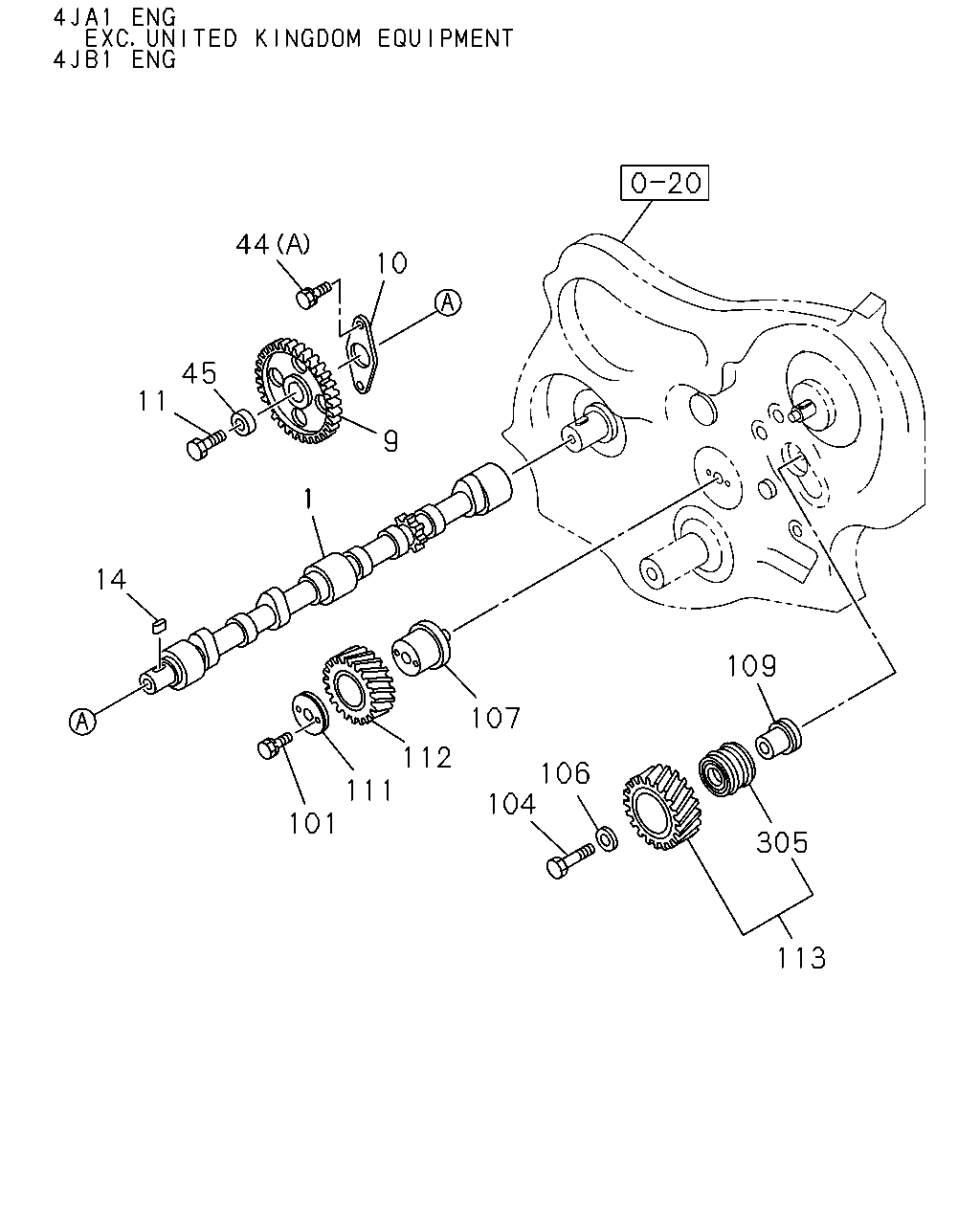

44 10 45 11 9 1 14 109 107 112 106 104 111 101 305 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9804-9909		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9910-0012		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0109		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0110-		●	●		●	●
1	00.519 CAMSHAFT	8-90232-446-0	01	1	9804-				●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=60	8-97240-012-2	01	1	0110-		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0110-						●
9	00.736 GEAR; CM/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=42	8-97079-212-1	01	1	9804-		●	●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	9804-0109		●	●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	0110-		●
10	00.533 PLATE; THRUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-94110-480-1	01	1	0110-		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0110-			●			●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9804-9909		●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9910-0109		●	●		●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0110-		●	●		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9804-9909		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9910-0109		●	●		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0110-		●	●		●	●
44	00.738 BOLT CHARGE AIR COOLER<6PL> (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0110-		●
44	00.738 BOLT (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0110-						●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9804-0102		●	●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0109		●	●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-		●
44	00.738 BOLT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-			●			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9804-9909		●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9910-0109		●	●		●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0110-		●	●		●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9804-9904		●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X53 FLANGE	8-97223-999-0	02	1	9905-0109		●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X53 FLANGE	8-97223-999-0	02	1	0110-		●
101	00.724 BOLT; THRUST COLLAR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	0110-		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0110-			●			●
104	00.724 BOLT; SHAFT IDLE CHARGE AIR COOLER<6PL> M12X77	8-94129-384-1	01	1	0110-		●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0110-						●
104	00.724 BOLT; SHAFT IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-706-1	01	1	9804-		●	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9804-0109		●	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	0110-		●
106	00.724 WASHER; IDLE GEAR SHAFT CHARGE AIR COOLER<6PL> 00.738 ID=13 OD=36	5-12519-002-1	01	1	0110-		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0110-			●			●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-870-0	01	1	0110-	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-871-0	01	1	0110-	●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-021-0	01	1	0110-0308		●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0110-0308						●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-224-0	01	1	0309-		●
107	00.724 SHAFT; IDLE GEAR	8-97943-224-0	01	1	0309-						●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9804-		●	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-966-1	01	1	9804-	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-965-1	01	1	9804-	●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-023-1	01	1	0110-0308		●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0110-0308						●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-225-0	01	1	0309-		●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-						●
109	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-913-1	01	1	9804-		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL>	8-94171-289-0	01	1	0110-		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0110-						●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94141-937-1	01	1	9804-		●	●
112	00.724 GEAR; IDLE SUMITOMO ELECTRIC INDUSTRIES Z=40	8-97322-153-0	04	1	0201-	●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> Z=43	8-97240-014-1	01	1	0110-		●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0110-						●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-97164-773-0	01	1	9804-		●	●
112	00.724 GEAR; IDLE TOKYO BUHIN KOGYO CO.LTD Z=40	8-97136-655-1	04	1	9804-	●
113	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=37	8-94139-761-0	01	1	9804-		●	●
305	00.724 BEARING; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-019-1	01	1	0110-		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0110-						●
305	00.724 BEARING; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-271-0	01	1	9804-		●	●

44 10 9 45 11 111 101 107 109 112 106 104 275 275 275 196 335 44 275 282 333 282 334 196 305 1 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9804-9909		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9910-0012		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0109		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0110-		●	●		●	●
1	00.519 CAMSHAFT	8-90232-446-0	01	1	9804-				●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=60	8-97240-012-2	01	1	0110-		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0110-						●
9	00.736 GEAR; CM/SHF EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=42	8-97079-212-1	01	1	9804-		●	●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	9804-0109		●	●
10	00.533 PLATE; THRUST EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-480-1	01	1	0110-		●
10	00.533 PLATE; THRUST UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-94110-480-1	01	1	0110-		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0110-			●			●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9804-9909		●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9910-0109		●	●		●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0110-		●	●		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9804-9909		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9910-0109		●	●		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0110-		●	●		●	●
44	00.738 BOLT CHARGE AIR COOLER<6PL> (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0110-		●
44	00.738 BOLT (B) M6X30 HEX SOCKET	9-05820-630-0	01	1	0110-						●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9804-0102		●	●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0103-0109		●	●
44	00.738 BOLT EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-		●
44	00.738 BOLT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0110-			●			●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9804-9909		●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9910-0109		●	●		●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0110-		●	●		●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9804-9904		●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X53 FLANGE	8-97223-999-0	02	1	9905-0109		●	●
101	00.724 BOLT; THRUST COLLAR EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X53 FLANGE	8-97223-999-0	02	1	0110-		●
101	00.724 BOLT; THRUST COLLAR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> M8X53 FLANGE	8-97223-999-0	02	1	0110-		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0110-			●			●
104	00.724 BOLT; SHAFT IDLE CHARGE AIR COOLER<6PL> M12X77	8-94129-384-1	01	1	0110-		●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0110-						●
104	00.724 BOLT; SHAFT IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-706-1	01	1	9804-		●	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	9804-0109		●	●
106	00.724 WASHER; IDLE GEAR SHAFT EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.738 ID=13 OD=36	5-12519-002-1	01	1	0110-		●
106	00.724 WASHER; IDLE GEAR SHAFT CHARGE AIR COOLER<6PL> 00.738 ID=13 OD=36	5-12519-002-1	01	1	0110-		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0110-			●			●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-870-0	01	1	0110-	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-871-0	01	1	0110-	●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-021-0	01	1	0110-0308		●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0110-0308						●
107	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-224-0	01	1	0309-		●
107	00.724 SHAFT; IDLE GEAR	8-97943-224-0	01	1	0309-						●
107	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94139-758-1	01	1	9804-		●	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-966-1	01	1	9804-	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-965-1	01	1	9804-	●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-023-1	01	1	0110-0308		●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0110-0308						●
109	00.724 SHAFT; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97943-225-0	01	1	0309-		●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-						●
109	00.724 SHAFT; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94109-913-1	01	1	9804-		●	●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL>	8-94171-289-0	01	1	0110-		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0110-						●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94141-937-1	01	1	9804-		●	●
112	00.724 GEAR; IDLE SUMITOMO ELECTRIC INDUSTRIES Z=40	8-97322-153-0	04	1	0201-	●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> Z=43	8-97240-014-1	01	1	0110-		●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0110-						●
112	00.724 GEAR; IDLE EXC. UNITED KINGDOM EQUIPMENT(EK3) Z=31	8-97164-773-0	01	1	9804-		●	●
112	00.724 GEAR; IDLE TOKYO BUHIN KOGYO CO.LTD Z=40	8-97136-655-1	04	1	9804-	●
196	00.724 RING; SNAP CHARGE AIR COOLER<6PL>	8-97245-684-1	02	1	0110-		●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0110-						●
275	00.724 PIN; IDLE GEAR CHARGE AIR COOLER<6PL> OD=5 L=7.5	8-97245-683-0	04	1	0110-		●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0110-						●
282	00.738 SPRING; GEAR CHARGE AIR COOLER<6PL>	8-97245-337-0	02	1	0110-		●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0110-						●
305	00.724 BEARING; IDLE GEAR CHARGE AIR COOLER<6PL>	8-97240-019-1	01	1	0110-		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0110-						●
305	00.724 BEARING; IDLE GEAR EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94110-271-0	01	1	9804-		●	●
333	00.724 GEAR; IDLE,MAIN CHARGE AIR COOLER<6PL> Z=52	8-97240-018-2	01	1	0110-		●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0110-						●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0110-						●
334	00.724 GEAR; IDLE,FRT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> Z=52	8-97264-988-1	01	1	0110-		●
335	00.724 GEAR; IDLE,RR CHARGE AIR COOLER<6PL> Z=52	8-97245-231-1	01	1	0110-		●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0110-						●

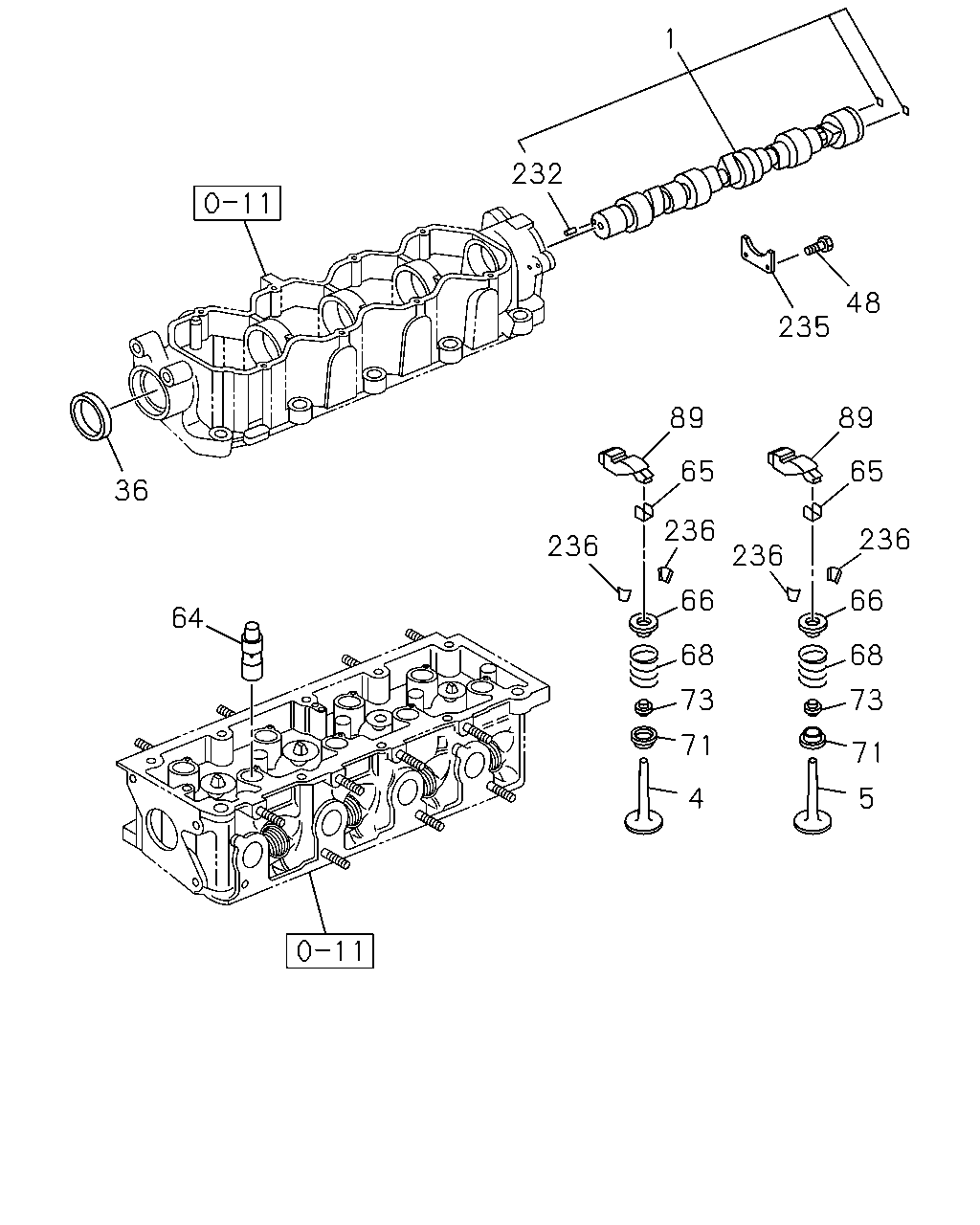

1 232 48 235 89 89 65 65 36 236 236 236 236 66 66 64 68 68 73 73 71 71 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9804-9909		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9910-0012		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0109		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0110-		●	●		●	●
1	00.519 CAMSHAFT	8-90232-446-0	01	1	9804-				●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9804-0109		●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9804-0109			●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94464-921-0	04	1	0110-		●
4	00.296 VALVE; INL	8-94464-921-0	04	1	0110-			●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9804-0205		●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94133-275-1	04	1	0206-		●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9804-	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	9804-				●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	9804-				●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	9804-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9910-0109					●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97131-729-0	04	1	0110-		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0110-					●	●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9804-0109		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9804-0109			●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94433-245-0	04	1	0110-		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	0110-			●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9804-0205		●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94247-875-1	04	1	0206-		●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9804-	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	9804-				●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	9804-				●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	9804-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9910-0109					●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97043-861-1	04	1	0110-		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0110-					●	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) OD=56 T=7.0	8-97080-562-0	01	1	9804-9909		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	9910-0109		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	9910-0109					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	0110-0207		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	0110-0207					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=6.5	8-97352-745-0	01	1	0208-		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=6.5	8-97352-745-0	01	1	0208-					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90280-463-0	01	1	9804-				●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9804-9909		●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9910-0109		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9910-0109					●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0110-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0110-					●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9804-	●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9804-	●
48	00.724 BOLT; RET	8-90264-407-0	02	1	9804-				●
64	00.459 ADJUSTER; VLV LASH	8-05233-315-0	08	1	9804-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9804-9909		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9910-0109		●	●		●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0110-		●	●		●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9804-	●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	9804-				●
66	00.303 CAP; VLV STEM END	8-90169-987-0	08	1	9804-				●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9804-9909		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9910-0109		●	●		●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0110-		●	●		●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9804-0108	●
68	00.303 SPRING; VLV	8-97314-228-0	24	1	0109-	●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	9804-				●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9804-9909		●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9910-0109		●	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0110-		●	●		●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9804-9909		●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9910-0109		●	●		●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0110-		●	●		●	●
71	00.309 SEAT; SPR UPPER OD=24.2	8-97136-329-1	24	1	9804-	●
71	00.309 SEAT; SPR LOWER OD=27	8-97149-155-0	24	1	9804-	●
71	00.309 SEAT; SPR EXHAUST	8-90128-720-0	04	1	9804-				●
71	00.309 SEAT; SPR 00.283 INLET	8-90499-099-0	04	1	9804-				●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-94324-158-1	12	1	9804-0207	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) INLET	8-97332-359-0	12	1	0208-	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXHAUST	8-97146-733-0	12	1	9804-	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90215-296-0	08	1	9804-				●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9804-9909		●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9910-0109		●	●		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0110-		●	●		●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9804-	●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	9804-				●
232	00.662 PIN; GEAR SET SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7	8-97173-670-0	04	1	0201-	●
232	00.662 PIN; GEAR SET 00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6	9-09878-626-0	04	1	9804-	●
232	00.662 PIN; GEAR SET	8-11055-129-0	01	1	9804-				●
235	00.724 RETAINER; CM/SHF	8-90233-647-0	01	1	9804-				●
236	00.426 RETAINER; VLV LIFTER GUIDE	8-90076-732-0	16	1	9804-				●

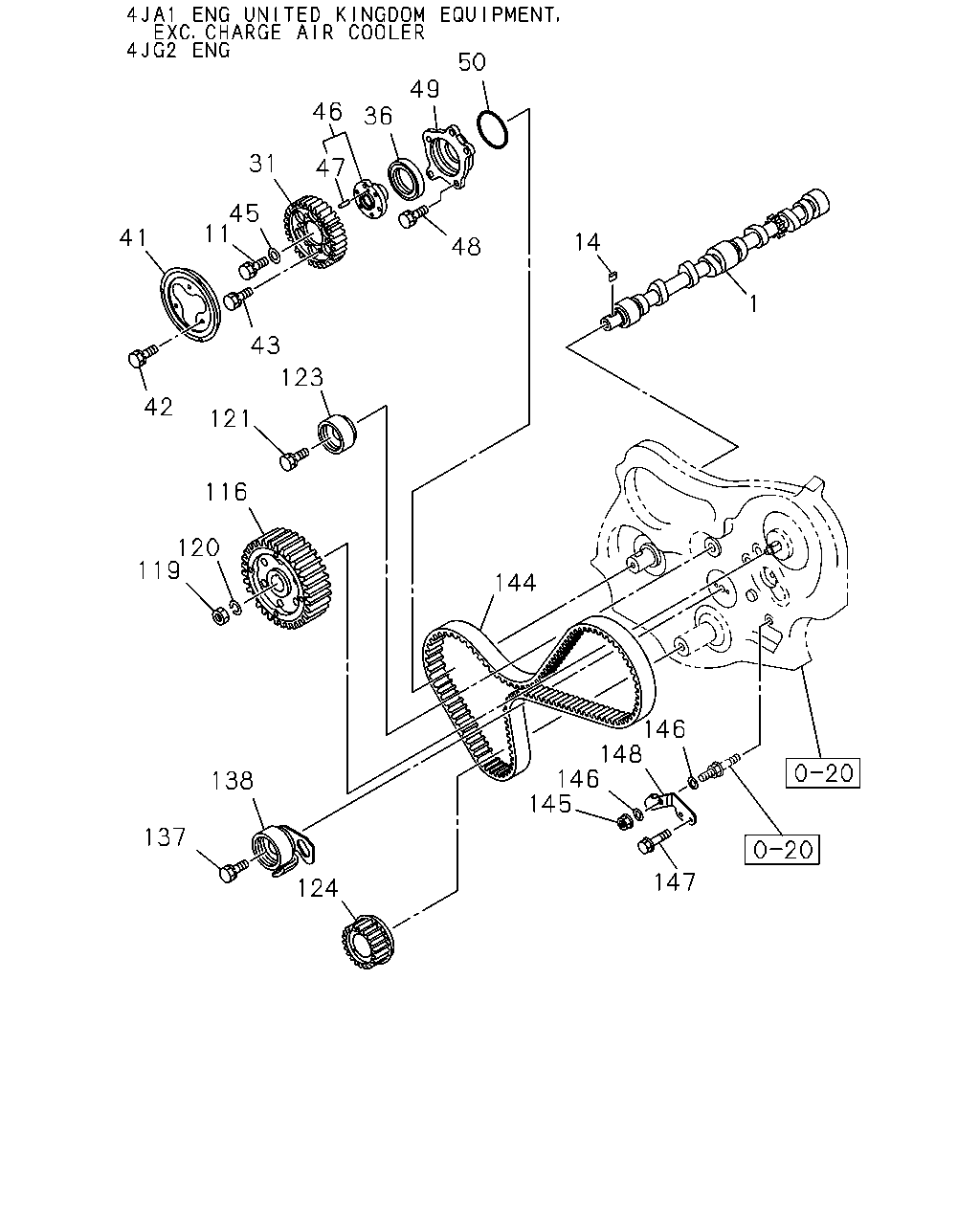

50 49 46 36 31 47 45 11 41 14 48 1 43 123 42 121 116 120 119 144 146 148 146 145 138 137 147 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9804-9909		●	●
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9910-0012		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-0109		●	●		●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0110-		●	●		●	●
1	00.519 CAMSHAFT	8-90232-446-0	01	1	9804-				●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9804-9909		●	●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9910-0109		●	●		●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	0110-		●	●		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9804-9909		●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9910-0109		●	●		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0110-		●	●		●	●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9804-9909		●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9910-0109		●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9910-0109					●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> Z=44	8-97147-983-0	01	1	0110-		●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	0110-					●
31	00.736 SPROCKET; CM/SHF	8-90466-039-0	01	1	9804-0006				●
31	00.736 SPROCKET; CM/SHF M/T MUA 5 SPEED(RMN)	8-90466-039-0	01	1	0007-				●
31	00.736 SPROCKET; CM/SHF M/T MSG 5 SPEED(M75)	8-93262-588-0	01	1	0007-				●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) OD=56 T=7.0	8-97080-562-0	01	1	9804-9909		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	9910-0109		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	9910-0109					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	0110-0207		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=7.0	8-97080-562-0	01	1	0110-0207					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=6.5	8-97352-745-0	01	1	0208-		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) OD=56 T=6.5	8-97352-745-0	01	1	0208-					●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-90280-463-0	01	1	9804-				●
41	00.662 FLANGE; CAM PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-94157-492-0	01	1	9804-9909		●
41	00.662 FLANGE; CAM PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-94157-492-0	01	1	9910-0109		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	9910-0109					●
41	00.662 FLANGE; CAM PULLEY UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94157-492-0	01	1	0110-		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	0110-					●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(EK3) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9804-9909		●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(EK3) 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9910-0109		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	9910-0109					●
42	00.662 BOLT; FLANGE CAM UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0110-		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0110-					●
43	00.662 BOLT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9804-9909		●
43	00.662 BOLT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9910-0109		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9910-0109					●
43	00.662 BOLT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0110-		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0110-					●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9804-9909		●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9910-0109		●	●		●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0110-		●	●		●	●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-97118-491-0	01	1	9804-9909		●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(EK3)	8-97118-491-0	01	1	9910-0109		●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-0	01	1	9910-0109					●
46	00.736 CENTER ASM; TIMING PULLEY UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97118-491-1	01	1	0110-		●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-1	01	1	0110-					●
47	00.662 PIN; STRAIGHT,CENTER UNITED KINGDOM EQUIPMENT(EK3) 08.939 OD=4 L=12	9-08160-412-0	01	1	9804-9909		●
47	00.662 PIN; STRAIGHT,CENTER UNITED KINGDOM EQUIPMENT(EK3) 08.939 OD=4 L=12	9-08160-412-0	01	1	9910-0109		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	9910-0109					●
47	00.662 PIN; STRAIGHT,CENTER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 08.939 OD=4 L=12	9-08160-412-0	01	1	0110-		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	0110-					●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9804-9909		●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9910-0109		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	9910-0109					●
48	00.724 BOLT; RET UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0110-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0110-					●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9804-	●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9804-	●
48	00.724 BOLT; RET	8-90264-407-0	02	1	9804-				●
49	00.724 RETAINER; OIL SEAL,CM/SHF UNITED KINGDOM EQUIPMENT(EK3)	8-94133-516-2	01	1	9804-9909		●
49	00.724 RETAINER; OIL SEAL,CM/SHF UNITED KINGDOM EQUIPMENT(EK3)	8-94133-516-2	01	1	9910-0109		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	9910-0109					●
49	00.724 RETAINER; OIL SEAL,CM/SHF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94133-516-2	01	1	0110-		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	0110-					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3)	8-97080-893-0	01	1	9804-9909		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	9910-0109		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	9910-0109					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	0110-		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97080-893-0	01	1	0110-					●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97149-238-0	02	1	9804-	●
116	00.659 PULLEY; TIMING,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3)	8-97088-392-0	01	1	9804-0109		●
116	00.659 PULLEY; TIMING,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97088-392-0	01	1	0110-		●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	9910-					●
119	00.662 NUT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 03.340 M14	8-94226-565-0	01	1	9804-9909		●
119	00.662 NUT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) 03.340 M14	8-94226-565-0	01	1	9910-0109		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	9910-0109					●
119	00.662 NUT; PULLEY UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.340 M14	8-94226-565-0	01	1	0110-		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	0110-					●
120	00.662 WASHER; LK,PULLEY,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340	8-94226-554-0	01	1	9804-9909		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) 03.340	8-94226-554-0	01	1	9910-0109		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	9910-0109					●
120	00.662 WASHER; LK,PULLEY,INJ PUMP UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 03.340	8-94226-554-0	01	1	0110-		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	0110-					●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9804-9909		●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9910-0109		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	9910-0109					●
121	00.724 BOLT; IDLE PULLEY UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M12X57 FLANGE	8-94433-408-1	01	1	0110-		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	0110-					●
121	00.724 BOLT; IDLE PULLEY 03.613 M10X40 FLANGE	0-28681-040-0	01	1	9804-	●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-0	01	1	9804-9909		●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3)	8-94382-215-1	01	1	9910-0109		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	9910-0109					●
123	00.724 PULLEY; IDLE,TIMING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94382-215-1	01	1	0110-		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	0110-					●
123	00.724 PULLEY; IDLE,TIMING	8-97146-877-0	01	1	9804-	●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9804-9909		●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=22	8-94133-501-3	01	1	9910-0109		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	9910-0109					●
124	00.659 PULLEY; TIMING,CR/SHF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> Z=22	8-94133-501-3	01	1	0110-		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	0110-					●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9804-	●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9804-9909		●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9910-0109		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9910-0109					●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M12X57 FLANGE	8-94433-408-1	01	1	0110-		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	0110-					●
137	00.724 BOLT; TENSIONER	8-11084-141-0	01	1	9804-				●
138	00.724 TENSIONER; TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-94382-214-0	01	1	9804-9909		●
138	00.724 TENSIONER; TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-94382-214-1	01	1	9910-0109		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	9910-0109					●
138	00.724 TENSIONER; TIMING BELT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94382-214-1	01	1	0110-		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	0110-					●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9804-9909		●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9910-0109		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9910-0109					●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> BLUE	8-94380-679-0	01	1	0110-		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0110-					●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9804-0204	●
144	00.724 BELT; TIMING	8-97191-036-1	01	1	0205-	●
144	00.724 BELT; TIMING	8-92062-521-0	01	1	9804-0009				●
144	00.724 BELT; TIMING	8-92065-303-0	01	1	0010-				●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	01	1	9804-9909		●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8 FLANGE	0-91150-208-0	01	1	9910-0109		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	9910-0109					●
145	00.724 NUT; FLANGE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.540 M8 FLANGE	0-91150-208-0	01	1	0110-		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	0110-					●
146	00.724 WASHER; PL,TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9804-9909		●
146	00.724 WASHER; PL,TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9910-0109		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9910-0109					●
146	00.724 WASHER; PL,TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0110-		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0110-					●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9804-9909		●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109		●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9910-0109					●
147	00.724 BOLT; TENSION LEVER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-		●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0110-					●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-97146-370-0	01	1	9804-9909		●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(EK3)	8-97146-370-0	01	1	9910-0109		●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	9910-0109					●
148	00.724 LEVER; TENSION,TIMING BELT UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97146-370-0	01	1	0110-		●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	0110-					●

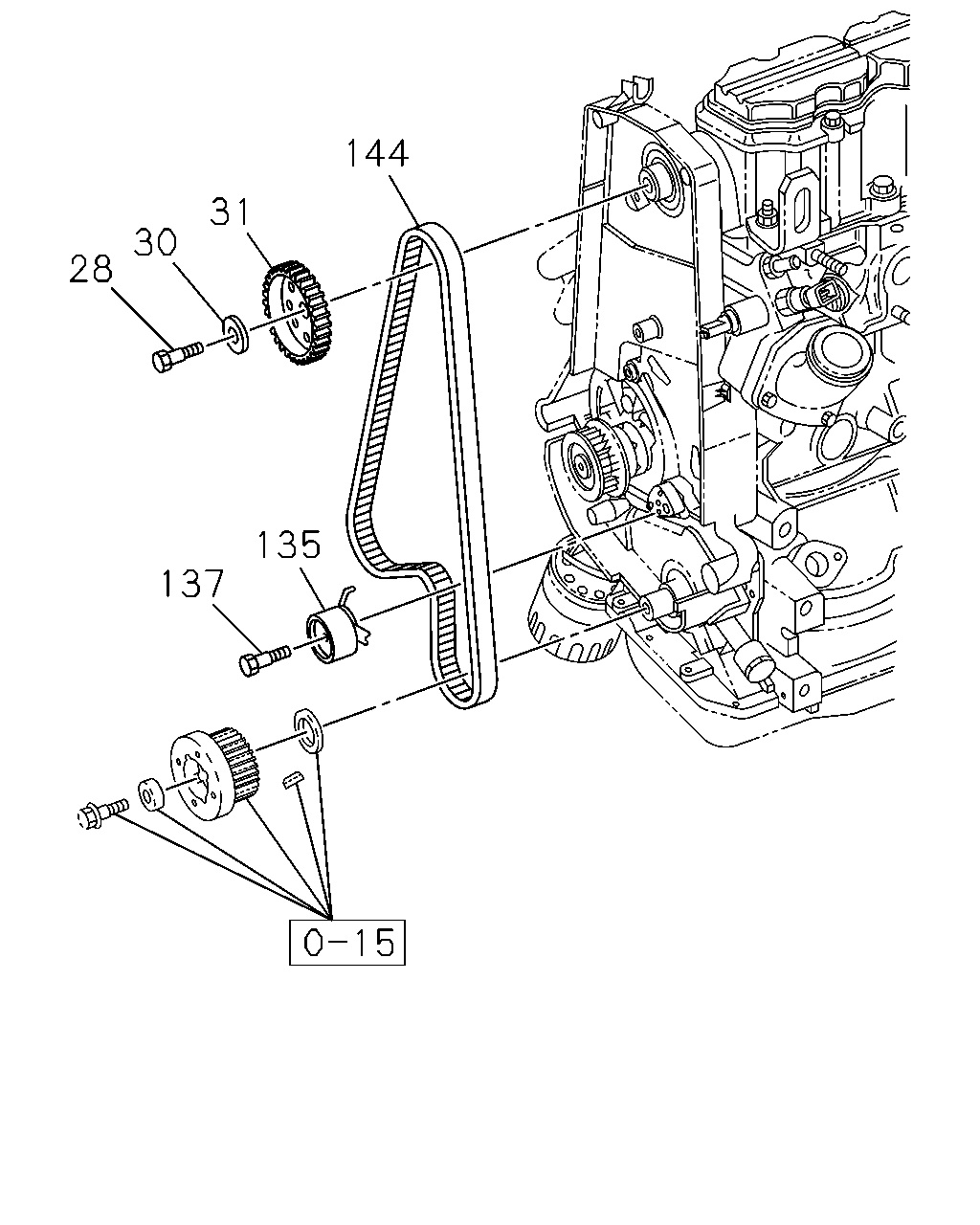

144 31 30 28 135 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
28	00.738 BOLT; CAM PULLEY	8-97149-393-0	02	1	9804-0204	●
28	00.738 BOLT; CAM PULLEY	8-97330-881-0	02	1	0205-	●
28	00.738 BOLT; CAM PULLEY	8-11073-823-0	01	1	9804-			●
30	00.662 WASHER; PULLEY	8-90067-443-0	01	1	9804-			●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9804-9909		●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) Z=44	8-97147-983-0	01	1	9910-0109		●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	9910-0109				●
31	00.736 SPROCKET; CM/SHF UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> Z=44	8-97147-983-0	01	1	0110-		●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	0110-				●
31	00.736 SPROCKET; CM/SHF	8-90466-039-0	01	1	9804-0006			●
31	00.736 SPROCKET; CM/SHF M/T MUA 5 SPEED(RMN)	8-90466-039-0	01	1	0007-			●
31	00.736 SPROCKET; CM/SHF M/T MSG 5 SPEED(M75)	8-93262-588-0	01	1	0007-			●
135	00.724 PULLEY; TENSIONER	8-97136-256-0	01	1	9804-	●
135	00.724 PULLEY; TENSIONER	8-90530-124-0	01	1	9804-0005			●
135	00.724 PULLEY; TENSIONER	8-09158-003-0	01	1	0006-			●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9804-9909		●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) M12X57 FLANGE	8-94433-408-1	01	1	9910-0109		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	9910-0109				●
137	00.724 BOLT; TENSIONER UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> M12X57 FLANGE	8-94433-408-1	01	1	0110-		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	0110-				●
137	00.724 BOLT; TENSIONER	8-11084-141-0	01	1	9804-			●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9804-9909		●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) BLUE	8-94380-679-0	01	1	9910-0109		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	9910-0109				●
144	00.724 BELT; TIMING UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> BLUE	8-94380-679-0	01	1	0110-		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0110-				●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9804-0204	●
144	00.724 BELT; TIMING	8-97191-036-1	01	1	0205-	●
144	00.724 BELT; TIMING	8-92062-521-0	01	1	9804-0009			●
144	00.724 BELT; TIMING	8-92065-303-0	01	1	0010-			●

55 87 86 84 78 78 78 56 78 78 78 85 95 86 83 53 54 54 81 78 84 78 56 55 65 71 68 72 71 88 5 4 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3)	8-94464-921-0	04	1	9804-0109		●
4	00.296 VALVE; INL	8-94464-921-0	04	1	9804-0109			●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94464-921-0	04	1	0110-		●
4	00.296 VALVE; INL	8-94464-921-0	04	1	0110-			●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94133-275-1	04	1	9804-0205		●
4	00.296 VALVE; INL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94133-275-1	04	1	0206-		●
4	00.296 VALVE; INL	8-97169-807-0	12	1	9804-	●
4	00.296 VALVE; INL STD	8-90220-121-0	04	1	9804-				●
4	00.296 VALVE; INL OVSI=0.15	8-90220-123-0	04	1	9804-				●
4	00.296 VALVE; INL OVSI=0.25	8-90220-124-0	04	1	9804-				●
4	00.296 VALVE; INL	8-97131-729-0	04	1	9910-0109					●
4	00.296 VALVE; INL UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97131-729-0	04	1	0110-		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0110-					●	●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3)	8-94433-245-0	04	1	9804-0109		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	9804-0109			●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-94433-245-0	04	1	0110-		●
5	00.297 VALVE; EXH	8-94433-245-0	04	1	0110-			●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94247-875-1	04	1	9804-0205		●
5	00.297 VALVE; EXH EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94247-875-1	04	1	0206-		●
5	00.297 VALVE; EXH	8-97169-808-0	12	1	9804-	●
5	00.297 VALVE; EXH STD	8-90323-757-0	04	1	9804-				●
5	00.297 VALVE; EXH OVSI=0.15	8-90323-759-0	04	1	9804-				●
5	00.297 VALVE; EXH OVSI=0.25	8-90323-760-0	04	1	9804-				●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	9910-0109					●
5	00.297 VALVE; EXH UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97043-861-1	04	1	0110-		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0110-					●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9804-9909		●	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9910-0012		●	●		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0101-0109		●	●		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0110-		●	●		●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9804-9909		●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9910-0109		●	●		●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0110-		●	●		●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9804-9909		●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9910-0109		●	●		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0110-		●	●		●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9804-9909		●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9910-0109		●	●		●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0110-		●	●		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9804-9909		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9910-0109		●	●		●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0110-		●	●		●	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9804-	●
65	00.310 COLLAR; SPLIT	8-90076-745-0	08	1	9804-				●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9804-9909		●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	9910-0109		●	●		●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0110-		●	●		●	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9804-0108	●
68	00.303 SPRING; VLV	8-97314-228-0	24	1	0109-	●
68	00.303 SPRING; VLV	8-90501-491-0	08	1	9804-				●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9804-9909		●	●
71	00.309 SEAT; SPR (B) LOWER OD=34	5-12563-001-0	08	1	9910-0109		●	●		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0110-		●	●		●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9804-9909		●	●
71	00.309 SEAT; SPR (A) UPPER OD=32.8	8-94133-731-2	08	1	9910-0109		●	●		●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0110-		●	●		●	●
71	00.309 SEAT; SPR UPPER OD=24.2	8-97136-329-1	24	1	9804-	●
71	00.309 SEAT; SPR LOWER OD=27	8-97149-155-0	24	1	9804-	●
71	00.309 SEAT; SPR EXHAUST	8-90128-720-0	04	1	9804-				●
71	00.309 SEAT; SPR 00.283 INLET	8-90499-099-0	04	1	9804-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	9804-9909		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	9910-0109		●	●		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	0110-		●	●		●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9804-9909		●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9910-0109		●	●		●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0110-		●	●		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9804-9909		●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	9910-0109		●	●		●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0110-		●	●		●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9804-9909		●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9910-0109		●	●		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0110-		●	●		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9804-9909		●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9910-0109		●	●		●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0110-		●	●		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9804-9909		●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9910-0109		●	●		●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	0110-		●	●		●	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9804-9909		●	●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9910-0109		●	●		●
85	00.349 BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	0110-		●	●		●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9804-9909		●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9910-0109		●	●		●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0110-		●	●		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9804-9909		●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9910-0109		●	●		●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0110-		●	●		●	●
88	00.426 ROD; PUSH	8-94143-203-0	08	1	9804-		●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9804-9909			●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9910-0109			●		●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0110-			●		●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9804-9909		●	●
89	00.459 TAPPET; VLV	8-94438-305-0	08	1	9910-0109		●	●		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0110-		●	●		●	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9804-	●
89	00.459 TAPPET; VLV	8-90409-194-0	08	1	9804-				●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9804-9909		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9910-0109		●	●		●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0110-		●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
