Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#38412) — 295 parça

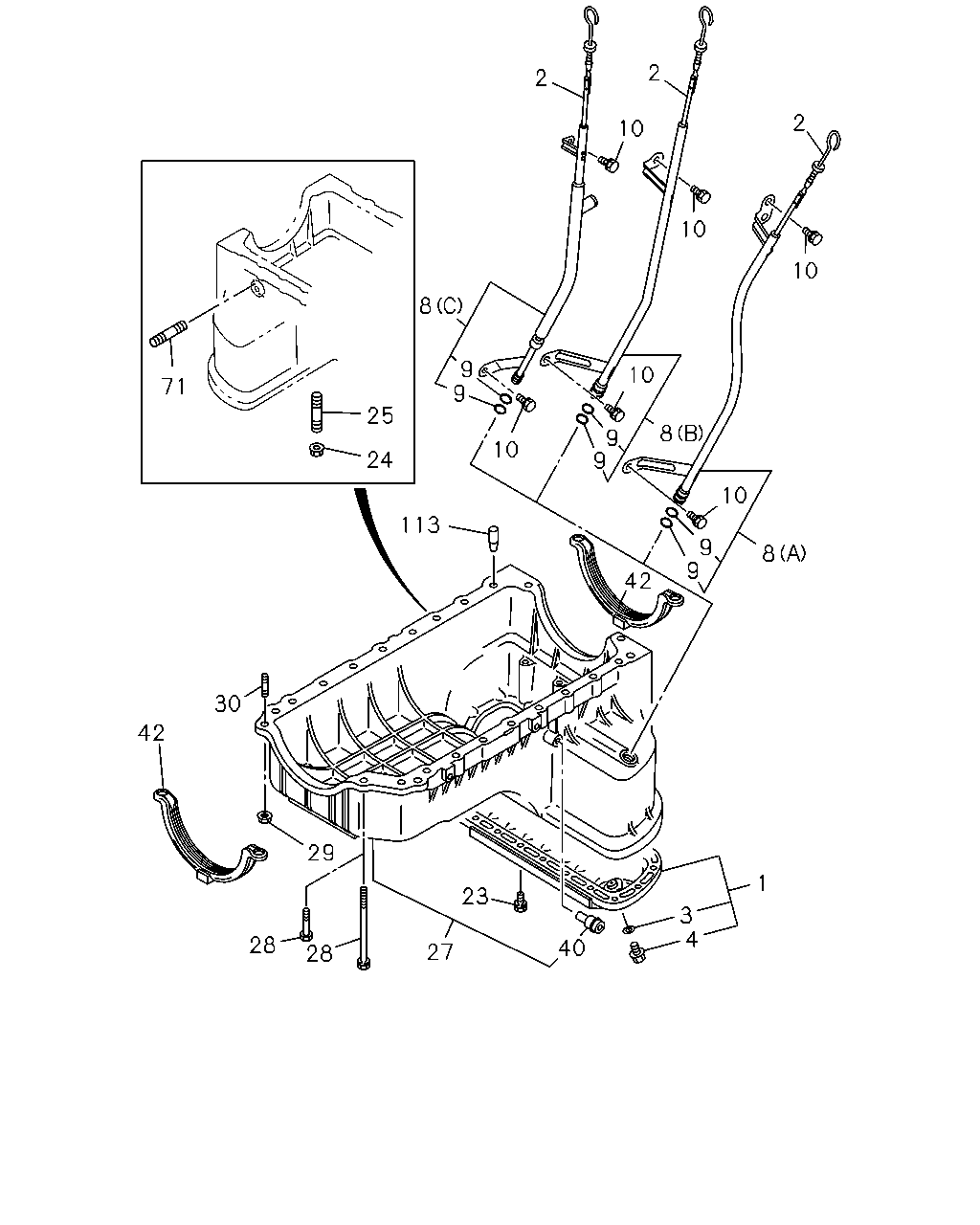

2 2 2 10 10 10 8 9 9 10 71 25 10 8 9 9 24 10 113 9 9 8 42 30 42 29 1 23 3 4 28 40 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-0	01	1	9912-0012	●	●
1	01.426 PAN ASM; OIL	8-97248-860-0	01	1	0101-0109	●	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-0	01	1	0101-0109			●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-1	01	1	0110-	●		●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL>	8-97248-860-1	01	1	0110-	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	0110-		●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104					●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-						●
1	01.426 PAN ASM; OIL	8-97137-919-0	01	1	9910-9911			●
1	01.426 PAN ASM; OIL M/T MUA 5 SPEED(RMN)	8-97248-862-0	01	1	9912-0012			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-0	01	1	0101-0109			●
1	01.426 PAN ASM; OIL 4X4(TFS***) CHARGE AIR COOLER<6PL>	8-97248-862-1	01	1	0110-	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-1	01	1	0110-			●	●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	9804-9909	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9804-9909		●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	9910-0109	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9910-0109		●	●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	0110-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0110-		●	●	●
2	01.516 GAUGE; OIL LEVEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94362-305-0	01	1	9804-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308					●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9909	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9910-0109	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0110-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9909	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9910-0109	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0110-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97109-027-0	01	1	9804-0109	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97109-027-0	01	1	0110-0301	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97328-532-0	01	1	0302-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97302-689-0	01	1	0110-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97143-693-0	01	1	9804-0205	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97143-693-0	01	1	0206-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-97113-145-0	01	1	9804-9909		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-97113-145-0	01	1	9910-		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9804-0308					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-97249-184-0	01	1	0110-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-9909	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9910-0109	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. ID=11	5-09623-002-0	02	1	0206-0212	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0206-0212		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0301-	●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0110-	●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-					●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-9909	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9910-0109	●	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0110-	●	●	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-9909	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9910-0109	●	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	0110-	●	●	●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103					●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-						●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-						●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9804-9909	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9910-0109	●	●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	0110-	●	●	●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9804-9909	●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9910-0109	●	●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	0110-	●	●	●	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9804-					●
27	01.426 CRANKCASE CHARGE AIR COOLER<6PL>	8-97191-841-0	01	1	0110-0210	●
27	01.426 CRANKCASE	8-97191-841-0	01	1	0110-0210				●
27	01.426 CRANKCASE CHARGE AIR COOLER<6PL>	8-97358-796-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0211-				●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9909	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9909		●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9910-0109	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9910-0109		●	●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0110-0210	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0110-0210		●	●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97359-517-0	01	1	0211-		●	●
27	01.426 CRANKCASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97122-059-1	01	1	9804-0205	●
27	01.426 CRANKCASE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97122-059-1	01	1	0206-0210	●
27	01.426 CRANKCASE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9804-0012					●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9804-9909	●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9910-0109	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	0110-	●	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9804-9909	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9910-0109	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	0110-	●	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9804-0008					●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-					●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9804-9909	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9910-0109	●	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-	●	●	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-					●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9804-9909	●	●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9910-0109	●	●	●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	0110-	●	●	●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9804-9909	●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9910-0109	●	●	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	0110-	●	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9804-9909	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9910-0109	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	0110-	●	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9804-9909	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9910-0109	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	0110-	●	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	9804-						●
71	01.428 STUD; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X18 L=30	9-04110-818-0	02	1	9804-9909	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	9804-9909		●
71	01.428 STUD; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X18 L=30	9-04110-818-0	02	1	9910-0109	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	9910-0109		●	●
71	01.428 STUD; OIL DRAIN PIPE UNITED KINGDOM EQUIPMENT(EK3) M8X18 L=30	9-04110-818-0	02	1	0110-	●
71	01.428 STUD; OIL DRAIN PIPE M8X18 L=30	9-04110-818-0	02	1	0110-		●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9804-9909	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	9910-0109	●	●	●
113	01.453 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0110-	●	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	9804-9909	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9804-9909		●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	9910-0109	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9910-0109		●	●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	0110-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0110-		●	●	●
2	01.516 GAUGE; OIL LEVEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94362-305-0	01	1	9804-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308					●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-						●

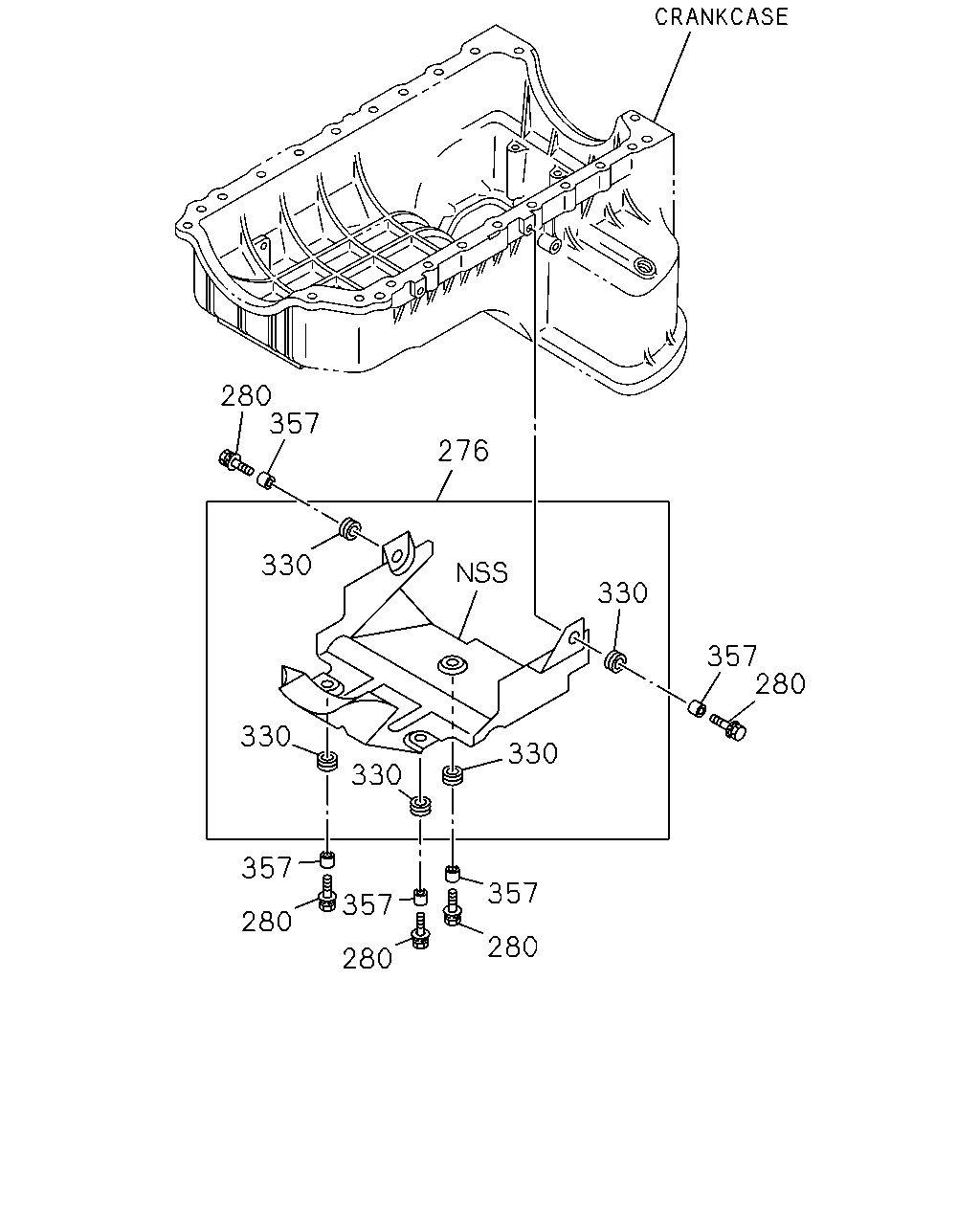

280 357 276 330 330 357 280 330 330 330 357 357 357 280 280 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
276	01.516 COVER; CRANKCASE CHARGE AIR COOLER<6PL>	8-97310-792-1	01	1	0110-	●
276	01.516 COVER; CRANKCASE	8-97310-792-1	01	1	0110-		●
280	01.430 BOLT; COVER CHARGE AIR COOLER<6PL> 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0110-	●
280	01.430 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	05	1	0110-		●
330	01.516 RUBBER; MTG,CRANKCASE COVER CHARGE AIR COOLER<6PL> 00.034 OD=22	8-94140-428-1	05	1	0110-	●
330	01.516 RUBBER; MTG,CRANKCASE COVER 00.034 OD=22	8-94140-428-1	05	1	0110-		●
357	01.516 BUSHING; COVER CHARGE AIR COOLER<6PL>	8-97311-623-0	05	1	0110-0211	●
357	01.516 BUSHING; COVER	8-97311-623-0	05	1	0110-0211		●
357	01.516 BUSHING; COVER CHARGE AIR COOLER<6PL>	8-97361-926-0	05	1	0212-0308	●
357	01.516 BUSHING; COVER	8-97361-926-0	05	1	0212-0308		●
357	01.516 BUSHING; COVER CHARGE AIR COOLER<6PL>	8-97371-498-0	05	1	0309-	●
357	01.516 BUSHING; COVER	8-97371-498-0	05	1	0309-		●

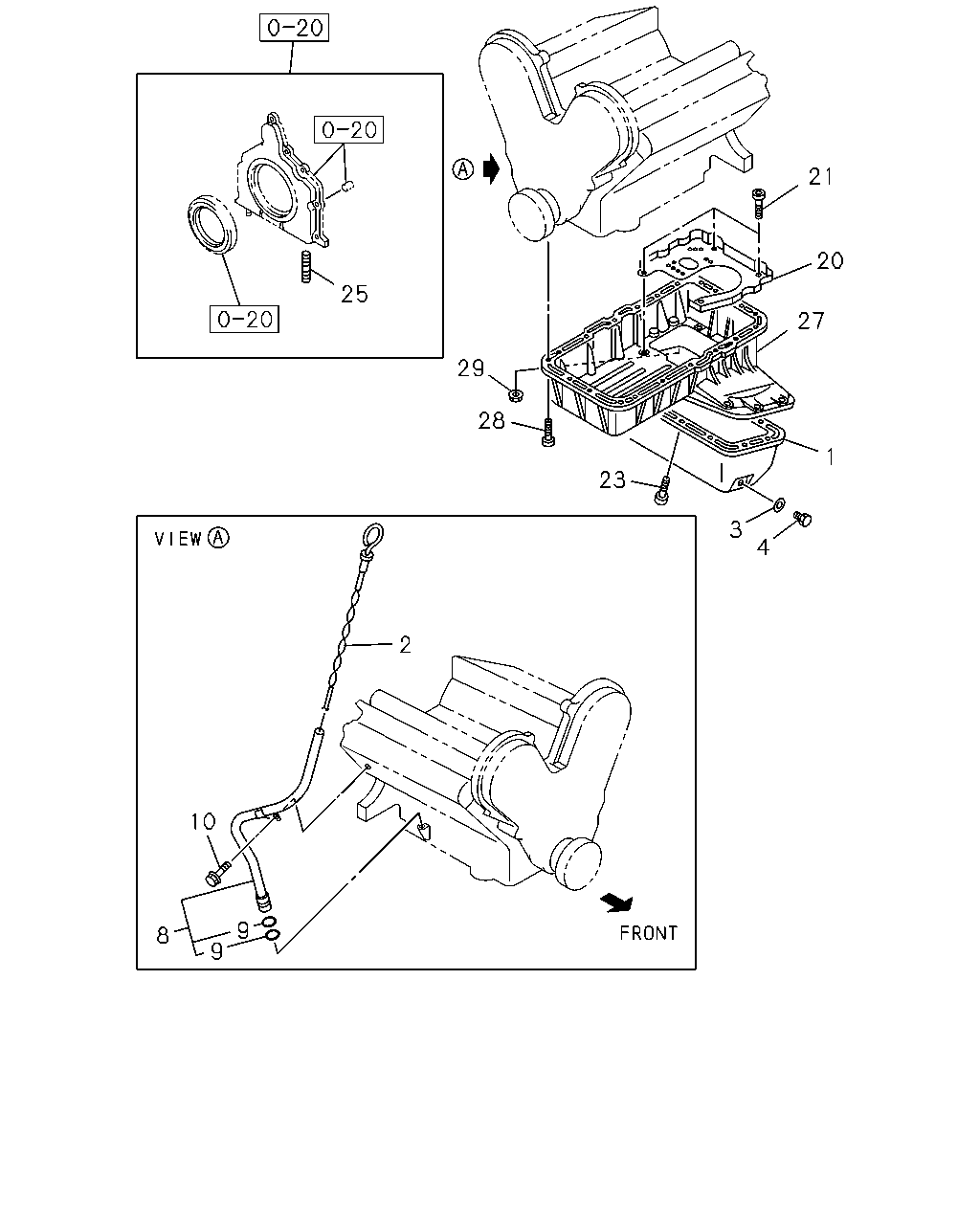

21 20 25 27 29 28 1 23 3 4 2 10 9 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-0	01	1	9912-0012	●	●
1	01.426 PAN ASM; OIL	8-97248-860-0	01	1	0101-0109	●	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-0	01	1	0101-0109			●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-1	01	1	0110-	●		●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL>	8-97248-860-1	01	1	0110-	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	0110-		●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104					●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-						●
1	01.426 PAN ASM; OIL	8-97137-919-0	01	1	9910-9911			●
1	01.426 PAN ASM; OIL M/T MUA 5 SPEED(RMN)	8-97248-862-0	01	1	9912-0012			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-0	01	1	0101-0109			●
1	01.426 PAN ASM; OIL 4X4(TFS***) CHARGE AIR COOLER<6PL>	8-97248-862-1	01	1	0110-	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-1	01	1	0110-			●	●

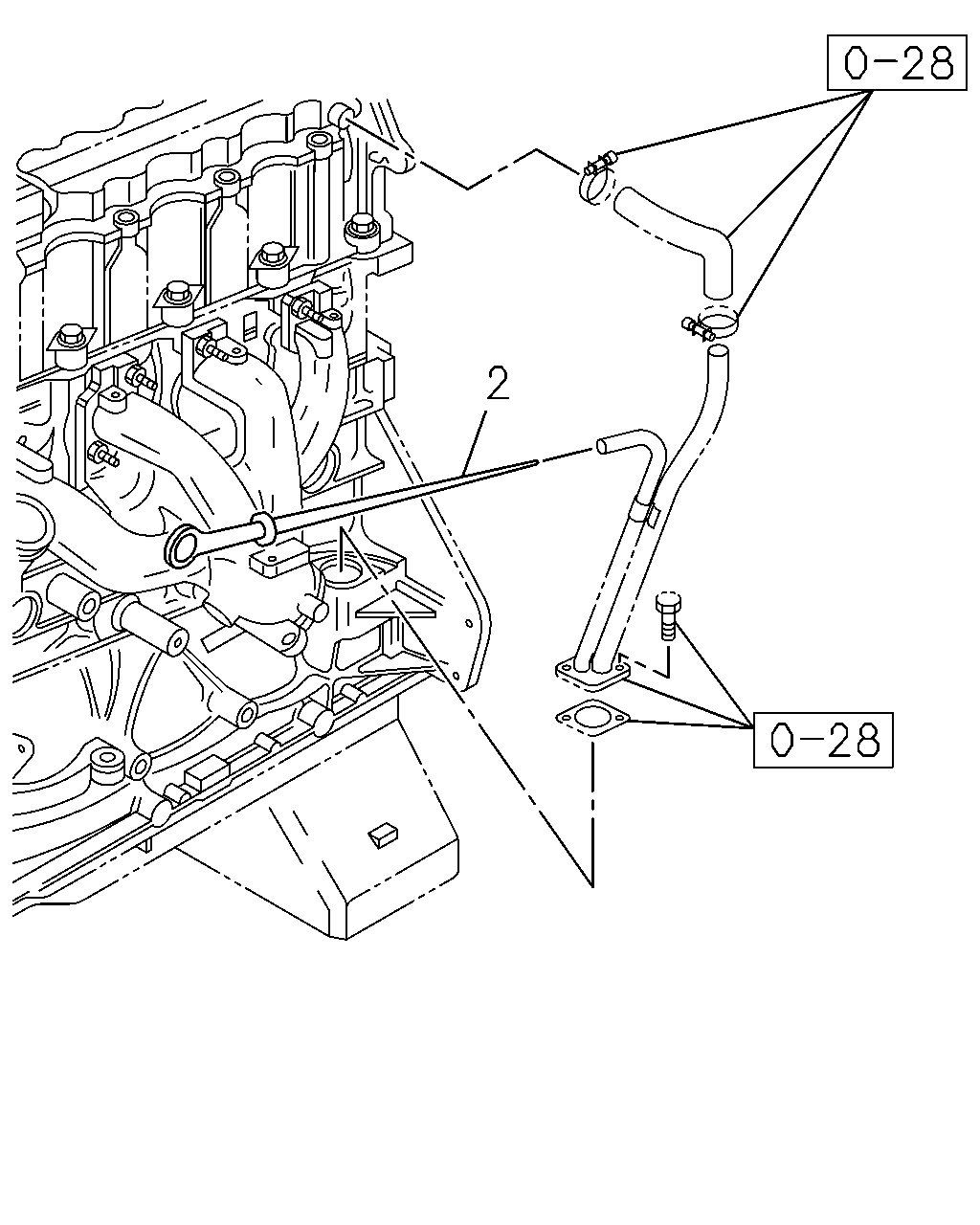

2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	9804-9909	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9804-9909		●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	9910-0109	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	9910-0109		●	●
2	01.516 GAUGE; OIL LEVEL UNITED KINGDOM EQUIPMENT(EK3)	8-97085-167-0	01	1	0110-	●
2	01.516 GAUGE; OIL LEVEL	8-97085-167-0	01	1	0110-		●	●	●
2	01.516 GAUGE; OIL LEVEL EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94362-305-0	01	1	9804-0205	●
2	01.516 GAUGE; OIL LEVEL EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-94362-305-0	01	1	0206-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9804-0308					●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-					●
2	01.516 GAUGE; OIL LEVEL 4X2(TFB***)	8-92063-647-0	01	1	9804-						●
2	01.516 GAUGE; OIL LEVEL 4X4(TFS***)	8-92063-162-0	01	1	9804-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9909	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9910-0109	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0110-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9909	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9910-0109	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0110-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-						●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) (B)	8-97109-027-0	01	1	9804-0109	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97109-027-0	01	1	0110-0301	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B)	8-97328-532-0	01	1	0302-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (C)	8-97302-689-0	01	1	0110-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97143-693-0	01	1	9804-0205	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (A)	8-97143-693-0	01	1	0206-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-97113-145-0	01	1	9804-9909		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-97113-145-0	01	1	9910-		●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9804-0308					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (C)	8-97249-184-0	01	1	0110-				●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-9909	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9910-0109	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL>. ID=11	5-09623-002-0	02	1	0206-0212	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0206-0212		●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0301-	●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	0110-	●	●	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9804-					●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9804-9909	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9910-0109	●	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0110-	●	●	●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9804-					●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	9804-					●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9804-0008					●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE M6X12 HEX SOCKET	0-58310-612-0	04	1	0009-					●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-9909	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9910-0109	●	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	0110-	●	●	●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103					●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-						●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-						●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9804-9909	●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9910-0109	●	●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	0110-	●	●	●	●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9804-					●
27	01.426 CRANKCASE CHARGE AIR COOLER<6PL>	8-97191-841-0	01	1	0110-0210	●
27	01.426 CRANKCASE	8-97191-841-0	01	1	0110-0210				●
27	01.426 CRANKCASE CHARGE AIR COOLER<6PL>	8-97358-796-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97358-796-0	01	1	0211-				●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9909	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9804-9909		●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9910-0109	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9910-0109		●	●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0110-0210	●
27	01.426 CRANKCASE W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	0110-0210		●	●
27	01.426 CRANKCASE UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97359-517-0	01	1	0211-		●	●
27	01.426 CRANKCASE EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-97122-059-1	01	1	9804-0205	●
27	01.426 CRANKCASE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97122-059-1	01	1	0206-0210	●
27	01.426 CRANKCASE EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9804-0012					●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-					●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9804-9909	●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9910-0109	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	0110-	●	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9804-9909	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9910-0109	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	0110-	●	●	●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9804-0008					●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-					●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9804-9909	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9910-0109	●	●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-	●	●	●	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9804-					●

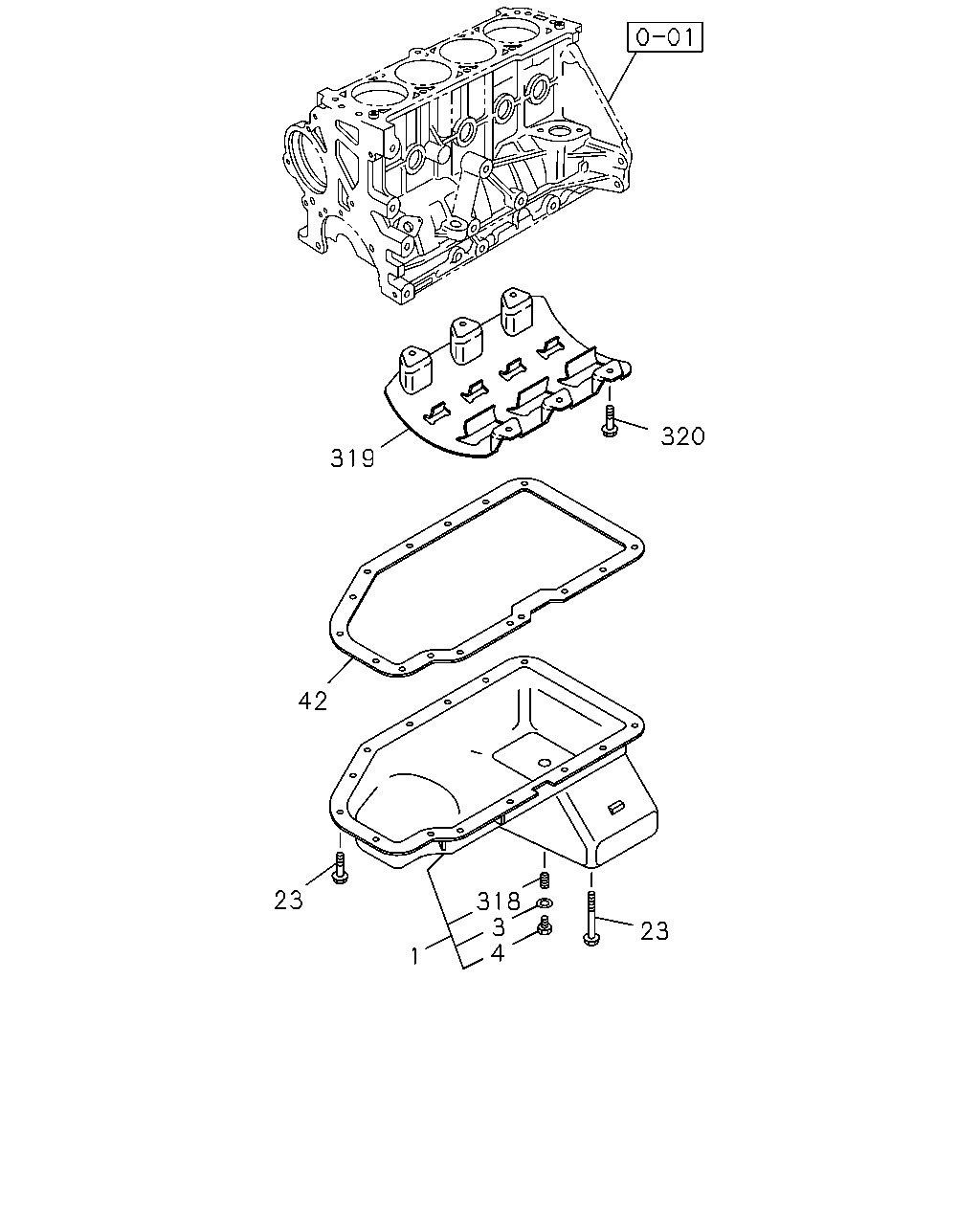

320 319 42 23 318 3 4 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL	8-97137-921-0	01	1	9804-9911	●	●
1	01.426 PAN ASM; OIL	8-97248-860-0	01	1	9912-0012	●	●
1	01.426 PAN ASM; OIL	8-97248-860-0	01	1	0101-0109	●	●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-0	01	1	0101-0109			●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-97248-860-1	01	1	0110-	●		●	●
1	01.426 PAN ASM; OIL 4X4(TFS***) EXC. CHARGE AIR COOLER<6PL>	8-97248-860-1	01	1	0110-	●
1	01.426 PAN ASM; OIL	8-97248-860-1	01	1	0110-		●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9804-0104					●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-					●
1	01.426 PAN ASM; OIL 4X2(TFB***)	8-92063-356-0	01	1	9804-						●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-92063-843-0	01	1	9804-						●
1	01.426 PAN ASM; OIL	8-97137-919-0	01	1	9910-9911			●
1	01.426 PAN ASM; OIL M/T MUA 5 SPEED(RMN)	8-97248-862-0	01	1	9912-0012			●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-0	01	1	0101-0109			●
1	01.426 PAN ASM; OIL 4X4(TFS***) CHARGE AIR COOLER<6PL>	8-97248-862-1	01	1	0110-	●
1	01.426 PAN ASM; OIL 4X4(TFS***)	8-97248-862-1	01	1	0110-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9804-9909	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9910-0109	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0110-	●	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9804-					●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	8-11023-589-0	01	1	9804-						●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9804-9909	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9910-0109	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0110-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9804-					●
4	01.453 PLUG; DRAIN,OIL	8-90409-376-0	01	1	9804-						●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9804-9909	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9910-0109	●	●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	0110-	●	●	●	●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9804-0103					●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-					●
23	01.428 BOLT; OIL PAN M8X45	8-11093-791-0	11	1	9804-						●
23	01.428 BOLT; OIL PAN M8X132	8-11093-981-0	03	1	9804-						●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9804-9909	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9910-0109	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	0110-	●	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9804-9909	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9910-0109	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	0110-	●	●	●	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-92062-934-0	01	1	9804-						●
318	01.428 INSERT; OIL PAN	8-11065-809-0	01	1	9804-						●
319	01.430 SCRAPER; OIL PAN	8-92063-357-0	01	1	9804-						●
320	01.430 BOLT; SCRAPER 01.531	8-11097-411-0	05	1	9804-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
