0-12 — CYLINDER BLOCK (#38411) — 251 parça

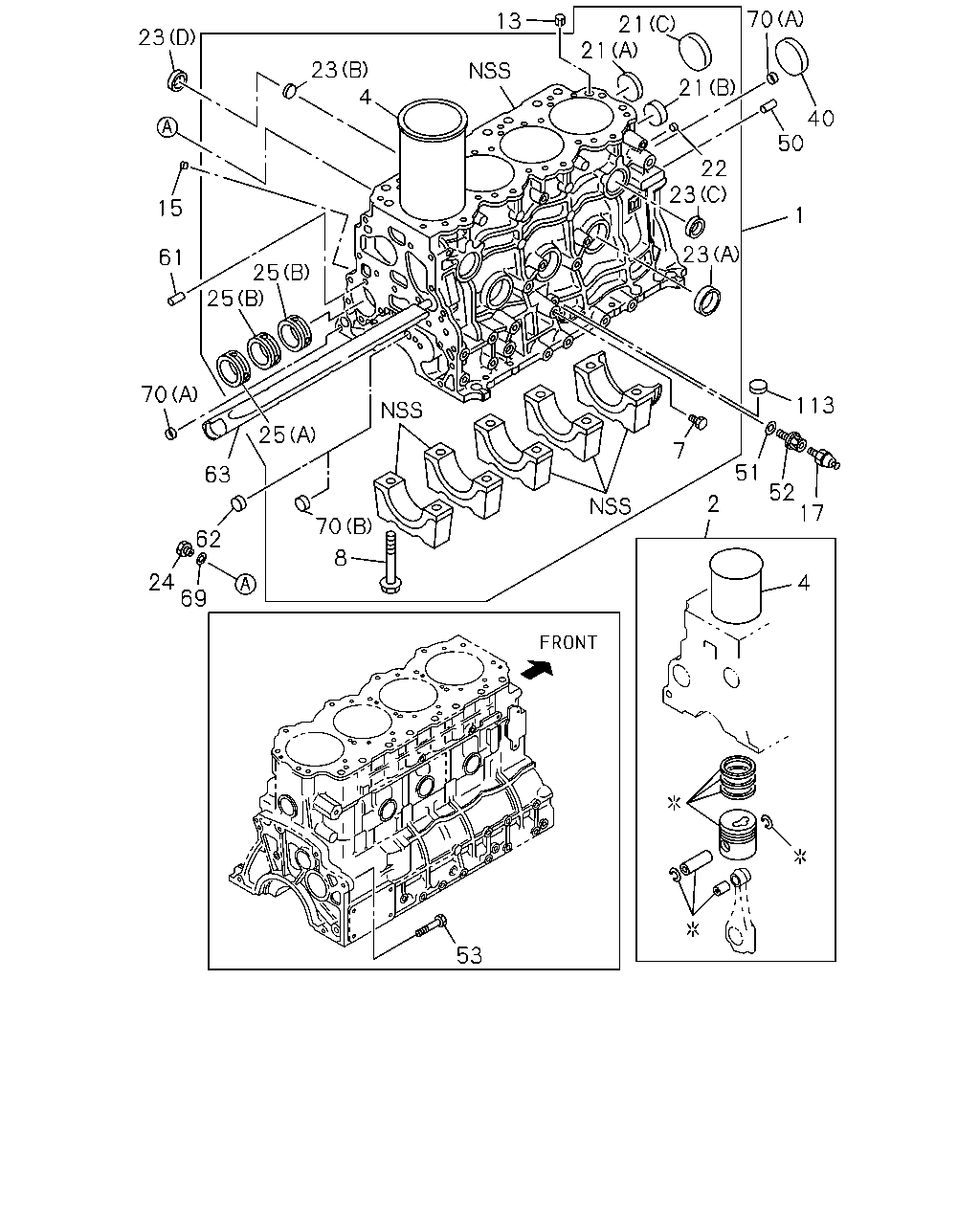

çizim 18145
70 13 21 21 23 23 4 21 40 50 23 22 23 15 1 61 25 25 70 113 25 7 51 63 52 17 2 70 62 8 24 69 4 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL 8-94438-404-4 01 1 9804-0109 ●
1 00.033 BLOCK ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94438-404-4 01 1 0110-0205 ●
1 00.033 BLOCK ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97249-021-0 01 1 0110-0205 ●
1 00.033 BLOCK ASM; CYL 8-97249-021-1 01 1 0206- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-7 01 1 9804-0209 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-1 01 1 0210- ●
1 00.033 BLOCK ASM; CYL 8-97149-360-1 01 1 9804-0212 ●
1 00.033 BLOCK ASM; CYL 8-97193-222-1 01 1 0301- ●
1 00.033 BLOCK ASM; CYL 8-97043-280-1 01 1 9910-0202 ●
1 00.033 BLOCK ASM; CYL 8-97314-579-1 01 1 0203- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-173-0 04 1 9804-0109 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=1 		5-87813-173-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-174-0 04 1 9804-0109 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=2 		5-87813-174-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-175-0 04 1 9804-0109 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=3 		5-87813-175-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-176-0 04 1 9804-0109 ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=4 		5-87813-176-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> GRADE=1 		5-87814-132-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> GRADE=2 		5-87814-133-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> GRADE=3 		5-87814-134-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> GRADE=4 		5-87814-135-0 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-0 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-0 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-0 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-0 04 1 9804- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-213-1 04 1 9910- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-214-1 04 1 9910- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-215-1 04 1 9910- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-216-1 04 1 9910- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87814-090-1 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87814-091-1 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87814-092-1 04 1 0110- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87814-093-1 04 1 0110- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-691-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-692-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-693-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-694-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-695-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-696-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-697-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-698-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 9804- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0110- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 9910-0109 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0110- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 9804-9909 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 9910-0109 ● ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0110- ● ● ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9804-9909 ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9910-0109 ● ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0110- ● ● ● ●
8 00.056 BOLT; BRG CAP
(A) M11X143 FLANGE 		8-94363-095-1 08 1 9804- ●
8 00.056 BOLT; BRG CAP
(B) M9X85 FLANGE 		8-94363-224-1 08 1 9804- ●
8 00.056 BOLT; BRG CAP 8-90502-412-0 10 1 9804- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9804-9909 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9910-0109 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0110- ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 9804- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 9804- ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 9804-9909 ● ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 9910-0109 ● ● ●
15 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 03 1 0110- ● ● ● ●
17 01.800 SWITCH; OIL PRESSURE 9-82720-209-2 01 1 9804-9909 ● ●
17 01.800 SWITCH; OIL PRESSURE 9-82720-209-2 01 1 9910-0109 ● ● ●
17 01.800 SWITCH; OIL PRESSURE 9-82720-209-2 01 1 0110- ● ● ● ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=56 		8-94250-514-0 01 1 0212-0305 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 9804-9909 ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 9910-0109 ● ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0110- ● ● ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 9804-9909 ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 9910-0109 ● ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0110- ● ● ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 9804-9909 ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 9910-0109 ● ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0110- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) SIDE OD=45 		8-97036-550-1 03 1 0210-0210 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) SIDE OD=45 		8-97036-550-1 03 1 0211-0211 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) SIDE OD=45 		8-97036-550-1 03 1 0212- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) SIDE OD=45 		1-09600-005-1 03 1 9804-9909 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) SIDE OD=45 		1-09600-005-1 03 1 9910-0109 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) SIDE OD=45 		1-09600-005-1 03 1 0110-0209 ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) SIDE OD=45 		1-09600-005-1 03 1 0210-0210 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) SIDE OD=45 		1-09600-005-1 03 1 0211-0211 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. CHARGE AIR COOLER<6PL> (D) SIDE OD=36 		5-11219-018-0 03 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. CHARGE AIR COOLER<6PL> (D) SIDE OD=36 		5-11219-018-0 03 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) SIDE OD=36 		5-11219-018-0 03 1 0212-0305 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) SIDE OD=18 		5-11219-008-0 03 1 9804-9909 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) SIDE OD=18 		5-11219-008-0 03 1 9910-0109 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) SIDE OD=18 		5-11219-008-0 03 1 0110- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) SIDE OD=36 		5-11219-018-0 03 1 9804-9909 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) SIDE OD=36 		5-11219-018-0 03 1 9910-0109 ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) SIDE OD=36 		5-11219-018-0 03 1 0110-0211 ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (D) SIDE OD=36 		5-11219-018-0 06 1 0212-0305 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
OD=36 		5-11219-018-0 03 1 0306- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) SIDE OD=32 		5-11219-015-0 02 1 9804-9909 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) SIDE OD=32 		5-11219-015-0 02 1 9910-0109 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) SIDE OD=32 		5-11219-015-0 02 1 0110- ● ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94419-728-0 01 1 9804-0205 ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-94419-728-0 01 1 0206- ●
25 00.539 METAL; CM/SHF
(B) 		8-94427-201-2 02 1 9804-9909 ● ●
25 00.539 METAL; CM/SHF
(B) 		8-94427-201-2 02 1 9910-0109 ● ● ●
25 00.539 METAL; CM/SHF
(B) 		8-94427-201-2 02 1 0110- ● ● ● ●
25 00.539 METAL; CM/SHF
(A) 		8-94427-206-2 01 1 9804-9909 ● ●
25 00.539 METAL; CM/SHF
(A) 		8-94427-206-2 01 1 9910-0109 ● ● ●
25 00.539 METAL; CM/SHF
(A) 		8-94427-206-2 01 1 0110- ● ● ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-0 01 1 9804-9909 ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-0 01 1 9910-0109 ● ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-0 01 1 0110- ● ● ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 9804-9909 ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 9910-0109 ● ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0110- ● ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 9804-9909 ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 9910-0109 ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 0110- ● ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 9804-9909 ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 9910-0109 ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0110- ● ● ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 9804-9909 ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 9910-0109 ● ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0110- ● ● ● ●
61 00.206 PIN; STRAIGHT
CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 01 1 0110- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0110- ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 9804-9909 ● ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 9910-0109 ● ● ●
61 00.206 PIN; STRAIGHT
EXC. CHARGE AIR COOLER<6PL> 00.669 OD=10 L=20 		9-08151-020-0 02 1 0110-0201 ●
61 00.206 PIN; STRAIGHT
00.669 OD=10 L=20 		9-08151-020-0 02 1 0110-0201 ● ●
61 00.206 PIN; STRAIGHT
EXC. CHARGE AIR COOLER<6PL> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0202- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0202- ● ●
62 00.034 CUP; SEALING,C/BL FRT
UNITED KINGDOM EQUIPMENT(EK3) OD=14 		5-11219-011-0 01 1 9804-9909 ●
62 00.034 CUP; SEALING,C/BL FRT
UNITED KINGDOM EQUIPMENT(EK3) OD=14 		5-11219-011-0 01 1 9910-0109 ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 9910-0109 ●
62 00.034 CUP; SEALING,C/BL FRT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> OD=14 		5-11219-011-0 01 1 0110- ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 0110- ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 9804- ● ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-2 01 1 9910-0109 ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 0110- ● ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9804-0205 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0206- ●
70 00.034 CUP; SEALING,FRT & RR
EXC. CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
EXC. CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=14 		5-11219-011-0 01 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 9804-9909 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 9910-0109 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 0110-0211 ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 04 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0306- ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
(C) OD=34 		8-11056-093-0 07 1 9804- ●
70 00.034 CUP; SEALING,FRT & RR
(C) OD=36 		8-11070-803-0 07 1 9804- ●
113 00.034 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 9804-9909 ● ●
113 00.034 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 9910-0109 ● ● ●
113 00.034 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 0110- ● ● ● ●
çizim 69010
13 401 1 400 399 335 55 130 211 8 45 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL 8-94438-404-4 01 1 9804-0109 ●
1 00.033 BLOCK ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94438-404-4 01 1 0110-0205 ●
1 00.033 BLOCK ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97249-021-0 01 1 0110-0205 ●
1 00.033 BLOCK ASM; CYL 8-97249-021-1 01 1 0206- ●
1 00.033 BLOCK ASM; CYL 8-94437-397-7 01 1 9804-0209 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-1 01 1 0210- ●
1 00.033 BLOCK ASM; CYL 8-97149-360-1 01 1 9804-0212 ●
1 00.033 BLOCK ASM; CYL 8-97193-222-1 01 1 0301- ●
1 00.033 BLOCK ASM; CYL 8-97043-280-1 01 1 9910-0202 ●
1 00.033 BLOCK ASM; CYL 8-97314-579-1 01 1 0203- ●
1 00.033 BLOCK ASM; CYL 8-97257-264-2 01 1 0110- ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9804-9909 ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9910-0109 ● ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0110- ● ● ● ●
8 00.056 BOLT; BRG CAP
(A) M11X143 FLANGE 		8-94363-095-1 08 1 9804- ●
8 00.056 BOLT; BRG CAP
(B) M9X85 FLANGE 		8-94363-224-1 08 1 9804- ●
8 00.056 BOLT; BRG CAP 8-90502-412-0 10 1 9804- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9804-9909 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9910-0109 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0110- ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 9804- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 9804- ●
45 01.800 SWITCH; OIL PRESSURE 8-94312-940-0 01 1 9804- ●
55 01.531 PLUG; OIL GALLERY
01.837 3/8" BALL 		9-00097-011-0 01 1 9804- ●
130 00.056 DOWEL; BRG CAP 8-94382-070-0 08 1 9804- ●
211 01.428 BOLT; CRANKCASE
M10X31 FLANGE 		8-94363-094-1 08 1 9804- ●
335 01.531 PLUG; C/BL,SIDE
M28X16 FLANGE 		8-97028-246-2 01 1 9804- ●
399 00.724 SENSOR; CRANKSHAFT POSITION 8-97136-125-1 01 1 9804- ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS 8-97131-356-0 01 1 9804- ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9804- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 9804- ●

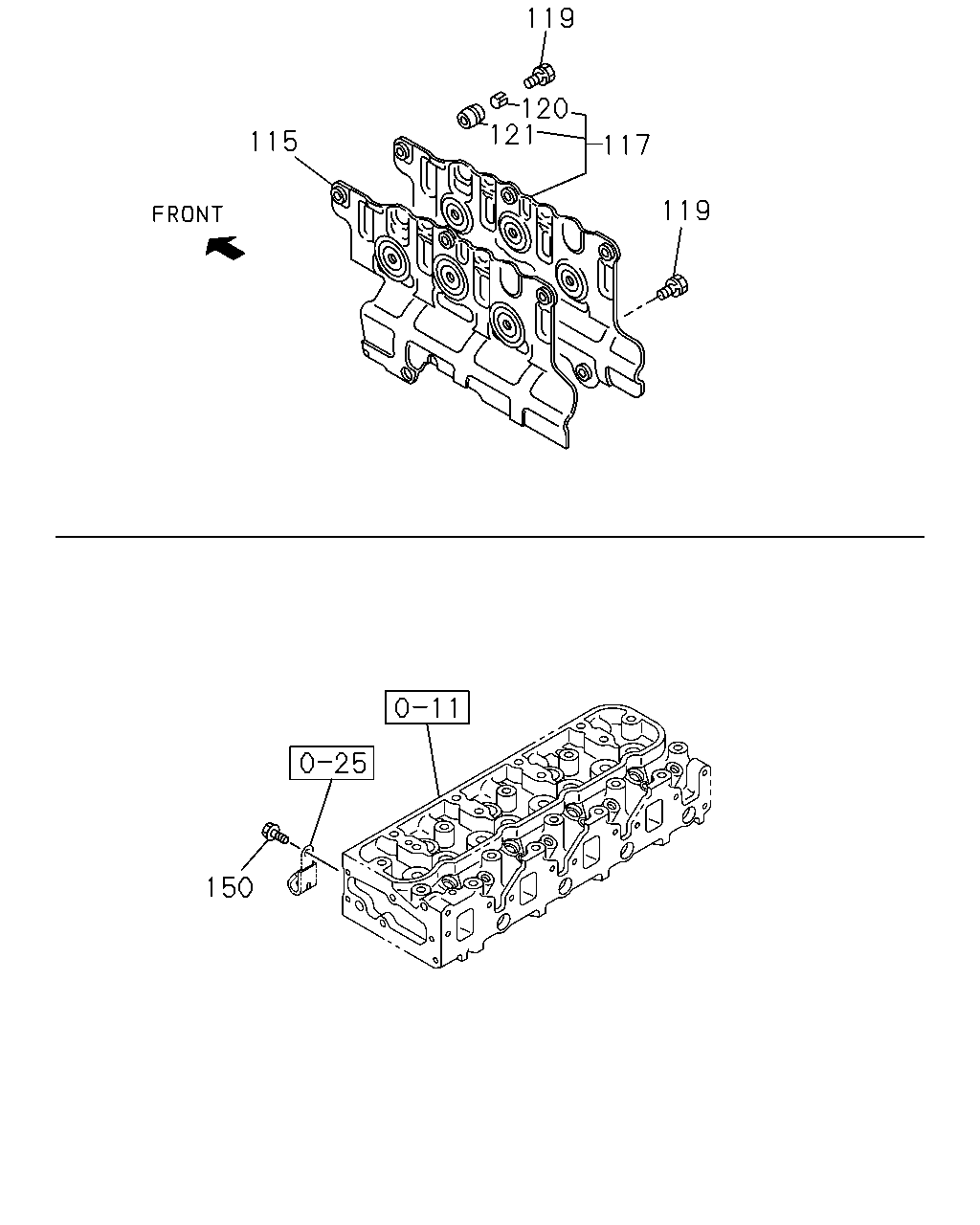

çizim 69059
119 120 121 115 117 119 150
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
115 00.034 RUBBER; SPACE
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-521-1 01 1 9804-9901 ●
115 00.034 RUBBER; SPACE
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97141-687-0 01 1 9902-0203 ●
115 00.034 RUBBER; SPACE
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97264-913-0 01 1 0204-0205 ●
115 00.034 RUBBER; SPACE
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-97264-913-0 01 1 0206- ●
117 00.030 COVER ASM; C/BL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-516-1 01 1 9804-0205 ●
117 00.030 COVER ASM; C/BL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-97106-516-1 01 1 0206- ●
119 00.034 BOLT; COVER FIX
EXC. UNITED KINGDOM EQUIPMENT(EK3) M10X28 		8-94329-952-1 02 1 9804-0205 ●
119 00.034 BOLT; COVER FIX
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> M10X28 		8-94329-952-1 02 1 0206- ●
119 00.034 BOLT; COVER FIX
EXC. UNITED KINGDOM EQUIPMENT(EK3) M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9804-0205 ●
119 00.034 BOLT; COVER FIX
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0206- ●
120 00.034 BUSHING; MTG RUBBER
EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=13 T=9.5 		8-94140-427-1 05 1 9804-0205 ●
120 00.034 BUSHING; MTG RUBBER
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> OD=13 T=9.5 		8-94140-427-1 05 1 0206- ●
121 00.034 RUBBER; MTG,COVER
EXC. UNITED KINGDOM EQUIPMENT(EK3) OD=22 		8-94140-428-1 05 1 9804-0205 ●
121 00.034 RUBBER; MTG,COVER
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> OD=22 		8-94140-428-1 05 1 0206- ●
150 02.313 BOLT; CLIP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.206 M8X10 FLANGE 		0-28080-810-0 01 1 9804-9909 ●
150 02.313 BOLT; CLIP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 00.206 M8X10 FLANGE 		0-28080-810-0 01 1 9910- ●
150 02.313 BOLT; CLIP
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 9910- ●

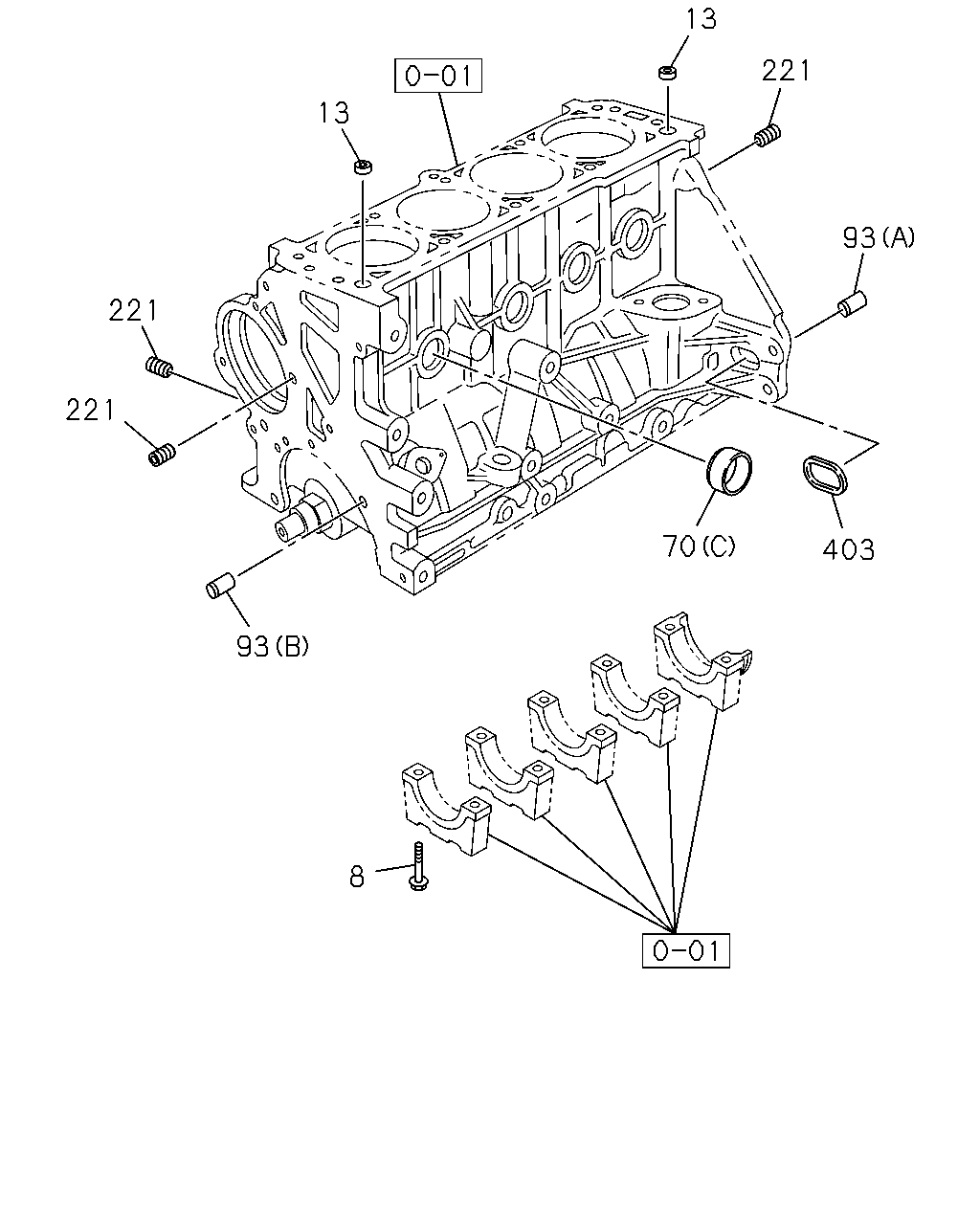

çizim 69060
13 221 13 93 221 221 70 403 93 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9804-9909 ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 9910-0109 ● ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0110- ● ● ● ●
8 00.056 BOLT; BRG CAP
(A) M11X143 FLANGE 		8-94363-095-1 08 1 9804- ●
8 00.056 BOLT; BRG CAP
(B) M9X85 FLANGE 		8-94363-224-1 08 1 9804- ●
8 00.056 BOLT; BRG CAP 8-90502-412-0 10 1 9804- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9804-9909 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 9910-0109 ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0110- ● ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=15.25 		8-94200-819-0 04 1 9804- ●
13 00.293 DOWEL; C/BL TO HD 8-90353-654-0 02 1 9804- ●
70 00.034 CUP; SEALING,FRT & RR
EXC. CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
EXC. CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 0212-0305 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
(B) OD=14 		5-11219-011-0 01 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 9804-9909 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 9910-0109 ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 (A) OD=16 		5-11129-006-0 02 1 0110-0211 ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 00.253 (A) OD=16 		5-11129-006-0 04 1 0212-0305 ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0306- ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
(C) OD=34 		8-11056-093-0 07 1 9804- ●
70 00.034 CUP; SEALING,FRT & RR
(C) OD=36 		8-11070-803-0 07 1 9804- ●
93 00.206 DOWEL; RET TO C/BL
(A) 		8-90351-708-0 02 1 9804- ●
93 00.206 DOWEL; RET TO C/BL
01.609 (B) 		8-90351-709-0 02 1 9804- ●
221 01.531 PLUG; OIL GALLERY 8-11056-321-0 03 1 9804- ●
403 01.519 GUIDE; GALLERY 8-90501-712-0 01 1 9804- ●

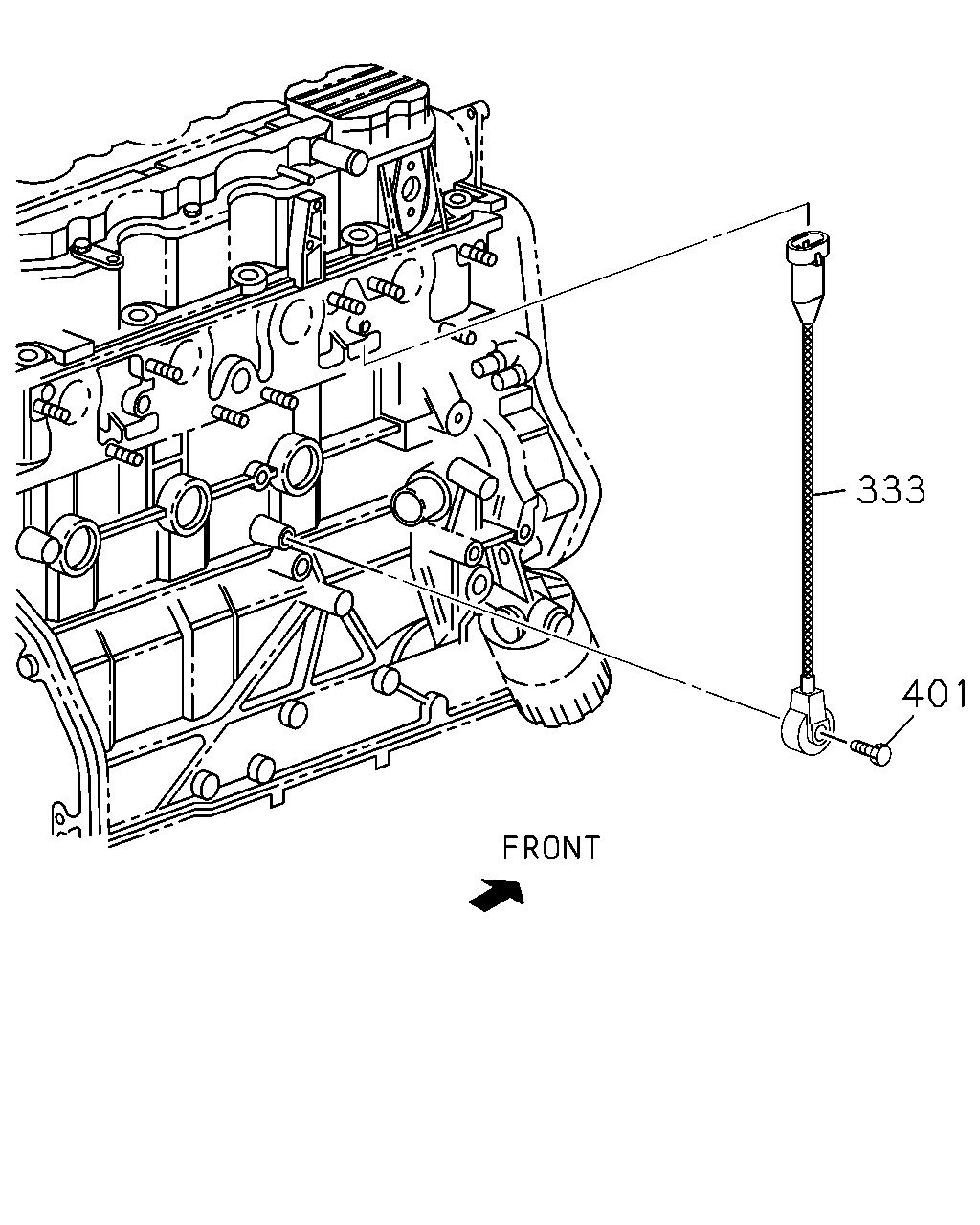

çizim 69577
333 401
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
333 03.682 SENSOR; KNOCK 8-10456-240-0 01 1 9804- ●
401 00.724 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9804- ●
401 00.724 BOLT; SENSOR 8-92063-265-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
