◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#38410) — 485 parça

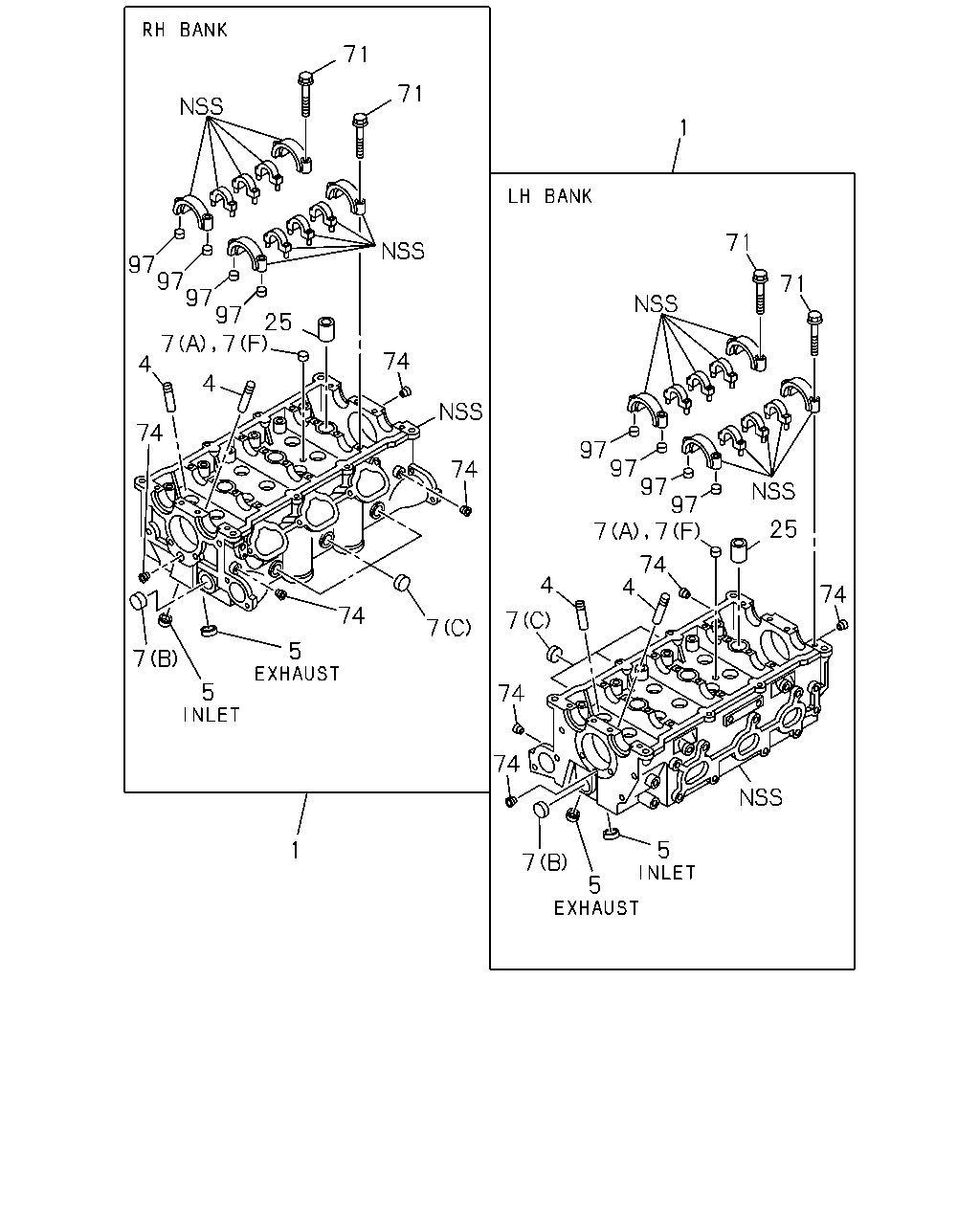

çizim 17895
71 71 1 71 97 97 97 97 25 7 71 7 4 74 4 74 97 97 97 97 7 74 25 7 74 4 4 74 74 7 7 5 7 5 74 74 5 1 7 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97289-430-2 01 1 0110- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-1 01 1 9804-0205 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809- ●
1 00.269 HEAD ASM; CYL 8-97086-338-6 01 1 9910- ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0110-0210 ●
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804-9909 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9910-0109 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0110- ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804- ●
4 00.283 GUIDE; VLV
OVSI=0.20 		8-90108-700-0 08 1 9804- ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) OVSI=0.40 		8-90108-701-0 08 1 9804- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9804-0003 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9804-0003 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-97254-814-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-814-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) INLET 		8-97254-814-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-814-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9804-9909 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9804-9909 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9910-0003 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9910-0003 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-97254-815-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97254-815-0 04 1 0004-0109 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) EXHAUST 		8-97254-815-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97254-815-0 04 1 0110-0207 ● ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B) INLET 		8-97083-162-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9804-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (B) INLET INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. CHARGE AIR COOLER<6PL> (B) INLET OD=41.2 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94130-559-0 04 1 9804-0109 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) EXHAUST 		8-94130-559-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94130-559-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ● ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97083-162-0 04 1 9910-0003 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-813-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0110-0207 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> OD=42.7 		8-97254-813-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
OD=42.7 		8-97254-813-0 04 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0110-0205 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0110-0205 ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0206- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0206- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 0110-0207 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		8-97351-451-0 01 1 0208- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9910-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9910-0105 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0106-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 06 1 0110- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804- ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9804- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 9804- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9804- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 9804- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9804- ●

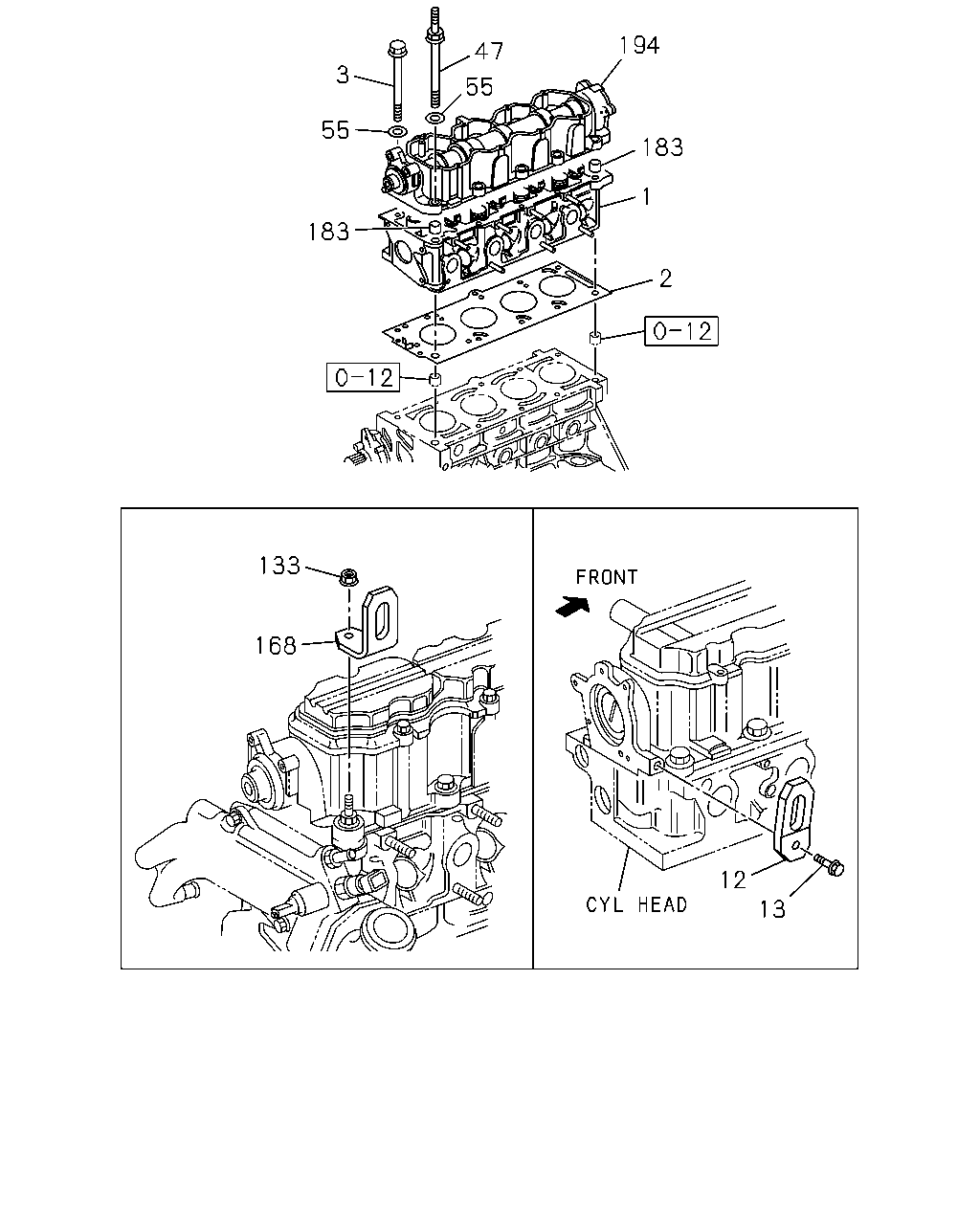

çizim 69065
194 47 3 55 55 183 1 183 2 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97289-430-2 01 1 0110- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-1 01 1 9804-0205 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809- ●
1 00.269 HEAD ASM; CYL 8-97086-338-6 01 1 9910- ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0110-0210 ●
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0110- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0110- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0110- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9804-9909 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9910-0109 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0110- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804- ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9804-0109 ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 0110- ● ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 9804- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9804-0109 ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0110- ● ●
13 00.004 BOLT; HANGER 8-11051-927-0 01 1 9804- ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 9804- ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 9804- ●
133 00.004 NUT; HANGER 8-11014-038-0 01 1 9804- ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 9804- ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 9804- ●
194 00.349 CARRIER; CAM SHAFT 8-90467-878-0 01 1 9804- ●

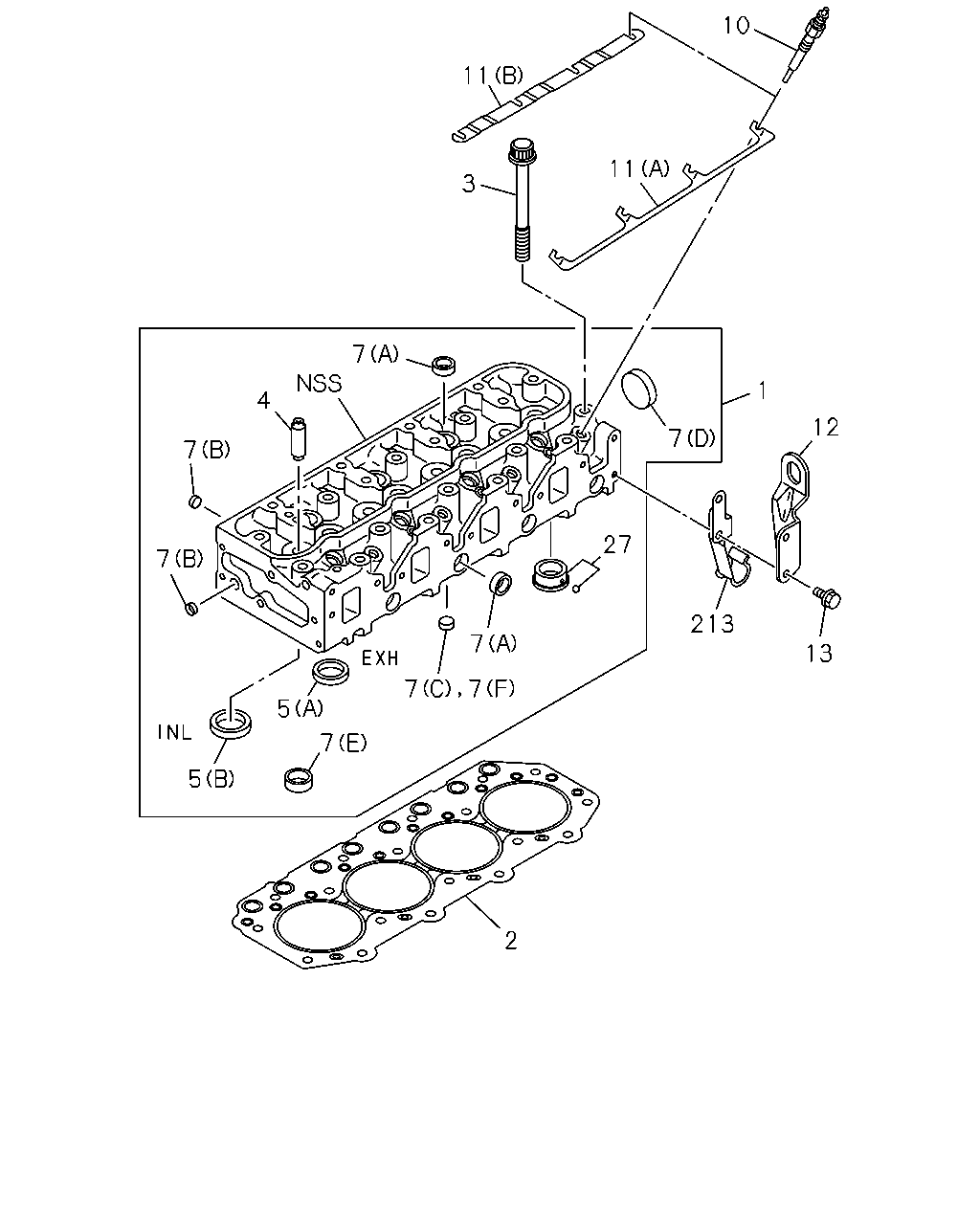

çizim 69088
10 11 11 3 7 1 4 12 7 7 27 7 213 7 13 5 7 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97289-430-2 01 1 0110- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-1 01 1 9804-0205 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809- ●
1 00.269 HEAD ASM; CYL 8-97086-338-6 01 1 9910- ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0110-0210 ●
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0110- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0110- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0110- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9804-9909 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9910-0109 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0110- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804-9909 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9910-0109 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0110- ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804- ●
4 00.283 GUIDE; VLV
OVSI=0.20 		8-90108-700-0 08 1 9804- ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) OVSI=0.40 		8-90108-701-0 08 1 9804- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9804-0003 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9804-0003 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-97254-814-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-814-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) INLET 		8-97254-814-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-814-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9804-9909 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9804-9909 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9910-0003 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9910-0003 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-97254-815-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97254-815-0 04 1 0004-0109 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) EXHAUST 		8-97254-815-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97254-815-0 04 1 0110-0207 ● ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B) INLET 		8-97083-162-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9804-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (B) INLET INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. CHARGE AIR COOLER<6PL> (B) INLET OD=41.2 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94130-559-0 04 1 9804-0109 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) EXHAUST 		8-94130-559-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94130-559-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ● ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97083-162-0 04 1 9910-0003 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-813-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0110-0207 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> OD=42.7 		8-97254-813-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
OD=42.7 		8-97254-813-0 04 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0110-0205 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0110-0205 ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0206- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0206- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 0110-0207 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		8-97351-451-0 01 1 0208- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9910-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9910-0105 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0106-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 06 1 0110- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804- ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> BOSCH 		8-97306-519-2 04 1 0110- ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> BOSCH 		8-94133-759-7 04 1 9804-0109 ● ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) BOSCH 		8-94133-759-7 04 1 9804-0109 ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> BOSCH 		8-94133-759-8 04 1 0110- ● ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> BOSCH 		8-94133-759-8 04 1 0110- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0110- ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> NGK 		8-94175-158-1 04 1 9804-0109 ● ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) NGK 		8-94175-158-1 04 1 9804-0109 ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> NGK 		8-94175-158-1 04 1 0110- ● ●
10 02.270 PLUG; GLOW
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> NGK 		8-94175-158-1 04 1 0110- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0110- ●
10 02.270 PLUG; GLOW
EXC. UNITED KINGDOM EQUIPMENT(EK3), COLD START DEVICE<7LY> 		8-94140-115-6 04 1 9804-0211 ● ●
10 02.270 PLUG; GLOW
NGK 		8-97044-037-2 04 1 9910- ●
11 02.251 CONNECTOR; GLOW PLUG
(A) 		8-97146-517-0 01 1 9804-0109 ● ●
11 02.251 CONNECTOR; GLOW PLUG
(A) 		8-97146-517-0 01 1 0110- ● ● ●
11 02.251 CONNECTOR; GLOW PLUG
(B) 		8-97146-518-0 01 1 9910- ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9804-0109 ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 0110- ● ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 9804- ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9804-0109 ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0110- ● ●
13 00.004 BOLT; HANGER 8-11051-927-0 01 1 9804- ●
27 00.253 PLUG; HOT 8-97086-450-0 04 1 9910- ●
213 02.559 CLIP; RUBBER HOSE
01.540 		8-97039-302-0 01 1 0110- ●

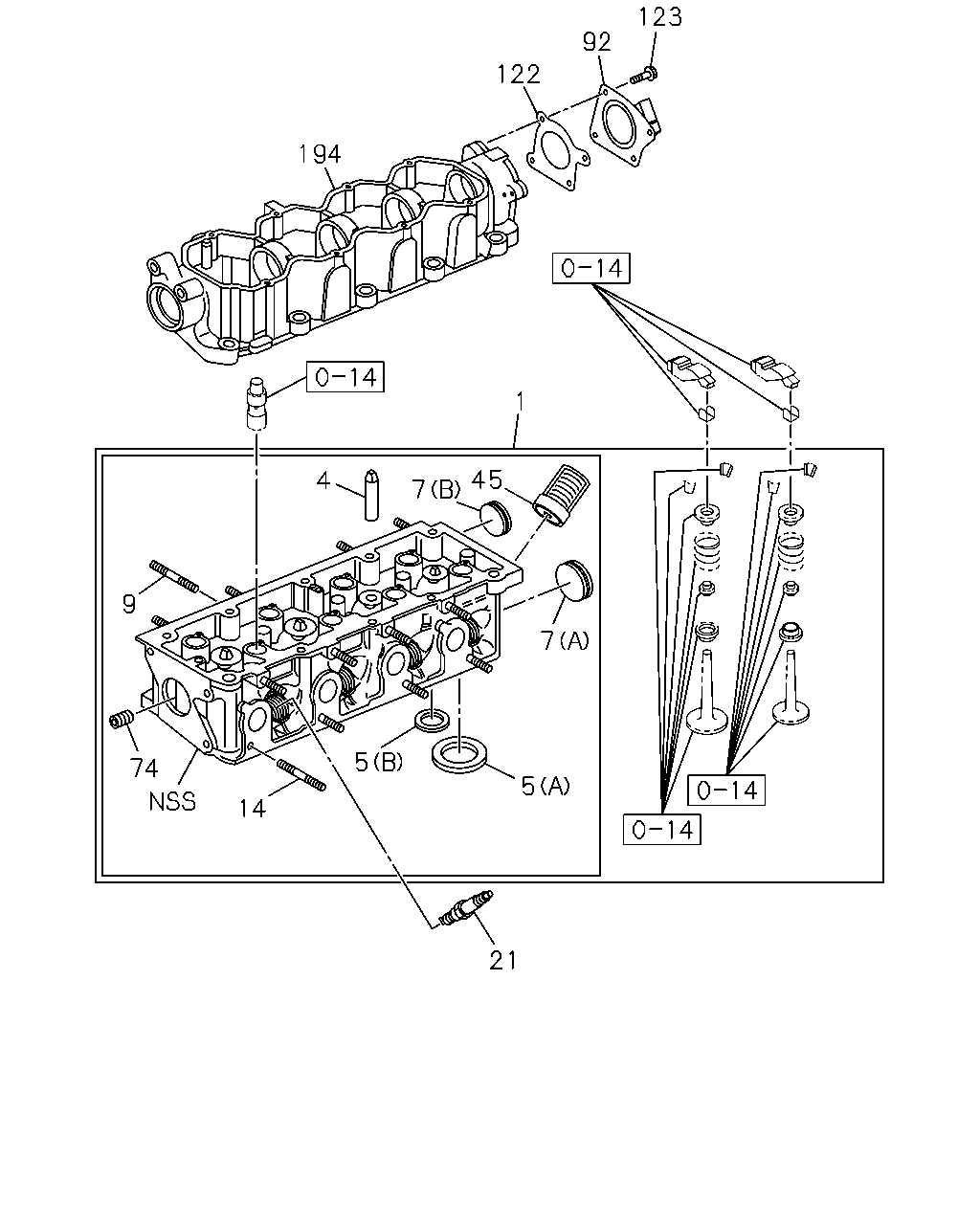

çizim 69764
123 92 122 194 1 45 7 4 9 7 5 74 5 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97289-430-2 01 1 0110- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-1 01 1 9804-0205 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809- ●
1 00.269 HEAD ASM; CYL 8-97086-338-6 01 1 9910- ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0110-0210 ●
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804-9909 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9910-0109 ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0110- ● ● ● ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804- ●
4 00.283 GUIDE; VLV
OVSI=0.20 		8-90108-700-0 08 1 9804- ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) OVSI=0.40 		8-90108-701-0 08 1 9804- ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94431-521-0 04 1 9804-0003 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-94431-521-0 04 1 9804-0003 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-97254-814-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-814-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) INLET 		8-97254-814-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-814-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9804-9909 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9804-9909 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94431-522-0 04 1 9910-0003 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-94431-522-0 04 1 9910-0003 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-97254-815-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97254-815-0 04 1 0004-0109 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) EXHAUST 		8-97254-815-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-97254-815-0 04 1 0110-0207 ● ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B) INLET 		8-97083-162-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (B) INLET 		8-94130-558-0 04 1 9804-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> (B) INLET INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. CHARGE AIR COOLER<6PL> (B) INLET OD=41.2 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=41.2 		8-97231-228-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94130-559-0 04 1 9804-0109 ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) EXHAUST 		8-94130-559-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) EXHAUST 		8-94130-559-0 04 1 0110-0207 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ● ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97083-162-0 04 1 9910-0003 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-97254-813-0 04 1 0004-0109 ●
5 00.253 SEAT; VLV INSERT
(B) INLET OD=42.7 		8-97254-813-0 04 1 0110-0207 ● ●
5 00.253 SEAT; VLV INSERT
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> OD=42.7 		8-97254-813-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
OD=42.7 		8-97254-813-0 04 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0110-0205 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0110-0205 ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0206- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0206- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 0110-0207 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		8-97351-451-0 01 1 0208- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9910-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9910-0105 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0106-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 06 1 0110- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9804- ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 9804- ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9804- ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 9804- ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9804-0009 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9810- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 9804- ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 9804- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9804- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 9804- ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 9804- ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-158-0 01 1 9804- ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 9804- ●
194 00.349 CARRIER; CAM SHAFT 8-90467-878-0 01 1 9804- ●

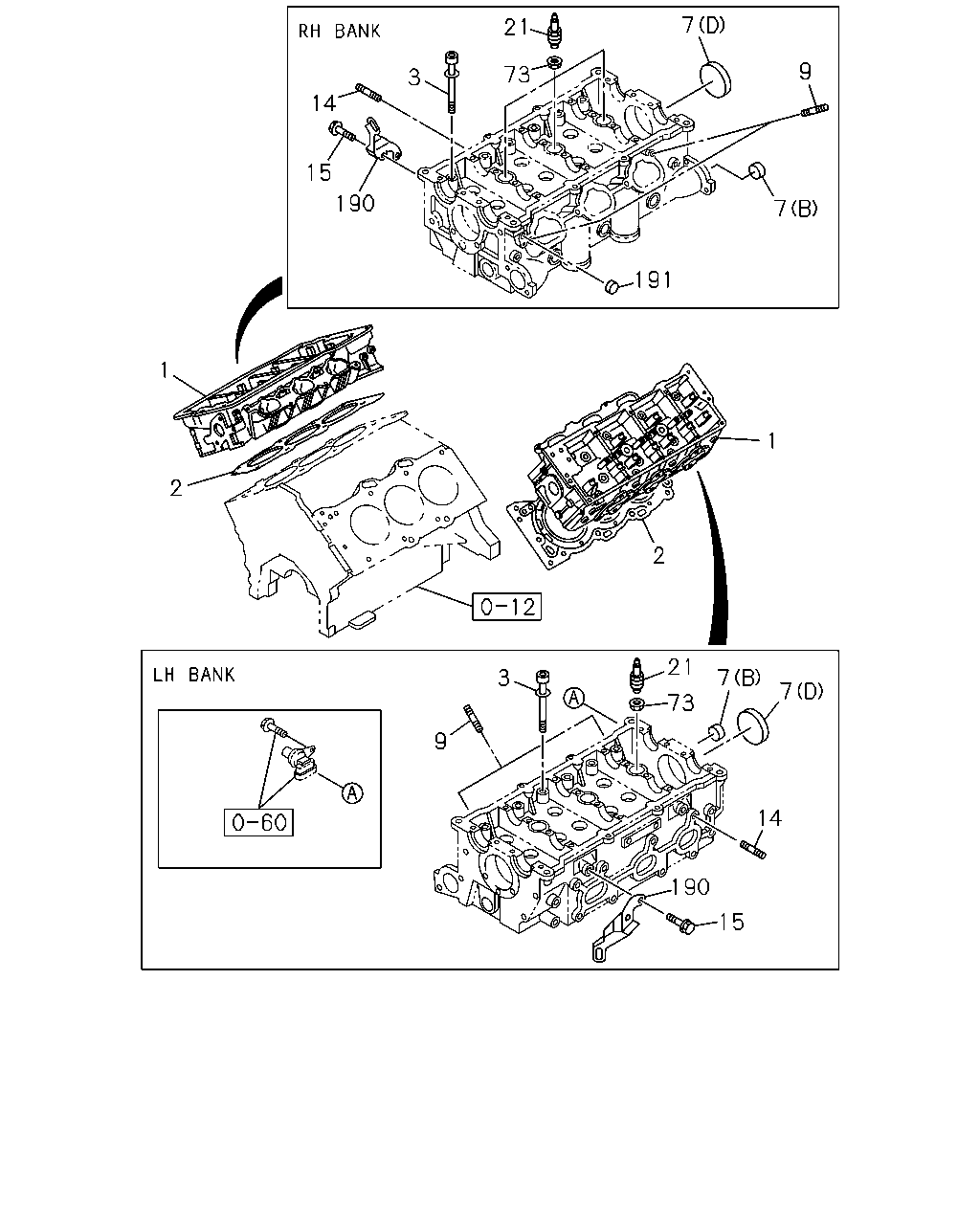

çizim 71317
7 21 9 73 3 14 15 190 7 191 1 1 2 2 21 3 7 7 73 9 14 190 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 9804-0109 ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0110-0207 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ●
1 00.269 HEAD ASM; CYL
EXC. CHARGE AIR COOLER<6PL> 		8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ●
1 00.269 HEAD ASM; CYL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 		8-97289-430-2 01 1 0110- ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94431-523-1 01 1 9804-0205 ●
1 00.269 HEAD ASM; CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809- ●
1 00.269 HEAD ASM; CYL 8-97086-338-6 01 1 9910- ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0110-0210 ●
1 00.269 HEAD ASM; CYL 8-97361-245-0 01 1 0211-0303 ●
1 00.269 HEAD ASM; CYL 8-97255-100-2 01 1 0304- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9910- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0110- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0110- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0110- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9804-9909 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-0 18 1 9910-0109 ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0110- ● ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0110-0205 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0110-0205 ● ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 07 1 0206- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0206- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		1-09600-005-1 01 1 0110-0207 ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) RR FACE OD=45 		8-97351-451-0 01 1 0208- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9906-9909 ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) (A) OD=22 		8-97209-609-0 07 1 9910-0105 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 9910-0105 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=22 		8-97209-609-0 07 1 0106-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) OD=22 		8-97209-609-0 06 1 0110- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) DRILLED PASS OD=12.3 		5-09600-013-0 05 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9804-9909 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 9910-0109 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0110- ● ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804- ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9804- ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 9804- ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9804- ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 9804- ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804- ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9804-0009 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9810- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 9804- ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-173-0 06 1 9804- ●
190 00.004 HANGER; ENG 8-97131-856-0 02 1 9804-0111 ●
190 00.004 HANGER; ENG 8-97288-729-0 02 1 0112- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
