◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶
0-10 — CYLINDER HEAD COVER (#38409) — 268 parça

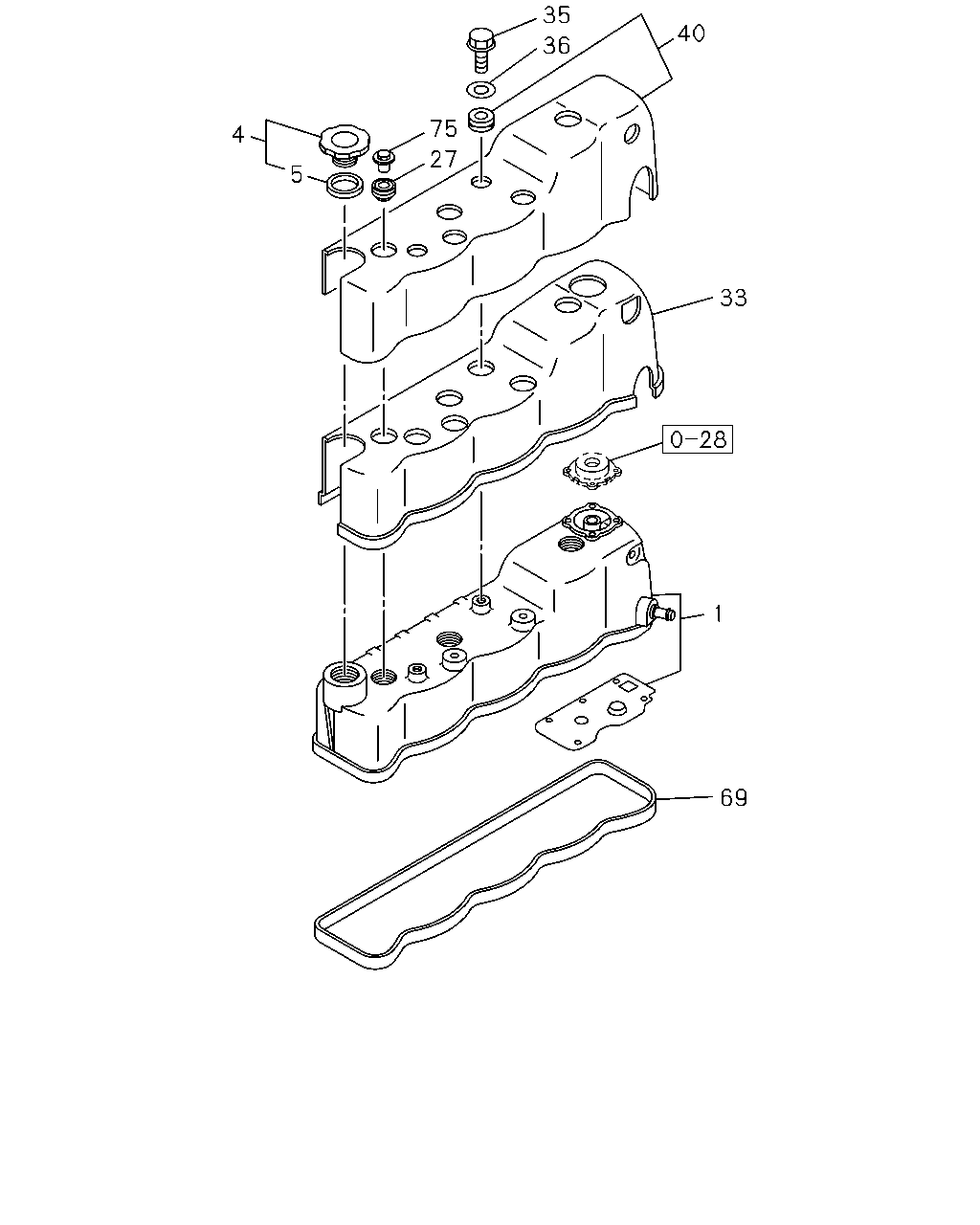

çizim 71631
35 40 36 75 4 27 5 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9804-0109 ●
1 00.386 COVER; CYL HD
EXC. CHARGE AIR COOLER<6PL> 		8-94433-742-2 01 1 0110- ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD 8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9910- ● ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9910-0111 ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9910-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0111 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 9804- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9804-0109 ● ●
4 01.758 CAP; OIL FILLER
EXC. CHARGE AIR COOLER<6PL> 		8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9804-9909 ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9910-0109 ● ●
4 01.758 CAP; OIL FILLER
CHARGE AIR COOLER<6PL> 		8-94425-685-2 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0110- ● ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 9804- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9804-9909 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9910-0109 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0110- ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90448-217-0 01 1 9804- ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9804-9909 ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9910-0103 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-97263-801-0 03 1 0104-0109 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-97263-801-1 03 1 0110- ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
CHARGE AIR COOLER<6PL> 		8-97252-871-0 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97252-871-0 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97252-871-0 01 1 0111-0301 ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 0302- ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 9804-9909 ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 9910-0109 ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. CHARGE AIR COOLER<6PL> 		8-97131-707-3 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 0110-0110 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804-9909 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9910-0109 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0110- ● ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9804-9909 ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9910-0109 ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0110- ● ● ● ●
40 00.386 COVER
CHARGE AIR COOLER<6PL> 		8-97252-869-1 01 1 0110- ●
40 00.386 COVER 8-97252-869-1 01 1 0110- ●
40 00.386 COVER 8-97043-018-0 01 1 9804-9909 ● ●
40 00.386 COVER 8-97043-018-0 01 1 9910-0109 ● ● ●
40 00.386 COVER
EXC. CHARGE AIR COOLER<6PL> 		8-97043-018-0 01 1 0110- ●
40 00.386 COVER 8-97043-018-0 01 1 0110- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9804-9909 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9910-0109 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 0110-0301 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97349-416-0 01 1 0302- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97172-394-0 02 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90467-661-0 01 1 9804- ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9804-9909 ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9910-0109 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0110- ● ● ● ●

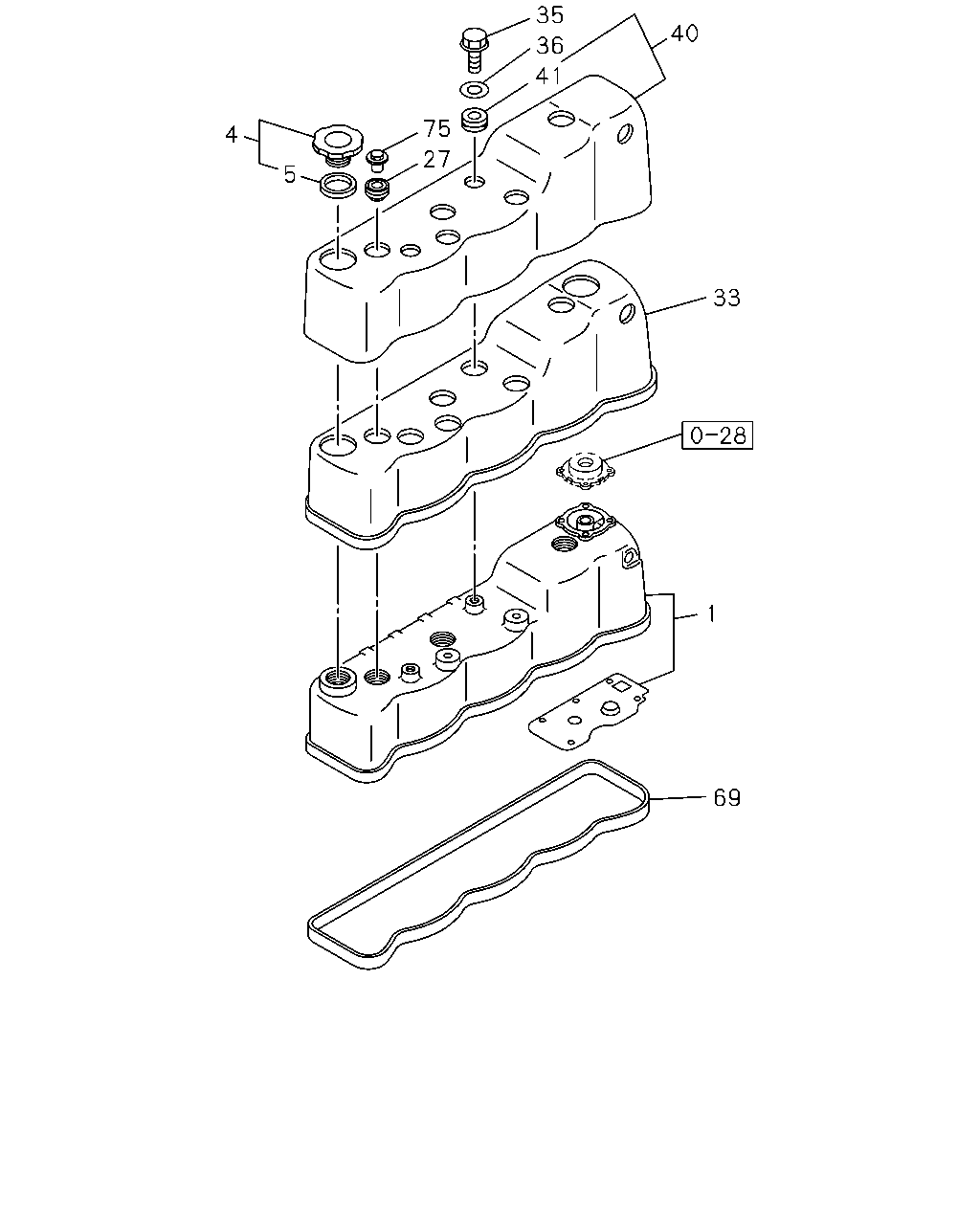

çizim 71632
35 40 36 41 75 4 27 5 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9804-0109 ●
1 00.386 COVER; CYL HD
EXC. CHARGE AIR COOLER<6PL> 		8-94433-742-2 01 1 0110- ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD 8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9910- ● ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9910-0111 ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9910-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0111 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 9804- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9804-0109 ● ●
4 01.758 CAP; OIL FILLER
EXC. CHARGE AIR COOLER<6PL> 		8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9804-9909 ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9910-0109 ● ●
4 01.758 CAP; OIL FILLER
CHARGE AIR COOLER<6PL> 		8-94425-685-2 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0110- ● ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 9804- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9804-9909 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9910-0109 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0110- ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90448-217-0 01 1 9804- ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9804-9909 ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9910-0103 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-97263-801-0 03 1 0104-0109 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-97263-801-1 03 1 0110- ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
CHARGE AIR COOLER<6PL> 		8-97252-871-0 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97252-871-0 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97252-871-0 01 1 0111-0301 ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 0302- ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 9804-9909 ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 9910-0109 ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. CHARGE AIR COOLER<6PL> 		8-97131-707-3 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 0110-0110 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804-9909 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9910-0109 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0110- ● ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9804-9909 ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9910-0109 ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0110- ● ● ● ●
40 00.386 COVER
CHARGE AIR COOLER<6PL> 		8-97252-869-1 01 1 0110- ●
40 00.386 COVER 8-97252-869-1 01 1 0110- ●
40 00.386 COVER 8-97043-018-0 01 1 9804-9909 ● ●
40 00.386 COVER 8-97043-018-0 01 1 9910-0109 ● ● ●
40 00.386 COVER
EXC. CHARGE AIR COOLER<6PL> 		8-97043-018-0 01 1 0110- ●
40 00.386 COVER 8-97043-018-0 01 1 0110- ● ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 9804-9909 ● ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 9910-0109 ● ● ●
41 00.413 GROMMET; HD COVER,OUTER
EXC. CHARGE AIR COOLER<6PL> 		8-94256-959-0 02 1 0110- ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 0110- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9804-9909 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9910-0109 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 0110-0301 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97349-416-0 01 1 0302- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97172-394-0 02 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90467-661-0 01 1 9804- ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9804-9909 ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9910-0109 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0110- ● ● ● ●

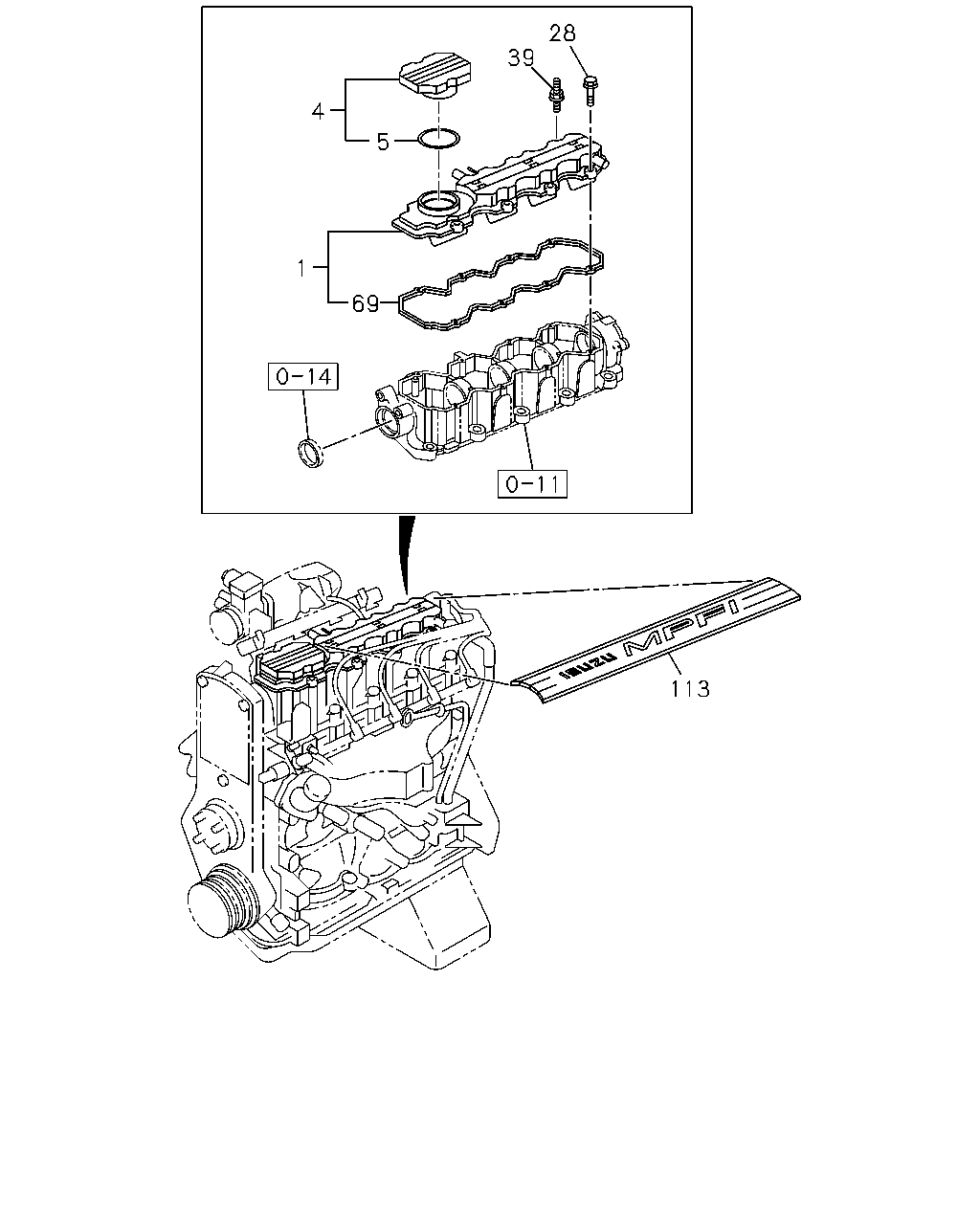

çizim 71686
28 39 4 5 1 69 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9804-0109 ●
1 00.386 COVER; CYL HD
EXC. CHARGE AIR COOLER<6PL> 		8-94433-742-2 01 1 0110- ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD 8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9910- ● ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9910-0111 ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9910-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0111 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 9804- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9804-0109 ● ●
4 01.758 CAP; OIL FILLER
EXC. CHARGE AIR COOLER<6PL> 		8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9804-9909 ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9910-0109 ● ●
4 01.758 CAP; OIL FILLER
CHARGE AIR COOLER<6PL> 		8-94425-685-2 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0110- ● ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 9804- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9804-9909 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9910-0109 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0110- ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90448-217-0 01 1 9804- ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 9804- ●
28 00.413 BOLT; HD COVER 8-11068-795-0 07 1 9804- ●
39 00.413 STUD; COVER,HD 8-92064-273-0 01 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9804-9909 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9910-0109 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 0110-0301 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97349-416-0 01 1 0302- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97172-394-0 02 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90467-661-0 01 1 9804- ●
113 00.386 COVER; CYL HEAD COVER 8-92063-671-0 01 1 9804- ●

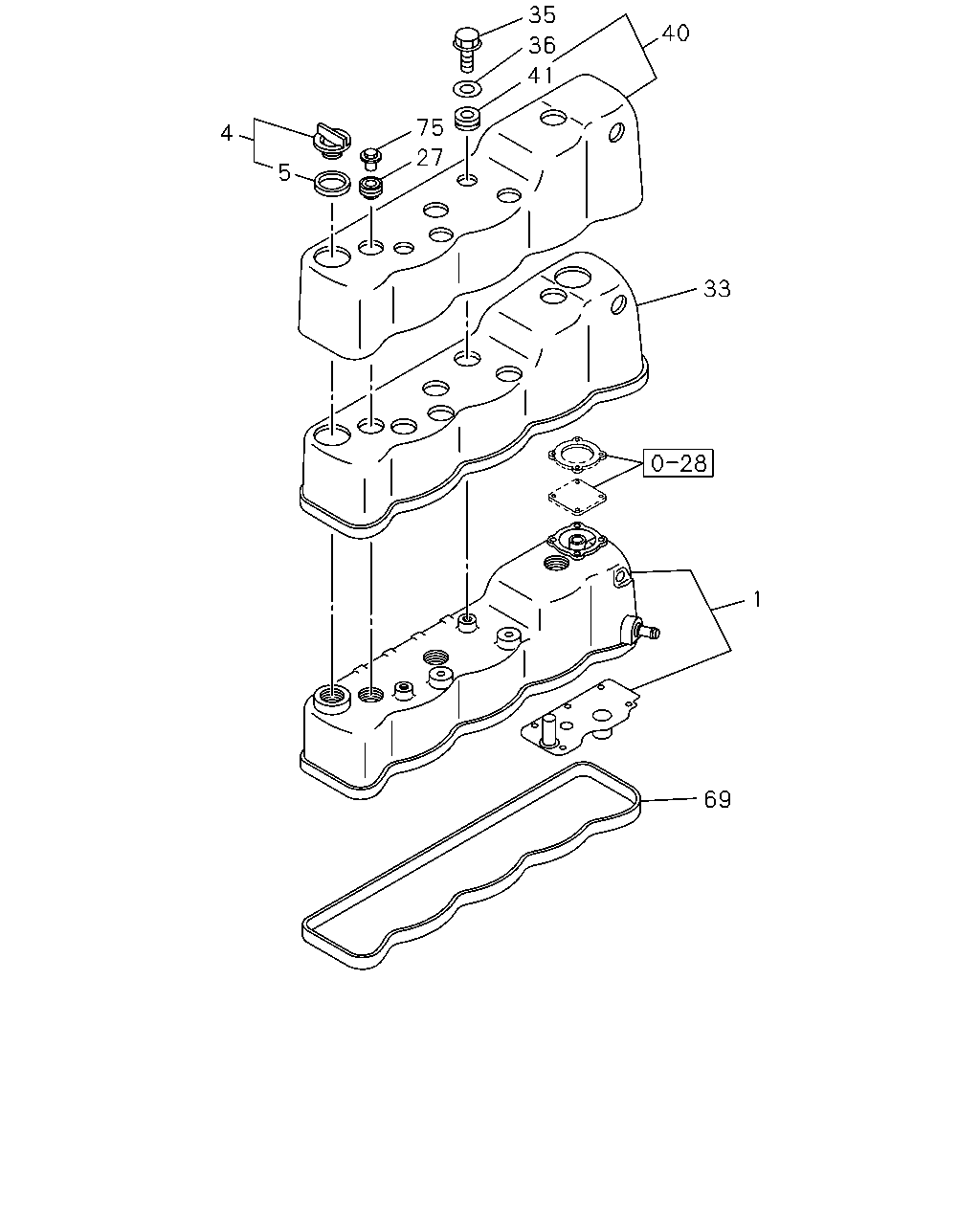

çizim 71817
35 40 36 41 75 4 27 5 33 1 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9804-0109 ●
1 00.386 COVER; CYL HD
EXC. CHARGE AIR COOLER<6PL> 		8-94433-742-2 01 1 0110- ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD 8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9910- ● ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9910-0111 ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9910-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0111 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 9804- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9804-0109 ● ●
4 01.758 CAP; OIL FILLER
EXC. CHARGE AIR COOLER<6PL> 		8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9804-9909 ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9910-0109 ● ●
4 01.758 CAP; OIL FILLER
CHARGE AIR COOLER<6PL> 		8-94425-685-2 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0110- ● ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 9804- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9804-9909 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9910-0109 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0110- ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90448-217-0 01 1 9804- ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9804-9909 ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-94202-456-3 03 1 9910-0103 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-97263-801-0 03 1 0104-0109 ● ● ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) ID=19.5 		8-97263-801-1 03 1 0110- ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
CHARGE AIR COOLER<6PL> 		8-97252-871-0 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97252-871-0 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97252-871-0 01 1 0111-0301 ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97365-746-0 01 1 0302- ● ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 9804-9909 ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 9910-0109 ● ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. CHARGE AIR COOLER<6PL> 		8-97131-707-3 01 1 0110-0110 ●
33 00.386 RUBBER; SPACE,CYL HD COVER 8-97131-707-3 01 1 0110-0110 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9804-9909 ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9910-0109 ● ● ●
35 00.293 BOLT; NOISE SHIELD COVER
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0110- ● ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9804-9909 ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 9910-0109 ● ● ●
36 00.413 WASHER; PL,NOISE SHIELD COVER
03.690 ID=8.5 OD=30 T=2.6 		9-09651-112-0 02 1 0110- ● ● ● ●
40 00.386 COVER
CHARGE AIR COOLER<6PL> 		8-97252-869-1 01 1 0110- ●
40 00.386 COVER 8-97252-869-1 01 1 0110- ●
40 00.386 COVER 8-97043-018-0 01 1 9804-9909 ● ●
40 00.386 COVER 8-97043-018-0 01 1 9910-0109 ● ● ●
40 00.386 COVER
EXC. CHARGE AIR COOLER<6PL> 		8-97043-018-0 01 1 0110- ●
40 00.386 COVER 8-97043-018-0 01 1 0110- ● ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 9804-9909 ● ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 9910-0109 ● ● ●
41 00.413 GROMMET; HD COVER,OUTER
EXC. CHARGE AIR COOLER<6PL> 		8-94256-959-0 02 1 0110- ●
41 00.413 GROMMET; HD COVER,OUTER 8-94256-959-0 02 1 0110- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9804-9909 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9910-0109 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 0110-0301 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97349-416-0 01 1 0302- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97172-394-0 02 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90467-661-0 01 1 9804- ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9804-9909 ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9910-0109 ● ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 0110- ● ● ● ●

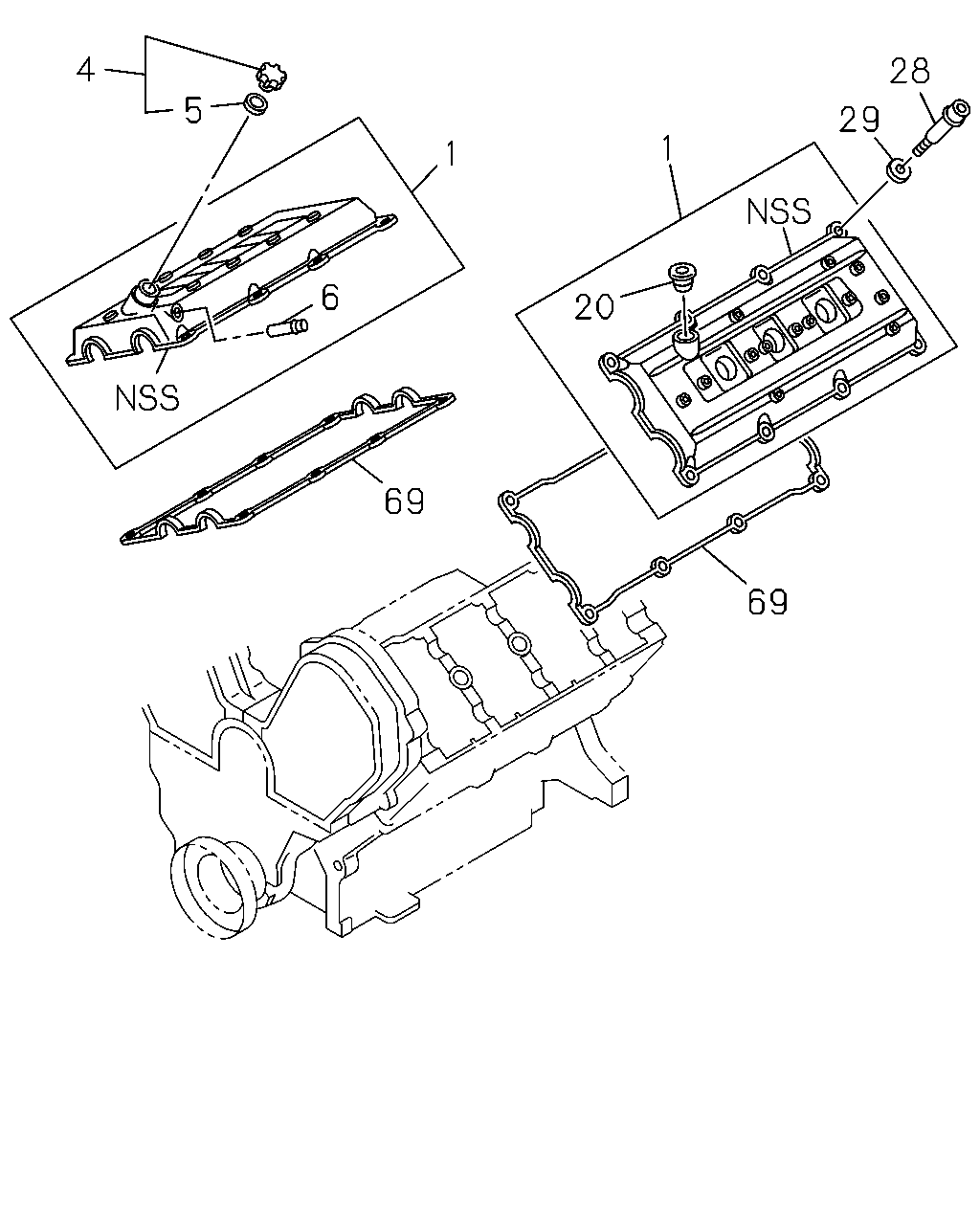

çizim 71928
4 28 5 29 1 1 6 20 69 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.386 COVER; CYL HD 8-94433-742-2 01 1 9804-0109 ●
1 00.386 COVER; CYL HD
EXC. CHARGE AIR COOLER<6PL> 		8-94433-742-2 01 1 0110- ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD 8-97249-225-0 01 1 0110-0302 ●
1 00.386 COVER; CYL HD
CHARGE AIR COOLER<6PL> 		8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97354-425-0 01 1 0303- ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97113-147-0 01 1 9910- ● ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9910-0111 ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9804-9909 ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9910-0103 ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0104-0111 ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-90467-642-0 01 1 9804- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9804-0109 ● ●
4 01.758 CAP; OIL FILLER
EXC. CHARGE AIR COOLER<6PL> 		8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9804-9909 ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 9910-0109 ● ●
4 01.758 CAP; OIL FILLER
CHARGE AIR COOLER<6PL> 		8-94425-685-2 01 1 0110- ●
4 01.758 CAP; OIL FILLER 8-94425-685-2 01 1 0110- ● ● ●
4 01.758 CAP; OIL FILLER 8-90467-648-0 01 1 9804- ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9804-9909 ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9910-0109 ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0110- ● ● ● ● ●
5 01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-90448-217-0 01 1 9804- ●
6 01.762 PIPE; PCV HOSE
03.602 OD=15 L=41 		8-94442-052-0 01 1 9804-9806 ●
20 00.413 GROMMET; HD COVER 8-97074-653-0 01 1 9804- ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 9804- ●
28 00.413 BOLT; HD COVER 8-11068-795-0 07 1 9804- ●
29 00.413 RUBBER; MTG,HD COVER 8-97149-002-2 16 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9804-9909 ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 9910-0109 ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97161-131-0 01 1 0110-0301 ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97349-416-0 01 1 0302- ● ● ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97172-394-0 02 1 9804- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-90467-661-0 01 1 9804- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
