0-05 — ENGINE GASKET KIT (#38408) — 375 parça

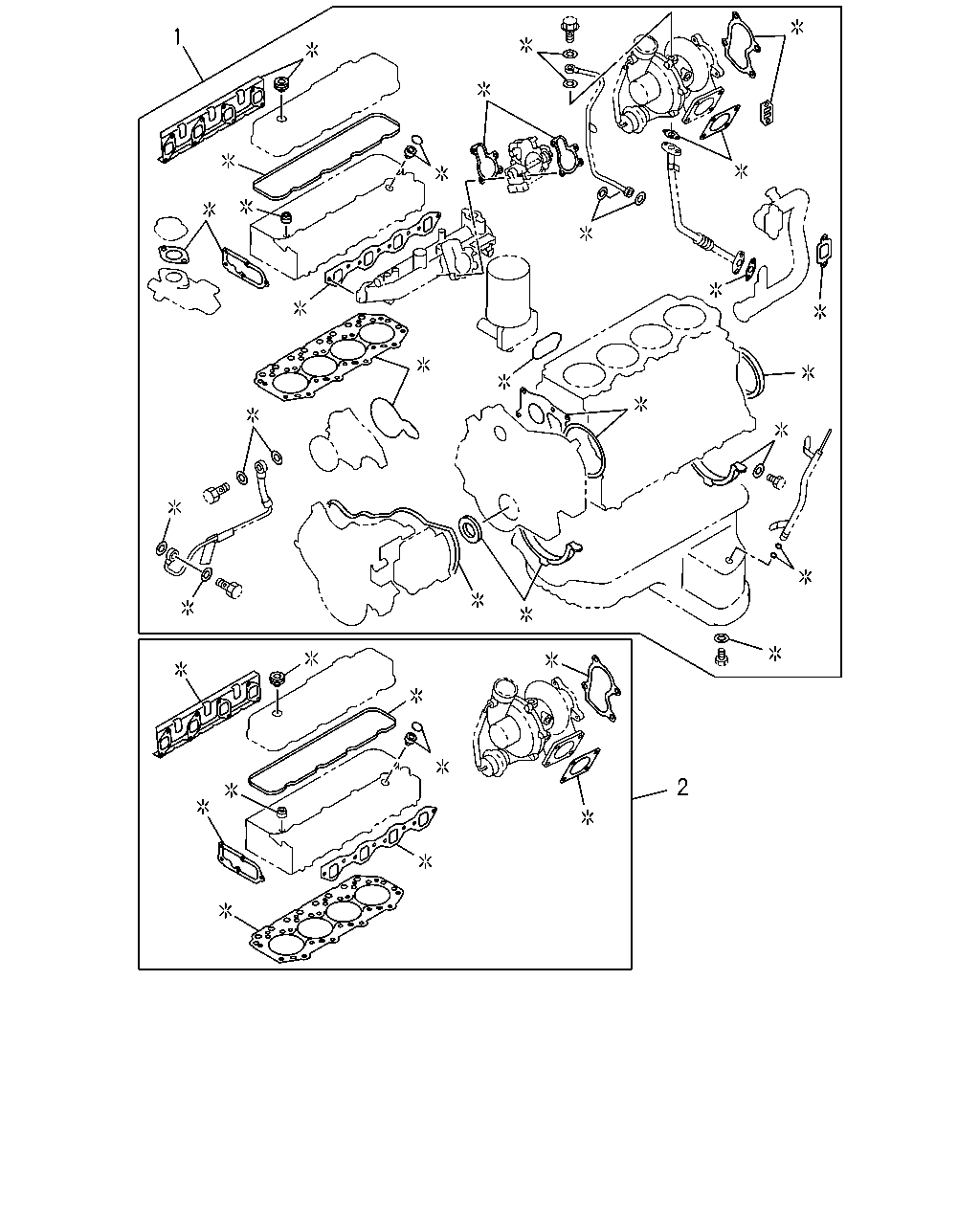

çizim 17650
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-467-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-688-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-688-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-468-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-689-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-689-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-469-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-690-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-690-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-922-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-676-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-676-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-923-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-677-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-677-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-924-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-678-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-678-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-968-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-682-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-969-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-683-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-970-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-684-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9804-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-1 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 9804- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-142-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-143-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-144-3 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-519-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-520-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-521-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-898-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-691-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-899-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-692-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-900-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-693-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-971-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-972-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-973-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9804-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-1 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92061-696-0 01 1 9804- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0110- ●

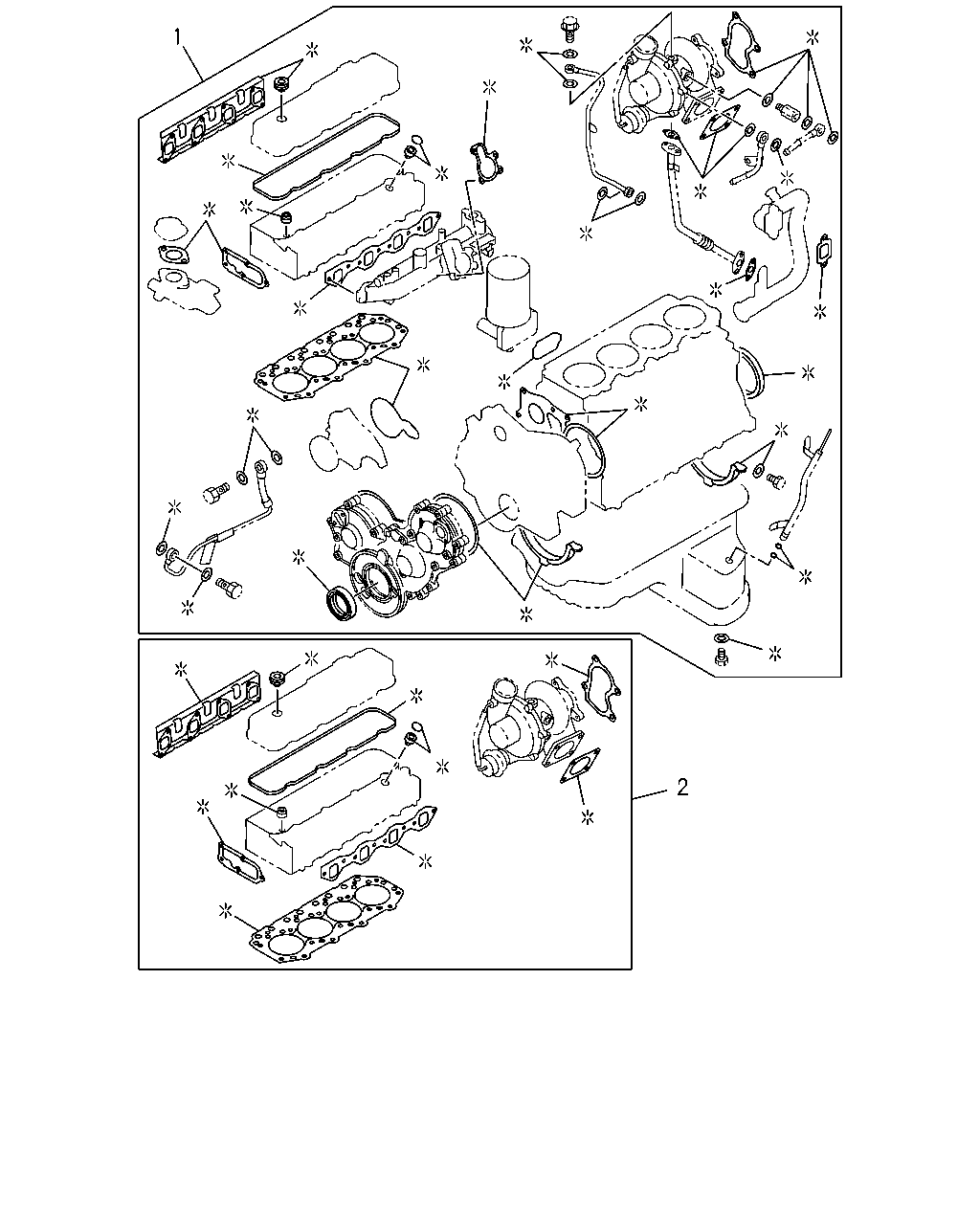

çizim 17953
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-467-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-688-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-688-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-468-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-689-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-689-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-469-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-690-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-690-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-922-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-676-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-676-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-923-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-677-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-677-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-924-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-678-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-678-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-968-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-682-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-969-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-683-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-970-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-684-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9804-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-1 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 9804- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-142-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-143-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-144-3 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-519-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-520-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-521-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-898-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-691-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-899-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-692-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-900-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-693-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-971-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-972-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-973-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9804-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-1 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92061-696-0 01 1 9804- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0110- ●

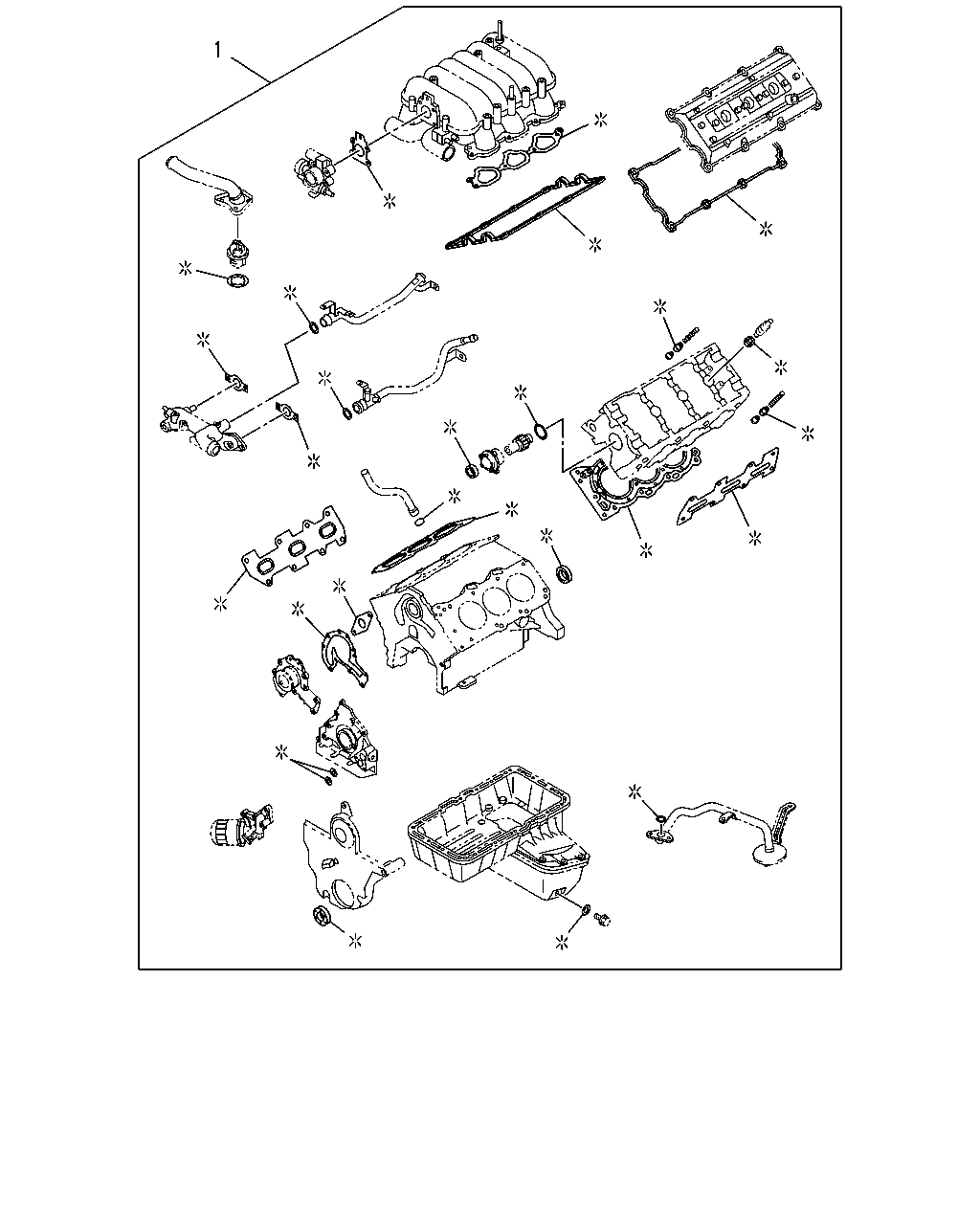

çizim 18143
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-467-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-688-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-688-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-468-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-689-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-689-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-469-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-690-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-690-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-922-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-676-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-676-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-923-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-677-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-677-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-924-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-678-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-678-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-968-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-682-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-969-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-683-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-970-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-684-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9804-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-1 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 9804- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-142-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-143-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-144-3 01 1 0110- ●

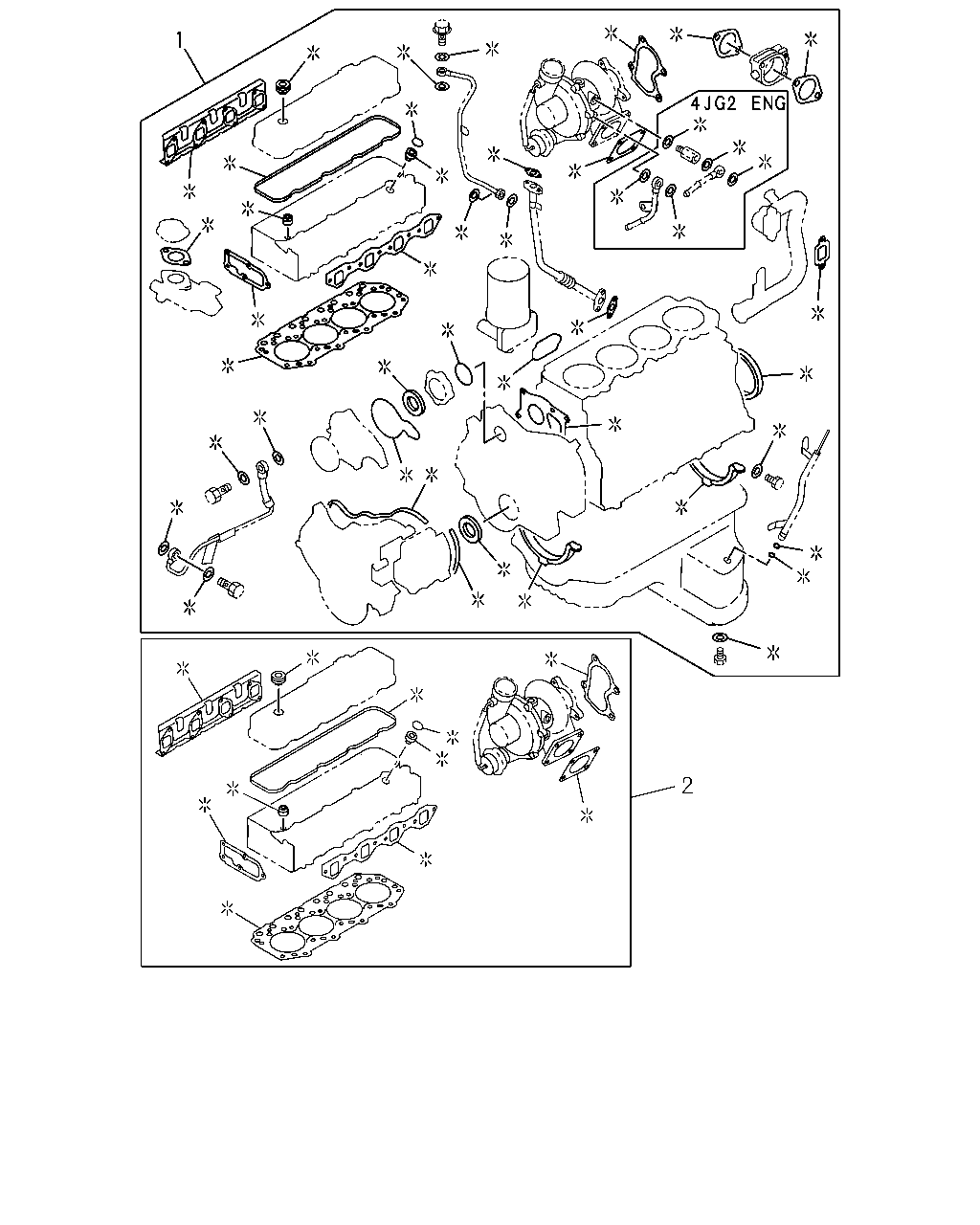

çizim 18629
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-467-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-688-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-688-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-468-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-689-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-689-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-469-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-690-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-690-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-922-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-676-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-676-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-923-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-677-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-677-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-924-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-678-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-678-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-968-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-682-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-969-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-683-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-970-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-684-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9804-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-1 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 9804- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-142-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-143-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-144-3 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-519-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-520-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-521-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-898-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-691-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-899-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-692-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-900-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-693-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-971-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-972-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-973-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9804-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-1 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92061-696-0 01 1 9804- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0110- ●

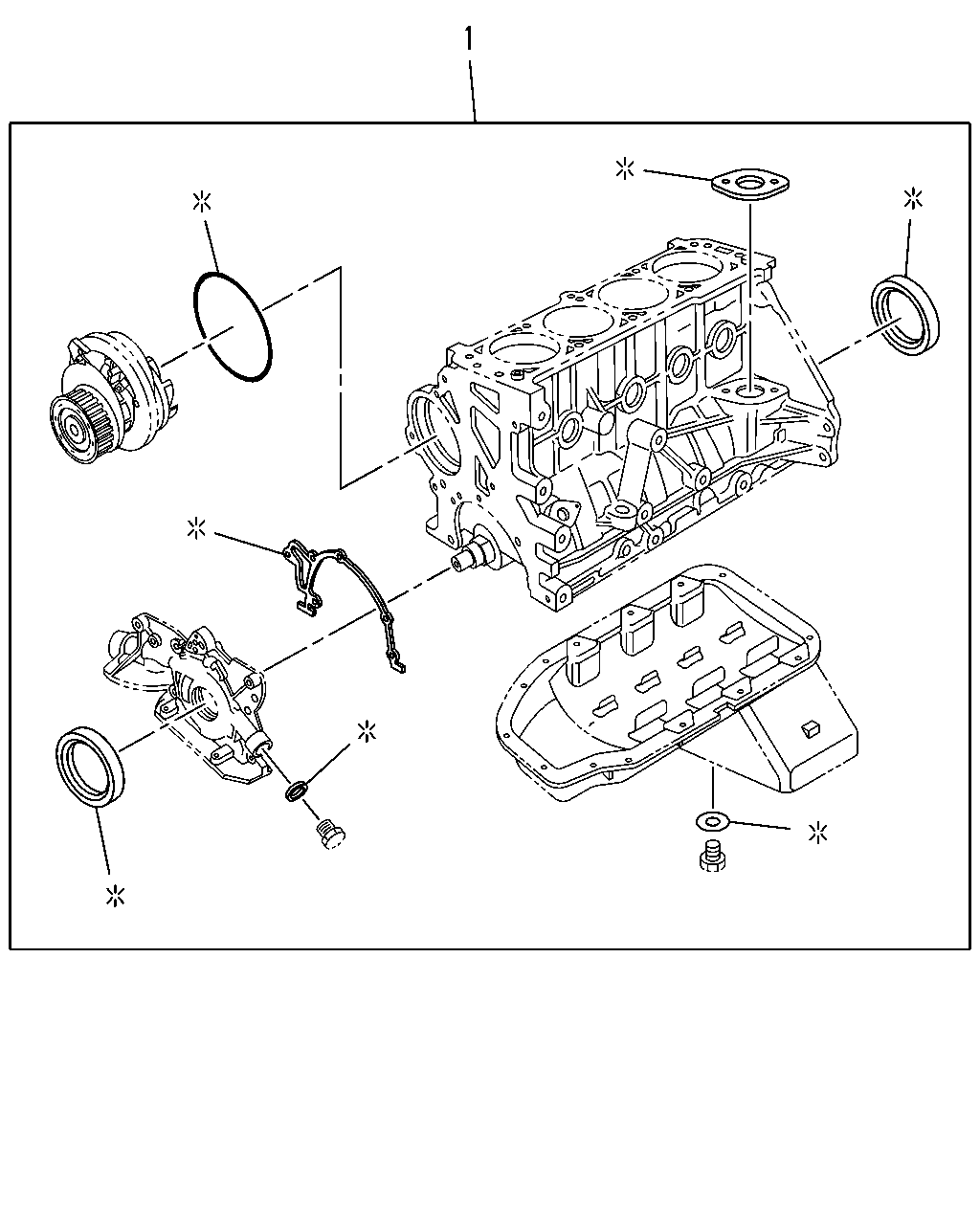

çizim 18974
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-467-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-688-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-688-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-468-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-689-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-689-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-469-0 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-690-3 01 1 9903-0109 ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-690-7 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-122-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-123-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-124-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-922-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-676-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-676-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-923-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-677-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-677-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-924-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-678-3 01 1 9903-0205 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-678-6 01 1 0206- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87812-968-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-682-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87812-969-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-683-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87812-970-1 01 1 9804-9902 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-684-6 01 1 9903- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9804-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-1 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL 8-92061-971-0 01 1 9804- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.60 1-NOTCH 		5-87813-679-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.65 2-NOTCH 		5-87813-680-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 3-NOTCH 		5-87813-681-5 01 1 9910- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-142-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-143-3 01 1 0110- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-144-3 01 1 0110- ●

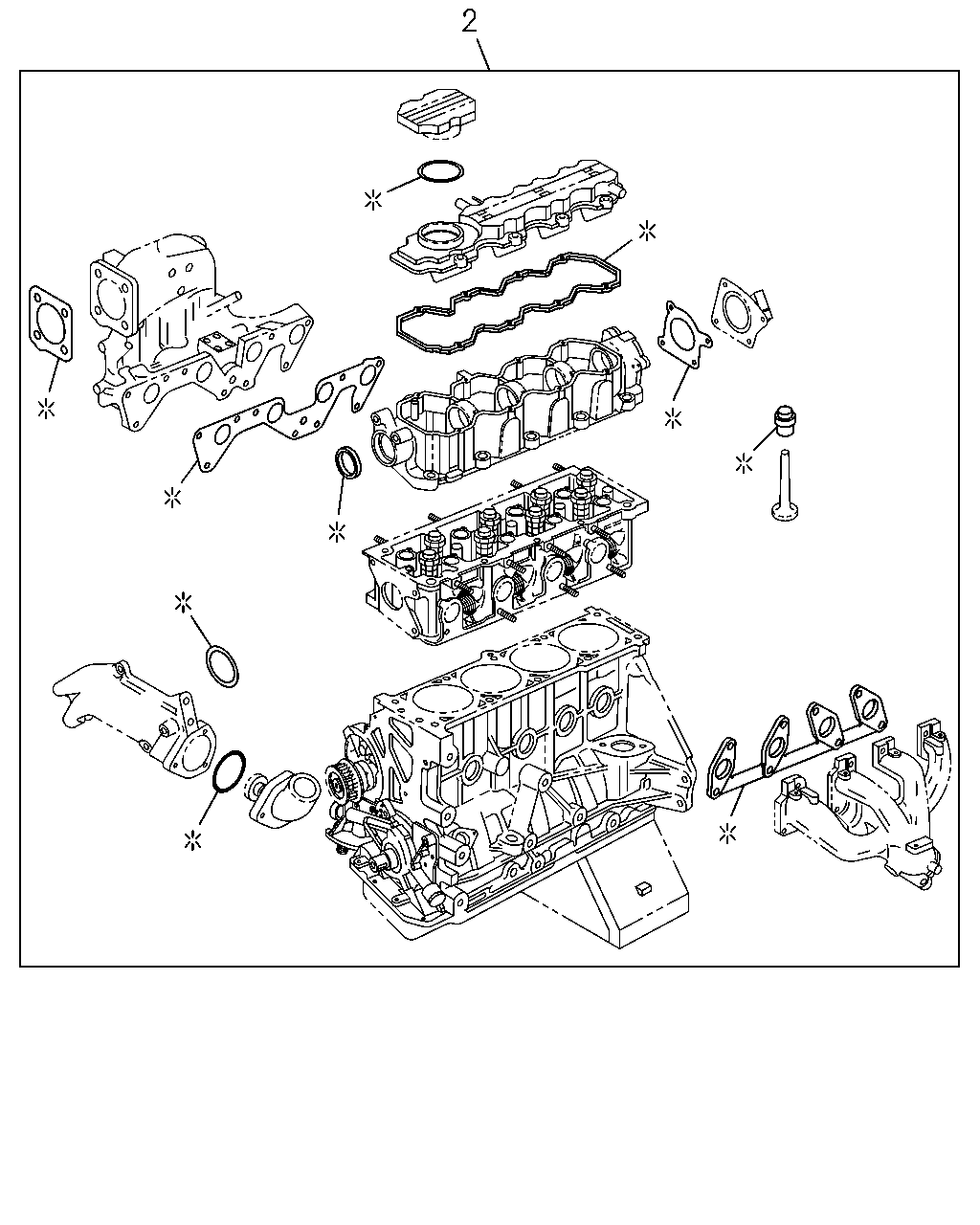

çizim 18975
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-519-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-520-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-521-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-898-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-691-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-899-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-692-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-900-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-693-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-971-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-972-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-973-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9804-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-1 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92061-696-0 01 1 9804- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0110- ●

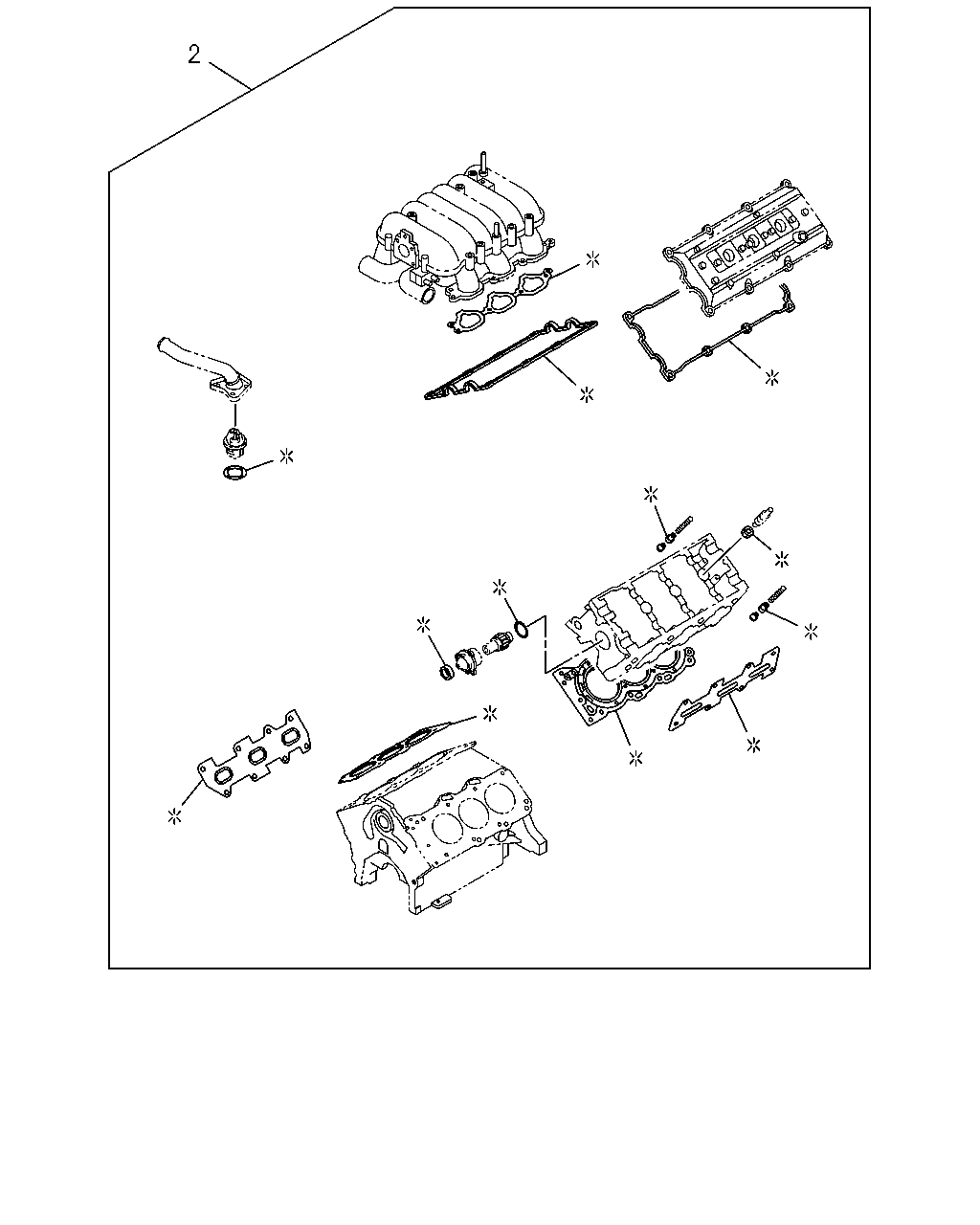

çizim 69011
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-519-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-697-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-520-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-698-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-521-0 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-3 01 1 9903-0109 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-699-5 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.60 1-NOTCH 		5-87814-125-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.65 2-NOTCH 		5-87814-126-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> T=1.70 3-NOTCH 		5-87814-127-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87812-898-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.60 1-NOTCH 		5-87813-691-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-691-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87812-899-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.65 2-NOTCH 		5-87813-692-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-692-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87812-900-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3) T=1.70 3-NOTCH 		5-87813-693-1 01 1 9903-0205 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. UNITED KINGDOM EQUIPMENT(EK3), TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-693-3 01 1 0206- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87812-971-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87812-972-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87812-973-1 01 1 9804-9902 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9804-9909 ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-1 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 8-92061-696-0 01 1 9804- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-3 01 1 9910- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-145-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-146-2 01 1 0110- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-147-2 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
