8-65 — CONTROL LEVER; HEATER AND AIR CON (#38406) — 94 parça

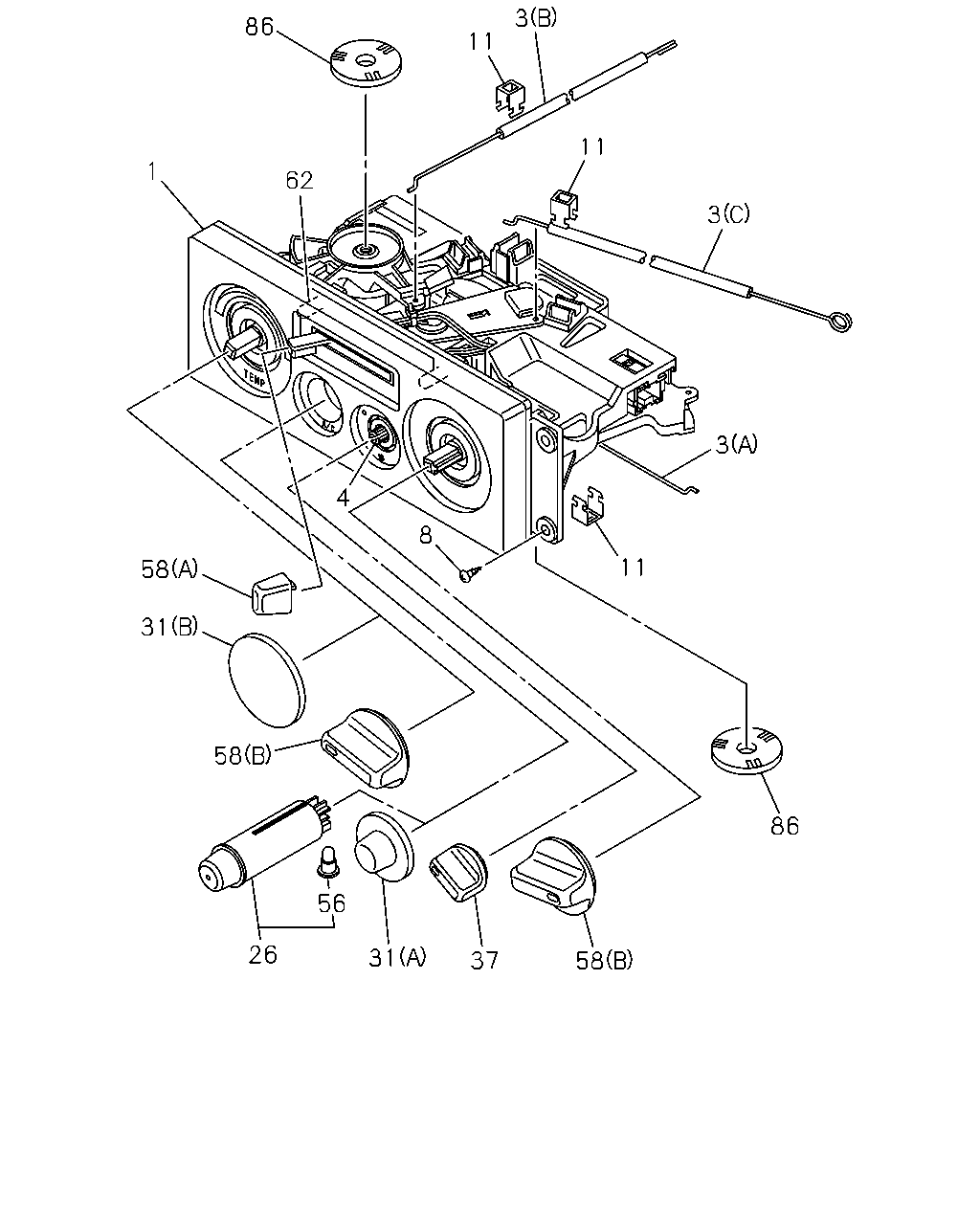

3 86 11 11 1 62 3 3 4 8 11 58 31 58 86 56 26 31 37 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.849 LEVER SUB ASM; HTR CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97116-766-1	01	1	9712-0007	●	●
1	08.849 LEVER SUB ASM; HTR CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97116-766-1	01	1	0008-	●	●	●
1	08.849 LEVER SUB ASM; HTR CONT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97123-984-0	01	1	9712-9908	●	●
1	08.849 LEVER SUB ASM; HTR CONT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97123-984-0	01	1	9909-0007	●	●
1	08.849 LEVER SUB ASM; HTR CONT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97123-984-0	01	1	0008-0105	●	●
1	08.849 LEVER SUB ASM; HTR CONT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97123-984-0	01	1	0008-0105			●
3	09.787 CABLE; HTR CONT LVR (A) MODE	8-97116-763-2	01	1	9712-9908	●	●
3	09.787 CABLE; HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) (A) MODE	8-97116-763-2	01	1	9909-0007	●	●
3	09.787 CABLE; HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) (A) MODE	8-97116-763-2	01	1	0008-0105	●	●
3	09.787 CABLE; HTR CONT LVR (A) MODE	8-97116-763-2	01	1	0008-0105			●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE	8-97116-763-2	01	1	0106-	●	●	●
3	09.787 CABLE; HTR CONT LVR (C) F/C	8-97116-765-0	01	1	9712-9908	●	●
3	09.787 CABLE; HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) (C) F/C	8-97116-765-0	01	1	9909-0007	●	●
3	09.787 CABLE; HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) (C) F/C	8-97116-765-0	01	1	0008-0105	●	●
3	09.787 CABLE; HTR CONT LVR (C) F/C	8-97116-765-0	01	1	0008-0105			●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) F/C	8-97116-765-0	01	1	0106-	●	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) TEMP	8-97116-764-0	01	1	9712-0007	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) TEMP	8-97116-764-0	01	1	0008-	●	●	●
4	08.552 SWITCH; FAN,HTR CONT LVR	8-97061-915-2	01	1	9712-9908	●	●
4	08.552 SWITCH; FAN,HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68)	8-97061-915-2	01	1	9909-0007	●	●
4	08.552 SWITCH; FAN,HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68)	8-97061-915-2	01	1	0008-0105	●	●
4	08.552 SWITCH; FAN,HTR CONT LVR	8-97061-915-2	01	1	0008-0105			●
4	08.552 SWITCH; FAN,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97061-915-2	01	1	0106-	●	●	●
8	08.852 SCREW; CONT LVR TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9712-0007	●	●
8	08.852 SCREW; CONT LVR TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0008-	●	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.849	8-94325-471-0	03	1	9712-0007	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.849	8-94325-471-0	03	1	0008-	●	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.849	8-94325-471-0	02	1	9712-9908	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.849	8-94325-471-0	02	1	9909-0007	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.849	8-94325-471-0	02	1	0008-0105	●	●
11	09.787 CLIP; CABLE,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.849	8-94325-471-0	02	1	0008-0105			●
26	09.172 SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97042-015-1	01	1	9712-0007	●	●
26	09.172 SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60)	8-97042-015-1	01	1	0008-	●	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97061-922-0	01	1	9712-9908	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) (A)	8-97061-922-0	01	1	9909-0007	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) (A)	8-97061-922-0	01	1	0008-0105	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97061-922-0	01	1	0008-0105			●
31	08.850 COVER; HOLE,CONT LEVER HEATER & DEFROSTER(C41) (A)	8-97061-922-0	01	1	0106-	●	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97062-821-0	01	1	9712-9908	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B)	8-97062-821-0	01	1	9909-0007	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B)	8-97062-821-0	01	1	0008-0105	●	●
31	08.850 COVER; HOLE,CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97062-821-0	01	1	0008-0105			●
37	08.852 KNOB; SW,HTR CONT LVR 09.787	8-97061-917-0	01	1	9712-9908	●	●
37	08.852 KNOB; SW,HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) 09.787	8-97061-917-0	01	1	9909-0007	●	●
37	08.852 KNOB; SW,HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) 09.787	8-97061-917-0	01	1	0008-0105	●	●
37	08.852 KNOB; SW,HTR CONT LVR 09.787	8-97061-917-0	01	1	0008-0105			●
37	08.852 KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-97061-917-0	01	1	0106-	●	●	●
56	08.991 BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	9712-0007	●	●
56	08.991 BULB; SWITCH,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97115-090-0	01	1	0008-	●	●	●
58	09.787 KNOB; LVR,HTR CONT LVR (A) FLESH & CIRCULATION	8-97116-767-0	01	1	9712-9908	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) (A) FLESH & CIRCULATION	8-97116-767-0	01	1	9909-0007	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68) (A) FLESH & CIRCULATION	8-97116-767-0	01	1	0008-0105	●	●
58	09.787 KNOB; LVR,HTR CONT LVR (A) FLESH & CIRCULATION	8-97116-767-0	01	1	0008-0105			●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) FLESH & CIRCULATION	8-97116-767-0	01	1	0106-	●	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP	8-97061-916-0	02	1	9712-0007	●	●
58	09.787 KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP	8-97061-916-0	02	1	0008-	●	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP	8-97061-916-0	01	1	9712-9908	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) MODE & TEMP	8-97061-916-0	01	1	9909-0007	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) MODE & TEMP	8-97061-916-0	01	1	0008-0105	●	●
58	09.787 KNOB; LVR,HTR CONT LVR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MODE & TEMP	8-97061-916-0	01	1	0008-0105			●
62	08.991 BULB; HTR CONT LVR	8-97061-914-0	02	1	9712-9908	●	●
62	08.991 BULB; HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68)	8-97061-914-0	02	1	9909-0007	●	●
62	08.991 BULB; HTR CONT LVR EXC. AIR CONDITIONER FULL AUTO CONT(C68)	8-97061-914-0	02	1	0008-0105	●	●
62	08.991 BULB; HTR CONT LVR	8-97061-914-0	02	1	0008-0105			●
62	08.991 BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97061-914-0	02	1	0106-	●	●	●
86	08.552 WASHER; CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94129-950-0	02	1	9712-0007	●	●
86	08.552 WASHER; CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94129-950-0	02	1	0008-	●	●	●
86	08.552 WASHER; CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94129-950-0	01	1	9712-9908	●	●
86	08.552 WASHER; CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.852	8-94129-950-0	01	1	9909-0007	●	●
86	08.552 WASHER; CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.852	8-94129-950-0	01	1	0008-0105	●	●
86	08.552 WASHER; CONT LEVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852	8-94129-950-0	01	1	0008-0105			●

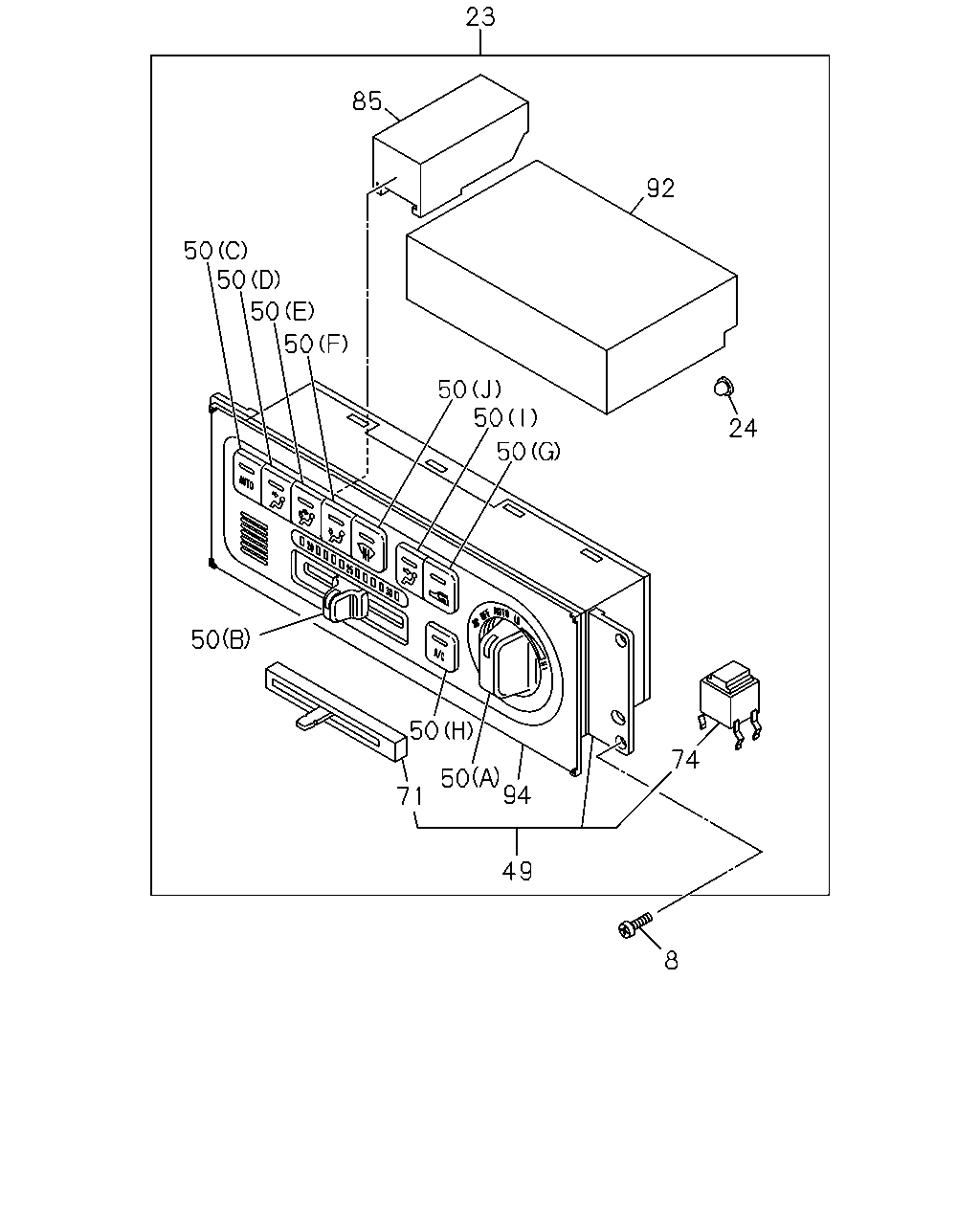

23 85 92 50 50 50 50 50 50 24 50 50 50 74 50 94 71 49 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	08.852 SCREW; CONT LVR TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9712-0007	●	●
8	08.852 SCREW; CONT LVR TO INST PNL 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0008-	●	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER FULL AUTO CONT(C68)	8-97222-621-1	01	1	9909-0105	●	●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER FULL AUTO CONT(C68)	8-97287-367-0	01	1	0106-	●	●
24	08.991 BULB; CONT LEVER AIR CONDITIONER FULL AUTO CONT(C68) 14V 0.1A	8-97112-615-0	01	1	9909-0105	●	●
24	08.991 BULB; CONT LEVER AIR CONDITIONER FULL AUTO CONT(C68) 14V 0.1A	8-97112-615-0	04	1	0106-	●	●
49	08.849 PANEL; CONT AIR CONDITIONER FULL AUTO CONT(C68)	8-97232-191-1	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (A)	8-97112-613-1	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (B)	8-97112-614-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97122-455-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (D)	8-97122-456-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (E)	8-97122-457-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (F)	8-97122-458-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (G)	8-97122-461-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (H)	8-97122-462-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (I)	8-97221-330-0	01	1	9909-	●	●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68) (J)	8-97221-331-0	01	1	9909-	●	●
71	08.849 RESISTOR; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68)	8-97123-992-0	01	1	9909-	●	●
74	08.852 SWITCH; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68)	8-97123-991-1	08	1	9909-0105	●	●
74	08.852 SWITCH; CONT PANEL AIR CONDITIONER FULL AUTO CONT(C68)	8-97123-991-1	01	1	0106-	●	●
85	08.852 ASPIRATOR AIR CONDITIONER FULL AUTO CONT(C68)	8-97077-720-1	01	1	9909-	●	●
92	08.849 CASE; CONT UNIT AIR CONDITIONER FULL AUTO CONT(C68)	8-97123-993-0	01	1	9909-	●	●
94	08.849 PANEL; BEZEL AIR CONDITIONER FULL AUTO CONT(C68)	8-97126-084-0	01	1	9909-	●	●
