◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#38405) — 255 parça

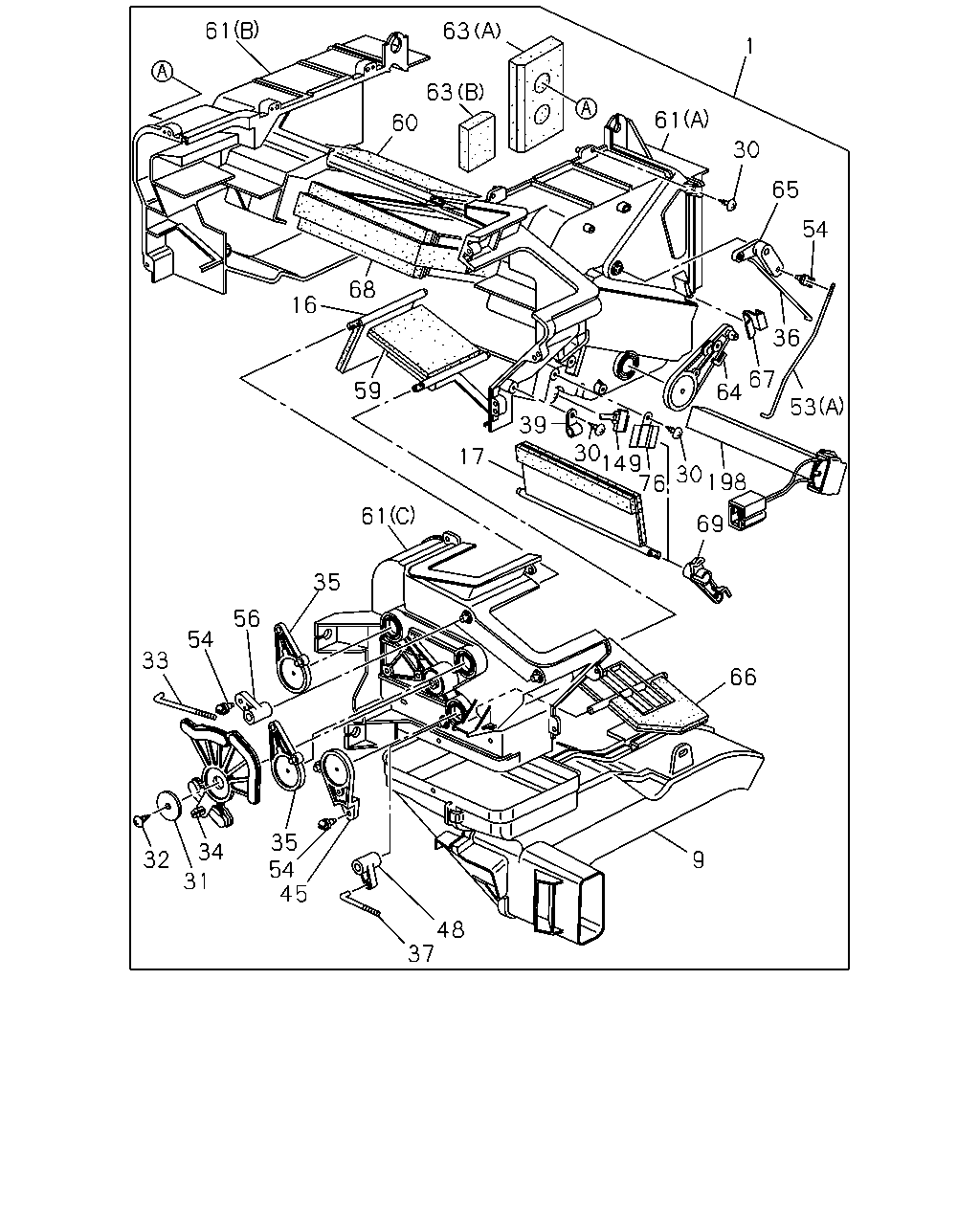

çizim 17136
61 63 1 63 61 60 30 65 54 68 16 36 67 64 59 53 39 30 149 76 17 30 198 61 69 35 56 54 33 66 35 54 45 34 32 9 31 48 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-434-0 01 1 9712-0007 ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-434-0 01 1 0008- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-434-0 01 1 0008- ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-455-0 01 1 9712- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97225-184-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> 		8-97225-185-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-182-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-433-0 01 1 9712- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-97045-852-1 01 1 9712-9908 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-97045-852-1 01 1 9909-0007 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-97045-852-1 01 1 0008- ● ● ●
9 08.854 DUCT; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-97045-852-1 01 1 0008- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97161-527-0 01 1 9712-9908 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97161-527-0 01 1 9909-0007 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97161-527-0 01 1 0008- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97161-527-0 01 1 0008- ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-94324-834-0 01 1 9712-9908 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-94324-834-0 01 1 9909-0007 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-94324-834-0 01 1 0008- ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-94324-834-0 01 1 0008- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9712-9908 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9909- ● ●
30 08.845 SCREW; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 16 1 9712- ● ●
30 08.845 SCREW; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 15 1 9909- ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9712-9908 ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94129-950-0 01 1 9909-0007 ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0008- ● ● ●
31 08.852 WASHER; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94129-950-0 01 1 0008- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 9712-9908 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 01 1 9909-0007 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0008- ● ● ●
32 08.852 SCREW; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 01 1 0008- ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 		8-94324-849-0 02 1 9712-9908 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.866 		8-94324-849-0 02 1 9909-0007 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 		8-94324-849-0 02 1 0008- ● ● ●
33 09.786 ROD; SHUTTER LEVER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.866 		8-94324-849-0 02 1 0008- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-315-0 01 1 9909- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 9712-0007 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 0008- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 9712-9908 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-843-1 02 1 9909-0007 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 0008- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-843-1 02 1 0008- ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94324-847-0 01 1 9712-0007 ● ●
36 08.852 ROD; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94324-847-0 01 1 0008- ● ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9712-9908 ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-848-0 01 1 9909-0007 ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 0008- ● ● ●
37 08.852 ROD; LEVER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-848-0 01 1 0008- ● ●
39 08.854 CLIP; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9712- ● ●
39 08.854 CLIP; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 01 1 9909- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 9712-9908 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-844-1 01 1 9909-0007 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 0008- ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-844-1 01 1 0008- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 9712-9908 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-842-0 01 1 9909-0007 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 0008- ● ● ●
48 09.786 LEVER; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-842-0 01 1 0008- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97221-313-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97221-314-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-846-0 01 1 9712-9908 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-94324-846-0 01 1 9909-0007 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-846-0 01 1 0008- ● ● ●
53 08.866 ROD; SHUTTER LEVER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-94324-846-0 01 1 0008- ● ●
54 08.854 CLIP; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 09.786 		8-94248-794-0 06 1 9909- ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94248-794-0 04 1 9712-0007 ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94248-794-0 04 1 0008- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.856 		8-94324-841-0 02 1 9712-9908 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.856 		8-94324-841-0 02 1 9909-0007 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.856 		8-94324-841-0 02 1 0008- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.856 		8-94324-841-0 02 1 0008- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 9712-9908 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-835-0 01 1 9909-0007 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 0008- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-835-0 01 1 0008- ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 9712-9908 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-833-0 01 1 9909-0007 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 0008- ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-833-0 01 1 0008- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97221-317-0 01 1 9909-0009 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97223-962-0 01 1 0010- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> (A) 		8-97221-318-0 01 1 9909-0009 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> (A) 		8-97223-963-0 01 1 0010- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-94324-828-3 01 1 9712-0007 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-94324-828-3 01 1 0008- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-94324-829-3 01 1 9909-0007 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 0008- ● ● ●
61 08.854 CASE; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-94324-829-3 01 1 0008- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9712-0007 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 0008- ● ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97045-871-2 01 1 9712- ● ●
61 08.854 CASE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> (A) 		8-97225-212-0 01 1 9909- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-416-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-416-1 01 1 9909-0007 ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-416-1 01 1 0008- ● ● ●
63 08.856 LINING; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-416-1 01 1 0008- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97081-291-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97081-291-1 01 1 9909- ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 9712-0007 ● ●
64 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-840-1 01 1 0008- ● ● ●
65 09.786 LEVER; MIX,DOOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-316-0 01 1 9909- ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-94324-838-0 01 1 9712-0007 ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-94324-838-0 01 1 0008- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-94324-836-0 01 1 9712-9908 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-94324-836-0 01 1 9909-0007 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-94324-836-0 01 1 0008- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-94324-836-0 01 1 0008- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 9712-0007 ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 		8-94337-654-0 02 1 0008- ● ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 9909-0007 ● ●
68 08.854 CORE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94327-444-2 01 1 9909-0007 ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 0008- ● ●
68 08.854 CORE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94327-444-2 01 1 0008- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 0008- ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-918-0 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-918-0 01 1 9909- ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-854-0 01 1 9712-9908 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-854-0 01 1 9909-0007 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-854-0 01 1 0008- ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-854-0 01 1 0008- ● ●
76 08.854 BRACKET; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-869-0 01 1 9712- ● ●
149 08.852 SWITCH ASM; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-870-2 01 1 9712- ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9712-9908 ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
198 08.845 HEATER; ELEC
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●

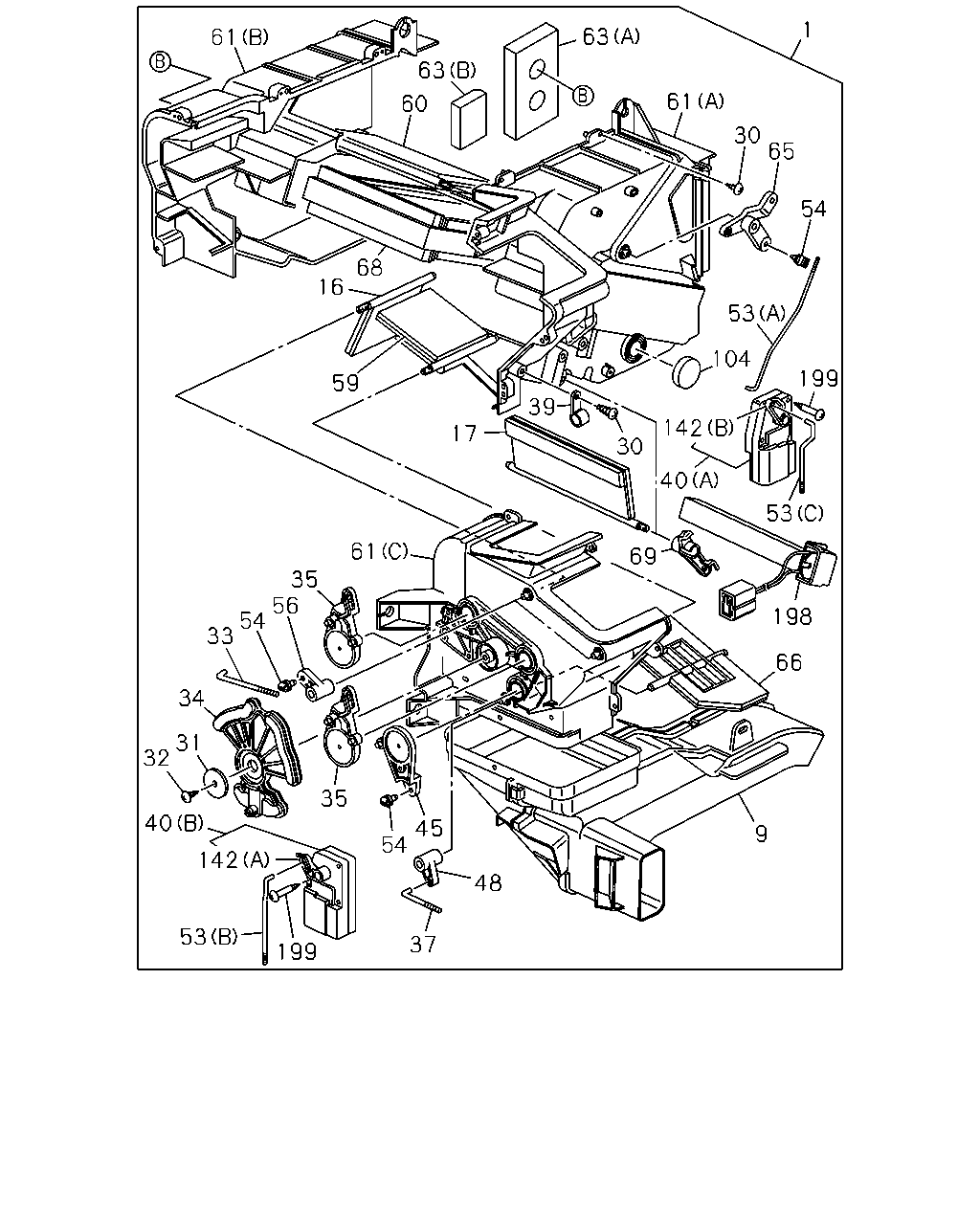

çizim 19910
1 63 61 63 61 60 30 65 54 68 16 53 104 199 59 39 142 17 30 40 53 61 69 35 56 54 33 198 66 34 31 32 35 40 45 54 9 142 48 53 37 199
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-434-0 01 1 9712-0007 ● ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 		8-97176-434-0 01 1 0008- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-434-0 01 1 0008- ●
1 08.845 HEATER UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97176-455-0 01 1 9712- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97225-184-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> 		8-97225-185-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-182-1 01 1 9909- ● ●
1 08.845 HEATER UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97176-433-0 01 1 9712- ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-97045-852-1 01 1 9712-9908 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-97045-852-1 01 1 9909-0007 ● ●
9 08.854 DUCT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-97045-852-1 01 1 0008- ● ● ●
9 08.854 DUCT; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-97045-852-1 01 1 0008- ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97161-527-0 01 1 9712-9908 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97161-527-0 01 1 9909-0007 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97161-527-0 01 1 0008- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97161-527-0 01 1 0008- ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-94324-834-0 01 1 9712-9908 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-94324-834-0 01 1 9909-0007 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 		8-94324-834-0 01 1 0008- ● ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-94324-834-0 01 1 0008- ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9712-9908 ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 13 1 9909- ● ●
30 08.845 SCREW; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 16 1 9712- ● ●
30 08.845 SCREW; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 08.852 M4X16 		8-94324-850-0 15 1 9909- ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 9712-9908 ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94129-950-0 01 1 9909-0007 ● ●
31 08.852 WASHER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94129-950-0 01 1 0008- ● ● ●
31 08.852 WASHER; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94129-950-0 01 1 0008- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 9712-9908 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 01 1 9909-0007 ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20 		9-09829-324-1 01 1 0008- ● ● ●
32 08.852 SCREW; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 10.240 M5X20 		9-09829-324-1 01 1 0008- ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 		8-94324-849-0 02 1 9712-9908 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.866 		8-94324-849-0 02 1 9909-0007 ● ●
33 09.786 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.866 		8-94324-849-0 02 1 0008- ● ● ●
33 09.786 ROD; SHUTTER LEVER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.866 		8-94324-849-0 02 1 0008- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-315-0 01 1 9909- ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 9712-0007 ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97142-572-0 01 1 0008- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 9712-9908 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-843-1 02 1 9909-0007 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-843-1 02 1 0008- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-843-1 02 1 0008- ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 9712-9908 ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-848-0 01 1 9909-0007 ● ●
37 08.852 ROD; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-848-0 01 1 0008- ● ● ●
37 08.852 ROD; LEVER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-848-0 01 1 0008- ● ●
39 08.854 CLIP; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97032-616-0 02 1 9712- ● ●
39 08.854 CLIP; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97032-616-0 01 1 9909- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97221-310-0 01 1 9909- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97221-311-0 01 1 9909-0009 ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		1-83579-830-0 01 1 0010- ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 9712-9908 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-844-1 01 1 9909-0007 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-844-1 01 1 0008- ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-844-1 01 1 0008- ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 9712-9908 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-842-0 01 1 9909-0007 ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-842-0 01 1 0008- ● ● ●
48 09.786 LEVER; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-842-0 01 1 0008- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97221-313-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97221-314-0 01 1 9909- ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-846-0 01 1 9712-9908 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-94324-846-0 01 1 9909-0007 ● ●
53 08.866 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94324-846-0 01 1 0008- ● ● ●
53 08.866 ROD; SHUTTER LEVER
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-94324-846-0 01 1 0008- ● ●
54 08.854 CLIP; SHUTTER LEVER
AIR CONDITIONER FULL AUTO CONT(C68) 09.786 		8-94248-794-0 06 1 9909- ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94248-794-0 04 1 9712-0007 ● ●
54 08.854 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.786 		8-94248-794-0 04 1 0008- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.856 		8-94324-841-0 02 1 9712-9908 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.856 		8-94324-841-0 02 1 9909-0007 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.856 		8-94324-841-0 02 1 0008- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.856 		8-94324-841-0 02 1 0008- ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 9712-9908 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-835-0 01 1 9909-0007 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-835-0 01 1 0008- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-835-0 01 1 0008- ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 9712-9908 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-833-0 01 1 9909-0007 ● ●
60 08.854 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94324-833-0 01 1 0008- ● ● ●
60 08.854 DOOR; MIX,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94324-833-0 01 1 0008- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97221-317-0 01 1 9909-0009 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) (C) 		8-97223-962-0 01 1 0010- ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> (A) 		8-97221-318-0 01 1 9909-0009 ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) EXC. CERAMIC HEATER<6YX> (A) 		8-97223-963-0 01 1 0010- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-94324-828-3 01 1 9712-0007 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (A) 		8-94324-828-3 01 1 0008- ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 9712-9908 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-94324-829-3 01 1 9909-0007 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-94324-829-3 01 1 0008- ● ● ●
61 08.854 CASE; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-94324-829-3 01 1 0008- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 9712-0007 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94324-830-1 01 1 0008- ● ● ●
61 08.854 CASE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (A) 		8-97045-871-2 01 1 9712- ● ●
61 08.854 CASE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> (A) 		8-97225-212-0 01 1 9909- ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-416-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-416-1 01 1 9909-0007 ● ●
63 08.856 LINING; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97069-416-1 01 1 0008- ● ● ●
63 08.856 LINING; HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97069-416-1 01 1 0008- ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97081-291-1 01 1 9712-9908 ● ●
63 08.856 LINING; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97081-291-1 01 1 9909- ● ●
65 09.786 LEVER; MIX,DOOR
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97221-316-0 01 1 9909- ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-94324-838-0 01 1 9712-0007 ● ●
65 09.786 LEVER; MIX,DOOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-94324-838-0 01 1 0008- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-94324-836-0 01 1 9712-9908 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-94324-836-0 01 1 9909-0007 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-94324-836-0 01 1 0008- ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 08.854 		8-94324-836-0 01 1 0008- ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 9909-0007 ● ●
68 08.854 CORE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94327-444-2 01 1 9909-0007 ● ●
68 08.854 CORE; HTR UNIT
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 0008- ● ●
68 08.854 CORE; HTR UNIT
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) 		8-94327-444-2 01 1 0008- ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94327-444-2 01 1 0008- ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-918-0 01 1 9712-9908 ● ●
68 08.854 CORE; HTR UNIT
6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-918-0 01 1 9909- ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-854-0 01 1 9712-9908 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-854-0 01 1 9909-0007 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97045-854-0 01 1 0008- ● ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
4JX1 ENG(RJM),6VE1 ENG(RJQ) AIR CONDITIONER FULL AUTO CONT(C68) 		8-97045-854-0 01 1 0008- ● ●
104 08.854 CAP; CASE,HTR UNIT
AIR CONDITIONER FULL AUTO CONT(C68) 08.845 		8-94328-658-0 01 1 9909- ● ●
142 08.854 LEVER; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) (A) 		1-83564-385-0 01 1 9909- ● ●
142 08.854 LEVER; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97226-480-0 01 1 9909- ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9712-9908 ● ●
198 08.845 HEATER; ELEC
4JG2 ENG(RJC),4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
198 08.845 HEATER; ELEC
4JX1 ENG(RJM) AIR CONDITIONER FULL AUTO CONT(C68) CERAMIC HEATER<6YX> 		8-97045-868-1 01 1 9909- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER FULL AUTO CONT(C68) 08.852 		8-94348-809-0 04 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
