8-52 — PIPING; AIR CONDITIONING (#38404) — 373 parça

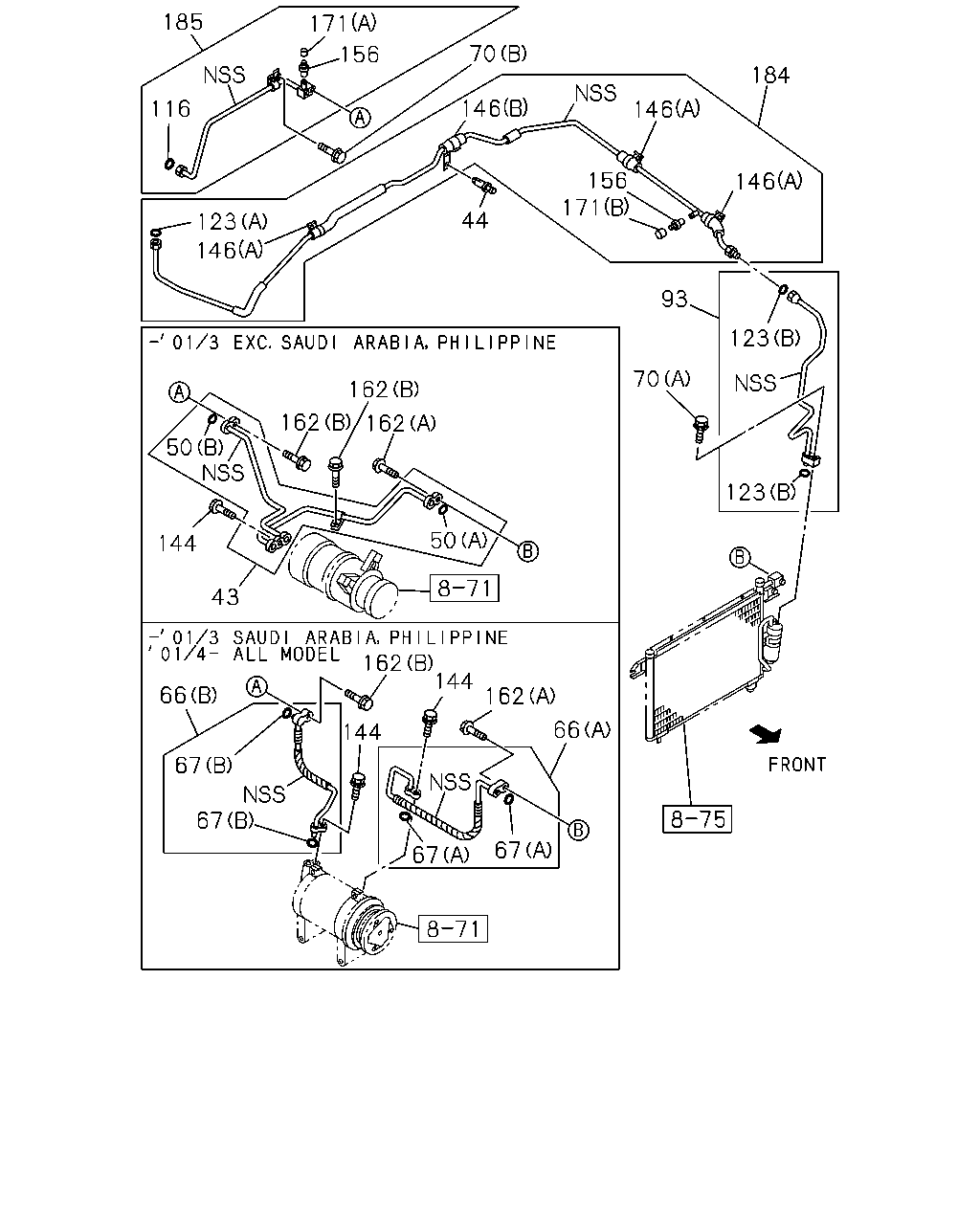

çizim 19839
185 171 70 156 184 146 116 146 156 171 146 44 123 146 93 123 70 162 162 162 50 123 50 144 43 162 144 66 162 66 144 67 67 67 67
BalonParca AdiParca NoAdetTipApplied Date A B C
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 9712-9908 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 9909-0007 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 0008-0105 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 0008-0105 ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97307-654-0 01 1 0106- ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97307-654-0 01 1 0106- ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52481-545-1 01 1 9712-9908 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52481-545-1 01 1 9909-0006 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52481-545-1 01 1 0008-0103 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC) RR COOLER<7UL> 		8-97209-093-0 01 1 9810-9912 ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC) RR COOLER<7UL> 		8-97247-835-0 01 1 0001-0105 ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC) RR COOLER<7UL> 		8-97307-655-0 01 1 0106- ●
44 09.242 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 9712-9908 ● ●
44 09.242 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 9909-0007 ● ●
44 09.242 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 0008- ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 0008- ●
44 09.242 CLIP; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 01 1 9712-9908 ● ●
44 09.242 CLIP; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 01 1 9909- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9712-9809 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9810-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 0001-0007 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 0008-0105 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 0008-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9712-9809 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9810-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 0001-0007 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 0008-0105 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 0008-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (A) ID=9.25 		8-52454-645-0 01 1 9712-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (A) ID=9.25 		8-52454-645-0 01 1 9909-0006 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) ID=13.6 		8-52478-902-0 01 1 9712-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) ID=13.6 		8-52478-902-0 01 1 9909-0006 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (A) ID=9.25 		8-52454-645-0 01 1 0008-0103 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) ID=13.6 		8-52478-902-0 01 1 0008-0103 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0001-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0106- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0106- ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0106- ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0001-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0106- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0106- ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0106- ●
66 09.225 HOSE; FLEX,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97167-976-0 01 1 9712-9812 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> (B) 		8-97167-976-0 01 1 9901-9905 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97167-976-0 01 1 9901-9905 ●
66 09.225 HOSE; FLEX,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> (B) 		8-97167-976-0 01 1 9906-0006 ● ●
66 09.225 HOSE; FLEX,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (A) 		8-97186-628-0 01 1 9712-9812 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> (A) 		8-97186-628-0 01 1 9901-0006 ● ●
66 09.225 HOSE; FLEX,A/C
RR COOLER<7UL> (A) 		8-97186-628-0 01 1 9901-0006 ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97186-628-0 01 1 0007-0007 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> (A) 		8-97186-628-0 01 1 0008-0103 ● ●
66 09.225 HOSE; FLEX,A/C
RR COOLER<7UL> (A) 		8-97186-628-0 01 1 0008-0103 ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97186-628-0 01 1 0104-0105 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) 		8-97264-664-0 01 1 0106- ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97228-220-0 01 1 9906-0006 ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97228-220-0 01 1 0007-0007 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97228-220-1 01 1 0008-0103 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97228-220-1 01 1 0104-0105 ● ●
66 09.225 HOSE; FLEX,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97264-666-0 01 1 0106- ● ●
67 09.260 GASKET; FLEX HOSE
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (A) ID=15.5 		8-97161-777-0 02 1 9712-9812 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> (A) ID=15.5 		8-97161-777-0 02 1 9901-0006 ● ●
67 09.260 GASKET; FLEX HOSE
RR COOLER<7UL> (A) ID=15.5 		8-97161-777-0 02 1 9901-0006 ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=15.5 		8-97161-777-0 02 1 0007-0007 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> (A) ID=15.5 		8-97161-777-0 02 1 0008-0103 ● ●
67 09.260 GASKET; FLEX HOSE
RR COOLER<7UL> (A) ID=15.5 		8-97161-777-0 02 1 0008-0103 ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=15.5 		8-97161-777-0 02 1 0104- ● ●
67 09.260 GASKET; FLEX HOSE
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 09.225 (B) ID=18.3 		8-97161-778-0 02 1 9712-9812 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 09.225 (B) ID=18.3 		8-97161-778-0 02 1 9901-9905 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.225 (B) ID=18.3 		8-97161-778-0 02 1 9901-9905 ●
67 09.260 GASKET; FLEX HOSE
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 09.225 (B) ID=18.3 		8-97161-778-0 02 1 9906-0006 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 09.225 (B) ID=18.3 		8-97161-778-0 01 1 0007-0007 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 09.225 (B) ID=18.3 		8-97161-778-0 01 1 0008-0103 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 09.225 (B) ID=18.3 		8-97161-778-0 01 1 0104-0105 ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) ID=21.3 		8-97252-506-0 02 1 0106- ● ●
67 09.260 GASKET; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.225 (B) ID=18.3 		8-97161-778-0 01 1 9906-0006 ●
70 00.206 BOLT; PIPE TO BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 0112- ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 9712-9908 ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 9909-0007 ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 0008- ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 0008- ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 		8-97167-945-0 01 1 9712-9908 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 		8-97167-945-0 01 1 9712-9908 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97167-945-0 01 1 9712-9908 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 9909-0006 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 		8-97167-945-0 01 1 9909-0006 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97167-945-0 01 1 9909-0006 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 0007-0007 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 0008-0103 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 0104-0105 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-97167-945-0 01 1 0104-0105 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97264-497-0 01 1 0106- ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-97264-497-0 01 1 0106- ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52477-884-0 01 1 9712-9908 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52477-884-0 01 1 9909-0006 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52477-884-0 01 1 0008-0103 ● ●
116 09.225 GASKET; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) ID=18.3 		8-97161-778-0 01 1 9712- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 9909-0007 ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 0008- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 0008- ●
123 09.195 GASKET; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-776-0 02 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97161-776-0 02 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97161-776-0 02 1 9712-9908 ●
123 09.195 GASKET; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 9909-0006 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97161-776-0 02 1 9909-0006 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97161-776-0 02 1 9909-0006 ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 0007-0007 ● ●
123 09.195 GASKET; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 0008-0103 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 0104- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-776-0 02 1 0104- ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) 		8-52478-919-0 02 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) 		8-52478-919-0 02 1 9909-0006 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) 		8-52478-919-0 02 1 0008-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9712-9908 ● ●
144 09.242 BOLT; CONN TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9909-0007 ● ●
144 09.242 BOLT; CONN TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0008- ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0008- ●
144 09.242 BOLT; CONN TO CMPR
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 08.900 M10X30 FLANGE 		0-28781-030-0 01 1 9712-9908 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 08.900 M10X30 FLANGE 		0-28781-030-0 01 1 9909-0006 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 08.900 M10X30 FLANGE 		0-28781-030-0 01 1 0008-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0003-0007 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0008-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0104- ● ●
146 09.196 CLIP; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 9712-9908 ● ●
146 09.196 CLIP; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 9909-0007 ● ●
146 09.196 CLIP; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 0008- ● ●
146 09.196 CLIP; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 0008- ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) ID=17 H=13.9 BLACK 		8-97064-671-0 03 1 9712-9908 ● ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) ID=17 H=13.9 BLACK 		8-97064-671-0 03 1 9909- ● ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) ID=17 T=1.6 L=26.5 H=18.5 		8-97064-672-0 01 1 9712-9908 ● ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B) ID=17 T=1.6 L=26.5 H=18.5 		8-97064-672-0 01 1 9909- ● ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9810-9810 ● ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9810-9908 ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9810-9908 ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9909-0007 ● ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9909-0007 ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 09.262 		8-97083-100-0 01 1 0008-0103 ● ●
156 09.198 VALVE; PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0008-0103 ● ●
156 09.198 VALVE; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0008-0103 ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0104- ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0104- ●
156 09.198 VALVE; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0104- ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 02 1 9810-9908 ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 02 1 9909-0007 ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 02 1 0104- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712-9801 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9802-9809 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9809 ● ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9810-9908 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909-9911 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0006 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0006 ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0006 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0007-0007 ● ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0008-0103 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0008-0103 ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0008-0103 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0104- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0104- ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9712-9809 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.686 (A) M8X30 FLANGE 		0-28680-830-0 02 1 9912- ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 9712-9908 ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 9909-0007 ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 0008- ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 0008- ●
171 09.242 CAP; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 09.226 (A) CAP MARK L 		8-97083-102-0 01 1 9712-9905 ● ●
171 09.242 CAP; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 09.226 (A) CAP MARK L 		8-97083-102-0 01 1 9907- ● ●
184 09.220 PIPE; PIPE TO EVAP
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 9712-9908 ● ●
184 09.220 PIPE; PIPE TO EVAP
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 9909-0007 ● ●
184 09.220 PIPE; PIPE TO EVAP
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 0008- ● ●
184 09.220 PIPE; PIPE TO EVAP
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 0008- ●
184 09.220 PIPE; PIPE TO EVAP
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97161-819-0 01 1 9712-9908 ● ●
184 09.220 PIPE; PIPE TO EVAP
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97161-819-0 01 1 9909- ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97161-820-1 01 1 9712-9908 ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97161-820-1 01 1 9909-0006 ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97253-742-0 01 1 0007-0007 ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) SAUDI ARABIA EQUIPMENT(EU2) 		8-97253-742-0 01 1 0008-0103 ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 		8-97253-742-0 01 1 0008-0103 ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97253-742-0 01 1 0104-0105 ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97264-499-0 01 1 0106- ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-97161-820-1 01 1 0008-0103 ● ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97205-809-0 01 1 9810-9905 ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97228-213-0 01 1 9907-0105 ●
185 09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97264-498-0 01 1 0106- ●

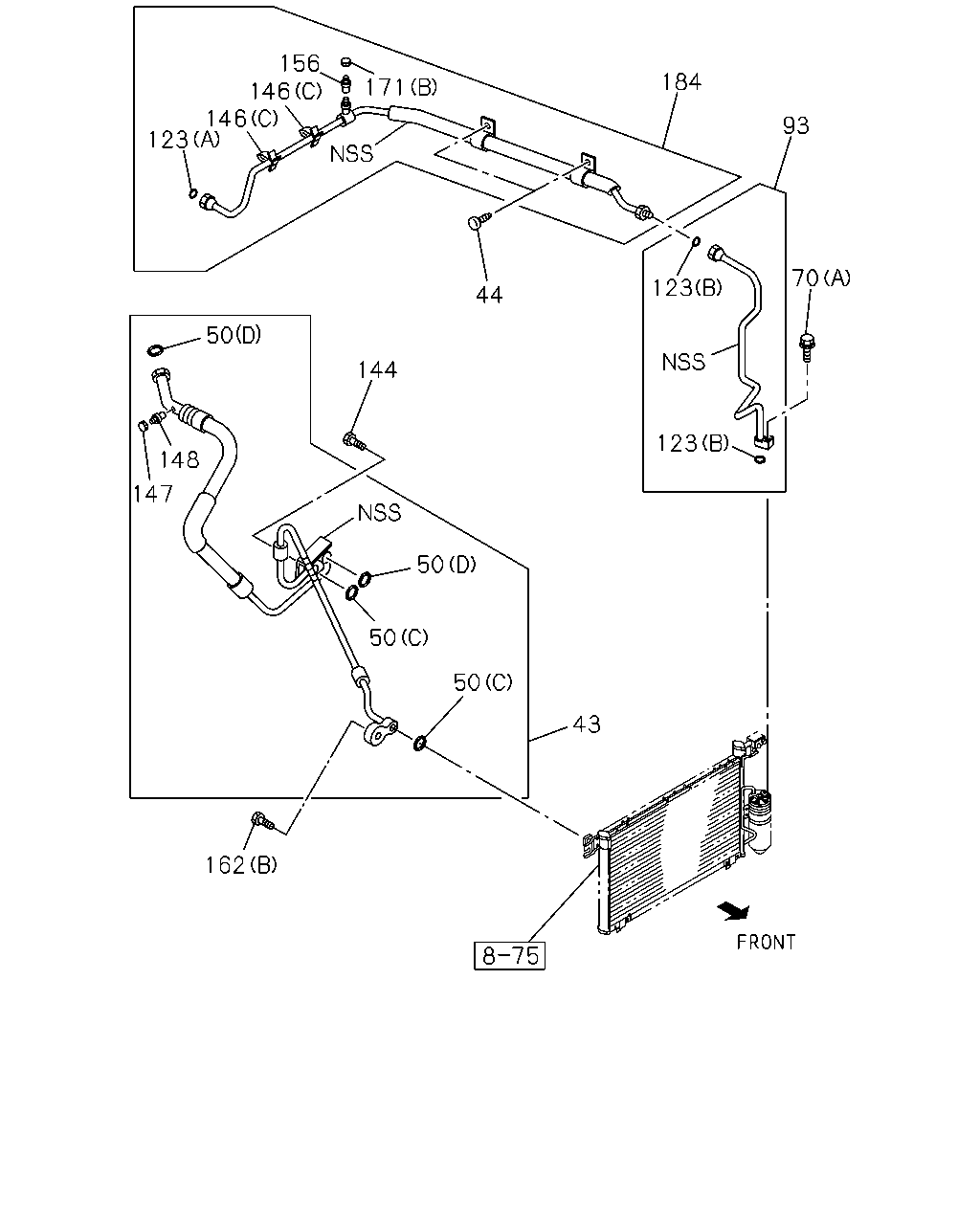

çizim 72344
156 146 146 123 184 171 93 70 123 44 50 144 123 148 147 50 50 50 43 162
BalonParca AdiParca NoAdetTipApplied Date A B C
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 9712-9908 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 9909-0007 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 0008-0105 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-978-1 01 1 0008-0105 ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97307-654-0 01 1 0106- ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97307-654-0 01 1 0106- ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52481-545-1 01 1 9712-9908 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52481-545-1 01 1 9909-0006 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52481-545-1 01 1 0008-0103 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC) RR COOLER<7UL> 		8-97209-093-0 01 1 9810-9912 ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC) RR COOLER<7UL> 		8-97247-835-0 01 1 0001-0105 ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JG2 ENG(RJC) RR COOLER<7UL> 		8-97307-655-0 01 1 0106- ●
44 09.242 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 9712-9908 ● ●
44 09.242 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 9909-0007 ● ●
44 09.242 CLIP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 0008- ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 02 1 0008- ●
44 09.242 CLIP; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 01 1 9712-9908 ● ●
44 09.242 CLIP; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 12.801 D6.8X12 		8-94198-687-0 01 1 9909- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9712-9809 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9810-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 0001-0007 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 0008-0105 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (C) ID=11.0 		8-94461-900-0 02 1 0008-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9712-9809 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9810-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 9909-9912 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 0001-0007 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 0008-0105 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (D) ID=14.8 		8-94461-901-0 02 1 0008-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (A) ID=9.25 		8-52454-645-0 01 1 9712-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (A) ID=9.25 		8-52454-645-0 01 1 9909-0006 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) ID=13.6 		8-52478-902-0 01 1 9712-9908 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) ID=13.6 		8-52478-902-0 01 1 9909-0006 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (A) ID=9.25 		8-52454-645-0 01 1 0008-0103 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) ID=13.6 		8-52478-902-0 01 1 0008-0103 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0001-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0106- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0106- ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.260 (C) ID=15.5 		8-97161-777-0 02 1 0106- ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0001-0105 ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0106- ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JG2 ENG(RJC) RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0106- ●
50 09.222 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.225 (D) ID=18.3 		8-97161-778-0 02 1 0106- ●
70 00.206 BOLT; PIPE TO BODY
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 0112- ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 9712-9908 ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 9909-0007 ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 0008- ● ●
70 00.206 BOLT; PIPE TO BODY
AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE 		0-28680-625-0 01 1 0008- ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 		8-97167-945-0 01 1 9712-9908 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 		8-97167-945-0 01 1 9712-9908 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97167-945-0 01 1 9712-9908 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 9909-0006 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 		8-97167-945-0 01 1 9909-0006 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97167-945-0 01 1 9909-0006 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 0007-0007 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 0008-0103 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-97167-945-0 01 1 0008-0103 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97167-945-0 01 1 0104-0105 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-97167-945-0 01 1 0104-0105 ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97264-497-0 01 1 0106- ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-97264-497-0 01 1 0106- ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52477-884-0 01 1 9712-9908 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52477-884-0 01 1 9909-0006 ● ●
93 09.220 PIPE; RECEIVER TANK TO PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 		8-52477-884-0 01 1 0008-0103 ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 9909-0007 ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 0008- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) 		8-97161-776-0 01 1 0008- ●
123 09.195 GASKET; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-776-0 02 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97161-776-0 02 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97161-776-0 02 1 9712-9908 ●
123 09.195 GASKET; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 9909-0006 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97161-776-0 02 1 9909-0006 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97161-776-0 02 1 9909-0006 ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 0007-0007 ● ●
123 09.195 GASKET; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 0008-0103 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-776-0 02 1 0008-0103 ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) 		8-97161-776-0 02 1 0104- ● ●
123 09.195 GASKET; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-776-0 02 1 0104- ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) 		8-52478-919-0 02 1 9712-9908 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) 		8-52478-919-0 02 1 9909-0006 ● ●
123 09.195 GASKET; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> (B) 		8-52478-919-0 02 1 0008-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9712-9908 ● ●
144 09.242 BOLT; CONN TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 9909-0007 ● ●
144 09.242 BOLT; CONN TO CMPR
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0008- ● ●
144 09.242 BOLT; CONN TO CMPR
AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE 		0-28081-045-0 01 1 0008- ●
144 09.242 BOLT; CONN TO CMPR
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9712-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 08.900 M10X30 FLANGE 		0-28781-030-0 01 1 9712-9908 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 08.900 M10X30 FLANGE 		0-28781-030-0 01 1 9909-0006 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 08.900 M10X30 FLANGE 		0-28781-030-0 01 1 0008-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0003-0007 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0008-0103 ● ●
144 09.242 BOLT; CONN TO CMPR
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0104- ● ●
146 09.196 CLIP; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 9712-9908 ● ●
146 09.196 CLIP; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 9909-0007 ● ●
146 09.196 CLIP; RECEIVER PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 0008- ● ●
146 09.196 CLIP; RECEIVER PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (C) 		8-94457-163-0 02 1 0008- ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (A) ID=17 H=13.9 BLACK 		8-97064-671-0 03 1 9712-9908 ● ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (A) ID=17 H=13.9 BLACK 		8-97064-671-0 03 1 9909- ● ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) ID=17 T=1.6 L=26.5 H=18.5 		8-97064-672-0 01 1 9712-9908 ● ●
146 09.196 CLIP; RECEIVER PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B) ID=17 T=1.6 L=26.5 H=18.5 		8-97064-672-0 01 1 9909- ● ●
147 09.242 CAP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.226 CAP MARK L 		8-97083-102-0 01 1 9712-9908 ● ●
147 09.242 CAP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.226 CAP MARK L 		8-97083-102-0 01 1 9909-0007 ● ●
147 09.242 CAP; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.226 CAP MARK L 		8-97083-102-0 01 1 0008- ● ●
147 09.242 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.226 CAP MARK L 		8-97083-102-0 01 1 0008- ●
148 09.262 VALVE; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97083-100-0 01 1 9712-9908 ● ●
148 09.262 VALVE; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97083-100-0 01 1 9909-0007 ● ●
148 09.262 VALVE; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97083-100-0 01 1 0008- ● ●
148 09.262 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97083-100-0 01 1 0008- ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9810-9810 ● ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9810-9908 ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9810-9908 ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9909-0007 ● ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 9909-0007 ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 09.262 		8-97083-100-0 01 1 0008-0103 ● ●
156 09.198 VALVE; PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0008-0103 ● ●
156 09.198 VALVE; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0008-0103 ●
156 09.198 VALVE; PIPE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0104- ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0104- ●
156 09.198 VALVE; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 01 1 0104- ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 02 1 9810-9908 ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 02 1 9909-0007 ● ●
156 09.198 VALVE; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 09.262 		8-97083-100-0 02 1 0104- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9712-9801 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9802-9809 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9712-9809 ● ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9810-9908 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9909-9911 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0006 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0006 ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0006 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0007-0007 ● ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0008-0103 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U),RR COOLER<7UL> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0008-0103 ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0008-0103 ●
162 09.173 BOLT; FLEX HOSE
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0104- ● ●
162 09.173 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0104- ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9712-9809 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9810-9908 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.686 (A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-9911 ● ●
162 09.173 BOLT; FLEX HOSE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 04.686 (A) M8X30 FLANGE 		0-28680-830-0 02 1 9912- ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 9712-9908 ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 9909-0007 ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 0008- ● ●
171 09.242 CAP; PIPE
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> (B) CAP MARK H 		8-97083-101-0 01 1 0008- ●
171 09.242 CAP; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 09.226 (A) CAP MARK L 		8-97083-102-0 01 1 9712-9905 ● ●
171 09.242 CAP; PIPE
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 09.226 (A) CAP MARK L 		8-97083-102-0 01 1 9907- ● ●
184 09.220 PIPE; PIPE TO EVAP
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 9712-9908 ● ●
184 09.220 PIPE; PIPE TO EVAP
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 9909-0007 ● ●
184 09.220 PIPE; PIPE TO EVAP
4JG2 ENG(RJC),4JX1 ENG(RJM) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 0008- ● ●
184 09.220 PIPE; PIPE TO EVAP
AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97167-948-0 01 1 0008- ●
184 09.220 PIPE; PIPE TO EVAP
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) EXC. RR COOLER<7UL> 		8-97161-819-0 01 1 9712-9908 ● ●
184 09.220 PIPE; PIPE TO EVAP
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) EXC. RR COOLER<7UL> 		8-97161-819-0 01 1 9909- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
