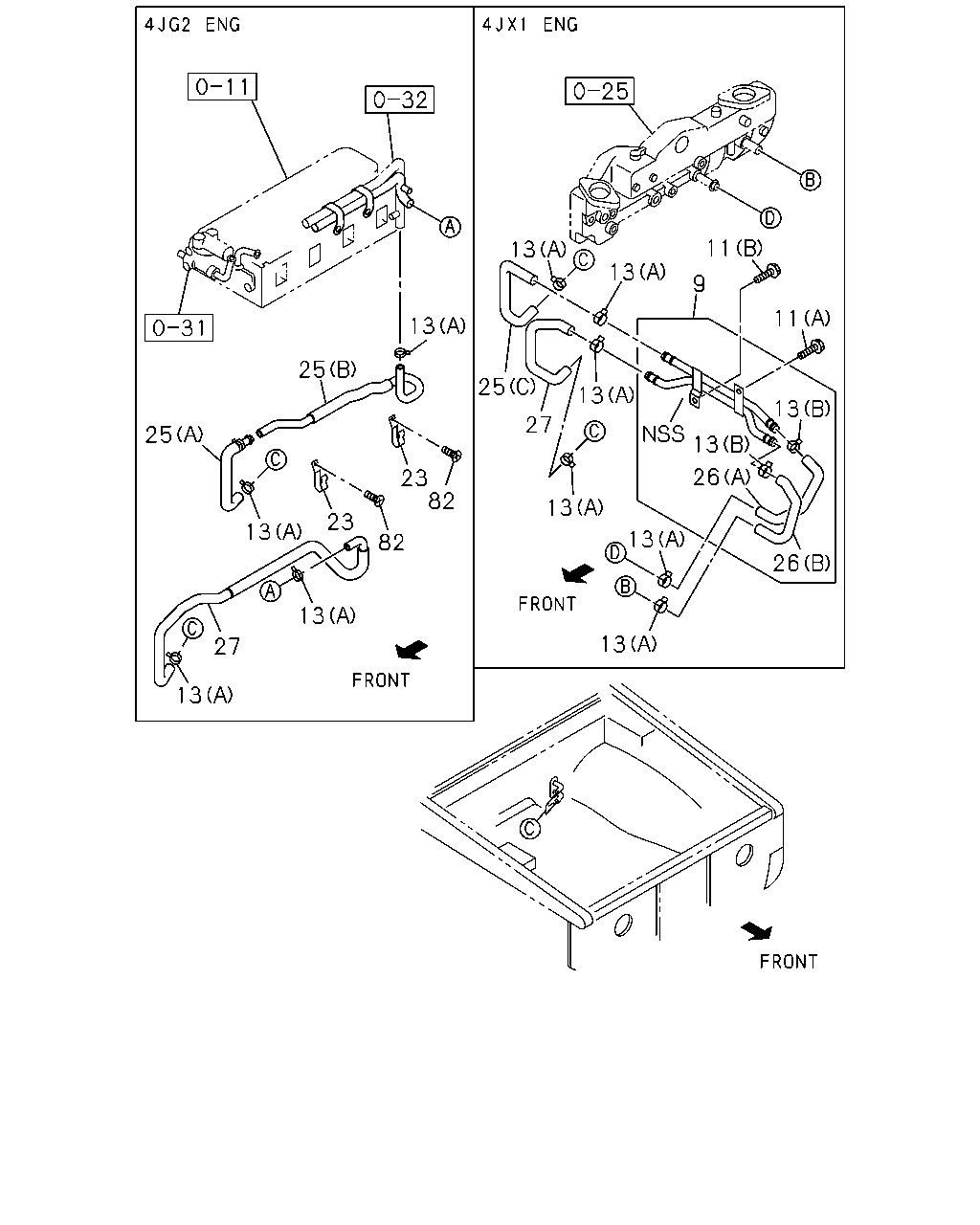

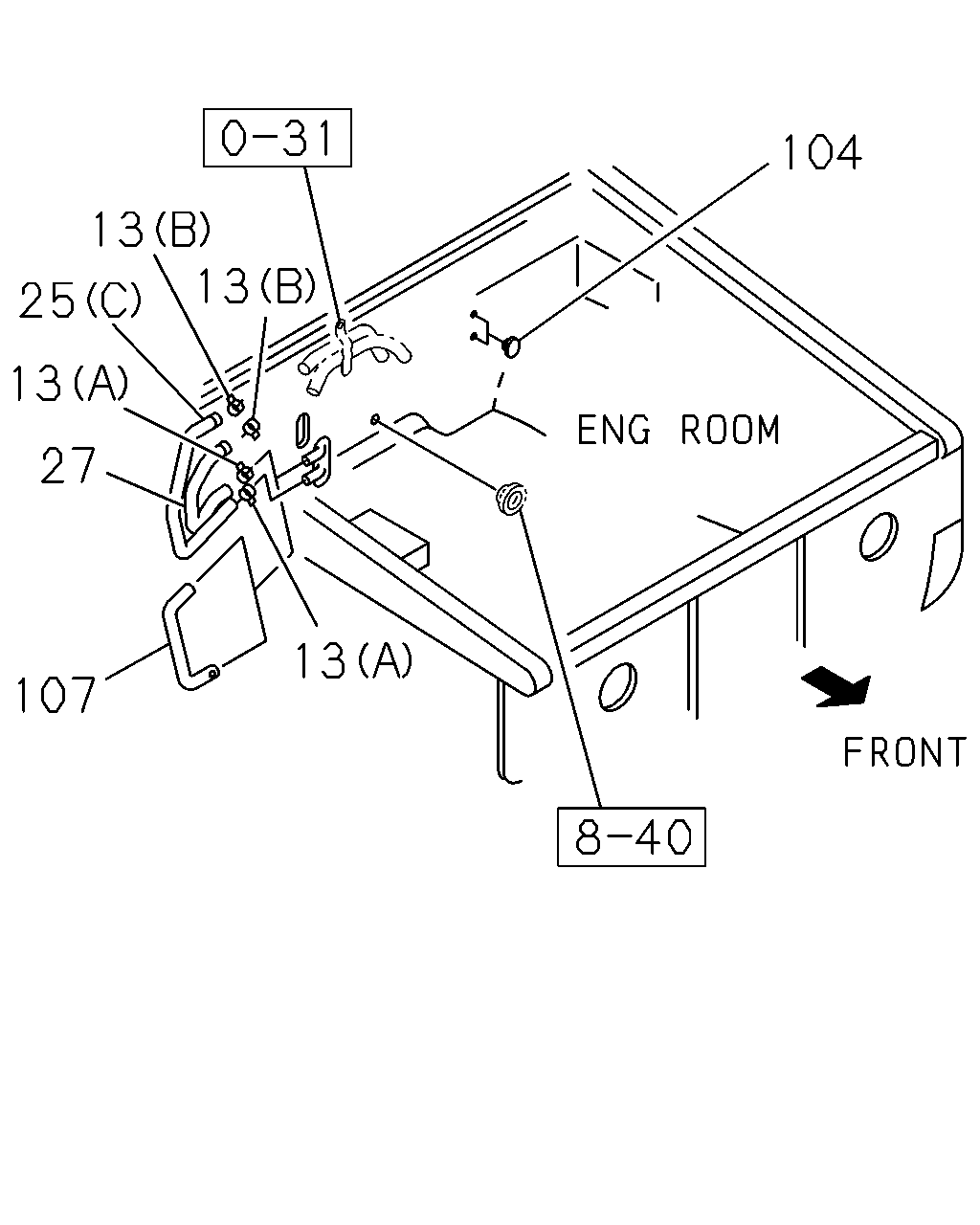

8-45 — HEATER PIPING (#38402) — 90 parça

104 13 13 25 13 27 13 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	05	1	9712-	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (B)	8-97713-822-0	02	1	9712-0007	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (B)	8-97713-822-0	02	1	0008-	●	●
13	08.846 CLIP; HTR HOSE (B)	8-97713-822-0	02	1	0008-			●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9712-9908	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	04	1	9909-0007	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	02	1	0008-	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (A) ID=22	8-94382-401-0	02	1	0008-	●	●
13	08.846 CLIP; HTR HOSE (A) ID=22	8-94382-401-0	02	1	0008-			●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9712-9712	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9801-9908	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (A) ID=22	8-94382-401-0	02	1	9801-9908	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	02	1	9909-0007	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (A) ID=22	8-94382-401-0	02	1	9909-0007	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	04	1	0008-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	0008-			●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9712-9908	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) ID=23	8-94382-402-0	02	1	9909-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97081-556-1	01	1	9712-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97176-376-0	01	1	9712-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-969-0	01	1	9712-9908	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97167-969-0	01	1	9909-0007	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97167-969-0	01	1	0008-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-969-0	01	1	0008-			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-696-0	01	1	9712-9908	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97228-080-0	01	1	9909-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97176-375-0	01	1	9712-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-970-0	01	1	9712-9908	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-970-0	01	1	9909-0007	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-970-0	01	1	0008-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-970-0	01	1	0008-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9712-9908	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-697-0	01	1	9909-	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97125-023-0	02	1	9712-9908	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97125-023-0	02	1	9909-0007	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97125-023-0	02	1	0008-0105	●	●
104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97125-023-0	02	1	0008-0105			●
107	08.864 HOSE; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97170-129-0	01	1	9712-0005	●	●
107	08.864 HOSE; WATER,HTR 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97170-129-0	01	1	0006-0105	●	●

11 13 13 9 11 13 25 25 13 13 27 25 13 26 23 82 13 23 13 13 82 26 13 13 27 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JX1 ENG(RJM)	8-97163-106-3	01	1	9712-9712	●	●
9	08.846 PIPE; HTR 4JX1 ENG(RJM)	8-97205-101-1	01	1	9801-0007	●	●
9	08.846 PIPE; HTR 4JX1 ENG(RJM)	8-97205-101-1	01	1	0008-	●	●
9	08.846 PIPE; HTR	8-97205-101-1	01	1	0008-			●
11	08.845 BOLT; HTR PIPE 4JX1 ENG(RJM) 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9712-0007	●	●
11	08.845 BOLT; HTR PIPE 4JX1 ENG(RJM) 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0008-	●	●
11	08.845 BOLT; HTR PIPE 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0008-			●
11	08.845 BOLT; HTR PIPE 4JX1 ENG(RJM) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	9712-0007	●	●
11	08.845 BOLT; HTR PIPE 4JX1 ENG(RJM) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0008-	●	●
11	08.845 BOLT; HTR PIPE 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0008-			●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	05	1	9712-	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (B)	8-97713-822-0	02	1	9712-0007	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (B)	8-97713-822-0	02	1	0008-	●	●
13	08.846 CLIP; HTR HOSE (B)	8-97713-822-0	02	1	0008-			●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	9712-9908	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	04	1	9909-0007	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	02	1	0008-	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (A) ID=22	8-94382-401-0	02	1	0008-	●	●
13	08.846 CLIP; HTR HOSE (A) ID=22	8-94382-401-0	02	1	0008-			●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9712-9712	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	02	1	9801-9908	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (A) ID=22	8-94382-401-0	02	1	9801-9908	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	02	1	9909-0007	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) (A) ID=22	8-94382-401-0	02	1	9909-0007	●	●
13	08.846 CLIP; HTR HOSE 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (A) ID=22	8-94382-401-0	04	1	0008-	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22	8-94382-401-0	04	1	0008-			●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=23	8-94382-402-0	02	1	9712-9908	●	●
13	08.846 CLIP; HTR HOSE 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (B) ID=23	8-94382-402-0	02	1	9909-	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-1	02	1	9712-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97081-556-1	01	1	9712-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97176-376-0	01	1	9712-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-969-0	01	1	9712-9908	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97167-969-0	01	1	9909-0007	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97167-969-0	01	1	0008-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-969-0	01	1	0008-			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-696-0	01	1	9712-9908	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) (C)	8-97228-080-0	01	1	9909-	●	●
26	08.846 HOSE; HTR 4JX1 ENG(RJM) (A)	8-97178-895-0	01	1	9712-0007	●	●
26	08.846 HOSE; HTR 4JX1 ENG(RJM) (A)	8-97178-895-0	01	1	0008-	●	●
26	08.846 HOSE; HTR (A)	8-97178-895-0	01	1	0008-			●
26	08.846 HOSE; HTR 4JX1 ENG(RJM) (B)	8-97178-896-0	01	1	9712-0007	●	●
26	08.846 HOSE; HTR 4JX1 ENG(RJM) (B)	8-97178-896-0	01	1	0008-	●	●
26	08.846 HOSE; HTR (B)	8-97178-896-0	01	1	0008-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97176-375-0	01	1	9712-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-970-0	01	1	9712-9908	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-970-0	01	1	9909-0007	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JX1 ENG(RJM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-970-0	01	1	0008-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-970-0	01	1	0008-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9712-9908	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VE1 ENG(RJQ),6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68)	8-97167-697-0	01	1	9909-	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343	8-94470-854-1	02	1	9712-	●	●
