4-33 — STEERING LINKAGE
(#384) — 40 parça
Tümü
A - FTR5MC
B - FTR5MF
◀

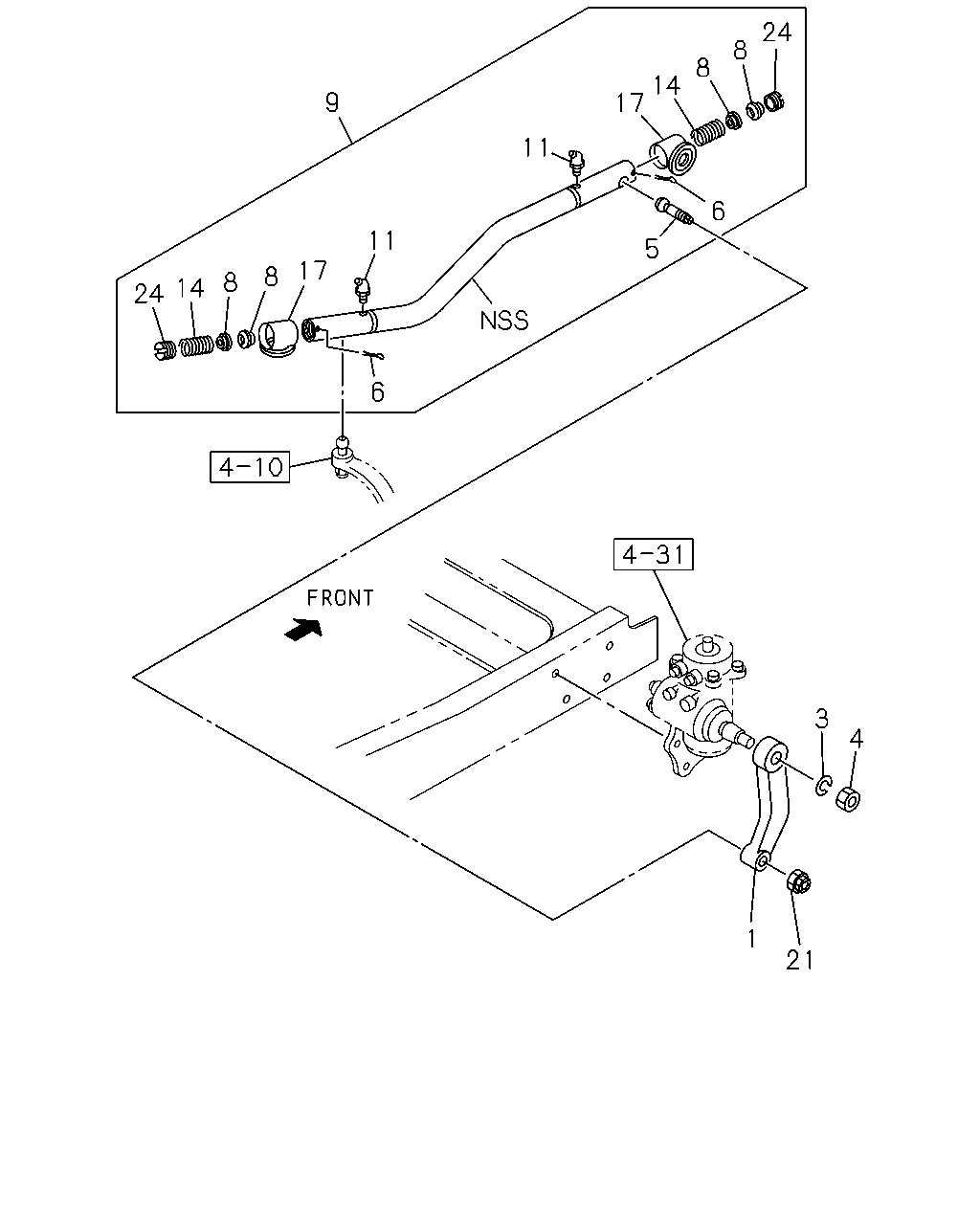

[433A] FRONT AXLE F049 (21 parça)

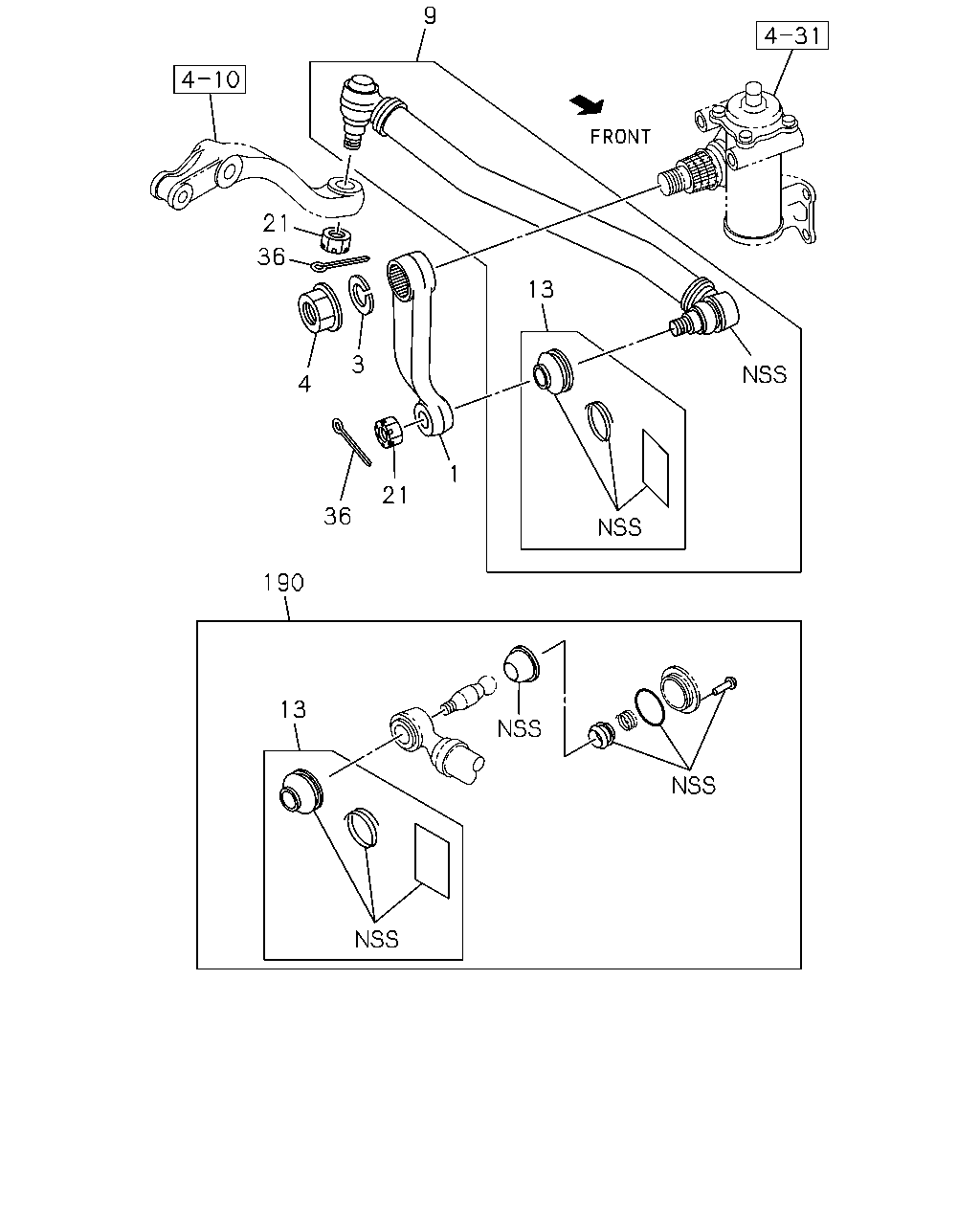

[433A] FRONT AXLE F063 (19 parça)
▶
24
8
8
14
17
9
11
6
11
5
17
8
8
14
24
6
3
4
1
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
FRONT AXLE F049(FS4)
1-44341-410-0
01
1
9202-
●
●
1
ARM; PITMAN,STRG
FRONT AXLE F063(FS7)
1-44341-389-0
01
1
9202-
●
3
WASHER; LK,PITMAN ARM
FRONT AXLE F049(FS4) ID=30.5
1-09500-026-0
01
1
9202-
●
●
3
WASHER; LK,PITMAN ARM
FRONT AXLE F063(FS7) ID=36.5
1-09500-021-0
01
1
9202-
●
4
NUT; PITMAN ARM
FRONT AXLE F049(FS4) M30
1-09400-050-0
01
1
9202-
●
●
4
NUT; PITMAN ARM
FRONT AXLE F063(FS7) M36 FLANGE
1-09440-013-0
01
1
9202-
●
5
BALL; JOINT,DRAG LINK
FRONT AXLE F049(FS4)
1-44361-060-0
01
1
9202-
●
●
6
PIN; SPLIT,ADJ SCREW
FRONT AXLE F049(FS4)
9-08115-060-0
02
1
9202-9205
●
●
6
PIN; SPLIT,ADJ SCREW
FRONT AXLE F049(FS4)
9-08115-065-0
02
1
9206-
●
●
8
SEAT; SPR,ROD END
FRONT AXLE F049(FS4) OD=36
9-09881-340-0
04
1
9202-
●
●
9
LINK; DRAG
FRONT AXLE F049(FS4)
1-44350-824-1
01
1
9202-
●
●
9
LINK; DRAG
FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-44380-001-1
01
1
9202-9410
●
9
LINK; DRAG
FRONT AXLE F063(FS7)
1-44380-111-2
01
1
9411-
●
9
LINK; DRAG
FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-44380-014-1
01
1
9202-9305
●
9
LINK; DRAG
FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-44380-055-0
01
1
9306-9410
●
11
NIPPLE; GREASE,DRAG LINK
FRONT AXLE F049(FS4) PT1/8 ELBOW 67.5?
9-09031-110-0
02
1
9202-
●
●
14
SPRING; COIL,DRAG LINK
FRONT AXLE F049(FS4)
9-09940-639-1
02
1
9202-
●
●
17
GUARD; MUD,DRAG LINK
FRONT AXLE F049(FS4)
1-44365-020-0
02
1
9202-
●
●
21
NUT; LK,JOINT BALL
FRONT AXLE F049(FS4) M24
9-09844-669-2
01
1
9202-
●
●
21
NUT; LK,JOINT BALL
FRONT AXLE F063(FS7) M24 SLOTTED
1-09442-020-0
02
1
9202-
●
24
PLUG; ADJ,DRAG LINK
FRONT AXLE F049(FS4)
9-44375-021-0
02
1
9202-
●
●
9
21
36
13
3
4
1
21
36
190
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
FRONT AXLE F049(FS4)
1-44341-410-0
01
1
9202-
●
●
1
ARM; PITMAN,STRG
FRONT AXLE F063(FS7)
1-44341-389-0
01
1
9202-
●
3
WASHER; LK,PITMAN ARM
FRONT AXLE F049(FS4) ID=30.5
1-09500-026-0
01
1
9202-
●
●
3
WASHER; LK,PITMAN ARM
FRONT AXLE F063(FS7) ID=36.5
1-09500-021-0
01
1
9202-
●
4
NUT; PITMAN ARM
FRONT AXLE F049(FS4) M30
1-09400-050-0
01
1
9202-
●
●
4
NUT; PITMAN ARM
FRONT AXLE F063(FS7) M36 FLANGE
1-09440-013-0
01
1
9202-
●
9
LINK; DRAG
FRONT AXLE F049(FS4)
1-44350-824-1
01
1
9202-
●
●
9
LINK; DRAG
FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-44380-001-1
01
1
9202-9410
●
9
LINK; DRAG
FRONT AXLE F063(FS7)
1-44380-111-2
01
1
9411-
●
9
LINK; DRAG
FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-44380-014-1
01
1
9202-9305
●
9
LINK; DRAG
FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-44380-055-0
01
1
9306-9410
●
13
BOOT; DRAG LINK
FRONT AXLE F063(FS7) FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-43159-078-0
02
1
9202-9305
●
13
BOOT; DRAG LINK
FRONT AXLE F063(FS7)
1-43159-078-0
02
1
9306-
●
13
BOOT; DRAG LINK
FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-43159-080-0
02
1
9202-9305
●
21
NUT; LK,JOINT BALL
FRONT AXLE F049(FS4) M24
9-09844-669-2
01
1
9202-
●
●
21
NUT; LK,JOINT BALL
FRONT AXLE F063(FS7) M24 SLOTTED
1-09442-020-0
02
1
9202-
●
36
PIN; SPLIT,DRAG LINK
FRONT AXLE F063(FS7) OD=4.6 L=35
9-08115-035-0
02
1
9202-
●
190
REPAIR KIT; DRAG LINK
FRONT AXLE F063(FS7) EXC. FRT AXLE GRESE ,NON MENTENANCE FREE<B3L>
1-85574-041-0
02
1
9306-9410
●
190
REPAIR KIT; DRAG LINK
FRONT AXLE F063(FS7)
1-85574-041-0
02
1
9411-
●
