8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#38397) — 93 parça

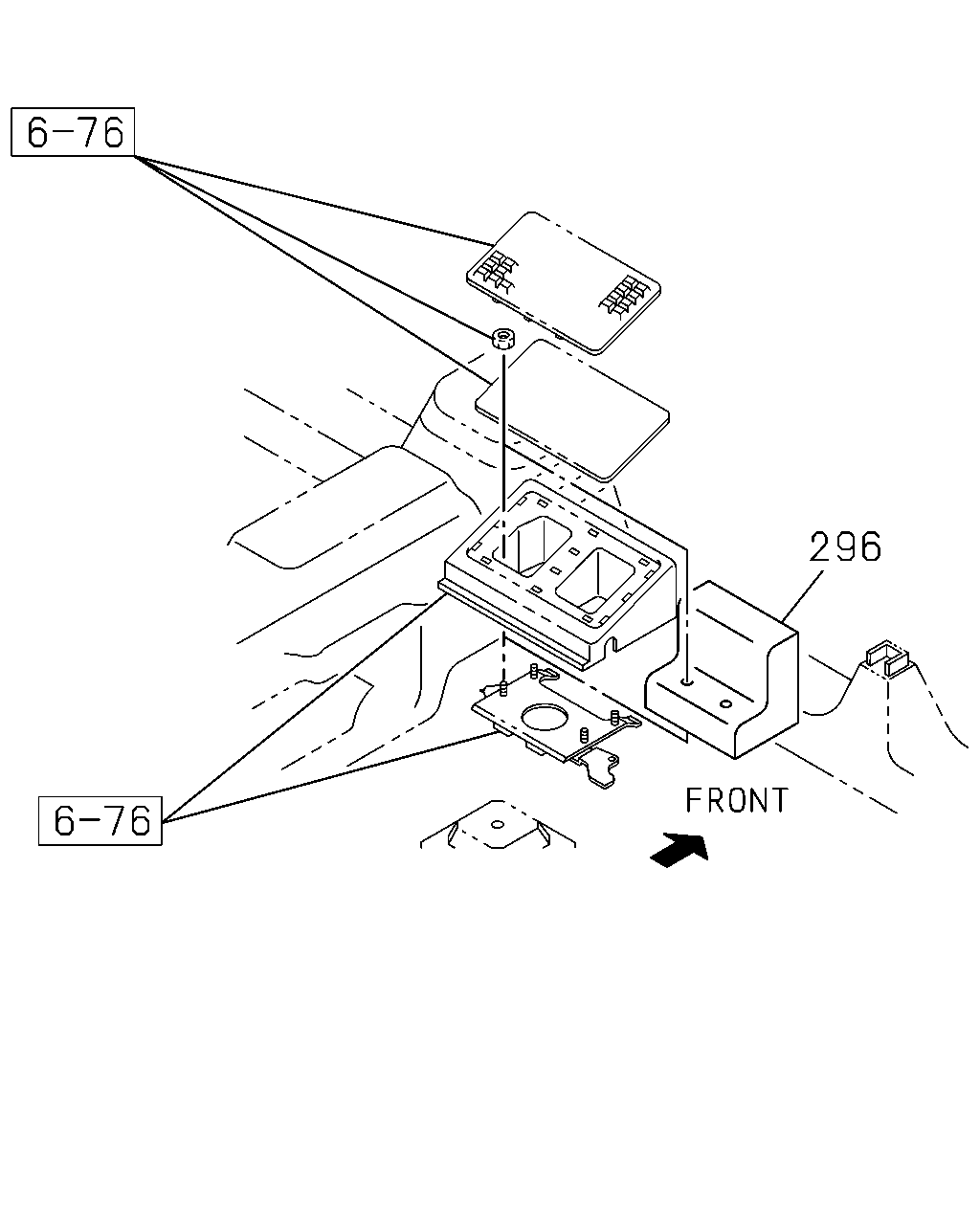

296

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	296	09.709 COVER; CONT UNIT TORQUE ON DEMAND<7HA> EXC. RR FOOT REST<6WM>	8-97147-733-1	01	1	9909-0105	●
	296	09.709 COVER; CONT UNIT TORQUE ON DEMAND<7HA>	8-97147-733-1	01	1	0106-	●

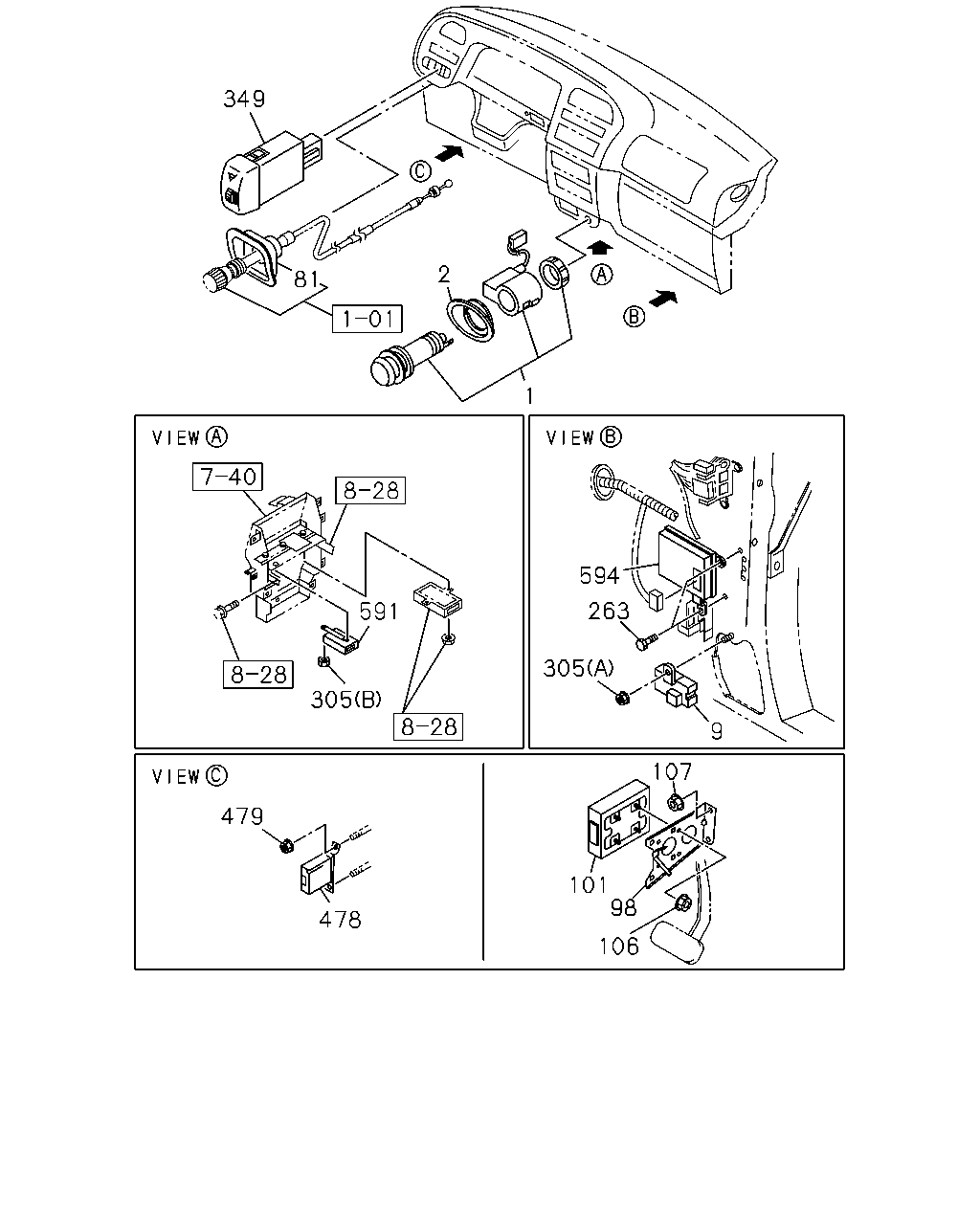

349 2 81 1 594 263 591 305 305 9 107 479 101 98 478 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.709 LIGHTER; CIGAR	8-97094-468-2	01	1	9712-0007	●	●
1	09.709 LIGHTER; CIGAR	8-97094-468-2	01	1	0008-0105	●	●	●
1	09.709 LIGHTER; CIGAR	8-97314-003-0	01	1	0106-	●	●	●
2	09.709 BEZEL; CIGAR LIGHTER BLACK	8-97098-337-0	01	1	9712-0007	●	●
2	09.709 BEZEL; CIGAR LIGHTER BLACK	8-97098-337-0	01	1	0008-	●	●	●
9	03.887 CONTROLLER; CRUISE 6VD1 ENG(RLV) AUTO CRUISE CONT<K30>	8-97160-449-2	01	1	9712-0105	●	●
9	03.887 CONTROLLER; CRUISE 6VD1 ENG(RLV) AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4)	8-97160-449-2	01	1	0106-	●	●
9	03.887 CONTROLLER; CRUISE 6VE1 ENG(RJQ) AUTO CRUISE CONT<K30>	8-97160-446-1	01	1	9712-0105	●	●
9	03.887 CONTROLLER; CRUISE 6VE1 ENG(RJQ) AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4)	8-97160-446-1	01	1	0106-	●	●
81	03.451 BEZEL; IDLE CONT 4JG2 ENG(RJC) DARK GRAY	8-97153-189-1	01	1	9712-9908	●	●
81	03.451 BEZEL; IDLE CONT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97153-189-1	01	1	9909-0105	●	●
81	03.451 BEZEL; IDLE CONT 4JG2 ENG(RJC) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY	8-97153-189-1	01	1	0106-	●	●
81	03.451 BEZEL; IDLE CONT 4JG2 ENG(RJC) INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-998-1	01	1	9909-0105	●	●
81	03.451 BEZEL; IDLE CONT 4JG2 ENG(RJC) INTERIOR COLOR BEIGE(181) LIGHT BEIGE	8-97291-998-1	01	1	0106-	●
98	04.115 BRACKET; ELEC CONT UNIT,A/T A/T AISIN(RMD)	8-97218-477-2	01	1	9909-0007	●	●
98	04.115 BRACKET; ELEC CONT UNIT,A/T A/T AISIN(RMD)	8-97218-477-2	01	1	0008-	●	●
98	04.115 BRACKET; ELEC CONT UNIT,A/T	8-97218-477-2	01	1	0008-			●
101	04.115 CONTROL UNIT; ELEC,A/T 4JG2 ENG(RJC) A/T AISIN(RMD)	8-97302-387-0	01	1	0106-	●	●
101	04.115 CONTROL UNIT; ELEC,A/T 4JX1 ENG(RJM) A/T AISIN(RMD)	8-97230-821-0	01	1	9909-0007	●	●
101	04.115 CONTROL UNIT; ELEC,A/T 4JX1 ENG(RJM) A/T AISIN(RMD)	8-97230-821-0	01	1	0008-	●	●
101	04.115 CONTROL UNIT; ELEC,A/T	8-97230-821-0	01	1	0008-			●
106	04.115 NUT; ELEC CONT UNIT 4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-	●	●
106	04.115 NUT; ELEC CONT UNIT 4JX1 ENG(RJM) A/T AISIN(RMD) 04.594 M6 FLANGE	0-91150-106-0	03	1	9909-0007	●	●
106	04.115 NUT; ELEC CONT UNIT 4JX1 ENG(RJM) A/T AISIN(RMD) 04.594 M6 FLANGE	0-91150-106-0	03	1	0008-	●	●
106	04.115 NUT; ELEC CONT UNIT 04.594 M6 FLANGE	0-91150-106-0	03	1	0008-			●
107	04.115 NUT; BRKT,ELEC CONT UNIT A/T AISIN(RMD) 07.633 M8 FLANGE	0-91150-108-0	02	1	9909-0007	●	●
107	04.115 NUT; BRKT,ELEC CONT UNIT A/T AISIN(RMD) 07.633 M8 FLANGE	0-91150-108-0	02	1	0008-	●	●
107	04.115 NUT; BRKT,ELEC CONT UNIT 07.633 M8 FLANGE	0-91150-108-0	02	1	0008-			●
263	04.115 BOLT; CONT UNIT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-0007	●	●
263	04.115 BOLT; CONT UNIT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0008-	●	●	●
305	08.915 NUT; CONT UNIT AUTO CRUISE CONT<K30> 07.833 (A) M6 FLANGE	8-97063-399-0	01	1	9712-0105	●	●
305	08.915 NUT; CONT UNIT AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 07.833 (A) M6 FLANGE	8-97063-399-0	01	1	0106-	●	●
305	08.915 NUT; CONT UNIT ONE TOUCH 4X4 SYSTEM(7QY) 09.744 (B) M5 FLANGE	5-09440-003-0	01	1	9712-9908	●	●
305	08.915 NUT; CONT UNIT ONE TOUCH 4X4 SYSTEM(7QY) 09.744 (B) M5 FLANGE	5-09440-003-0	01	1	9909-		●
305	08.915 NUT; CONT UNIT ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 09.744 (B) M5 FLANGE	5-09440-003-0	01	1	9909-	●
349	02.490 CONTROL; ILLUMINATION GRADE RS(RBF)	8-97135-515-0	01	1	9712-0007		●
349	02.490 CONTROL; ILLUMINATION GRADE LS/LTD(RBD)	8-97135-515-0	01	1	9712-0007	●
349	02.490 CONTROL; ILLUMINATION GRADE RS(RBF)	8-97135-515-1	01	1	0008-		●
349	02.490 CONTROL; ILLUMINATION GRADE LS/LTD(RBD)	8-97135-515-1	01	1	0008-	●
349	02.490 CONTROL; ILLUMINATION	8-97135-515-1	01	1	0008-			●
478	04.224 CONTROLLER; INDICATOR,A/T A/T THM(RMQ)	8-97094-910-0	01	1	9712-	●	●
479	08.915 NUT; CONTR0LLER A/T THM(RMQ) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
591	04.115 CONTROL UNIT; TRANSFER ONE TOUCH 4X4 SYSTEM(7QY)	8-97165-959-0	01	1	9712-9908	●	●
591	04.115 CONTROL UNIT; TRANSFER ONE TOUCH 4X4 SYSTEM(7QY)	8-97165-959-0	01	1	9909-		●
591	04.115 CONTROL UNIT; TRANSFER ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97165-959-0	01	1	9909-	●
594	02.510 CONTROL UNIT; ALARM & RELAY	8-97167-991-1	01	1	9712-0007	●	●
594	02.510 CONTROL UNIT; ALARM & RELAY	8-97167-991-1	01	1	0008-	●	●	●

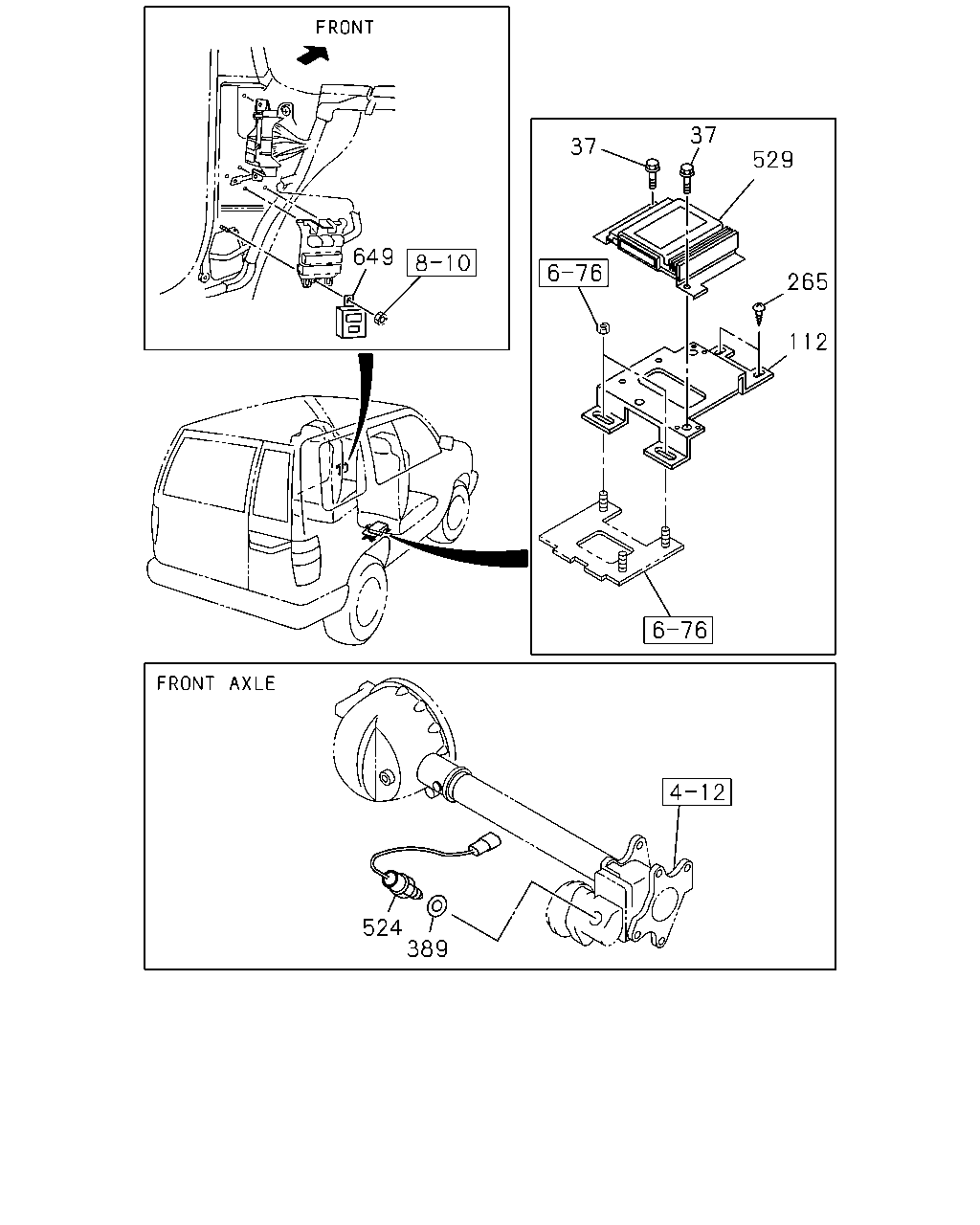

37 37 529 649 265 112 524 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	02.500 BOLT; BRKT FIX TORQUE ON DEMAND<7HA> 16.585 M6X14 FLANGE	8-94327-380-0	02	1	9909-	●
112	02.500 BRACKET; CONT UNIT TORQUE ON DEMAND<7HA>	8-97215-806-0	01	1	9909-9910	●
112	02.500 BRACKET; CONT UNIT TORQUE ON DEMAND<7HA>	8-97244-774-0	01	1	9911-	●
265	02.500 SCREW; BRKT,CONT UNIT TORQUE ON DEMAND<7HA> 09.663 M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9909-	●
389	09.709 GASKET; SWITCH SHIFT ON THE FLY(7EX) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●	●
524	09.755 SWITCH; DIFF SHIFT ON THE FLY(7EX)	8-97101-956-2	01	1	9712-	●	●
529	04.115 CONTROL UNIT; TOD TORQUE ON DEMAND<7HA>	8-97204-791-0	01	1	9909-0105	●
529	04.115 CONTROL UNIT; TOD 4JX1 ENG(RJM) TORQUE ON DEMAND<7HA>	8-97204-791-0	01	1	0106-	●
529	04.115 CONTROL UNIT; TOD 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4)	8-97204-791-0	01	1	0106-	●
529	04.115 CONTROL UNIT; TOD 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA>	8-97244-928-0	01	1	0106-	●
649	02.679 CONTROL UNIT; RR FOG LAMP FOG LAMP RR<T79>	8-97222-834-1	01	1	9909-	●	●

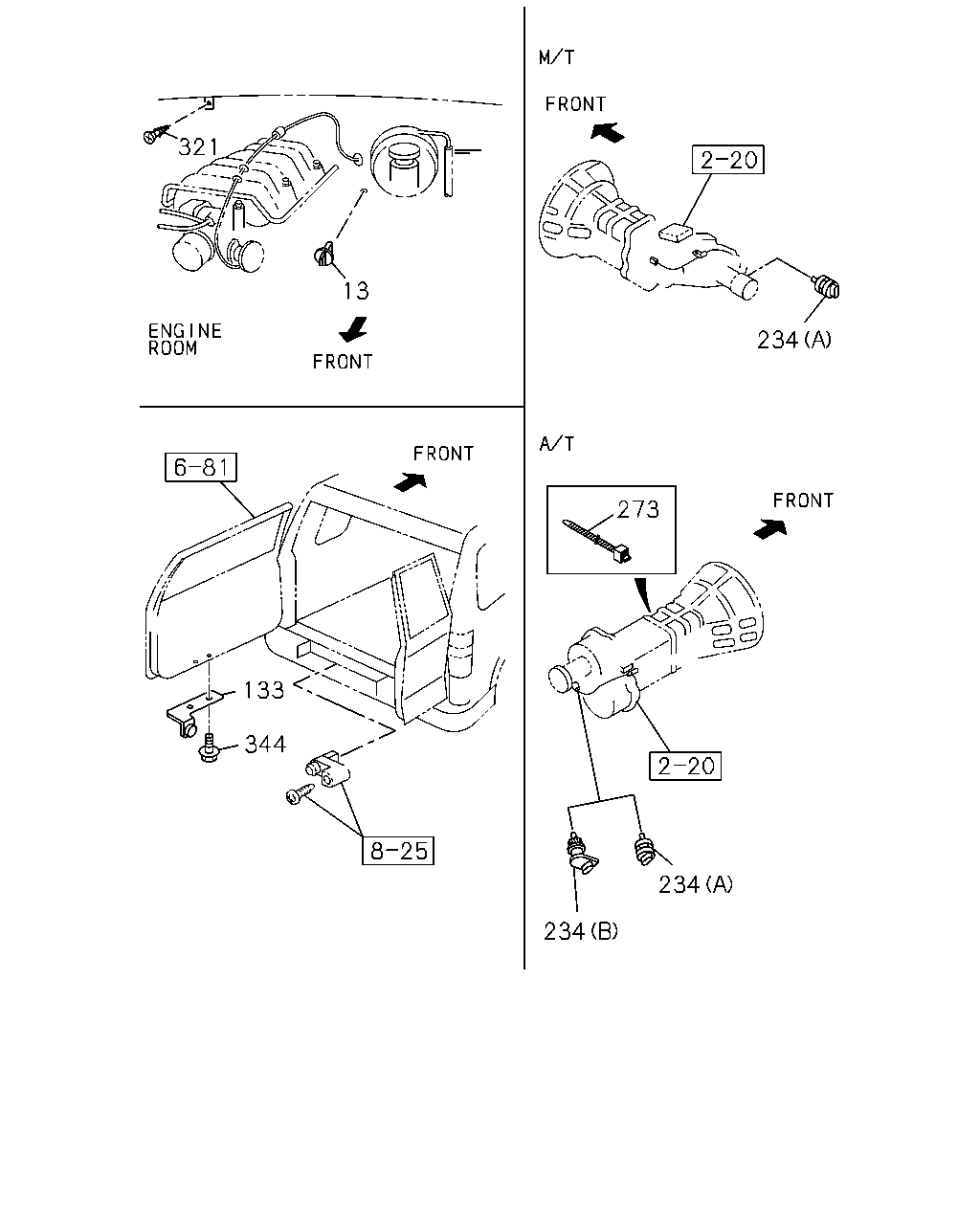

321 13 234 273 133 344 234 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	03.880 PLUG; CONTROLLER,CRUISE 12.804	8-94147-164-1	01	1	9712-0007	●	●
13	03.880 PLUG; CONTROLLER,CRUISE 12.804	8-94147-164-1	01	1	0008-	●	●	●
133	16.263 BRACKET; SWITCH	8-97090-017-0	01	1	9712-0007	●	●
133	16.263 BRACKET; SWITCH	8-97090-017-0	01	1	0008-	●	●	●
234	03.682 SENSOR; VEHICLE SPD M/T MUA 5 SPEED(RMN),A/T THM(RMQ) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9712-9802	●	●
234	03.682 SENSOR; VEHICLE SPD M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9803-9908	●	●
234	03.682 SENSOR; VEHICLE SPD (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9909-0007		●
234	03.682 SENSOR; VEHICLE SPD EXC. TORQUE ON DEMAND<7HA> (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	9909-0007	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 43/9(S2J) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 41/9(HC6) EXC. ONE TOUCH 4X4 SYSTEM(7QY) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405	●	●
234	03.682 SENSOR; VEHICLE SPD A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405		●
234	03.682 SENSOR; VEHICLE SPD A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405	●
234	03.682 SENSOR; VEHICLE SPD (A) 4 PULSE PPS RESIN BLACK	8-97129-704-0	01	1	0008-0405			●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 43/9(S2J) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY) (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-	●	●
234	03.682 SENSOR; VEHICLE SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FINAL GEAR RATIO 41/9(HC6) EXC. ONE TOUCH 4X4 SYSTEM(7QY) (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-	●	●
234	03.682 SENSOR; VEHICLE SPD A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-		●
234	03.682 SENSOR; VEHICLE SPD A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-	●
234	03.682 SENSOR; VEHICLE SPD (A) 4 PULSE PPS RESIN WHITE	8-97377-920-0	01	1	0406-			●
234	03.682 SENSOR; VEHICLE SPD TORQUE ON DEMAND<7HA> (B)	8-97129-727-0	01	1	9909-0302	●
234	03.682 SENSOR; VEHICLE SPD TORQUE ON DEMAND<7HA> (B)	8-97365-743-0	01	1	0303-	●
273	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 L=140	5-09707-031-1	01	1	9909-0105	●	●
273	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 03.162 L=140	5-09707-031-1	02	1	9909-9911	●	●
273	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 03.162 L=140	5-09707-031-1	03	1	9912-0007	●	●
273	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 03.162 L=140	5-09707-031-1	03	1	0008-	●	●
273	02.559 CLIP; HARNESS 03.162 L=140	5-09707-031-1	03	1	0008-			●
321	09.735 CLIP; SW PANEL 16.069 OD=12 L=14.8	8-94279-921-0	01	1	9712-0007	●	●
321	09.735 CLIP; SW PANEL 16.069 OD=12 L=14.8	8-94279-921-0	01	1	0008-	●	●	●
344	02.487 BOLT; SW BRKT 16.325 M6X16 FLANGE	8-97808-792-1	02	1	9712-0007	●	●
344	02.487 BOLT; SW BRKT 16.325 M6X16 FLANGE	8-97808-792-1	02	1	0008-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
