◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#38396) — 379 parça

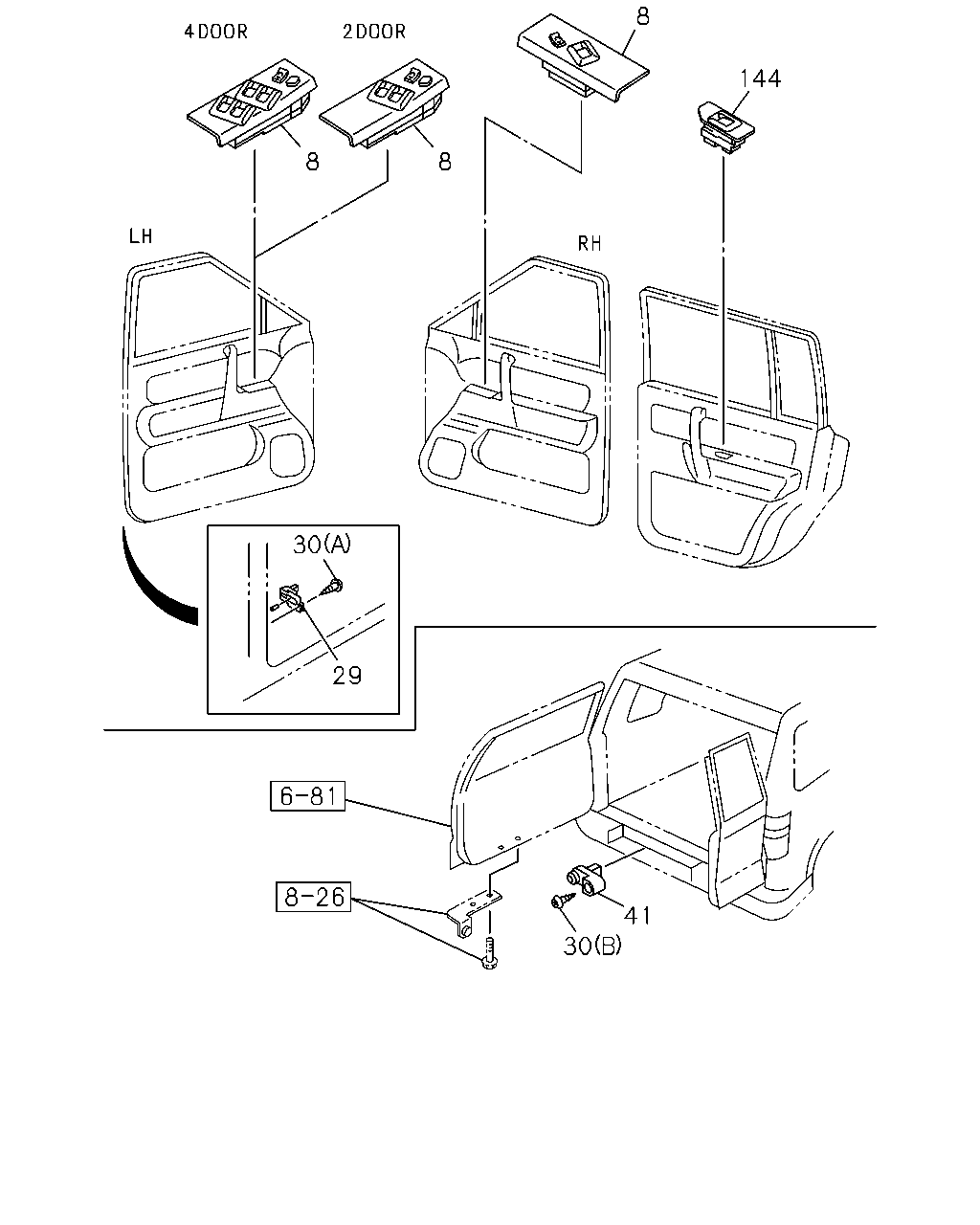

çizim 69071
8 144 8 8 30 29 41 30
BalonParca AdiParca NoAdetTipApplied Date A B C
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-614-1 01 1 9712-9908 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-614-1 01 1 9909-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-614-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97395-393-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-004-1 01 1 9712-9809 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-004-1 01 1 9810-9908 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-004-1 01 1 9909-0105 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-004-1 01 1 9909-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-004-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-004-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97395-389-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97395-389-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSENGER SIDE BLACK 		8-97154-904-1 01 1 9712-9809 ● ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSENGER SIDE BLACK 		8-97154-904-1 01 1 9810-0007 ● ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> PASSENGER SIDE BLACK 		8-97154-904-1 01 1 0008-0105 ● ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) PASSENGER SIDE BLACK 		8-97154-904-1 01 1 0008-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> PASSENGER SIDE BLACK 		8-97154-904-3 01 1 0106- ● ●
8 16.263 SWITCH; POWER WINDOW
EXC. WOOD PRINT TRIM<7QR> PASSENGER SIDE BLACK 		8-97154-904-3 01 1 0106- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-006-1 01 1 9712-9908 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-006-1 01 1 9909-0005 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4) DRIVER SIDE BLACK 		8-97153-006-1 01 1 9909-0005 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE BLACK 		8-97153-006-1 01 1 0006-0007 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE BLACK 		8-97153-006-1 01 1 0006-0007 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97153-006-1 01 1 0008-0105 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE BLACK 		8-97153-006-1 01 1 0008-0105 ●
8 16.263 SWITCH; POWER WINDOW
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) DRIVER SIDE BLACK 		8-97153-006-1 01 1 0008-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97153-006-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4),WOOD PRINT TRIM<7QR>,ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE BLACK 		8-97153-006-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
EXC. WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97153-006-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97395-390-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EXC. EUROPE EQUIPMENT(EK4),WOOD PRINT TRIM<7QR>,ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE BLACK 		8-97395-390-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
EXC. WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97395-390-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-615-1 01 1 9712-9908 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-615-1 01 1 9909-0005 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> DRIVER SIDE BLACK 		8-97159-615-1 01 1 0006-0105 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> EXC. WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97159-615-2 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> EXC. WOOD PRINT TRIM<7QR> DRIVER SIDE BLACK 		8-97395-394-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) WOOD PRINT TRIM<7QR> EXC. ANTI THEFT<UA6> DRIVER SIDE 		8-97288-231-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> WOOD PRINT TRIM<7QR> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE 		8-97288-231-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
WOOD PRINT TRIM<7QR> DRIVER SIDE 		8-97288-231-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) WOOD PRINT TRIM<7QR> EXC. ANTI THEFT<UA6> DRIVER SIDE 		8-97353-400-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> WOOD PRINT TRIM<7QR> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) DRIVER SIDE 		8-97353-400-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
WOOD PRINT TRIM<7QR> DRIVER SIDE 		8-97353-400-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> WOOD PRINT TRIM<7QR> DRIVER SIDE 		8-97288-232-1 01 1 0106-0210 ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> WOOD PRINT TRIM<7QR> DRIVER SIDE 		8-97353-401-1 01 1 0211- ●
8 16.263 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> WOOD PRINT TRIM<7QR> PASSENGER SIDE 		8-97288-235-2 01 1 0106- ●
8 16.263 SWITCH; POWER WINDOW
WOOD PRINT TRIM<7QR> PASSENGER SIDE 		8-97288-235-2 01 1 0106- ●
29 16.263 SWITCH; DOOR 8-97146-195-1 02 1 9712- ●
29 16.263 SWITCH; DOOR 8-97146-195-1 04 1 9712-0007 ●
29 16.263 SWITCH; DOOR 8-97146-195-1 04 1 0008- ● ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 02 1 9712- ●
30 16.263 SCREW; DOOR SW
02.664 (B) M5X14 		8-94313-116-1 01 1 9712-0007 ● ●
30 16.263 SCREW; DOOR SW
02.664 (B) M5X14 		8-94313-116-1 01 1 0008- ● ● ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 04 1 9712-0007 ●
30 16.263 SCREW; DOOR SW
10.240 (A) M5X14 		8-94120-095-0 04 1 0008- ● ●
41 16.263 SWITCH; BACK DOOR LOCK 8-97081-773-0 01 1 9712-0007 ● ●
41 16.263 SWITCH; BACK DOOR LOCK 8-97081-773-0 01 1 0008- ● ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 9712-0007 ●
144 16.283 SWITCH; POWER WINDOW,RR
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 0008-0105 ●
144 16.283 SWITCH; POWER WINDOW,RR
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) BLACK 		8-97098-342-2 01 1 0008-0105 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97098-342-3 01 1 0106- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 9712-0007 ●
144 16.283 SWITCH; POWER WINDOW,RR
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 0008-0105 ●
144 16.283 SWITCH; POWER WINDOW,RR
INTERIOR COLOR MEDIUM GRAY(113), INTERIORCOLOR BEIGE(181) BLACK 		8-97098-341-2 01 1 0008-0105 ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> EXC. WOOD PRINT TRIM<7QR> BLACK 		8-97098-341-3 01 1 0106- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> WOOD PRINT TRIM<7QR> 		8-97288-239-1 01 1 0106- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> WOOD PRINT TRIM<7QR> 		8-97288-240-1 01 1 0106- ● ●

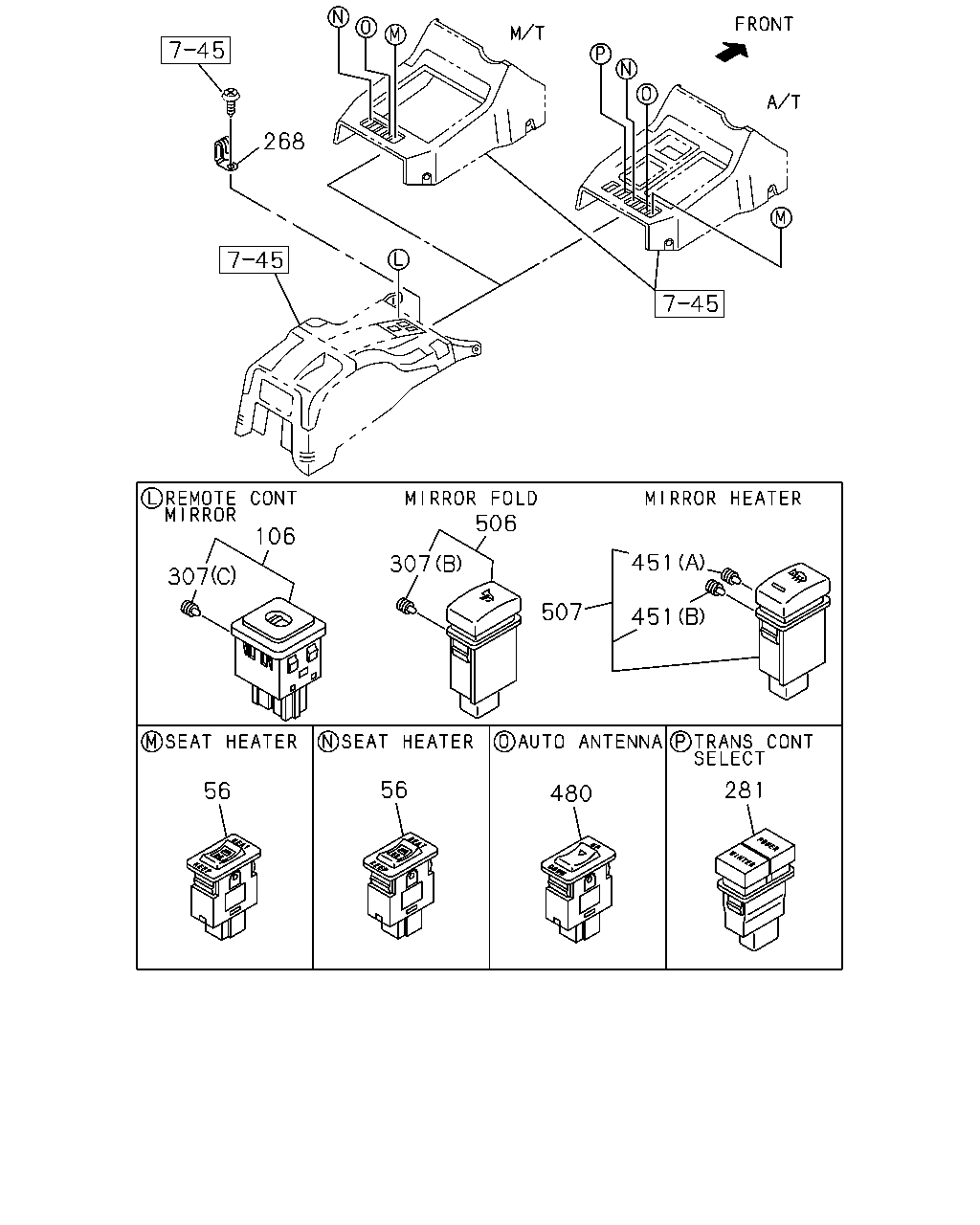

çizim 69437
268 506 106 451 307 307 507 451 56 281 56 480
BalonParca AdiParca NoAdetTipApplied Date A B C
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97104-988-2 01 1 9712-0007 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER DRIVER<C37> 		8-97104-988-2 01 1 0008- ● ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97140-023-1 01 1 9712-0007 ● ●
56 08.840 SWITCH; SEAT HTR
SEAT HEATER PASSENGER<C38> 		8-97140-023-1 01 1 0008- ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97060-167-2 01 1 9712-0007 ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97060-167-2 01 1 0008- ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR 8-97060-167-2 01 1 0008- ●
268 02.575 CLIP; SW
A/T THM(RMQ) 02.559 ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 9712- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T THM(RMQ) 08.552 		8-97170-708-0 01 1 9712-9908 ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T AISIN(RMD),A/T THM(RMQ) 08.552 		8-97170-708-1 01 1 9909-0007 ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T AISIN(RMD),A/T THM(RMQ) 08.552 		8-97170-708-2 01 1 0008- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
08.552 		8-97170-708-2 01 1 0008- ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 9712-0007 ● ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 0008- ● ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
307 08.991 BULB ASM; SW
10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 9712-0007 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
(C) 14V 		8-97102-738-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810-0007 ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810-0007 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 0008- ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 0008- ● ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 02 1 0008- ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 02 1 0008- ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (A) 14V 0.7W 		8-97102-439-0 01 1 9712-0007 ● ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (A) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
451 10.186 BULB; MIRROR HTR SW
(A) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (B) 14V 0.84W 		8-97102-440-0 01 1 9712-0007 ● ●
451 10.186 BULB; MIRROR HTR SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (B) 14V 0.84W 		8-97102-440-0 01 1 0008- ● ●
451 10.186 BULB; MIRROR HTR SW
(B) 14V 0.84W 		8-97102-440-0 01 1 0008- ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4) 		8-97104-992-0 01 1 9712-9805 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97104-992-0 01 1 9806-0005 ● ●
480 09.649 SWITCH; AUTO ANTENNA
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 		8-97104-992-0 01 1 0006- ● ●
506 04.902 SWITCH; MIRROR FOLD
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 		8-97081-766-3 01 1 9712-0007 ● ●
506 04.902 SWITCH; MIRROR FOLD
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 		8-97081-766-3 01 1 0008- ● ●
506 04.902 SWITCH; MIRROR FOLD
10.186 		8-97081-766-3 01 1 0008- ●
507 10.186 SWITCH; MIRROR HEATER
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97081-763-4 01 1 9712-0007 ● ●
507 10.186 SWITCH; MIRROR HEATER
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97081-763-4 01 1 0008- ● ●
507 10.186 SWITCH; MIRROR HEATER 8-97081-763-4 01 1 0008- ●

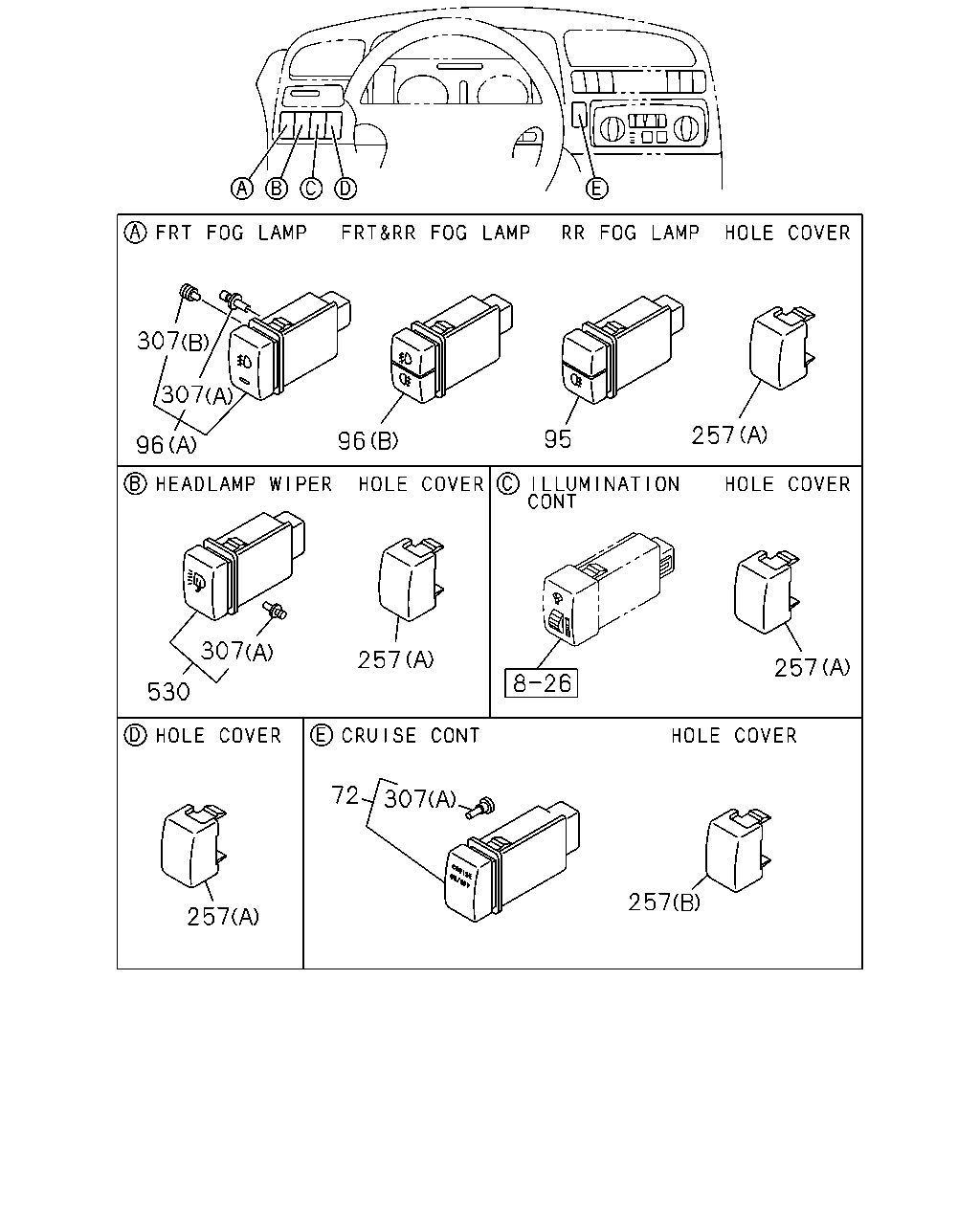

çizim 71180
307 307 257 95 96 96 307 257 257 530 72 307 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97135-520-0 01 1 9712- ● ●
95 02.575 SWITCH; RR FOG LAMP
FOG LAMP RR<T79> EXC. FOG LAMP FRT(T37) 		8-97219-658-1 01 1 9909- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) (A) 		8-97135-512-0 01 1 9712-9908 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 		8-97135-512-0 01 1 9909-0007 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 		8-97135-512-0 01 1 0008- ● ●
96 02.485 SWITCH; FOG LAMP
(A) 		8-97135-512-0 01 1 0008- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP FRT(T37) FOG LAMP RR<T79> (B) 		8-97221-408-1 01 1 9909- ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37) (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37),FOG LAMP RR<T79> (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 0008- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 0008- ● ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37),FOG LAMP RR<T79> (A) 		8-97081-617-1 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 0008- ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9909-0007 ●
257 16.081 COVER; HOLE,SW
EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9909-0007 ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 0008- ●
257 16.081 COVER; HOLE,SW
EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) (B) 		8-97088-762-0 01 1 0008- ●
257 16.081 COVER; HOLE,SW
(B) 		8-97088-762-0 01 1 0008- ●
257 16.081 COVER; HOLE,SW
(B) 		8-97088-762-0 01 1 0008- ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 9712-0007 ● ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 0008- ● ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
307 08.991 BULB ASM; SW
10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 9712-0007 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
(C) 14V 		8-97102-738-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810-0007 ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810-0007 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 0008- ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 0008- ● ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 02 1 0008- ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 02 1 0008- ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97135-513-1 01 1 9712-0007 ● ●
530 02.485 SWITCH; HEAD/L WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97135-513-1 01 1 0008- ● ● ●

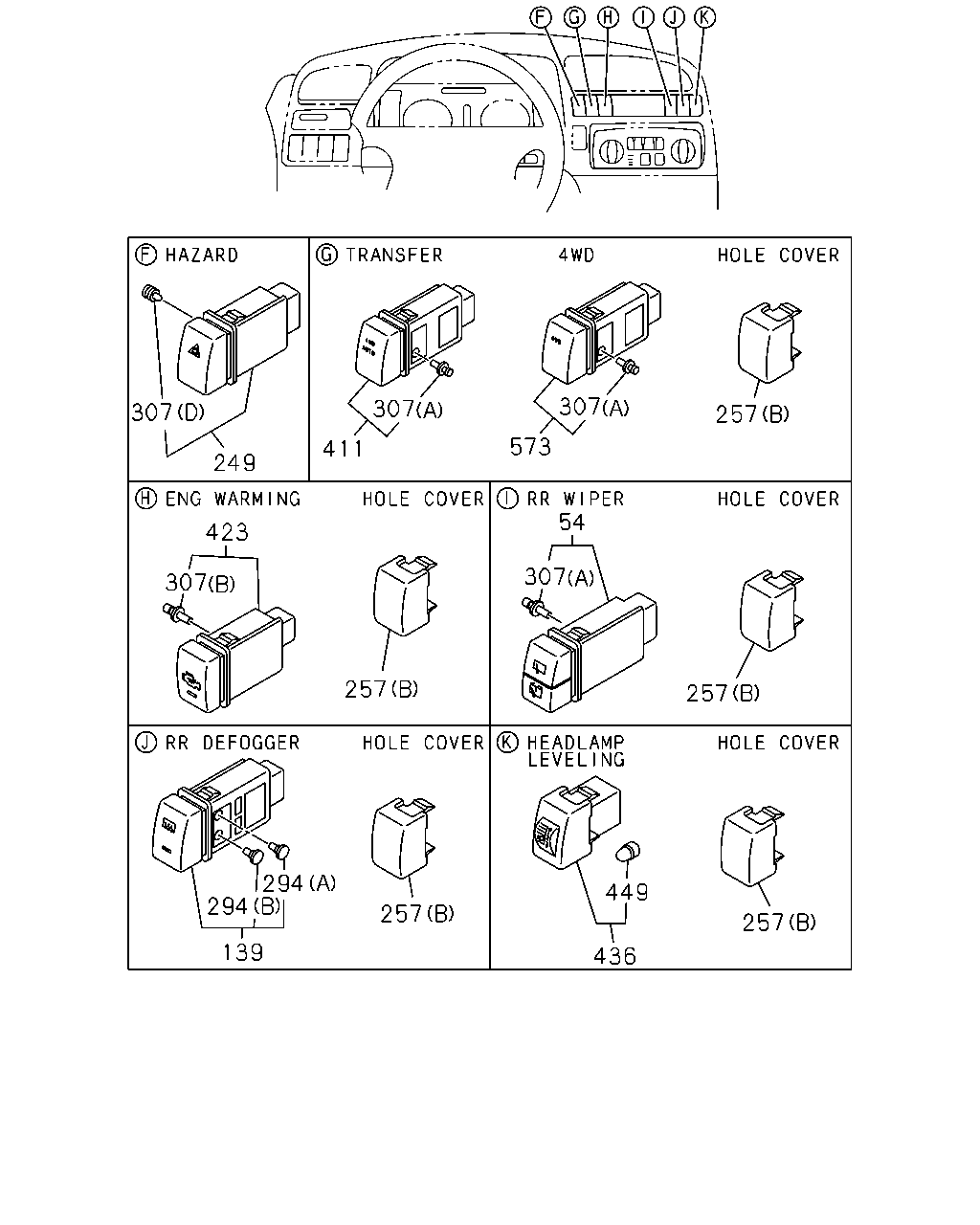

çizim 71978
307 307 307 257 573 411 249 54 423 307 307 257 257 294 294 449 257 257 139 436
BalonParca AdiParca NoAdetTipApplied Date A B C
54 16.067 SWITCH; RR WIPER
RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97135-516-0 01 1 9712-0007 ● ●
54 16.067 SWITCH; RR WIPER
RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97135-516-0 01 1 0008- ● ●
54 16.067 SWITCH; RR WIPER 8-97135-516-0 01 1 0008- ●
139 09.778 SWITCH; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97163-882-0 01 1 9712-0007 ● ●
139 09.778 SWITCH; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97163-882-0 01 1 0008- ● ●
139 09.778 SWITCH; RR DEFOGGER 8-97163-882-0 01 1 0008- ●
249 02.485 SWITCH; HAZARD 8-97085-381-3 01 1 9712-0007 ● ●
249 02.485 SWITCH; HAZARD 8-97085-381-3 01 1 0008- ● ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37) (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37),FOG LAMP RR<T79> (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP WIPER & WASHER<CE3> (A) 		8-97081-617-1 01 1 0008- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 0008- ● ● ●
257 16.081 COVER; HOLE,SW
GRADE S/SE(RBA) (A) 		8-97081-617-1 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. FOG LAMP FRT(T37),FOG LAMP RR<T79> (A) 		8-97081-617-1 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. AUTO CRUISE CONT<K30> (A) 		8-97081-617-1 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-97081-617-1 01 1 0008- ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9712-9908 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 9909-0007 ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9909-0007 ●
257 16.081 COVER; HOLE,SW
EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) (B) 		8-97088-762-0 01 1 9909-0007 ●
257 16.081 COVER; HOLE,SW
EXC. RR WIPER & WASHER INTERMITTENT<6WJ> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP BEAM ADJUST CONT<6RC> (B) 		8-97088-762-0 01 1 0008- ● ●
257 16.081 COVER; HOLE,SW
EXC. ONE TOUCH 4X4 SYSTEM(7QY) (B) 		8-97088-762-0 01 1 0008- ●
257 16.081 COVER; HOLE,SW
EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) (B) 		8-97088-762-0 01 1 0008- ●
257 16.081 COVER; HOLE,SW
(B) 		8-97088-762-0 01 1 0008- ●
257 16.081 COVER; HOLE,SW
(B) 		8-97088-762-0 01 1 0008- ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> 10.186 (B) 14V 0.84W 		8-97102-440-0 01 1 9712-0007 ● ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> 10.186 (B) 14V 0.84W 		8-97102-440-0 01 1 0008- ● ●
294 08.991 BULB; DEFOGGER SW
10.186 (B) 14V 0.84W 		8-97102-440-0 01 1 0008- ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-0007 ● ●
294 08.991 BULB; DEFOGGER SW
RR DEFOGGER W/AUTO CANCEL<S4Y> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
294 08.991 BULB; DEFOGGER SW
(A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 9712-0007 ● ●
307 08.991 BULB ASM; SW
(D) 14V 0.84W 		8-97262-247-0 01 1 0008- ● ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
307 08.991 BULB ASM; SW
10.186 (B) 14V 0.7W 		8-97102-439-0 01 1 0008- ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 9712-0007 ● ●
307 08.991 BULB ASM; SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) (C) 14V 		8-97102-738-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
(C) 14V 		8-97102-738-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810-0007 ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 9810-0007 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 01 1 0008- ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9712-9809 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9810-9908 ● ●
307 08.991 BULB ASM; SW
FOG LAMP FRT(T37) EXC. FOG LAMP RR<T79> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
HEADLAMP WIPER & WASHER<CE3> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ● ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> (A) 14V 0.84W 		8-97117-108-0 01 1 9909-0007 ●
307 08.991 BULB ASM; SW
ENG QUICK WARM UP SYSTEM<6JZ> (A) 14V 0.84W 		8-97117-108-0 02 1 0008- ● ●
307 08.991 BULB ASM; SW
RR WIPER & WASHER INTERMITTENT<6WJ> (A) 14V 0.84W 		8-97117-108-0 02 1 0008- ● ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 02 1 0008- ●
307 08.991 BULB ASM; SW
(A) 14V 0.84W 		8-97117-108-0 02 1 0008- ●
411 09.755 SWITCH; TRANSFER
TORQUE ON DEMAND<7HA> 		8-97142-656-1 01 1 9909- ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-519-1 01 1 9712-0007 ● ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97135-519-1 01 1 0008- ● ●
423 03.883 SWITCH; ENG WARMING 8-97135-519-1 01 1 0008- ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97110-381-0 01 1 9712- ● ●
449 08.991 BULB ASM; HEADLAMP LEVELING SW
HEADLAMP BEAM ADJUST CONT<6RC> 14V 0.84W 		8-97117-108-0 01 1 9712- ● ●
573 09.755 SWITCH; 4WD
ONE TOUCH 4X4 SYSTEM(7QY) 		8-97142-655-1 01 1 9712-9908 ● ●
573 09.755 SWITCH; 4WD
ONE TOUCH 4X4 SYSTEM(7QY) 		8-97142-655-1 01 1 9909- ●
573 09.755 SWITCH; 4WD
ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 		8-97142-655-1 01 1 9909- ●

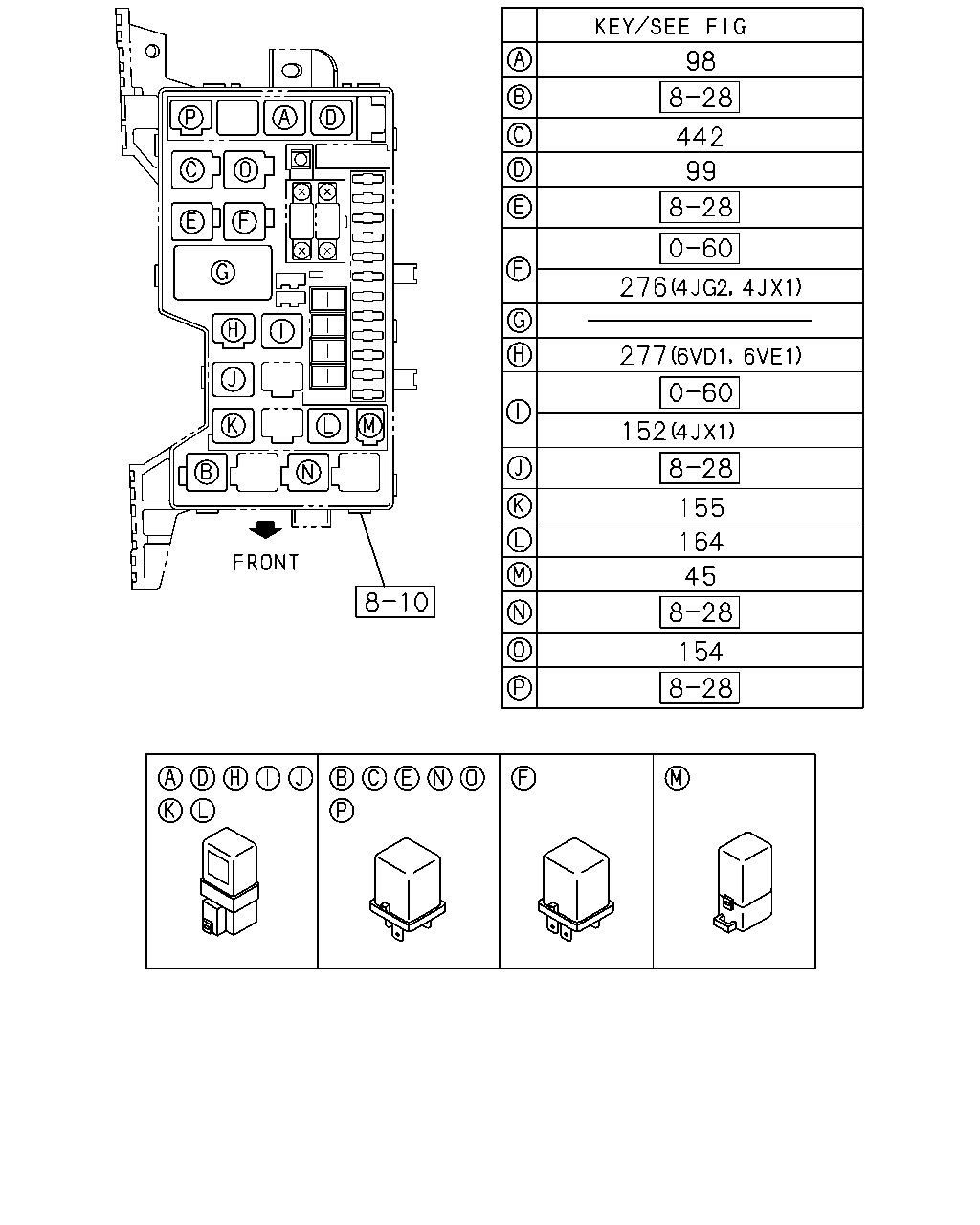

çizim 72212
98 442 99 155 164 45 154 276 277 152
BalonParca AdiParca NoAdetTipApplied Date A B C
45 02.252 RELAY; HORN 8-97018-462-0 01 1 9712-0007 ● ●
45 02.252 RELAY; HORN 8-97018-462-0 01 1 0008- ● ● ●
98 02.485 RELAY; RR FOG LAMP
FOG LAMP RR<T79> 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP FRT(T37) 02.515 12V 20A 		8-97093-910-1 01 1 9712-0007 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP FRT(T37) 02.515 12V 20A 		8-97093-910-1 01 1 0008- ● ●
99 02.485 RELAY; FOG LAMP
02.515 12V 20A 		8-97093-910-1 01 1 0008- ●
152 02.510 RELAY; CERAMIC HTR
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 9712-0005 ● ●
152 02.510 RELAY; CERAMIC HTR
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 0006- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9712-9802 ● ●
154 09.277 RELAY; CONDENSER FAN
RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9712-9802 ● ●
154 09.277 RELAY; CONDENSER FAN
6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9712-9802 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
RR COOLER<7UL> 03.910 12V 20A 		8-94218-497-0 01 1 9803-9908 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDENSER W/COOLING FAN(7XX) 03.910 12V 20A 		8-94218-497-0 01 1 9909-0007 ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDENSER W/COOLING FAN(7XX) 03.910 12V 20A 		8-94218-497-0 01 1 0008- ● ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.515 12V 20A 		8-97093-910-1 01 1 9712-9908 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.515 12V 20A 		8-97093-910-1 01 1 9909-0007 ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.515 12V 20A 		8-97093-910-1 01 1 0008- ● ●
155 09.277 RELAY; THERMO SW,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.515 12V 20A 		8-97093-910-1 01 1 0008- ●
164 02.510 RELAY; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 02.515 12V 20A 		8-97093-910-1 01 1 9712-9908 ● ●
164 02.510 RELAY; A/C
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 02.515 12V 20A 		8-97093-910-1 01 1 9909- ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC),4JX1 ENG(RJM) 12V 20A BLUE 		8-94235-627-0 01 1 9712-9901 ● ●
276 02.510 RELAY; CHARGE & AUTO CHOKE
4JG2 ENG(RJC) 12V 20A BLUE 		8-94235-627-0 01 1 9902- ● ●
277 03.900 RELAY; FUEL PUMP
6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 9712-0105 ● ●
442 02.510 RELAY
03.910 12V 20A 		8-94218-497-0 01 1 0106- ● ● ●
442 02.510 RELAY
GRADE S/SE(RBA) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4SYSTEM(7QY) 03.910 12V 20A 		8-94218-497-0 01 1 0106- ● ●

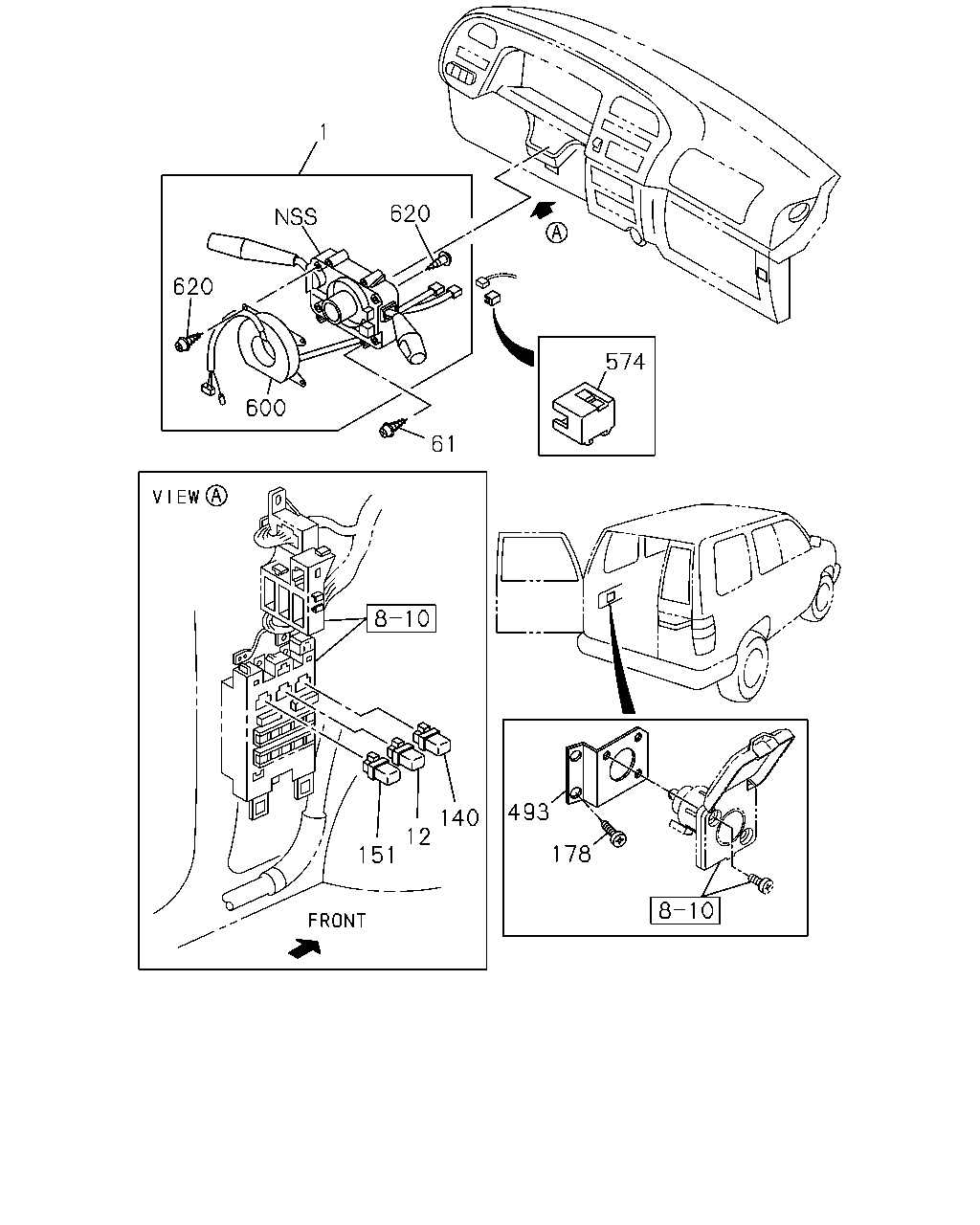

çizim 72274
1 620 620 574 600 61 493 140 12 178 151
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FOG LAMP RR<T79> FRT WIPER VARIABLE INTERMITTENT<6WH> 		8-97163-935-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. FOG LAMP RR<T79> 		8-97163-931-3 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> 		8-97163-931-5 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FOG LAMP RR<T79> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97163-933-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30>,FOG LAMP RR<T79> 		8-97163-929-3 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AUTO CRUISE CONT<K30> 		8-97163-929-5 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> EXC. FOG LAMP RR<T79> 		8-97163-930-3 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> 		8-97163-930-5 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> FOG LAMP RR<T79> 		8-97163-934-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP RR<T79> 		8-97163-928-3 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AUTO CRUISE CONT<K30> 		8-97163-928-5 01 1 9909- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13> FOG LAMP RR<T79> EXC. AUTO CRUISE CONT<K30> 		8-97163-932-2 01 1 9712-9908 ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3> 		8-97160-927-3 01 1 9712- ● ●
1 02.895 SWITCH; COMB
FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-925-2 01 1 9712-0007 ● ●
1 02.895 SWITCH; COMB
FRT WIPER VARIABLE INTERMITTENT<6WH> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-925-3 01 1 0008- ● ●
1 02.895 SWITCH; COMB 8-97160-925-3 01 1 0008- ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-97160-924-3 01 1 9712- ● ●
1 02.895 SWITCH; COMB
FRT WIPER 2 SPEED & INTERMITTENT<C13> AUTO CRUISE CONT<K30> EXC. AIR BAG DRIVER<AJ3> 		8-97160-926-3 01 1 9712- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 02.515 12V 20A 		8-97093-910-1 01 1 9712-0007 ● ●
12 08.852 RELAY; POWER WINDOW
SUNROOF<CF5> 02.515 12V 20A 		8-97093-910-1 01 1 0008- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> EXC. SUNROOF<CF5> 02.515 12V 20A 		8-97093-910-1 01 1 0008- ● ●
12 08.852 RELAY; POWER WINDOW
02.515 12V 20A 		8-97093-910-1 01 1 0008- ●
61 04.057 SCREW; SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9712-0007 ● ●
61 04.057 SCREW; SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 0008- ● ● ●
140 09.778 RELAY; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 9712-0007 ● ●
140 09.778 RELAY; RR DEFOGGER
RR DEFOGGER W/AUTO CANCEL<S4Y> 02.515 12V 20A 		8-97093-910-1 01 1 0008- ● ●
140 09.778 RELAY; RR DEFOGGER
02.515 12V 20A 		8-97093-910-1 01 1 0008- ●
151 09.277 RELAY; HTR & A/C
02.515 12V 20A 		8-97093-910-1 01 1 9712-0007 ● ●
151 09.277 RELAY; HTR & A/C
02.515 12V 20A 		8-97093-910-1 01 1 0008- ● ● ●
178 09.277 SCREW; BRKT
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0106- ● ● ●
493 09.277 BRACKET 8-97111-258-3 01 1 0106- ● ● ●
574 03.636 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> 		8-97147-637-0 01 1 9712- ● ●
600 02.895 COIL ASM; SIR
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13>, FRT WIPER VARIABLE INTERMITTENT<6WH> 		8-97215-213-0 01 1 9810- ● ●
620 02.895 SCREW; COIL,COMB SW
AIR BAG DRIVER<AJ3> FRT WIPER 2 SPEED & INTERMITTENT<C13>, FRT WIPER VARIABLE INTERMITTENT<6WH> 		8-97166-506-0 06 1 9810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
