8-16 — WIRING HARNESS CONNECTOR (#38394) — 81 parça

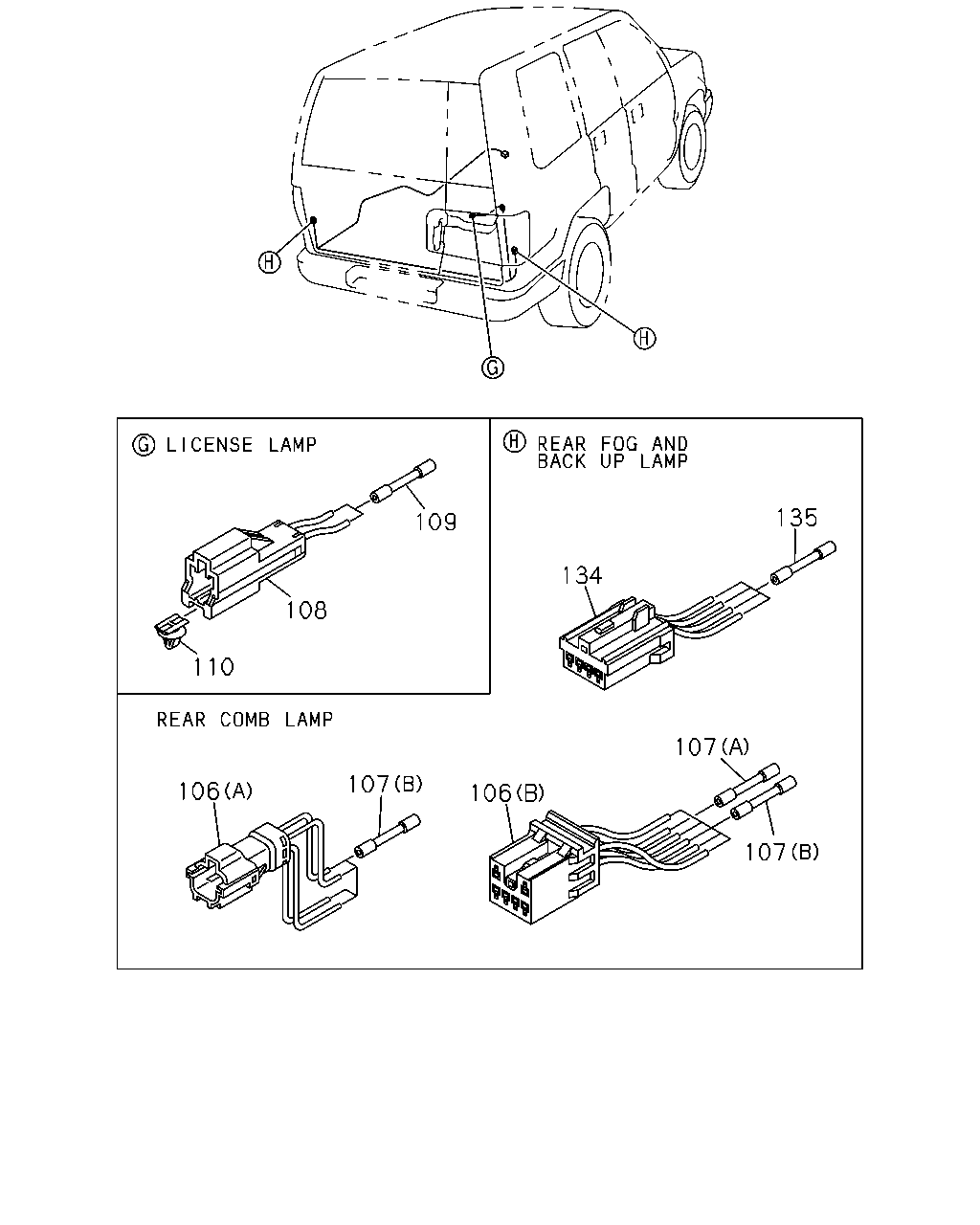

çizim 17369
135 109 134 108 110 107 107 106 106 107
BalonParca AdiParca NoAdetTipApplied Date A B C
106 02.483 CONNECTOR; RR COMB LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) 		8-97175-449-0 02 1 9712-0005 ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) 		8-97175-449-0 02 1 0006- ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B) 		8-97174-887-0 02 1 9712-0005 ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97174-887-0 02 1 0006-0007 ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97174-887-0 02 1 0008- ● ●
106 02.483 CONNECTOR; RR COMB LAMP
(B) 		8-97174-887-0 02 1 0008- ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 08 1 9712-0007 ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 08 1 0008- ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-0005 ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0006-0007 ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ●
108 02.483 CONNECTOR; LICENSE LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 2P MALE NATURAL 		8-97170-988-0 01 1 9712-0005 ● ●
108 02.483 CONNECTOR; LICENSE LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 2P MALE NATURAL 		8-97170-988-0 01 1 0006-0007 ● ●
108 02.483 CONNECTOR; LICENSE LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 2P MALE NATURAL 		8-97170-988-0 01 1 0008- ● ●
108 02.483 CONNECTOR; LICENSE LAMP
2P MALE NATURAL 		8-97170-988-0 01 1 0008- ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-0005 ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0006-0007 ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ●
110 02.483 CLIP; CONNECTOR
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 01.152 OD=7 H=1.2 		8-94364-750-0 01 1 9712-0005 ● ●
110 02.483 CLIP; CONNECTOR
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.152 OD=7 H=1.2 		8-94364-750-0 01 1 0006-0007 ● ●
110 02.483 CLIP; CONNECTOR
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.152 OD=7 H=1.2 		8-94364-750-0 01 1 0008- ● ●
110 02.483 CLIP; CONNECTOR
01.152 OD=7 H=1.2 		8-94364-750-0 01 1 0008- ●
134 02.483 CONNECTOR; RR FOG & BACK UP LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97175-448-0 02 1 9712-0005 ● ●
134 02.483 CONNECTOR; RR FOG & BACK UP LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97175-448-0 02 1 0006- ● ●
135 02.483 TERMINAL; JOINT,RR FOG & BACK UP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 06 1 9712-0005 ● ●
135 02.483 TERMINAL; JOINT,RR FOG & BACK UP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 06 1 0006- ● ●
çizim 69007
102 122 103 123 132 133
BalonParca AdiParca NoAdetTipApplied Date A B C
102 02.483 CONNECTOR; A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60) 		8-97174-883-0 01 1 9712-9908 ● ●
102 02.483 CONNECTOR; A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97174-883-0 01 1 9909-0007 ● ●
102 02.483 CONNECTOR; A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 		8-97174-883-0 01 1 0008- ● ●
102 02.483 CONNECTOR; A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60) 		8-97174-883-0 01 1 0008- ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-9908 ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9909-0007 ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ●
122 02.483 CONNECTOR; THERMO SENSOR
ACCESSORY METER<7HT> 		8-97174-884-0 01 1 9712-0007 ● ●
122 02.483 CONNECTOR; THERMO SENSOR
ACCESSORY METER<7HT> 		8-97174-884-0 01 1 0008- ● ● ●
123 02.483 TERMINAL; JOINT,THERMO SENSOR
ACCESSORY METER<7HT> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-0007 ● ●
123 02.483 TERMINAL; JOINT,THERMO SENSOR
ACCESSORY METER<7HT> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ● ●
132 02.483 CONNECTOR; A/C FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97175-447-0 01 1 9712-0007 ● ●
132 02.483 CONNECTOR; A/C FAN
6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) 		8-97175-447-0 01 1 9712-0007 ●
132 02.483 CONNECTOR; A/C FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) 		8-97175-447-0 01 1 0008- ● ●
133 02.483 TERMINAL; JOINT,A/C FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712-0007 ● ●
133 02.483 TERMINAL; JOINT,A/C FAN
6VD1 ENG(RLV) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) PHILIPPINE EQUIPMENT(S2U) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712-0007 ●
133 02.483 TERMINAL; JOINT,A/C FAN
AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 0008- ● ●

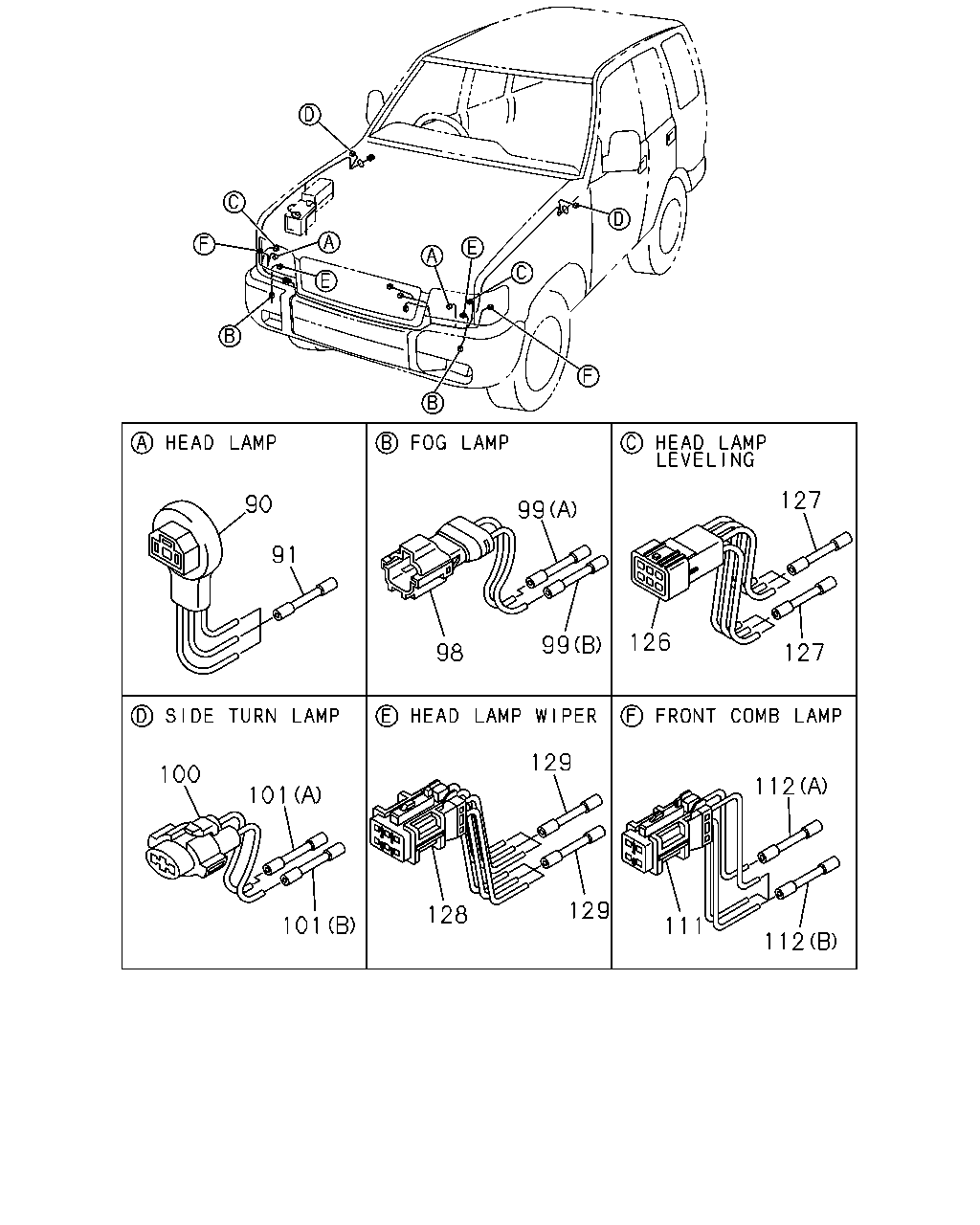

çizim 69760
127 90 99 91 126 99 127 98 129 100 112 101 129 128 101 111 112
BalonParca AdiParca NoAdetTipApplied Date A B C
90 02.483 CONNECTOR; HEAD LAMP
3P FEMALE BLACK 		8-97170-978-0 02 1 9712-0007 ● ●
90 02.483 CONNECTOR; HEAD LAMP
3P FEMALE BLACK 		8-97170-978-0 02 1 0008- ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 06 1 9712-0007 ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 06 1 0008- ● ● ●
98 02.483 CONNECTOR; FRT FOG LAMP
FOG LAMP FRT(T37) 2P MALE GRAY 		8-97170-984-0 02 1 9712-0007 ● ●
98 02.483 CONNECTOR; FRT FOG LAMP
FOG LAMP FRT(T37) 2P MALE GRAY 		8-97170-984-0 02 1 0008- ● ●
98 02.483 CONNECTOR; FRT FOG LAMP
2P MALE GRAY 		8-97170-984-0 02 1 0008- ●
99 02.483 TERMINAL; JOINT,FRT FOG LAMP
FOG LAMP FRT(T37) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-0007 ● ●
99 02.483 TERMINAL; JOINT,FRT FOG LAMP
FOG LAMP FRT(T37) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ●
99 02.483 TERMINAL; JOINT,FRT FOG LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ●
99 02.483 TERMINAL; JOINT,FRT FOG LAMP
FOG LAMP FRT(T37) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712-0007 ● ●
99 02.483 TERMINAL; JOINT,FRT FOG LAMP
FOG LAMP FRT(T37) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 0008- ● ●
99 02.483 TERMINAL; JOINT,FRT FOG LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 0008- ●
100 02.483 CONNECTOR; SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97174-886-0 02 1 9712-0005 ● ●
100 02.483 CONNECTOR; SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97174-886-0 02 1 0006- ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-0005 ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0006-0007 ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712-0005 ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 0006-0007 ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 0008- ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 0008- ●
111 02.483 CONNECTOR; FRT COMB LAMP 8-97175-445-0 02 1 9712-0007 ● ●
111 02.483 CONNECTOR; FRT COMB LAMP 8-97175-445-0 02 1 0008- ● ● ●
112 02.483 TERMINAL; JOINT,FRT COMB LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712-0007 ● ●
112 02.483 TERMINAL; JOINT,FRT COMB LAMP
(A) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 0008- ● ● ●
112 02.483 TERMINAL; JOINT,FRT COMB LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 04 1 9712-0007 ● ●
112 02.483 TERMINAL; JOINT,FRT COMB LAMP
(B) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 04 1 0008- ● ● ●
126 02.483 CONNECTOR; HEAD LAMP LEVELING
HEADLAMP BEAM ADJUST CONT<6RC> 		8-97175-444-0 02 1 9712- ● ●
127 02.483 TERMINAL; JOINT,HEAD LAMP LEVELI
HEADLAMP BEAM ADJUST CONT<6RC> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 12 1 9712- ● ●
128 02.483 CONNECTOR; HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97174-885-0 02 1 9712-0007 ● ●
128 02.483 CONNECTOR; HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> 		8-97174-885-0 02 1 0008- ● ● ●
129 02.483 TERMINAL; JOINT,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 10 1 9712-0007 ● ●
129 02.483 TERMINAL; JOINT,HEAD LAMP WIPER
HEADLAMP WIPER & WASHER<CE3> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 10 1 0008- ● ● ●
