Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#38393) — 689 parça

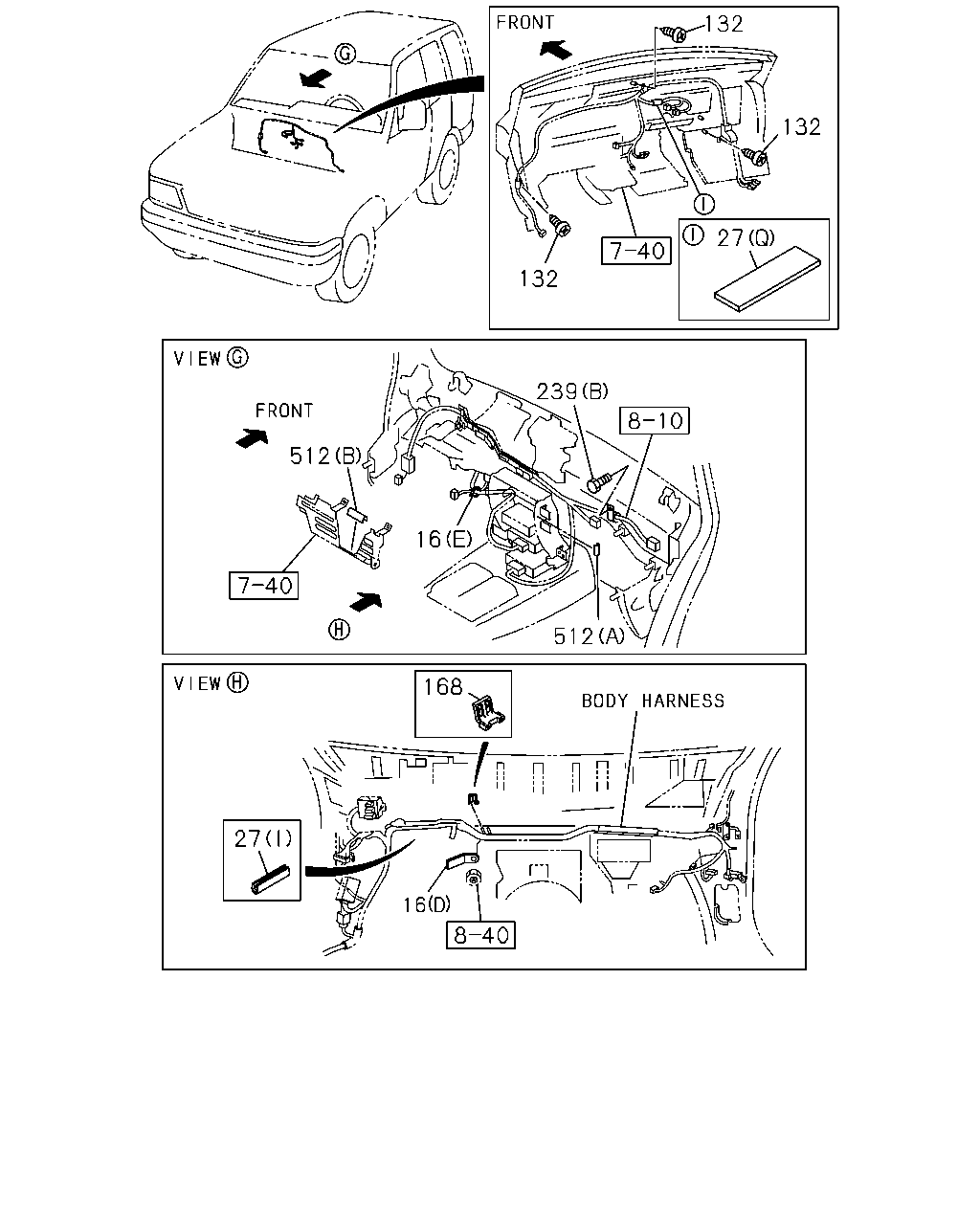

132 132 27 132 239 512 16 512 168 27 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	0008-	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (G) L=140	5-09707-031-1	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0007	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105			●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-			●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 01.152 (D) L=63	1-09700-418-1	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-			●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (H) ID=16	8-97040-812-0	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
132	02.559 SCREW; HARNESS 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9712-0007	●	●
132	02.559 SCREW; HARNESS 16.085 M5X16 TAPPING	9-09829-323-1	04	1	0008-	●	●	●
168	02.559 CLIP; DASH HARNESS	8-97807-829-0	01	1	9712-0007	●	●
168	02.559 CLIP; DASH HARNESS	8-97807-829-0	01	1	0008-	●	●	●
239	02.559 BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-0007	●	●
239	02.559 BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0008-	●	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9712-9908	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9909-0007	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0008-0109	●	●
239	02.559 BOLT; GRAND 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0008-0109			●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 00.662 (A) M8X14 FLANGE	0-28080-814-0	01	1	0110-	●	●
239	02.559 BOLT; GRAND 00.662 (A) M8X14 FLANGE	0-28080-814-0	01	1	0110-			●
512	02.559 PROTECTOR; HARNESS 16.570 (A) L=73 SERVICED BY L=190	1-71998-300-0	01	1	9712-0005	●	●
512	02.559 PROTECTOR; HARNESS (A) L=80	5-71997-133-0	01	1	0006-0007	●	●
512	02.559 PROTECTOR; HARNESS (A) L=80	5-71997-133-0	01	1	0008-	●	●	●
512	02.559 PROTECTOR; HARNESS AIR BAG DRIVER<AJ3> 16.570 (B) L=120 SERVICED BY L=190	1-71998-300-0	01	1	9909-	●	●

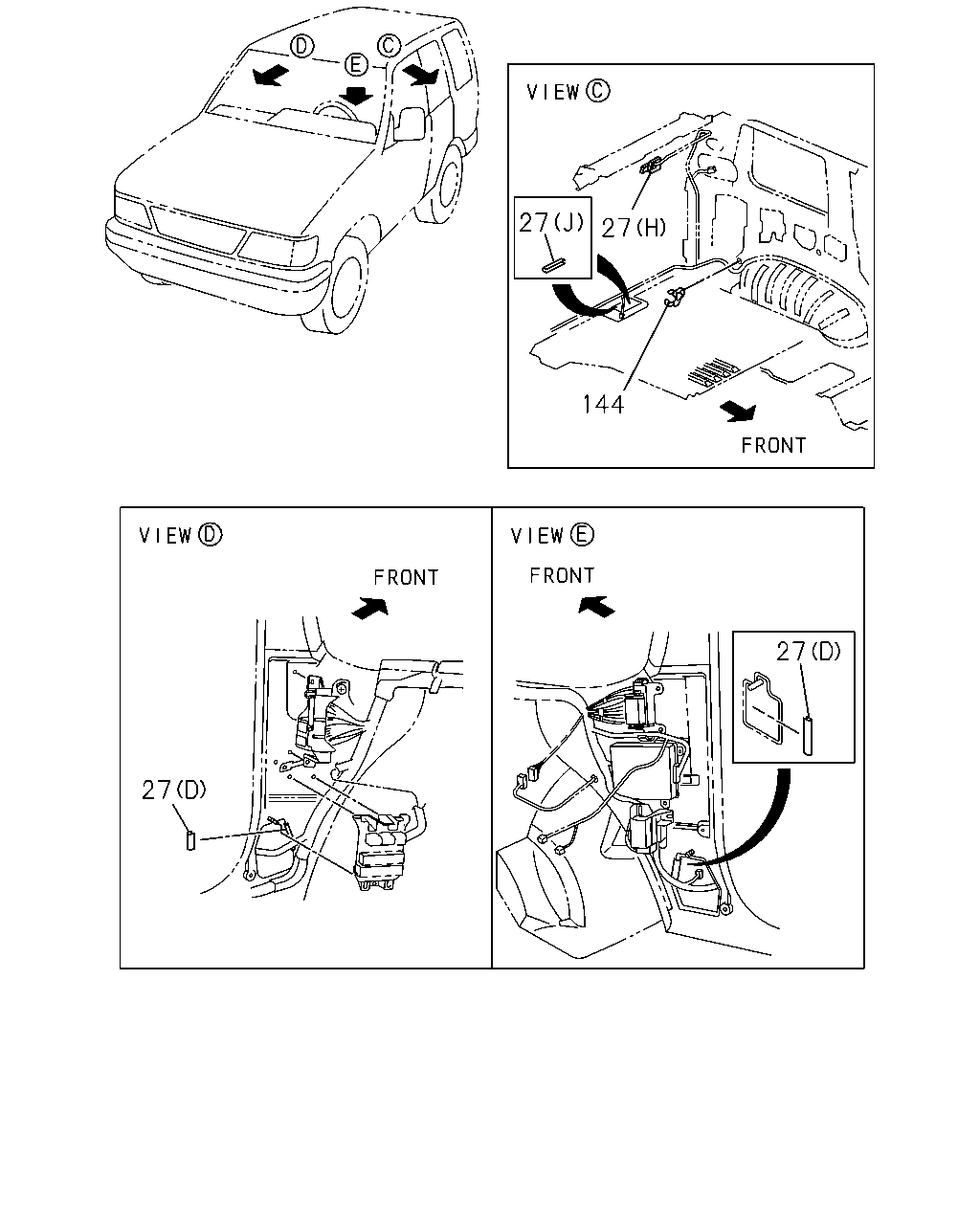

27 27 144 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
144	02.694 CLIP; TAIL LAMP HARNESS ID=6 & 10-13	8-97069-515-0	01	1	9712-0007	●	●
144	02.694 CLIP; TAIL LAMP HARNESS ID=6 & 10-13	8-97069-515-0	01	1	0008-	●	●	●

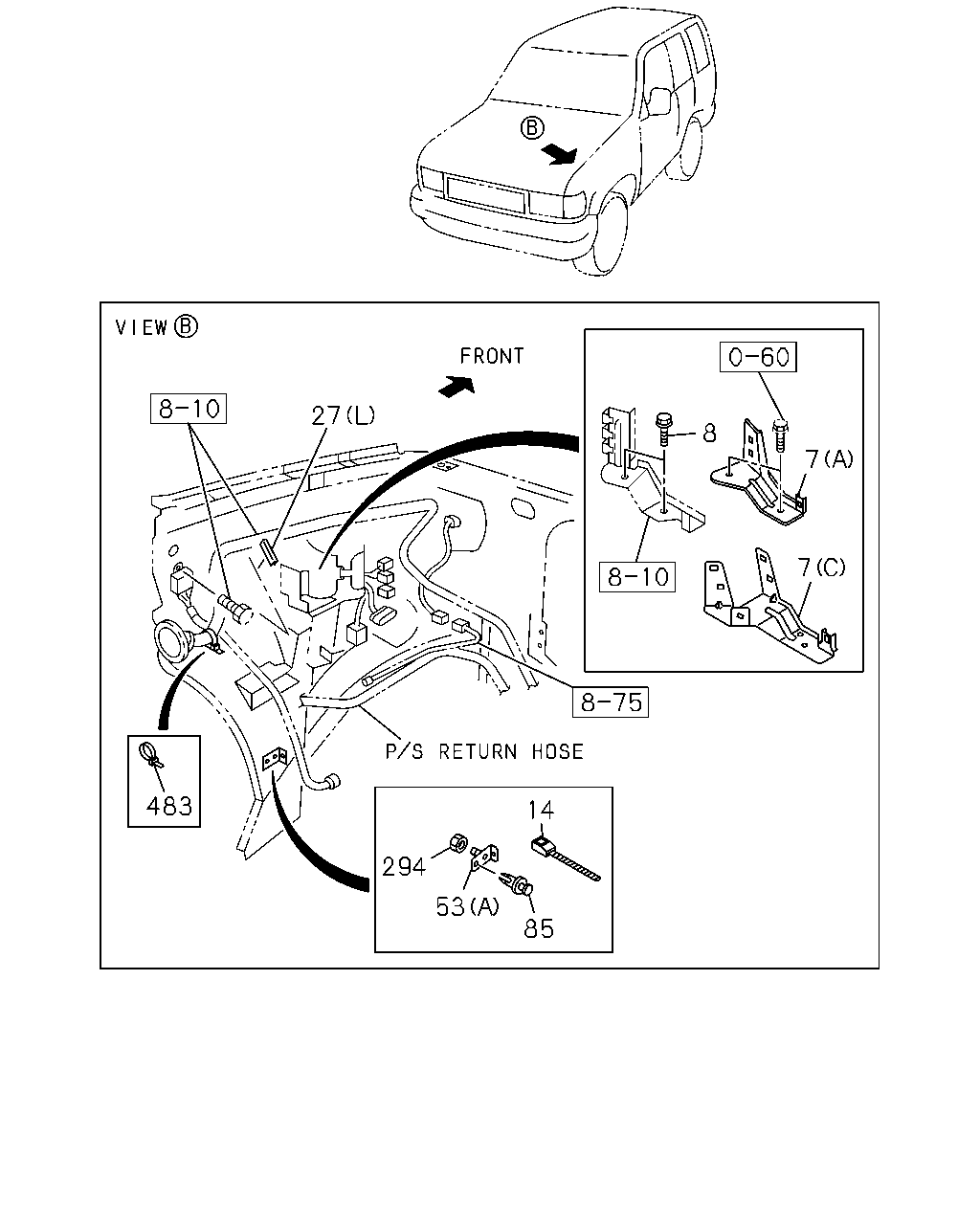

27 8 7 7 483 14 294 53 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97802-171-0	01	1	9712-0105	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (C)	8-97302-452-0	01	1	0106-	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97805-895-0	01	1	9712-0007	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97805-895-0	01	1	0008-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-97805-895-0	01	1	0008-			●
8	02.559 BOLT; BRKT,CONNECTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
14	02.559 CLIP; BAND,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 00.785 L=300	8-94151-373-0	02	1	9801-9808	●	●
14	02.559 CLIP; BAND,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 00.785 L=300	8-94151-373-0	03	1	9809-9908	●	●
14	02.559 CLIP; BAND,HARNESS 4JX1 ENG(RJM) 00.785 L=300	8-94151-373-0	03	1	9909-0007	●	●
14	02.559 CLIP; BAND,HARNESS 4JX1 ENG(RJM) 00.785 L=300	8-94151-373-0	03	1	0008-	●	●
14	02.559 CLIP; BAND,HARNESS 00.785 L=300	8-94151-373-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) 02.698 (A)	8-97805-901-3	01	1	9712-9908	●	●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9909-	●	●
53	02.483 BRACKET; HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B)	8-97203-573-0	01	1	9801-9903	●	●
53	02.483 BRACKET; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.698 (A)	8-97807-647-2	01	1	9712-9901	●	●
85	02.483 CLIP; BRKT ASM,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 12.801 D6.8X12	8-94198-687-0	01	1	9712-9901	●	●
294	02.559 NUT 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-9901	●	●
483	02.559 CLIP; ENG HARNESS L=212	8-94107-652-0	01	1	9712-0007	●	●
483	02.559 CLIP; ENG HARNESS L=212	8-94107-652-0	01	1	0008-0108	●	●	●
483	02.559 CLIP; ENG HARNESS 02.587 L=172	8-94232-620-0	01	1	0109-	●	●	●

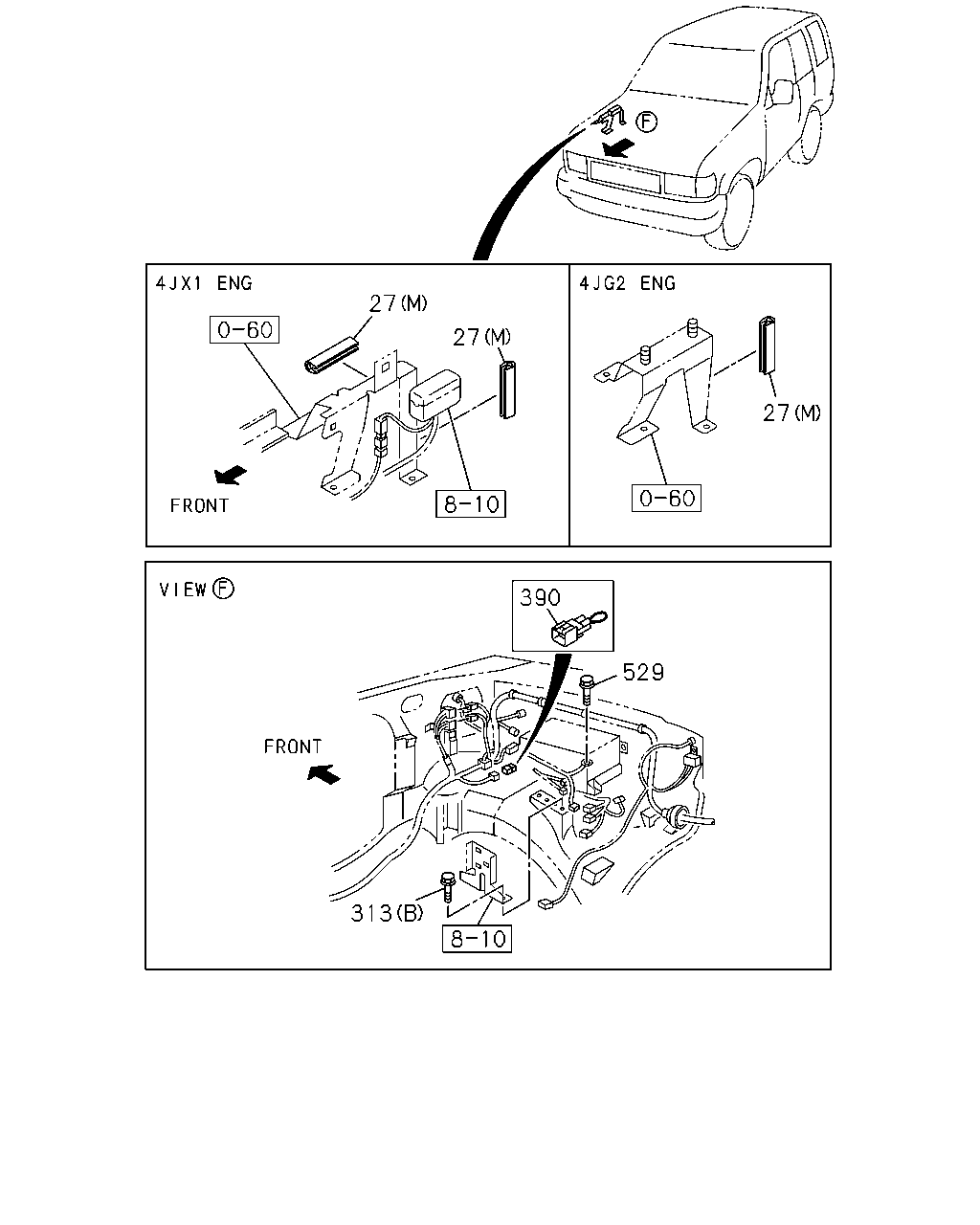

27 27 27 390 529 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
313	02.559 BOLT; BRKT 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●
390	02.480 CONNECTOR; SHORT CIRCUIT 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX)	8-97110-718-0	01	1	9712-0007	●	●
390	02.480 CONNECTOR; SHORT CIRCUIT 4JG2 ENG(RJC),4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX)	8-97110-718-0	01	1	0008-	●	●
390	02.480 CONNECTOR; SHORT CIRCUIT	8-97110-718-0	01	1	0008-			●
529	02.559 BOLT; RELAY BOX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-0007	●	●
529	02.559 BOLT; RELAY BOX 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0008-	●	●	●

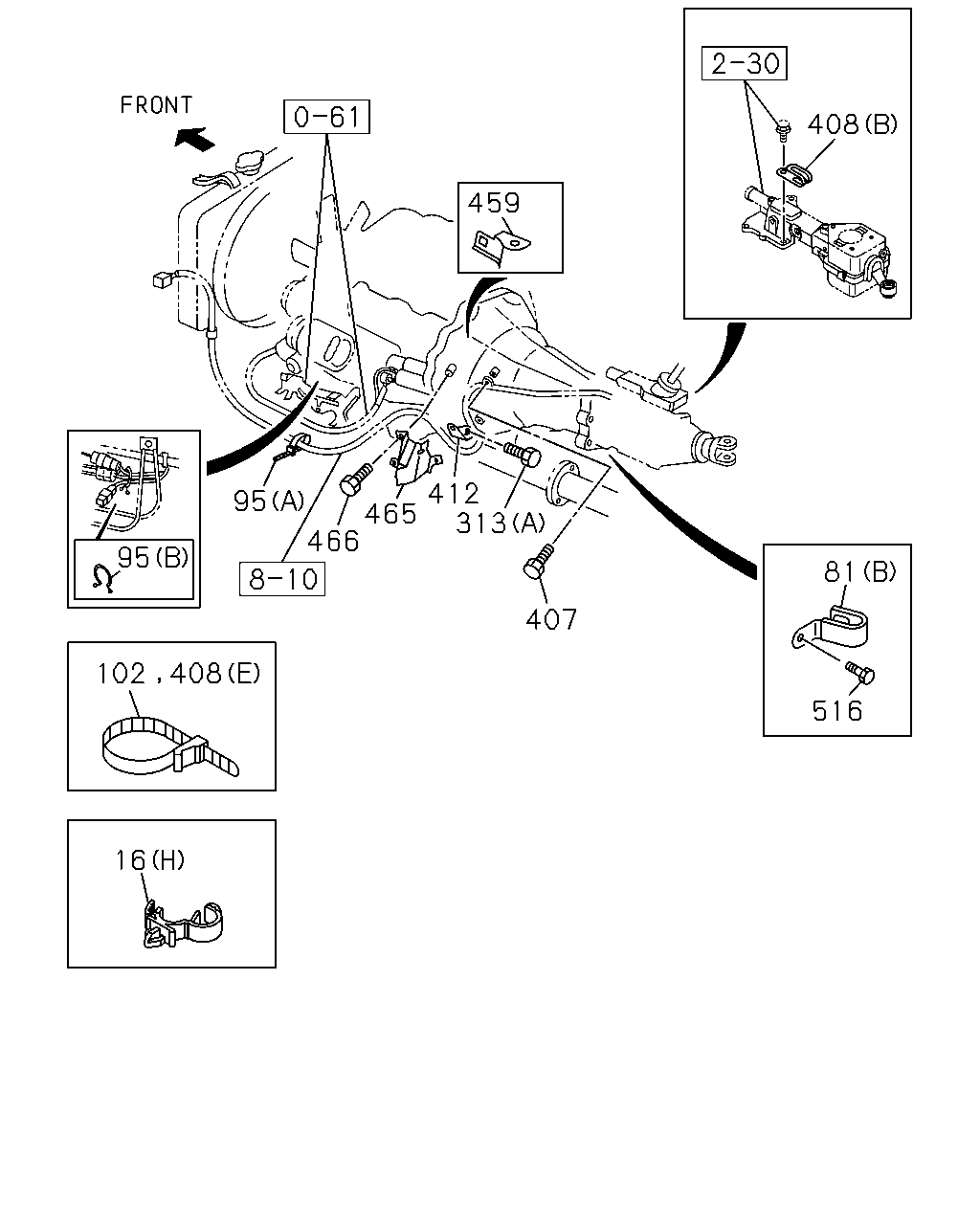

408 459 412 465 313 466 95 95 81 407 516 16 102 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	0008-	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (G) L=140	5-09707-031-1	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0007	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105			●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-			●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 01.152 (D) L=63	1-09700-418-1	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-			●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (H) ID=16	8-97040-812-0	01	1	0106-	●	●
81	02.483 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 02.559 (B) ID=22	8-97022-767-0	01	1	0106-	●	●
81	02.483 CLIP; HARNESS TORQUE ON DEMAND<7HA> 03.162 (A) L=140	5-09707-031-1	01	1	9909-		●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) 03.162 (A) L=140	5-09707-031-1	01	1	9712-	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 02.480 (B) ID=25	8-94120-831-0	01	1	9802-0005	●	●
95	02.559 CLIP; CABLE 4JG2 ENG(RJC) TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 02.480 (B) ID=25	8-94120-831-0	01	1	0006-		●
102	02.559 CLIP; BAND 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 03.162 L=140	5-09707-031-1	01	1	0106-	●	●
313	02.559 BOLT; BRKT 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 (A) M6X10 FLANGE	0-28080-610-0	01	1	9712-	●	●
313	02.559 BOLT; BRKT 6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 06.635 (B) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0106-0107	●	●
407	02.483 BOLT; HARNESS TO TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0108-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. TORQUE ON DEMAND<7HA> 03.430 (E) L=200	8-94464-835-0	03	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (D) L=80	5-09700-307-1	01	1	9902-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (C)	8-97180-221-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (A) ID=16	9-09525-522-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> 03.162 (F) L=140	5-09707-031-1	07	1	0106-		●
412	02.559 BRACKET; HARNESS,TRANS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-94359-008-1	01	1	9712-	●	●
412	02.559 BRACKET; HARNESS,TRANS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK)	8-97174-711-0	01	1	9712-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN)	8-94315-284-0	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97809-116-1	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK)	8-97163-785-0	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ)	8-97169-910-1	01	1	9712-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 04.439 M6X16 FLANGE	0-28680-616-0	03	1	9712-9807	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9808-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-	●	●
516	02.559 BOLT; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0106-	●	●

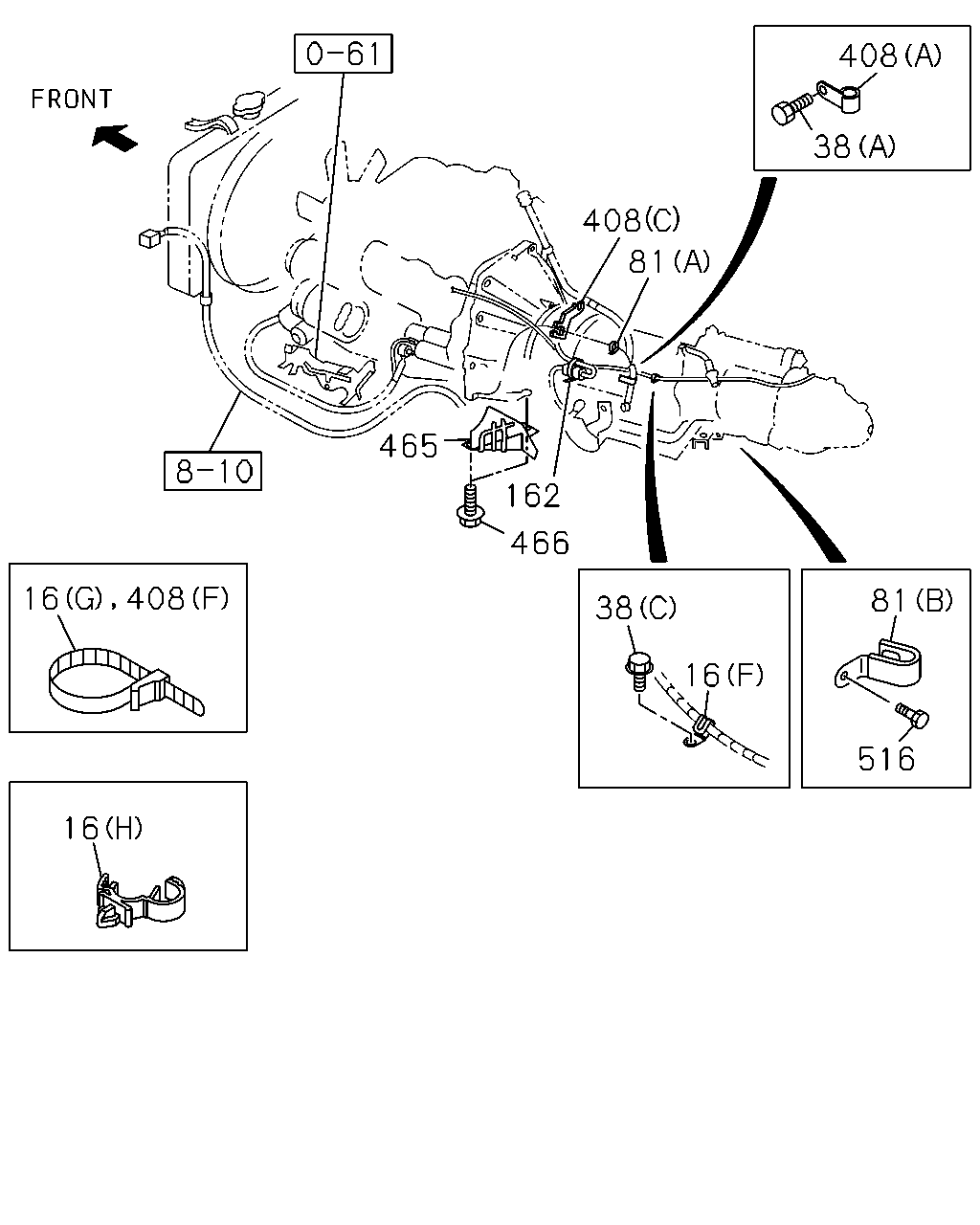

408 38 408 81 465 162 466 16 81 38 16 516 16 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	0008-	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (G) L=140	5-09707-031-1	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0007	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105			●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-			●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 01.152 (D) L=63	1-09700-418-1	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-			●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (H) ID=16	8-97040-812-0	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	9909-0007	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0008-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0008-0105			●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-			●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.428 (E) M6X12 FLANGE	0-28080-612-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 03.611 (D) M10X20 FLANGE	0-28681-020-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (A) M4X12 W/LK WASHER	8-97066-403-1	01	1	9712-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9712-9908	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9909-	●	●
81	02.483 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 02.559 (B) ID=22	8-97022-767-0	01	1	0106-	●	●
81	02.483 CLIP; HARNESS TORQUE ON DEMAND<7HA> 03.162 (A) L=140	5-09707-031-1	01	1	9909-		●
162	02.559 CLIP; SW HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 03.430 L=200	8-94464-835-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. TORQUE ON DEMAND<7HA> 03.430 (E) L=200	8-94464-835-0	03	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (D) L=80	5-09700-307-1	01	1	9902-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (C)	8-97180-221-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (A) ID=16	9-09525-522-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> 03.162 (F) L=140	5-09707-031-1	07	1	0106-		●
465	02.483 PROTECTOR; HEAT,HARNESS 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN)	8-97809-116-1	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK)	8-97163-785-0	01	1	9712-	●	●
465	02.483 PROTECTOR; HEAT,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ)	8-97169-910-1	01	1	9712-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 04.439 M6X16 FLANGE	0-28680-616-0	03	1	9712-9807	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9808-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-	●	●
466	02.483 BOLT; HEAT PROTECTOR 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9712-	●	●
516	02.559 BOLT; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0106-	●	●

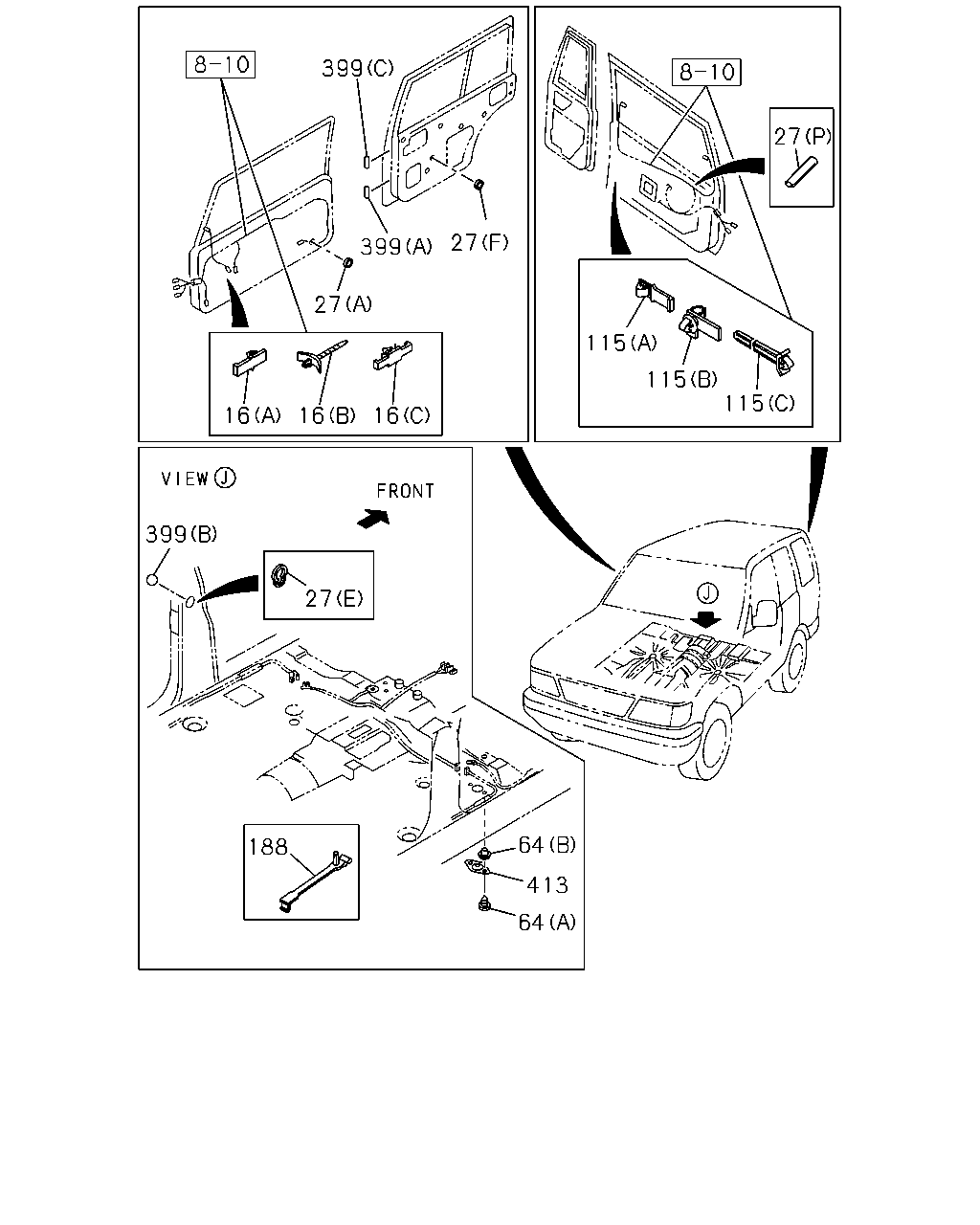

399 27 27 399 27 115 115 115 16 16 16 399 27 64 188 413 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	9712-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.594 (E) L=100	5-09707-036-1	01	1	0008-	●	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (B) L=104	8-94433-185-0	02	1	9712-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C) L=60	8-94449-165-0	06	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (C)	8-97229-356-0	06	1	0201-	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=36.5	8-97019-892-0	08	1	9712-0112	●	●
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> (A) L=40.6	8-97229-357-0	08	1	0201-	●	●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (G) L=140	5-09707-031-1	01	1	0106-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9909-0007	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0008-0105			●
16	02.559 CLIP; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-	●	●
16	02.559 CLIP; HARNESS (F) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0106-			●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 01.152 (D) L=63	1-09700-418-1	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9802	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 00.446 (D) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9803-0004	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0005-0007	●	●
16	02.559 CLIP; HARNESS ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 4JX1 ENG(RJM) EXC. ANTI THEFT<UA6> 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-	●	●
16	02.559 CLIP; HARNESS 04.866 (D) ID=19 L=28	9-09525-852-0	01	1	0008-			●
16	02.559 CLIP; HARNESS 6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (H) ID=16	8-97040-812-0	01	1	0106-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
64	02.559 SCREW; CLIP 10.240 (A) M5X14	8-94120-095-0	02	1	9712-0007	●	●
64	02.559 SCREW; CLIP 10.240 (A) M5X14	8-94120-095-0	02	1	0008-	●	●	●
64	02.559 SCREW; CLIP 02.679 (B) D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	9712-0007	●	●
64	02.559 SCREW; CLIP 02.679 (B) D=7.9X7.9 L=20 M5	8-94441-539-0	02	1	0008-	●	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (C)	8-94338-044-0	01	1	9712-9812	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C)	8-94338-044-0	01	1	9901-9908	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD),AR GENTINA EQUIPMENT(7SZ) (C)	8-94338-044-0	01	1	9901-9908		●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),RR WIPER & WASHER INTERMITTENT<6WJ>,GUATEMAL A/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C)	8-94338-044-0	01	1	9909-0005	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), CHILE EQUIPMENT(6KB),RR WIPER & WASHER INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQ UIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C)	8-94338-044-0	01	1	0006-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),R R WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C)	8-94338-044-0	03	1	9712-9712	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9712-9712	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9801-9812	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),R R WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (C)	8-94338-044-0	03	1	9801-9812	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	9901-0007	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (C)	8-94338-044-0	03	1	0008-	●	●
115	02.559 CLIP; DOOR HARNESS (C)	8-94338-044-0	03	1	0008-			●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),R R WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B)	8-97804-785-0	02	1	9712-9812	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),RR WIPER & WA SHER INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (B)	8-97804-785-0	02	1	9901-0005	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),RR WIPER & WASHER INTERMITTENT<6WJ>,GU ATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) (B)	8-97804-785-0	02	1	0006-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (A) L=36.5	8-97019-892-0	04	1	9712-9812	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTE RMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) L=36.5	8-97019-892-0	04	1	9712-9812	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (A) L=36.5	8-97019-892-0	04	1	9901-0005	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD),AR GENTINA EQUIPMENT(7SZ) (A) L=36.5	8-97019-892-0	04	1	9901-0005	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (A) L=36.5	8-97019-892-0	04	1	0006-0007	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) L=36.5	8-97019-892-0	04	1	0006-0007	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> (A) L=36.5	8-97019-892-0	04	1	0008-	●	●
115	02.559 CLIP; DOOR HARNESS AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) (A) L=36.5	8-97019-892-0	04	1	0008-	●	●
115	02.559 CLIP; DOOR HARNESS (A) L=36.5	8-97019-892-0	04	1	0008-			●
115	02.559 CLIP; DOOR HARNESS CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> (A) L=36.5	8-97019-892-0	01	1	9712-0005	●	●
115	02.559 CLIP; DOOR HARNESS CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> (A) L=36.5	8-97019-892-0	01	1	0006-	●	●
115	02.559 CLIP; DOOR HARNESS CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (B)	8-97804-785-0	03	1	9712-0005	●	●
115	02.559 CLIP; DOOR HARNESS CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> (B)	8-97804-785-0	03	1	0006-	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	05	1	9712-9812	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	9901-0007	●	●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> (B)	8-97804-785-0	04	1	0008-	●	●
115	02.559 CLIP; DOOR HARNESS (B)	8-97804-785-0	04	1	0008-			●
115	02.559 CLIP; DOOR HARNESS RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> (A) L=36.5	8-97019-892-0	02	1	9712-	●	●
188	02.559 CLIP; CHAS HARN TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> L=55	8-94473-398-0	01	1	9909-0105		●
188	02.559 CLIP; CHAS HARN TO BODY 6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) L=55	8-94473-398-0	01	1	0106-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.592 (A) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9712-9810		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9811-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (B)	8-97115-143-0	02	1	9712-		●
399	02.559 COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4> (C)	8-97115-144-0	02	1	9712-		●
413	02.559 PLUG; CAVITY,HARNESS	8-97803-276-0	01	1	9712-9908	●	●
413	02.559 PLUG; CAVITY,HARNESS	8-97803-276-0	01	1	9909-0007	●
413	02.559 PLUG; CAVITY,HARNESS EXC. TORQUE ON DEMAND<7HA>	8-97803-276-0	01	1	9909-0007		●
413	02.559 PLUG; CAVITY,HARNESS	8-97803-276-0	01	1	0008-	●		●
413	02.559 PLUG; CAVITY,HARNESS EXC. TORQUE ON DEMAND<7HA>	8-97803-276-0	01	1	0008-		●

7 27 27 27 27 27 27 27 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (A)	8-97802-171-0	01	1	9712-0105	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC) (C)	8-97302-452-0	01	1	0106-	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97805-895-0	01	1	9712-0007	●	●
7	02.559 BRACKET; CONNECTOR 4JG2 ENG(RJC),4JX1 ENG(RJM) (B)	8-97805-895-0	01	1	0008-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-97805-895-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
130	02.559 CLIP; WASHER HARNESS 4JG2 ENG(RJC) HEADLAMP WIPER & WASHER<CE3> 04.594 L=100	5-09707-036-1	01	1	9712-9908	●	●
130	02.559 CLIP; WASHER HARNESS 4JG2 ENG(RJC) HEADLAMP WIPER & WASHER<CE3> 04.594 L=100	5-09707-036-1	01	1	9909-	●	●

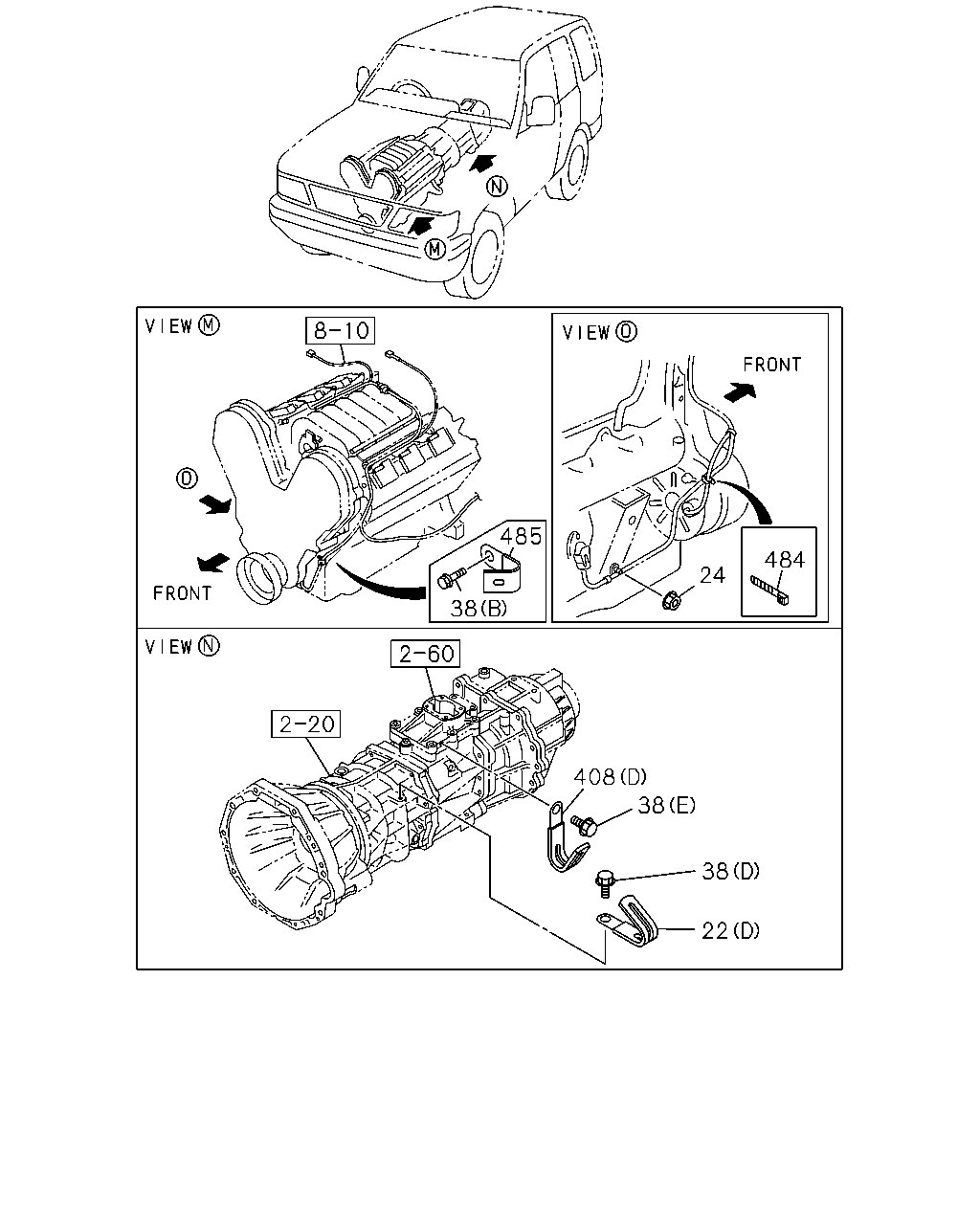

485 484 24 38 408 38 38 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 00.446 (C) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9805	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	9806-9908	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	9909-0007	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	0008-0302	●	●
22	02.559 CLIP; ENG HARNESS 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	0008-0302			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 02.313 (C) ID=18 L=44	8-97367-985-0	01	1	0303-	●	●
22	02.559 CLIP; ENG HARNESS 02.313 (C) ID=18 L=44	8-97367-985-0	01	1	0303-			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	9712-9908	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	9909-0007	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0008-0105	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0008-0105			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0106-0208			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0209-0212	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0209-0212			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0301-	●	●
22	02.559 CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0301-			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (A) ID=9	8-97063-874-0	01	1	9712-9908	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) (A) ID=9	8-97063-874-0	01	1	9909-0007	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) (A) ID=9	8-97063-874-0	01	1	0008-0105	●	●
22	02.559 CLIP; ENG HARNESS (A) ID=9	8-97063-874-0	01	1	0008-0105			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (A) ID=9	8-97063-874-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS (A) ID=9	8-97063-874-0	01	1	0106-0208			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0209-0212	●	●
22	02.559 CLIP; ENG HARNESS (A) ID=9	8-97063-874-0	01	1	0209-0212			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0301-	●	●
22	02.559 CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0301-			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.152 (D) L=36	8-94224-891-1	01	1	9902-	●	●
24	02.559 NUT; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 07.833 M8 W/LK WASHER	8-94327-073-0	01	1	9712-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	9909-0007	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0008-0105	●	●
38	02.559 BOLT; CLIP,HARNESS 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0008-0105			●
38	02.559 BOLT; CLIP,HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) A/T AISIN(RMD) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-	●	●
38	02.559 BOLT; CLIP,HARNESS 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0106-			●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.428 (E) M6X12 FLANGE	0-28080-612-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 03.611 (D) M10X20 FLANGE	0-28681-020-0	01	1	9902-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (A) M4X12 W/LK WASHER	8-97066-403-1	01	1	9712-	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9712-9908	●	●
38	02.559 BOLT; CLIP,HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9909-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) EXC. TORQUE ON DEMAND<7HA> 03.430 (E) L=200	8-94464-835-0	03	1	0106-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9801-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (D) L=80	5-09700-307-1	01	1	9902-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) (C)	8-97180-221-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) 00.785 (A) ID=16	9-09525-522-0	01	1	9712-	●	●
408	02.559 CLIP; TRANS HARNESS 4JG2 ENG(RJC) A/T AISIN(RMD) TORQUE ON DEMAND<7HA> 03.162 (F) L=140	5-09707-031-1	07	1	0106-		●
484	02.559 CLIP; ECGI HARNESS TO C/MBR 6VE1 ENG(RJQ),6VD1 ENG(RLV) 04.594 L=100	5-09707-036-1	01	1	9712-	●	●
485	02.559 CLIP; HARNESS,ECGI 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94327-574-0	01	1	9712-9908	●	●
485	02.559 CLIP; HARNESS,ECGI 6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68)	8-94327-574-0	01	1	9909-	●	●

292 27 22 53 22 239 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 00.446 (C) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9805	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	9806-9908	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	9909-0007	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	0008-0302	●	●
22	02.559 CLIP; ENG HARNESS 01.152 (C) ID=18 L=44	8-94225-185-0	01	1	0008-0302			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 02.313 (C) ID=18 L=44	8-97367-985-0	01	1	0303-	●	●
22	02.559 CLIP; ENG HARNESS 02.313 (C) ID=18 L=44	8-97367-985-0	01	1	0303-			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	9712-9908	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	9909-0007	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0008-0105	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0008-0105			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0106-0208			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0209-0212	●	●
22	02.559 CLIP; ENG HARNESS 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0209-0212			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0301-	●	●
22	02.559 CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NT3) 03.483 (B) ID=6 & 10	8-94154-844-0	01	1	0301-			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (A) ID=9	8-97063-874-0	01	1	9712-9908	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) (A) ID=9	8-97063-874-0	01	1	9909-0007	●	●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) (A) ID=9	8-97063-874-0	01	1	0008-0105	●	●
22	02.559 CLIP; ENG HARNESS (A) ID=9	8-97063-874-0	01	1	0008-0105			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (A) ID=9	8-97063-874-0	01	1	0106-0208	●	●
22	02.559 CLIP; ENG HARNESS (A) ID=9	8-97063-874-0	01	1	0106-0208			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0209-0212	●	●
22	02.559 CLIP; ENG HARNESS (A) ID=9	8-97063-874-0	01	1	0209-0212			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0301-	●	●
22	02.559 CLIP; ENG HARNESS EXC. EURO3 SPECIFICATION(NT3) (A) ID=9	8-97063-874-0	01	1	0301-			●
22	02.559 CLIP; ENG HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 01.152 (D) L=36	8-94224-891-1	01	1	9902-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 16.570 (J) L=40 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (A) ID=30	8-94142-264-0	04	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.480 (B) ID=36	8-94178-685-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.530 (D) L=65	8-94235-856-0	02	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 02.483 (N)	8-97803-554-0	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE (H)	8-97804-817-1	01	1	0008-	●	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 16.570 (P) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9801-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 02.483 (G) ID=34.7	8-94365-780-0	02	1	9712-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 02.483 (G) ID=34.7	8-94365-780-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 02.530 (C) L=65	8-94235-856-0	01	1	9712-	●	●
27	02.559 PROTECTOR; EDGE 4JG2 ENG(RJC) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	01	1	9905-	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	9712-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 16.570 (M) L=50 SERVICED BY L=190	1-71998-300-0	02	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 08.846 (K)	9-61127-252-1	01	1	9712-9712	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	9801-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) 03.008 (K) L=80	5-22439-006-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE 03.008 (K) L=80	5-22439-006-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9712-9908	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	9909-0005	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0006-0007	●	●
27	02.559 PROTECTOR; EDGE 4JX1 ENG(RJM) FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-	●	●
27	02.559 PROTECTOR; EDGE FRIGID ZONE<YL3> 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 16.570 (L) L=40 SERVICED BY L=190	1-71998-300-0	01	1	0008-			●
27	02.559 PROTECTOR; EDGE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 16.570 (I) L=150 SERVICED BY L=190	1-71998-300-0	01	1	9712-9901	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-94137-549-0	01	1	0106-0110	●	●	●
27	02.559 PROTECTOR; EDGE DIGITAL CLOCK<UE8> (Q) 130X80	8-97304-373-0	01	1	0111-	●	●	●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	9712-0007		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	01	1	0008-		●	●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	9712-0007		●
27	02.559 PROTECTOR; EDGE AUTO DOOR LOCK<AU4> 02.480 (E) ID=36	8-94178-685-0	03	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.480 (E) ID=36	8-94178-685-0	03	1	0008-			●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	9712-0007		●
27	02.559 PROTECTOR; EDGE POWER WINDOW<A30> 02.483 (F) ID=30	8-94142-264-0	02	1	0008-		●
27	02.559 PROTECTOR; EDGE 02.483 (F) ID=30	8-94142-264-0	02	1	0008-			●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) 02.698 (A)	8-97805-901-3	01	1	9712-9908	●	●
53	02.483 BRACKET; HARNESS 4JG2 ENG(RJC),4JX1 ENG(RJM) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 02.698 (A)	8-97805-901-3	01	1	9909-	●	●
53	02.483 BRACKET; HARNESS 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B)	8-97203-573-0	01	1	9801-9903	●	●
53	02.483 BRACKET; HARNESS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.698 (A)	8-97807-647-2	01	1	9712-9901	●	●
239	02.559 BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9712-0007	●	●
239	02.559 BOLT; GRAND (B) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0008-	●	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9712-9908	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9909-0007	●	●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0008-0109	●	●
239	02.559 BOLT; GRAND 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0008-0109			●
239	02.559 BOLT; GRAND 4JX1 ENG(RJM) 00.662 (A) M8X14 FLANGE	0-28080-814-0	01	1	0110-	●	●
239	02.559 BOLT; GRAND 00.662 (A) M8X14 FLANGE	0-28080-814-0	01	1	0110-			●
292	02.559 CAP; RUBBER 4JX1 ENG(RJM) 03.672 ID=5.4	8-94156-209-0	01	1	9712-0007	●	●
292	02.559 CAP; RUBBER 4JX1 ENG(RJM) 03.672 ID=5.4	8-94156-209-0	01	1	0008-	●	●
292	02.559 CAP; RUBBER 03.672 ID=5.4	8-94156-209-0	01	1	0008-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
