◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#38392) — 849 parça
çizim 17153
27 27 27 2 2 35
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9712-0007 ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0008- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9712-0007 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0008- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97044-180-2 01 1 9712-0007 ● ●
35 02.530 BOX; RELAY & FUSE 8-97044-180-2 01 1 0008-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97289-812-0 01 1 0106- ● ● ●

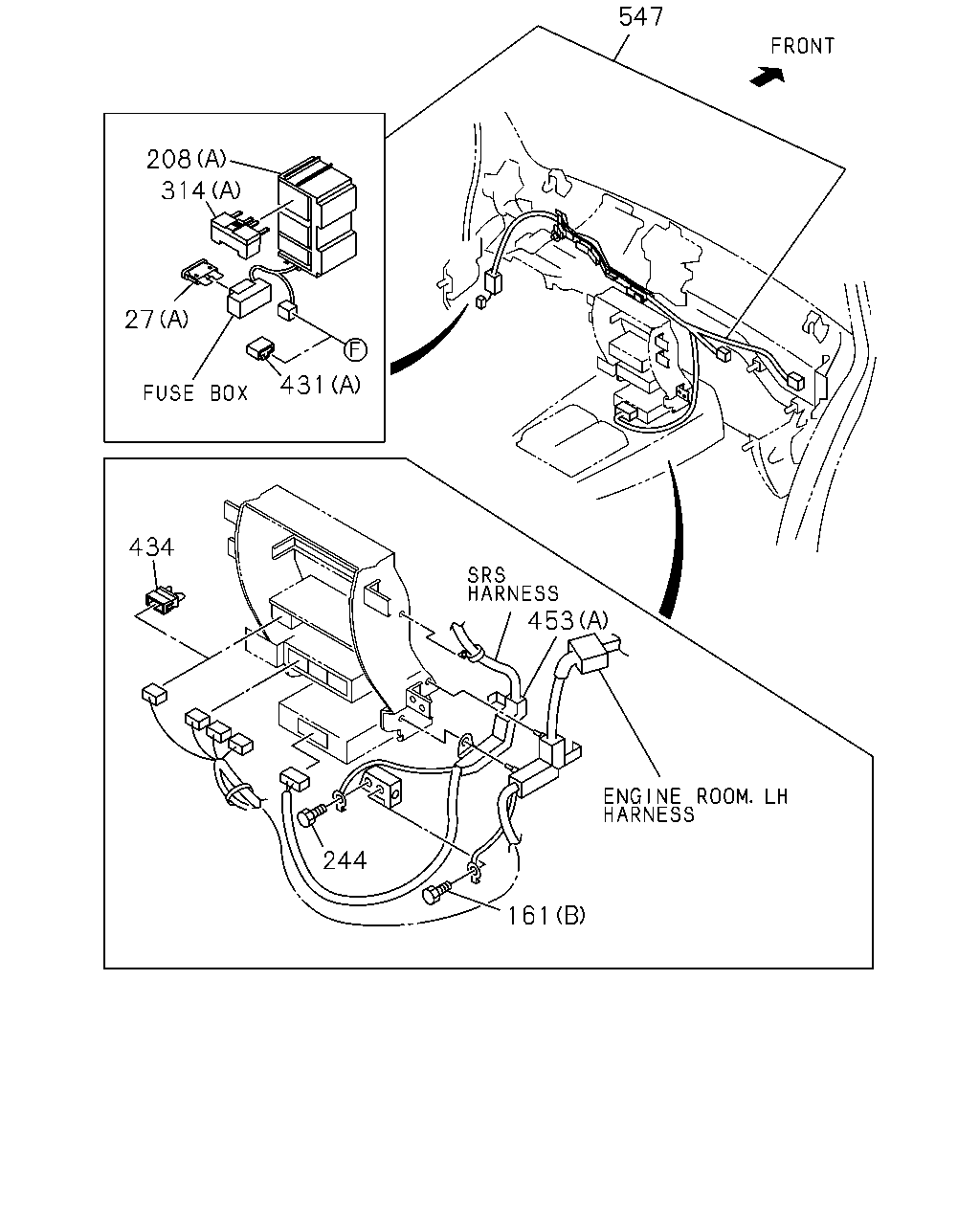

çizim 19974
547 208 314 27 431 434 453 244 161
BalonParca AdiParca NoAdetTipApplied Date A B C
27 08.965 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 10A RED 		5-82516-002-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE 		5-82516-003-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW 		5-82516-004-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(A) 25A CLEAR 		5-82516-005-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-94388-302-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 0008- ● ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9712-0007 ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 0008- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 0008- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(B) 		8-97164-701-0 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(B) 		8-97164-701-0 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(D) 		8-97808-879-2 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(D) 		8-97808-879-2 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(E) 		8-97808-880-0 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(E) 		8-97808-880-0 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(C) 		8-97808-881-1 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(C) 		8-97808-881-1 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> (A) 		8-97147-320-0 01 1 9712-9801 ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> (A) 		8-97147-320-0 01 1 9802- ● ●
244 02.559 BOLT; GRAND BONDING CABLE
AIR BAG DRIVER<AJ3> M6X14 W/LK&PL WASHER 		8-97119-479-0 01 1 9712- ● ●
314 02.510 RESISTOR; HARNESS
AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA>,SEAT BELT 3 POINT PRE TENSIONER<7MC> (A) 		8-97133-042-0 01 1 9802- ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97808-503-0 01 1 9712-9812 ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97808-503-0 01 1 9901-0005 ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97808-503-0 01 1 9901-0005 ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) (B) 		8-97808-503-0 01 1 0006-0105 ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97808-503-0 01 1 0006-0105 ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) (B) 		8-97808-503-0 01 1 0106- ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) (B) 		8-97808-503-0 01 1 0106- ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712-0007 ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712-0007 ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 0008- ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 0008- ● ●
431 02.530 CONNECTOR; JOINT
EXC. AIR BAG DRIVER<AJ3> (A) 		8-97133-712-0 01 1 9712-0007 ● ●
431 02.530 CONNECTOR; JOINT
EXC. AIR BAG DRIVER<AJ3> (A) 		8-97133-712-0 01 1 0008- ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-97133-712-0 01 1 0008- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
EXC. ONE TOUCH 4X4 SYSTEM(7QY) 		8-97168-575-0 01 1 9712-9908 ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
EXC. ONE TOUCH 4X4 SYSTEM(7QY) 		8-97168-575-0 01 1 9909-0007 ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
TORQUE ON DEMAND<7HA> 		8-97168-575-0 01 1 9909-0007 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
EXC. ONE TOUCH 4X4 SYSTEM(7QY) 		8-97168-575-0 01 1 0008- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
TORQUE ON DEMAND<7HA> 		8-97168-575-0 01 1 0008- ●
434 02.559 CONNECTOR; SHORT CIRCUIT 8-97168-575-0 01 1 0008- ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97105-293-1 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97808-887-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> (A) 		8-97808-889-1 01 1 0106- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97179-198-1 01 1 9712- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> EXC. SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97174-357-0 01 1 9802-9805 ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> AIR BAG PASSENGER<7FA> EXC. SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97209-376-1 01 1 9806- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA>,SEAT BELT 3 POINT PRE TENSIONER<7MC> 		8-97204-775-2 01 1 9802- ● ●
547 02.480 HARNESS; CABLE,SRS
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> EXC. AIR BAG PASSENGER<7FA> 		8-97179-197-2 01 1 9712- ● ●

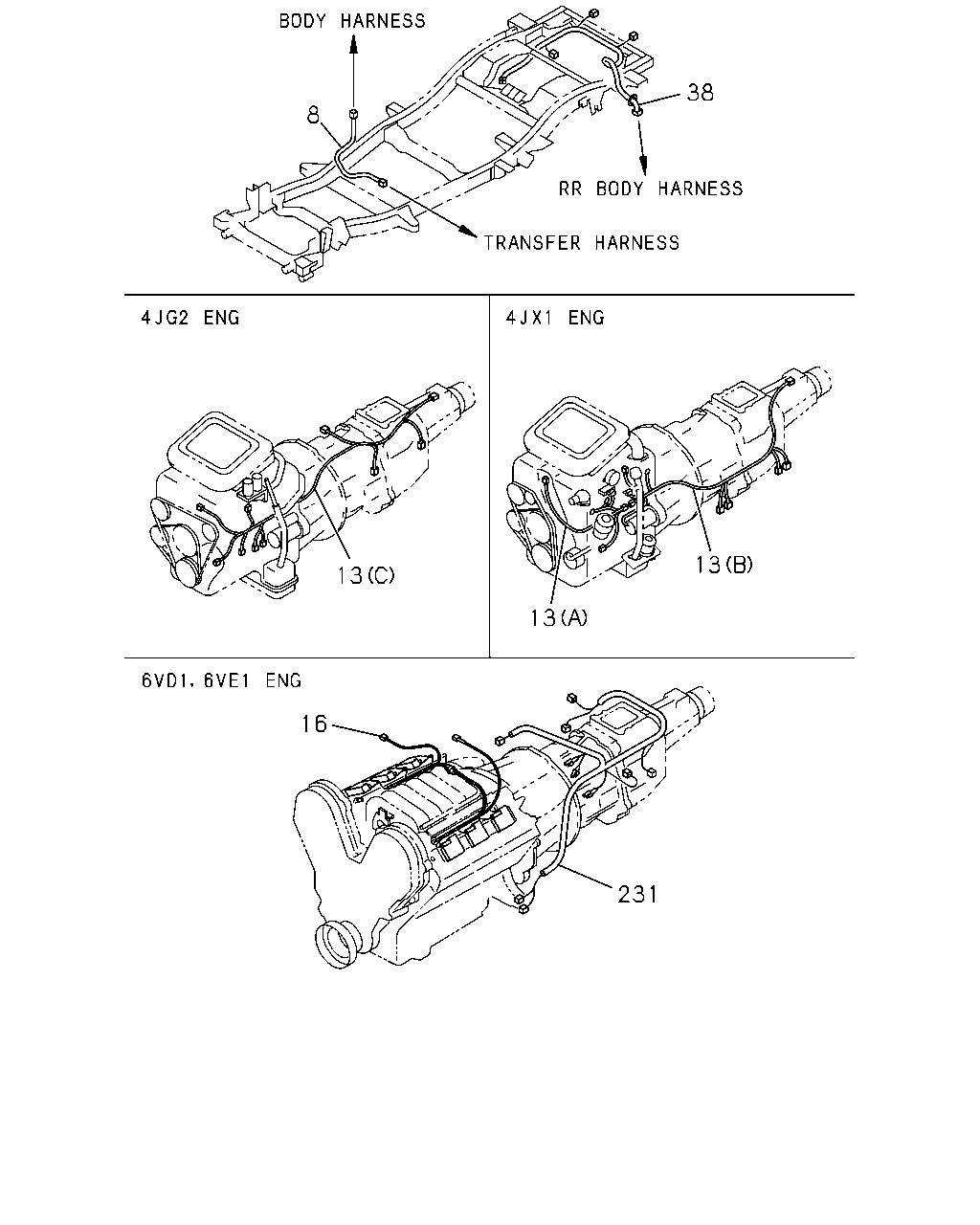

çizim 69117
38 8 13 13 13 16 231
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JX1 ENG(RJM) TORQUE ON DEMAND<7HA> 		8-97220-229-0 01 1 9909- ●
8 02.480 HARNESS; FRAME,FRT
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97264-425-0 01 1 0106- ●
8 02.480 HARNESS; FRAME,FRT
6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> 		8-97180-887-0 01 1 9909-0105 ●
8 02.480 HARNESS; FRAME,FRT
6VE1 ENG(RJQ),6VD1 ENG(RLV) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97180-887-0 01 1 0106- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) (C) 		8-97168-450-2 01 1 9712-9801 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97168-450-2 01 1 9802-0004 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) EXC. TURBOCHARGER<K51>,IMMOBILIZER SYSTEM<7KC> (C) 		8-97168-450-2 01 1 0005-0005 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) (C) 		8-97168-450-2 01 1 0005-0005 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) EXC. TURBOCHARGER<K51>,IMMOBILIZER SYSTEM<7KC> (C) 		8-97168-450-3 01 1 0006- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) (C) 		8-97168-450-3 01 1 0006- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) (C) 		8-97288-219-2 01 1 0106- ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) (C) 		8-97168-449-3 01 1 9802-0005 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) (C) 		8-97168-449-4 01 1 0006- ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> (C) 		8-97241-172-1 01 1 0005- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) (B) 		8-97219-157-3 01 1 9909-0007 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) (B) 		8-97219-157-3 01 1 0008-0105 ● ●
13 02.525 HARNESS; ENG
(B) 		8-97219-157-3 01 1 0008-0105 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97219-157-3 01 1 0106-0201 ● ●
13 02.525 HARNESS; ENG
(B) 		8-97219-157-3 01 1 0106-0201 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97317-325-0 01 1 0202-0208 ● ●
13 02.525 HARNESS; ENG
(B) 		8-97317-325-0 01 1 0202-0208 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97317-325-3 01 1 0209-0212 ● ●
13 02.525 HARNESS; ENG
(B) 		8-97317-325-3 01 1 0209-0212 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97317-325-3 01 1 0301- ● ●
13 02.525 HARNESS; ENG
EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97317-325-3 01 1 0301- ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (B) 		8-97255-960-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B) 		8-97255-960-2 01 1 0209-0212 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B) 		8-97255-960-2 01 1 0301-0307 ● ●
13 02.525 HARNESS; ENG
EURO3 SPECIFICATION(NT3) (B) 		8-97255-960-2 01 1 0301-0307 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B) 		8-97325-160-3 01 1 0308- ● ●
13 02.525 HARNESS; ENG
EURO3 SPECIFICATION(NT3) (B) 		8-97325-160-3 01 1 0308- ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) (A) 		8-97255-961-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) EURO3 SPECIFICATION(NT3) (A) 		8-97255-961-2 01 1 0209-0212 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97255-961-2 01 1 0301- ● ●
13 02.525 HARNESS; ENG
EURO3 SPECIFICATION(NT3) (A) 		8-97255-961-2 01 1 0301- ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (A) 		8-97185-209-1 01 1 9712-9908 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) (A) 		8-97185-209-1 01 1 9909-0007 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) (A) 		8-97185-209-1 01 1 0008-0105 ● ●
13 02.525 HARNESS; ENG
(A) 		8-97185-209-1 01 1 0008-0105 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97185-209-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
(A) 		8-97185-209-2 01 1 0106-0208 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97185-209-2 01 1 0209-0212 ● ●
13 02.525 HARNESS; ENG
(A) 		8-97185-209-2 01 1 0209-0212 ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97185-209-2 01 1 0301- ● ●
13 02.525 HARNESS; ENG
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97185-209-2 01 1 0301- ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B) 		8-97185-212-2 01 1 9712-9812 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) (B) 		8-97212-482-2 01 1 9901-0105 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97212-482-2 01 1 0106-0112 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97317-324-0 01 1 0201-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97317-324-2 01 1 0209- ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97255-959-2 01 1 0106-0208 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (B) 		8-97255-959-2 01 1 0209-0307 ● ●
13 02.525 HARNESS; ENG
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (B) 		8-97325-159-2 01 1 0308- ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATE MALA/COSTA RICA EQUIPMENT(7LD) 		8-97169-677-2 01 1 9712-0005 ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIP MENT(7LD) 		8-97169-677-4 01 1 0006- ● ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) 		8-97148-639-5 01 1 9712-0005 ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 		8-97148-639-5 01 1 9712-0005 ● ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) 		8-97148-639-8 01 1 0006- ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97148-639-8 01 1 0006- ● ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97263-049-4 01 1 0106- ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) 		8-97180-476-0 01 1 9712-9712 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97180-476-0 01 1 9801-0005 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97180-476-0 01 1 0006-0007 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97180-476-0 01 1 0008-0105 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-476-0 01 1 0008-0105 ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97264-426-0 01 1 0106- ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-426-0 01 1 0106- ●
38 02.480 HARNESS; CHAS
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),CHINA EQUIPMENT(YT2) 		8-97180-477-0 01 1 9712-9712 ● ●
38 02.480 HARNESS; CHAS
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97180-477-0 01 1 9801-0005 ● ●
38 02.480 HARNESS; CHAS
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),NICARAGUA EQUIPMENT(R5N), CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97180-477-0 01 1 0006-0007 ● ●
38 02.480 HARNESS; CHAS
EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5),NICARAGUA EQUIPMENT(R5N), CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97180-477-0 01 1 0008- ● ●
38 02.480 HARNESS; CHAS
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-477-0 01 1 0008- ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-478-0 01 1 9712-9712 ● ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM(JE5) EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97180-478-0 01 1 9801-0005 ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-478-1 01 1 0006- ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-479-0 01 1 9712-9712 ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-479-0 01 1 9801-0005 ● ●
38 02.480 HARNESS; CHAS
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97180-479-1 01 1 0006- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) 		8-97191-283-0 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. SHIFT ON THE FLY(7EX) 		8-97191-284-0 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) 		8-97191-285-0 01 1 9712-0005 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) SHIFT ON THE FLY(7EX) 		8-97191-285-0 01 1 0006-0009 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) SHIFT ON THE FLY(7EX) 		8-97191-285-0 01 1 0010-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) SHIFT ON THE FLY(7EX) 		8-97191-285-2 01 1 0106- ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 		8-97191-286-0 01 1 9712-0005 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. SHIFT ON THE FLY(7EX) 		8-97191-286-0 01 1 0006-0009 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SHIFT ON THE FLY(7EX) 		8-97191-286-0 01 1 0010-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. SHIFT ON THE FLY(7EX) 		8-97191-286-2 01 1 0106- ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97226-000-3 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97219-101-1 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SHIFT ON THE FLY(7EX) 		8-97187-621-0 01 1 9712-9908 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SHIFT ON THE FLY(7EX) 		8-97229-025-0 01 1 9909-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) 		8-97229-025-0 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. SHIFT ON THE FLY(7EX) 		8-97187-622-0 01 1 9712-9908 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. SHIFT ON THE FLY(7EX) 		8-97229-026-0 01 1 9909-0105 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) 		8-97229-026-0 01 1 0106- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) 		8-97191-288-0 01 1 9712-0005 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THE FLY(7EX),ARGENTINA EQUIPMENT(7SZ) 		8-97191-288-0 01 1 0006-0009 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),SHIFT ON THE FLY(7EX),ARGENTINA EQUIPMENT(7SZ) 		8-97191-288-2 01 1 0010- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) 		8-97191-287-0 01 1 9712-0005 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97191-287-0 01 1 0006-0009 ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97191-287-2 01 1 0010- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97225-999-3 01 1 0106- ●

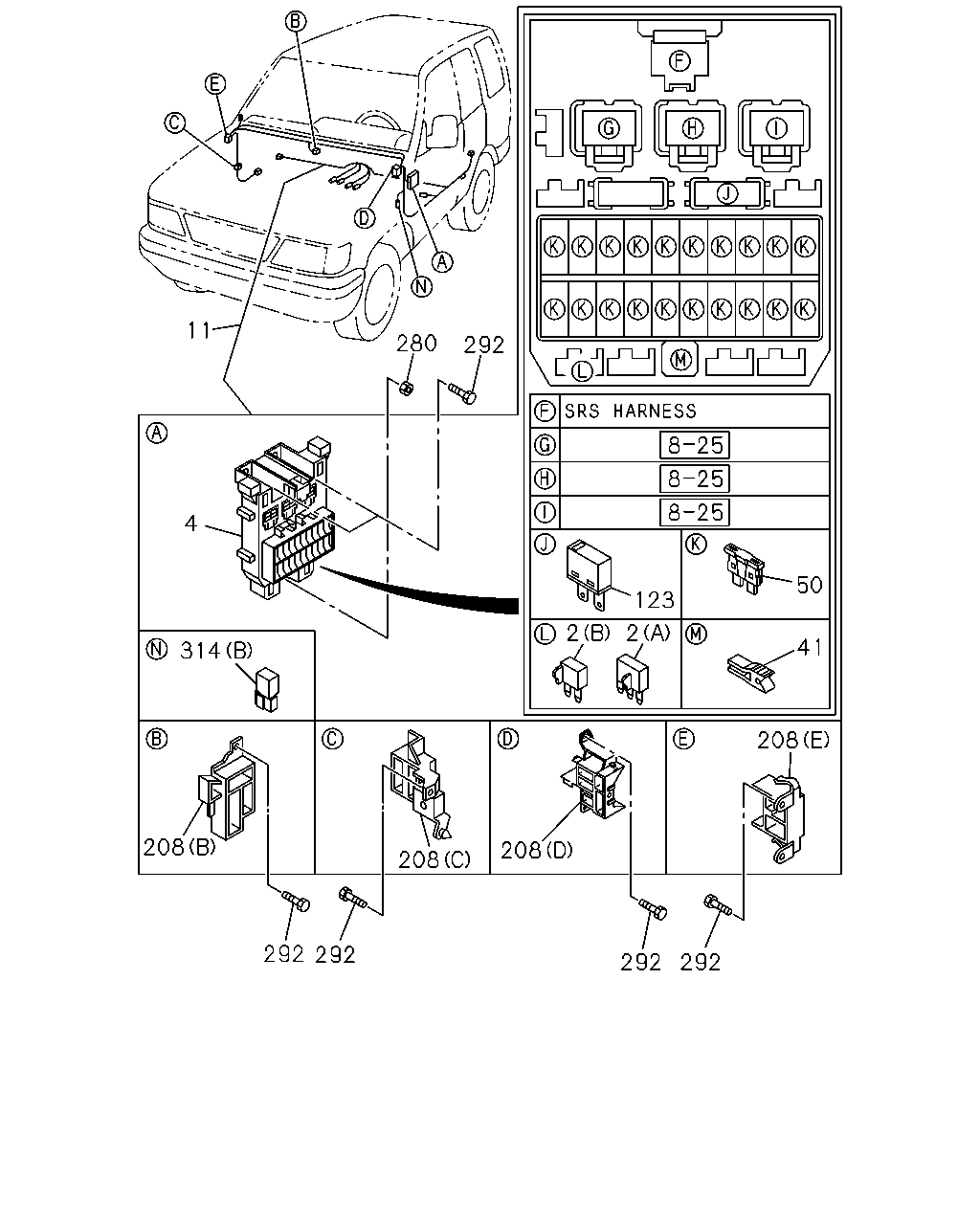

çizim 69466
11 280 292 4 50 123 2 2 41 314 208 208 208 208 292 292 292 292
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 9712-0007 ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0008- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9712-0007 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0008- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97808-883-1 01 1 9712-0007 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97808-883-1 01 1 0008- ● ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4) 		8-97191-199-1 01 1 9712-9712 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97191-199-1 01 1 9801-9811 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97220-548-0 01 1 9812-9908 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97225-784-1 01 1 9909-9910 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97247-287-0 01 1 9911-0004 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97252-714-1 01 1 0005-0005 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 		8-97252-714-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97264-403-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97329-548-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97185-677-1 01 1 9712-9712 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) 		8-97185-677-1 01 1 9801-9811 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) 		8-97220-546-0 01 1 9812-9908 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) 		8-97225-783-0 01 1 9909-9910 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) 		8-97247-286-0 01 1 9911-0004 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) 		8-97252-713-1 01 1 0005-0005 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ANTI THEFT<UA6>,ARGENTINA EQ UIPMENT(7SZ) 		8-97252-713-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. NICARAGUA EQUIPMENT(R5N),ANTI THEFT<UA6> 		8-97264-402-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) EXC. NICARAGUA EQUIPMENT(R5N),ANTI THEFT<UA6> 		8-97329-547-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 		8-97191-197-3 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97225-782-2 01 1 9909-0005 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-782-2 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-398-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-543-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> DARK GRAY 		8-97191-198-3 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-781-1 01 1 9909-0005 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-781-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-399-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-544-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4) 		8-97191-196-1 01 1 9712-9809 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4) 		8-97215-069-0 01 1 9810-9812 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6> 		8-97215-069-1 01 1 9901-9908 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4) 		8-97215-069-1 01 1 9901-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6> 		8-97225-780-1 01 1 9909-0004 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4) 		8-97225-780-1 01 1 9909-0004 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6> 		8-97252-724-1 01 1 0005-0005 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4) 		8-97252-724-1 01 1 0005-0005 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6> 		8-97252-724-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97252-724-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6> 		8-97264-395-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> 		8-97264-395-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) ANTI THEFT<UA6> 		8-97329-540-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) ANTI THEFT<UA6> 		8-97329-540-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97185-673-1 01 1 9712-9809 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97215-068-0 01 1 9810-9812 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 		8-97215-068-1 01 1 9901-9908 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97215-068-1 01 1 9901-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 		8-97225-779-0 01 1 9909-0004 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97225-779-0 01 1 9909-0004 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 		8-97252-723-1 01 1 0005-0005 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6> 		8-97252-723-1 01 1 0005-0005 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 		8-97252-723-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),ANTI THEFT<UA6>,ARGENTINA EQUIPMENT(7SZ) 		8-97252-723-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 		8-97264-394-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97264-394-1 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 		8-97329-539-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),A/T THM(RMQ) EXC. ANTI THEFT<UA6> 		8-97329-539-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 		8-97185-671-2 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-777-1 01 1 9909-0005 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-777-1 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-386-2 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-531-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> 		8-97191-195-2 01 1 9712-9908 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97225-778-2 01 1 9909-0005 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97225-778-2 01 1 0006-0105 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97264-387-2 01 1 0106-0305 ● ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97329-532-0 01 1 0306- ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> ARGENTINA EQUIPMENT(7SZ) 		8-97200-980-1 01 1 9801-9802 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> ARGENTINA EQUIPMENT(7SZ) 		8-97208-094-0 01 1 9803-9809 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> ARGENTINA EQUIPMENT(7SZ) 		8-97215-071-1 01 1 9810-9908 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ANTI THEFT<UA6> ARGENTINA EQUIPMENT(7SZ) 		8-97225-786-2 01 1 9909-0005 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) ANTI THEFT<UA6> 		8-97225-786-2 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) ANTI THEFT<UA6> 		8-97264-404-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) ANTI THEFT<UA6> 		8-97329-549-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6> 		8-97200-990-1 01 1 9801-9809 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6> 		8-97215-070-1 01 1 9810-9908 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6> 		8-97225-785-1 01 1 9909-0005 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) EXC. ANTI THEFT<UA6> 		8-97225-785-1 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) EXC. ANTI THEFT<UA6> 		8-97264-405-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) EXC. ANTI THEFT<UA6> 		8-97329-550-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-789-2 01 1 9909-0005 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-789-2 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97264-396-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97329-541-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-791-2 01 1 9909-0005 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-791-2 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97264-397-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97329-542-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97261-118-0 01 1 0008-0105 ●
11 02.480 HARNESS; BODY
EXC. ANTI THEFT<UA6> 		8-97261-118-0 01 1 0008-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-400-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
EXC. ANTI THEFT<UA6> 		8-97264-400-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-545-0 01 1 0306- ●
11 02.480 HARNESS; BODY
EXC. ANTI THEFT<UA6> 		8-97329-545-0 01 1 0306- ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97261-119-0 01 1 0008-0105 ●
11 02.480 HARNESS; BODY
ANTI THEFT<UA6> 		8-97261-119-0 01 1 0008-0105 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97264-401-1 01 1 0106-0308 ●
11 02.480 HARNESS; BODY
ANTI THEFT<UA6> 		8-97264-401-1 01 1 0106-0308 ●
11 02.480 HARNESS; BODY
4JX1 ENG(RJM) A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) ANTI THEFT<UA6> EXC. TORQUE ON DEMAND<7HA> 		8-97329-546-0 01 1 0309- ●
11 02.480 HARNESS; BODY
ANTI THEFT<UA6> 		8-97329-546-0 01 1 0309- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> ARGENTINA EQUIPMENT(7SZ) 		8-97264-389-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> ARGENTINA EQUIPMENT(7SZ) 		8-97329-534-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-787-2 01 1 9909-0005 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97225-787-2 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97264-384-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. ANTI THEFT<UA6> 		8-97329-529-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-788-2 01 1 9909-0005 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97225-788-2 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97264-385-2 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) ANTI THEFT<UA6> TORQUE ON DEMAND<7HA> 		8-97329-530-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) TORQUE ON DEMAND<7HA> ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6> 		8-97264-388-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ) TORQUE ON DEMAND<7HA> ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6> 		8-97329-533-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> CHINA EQUIPMENT(YT2) 		8-97259-441-0 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> CHINA EQUIPMENT(YT2) 		8-97264-393-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> CHINA EQUIPMENT(YT2) 		8-97329-538-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> ARGENTINA EQUIPMENT(7SZ) EXC. TORQUE ON DEMAND<7HA> 		8-97264-391-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ANTI THEFT<UA6> ARGENTINA EQUIPMENT(7SZ) EXC. TORQUE ON DEMAND<7HA> 		8-97329-536-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97264-390-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI THEFT<UA6>,TORQUE ON DEMAND<7HA> 		8-97329-535-0 01 1 0306- ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) CHINA EQUIPMENT(YT2) EXC. ANTI THEFT<UA6> 		8-97259-440-0 01 1 0006-0105 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) CHINA EQUIPMENT(YT2) EXC. ANTI THEFT<UA6> 		8-97264-392-1 01 1 0106-0305 ●
11 02.480 HARNESS; BODY
6VE1 ENG(RJQ) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) CHINA EQUIPMENT(YT2) EXC. ANTI THEFT<UA6> 		8-97329-537-0 01 1 0306- ●
41 08.821 PULLER; FUSE
02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9712-9811 ● ●
41 08.821 PULLER; FUSE
4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9812-9812 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9812-9812 ●
41 08.821 PULLER; FUSE
4JX1 ENG(RJM) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9901-9901 ● ●
41 08.821 PULLER; FUSE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9901-9901 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9901-9901 ●
41 08.821 PULLER; FUSE
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI THEFT<UA6> 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9902-9902 ● ●
41 08.821 PULLER; FUSE
4JX1 ENG(RJM) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9902-9902 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) 02.485 L=31.0 B=10.0 		8-94369-144-0 01 1 9902-9902 ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9812-9812 ● ●
41 08.821 PULLER; FUSE
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9901-9901 ● ●
41 08.821 PULLER; FUSE
6VD1 ENG(RLV) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9901-9901 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) EXC. ARGENTINA EQUIPMENT(7SZ) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9901-9901 ● ●
41 08.821 PULLER; FUSE
6VE1 ENG(RJQ) ANTI THEFT<UA6> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ● ●
41 08.821 PULLER; FUSE
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2) EXC. ANTI THEFT<UA6> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ● ●
41 08.821 PULLER; FUSE
6VD1 ENG(RLV) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ● ●
41 08.821 PULLER; FUSE
4JG2 ENG(RJC) EXC. ARGENTINA EQUIPMENT(7SZ) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9902-9902 ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 9903-0007 ● ●
41 08.821 PULLER; FUSE
02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0008- ● ● ●
50 08.965 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 9712-0007 ● ●
50 08.965 FUSE; BODY HARNESS
10A RED 		5-82516-002-0 AR 1 0008- ● ● ●
50 08.965 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 9712-0007 ● ●
50 08.965 FUSE; BODY HARNESS
15A BLUE 		5-82516-003-0 AR 1 0008- ● ● ●
50 08.965 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9712-0007 ● ●
50 08.965 FUSE; BODY HARNESS
20A YELLOW 		5-82516-004-0 AR 1 0008- ● ● ●
50 08.965 FUSE; BODY HARNESS
25A CLEAR 		5-82516-005-0 AR 1 9712-0007 ● ●
50 08.965 FUSE; BODY HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0008- ● ● ●
123 02.485 BREAKER; CIRCUIT 8-97106-113-0 01 1 9712-0007 ● ●
123 02.485 BREAKER; CIRCUIT 8-97106-113-0 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(B) 		8-97164-701-0 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(B) 		8-97164-701-0 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(D) 		8-97808-879-2 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(D) 		8-97808-879-2 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(E) 		8-97808-880-0 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(E) 		8-97808-880-0 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
(C) 		8-97808-881-1 01 1 9712-0007 ● ●
208 02.483 HOLDER; CONNECTOR
(C) 		8-97808-881-1 01 1 0008- ● ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> SEAT BELT 3 POINT PRE TENSIONER<7MC> (A) 		8-97147-320-0 01 1 9712-9801 ● ●
208 02.483 HOLDER; CONNECTOR
AIR BAG DRIVER<AJ3> (A) 		8-97147-320-0 01 1 9802- ● ●
280 02.483 NUT; BOX ASM FIX
07.833 M6 FLANGE 		8-97063-399-0 01 1 9712-0007 ● ●
280 02.483 NUT; BOX ASM FIX
07.833 M6 FLANGE 		8-97063-399-0 01 1 0008- ● ● ●
292 02.483 BOLT; BOX
00.738 M6X16 FLANGE 		0-28080-616-0 07 1 9712-0007 ● ●
292 02.483 BOLT; BOX
00.738 M6X16 FLANGE 		0-28080-616-0 07 1 0008- ● ● ●
314 02.510 RESISTOR; HARNESS
AIR BAG DRIVER<AJ3> EXC. AIR BAG PASSENGER<7FA>,SEAT BELT 3 POINT PRE TENSIONER<7MC> (A) 		8-97133-042-0 01 1 9802- ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97808-503-0 01 1 9712-9812 ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97808-503-0 01 1 9901-0005 ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97808-503-0 01 1 9901-0005 ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) (B) 		8-97808-503-0 01 1 0006-0105 ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B) 		8-97808-503-0 01 1 0006-0105 ● ●
314 02.510 RESISTOR; HARNESS
6VD1 ENG(RLV) (B) 		8-97808-503-0 01 1 0106- ● ●
314 02.510 RESISTOR; HARNESS
6VE1 ENG(RJQ) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) (B) 		8-97808-503-0 01 1 0106- ● ●
çizim 72334
408 409 409 391 408
BalonParca AdiParca NoAdetTipApplied Date A B C
391 02.559 SCREW; BRKT
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0106- ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> (A) 		8-97263-410-0 01 1 0106- ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) (B) 		8-97263-494-0 01 1 0106- ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97111-066-1 01 1 0106- ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) (B) 		8-97263-495-0 01 1 0106- ●
408 02.575 SOCKET ASM; ACCESSORY
INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97226-199-0 01 1 0106- ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> (A) 		8-97310-925-0 01 1 0106- ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) EUROPE EQUIPMENT(EK4) (B) 		8-97310-927-0 01 1 0106- ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR MEDIUM GRAY(113) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97123-280-0 01 1 0106- ● ● ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) EUROPE EQUIPMENT(EK4) (B) 		8-97310-928-0 01 1 0106- ●
409 02.530 CAP; ACCESSORY SOCKET
INTERIOR COLOR BEIGE(181) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97230-118-0 01 1 0106- ● ●

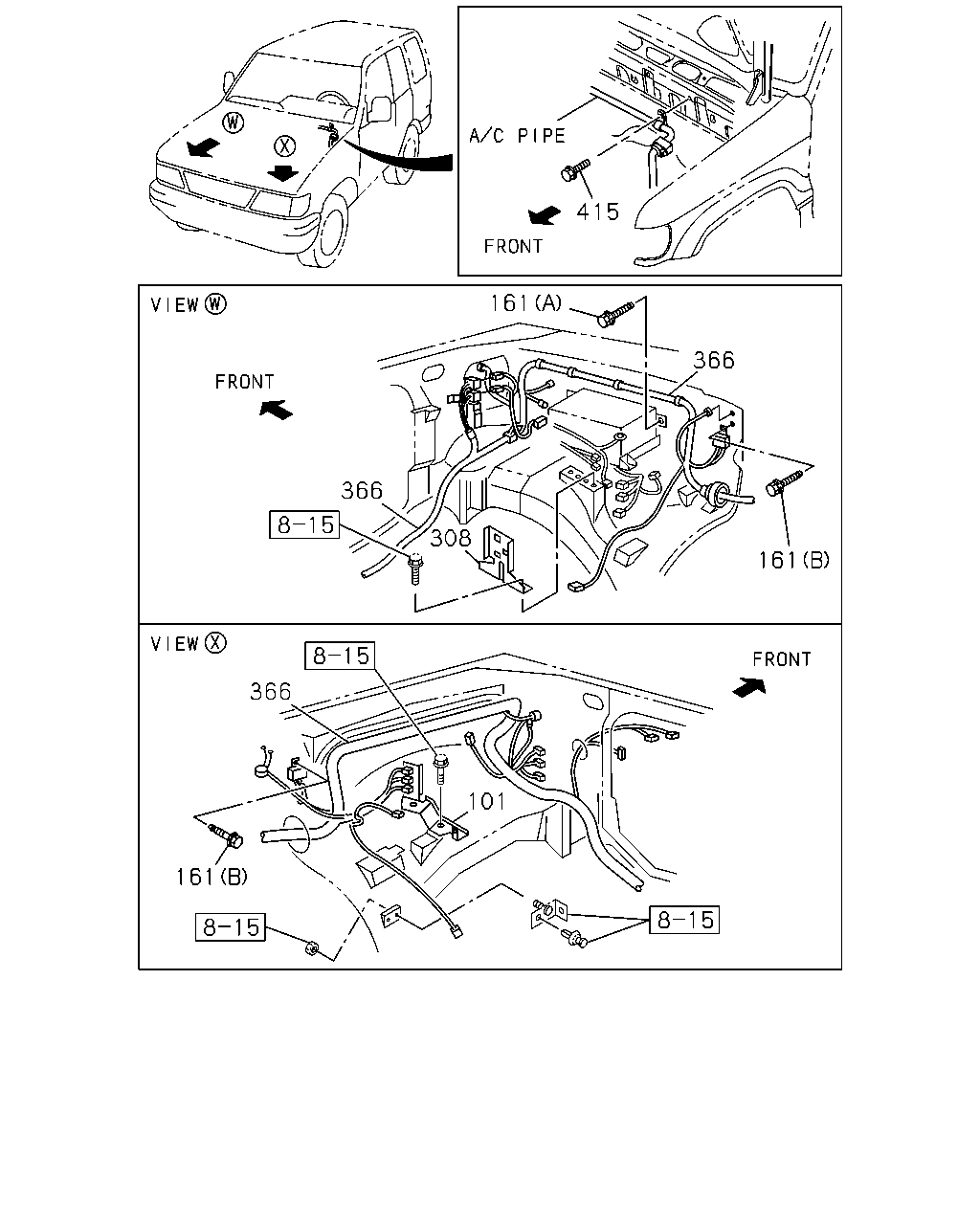

çizim 72456
415 161 366 366 308 161 366 101 161
BalonParca AdiParca NoAdetTipApplied Date A B C
101 02.483 BRACKET; HARNESS CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) 		8-97168-576-0 01 1 9712-0105 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) 		8-97263-959-1 01 1 0106- ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 0008- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 0008- ● ● ●
308 02.559 BRACKET; CONNECTOR
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 		8-97227-776-1 01 1 0106- ● ●
308 02.559 BRACKET; CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 		8-97161-668-0 01 1 9712-0105 ● ●
308 02.559 BRACKET; CONNECTOR
6VE1 ENG(RJQ),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) 		8-97161-668-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-456-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97191-456-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97227-649-1 01 1 9909-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97252-717-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. NICARAGUA EQUIPMENT(R5N) 		8-97252-717-2 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. NICARAGUA EQUIPMENT(R5N) 		8-97264-359-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) L=2810 		8-97191-457-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) L=2810 		8-97191-457-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) 		8-97227-650-1 01 1 9909-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) 		8-97252-718-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), NICARAGUA EQUIPMENT(R5N) 		8-97252-718-2 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), NICARAGUA EQUIPMENT(R5N) 		8-97264-360-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97191-478-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) 		8-97191-478-2 01 1 9801-0005 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) 		8-97191-478-2 01 1 0006-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-364-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97191-479-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97191-479-1 01 1 9801-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97252-716-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97252-716-1 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. NICARAGUA EQUIPMENT(R5N), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97264-381-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC>,ARGENTINA EQUIPMENT(7SZ) 		8-97252-715-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. NICARAGUA EQUIPMENT(R5N), IMMOBILIZER SYSTEM<7KC> 		8-97252-715-1 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97307-293-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97185-706-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-454-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-742-2 01 1 9909-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97225-742-2 01 1 0008-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97287-159-0 01 1 0010-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97264-355-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97185-707-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-455-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-743-2 01 1 9909-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5), PHILIPPINE EQUIPMENT(S2U) 		8-97225-743-2 01 1 0008-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5), PHILIPPINE EQUIPMENT(S2U) 		8-97287-160-0 01 1 0010-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5), PHILIPPINE EQUIPMENT(S2U) 		8-97264-356-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) IMMOBILIZER SYSTEM<7KC> 		8-97185-731-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) IMMOBILIZER SYSTEM<7KC> 		8-97191-477-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97225-714-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97248-846-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97251-874-1 01 1 0005-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97264-371-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97353-385-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97185-730-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-476-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-713-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-845-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97251-873-1 01 1 0005-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97251-873-1 01 1 0008-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97264-372-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97353-386-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97225-716-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97248-848-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97251-876-1 01 1 0005-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97264-373-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97353-387-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-715-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-847-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97251-875-1 01 1 0005-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97251-875-1 01 1 0008-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97264-374-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97353-388-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97191-475-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97216-777-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97225-722-1 01 1 9909-0010 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97225-722-1 01 1 0011-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-351-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-365-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-366-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC> 		8-97264-368-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-367-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-474-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97216-776-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-720-1 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-352-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-452-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-740-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. NICARAGUA EQUIPMENT(R5N), IMMOBILIZER SYSTEM<7KC>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97264-380-1 01 1 0106-0108 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97264-380-2 01 1 0109- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4) 		8-97264-353-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-453-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-741-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-363-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-354-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-472-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97216-774-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-717-1 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. NICARAGUA EQUIPMENT(R5N), IMMOBILIZER SYSTEM<7KC> 		8-97264-382-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97191-473-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97216-775-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97225-719-1 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97264-383-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-369-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC> 		8-97264-370-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) NICARAGUA EQUIPMENT(R5N) 		8-97264-378-1 01 1 0106-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) ARGENTINA EQUIPMENT(7SZ) 		8-97201-964-1 01 1 9801-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) ARGENTINA EQUIPMENT(7SZ) 		8-97227-651-2 01 1 9909-0005 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) NICARAGUA EQUIPMENT(R5N) 		8-97227-651-3 01 1 0006-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) NICARAGUA EQUIPMENT(R5N) 		8-97264-361-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97201-965-1 01 1 9801-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97227-652-2 01 1 9909-0005 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97227-652-3 01 1 0006-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-362-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) 		8-97264-379-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97261-114-0 01 1 0006-0007 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97261-114-0 01 1 0008-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97261-114-0 01 1 0008-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-375-1 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97264-375-1 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97353-389-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97353-389-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) PHILIPPINE EQUIPMENT(S2U) 		8-97261-112-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97261-112-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) PHILIPPINE EQUIPMENT(S2U) 		8-97287-161-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-161-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) PHILIPPINE EQUIPMENT(S2U) 		8-97264-357-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-357-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97261-116-0 01 1 0008-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-377-1 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97353-390-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97261-113-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97261-113-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-162-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-162-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-358-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-358-0 01 1 0106- ●
415 02.559 BOLT; CABLE,BONDING
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712-9908 ● ●
415 02.559 BOLT; CABLE,BONDING
6VE1 ENG(RJQ),6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9909-0111 ● ●
çizim 72490
85 143 85 453 550 1 600 453
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) 		8-97191-200-0 01 1 9712-9712 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97191-200-1 01 1 9801-9908 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97225-860-2 01 1 9909-0004 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97251-931-1 01 1 0005-0005 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. TORQUE ON DEMAND<7HA> 		8-97251-931-1 01 1 0006-0105 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3>,NICARAGUA EQUIPMENT(R5N) 		8-97264-419-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97225-858-1 01 1 9909-0004 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97251-880-1 01 1 0005-0005 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97251-880-1 01 1 0006-0105 ● ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM) AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97264-411-3 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) ARGENTINA EQUIPMENT(7SZ) EXC. TORQUE ON DEMAND<7HA> 		8-97264-411-3 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97225-855-1 01 1 9909-0004 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97258-645-0 01 1 0005-0005 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97258-645-0 01 1 0006-0105 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTI NA EQUIPMENT(7SZ) 		8-97264-420-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4) 		8-97191-201-0 01 1 9712-9712 ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97191-201-1 01 1 9801-9908 ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97227-837-1 01 1 9909-0004 ● ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97227-837-1 01 1 0005-0005 ● ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQ UIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97227-837-1 01 1 0006-0006 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97258-646-0 01 1 0005-0005 ● ●
1 02.480 HARNESS; CAB
4JG2 ENG(RJC) EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQ UIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97258-646-0 01 1 0006-0006 ● ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97258-646-0 01 1 0007-0105 ● ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97264-410-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97264-410-2 01 1 0106- ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. AIR BAG DRIVER<AJ3>,EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQ UIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97264-418-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97225-859-2 01 1 9909-0004 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97251-930-1 01 1 0005-0005 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TORQUE ON DEMAND<7HA> 		8-97251-930-1 01 1 0006-0105 ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97288-511-3 01 1 0106- ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97231-923-1 01 1 9909-0004 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97258-647-0 01 1 0005-0005 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97258-647-0 01 1 0006-0105 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97264-414-2 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> CHINA EQUIPMENT(YT2) 		8-97259-449-0 01 1 0006-0105 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> CHINA EQUIPMENT(YT2) 		8-97264-417-2 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97225-857-1 01 1 9909-0004 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97251-879-1 01 1 0005-0005 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97251-879-1 01 1 0006-0105 ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97288-510-2 01 1 0106- ● ●
1 02.480 HARNESS; CAB
CHINA EQUIPMENT(YT2) EXC. AIR BAG DRIVER<AJ3> 		8-97259-450-0 01 1 0006-0105 ●
1 02.480 HARNESS; CAB
CHINA EQUIPMENT(YT2) EXC. AIR BAG DRIVER<AJ3> 		8-97264-416-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM) AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97264-413-3 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) TORQUE ON DEMAND<7HA> ARGENTINA EQUIPMENT(7SZ) 		8-97264-413-3 01 1 0106- ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97264-412-2 01 1 0106- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3> TORQUE ON DEMAND<7HA> ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97264-412-2 01 1 0106- ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM) EXC. AIR BAG DRIVER<AJ3>,AIR CONDITIONERFULL AUTO CONT(C68),TORQUE ON DEMAND<7HA> 		8-97261-117-0 01 1 0008-0105 ●
1 02.480 HARNESS; CAB 8-97261-117-0 01 1 0008-0105 ●
1 02.480 HARNESS; CAB
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. AIR CONDITIONER FULL AUTO CONT(C68) ,TORQUE ON DEMAND<7HA> 		8-97264-415-3 01 1 0106- ●
1 02.480 HARNESS; CAB 8-97264-415-3 01 1 0106- ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> AIR CONDITIONER FULL AUTO CONT(C68) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97288-513-3 01 1 0106- ●
1 02.480 HARNESS; CAB
6VE1 ENG(RJQ) AIR BAG DRIVER<AJ3> EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> EXC. AIR CONDITIONER FULL AUTO CONT(C68) 		8-97288-512-2 01 1 0106- ●
85 06.495 HARNESS; ROOM LAMP
ACCESSORY METER<7HT> EXC. SUNROOF<CF5> 		8-97163-874-2 01 1 9712-0007 ● ●
85 06.495 HARNESS; ROOM LAMP
ACCESSORY METER<7HT> EXC. SUNROOF<CF5> 		8-97163-874-3 01 1 0008-0105 ● ● ●
85 06.495 HARNESS; ROOM LAMP
ACCESSORY METER<7HT> EXC. SUNROOF<CF5> 		8-97264-111-1 01 1 0106- ● ● ●
85 06.495 HARNESS; ROOM LAMP
SPOT ROOM LAMP<UF3> EXC. SUNROOF<CF5>,ACCESSORY METER<7HT> 		8-97163-872-2 01 1 9712-0007 ● ●
85 06.495 HARNESS; ROOM LAMP
SPOT ROOM LAMP<UF3> EXC. SUNROOF<CF5>,ACCESSORY METER<7HT> 		8-97163-872-3 01 1 0008-0105 ● ● ●
85 06.495 HARNESS; ROOM LAMP
SPOT ROOM LAMP<UF3> EXC. SUNROOF<CF5>,ACCESSORY METER<7HT> 		8-97264-110-1 01 1 0106- ● ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> 		8-97163-871-2 01 1 9712-9908 ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> 		8-97163-871-2 01 1 9909-0007 ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> 		8-97163-871-2 01 1 0008-0105 ● ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> ACCESSORY METER<7HT> 		8-97264-109-1 01 1 0106- ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SUNROOF<CF5>,SPOT ROOM LAMP<UF3>, ACCESSORY METER<7HT> 		8-97163-873-1 01 1 9712-0105 ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. SUNROOF<CF5>,SPOT ROOM LAMP<UF3>, ACCESSORY METER<7HT> 		8-97264-985-0 01 1 0106- ● ●
85 06.495 HARNESS; ROOM LAMP
SUNROOF<CF5> EXC. ACCESSORY METER<7HT> 		8-97264-901-1 01 1 0106- ● ● ●
143 02.480 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-97805-525-1 01 1 9712-9808 ● ●
143 02.480 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-97202-596-0 01 1 9809-0007 ● ●
143 02.480 HARNESS; CABLE,SUNROOF
SUNROOF<CF5> 		8-97202-596-0 01 1 0008- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97105-293-1 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97808-887-0 01 1 0106- ● ● ●
453 02.483 PROTECTOR; HARNESS
AIR BAG DRIVER<AJ3> (A) 		8-97808-889-1 01 1 0106- ● ●
550 02.559 CONNECTOR; LIGHT CONT
GRADE S/SE(RBA) 		8-97116-613-0 01 1 9712- ● ●
600 02.480 HARNESS; EXT,A/C
AIR CONDITIONER FULL AUTO CONT(C68) 		8-97226-385-1 01 1 9909- ● ●
çizim 73468
334 226 334 96 161 347 189 335 18 370
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6>,DOOR MIRROR ELEC CONT& FOLDING W/DEF(6MK) 		8-97106-951-3 02 1 9712- ● ●
18 02.480 HARNESS; DOOR
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30>,ANTI THEFT<UA6> 		8-97106-952-3 02 1 9712- ● ●
96 02.480 HARNESS; CABLE,DOOR LOCK
AUTO DOOR LOCK<AU4> 		8-97201-439-1 01 1 9804-9908 ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 0008- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 0008- ● ● ●
189 02.480 HARNESS; EXT
POWER WINDOW<A30> 		8-97123-832-1 01 1 9712-0007 ●
189 02.480 HARNESS; EXT
POWER WINDOW<A30> 		8-97123-832-1 01 1 0008-0112 ●
189 02.480 HARNESS; EXT 8-97123-832-1 01 1 0008-0112 ●
189 02.480 HARNESS; EXT
POWER WINDOW<A30> 		8-97327-277-0 01 1 0201- ●
189 02.480 HARNESS; EXT 8-97327-277-0 01 1 0201- ●
189 02.480 HARNESS; EXT
EXC. POWER WINDOW<A30> 		8-97117-521-1 01 1 9712-0112 ●
189 02.480 HARNESS; EXT
EXC. POWER WINDOW<A30> 		8-97327-278-0 01 1 0201- ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 		8-97130-152-1 02 1 9712-0007 ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> 		8-97130-152-1 02 1 0008- ●
226 02.480 HARNESS; RR DOOR 8-97130-152-1 02 1 0008- ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97163-877-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97203-811-0 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERMITTENT<6WJ> 		8-97203-811-2 01 1 0006- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97163-876-0 01 1 9801-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97203-810-1 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97203-810-1 01 1 0006-0007 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),C HINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) ,GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97203-810-3 01 1 0008- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR 8-97203-810-3 01 1 0008- ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97200-730-0 01 1 9712-9712 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EUROPE EQUIPMENT(EK4) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97200-730-0 01 1 9801-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97211-349-1 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97211-349-3 01 1 0006- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),R R WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97168-760-0 01 1 9712-9712 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),R R WIPER & WASHER INTERMITTENT<6WJ>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97168-760-0 01 1 9801-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),RR DEFOGGER W/AUTO CANCEL<S4Y>,CHILE EQUIPMENT(6KB),RR WIPER & WA SHER INTERMITTENT<6WJ>,GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97211-348-0 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),RR WIPER & WASHER INTERMITTENT<6WJ>,GU ATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-97211-348-2 01 1 0006- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97168-756-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTIN A EQUIPMENT(7SZ) 		8-97211-346-1 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD),AR GENTINA EQUIPMENT(7SZ) 		8-97211-346-1 01 1 0006-0007 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
AUTO DOOR LOCK<AU4> RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/CO STA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97211-346-3 01 1 0008- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> 		8-97163-879-0 01 1 9712-9908 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> 		8-97203-813-0 01 1 9909-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) EXC. AUTO DOOR LOCK<AU4>,RR DEFOGGER W/AUTO CANCEL<S4Y>,RR WIPER & WASHER INTERM ITTENT<6WJ> 		8-97203-813-0 01 1 0006- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> 		8-97163-878-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. AUTO DOOR LOCK<AU4> EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97203-812-1 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICARAGUA EQUIPMENT(R5N), CHINAEQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUA TEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4> 		8-97203-812-1 01 1 0006- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-94359-020-4 01 1 9712-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-94359-020-4 01 1 0006-0007 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-94359-020-4 01 1 0008- ● ●
334 02.480 HARNESS; CABLE,BACK DOOR 8-94359-020-4 01 1 0008- ●
334 02.480 HARNESS; CABLE,BACK DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,EUROPE EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/CO STA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97168-758-0 01 1 9712-9812 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
EXC. AUTO DOOR LOCK<AU4>,EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2), CHILEEQUIPMENT(6KB),GUATEMALA/COSTA RICA EQU IPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) RR DEFOGGER W/AUTO CANCEL<S4Y> 		8-97211-347-1 01 1 9901-0005 ● ●
334 02.480 HARNESS; CABLE,BACK DOOR
RR DEFOGGER W/AUTO CANCEL<S4Y> EXC. AUTO DOOR LOCK<AU4>,EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),NICAR AGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2) ,CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-97211-347-1 01 1 0006- ● ●
335 02.480 HARNESS; CABLE,DOOR SW 8-97808-920-1 01 1 9712- ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4) 		8-97202-426-1 01 1 9712-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4) 		8-97264-430-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4) 		8-97171-260-2 01 1 9712- ●
347 02.480 HARNESS; CABLE,RR BODY
CHINA EQUIPMENT(YT2) 		8-97185-682-1 01 1 9712-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
CHINA EQUIPMENT(YT2) 		8-97264-432-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97185-680-1 01 1 9712-0005 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 		8-97185-680-1 01 1 0006-0105 ●
347 02.480 HARNESS; CABLE,RR BODY
EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 		8-97264-431-0 01 1 0106- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97185-681-1 01 1 9712-0005 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97185-681-1 01 1 0006-0007 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),CHINA EQUIPMENT(YT2), ARGENTINA EQUIPMENT(7SZ) 		8-97185-681-1 01 1 0008- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97185-681-1 01 1 0008- ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> DRIVER 		8-97200-731-2 01 1 9712-0007 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97200-731-2 01 1 0008-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
ANTI THEFT<UA6> 		8-97200-731-2 01 1 0008-0105 ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97304-983-0 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
ANTI THEFT<UA6> 		8-97304-983-0 01 1 0106- ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> ASSIST 		8-97200-732-2 01 1 9712-0007 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97200-732-2 01 1 0008-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
ANTI THEFT<UA6> 		8-97200-732-2 01 1 0008-0105 ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> ANTI THEFT<UA6> 		8-97304-987-0 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
ANTI THEFT<UA6> 		8-97304-987-0 01 1 0106- ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> DRIVER 		8-97130-149-2 01 1 9712-0007 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97130-149-2 01 1 0008-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
EXC. ANTI THEFT<UA6> 		8-97130-149-2 01 1 0008-0105 ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97304-982-1 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
EXC. ANTI THEFT<UA6> 		8-97304-982-1 01 1 0106- ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> ASSIST 		8-97133-802-2 01 1 9712-0007 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97133-802-2 01 1 0008-0105 ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
EXC. ANTI THEFT<UA6> 		8-97133-802-2 01 1 0008-0105 ●
370 02.480 HARNESS; CABLE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. ANTI THEFT<UA6> 		8-97304-985-1 01 1 0106- ● ●
370 02.480 HARNESS; CABLE,FRT DOOR
EXC. ANTI THEFT<UA6> 		8-97304-985-1 01 1 0106- ●
çizim 73469
366 366 184 184 35 403 36 184 114 161 431 431 161 161
BalonParca AdiParca NoAdetTipApplied Date A B C
35 02.530 BOX; RELAY & FUSE 8-97044-180-2 01 1 9712-0007 ● ●
35 02.530 BOX; RELAY & FUSE 8-97044-180-2 01 1 0008-0105 ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97289-812-0 01 1 0106- ● ● ●
36 02.530 BOX; RELAY
4JX1 ENG(RJM) 		8-97104-122-1 01 1 9712-0007 ● ●
36 02.530 BOX; RELAY
4JX1 ENG(RJM) 		8-97104-122-1 01 1 0008- ● ●
36 02.530 BOX; RELAY 8-97104-122-1 01 1 0008- ●
114 02.483 BOX ASM; FUSE
15AX1 		1-82510-504-0 01 1 0106- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
03.885 (A) M6X20 		8-94412-422-0 03 1 0008- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 9712-0007 ● ●
161 02.559 BOLT; GROUND,HARNESS
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 06 1 0008- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) 		8-97252-917-0 01 1 0005-0005 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) EXC. ARGENTINA EQUIPMENT(7SZ) (A) 		8-97252-917-0 01 1 0005-0005 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) 		8-97252-917-0 01 1 0006-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) EXC. NICARAGUA EQUIPMENT(R5N) (A) 		8-97252-917-0 01 1 0006-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) 		8-97287-552-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) EXC. NICARAGUA EQUIPMENT(R5N) (A) 		8-97287-552-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97044-181-0 01 1 9712-0007 ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97044-181-0 01 1 0008- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) 		8-97180-178-1 01 1 9712-0004 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) (A) 		8-97180-178-1 01 1 0005-0005 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) (A) 		8-97180-178-1 01 1 0006-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) (A) 		8-97287-553-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (C) 		8-97104-131-0 01 1 9712-0007 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (C) 		8-97104-131-0 01 1 0008- ● ●
184 02.559 COVER; RELAY & FUSE BOX
(C) 		8-97104-131-0 01 1 0008- ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) 		8-97180-177-2 01 1 9712-9908 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) 		8-97226-786-0 01 1 9909-0007 ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) 		8-97226-786-0 01 1 0008-0009 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) EXC. PHILIPPINE EQUIPMENT(S2U) (A) 		8-97226-786-0 01 1 0008-0009 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) 		8-97287-152-0 01 1 0010-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) EXC. PHILIPPINE EQUIPMENT(S2U) (A) 		8-97287-152-0 01 1 0010-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) (A) 		8-97287-550-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) EXC. PHILIPPINE EQUIPMENT(S2U) (A) 		8-97287-550-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) 		8-97180-176-1 01 1 9712-0105 ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) 		8-97287-549-0 01 1 0106- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) (A) 		8-97239-277-0 01 1 0008-0009 ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97239-277-0 01 1 0008-0009 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) (A) 		8-97287-153-0 01 1 0010-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97287-153-0 01 1 0010-0105 ●
184 02.559 COVER; RELAY & FUSE BOX
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) (A) 		8-97287-551-1 01 1 0106- ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97287-551-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-456-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97191-456-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97227-649-1 01 1 9909-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97252-717-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. NICARAGUA EQUIPMENT(R5N) 		8-97252-717-2 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) EXC. NICARAGUA EQUIPMENT(R5N) 		8-97264-359-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5) L=2810 		8-97191-457-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) L=2810 		8-97191-457-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) 		8-97227-650-1 01 1 9909-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), ARGENTINA EQUIPMENT(7SZ) 		8-97252-718-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), NICARAGUA EQUIPMENT(R5N) 		8-97252-718-2 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ANTI LOCK BRAKE SYSTEM(JE5), NICARAGUA EQUIPMENT(R5N) 		8-97264-360-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97191-478-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) 		8-97191-478-2 01 1 9801-0005 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) 		8-97191-478-2 01 1 0006-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-364-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97191-479-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97191-479-1 01 1 9801-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97252-716-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97252-716-1 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. NICARAGUA EQUIPMENT(R5N), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97264-381-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC>,ARGENTINA EQUIPMENT(7SZ) 		8-97252-715-1 01 1 0005-0005 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) EXC. NICARAGUA EQUIPMENT(R5N), IMMOBILIZER SYSTEM<7KC> 		8-97252-715-1 01 1 0006-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97307-293-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97185-706-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-454-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-742-2 01 1 9909-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97225-742-2 01 1 0008-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97287-159-0 01 1 0010-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) EXC. PHILIPPINE EQUIPMENT(S2U) 		8-97264-355-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97185-707-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-455-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-743-2 01 1 9909-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5), PHILIPPINE EQUIPMENT(S2U) 		8-97225-743-2 01 1 0008-0009 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5), PHILIPPINE EQUIPMENT(S2U) 		8-97287-160-0 01 1 0010-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. ANTI LOCK BRAKE SYSTEM(JE5), PHILIPPINE EQUIPMENT(S2U) 		8-97264-356-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) IMMOBILIZER SYSTEM<7KC> 		8-97185-731-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) IMMOBILIZER SYSTEM<7KC> 		8-97191-477-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97225-714-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97248-846-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97251-874-1 01 1 0005-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97264-371-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> 		8-97353-385-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97185-730-0 01 1 9712-9712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-476-1 01 1 9801-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-713-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-845-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97251-873-1 01 1 0005-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97251-873-1 01 1 0008-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97264-372-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97353-386-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97225-716-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97248-848-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97251-876-1 01 1 0005-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97264-373-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97353-387-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-715-1 01 1 9909-0002 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97248-847-0 01 1 0003-0004 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97251-875-1 01 1 0005-0007 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97251-875-1 01 1 0008-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97264-374-1 01 1 0106-0306 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) EXC. PHILIPPINE EQUIPMENT(S2U), IMMOBILIZER SYSTEM<7KC> 		8-97353-388-0 01 1 0307- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97191-475-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97216-777-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97225-722-1 01 1 9909-0010 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> 		8-97225-722-1 01 1 0011-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-351-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-365-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-366-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC> 		8-97264-368-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-367-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-474-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97216-776-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) A/T THM(RMQ) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-720-1 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-352-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-452-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-740-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. NICARAGUA EQUIPMENT(R5N), IMMOBILIZER SYSTEM<7KC>,GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97264-380-1 01 1 0106-0108 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. IMMOBILIZER SYSTEM<7KC>, GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97264-380-2 01 1 0109- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) ANTI LOCK BRAKE SYSTEM(JE5) EXC. EUROPE EQUIPMENT(EK4) 		8-97264-353-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97191-453-1 01 1 9712-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97225-741-2 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T THM(RMQ) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC> 		8-97264-363-2 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) EXC. EUROPE EQUIPMENT(EK4),ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-354-0 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97191-472-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97216-774-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97225-717-1 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. NICARAGUA EQUIPMENT(R5N), IMMOBILIZER SYSTEM<7KC> 		8-97264-382-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97191-473-0 01 1 9712-9901 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97216-775-0 01 1 9902-9908 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> 		8-97225-719-1 01 1 9909-0105 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97264-383-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4) 		8-97264-369-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC> 		8-97264-370-1 01 1 0106- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) NICARAGUA EQUIPMENT(R5N) 		8-97264-378-1 01 1 0106-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) ARGENTINA EQUIPMENT(7SZ) 		8-97201-964-1 01 1 9801-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) ARGENTINA EQUIPMENT(7SZ) 		8-97227-651-2 01 1 9909-0005 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) NICARAGUA EQUIPMENT(R5N) 		8-97227-651-3 01 1 0006-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ANTI LOCK BRAKE SYSTEM(JE5) NICARAGUA EQUIPMENT(R5N) 		8-97264-361-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97201-965-1 01 1 9801-9908 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) ARGENTINA EQUIPMENT(7SZ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97227-652-2 01 1 9909-0005 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97227-652-3 01 1 0006-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) NICARAGUA EQUIPMENT(R5N) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-362-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) NICARAGUA EQUIPMENT(R5N) 		8-97264-379-1 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97261-114-0 01 1 0006-0007 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97261-114-0 01 1 0008-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97261-114-0 01 1 0008-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-375-1 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97264-375-1 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) A/T AISIN(RMD) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97353-389-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-97353-389-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) PHILIPPINE EQUIPMENT(S2U) 		8-97261-112-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97261-112-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) PHILIPPINE EQUIPMENT(S2U) 		8-97287-161-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-161-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) ANTI LOCK BRAKE SYSTEM(JE5) PHILIPPINE EQUIPMENT(S2U) 		8-97264-357-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-357-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97261-116-0 01 1 0008-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97264-377-1 01 1 0106-0306 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) M/T AR-5 5 SPEED(RNK) PHILIPPINE EQUIPMENT(S2U) EXC. IMMOBILIZER SYSTEM<7KC> 		8-97353-390-0 01 1 0307- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97261-113-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97261-113-0 01 1 0008-0009 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-162-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97287-162-0 01 1 0010-0105 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JX1 ENG(RJM) PHILIPPINE EQUIPMENT(S2U) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-358-0 01 1 0106- ●
366 02.525 HARNESS; CABLE,ENG ROOM
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97264-358-0 01 1 0106- ●
403 02.483 BRACKET; CONNECTOR,HARNESS 8-97109-463-0 01 1 9712-0007 ● ●
403 02.483 BRACKET; CONNECTOR,HARNESS 8-97109-463-0 01 1 0008- ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712-0007 ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 9712-0007 ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 0008- ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-97805-765-0 01 1 0008- ● ●
431 02.530 CONNECTOR; JOINT
EXC. AIR BAG DRIVER<AJ3> (A) 		8-97133-712-0 01 1 9712-0007 ● ●
431 02.530 CONNECTOR; JOINT
EXC. AIR BAG DRIVER<AJ3> (A) 		8-97133-712-0 01 1 0008- ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-97133-712-0 01 1 0008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
