◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#38384) — 90 parça

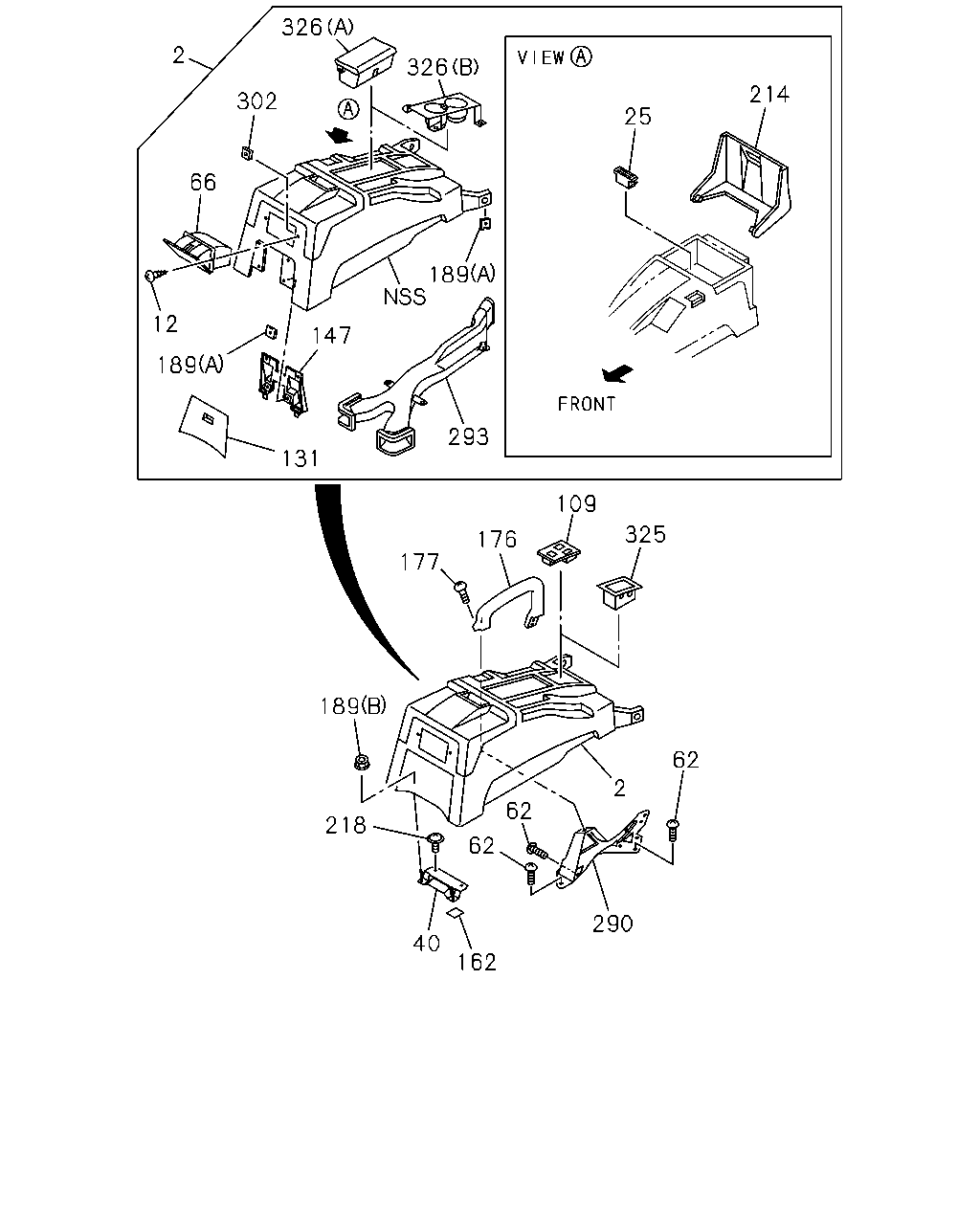

çizim 71182
326 2 326 214 302 25 66 189 12 147 189 293 131 109 325 176 177 189 62 2 62 218 62 290 40 162
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.081 CONSOLE; CENTER
DARK GRAY 		8-97154-902-1 01 1 9712-9908 ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97154-902-3 01 1 9909-0105 ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97297-018-3 01 1 0106- ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-556-3 01 1 9909-0105 ● ● ●
2 16.081 CONSOLE; CENTER
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97297-019-3 01 1 0106- ● ●
12 16.650 SCREW; DOOR HINGE
16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ● ●
25 16.650 MAGNET; CENTER CONSOLE 8-97103-831-0 01 1 9712- ● ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE 8-97808-660-1 01 1 9712- ● ● ●
62 16.650 SCREW; BRKT
16.570 M6X16 W/LK&PL WASHER 		9-03920-616-0 05 1 9712-0210 ● ● ●
62 16.650 SCREW; BRKT
16.585 M6X14 W/PL WASHER 		9-03900-614-0 05 1 0211- ● ● ●
66 16.120 TRAY ASM; ASH
DARK GRAY 		8-97151-531-1 01 1 9712-9908 ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-531-1 01 1 9909- ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-752-1 01 1 9909-0105 ● ● ●
66 16.120 TRAY ASM; ASH
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-752-1 01 1 0106- ● ●
109 16.650 BEZEL; POWER WINDOW SW
DOOR MIRROR ELEC CONT & FOLDING W/DEF(6MK) 		8-97083-239-1 01 1 9712- ● ● ●
131 16.650 COVER; CONSOLE SIDE
DARK GRAY 		8-97151-532-1 01 1 9712-9908 ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-532-1 01 1 9909- ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-835-1 01 1 9909-0105 ● ● ●
131 16.650 COVER; CONSOLE SIDE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-835-1 01 1 0106- ● ●
147 16.650 BASE ASM; CENTER CONSOLE 8-97088-818-2 01 1 9712- ● ● ●
162 16.650 CUSHION; PARCEL BOX 8-97808-667-0 02 1 9712- ● ● ●
176 16.650 GRIP; CTR,CONSOLE
DARK GRAY 		8-97098-372-3 01 1 9712-9908 ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-372-3 01 1 9909- ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-557-3 01 1 9909-0105 ● ● ●
176 16.650 GRIP; CTR,CONSOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-557-3 01 1 0106- ● ●
177 16.650 SCREW; CTR GRIP
02.334 M6X25 FLANGE 		0-28680-625-0 03 1 9712- ● ● ●
189 16.650 NUT; CONSOLE BOX
09.262 (A) M5 SPIRE NUT 		8-94217-271-0 04 1 9712- ● ● ●
189 16.650 NUT; CONSOLE BOX
(B) M5 FLANGE 		8-94379-494-0 02 1 9712-0301 ● ● ●
189 16.650 NUT; CONSOLE BOX
09.744 (B) M5 FLANGE 		5-09440-003-0 02 1 0302- ● ● ●
214 16.650 LID; CONSOLE
DARK GRAY 		8-97151-528-1 01 1 9712-9908 ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97151-528-1 01 1 9909- ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-834-1 01 1 9909-0105 ● ● ●
214 16.650 LID; CONSOLE
INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-834-1 01 1 0106- ● ●
218 16.650 BOLT; BRKT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 04.686 M6X14 FLANGE 		0-28080-614-0 02 1 9712-0004 ● ● ●
218 16.650 BOLT; BRKT
EXC. ANTI LOCK BRAKE SYSTEM(JE5) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0005- ● ● ●
290 16.650 BRACKET; GRIP 8-97113-889-1 01 1 9712- ● ● ●
293 16.650 DUCT 8-97116-662-1 01 1 9712- ● ● ●
302 16.650 RETAINER; ASH TRAY 8-97142-901-0 02 1 9712- ● ● ●
325 04.015 POCKET
DOOR MIRROR STD(S4K) 		8-97083-252-1 01 1 9712- ●
326 16.650 HOLDER; CUP
(A) DARK GRAY 		8-97151-533-0 01 1 9712-9908 ● ● ●
326 16.650 HOLDER; CUP
INTERIOR COLOR MEDIUM GRAY(113) (A) DARK GRAY 		8-97151-533-0 01 1 9909-0105 ● ● ●
326 16.650 HOLDER; CUP
(B) BLACK 		8-97298-310-1 01 1 0106- ● ● ●
326 16.650 HOLDER; CUP
INTERIOR COLOR BEIGE(181) (A) LIGHT BEIGE 		8-97290-848-0 01 1 9909-0105 ● ● ●

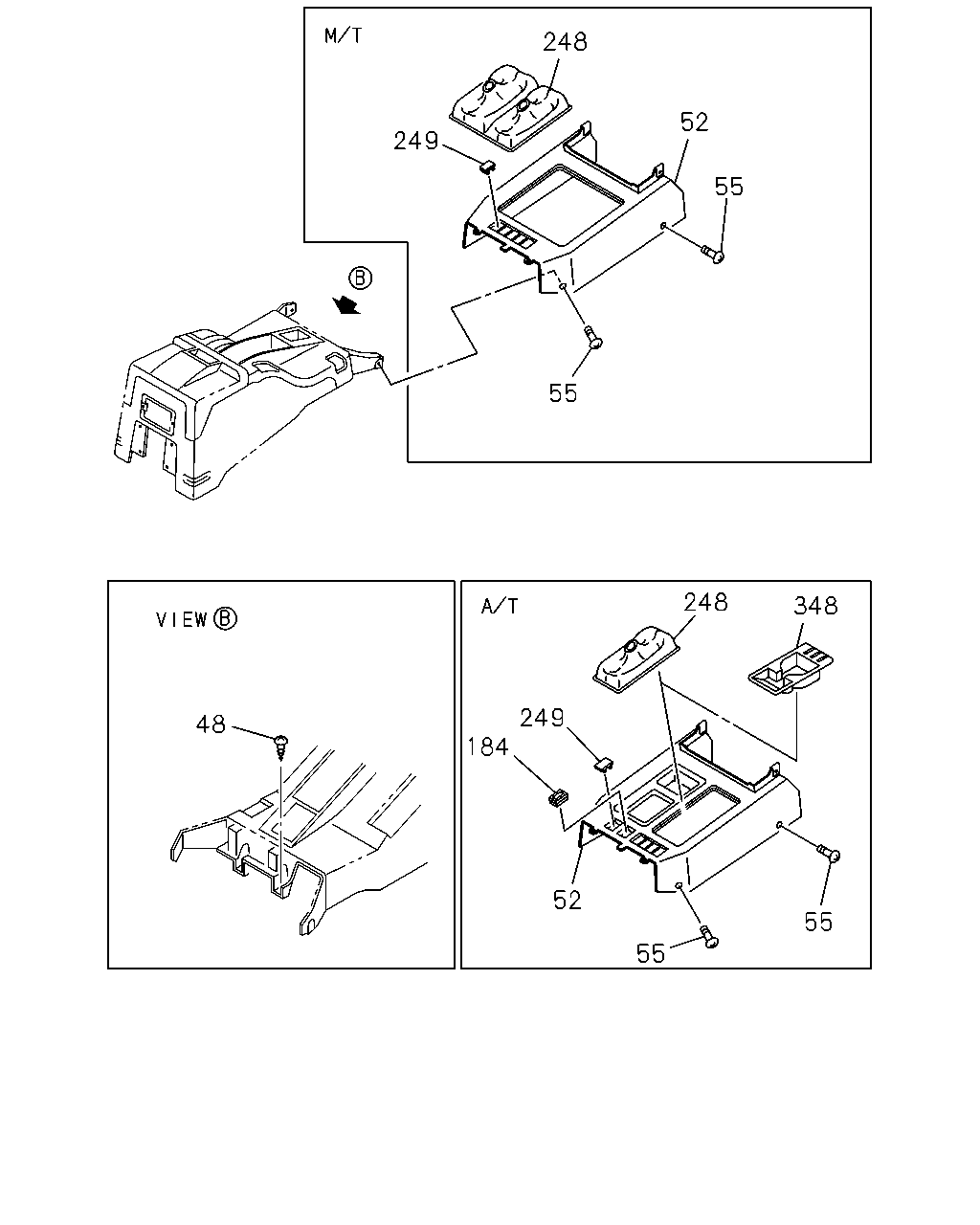

çizim 72276
248 52 249 55 55 248 348 249 184 48 52 55 55
BalonParca AdiParca NoAdetTipApplied Date A B C
48 16.650 SCREW; BRKT,CENTER CONSOLE
09.743 M5X16 		8-94295-854-0 02 1 9712- ● ● ●
52 16.650 CONSOLE; FRT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BEIGE(181) ACCESSORY SOCKET FRT CONSOLE<KC5> LIGHT BEIGE 		8-97297-821-0 01 1 0106- ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR BEIGE(181) ACCESSORY SOCKET FRT CONSOLE<KC5> LIGHT BEIGE 		8-97297-823-0 01 1 0106- ● ●
52 16.650 CONSOLE; FRT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97297-820-0 01 1 0106- ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR MEDIUM GRAY(113) ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97297-822-0 01 1 0106- ● ● ●
52 16.650 CONSOLE; FRT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-807-3 01 1 9909-0105 ● ● ●
52 16.650 CONSOLE; FRT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BEIGE(181) EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> LIGHT BEIGE 		8-97290-807-3 01 1 0106- ● ●
52 16.650 CONSOLE; FRT
A/T THM(RMQ) DARK GRAY 		8-97098-647-3 01 1 9712-9908 ● ● ●
52 16.650 CONSOLE; FRT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-647-3 01 1 9909-0105 ● ● ●
52 16.650 CONSOLE; FRT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR MEDIUM GRAY(113) EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97098-647-3 01 1 0106- ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-806-3 01 1 9909-0105 ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR BEIGE(181) EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> LIGHT BEIGE 		8-97290-806-3 01 1 0106- ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) DARK GRAY 		8-97098-646-3 01 1 9712-9908 ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97098-646-3 01 1 9909-0105 ● ● ●
52 16.650 CONSOLE; FRT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR MEDIUM GRAY(113) EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY 		8-97098-646-3 01 1 0106- ● ● ●
55 09.744 SCREW; FRT CONSOLE
M5X14 TAPPING 		1-72548-072-0 04 1 9712- ● ● ●
184 16.650 BOX; COIN,SEAT SIDE
A/T THM(RMQ) 04.015 		8-94482-280-2 01 1 9712-9908 ● ● ●
184 16.650 BOX; COIN,SEAT SIDE
A/T AISIN(RMD),A/T THM(RMQ) 04.015 		8-94482-280-2 01 1 9909- ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-892-0 01 1 9909-0105 ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-892-0 01 1 0106- ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM(RMQ) BLACK 		8-97159-879-0 01 1 9712-9908 ● ● ●
248 04.015 BOOT; SHIFT CONT
A/T AISIN(RMD),A/T THM(RMQ) INTERIOR COLOR MEDIUM GRAY(113) BLACK 		8-97159-879-0 01 1 9909- ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-891-0 01 1 9909-0105 ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97290-891-0 01 1 0106- ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) BLACK 		8-97159-878-0 01 1 9712-9908 ● ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) INTERIOR COLOR MEDIUM GRAY(113) BLACK 		8-97159-878-0 01 1 9909- ● ● ●
249 16.674 COVER
EXC. EUROPE EQUIPMENT(EK4) 		8-97043-732-1 01 1 9712-0005 ● ●
249 16.674 COVER
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97043-732-1 01 1 9712-0005 ● ●
249 16.674 COVER
SEAT HEATER DRIVER<C37> EXC. SEAT HEATER PASSENGER<C38> 		8-97043-732-1 01 1 9712-0005 ● ●
249 16.674 COVER 8-97043-732-1 01 1 9712-0005 ● ●
249 16.674 COVER
4X4 4 DOOR LONG(UBS**F) EXC. EUROPE EQUIPMENT(EK4) 		8-97043-732-1 01 1 9712-0005 ●
249 16.674 COVER
4X4 4 DOOR LONG(UBS**F) M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97043-732-1 01 1 9712-0005 ●
249 16.674 COVER
4X4 4 DOOR LONG(UBS**F) SEAT HEATER DRIVER<C37> EXC. SEAT HEATER PASSENGER<C38> 		8-97043-732-1 01 1 9712-0005 ●
249 16.674 COVER
4X4 4 DOOR LONG(UBS**F) 		8-97043-732-1 01 1 9712-0005 ●
249 16.674 COVER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97043-732-1 01 1 0006-0007 ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97043-732-1 01 1 0006-0007 ● ● ●
249 16.674 COVER
SEAT HEATER DRIVER<C37> EXC. SEAT HEATER PASSENGER<C38> 		8-97043-732-1 01 1 0006-0007 ● ● ●
249 16.674 COVER 8-97043-732-1 01 1 0006-0007 ● ● ●
249 16.674 COVER
EXC. SEAT HEATER DRIVER<C37> 		8-97043-732-1 02 1 0008- ● ● ●
249 16.674 COVER
EXC. SEAT HEATER DRIVER<C37> 		8-97043-732-1 02 1 9712-0007 ● ●
249 16.674 COVER
4X4 4 DOOR LONG(UBS**F) EXC. SEAT HEATER DRIVER<C37> 		8-97043-732-1 02 1 9712-0007 ●
249 16.674 COVER
SEAT HEATER DRIVER<C37> EXC. SEAT HEATER PASSENGER<C38> 		8-97043-732-1 01 1 0008- ● ● ●
249 16.674 COVER 8-97043-732-1 01 1 0008- ● ● ●
249 16.674 COVER
EXC. EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 		8-97043-732-1 01 1 0008- ● ● ●
249 16.674 COVER
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 		8-97043-732-1 01 1 0008- ● ● ●
348 16.650 BEZEL; CUP HOLDER
4X2(UBR***) INTERIOR COLOR BEIGE(181) LIGHT BEIGE 		8-97294-544-3 01 1 0008- ●
348 16.650 BEZEL; CUP HOLDER
4X2(UBR***) INTERIOR COLOR MEDIUM GRAY(113) DARK GRAY 		8-97294-543-3 01 1 0008- ●
