9-01 — TOOLS (#38381) — 182 parça

177 172 174 182 180 179 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
172	PULLER ASM; BRG DIFF PILOT	9-85210-173-0	01	1	9510-0004
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9510-
177	SETTING TOOL KIT	9-85220-040-0	01	1	9510-0004
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9510-
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9510-0004
180	PULLER; FRT & RR HUB M20	9-85210-187-0	01	1	9510-0004
182	REMOVER ASM	9-85210-095-0	01	1	9510-0004

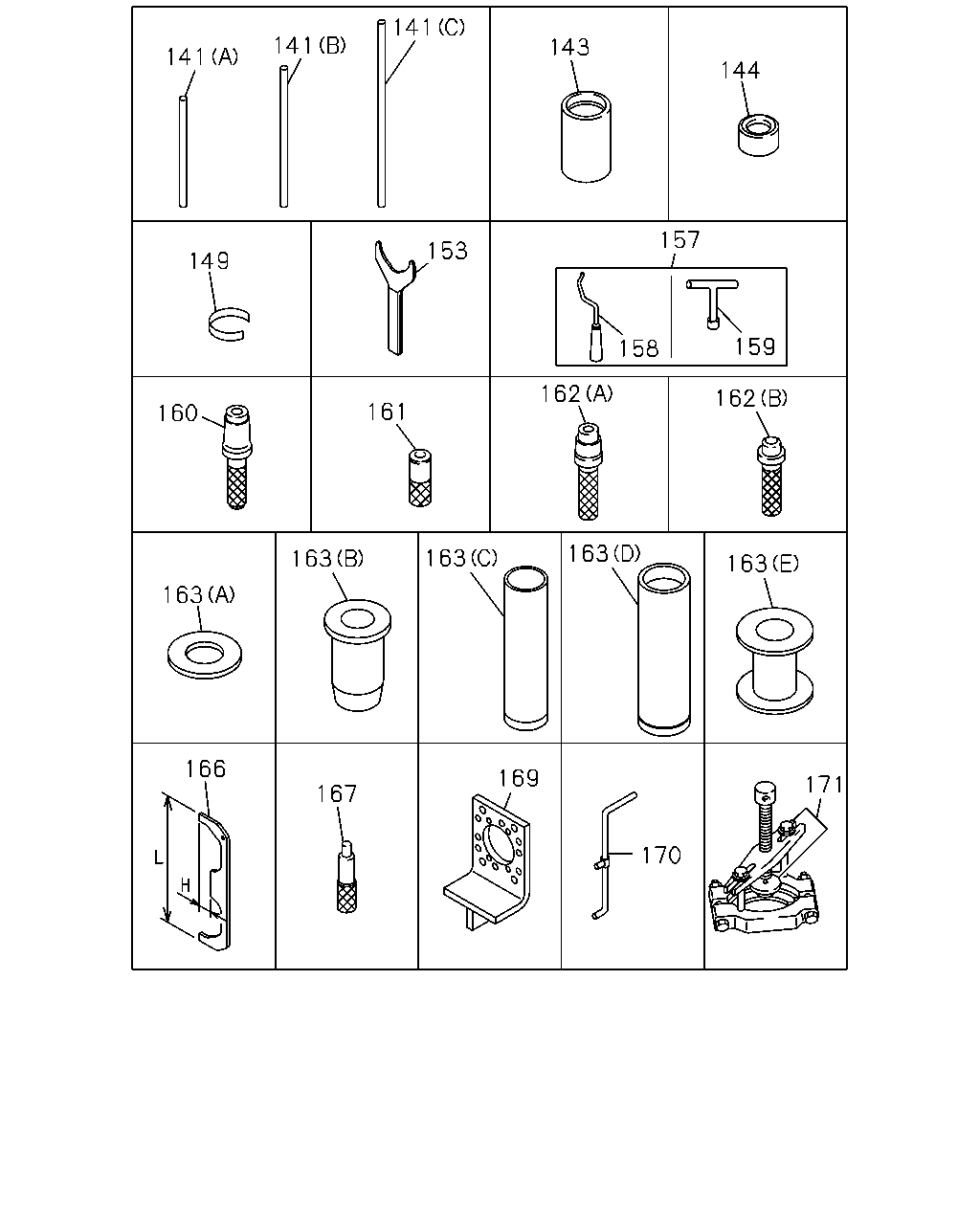

141 141 143 141 144 157 153 149 159 158 162 162 161 160 163 163 163 163 163 166 169 171 167 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
141	HANDLE; WRENCH (C) OD=25 L=480	1-85116-011-0	01	1	9510-1501
141	HANDLE; WRENCH (C) OD=25 L=480	8-98257-407-0	01	1	1502-
141	HANDLE; WRENCH (B) OD=19 L=400	9-85114-306-0	01	1	9510-0004
141	HANDLE; WRENCH (A) OD=16 L=300	9-85114-307-0	01	1	9510-0004
143	GUIDE; BOOT,TIE ROD END EXC. FRONT AXLE F049(FS4)	1-85229-011-0	01	1	9510-
144	BASE; BOOT GUIDE,TIE ROD END EXC. FRONT AXLE F049(FS4)	1-85229-012-0	01	1	9510-
149	PLATE; PILOT BRG PULLER	1-85219-009-0	01	1	9510-0004
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0005-
157	REPLACER KIT; RETURN SPR	9-85231-554-0	01	1	9510-0004
157	REPLACER KIT; RETURN SPR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	9-85231-554-0	01	1	0005-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9510-0004
158	SETTING TOOL; RETURN SPR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	9-85221-231-0	01	1	0005-
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	9510-0004
159	REMOVER; RETURN SPR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=12.5	9-85231-555-0	01	1	0005-
160	REMOVER; NEEDLE BRG FRONT AXLE F049(FS4) L=228	1-85238-010-0	01	1	9510-
160	REMOVER; NEEDLE BRG EXC. FRONT AXLE F049(FS4) L=215	1-85238-007-0	01	1	9510-0004
161	REMOVER; TIE ROD ARM FRONT AXLE F049(FS4)	9-85141-603-0	01	1	9510-0004
161	REMOVER; TIE ROD ARM EXC. FRONT AXLE F049(FS4)	1-85176-001-0	01	1	9510-
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (B) L=181	1-85238-008-0	01	1	9510-
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (A) L=213	1-85238-009-0	01	1	9510-
162	SETTING TOOL; NEEDLE BRG EXC. FRONT AXLE F049(FS4) (A) L=200	1-85238-005-0	01	1	9510-0004
162	SETTING TOOL; NEEDLE BRG EXC. FRONT AXLE F049(FS4) (B) L=175	1-85238-006-0	01	1	9510-0004
163	TOOL; SETTING MLD6 M/T<X9Y> (B) L=195	1-85221-162-1	01	1	0005-
163	TOOL; SETTING MLD6 M/T<X9Y> (E) L=150	1-85221-163-0	01	1	0005-
163	TOOL; SETTING (A) OD=120	1-85221-164-0	01	1	9510-0004
163	TOOL; SETTING (B) L=150	9-85221-248-0	01	1	9510-0004
163	TOOL; SETTING (C) L=350	9-85221-310-0	01	1	9510-0004
163	TOOL; SETTING (D) L=220	9-85221-323-0	01	1	9510-0004
163	TOOL; SETTING MLD6 M/T<X9Y> (B) L=195	1-85221-162-1	01	1	9803-0004
163	TOOL; SETTING MLD6 M/T<X9Y> (E) L=150	1-85221-163-0	01	1	9803-0004
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) L=9	1-85253-011-0	01	1	9510-9609
166	ALIGNER; CLU RELEASE LEVER MBJ5J M/T(Y1Y),MBJ6T M/T(Y2A),MBJ5T M/T(Y2K) 14" CLUTCH(WF6) L=9	1-85253-011-0	01	1	9803-0004
166	ALIGNER; CLU RELEASE LEVER 14" CLUTCH(WF6) L=6	1-85253-023-0	01	1	9610-
167	ALIGNER; CLU PILOT L=185	1-85253-012-0	01	1	9510-9609
167	ALIGNER; CLU PILOT 14" CLUTCH(WF6) L=185	1-85253-008-0	01	1	9610-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9510-0004
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9510-0004
171	PULLER ASM; PINION BRG	9-85210-172-0	01	1	9510-0004

274 271 268 209 285 281 280 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9510-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9510-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-3	01	1	9510-
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9510-
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9510-0603
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	0-91510-510-0	04	1	0604-
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9510-9606
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-0512
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28651-020-0	04	1	0601-
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0602
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91180-210-0	04	1	0603-

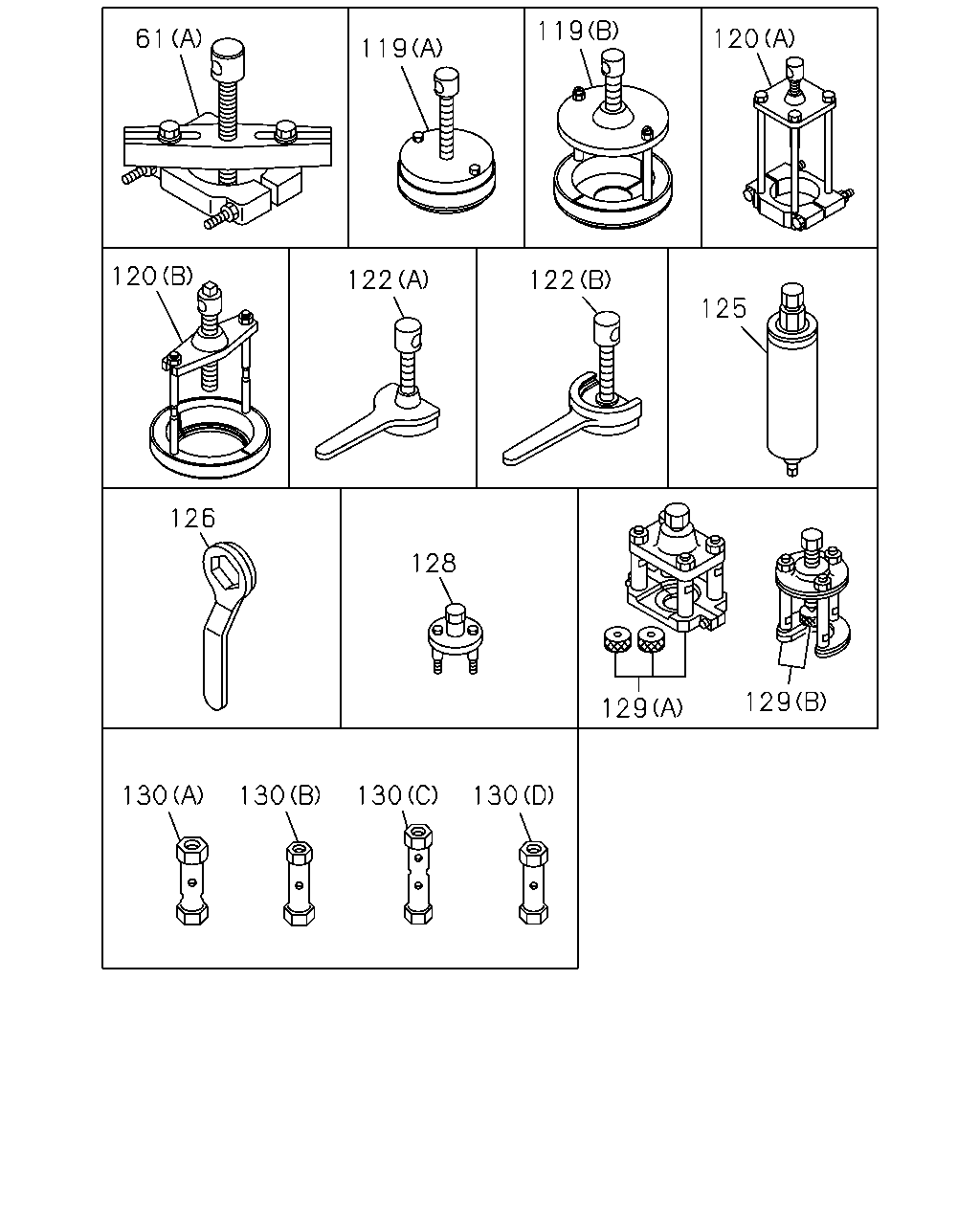

119 120 61 119 120 122 122 125 126 128 129 129 130 130 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9510-
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9510-0004
119	PULLER ASM; TOP GEAR BRG (A)	9-85210-186-0	01	1	9510-0004
119	PULLER ASM; TOP GEAR BRG MLD6 M/T<X9Y> (B)	9-85210-185-0	01	1	9803-0004
120	PULLER ASM; MAIN REAR BRG (A)	9-85210-169-0	01	1	9510-
120	PULLER ASM; MAIN REAR BRG MLD6 M/T<X9Y> (B)	9-85210-192-0	01	1	9803-0004
122	PULLER ASM; COUNTER FRT (A)	9-85210-168-0	01	1	9510-
122	PULLER ASM; COUNTER FRT MLD6 M/T<X9Y> (B)	9-85210-129-1	01	1	9803-0004
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	9510-0004
126	WRENCH; FRT HUB BRG NUT FRONT AXLE F049(FS4) L=257 B=63	9-85111-373-0	01	1	9510-0004
126	WRENCH; FRT HUB BRG NUT EXC. FRONT AXLE F049(FS4) L=257 B=54	1-85111-011-0	01	1	9510-0004
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9510-
129	PULLER ASM; PITMAN ARM (A)	9-85210-147-0	01	1	9510-0004
129	PULLER ASM; PITMAN ARM (B)	9-85210-170-0	01	1	9510-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9510-0004
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9510-0004
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9510-0004
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9510-0004

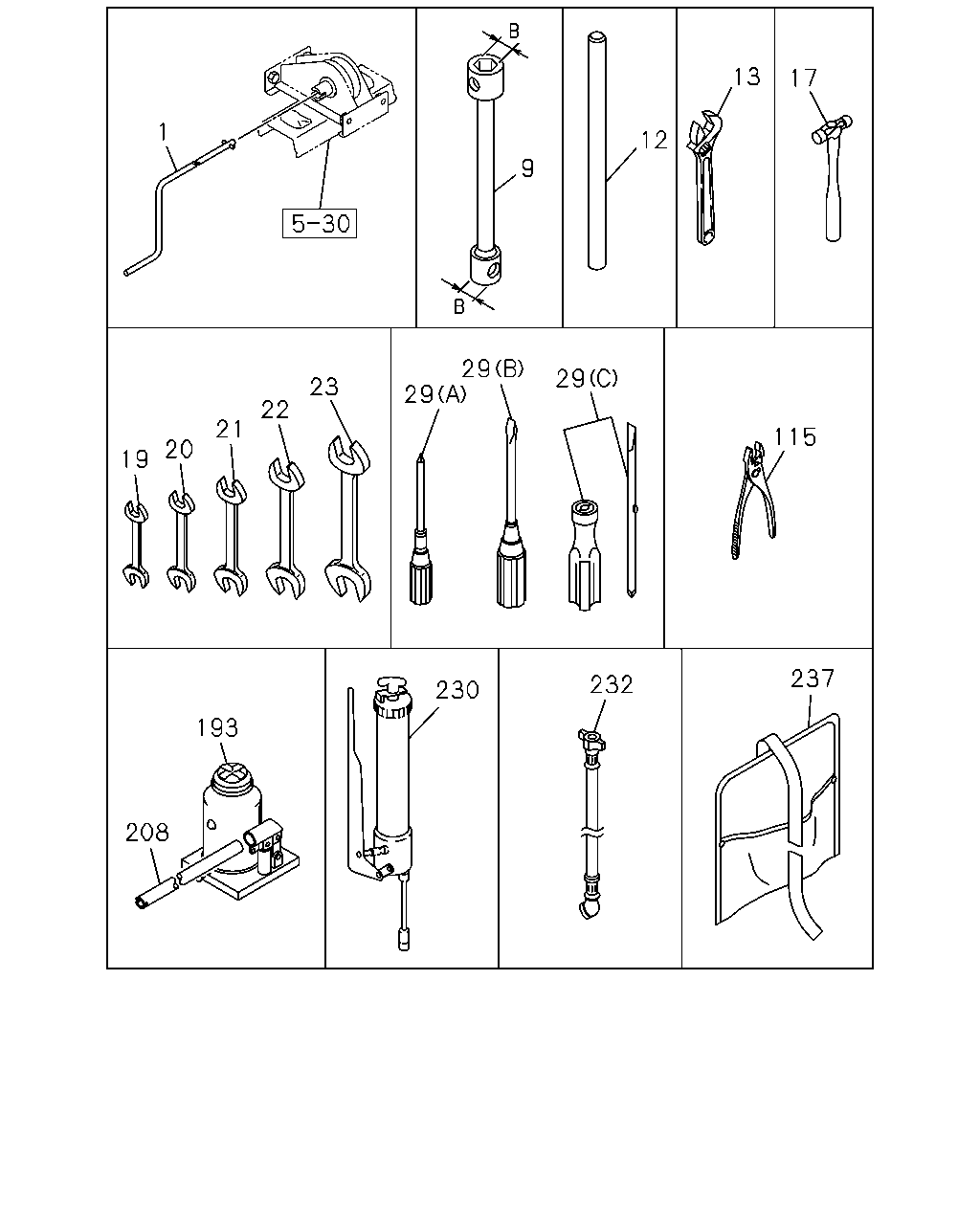

13 17 1 12 9 29 29 23 29 22 21 115 20 19 237 232 230 193 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9510-
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9510-0208
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	0209-1601
9	WRENCH; WHEEL PIN B=41X21 L=445	8-98316-703-0	01	1	1602-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0005-1501
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1502-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9510-0004
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9510-0208
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	9510-0208
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-
19	WRENCH; 7X8 8X10	9-99592-108-0	01	1	9510-9602
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9510-0208
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9510-0208
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9510-0208
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9510-0208
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9510-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9510-0208
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0209-
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9510-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-
115	PLIER	5-85171-001-0	01	1	9510-9602
115	PLIER	5-85171-002-0	01	1	9603-0208
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
193	JACK ASM TOOL A KIT<SK9>,TOOL B KIT<SL1> CAUTIONS ARABIAN<WJ7> 7TON	1-85510-024-0	01	1	0306-
193	JACK ASM 7TON	1-85510-005-2	01	1	9510-0208
193	JACK ASM TOOL A KIT<SK9>,TOOL B KIT<SL1> 7TON	1-85510-005-2	01	1	0209-0305
193	JACK ASM TOOL A KIT<SK9>,TOOL B KIT<SL1> EXC. CAUTIONS ARABIAN<WJ7> 7TON	1-85510-005-2	01	1	0306-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9510-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-
230	PUMP; GREASE	1-85556-007-2	01	1	9510-0208
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9510-
237	BAG; TOOL	8-97130-902-0	01	1	9510-0208
237	BAG; TOOL	8-97130-902-1	01	1	0209-

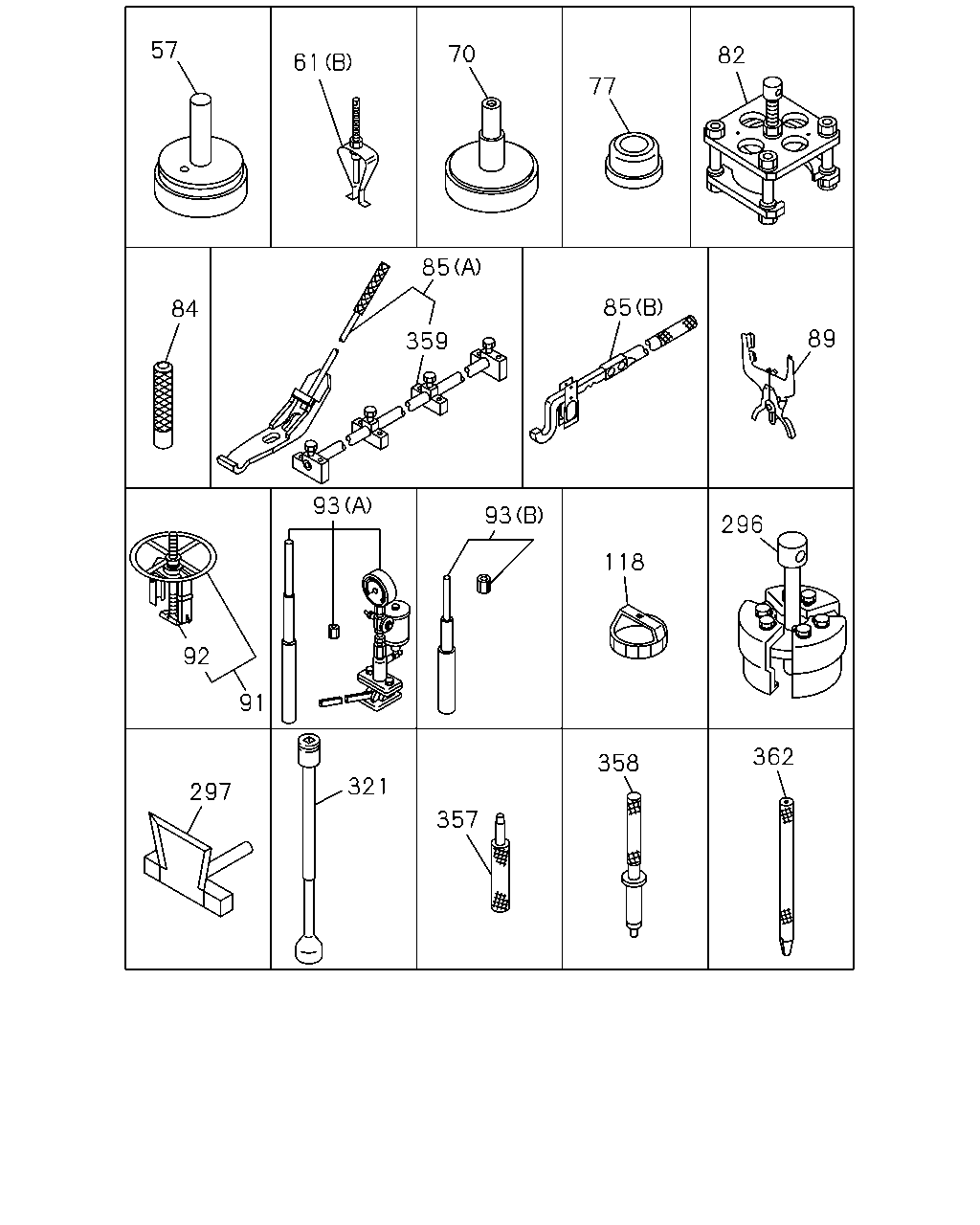

57 70 82 61 77 85 85 84 89 359 93 93 296 118 92 91 362 358 321 297 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9510-0004
61	PULLER ASM; PILOT BRG (A)	1-85210-050-0	01	1	9510-
61	PULLER ASM; PILOT BRG (B)	9-85210-157-0	01	1	9510-0004
70	TOOL; SETTING,OIL SEAL	8-94396-856-0	01	1	9510-0004
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L)	8-94396-816-0	01	1	9510-9709
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HE1 TCC ENG(76L)	8-94396-816-0	01	1	9710-0004
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	8-94396-816-0	01	1	0005-
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	9510-0004
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9510-0001
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-94396-815-0	01	1	0002-0004
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>	8-94396-815-0	01	1	0002-0004
84	REPLACER; VALVE SEAL 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-94396-815-0	01	1	0005-
84	REPLACER; VALVE SEAL 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-525-0	01	1	9911-0004
85	REPLACER ASM; VALVE SPR (A)	8-94396-861-0	01	1	9510-0001
85	REPLACER ASM; VALVE SPR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (A)	8-94396-861-0	01	1	0002-0004
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-861-0	01	1	0002-0004
85	REPLACER ASM; VALVE SPR 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (B)	8-94391-528-0	01	1	9911-0004
85	REPLACER ASM; VALVE SPR 6HH1 STD 4VALVE ENG(1A6) (B)	8-94391-528-0	01	1	0005-
89	TOOL; PISTON RING	1-85221-029-0	01	1	9510-0004
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9510-0001
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-94396-849-0	01	1	0002-0004
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>	8-94396-849-0	01	1	0002-0004
91	REPLACER ASM; CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-94396-849-0	01	1	0005-
91	REPLACER ASM; CYL LINER 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-526-0	01	1	9911-0004
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9510-0001
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-94396-821-0	01	1	0002-0004
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN>	8-94396-821-0	01	1	0002-0004
92	ANKLE; REPLACER,CYL LINER 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L)	8-94396-821-0	01	1	0005-
92	ANKLE; REPLACER,CYL LINER 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-554-0	01	1	9911-0004
93	SETTING KIT; VALVE GUIDE (A)	1-85220-001-0	01	1	9510-0001
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (A)	1-85220-001-0	01	1	0002-0004
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L) EXC. EURO2 SPECIFICATION<THN> (A)	1-85220-001-0	01	1	0002-0004
93	SETTING KIT; VALVE GUIDE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HH1 N ENG(66L), 6HE1 TCC ENG(76L) (A)	1-85220-001-0	01	1	0005-
93	SETTING KIT; VALVE GUIDE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN> (B)	8-97600-910-0	01	1	9911-0004
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	9510-0004
296	REPLACER; SLINGER	8-94396-858-0	01	1	9510-0004
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9510-0004
321	SOCKET; PROP SHAFT L=300	1-85115-024-0	01	1	9803-0004
321	SOCKET; PROP SHAFT 6HH1 STD ENG(65L),6HH1 N ENG(66L) L=250	1-85115-023-0	01	1	9803-0004
357	REPLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	9911-0004
357	REPLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94391-555-0	01	1	0005-0010
357	REPLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-555-0	01	1	0011-
358	PLACER; NOZZLE SLEEVE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	9911-0004
358	PLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94391-556-0	01	1	0005-0010
358	PLACER; NOZZLE SLEEVE 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-556-0	01	1	0011-
359	PIVOT 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	9911-0004
359	PIVOT 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN>	8-94396-862-0	01	1	0005-0010
359	PIVOT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94396-862-0	01	1	0011-
362	PLACER; GUIDE BRIDGE 6HH1 STD ENG(65L) EURO2 SPECIFICATION<THN>	8-94392-014-0	01	1	9911-0004

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
