◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#38378) — 34 parça

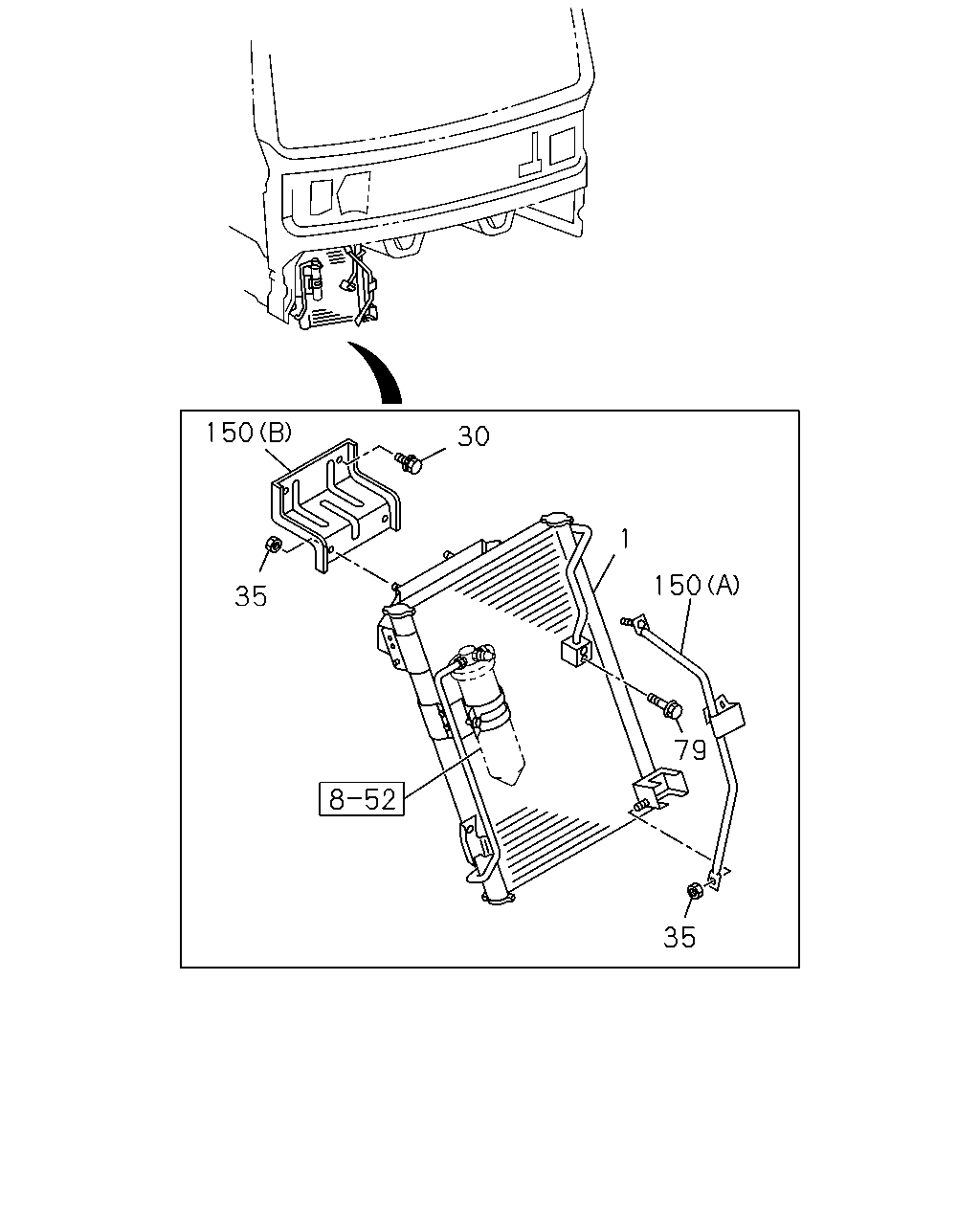

çizim 151881
150 30 1 150 35 79 35
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-191-1 01 1 9510-0004
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 0005-
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9510-0904
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 05 1 9510-0602
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 0603-
79 BOLT; CONDENSER BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X35 		8-97103-452-0 01 1 9510-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-786-1 01 1 9510-
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-898-0 01 1 9510-

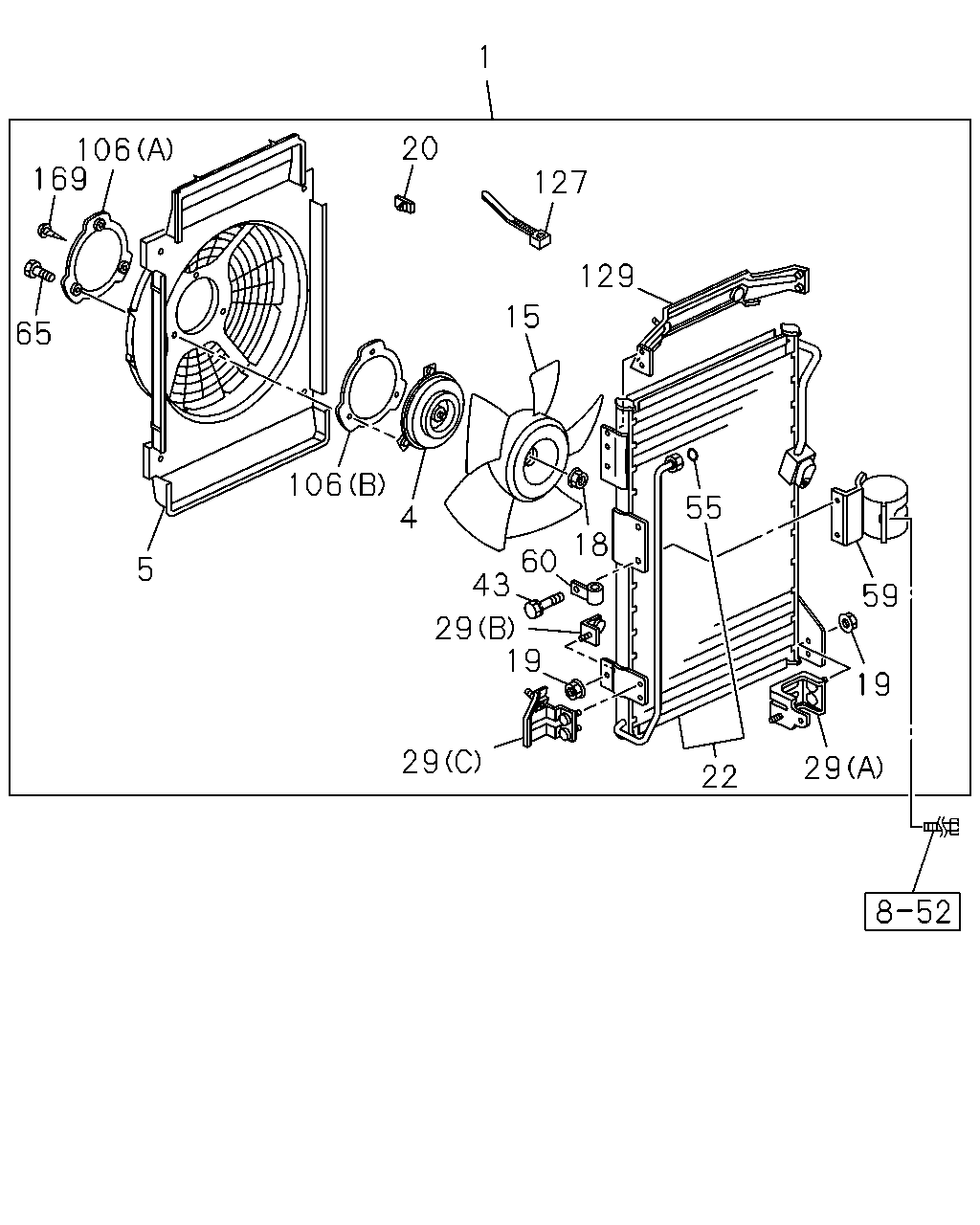

çizim 151920
1 20 106 169 127 129 15 65 106 55 4 18 60 43 5 59 29 19 19 29 29 22
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-191-1 01 1 9510-0004
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-223-2 01 1 0005-
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-231-0 01 1 9510-
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-230-2 01 1 9510-
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-232-0 01 1 9510-
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97018-672-0 01 1 9510-
19 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-235-0 12 1 9510-
20 CLIP; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94364-751-0 01 1 9510-
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-193-0 01 1 9510-0004
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-226-1 01 1 0005-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-227-1 01 1 9510-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-236-0 04 1 9510-
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83539-262-1 01 1 9510-
43 BOLT; BRKT,CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 W/FLANGE 		1-83539-260-0 06 1 9510-
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 		8-94481-700-0 01 1 9510-0001
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.07 		8-94461-902-0 01 1 0002-0004
55 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97161-776-0 01 1 0005-
59 BRACKET; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-228-2 01 1 9510-
60 CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-234-0 01 1 9510-
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-242-0 03 1 9510-
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-243-0 01 1 9510-
106 BRACKET; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-244-0 01 1 9510-
127 CLIP; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-008-0 01 1 9510-
129 BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83539-237-1 01 1 9510-
169 SCREW; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94248-807-0 01 1 9510-
