◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10701 - FSR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#38372) — 52 parça

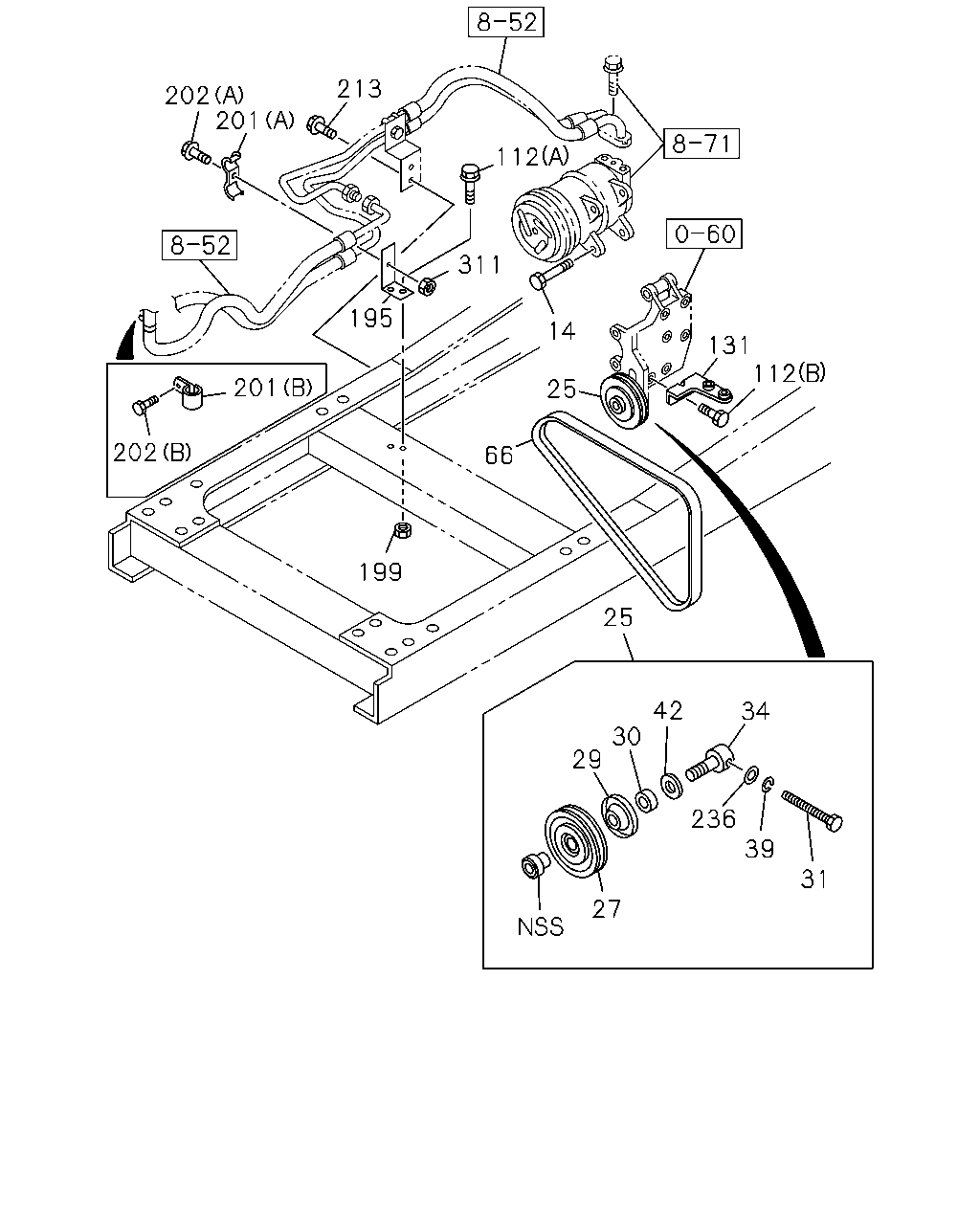

çizim 151877
213 202 201 112 311 195 14 131 112 201 25 202 66 199 25 42 34 30 29 236 39 31 27
BalonParca AdiParca NoAdetTipApplied Date
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 02 1 9510-0512
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28051-045-0 02 1 0601-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 02 1 9510-0512
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94399-957-0 01 1 9510-
27 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-116-0 01 1 9510-
29 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		9-13369-603-0 01 1 9510-
30 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-144-0 01 1 9510-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-143-0 01 1 9510-
34 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-236-0 01 1 9510-
39 WASHER; LK,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 9510-
42 WASHER; PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97014-636-0 01 1 9510-
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 9510-9802
66 BELT; A/C CMPR
6HH1 N ENG(66L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 9803-0004
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 0005-1402
66 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1077 		8-98253-452-0 01 1 1403-
66 BELT; A/C CMPR
6HE1 TCN ENG(58L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110 		8-94395-172-0 01 1 9803-0004
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 9510-0010
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0512
112 BOLT; STAY
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28080-816-0 02 1 0011-0512
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
112 BOLT; STAY
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
112 BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 9510-0010
131 STAY; CMPR BRKT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94393-451-0 01 1 0011-
131 STAY; CMPR BRKT
6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 		8-94393-451-0 01 1 0011-
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-896-0 01 1 9510-1004
195 STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98151-192-0 01 1 1005-
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 9510-9606
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
199 NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 02 1 0603-
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2 		1-83574-190-0 01 1 9510-
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		9-09525-836-0 01 1 9709-0606
201 CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20 		0-95235-836-0 01 1 0607-
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-0512
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9709-0512
202 BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28680-825-0 02 1 9803-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE 		0-28681-035-0 01 1 9806-0306
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28081-045-0 01 1 0307-0512
213 BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE 		0-28051-045-0 01 1 0601-
236 WASHER; PL,ADJ BOLT
AIR CONDITIONER MANUAL CONTROL(C60) 		1-09503-216-0 01 1 9510-
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9606
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-0602
311 NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603-
